Snapper ESPV21, ESPV211 User Manual

Parts Manual fo

r

E

R

21" STEEL DECK EASY LIN

EUROPEAN WALK MOWE

MODEL

ESPV21

ESPV211

Briggs & Startton Yard Power Products Group
Copyright © 2007
Milwaukee, WI USA. All Rights Reserved

Briggs & Startton Corporation

Revision 1,

McDonough, GA, 30253 U.S.A.

1/10/2007

Manual No. 7006207

TP 400-5149-1-WB-N

s

PAGE GROUP

4
6

8
10
12
14
16
18
20

HANDLES & CONTROLS
GUARDS AND COVERS
FRONT WHEELS
REAR WHEELS
REAR DECK BRACKETS & IDLER ARM
TRANSMISSION
ENGINE AND BLADE
BAGGING COMPONENTS
DECALS

Table Of Content

Manual No. 700620721" STEEL DECK EASY LINE

3

TP 400-5149-1-WB-N

HANDLES & CONTROLS

Manual No. 7006207 21" STEEL DECK EASY LINE
TP 400-5149-1-WB-N

4

HANDLES & CONTROLS

p

y

Part No Descri

1 7078247 1 HANDLE, Upper finish: flat black textured
2 7300130 1 PLATE, Control Panel finish: flat black textured
3 7100225 4 SCREW, #8-16 Recessed Pan Head (Torxplus)
4 7028488 1 GUIDE, Rope (1/4-20 threads)
5 7076978 1 NUT, 1/4-20 Hex Nyloc
6 7090391 4 WASHER, 5/16 Internal Tooth Lock
7 7035744 4 KNOB, 5/16-18 Wing (Black)
7 M720727 4 KNOB, 5/16-18 Wing (Black) Briggs part

8A 7100069 1 ASSY, Control Head Variable Speed (Incl. 8, 9, 10, 11, 12, 15 &

16)
8 1 CASE HALF, Bottom not available individually
9 1 SPRING STEEL not available individually

10 1 CLUTCH LEVER, Silver not available individually
11 1 ASS'Y., Speed Lever/Friction Material (Snapper) not available individually;

12 1 CASE HALF, Top, Variable Speed not available individually
13 7078248 1 BAIL, Brake finish: flat black textured
14 7100074 1 * CABLE, Zone Control
15 7100263 1 * CABLE, Clutch
16 7100264 1 * CABLE, Speed
17 7078246 1 HANDLE, Lower finish: flat black textured
18 7024649 2 WIRE TIE, 11 Inch Black Nylon
19 7091189 2 BOLT, 5/16-18 x 2” Curved Head Square Neck, GR 2
20 7300103 2 BRACKET, Lower Handle, Black Textured
21 7091612 2 BOLT, 5/16-18 x 1-1/2” Round Head Square Neck, GR 5
22 7090799 8 BOLT, 5/16-18 x 5/8” Round Head Short Square Neck Carriage
23 7091601 4 NUT, 5/16-18 Hex Flange Lock, GR 5
24 7091135 2 PUSHNUT, 3/8”
25 7100632 2 FOAM GRIP, 7”

tionItem Qt

Note

includes 7100412, Friction Strip

Footnotes:

NOTE: * Snapper part numbers are stamped on cables.

Manual No. 700620721" STEEL DECK EASY LINE

5

TP 400-5149-1-WB-N

GUARDS AND COVERS

Manual No. 7006207 21" STEEL DECK EASY LINE
TP 400-5149-1-WB-N

6

GUARDS AND COVERS

p

y

Part No Descri

1 7078216 1 WELDMENT, 21” Deck, 7 Position
2 7100001 1 REAR COVER, Belt/Transmission
3 7900032 6 SCREW, 7 mm x 1 x .55 AB Point Was 7100059 Rivit
4 7046780 2 PLUG, Hole (Polyethylene)
5 7078225 1 ROD, Trail Shield 1/4-20 thread- both ends
6 7078272 1 SHIELD, Trail
7 7091584 2 NUT, 1/4-20 Hex Flange Lock
8 7090001 2 BOLT, 5/16-18 x 3/4” Short Square Neck Carriage, GR 5
9 7011791 1 BOLT RETAINER, 5/16- Black

10 7029149 1 COVER, 21 Deck Recycling
11 7091169 1 BOLT, 5/16-18 x 1-1/8” Short Square Neck Carriage, GR 5
12 7024340 1 SPACER, .316 x .375 x .300/.310
13 7090951 1 NUT, 5/16-18 Large Flange Hex Center Lock
14 7091070 2 NUT, 5/16-18 Hex Flange Lock
15 7042965 1 CHUTE, 21 Side Discharge
16 7900028 1 NUT, 5/16-18 Speed Shakeproof# FN-614020-1-50)

tionItem Qt

Note

Footnotes:

Manual No. 700620721" STEEL DECK EASY LINE

7

TP 400-5149-1-WB-N

FRONT WHEELS

Manual No. 7006207 21" STEEL DECK EASY LINE
TP 400-5149-1-WB-N

8

FRONT WHEELS

p

y

Part No Descri

1 7011392 1 AXLE, Front, Low Cost Walk Mower, 21
2 7500038 1 ASSEMBLY, Front Wheel Arm, L. H.
3 7051886 1 ASSEMBLY, Front Wheel Arm, R. H.
4 7091601 2 NUT, 5/16-18 Hex Flange Lock
5 7100585 5 WASHER, Shim, .875 x .531 x .060

6A 7100015 2 WHEEL, Front, 8”, LS Tread, 1-5/8” Hub
6B 7101105 2 WHEEL, Front, 8 x 2, Double Bar II Tread, 1-5/8” Hub w/bushing Euro rim

7 7100633 2 GRIP, Height Latch replaces 7027702 (voided)
8 7091193 2 COTTER, Hairpin
9 7100088 2 HUB CAP, 1-3/8” Dia. black

10 7011393 1 FRONT WHEEL ARM, L.H. (Square Hole)
11 7031017 1 FRONT WHEEL ARM, R.H. (Round Hole)
12 7015761 2 SHOULDER BOLT, 5/16-18
13 7011791 2 BOLT RETAINER, 5/16- Black
14 7012325 2 HEIGHT LATCH V21

tionItem Qt

Note

Footnotes:

Manual No. 700620721" STEEL DECK EASY LINE

9

TP 400-5149-1-WB-N

REAR WHEELS

Manual No. 7006207 21" STEEL DECK EASY LINE
TP 400-5149-1-WB-N

10

REAR WHEELS

p

y

Part No Descri

1A 7100184 2 ASSY., 9” x 2” Gear Wheel, LS Tread & P. M. Bushing gray rim
1B 7101104 2 ASSY., 9” x 2” Gear Wheel, Double Bar II Tread & Nylon Bushing
2A 7073618 BUSHING, Wheel (powdered metal) part of item 1A
2B 7024541 BUSHING, Wheel (Nylon) part of item 1B

3 7091192 2 WASHER, 1/2” Flat
4 7091193 2 COTTER, Hairpin
5 7100114 2 HUB CAP, 3-1/4” Diameter black
6 7024749 2 PAWL, 3/16” O.D.
7 7500041 2 ASSEMBLY, Axle Bearing incl. items 8 & 9
8 7078214 1 HOUSING, Axle Bearing
9 7078243 1 BALL BEARING, Axle .50 I.D. x 1.125 O.D. x .3125

10 7090699 4 BOLT, 1/4-20 x 3/4” Hex Flange Lock
11 7078235 1 ASSEMBLY, Axle Arm, Left Rear
12 7078236 1 ASSEMBLY, Axle Arm, Right Rear
13 7100633 2 GRIP, Height Latch replaces 7027702 (voided)
14 7900010 2 SNAP RING, 1-3/8” Truarc 5100-137
15 7078269 2 SHIELD, Dust
16 7100644 2 WASHER, .531 x 1.25 x .063 or 7091194 (1.50 O.D.)
17 7014341 4 RETAINING RING Waldes 5133-50
18 7026478 2 RETAINER, Pinion Seal
19 7026479 2 SEAL, Pinion (Felt)
20 7024550 1 PINION, LH Drive
21 7024549 1 PINION, RH Drive
22 7100627 2 O-RING, Buna N, 018
23 7100626 2 O-RING, Buna N, 124

tionItem Qt

Note

thick

Footnotes:

Manual No. 700620721" STEEL DECK EASY LINE

11

TP 400-5149-1-WB-N

REAR DECK BRACKETS & IDLER ARM

Manual No. 7006207 21" STEEL DECK EASY LINE
TP 400-5149-1-WB-N

12

REAR DECK BRACKETS & IDLER ARM

p

y

Part No Descri

1 7027174 1 SCREW, 5/16-18 x 2” Hex Head Cap, GR 5
2 7091256 1 SCREW, 1/4-20 x 2-1/4” Hex Head Cap, GR 5
3 7091601 5 NUT, 5/16-18 Hex Flange Lock
4 7090799 3 BOLT, 5/16-18 x 5/8” Round Head Short Square Neck Carriage

5A 7300047 1 BRACKET, Transmission Mounting
5B 7300494 1 BRACKET, Transmission Mounting

6 7100122 1 SPACER, 3/8 x 13/16 x 5/32
7 7091545 1 NUT, 1/4-20 Hex Top Lock Flange
8 7091619 2 NUT, 3/8-16 Hex Flange Lock
9 7091331 1 WASHER, 13/32 x 1-1/2 x 1/8” Flat

10 7300020 1 IDLER ARM, Belt Drive
11 7300196 1 BELT GUIDE, Idler
12 7100856 2 PULLEY, Flat Idler, Plastic replaces 7078245
13 7090614 1 BOLT, 3/8-16 X 1-1/2” Hex Flange Lock, GR 5
14 7100062 1 SPACER, Pivot, Belt Idler
15 7100063 1 SPACER, Idler
16 7300013 1 SHIELD, Debris
17 7900009 1 BOLT, 3/8-16 x 2-1/4” Short Square Neck Carriage, GR 5

tionItem Qt

Note

Footnotes:

Manual No. 700620721" STEEL DECK EASY LINE

13

TP 400-5149-1-WB-N

TRANSMISSION

Manual No. 7006207 21" STEEL DECK EASY LINE
TP 400-5149-1-WB-N

14

TRANSMISSION

p

y

Part No Descri

1 7500103 1 TRANSMISSION, LC Walk, Variable Speed includes pulley

1 TRANSMISSION, Dog Clutch not a part sales item
2 7100240 1 PULLEY, Transmission
3 1960251 1 NUT, 3/8-16 Hex Center Lock Jam
4 7012316 2 WASHER, .390 I.D.
5 7100395 1 BELT GUIDE, Variable Speed (1/4-20 threads)
6 7091545 1 NUT, 1/4-20 Hex Top Lock Flange
7 7100058 1 * BELT, 3L, Traction Drive 38.125 Nominal O.D.
8 7900032 8 SCREW, 7mm x 1 x .550 AB Point
9 7100966 1 SPRING, Return, Clutch

tionItem Qt

Note

Footnotes:

NOTE: * Part number is printed on back edge of belt.

Manual No. 700620721" STEEL DECK EASY LINE

15

TP 400-5149-1-WB-N

ENGINE AND BLADE

Manual No. 7006207 21" STEEL DECK EASY LINE
TP 400-5149-1-WB-N

16

ENGINE AND BLADE

p

y

Part No Descri

1 1 * ENGINE, 6.5 B&S Quantum, Euro Model 123K020142E1
1 1 * ENGINE, 6.0 B&S Quantum, Euro Model 12H8021843B1
2 7090324 1 SCREW, 3/8-16 x 1” Hex Washer Self-Tap
3 7091088 2 SCREW, 3/8-16 x 2” Hex Washer Self-Tap
4 7100022 2 GUIDE, Belt
5 7200010 2 SPACER, Belt Guide
6 7100437 1 PULLEY, Engine
7 7091214 1 KEY, Hi-Pro (# HP-506)
8 7092086 1 SET SCREW, 5/16-18 x 1/2” Hex Recess Type A Point (Cup Point)
9 7015626 1 HUB, Blade Drive, 25M I.D.

10 7100242 1 BLADE, Wave, 21” Steel Deck
11 7012063 1 WASHER, Cone
12 7090167 1 SCREW, 3/8-24 x 2” Hex Head Cap, GR 5

tionItem Qt

Note

Footnotes:

NOTE: * Purchase engine parts from engine manufacturer dealer.

Manual No. 700620721" STEEL DECK EASY LINE

17

TP 400-5149-1-WB-N

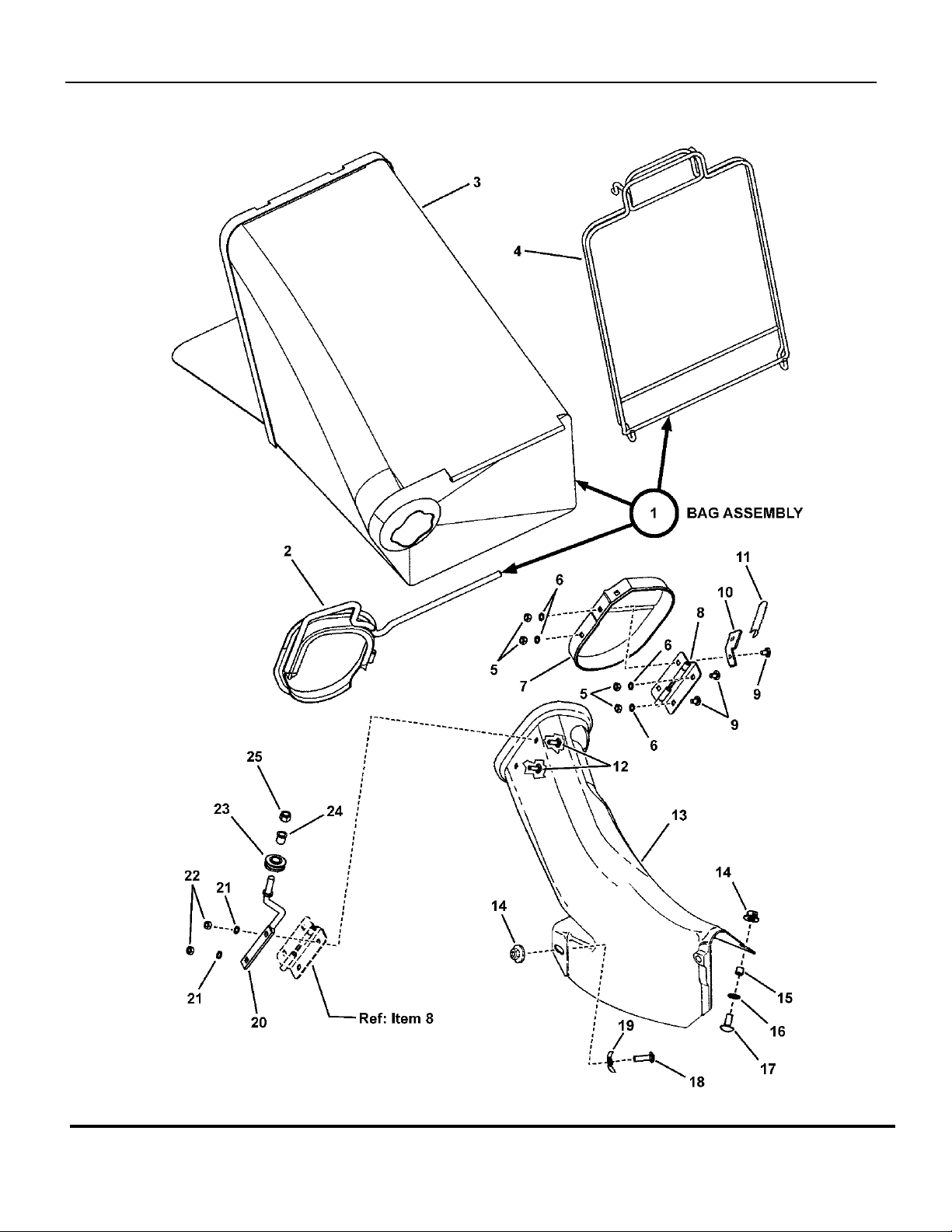

BAGGING COMPONENTS

Manual No. 7006207 21" STEEL DECK EASY LINE
TP 400-5149-1-WB-N

18

BAGGING COMPONENTS

p

y

Part No Descri

1 7058571 1 BAG ASSEMBLY (Door) includes items 2 thru 4
2 7042489 1 CONNECTOR, Bag (weldment)
3 7075765 1 GRASS BAG (Door w/silver letters)
4 7051906 1 ASSEMBLY, Bag Wire (12”) 21S
5 7091100 4 NUT, 1/4-20 Hex
6 7091023 4 WASHER, 1/4” Internal Tooth Lock
7 7019287 1 COVER, Bag Adapter
8 7023000 1 HINGE, Chute Cover
9 7090803 5 BOLT, 1/4-20 x 5/8” Flat Head Square Neck, GR 5 or 7091064 (1/4-20 x 1/2”

10 7032661 1 STOP, Cover
11 7023042 1 TRIM, Moulding
12 7091530 2 BOLT, 1/4-20 x 3/4” Short Square Neck Carriage, GR 5
13 7016107 1 ADAPTER, Bag 21
14 7090951 2 NUT, 5/16-18 Large Flange Hex Center Lock
15 7024340 1 SPACER, .316 x .375 x .300/.310
16 7011791 3 BOLT RETAINER, 5/16- Black
17 7090001 1 BOLT, 5/16-18 x 3/4” Short Square Neck Carriage, GR 5
18 7091833 1 SCREW, 5/16-18 x 5/8” Cross Recess Pan Head
19 7900028 1 NUT, 5/16-18 Speed Shakeproof# FN-614020-1-50)
20 7100582 1 ROD, Rope Pulley (3/8-16 thread)
21 1916964 2 LOCKWASHER, 1/4” Spring
22 7090977 2 NUT, 1/4-20 Hex Jam, GR 5 or B
23 7024228 1 PULLEY, Nylon
24 7012306 1 BUSHING, Flange, .381 x .625 x .62
25 7091299 1 NUT, 3/8-16 Hex Nyloc

tionItem Qt

Note

Square Neck Carriage Bolt,
Grade 5)

Footnotes:

Manual No. 700620721" STEEL DECK EASY LINE

19

TP 400-5149-1-WB-N

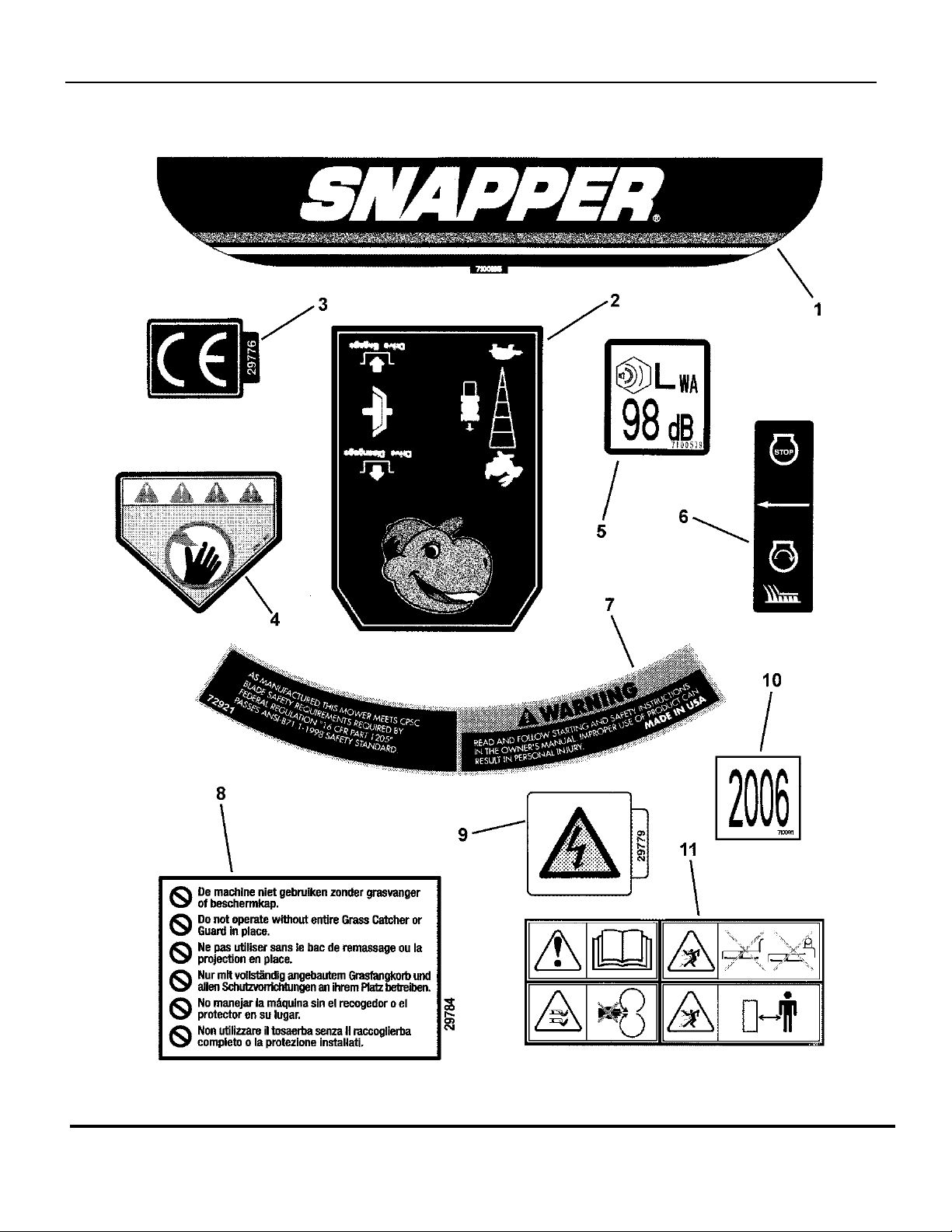

DECALS

Manual No. 7006207 21" STEEL DECK EASY LINE
TP 400-5149-1-WB-N

20

DECALS

p

y

Part No Descri

1 7100185 1 DECAL, SNAPPER, Steel Decks
2 7100342 1 DECAL, Control Head, Variable Speed
3 7029776 1 DECAL,Euro Community (CE)
4 7022841 1 DECAL, Warning (Euro)
5 7100579 1 DECAL, Noise, 98 DB
6 7029782 1 DECAL, OPC Bail International Symbol
7 7072921 1 DECAL, Warning (Deck)
8 7029784 1 DECAL, Deck/Chute International Warning
9 7029779 1 DECAL, Spart Plug International Symbol

10 7011279 1 DECAL, 2005 Year of Manufacture not shown
10 7100611 1 DECAL, 2006 Year of Manufacture
11 7101084 1 DECAL, Warning, Euro, Multi-Panel
12 1 DECAL, Patent Numbers not shown; not a service part

tionItem Qt

Note

Footnotes:

Manual No. 700620721" STEEL DECK EASY LINE

21

TP 400-5149-1-WB-N

Parts Manual fo

r

21" STEEL DECK EASY LINE
EUROPEAN WALK MOWER

IT IS THE POLICY OF BRIGGS & STRATTON CORP TO IMPROVE ITS

PRODUCTS WHENEVER IT IS POSSIBLE AND PRACTICAL TO DO SO.

WE RESERVE THE RIGHT TO MAKE CHANGES OR ADD

IMPROVEMENTS AT ANY TIME WITHOUT INCURRING ANY

OBLIGATION TO MAKE SUCH CHANGES ON PRODUCTS

Briggs & Startton Yard Power Products Group
Copyright © 2007
Milwaukee, WI USA. All Rights Reserved

Briggs & Startton Corporation

Revision 1,

McDonough, GA, 30253 U.S.A.

1/10/2007

Manual No. 7006207

TP 400-5149-1-WB-N
