Snapper ERZT185440BVE, ERZT20441BVE2, RZT22500BVE2, RZT22501BVE2 User Manual

Parts Manual fo

r

Z

RZT TWIN STICK HYDRO DRIVE 250

44" & 50"

SERIES 0 & 1

MODEL

ERZT185440BVE (7800072)
ERZT20441BVE2 (7800158)

RZT22500BVE2 (7800011)
RZT22501BVE2 (7800153)

Briggs & Startton Yard Power Products Group
Copyright © 2007
Milwaukee, WI USA. All Rights Reserved

Briggs & Startton Corporation

Revision D,

McDonough, GA, 30253 U.S.A.

10/31/2007

Manual No. 7006461

TP 400-5182-D-HZ-N

s

PAGE GROUP

4
6

8
10
12
16
20
24
28
32
36
38
40
42
46
50
54
56
60
62
66
68
70
72
74

WHEEL GROUP
FRONT AXLE GROUP
FRAME GROUP
TRANSAXLE GROUP
CONTROL GROUP, LH, RZT
CONTROL GROUP, RH, RZT
CONTROL GROUP, LH, ERZT (Series 0)
CONTROL GROUP, RH, ERZT (Series 0)
CONTROL GROUP, LH, ERZT (Series 1)
CONTROL GROUP, RH, ERZT (Series 1)

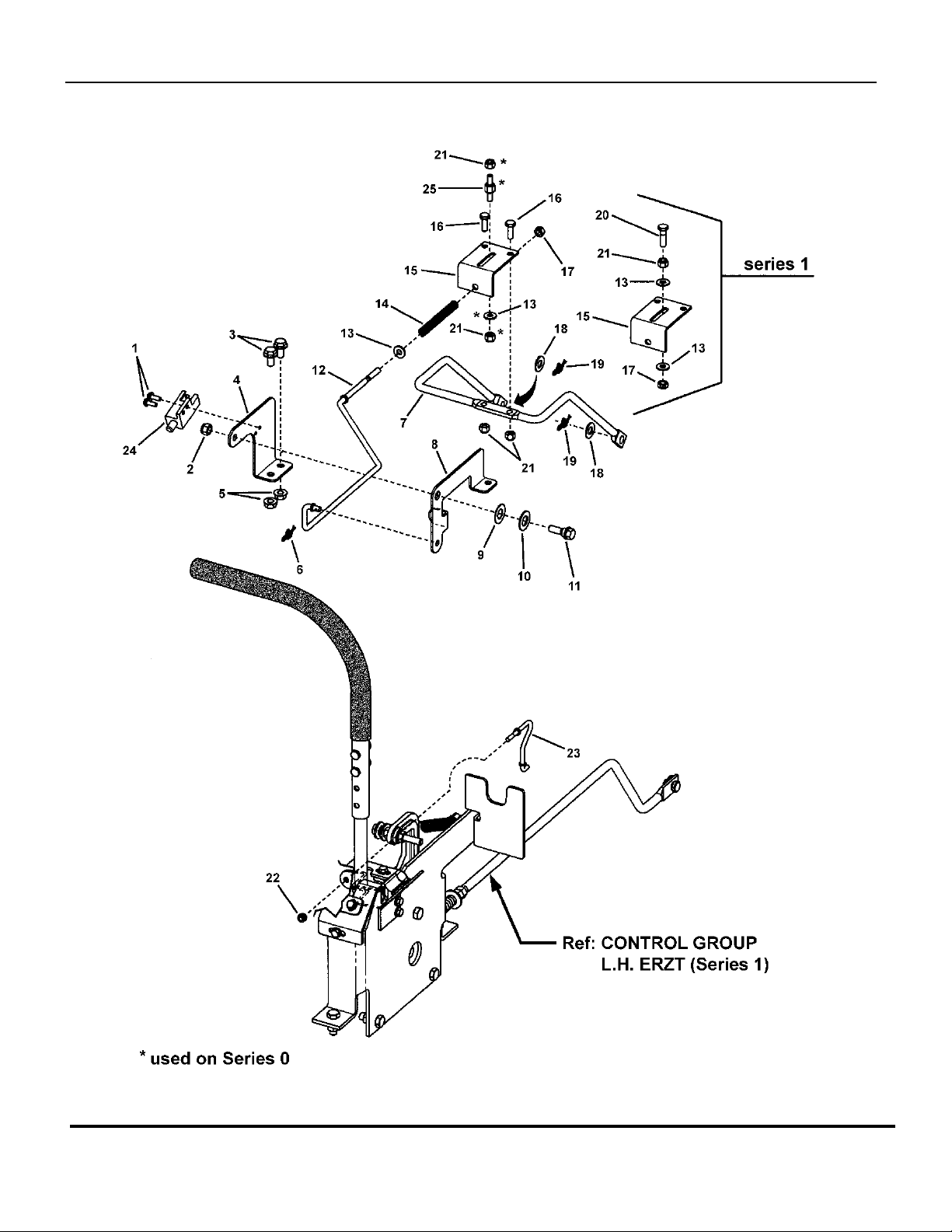

PARK BRAKE GROUP

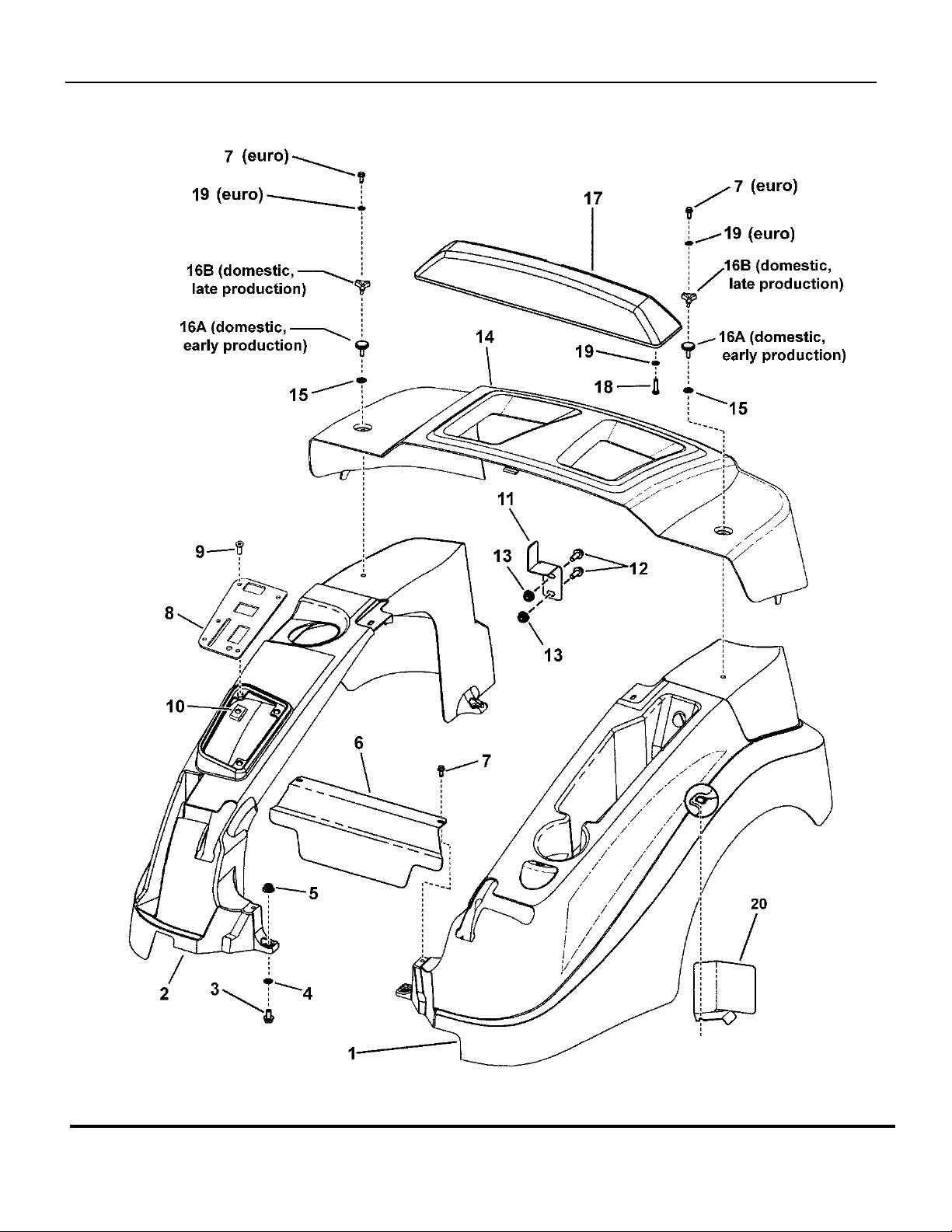

SNAPPER FENDER GROUP
SEAT GROUP
ENGINE GROUP (18.5 HP Briggs Intek)
ENGINE GROUP (20 & 22HP Briggs V-Twin)

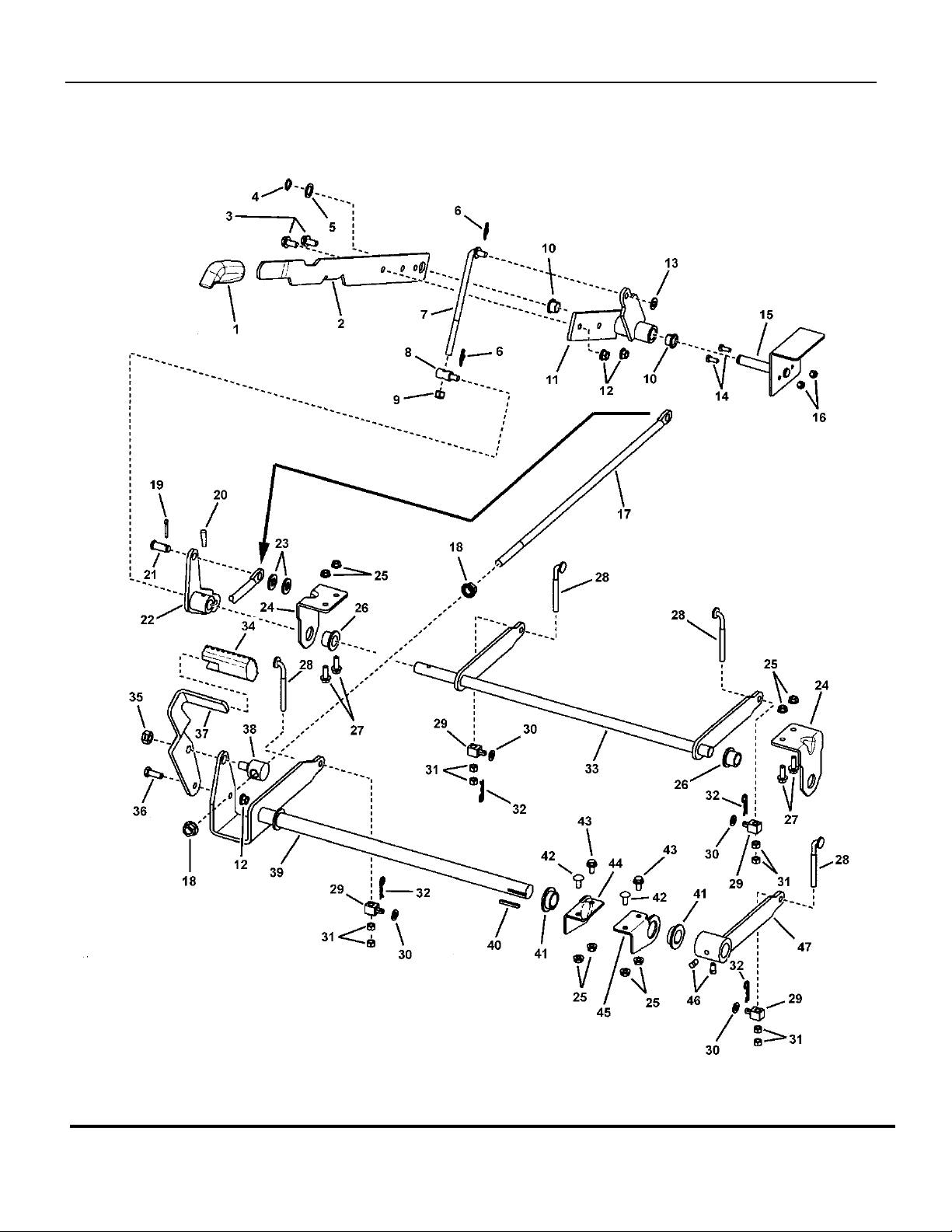

DECK LIFT GROUP (44/50)

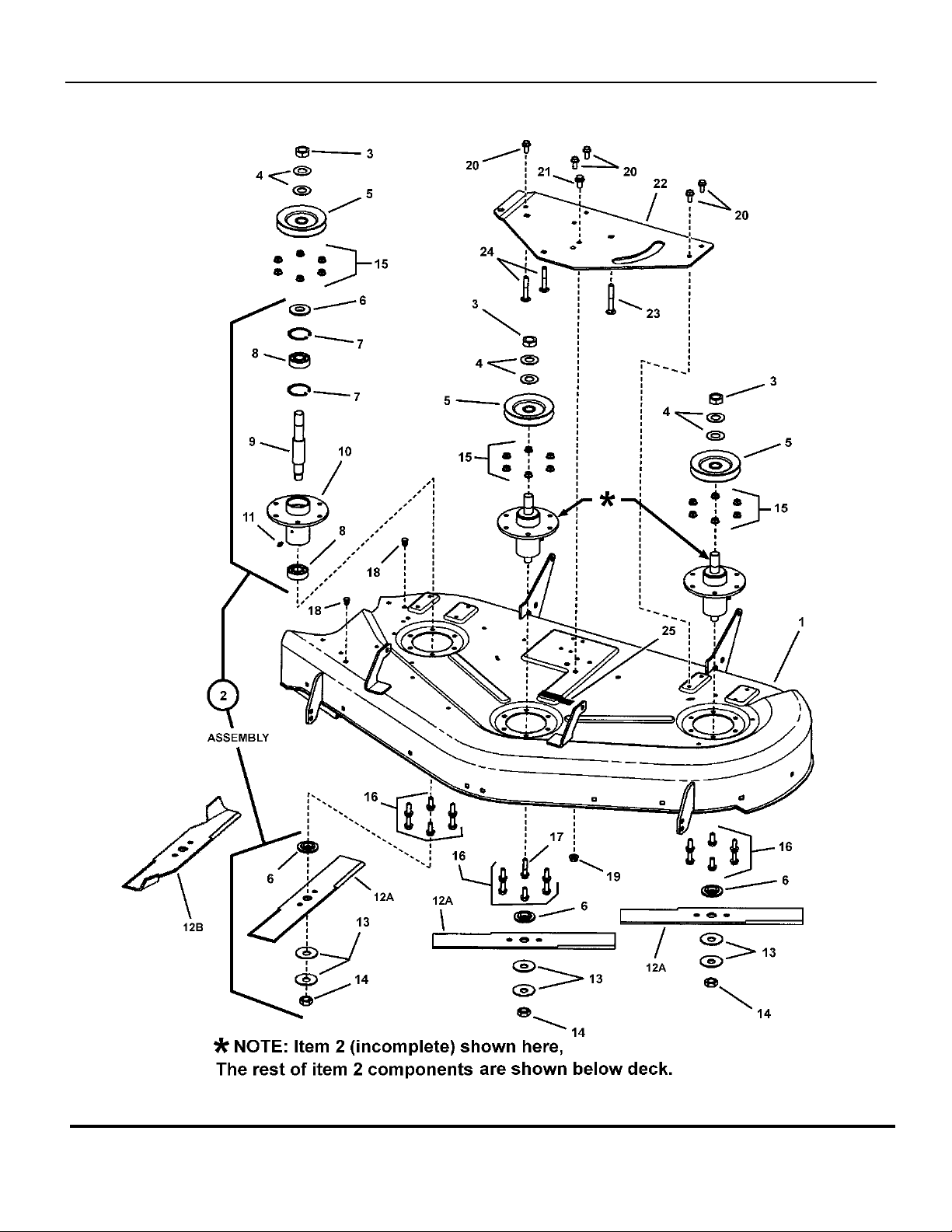

44" DECK GROUP (Sub-Assembly) ERZT
44" DECK GROUP (Final-Assembly) ERZT

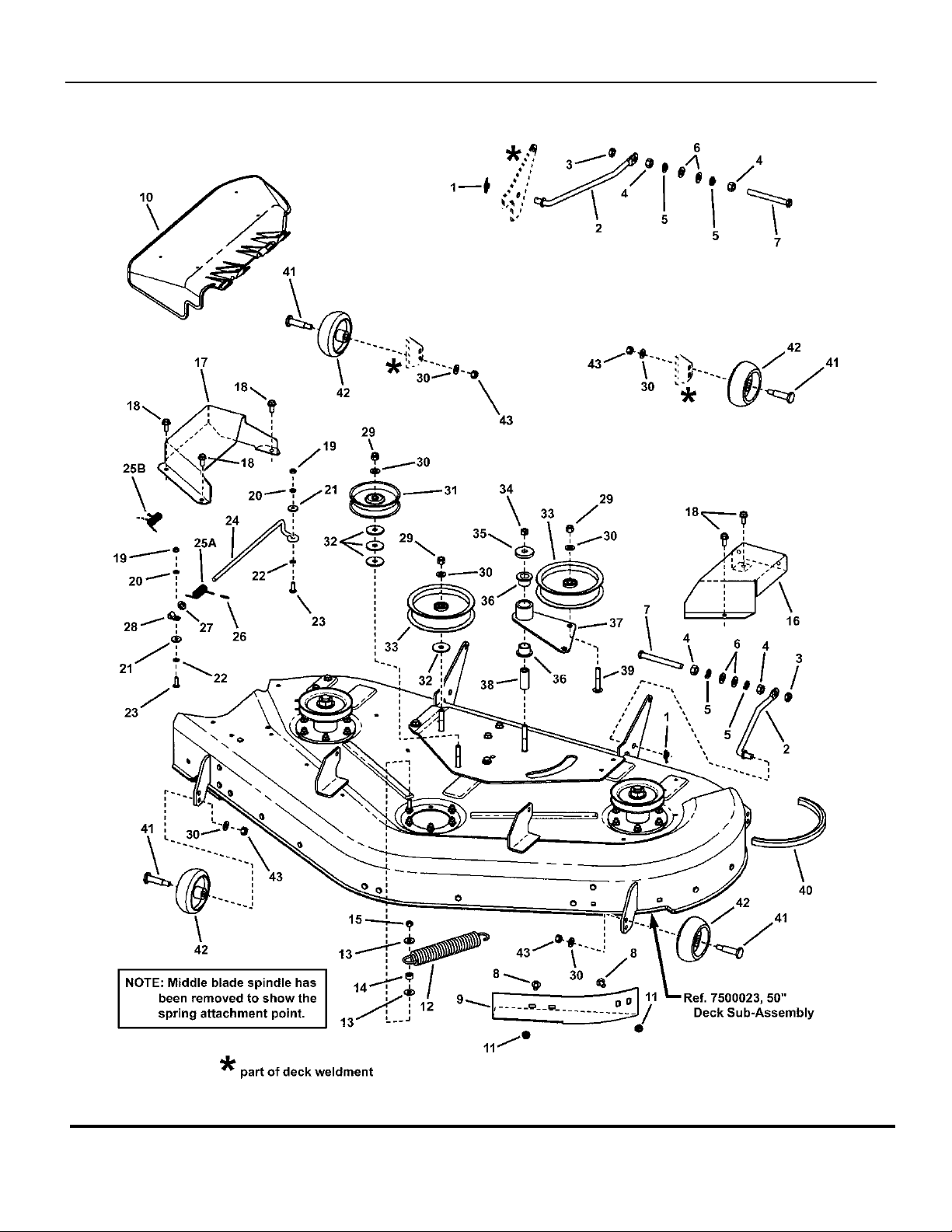

50" DECK GROUP (Sub-Assembly)
50" DECK GROUP (Final Assembly)

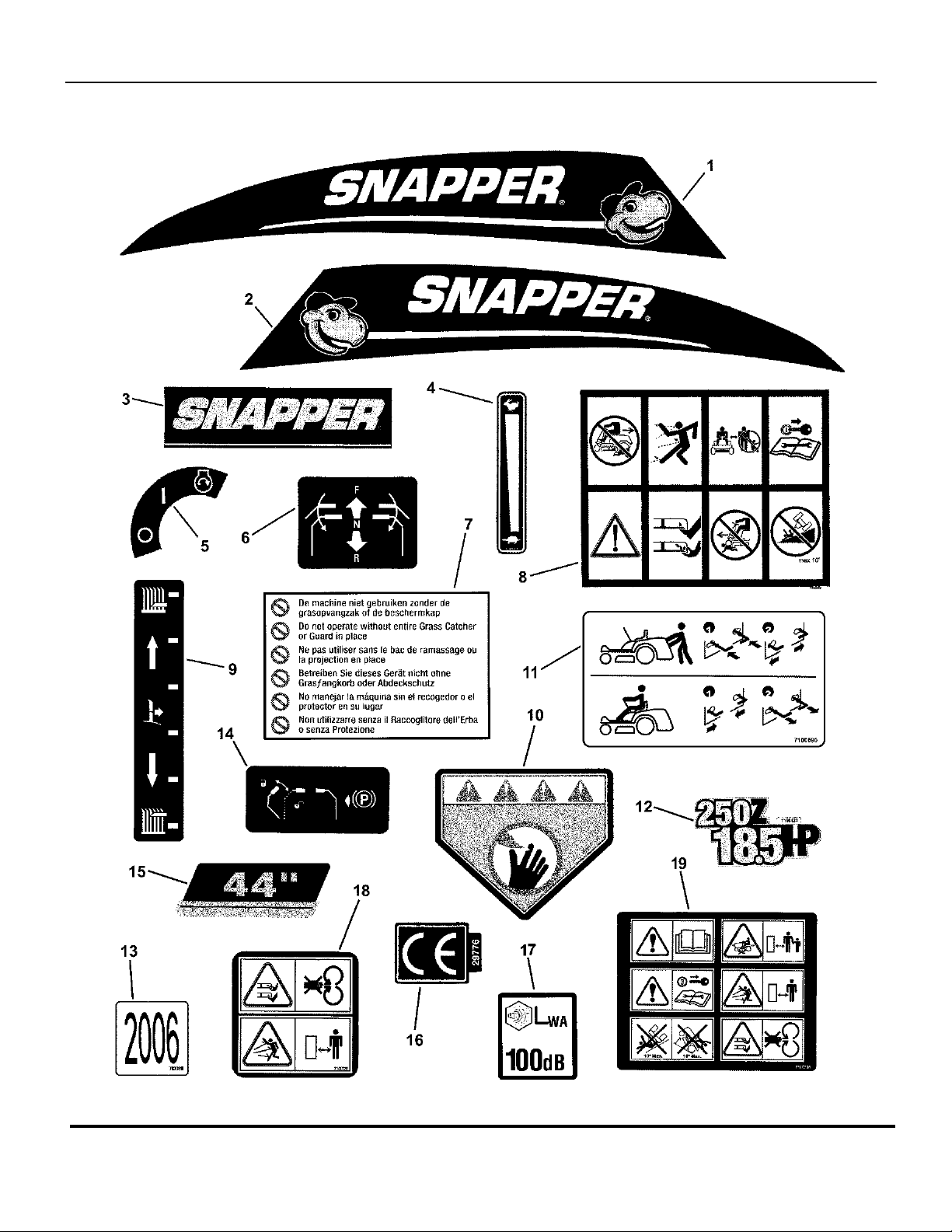

DECAL GROUP, Snapper RZT
DECAL GROUP, Snapper Euro RZT

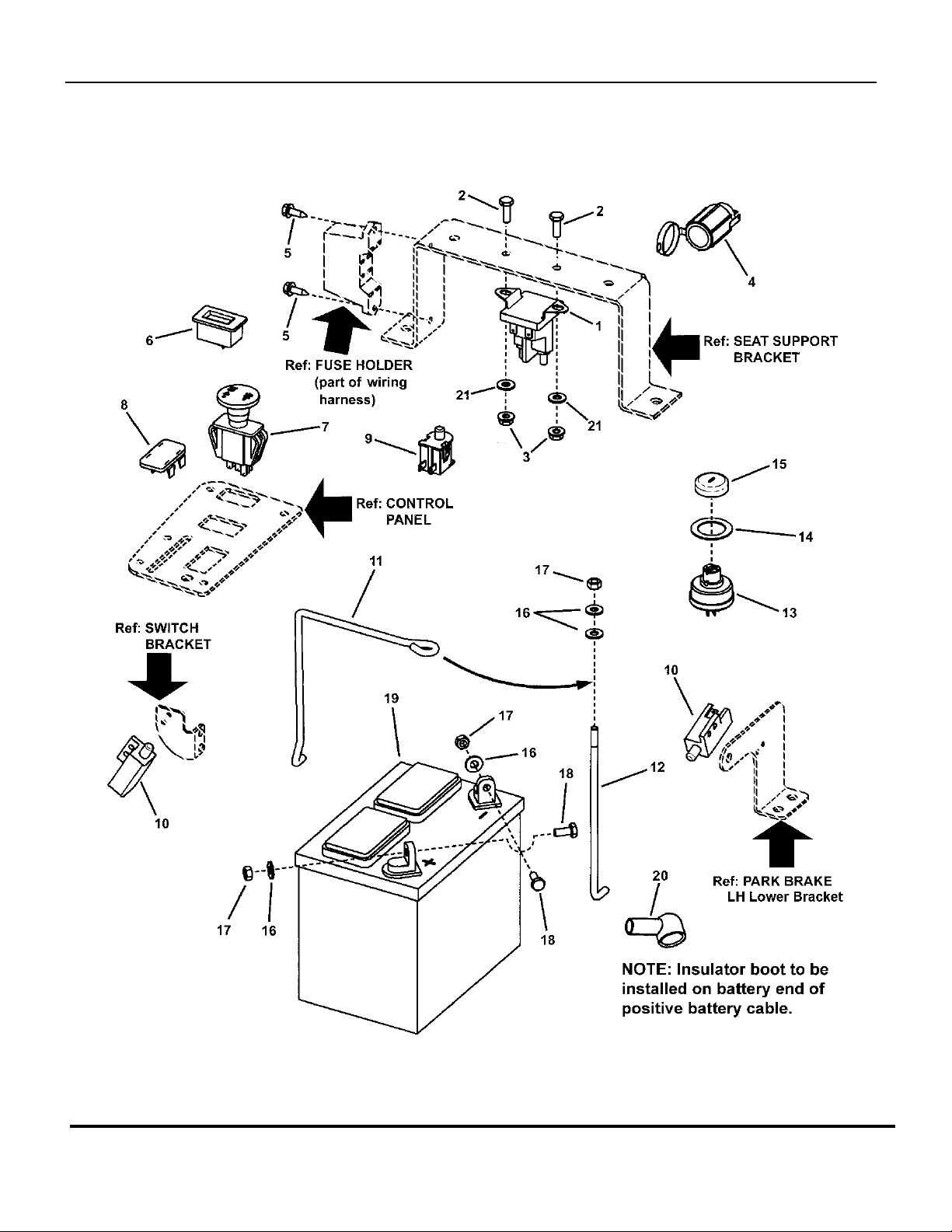

ELECTRICAL GROUP

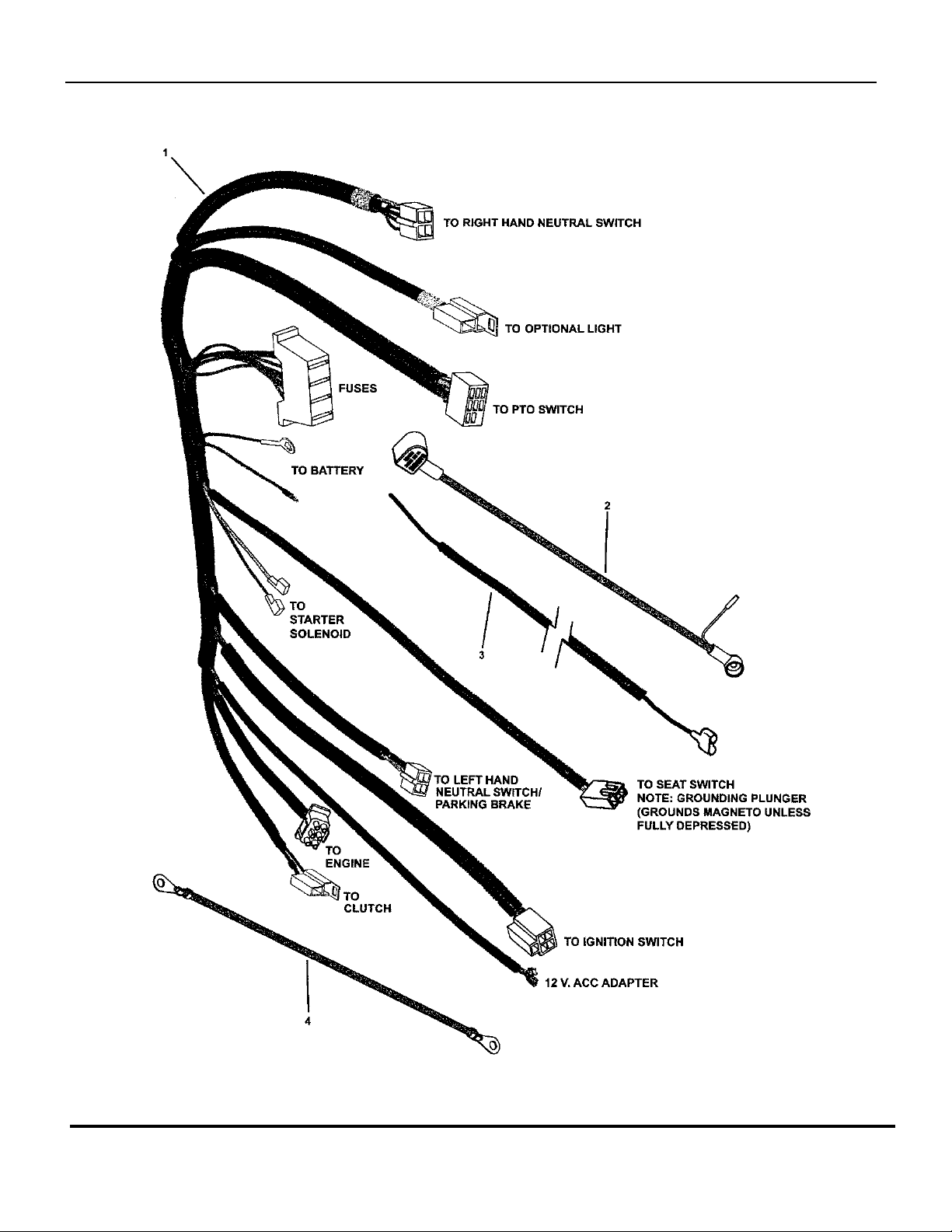

WIRING HARNESS
WIRING SCHEMATIC (Briggs Engine)

Table Of Content

SERIES 0 & 1

Manual No. 7006461RZT TWIN STICK HYDRO DRIVE 250 Z

3

TP 400-5182-D-HZ-N

Manual No. 7006461 RZT TWIN STICK HYDRO DRIVE 250 Z
TP 400-5182-D-HZ-N

4

SERIES 0 & 1

WHEEL GROUP

p

y

Part No Descri

1 7059090 2 ASSEMBLY, Front Wheel & Tire
2 7039477 1 RIM, Caster Wheel
3 7035618 1 TIRE, 11 x 4.00-5, Smooth Tread
4 7035358 2 BALL BEARING, .625 x 1.38
5 7029275 1 GREASE FITTING, 1/4-28 thread forming Alemite #3038-B
6 7012234 1 VALVE STEM, Snap In
7 7091772 2 SCREW, 7/16-14 x 6”, Hex Head Cap, GR 5
8 7035359 2 TUBE, 5/8 O.D. x 14 Ga. Wall x 4.510” long caster wheel spacer

9 7090839 2 NUT, 7/16-14 Hex Center Lock, GR 5 or B
10 7050538 2 ASS'Y. 18 x 8.50-8 Tire/Wheel, Turf Master, PMS 877 Silver
11 7078113 1 RIM, 18 x 8.50, 4 Bolt
12 7078109 1 TIRE, 18 x 8.50-8, Turf Master
13 7027192 8 LUG NUT 1/2-20 Tapered Seat YZ

tionItem Qt

Note

Footnotes:

Manual No. 7006461RZT TWIN STICK HYDRO DRIVE 250 Z

SERIES 0 & 1

5

TP 400-5182-D-HZ-N

FRONT AXLE GROUP

Manual No. 7006461 RZT TWIN STICK HYDRO DRIVE 250 Z
TP 400-5182-D-HZ-N

6

SERIES 0 & 1

FRONT AXLE GROUP

p

y

Part No Descri

1 7100321 1 FRONT AXLE, Cast (Cardinal Red)

2 7013864 3 LUBE FITTING, 3/16” Press-In

3 7400075 2 WELDMENT, Caster (Cardinal Red)

4 7013855 4 THRUST WASHER, 1” I.D.

5 7012709 2 RETAINING RING, 1” External

6 7091558 1 SCREW, 1/2-13 x 3-1/2” Hex Head Cap, YZ

7 7090250 2 WASHER, 1/2” SAE Flat

8 7011309 2 SPACER, Axle Pivot

9 7012706 2 BEARING SLEEVE
10 7091894 1 NUT, 1/2-13 Hex Center Lock, GR 5, YZ
11 7300187 1 BRACKET, Axle (Cardinal Red)
12 7091905 6 BOLT, 5/16-18 x 7/8” Hex Flange Lock
13 7091601 6 NUT, 5/16-18 Hex Flange Lock, GR 5
14 7091508 8 BOLT, 5/16-18 x 3/4” Short Neck Carriage, GR 5
15 7091706 20 NUT, 5/16-18 Hex Top Lock, GR B
16 7100417 2 PLATE, Friction
17 7077683 8 SCREW, 5/16-18 x 1” Flat Head Countersunk
18 7300004 2 BRACKET, Axle Support
19 7090188 8 WASHER, .34 x .69 x .08 Flat
20 7091318 4 SCREW, 5/16-18 x 3/4” Hex Head Cap, GR 5, YZ

tionItem Qt

Note

Footnotes:

Manual No. 7006461RZT TWIN STICK HYDRO DRIVE 250 Z

SERIES 0 & 1

7

TP 400-5182-D-HZ-N

FRAME GROUP

Manual No. 7006461 RZT TWIN STICK HYDRO DRIVE 250 Z
TP 400-5182-D-HZ-N

8

SERIES 0 & 1

FRAME GROUP

p

y

Part No Descri

7500012 1 SUB-ASSEMBLY, Frame, (Red Paint) includes 22 Items shown below
1 7300181 1 FRAME, RZT (Cardinal Red)
2 7091601 12 NUT, 5/16-18 Hex Flange Lock, GR 5
3 7300006 1 TANK BRACKET
4 7091811 4 BOLT, 5/16-18 x 5/8” Hex Flange Lock, GR 5
5 7300184 1 FOOTREST, Snapper (Cardinal Red)
6 7091508 6 BOLT, 5/16-18 x 3/4” Short Neck Carriage, GR 5
7 7300226 1 PLATE, Rear Seat Guard
8 7091905 8 BOLT, 5/16-18 x 7/8” Hex Flange Lock, YZ
9 7043307 1 HEAT SHIELD finish: black powder coat

10 7043309 2 BRACKET, Body Support
11 7091742 2 SCREW, 5/16-18 x 1” Hex Washer Self-Tap, GR 5
12 7300342 2 BRACE, Hood/Fender
13 7091070 2 NUT, 5/16-18 Hex Flange Lock, GR 5
14 7091894 1 NUT, 1/2-13 Hex Center Lock, GR 5, YZ
15 7044760 1 SPRING, Torsion, RH Wind
16 7400021 1 WELDMENT, Hydro Idler
17 7200034 1 SPACER, Hydro Idler
18 7091587 1 WASHER, .531 x 1.062 x .121 Flat, YZ
19 7091218 1 SCREW 1/2-13 x 2-1/2” Hex Head Cap, GR 5 (Black Phosphate)
20 7100103 1 IDLER, 3.25” OD x .391 ID x 1.63 Backside
21 7090122 1 WASHER, 3/8” Flat SAE
22 7091585 1 NUT, 3/8-16 Hex Center Lock, GR 5 or B, YZ
23 7100266 1 MAT, Foot Rest RZT
24 7100287 1 MAT, Floor Pan

tionItem Qt

Note

Footnotes:

Manual No. 7006461RZT TWIN STICK HYDRO DRIVE 250 Z

SERIES 0 & 1

9

TP 400-5182-D-HZ-N

TRANSAXLE GROUP

Manual No. 7006461 RZT TWIN STICK HYDRO DRIVE 250 Z
TP 400-5182-D-HZ-N

10

SERIES 0 & 1

TRANSAXLE GROUP

p

y

Part No Descri

1 7400020 1 WELDMENT, Transaxle Support
2 7100229 2 ROD, Roll Release
3 7091294 2 WASHER, .28 x .63 x .06 Flat, GR 5
4 7012431 2 HAIR PIN, 1-1/8”
5 7091541 8 SCREW, 5/16-18 x 3/4” Hex Washer Self-Tap
6 7014664 2 SHOULDER BOLT, 5/16-18 .530 long shoulder
7 7091298 12 NUT, 5/16-18 Hex Nyloc
8 7078112 1 TRANSAXLE, LH RZT ZA-AHBB-2D5A-2DCX
9 7078111 1 TRANSAXLE, RH RZT ZA-DHBB-2D5A-2DCX

10 7300082 1 BRACKET, Anti-Rotation
11 7200046 1 PIN, Anti-Rotation, RZT Clutch
12 7091601 1 NUT, 5/16-18 Hex Flange Lock, GR 5
13 7091908 2 SCREW, 5/16-18 x 1-3/4” Hex Head Cap, GR 5, YZ
14 7091830 4 SCREW, 5/16-18 x 3” Hex Head Cap, GR 5, YZ
15 7015686 8 SHIM WASHER, 5/16” I.D.
16 7091944 4 SCREW 5/16-18 x 2-3/4” Hex Head Cap, GR 5, YZ
17 7300000 2 BRACKET, Transaxle Support
18 7100102 1 V-BELT, HA Sect. (wrapped) 58.00 effective length hydro drive
19 7090188 8 WASHER, .34 x .69 x .08 Flat
20 7091703 2 SCREW, 7/16-20 x 2-1/2” Hex Head Cap, GR 5 (Special Head) or 7900027 (7/16-20 x 4” Hex

21 7090377 2 NUT, 7/16-20 Hex Center Lock Jam, GR 5 or B
22 2159106 1 SPRING, Extension, .562 OD x 4.250 long x .049 Wire B or 0159106
23 7300554 1 GUARD, Euro 44
24 7100605 2 PAD, Rubber Adhesive
25 7091198 2 SCREW, 3/8-16 x 5/8” Hex Washer Self-Tap
26 1735484 2 ARM, Control Kit (Used on both R.H. & L.H.

tionItem Qt

Note

Head Cap Screw)

Transaxle)

Footnotes:

Manual No. 7006461RZT TWIN STICK HYDRO DRIVE 250 Z

SERIES 0 & 1

11

TP 400-5182-D-HZ-N

CONTROL GROUP, LH, RZT

Manual No. 7006461 RZT TWIN STICK HYDRO DRIVE 250 Z
TP 400-5182-D-HZ-N

12

SERIES 0 & 1

CONTROL GROUP, LH, RZT

p

y

Part No Descri

1 7043338 1 HANDLE
2 7043336 1 WELDMENT, LH Control Arm (5/8” dia. Rod)
3 7100051 1 FOAM GRIP, Handle
4 7013874 2 BUSHING, Bronze, 5/8 x 5/8”
5 7043301 1 WELDMENT, Control Arm, LH
6 7900016 1 WASHER, 5/8 ID x 1.00 OD x .065 Nylon
7 7027344 1 WASHER, 5/8” Flat SAE
8 7011121 1 WASHER, .64 x 1.12 x .028 Beveled
9 7090658 2 NUT, 5/8-18 Hex Jam

10 7200012 1 SHOULDER BOLT, 3/8-16
11 1670971 1 THRUST WASHER, .562 ID x 1.000 OD x .030/.032 Thick
12 7014409 2 FLANGE BEARING, 9/16 I.D. P.M.
13 7091299 2 NUT, 3/8-16 Hex Nyloc
14 7900003 1 SHOULDER BOLT, 5/16 x 1/4-20
15 5022978 1 DAMPENER, Hydraulic
16 7200006 1 SPACER, 9/16 OD x 12GA x .325
17 7100415 2 WASHER, 1/4” I.D. Flat
18 7091603 2 NUT, 1/4-20 Hex Nyloc
19 7900002 1 SHOULDER BOLT, 5/16 x 1/4-20
20 7200005 1 SPACER, 9/16 OD x 12GA x .899
21 7900029 2 SCREW, 1/4-20 x 1-1/4” Hex Head Cap, GR 5
22 7092126 2 NUT 1/4-20 Hex Center Lock, GR 5 YZ
23 7091686 8 SCREW, 1/4-20 x 3/4” Hex Washer Self-Tap
24 7300009 1 PLATE, Fwd/Rev Adjust
25 7300010 1 TRACK, Control Stick, L.H.
26 7043302 1 CONTROL BRACKET, LH
27 7091304 4 SCREW, 3/8-16 x 1” Hex Head Cap, GR 5, YZ
28 7091619 4 NUT, 3/8-16 Hex Flange Lock
29 7300264 1 BRACKET, Rod Holder, RZT
30 7091095 2 POP RIVET, 1/8 x 3/8”

7500059 1 ASSEMBLY, Fwd/Rev Rod incl. items 31, 33, 34, 35 & 36

31 7027936 1 ROD END
32 7091497 1 SCREW, 3/8-16 x 1-1/2” Hex Head Cap, GR 5
33 7091630 2 NUT, 3/8-24 Hex, GR B, YZ
34 7090517 3 WASHER, 3/8” Flat
35 7074511 1 SPRING, Compression (Brake)
36 7200009 1 ROD, Link Fwd./Rev. (3/8-24 thread)

tionItem Qt

Note

Footnotes:

Manual No. 7006461RZT TWIN STICK HYDRO DRIVE 250 Z

SERIES 0 & 1

13

TP 400-5182-D-HZ-N

CONTROL GROUP, LH, RZT

Manual No. 7006461 RZT TWIN STICK HYDRO DRIVE 250 Z
TP 400-5182-D-HZ-N

14

SERIES 0 & 1

CONTROL GROUP, LH, RZT

p

y

Part No Descri

37 7900000 1 CLEVIS PIN, 7/16 x 1”
38 7091594 1 COTTER PIN, 1/2 Self Locking, YZ
39 7100487 1 CLIP, Spring

tionItem Qt

Note

Footnotes:

Manual No. 7006461RZT TWIN STICK HYDRO DRIVE 250 Z

SERIES 0 & 1

15

TP 400-5182-D-HZ-N

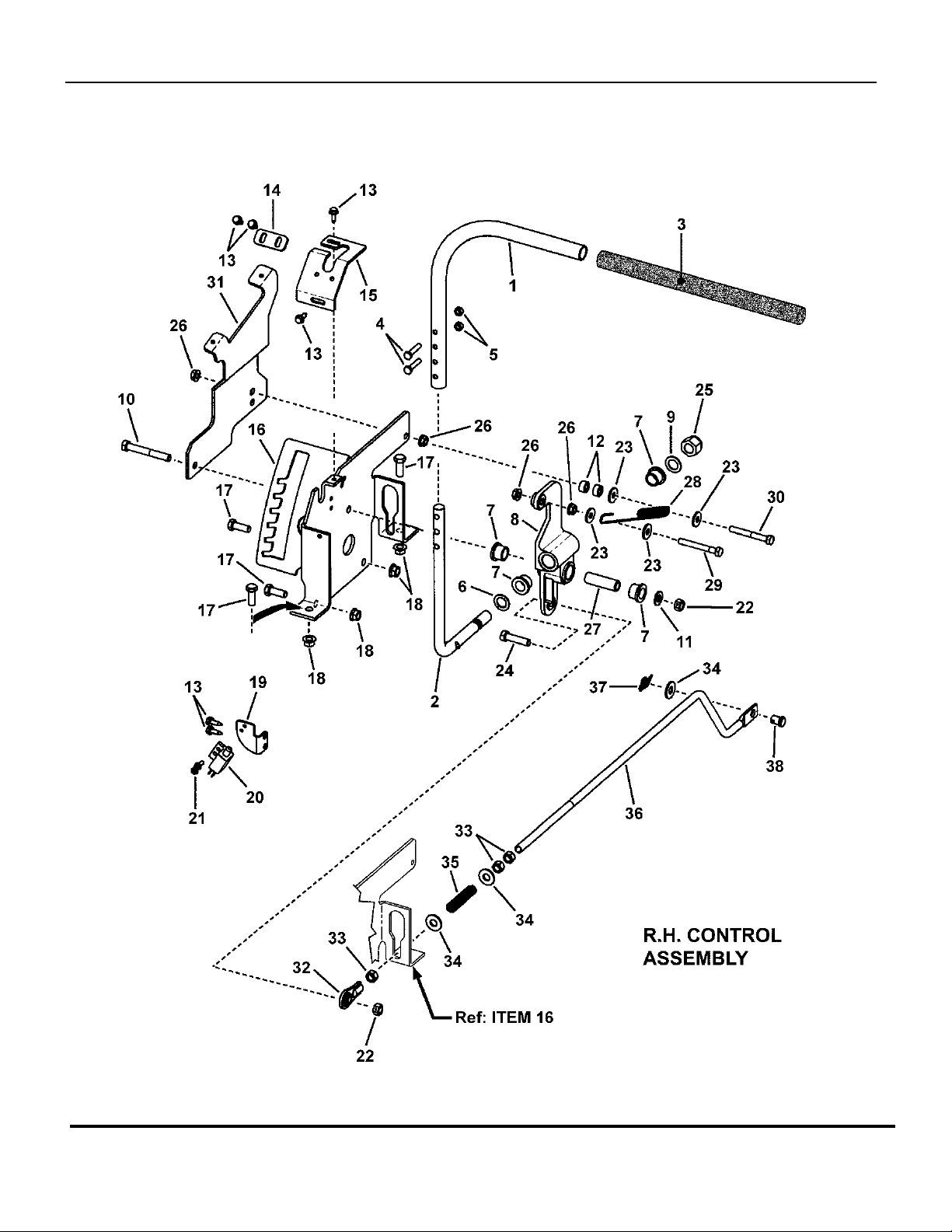

CONTROL GROUP, RH, RZT

Manual No. 7006461 RZT TWIN STICK HYDRO DRIVE 250 Z
TP 400-5182-D-HZ-N

16

SERIES 0 & 1

CONTROL GROUP, RH, RZT

p

y

Part No Descri

1 7043338 1 HANDLE
2 7200004 1 ROD, Handle R.H. (5/8” dia. Rod)
3 7100051 1 FOAM GRIP, Handle
4 7900029 2 SCREW, 1/4-20 x 1-1/4” Hex Head Cap, GR 5
5 7092126 4 NUT 1/4-20 Hex Center Lock, GR 5 YZ
6 7091628 1 WASHER, .64 x .99 x .05 Flat, YZ
7 7013874 2 BUSHING, Bronze, 5/8 x 5/8”
8 7400001 1 WELDMENT, Control Arm, RH
9 7900016 1 WASHER, 5/8 ID x 1.00 OD x .065 Nylon

10 7027344 1 WASHER, 5/8 SAE Flat
11 7011121 1 WASHER, .64 x 1.12 x .028 Beveled
12 7090658 2 NUT, 5/8-18 Hex Jam
13 7091686 6 SCREW, 1/4-20 x 3/4” Hex Washer Self-Tap
14 7300009 1 PLATE, Fwd/Rev Adjust
15 7300008 1 TRACK, Control Stick, R.H.
16 7400006 1 WELDMENT, Lift Bracket
17 7091304 4 SCREW, 3/8-16 x 1” Hex Head Cap, GR 5, YZ
18 7091619 4 NUT, 3/8-16 Hex Flange Lock
19 7300032 1 BRACKET, Switch
20 7023355 1 SWITCH- DPDT also shown in Electrical Group
21 7090913 2 SCREW, #10-24 x 1/2” Hex Washer Self-Tap (Torx)
22 7091299 2 NUT, 3/8-16 Hex Nyloc
23 7014409 2 FLANGE BEARING, 9/16 I.D. P.M. powdered metal
24 1670971 1 THRUST WASHER, .562 ID x 1.000 OD x .030/.032 Thick
25 7200012 1 SHOULDER BOLT, 3/8-16 2.013 long shoulder
26 7900003 1 SHOULDER BOLT, 5/16 x 1/4-20 .800 long shoulder
27 7900002 1 SHOULDER BOLT, 5/16 x 1/4-20 1.360 long shoulder
28 5022978 1 DAMPENER, Hydraulic
29 7200006 1 SPACER, 9/16 OD x 12GA x .325
30 7100415 2 WASHER, 1/4” I.D. Flat case hardened steel
31 7091603 2 NUT, 1/4-20 Hex Nyloc
32 7200005 1 SPACER, 9/16 OD x 12GA x .899
33 7091497 1 SCREW, 3/8-16 x 1-1/2” Hex Head Cap, GR 5

7500059 1 ASSEMBLY, Fwd/Rev Rod incl. next 5 items

34 7027936 1 ROD END
35 7091630 2 NUT, 3/8-24 Hex, GR B, YZ
36 7090517 3 WASHER, 3/8” Flat

tionItem Qt

Note

Footnotes:

Manual No. 7006461RZT TWIN STICK HYDRO DRIVE 250 Z

SERIES 0 & 1

17

TP 400-5182-D-HZ-N

CONTROL GROUP, RH, RZT

Manual No. 7006461 RZT TWIN STICK HYDRO DRIVE 250 Z
TP 400-5182-D-HZ-N

18

SERIES 0 & 1

CONTROL GROUP, RH, RZT

p

y

Part No Descri

37 7074511 1 SPRING, Compression (Brake)
38 7200009 1 ROD, Link Fwd./Rev. (3/8-24 thread)
39 7900000 1 CLEVIS PIN, 7/16 x 1”
40 7091594 1 COTTER PIN, 1/2 Self Locking, YZ
41 7300354 1 BRACKET, Fender Support, RH

tionItem Qt

Note

Footnotes:

Manual No. 7006461RZT TWIN STICK HYDRO DRIVE 250 Z

SERIES 0 & 1

19

TP 400-5182-D-HZ-N

CONTROL GROUP, LH, ERZT (Series 0)

Manual No. 7006461 RZT TWIN STICK HYDRO DRIVE 250 Z
TP 400-5182-D-HZ-N

20

SERIES 0 & 1

CONTROL GROUP, LH, ERZT (Series 0)

p

y

Part No Descri

1 7043338 1 HANDLE
2 7043336 1 WELDMENT, LH Control Arm (5/8” dia. Rod)
3 7100051 1 FOAM GRIP, Handle
4 7013874 2 BUSHING, Bronze, 5/8 x 5/8”
5 7043301 1 WELDMENT, Control Arm, LH
6 7900016 1 WASHER, 5/8 ID x 1.00 OD x .065 Nylon
7 7027344 1 WASHER, 5/8” Flat SAE
8 7011121 1 WASHER, .64 x 1.12 x .028 Beveled
9 7090658 2 NUT, 5/8-18 Hex Jam

10 7200012 1 SHOULDER BOLT, 3/8-16 2.013 long shoulder
11 1670971 1 THRUST WASHER, .562 ID x 1.000 OD x .030/.032 Thick
12 7014409 2 FLANGE BEARING, 9/16 I.D. P.M. powdered metal
13 7091299 2 NUT, 3/8-16 Hex Nyloc or 7091585 (center lock nut)
14 7900003 1 SHOULDER BOLT, 5/16 x 1/4-20 .800 long shoulder
15 7100695 1 SPRING, Extension, RTN, ERZT
16 7200006 3 SPACER, 9/16” OD x 12GA x .325
17 7100415 2 WASHER, 1/4” I.D. Flat case hardened steel
18 7091603 2 NUT, 1/4-20 Hex Nyloc
19 7900002 1 SHOULDER BOLT, 5/16 x 1/4-20 1.360 long shoulder
20 7090482 1 NUT, 3/8-24 Hex Jam
21 7900029 2 SCREW, 1/4-20 x 1-1/4” Hex Head Cap, GR 5
22 7092126 2 NUT 1/4-20 Hex Center Lock, GR 5 YZ
23 7090290 6 SCREW, 1/4-20 x 3/4” Hex Washer Self-Tap
24 7300009 1 PLATE, Fwd/Rev Adjust
25 7300010 1 TRACK, Control Stick, L.H.
26 7043302 1 CONTROL BRACKET, LH
27 7091304 4 SCREW, 3/8-16 x 1” Hex Head Cap, GR 5, YZ
28 7091619 4 NUT, 3/8-16 Hex Flange Lock
29 7300264 1 BRACKET, Rod Holder, RZT
30 7091095 2 POP RIVET, 1/8 x 3/8”

7500059 1 ASSEMBLY, Fwd/Rev Rod Includes items: 31, 33(2), 34(2),

31 7027936 1 ROD END
32 7091497 1 SCREW, 3/8-16 x 1-1/2” Hex Head Cap, GR 5
33 7091630 2 NUT, 3/8-24 Hex, GR B, YZ
34 7090517 3 WASHER, 3/8” Flat
35 7074511 1 SPRING, Compression (Brake)
36 7200009 1 ROD, Link Fwd./Rev. (3/8-24 thread)

tionItem Qt

Note

35 & 36.

Footnotes:

Manual No. 7006461RZT TWIN STICK HYDRO DRIVE 250 Z

SERIES 0 & 1

21

TP 400-5182-D-HZ-N

CONTROL GROUP, LH, ERZT (Series 0)

Manual No. 7006461 RZT TWIN STICK HYDRO DRIVE 250 Z
TP 400-5182-D-HZ-N

22

SERIES 0 & 1

CONTROL GROUP, LH, ERZT (Series 0)

p

y

Part No Descri

37 7900000 1 CLEVIS PIN, 7/16 x 1”
38 7091594 1 COTTER PIN, 1/2 Self Locking, YZ
39 7100487 1 CLIP, Spring

tionItem Qt

Note

Footnotes:

Manual No. 7006461RZT TWIN STICK HYDRO DRIVE 250 Z

SERIES 0 & 1

23

TP 400-5182-D-HZ-N

CONTROL GROUP, RH, ERZT (Series 0)

Manual No. 7006461 RZT TWIN STICK HYDRO DRIVE 250 Z
TP 400-5182-D-HZ-N

24

SERIES 0 & 1

CONTROL GROUP, RH, ERZT (Series 0)

p

y

Part No Descri

1 7043338 1 HANDLE
2 7200004 1 R. H. CONTROL ARM (5/8” dia. Rod)
3 7100051 1 FOAM GRIP, Handle
4 7900029 2 SCREW, 1/4-20 x 1-1/4” Hex Head Cap, GR 5
5 7092126 4 NUT 1/4-20 Hex Center Lock, GR 5 YZ
6 7091628 1 WASHER, .64 x .99 x .05 Flat, YZ
7 7013874 2 BUSHING
8 7400001 1 WELDMENT, Control Arm, RH
9 7900016 1 WASHER, 5/8 ID x 1.00 OD x .065 Nylon

10 7027344 1 WASHER, 5/8 SAE Flat
11 7011121 1 WASHER, .64 x 1.12 x .028 Beveled
12 7090658 2 NUT, 5/8-18 Hex Jam
13 7091686 6 SCREW, 1/4-20 x 3/4” Hex Washer Self-Tap
14 7300009 1 PLATE, Fwd/Rev Adjust
15 7300008 1 TRACK, Control Stick, R.H.
16 7400006 1 WELDMENT, Lift Bracket
17 7091304 4 SCREW, 3/8-16 x 1” Hex Head Cap, GR 5, YZ
18 7091619 4 NUT, 3/8-16 Hex Flange Lock
19 7300032 1 BRACKET, Switch
20 7023355 1 SWITCH- DPDT also shown in Electrical Group
21 7090913 2 SCREW, #10-24 x 1/2” Hex Washer Self-Tap (Torx)
22 7091299 2 NUT, 3/8-16 Hex Nyloc
23 7014409 2 FLANGE BEARING, 9/16 I.D. P.M. powdered metal
24 1670971 1 THRUST WASHER, .562 ID x 1.000 OD x .030/.032 Thick
25 7200012 1 SHOULDER BOLT, 3/8-16 2.013 long shoulder
26 7900003 1 SHOULDER BOLT, 5/16 x 1/4-20 .800 long shoulder
27 7900002 1 SHOULDER BOLT, 5/16 x 1/4-20 1.360 long shoulder
28 7100695 1 SPRING, Extension, RTN, ERZT
29 7200006 1 SPACER, 9/16 OD x 12GA x .325
30 7100415 2 WASHER, 1/4” I.D. Flat case hardened steel
31 7091603 2 NUT, 1/4-20 Hex Nyloc
32 7300354 1 BRACKET, Fender Support, RH
33 7091497 1 SCREW, 3/8-16 x 1-1/2” Hex Head Cap, GR 5

7500059 1 ASSEMBLY, Fwd/Rev Rod Includes items: 34 thru 38.

34 7027936 1 ROD END
35 7091630 2 NUT, 3/8-24 Hex, GR B, YZ
36 7090517 3 WASHER, 3/8” Flat

tionItem Qt

Note

Footnotes:

Manual No. 7006461RZT TWIN STICK HYDRO DRIVE 250 Z

SERIES 0 & 1

25

TP 400-5182-D-HZ-N

CONTROL GROUP, RH, ERZT (Series 0)

Manual No. 7006461 RZT TWIN STICK HYDRO DRIVE 250 Z
TP 400-5182-D-HZ-N

26

SERIES 0 & 1

CONTROL GROUP, RH, ERZT (Series 0)

p

y

Part No Descri

37 7074511 1 SPRING, Compression (Brake)
38 7200009 1 ROD, Link Fwd./Rev. (3/8-24 thread)
39 7900000 1 CLEVIS PIN, 7/16 x 1”
40 7091594 1 COTTER PIN, 1/2 Self Locking, YZ
41 7090482 1 NUT, 3/8-24 Hex Jam

tionItem Qt

Note

Footnotes:

Manual No. 7006461RZT TWIN STICK HYDRO DRIVE 250 Z

SERIES 0 & 1

27

TP 400-5182-D-HZ-N

CONTROL GROUP, LH, ERZT (Series 1)

Manual No. 7006461 RZT TWIN STICK HYDRO DRIVE 250 Z
TP 400-5182-D-HZ-N

28

SERIES 0 & 1

CONTROL GROUP, LH, ERZT (Series 1)

p

y

Part No Descri

1 7043338 1 HANDLE
2 7043336 1 WELDMENT, LH Control Arm (5/8” dia. Rod)
3 7100051 1 FOAM GRIP, Handle
4 7013874 4 BUSHING, Bronze, 5/8 x 5/8”
5 7100715 1 CONTROL ARM, LH, Die Cast
6 7900016 1 WASHER, 5/8 ID x 1.00 OD x .065 Nylon
7 7900000 1 CLEVIS PIN, 7/16 x 1”
8 7091594 1 COTTER PIN, 1/2 Self Locking, YZ
9 7091505 1 NUT, 5/8-18 Hex Nyloc

10 7091557 1 SCREW, 3/8-16 x 2-3/4” Hex Head Cap, GR 5
11 7090122 1 WASHER, 3/8” Flat SAE
12 7100487 1 CLIP, Spring
13 7091585 2 NUT, 3/8-16 Hex Center Lock, GR 5 or B, YZ
14 7100823 1 SCREW, 5/16-18 x 2-3/4” Hex Head Cap, GR 5
15 7100695 1 SPRING, Extension, RTN, ERZT
16 7028620 2 SPACER, .34 x .63 x .31
17 7091130 4 WASHER, .33 x .88 x .09 Flat
18 7091601 4 NUT, 5/16-18 Hex Flange Lock, GR 5
19 7100860 1 SCREW, 5/16-18 x 2-1/2” Hex Head Cap, GR 5
20 7100714 1 SPACER, Motor
21 7900029 2 SCREW, 1/4-20 x 1-1/4” Hex Head Cap, GR 5
22 7092126 2 NUT 1/4-20 Hex Center Lock, GR 5 YZ
23 7091686 6 SCREW, 1/4-20 x 3/4” Hex Washer Self-Tap
24 7300009 1 PLATE, Fwd/Rev Adjust
25 7300010 1 TRACK, Control Stick, L.H.
26 7043302 1 CONTROL BRACKET, LH
27 7091304 4 SCREW, 3/8-16 x 1” Hex Head Cap, GR 5, YZ
28 7091619 4 NUT, 3/8-16 Hex Flange Lock
29 7300264 1 BRACKET, Rod Holder, RZT
30 7091095 2 POP RIVET, 1/8 x 3/8”

7500059 1 ASSEMBLY, Fwd/Rev Rod Includes items: 7, 8, 31, 33(2),

31 7100743 1 ROD END
32 7091497 1 SCREW, 3/8-16 x 1-1/2” Hex Head Cap, GR 5
33 7091630 3 NUT, 3/8-24 Hex, GR B, YZ
34 7090517 3 WASHER, 3/8” Flat
35 7074511 1 SPRING, Compression (Brake)
36 7200009 1 ROD, Link Fwd./Rev. (3/8-24 thread)

tionItem Qt

Note

34(2), 35 & 36.

Footnotes:

Manual No. 7006461RZT TWIN STICK HYDRO DRIVE 250 Z

SERIES 0 & 1

29

TP 400-5182-D-HZ-N

CONTROL GROUP, LH, ERZT (Series 1)

Manual No. 7006461 RZT TWIN STICK HYDRO DRIVE 250 Z
TP 400-5182-D-HZ-N

30

SERIES 0 & 1

CONTROL GROUP, LH, ERZT (Series 1)

p

y

Part No Descri

37 7300489 1 BRACKET, LH Fender Support

tionItem Qt

Note

Footnotes:

Manual No. 7006461RZT TWIN STICK HYDRO DRIVE 250 Z

SERIES 0 & 1

31

TP 400-5182-D-HZ-N

CONTROL GROUP, RH, ERZT (Series 1)

Manual No. 7006461 RZT TWIN STICK HYDRO DRIVE 250 Z
TP 400-5182-D-HZ-N

32

SERIES 0 & 1

CONTROL GROUP, RH, ERZT (Series 1)

p

y

Part No Descri

1 7043338 1 HANDLE
2 7200004 1 ROD, Handle R.H. (5/8” dia. Rod)
3 7100051 1 FOAM GRIP, Handle
4 7900029 2 SCREW, 1/4-20 x 1-1/4” Hex Head Cap, GR 5
5 7092126 2 NUT 1/4-20 Hex Center Lock, GR 5 YZ
6 7091628 1 WASHER, .64 x .99 x .05 Flat, YZ
7 7013874 4 BUSHING, Bronze, 5/8 x 5/8”
8 7100717 1 CONTROL ARM, RH Die Cast
9 7900016 1 WASHER, 5/8 ID x 1.00 OD x .065 Nylon

10 7091557 1 SCREW, 3/8-16 x 2-3/4” Hex Head Cap, GR 5
11 7090122 1 WASHER, 3/8” Flat SAE
12 7028620 2 SPACER, .34 x .63 x .31
13 7091686 6 SCREW, 1/4-20 x 3/4” Hex Washer Self-Tap
14 7300009 1 PLATE, Fwd/Rev Adjust
15 7300008 1 TRACK, Control Stick, R.H.
16 7400006 1 WELDMENT, Lift Bracket
17 7091304 4 SCREW, 3/8-16 x 1” Hex Head Cap, GR 5, YZ
18 7091619 4 NUT, 3/8-16 Hex Flange Lock
19 7300032 1 BRACKET, Switch
20 7027225 1 SWITCH, Single Pole, LG-1, NC
21 7090913 2 SCREW, #10-24 x 1/2” Hex Washer Self-Tap (Torx)
22 7091585 2 NUT, 3/8-16 Hex Center Lock, GR 5 or B, YZ
23 7091130 4 WASHER, .33 x .88 x .09 Flat
24 7091497 1 SCREW, 3/8-16 x 1-1/2” Hex Head Cap, GR 5
25 7091505 1 NUT, 5/8-18 Hex Nyloc
26 7091601 4 NUT, 5/16-18 Hex Flange Lock, GR 5
27 7100714 1 SPACER, Motor
28 7100695 1 SPRING, Extension, RTN, ERZT
29 7100823 1 SCREW, 5/16-18 x 2-3/4” Hex Head Cap, GR 5
30 7100860 1 SCREW, 5/16-18 x 2-1/2” Hex Head Cap, GR 5
31 7300354 1 BRACKET, Fender Support, RH

7500059 1 ASSEMBLY, Fwd/Rev Rod includes the 7 items below

32 7100743 1 ROD END
33 7091630 3 NUT, 3/8-24 Hex, GR B, YZ
34 7090517 3 WASHER, 3/8” Flat
35 7074511 1 SPRING, Compression (Brake)
36 7200009 1 ROD, Link Fwd./Rev. (3/8-24 thread)

tionItem Qt

Note

Footnotes:

Manual No. 7006461RZT TWIN STICK HYDRO DRIVE 250 Z

SERIES 0 & 1

33

TP 400-5182-D-HZ-N

CONTROL GROUP, RH, ERZT (Series 1)

Manual No. 7006461 RZT TWIN STICK HYDRO DRIVE 250 Z
TP 400-5182-D-HZ-N

34

SERIES 0 & 1

CONTROL GROUP, RH, ERZT (Series 1)

p

y

Part No Descri

37 7091594 1 COTTER PIN, 1/2 Self Locking, YZ
38 7900000 1 CLEVIS PIN, 7/16 x 1”

tionItem Qt

Note

Footnotes:

Manual No. 7006461RZT TWIN STICK HYDRO DRIVE 250 Z

SERIES 0 & 1

35

TP 400-5182-D-HZ-N

PARK BRAKE GROUP

Manual No. 7006461 RZT TWIN STICK HYDRO DRIVE 250 Z
TP 400-5182-D-HZ-N

36

SERIES 0 & 1

PARK BRAKE GROUP

p

y

Part No Descri

1 7090913 2 SCREW, #10-24 x 1/2” Hex Washer Self-Tap (Torx)
2 7091298 1 NUT, 5/16-18 Hex Nyloc
3 7091811 2 BOLT, 5/16-18 x 5/8” Hex Flange Lock, GR 5
4 7043312 1 BRACKET, Park Brake, LH Lower
5 7091601 2 NUT, 5/16-18 Hex Flange Lock, GR 5
6 7024159 1 COTTER PIN, 3/8” Self-Locking
7 7200007 1 ROD, Park Brake
8 7043311 1 BRACKET, Park Brake, RH Lower
9 7091192 1 WASHER, 1/2 x .090 Flat

10 7025074 1 WASHER, .531 x 1.0 x .063 Flat
11 7011078 1 SHOULDER BOLT, 5/16-18 x 1” .220 long shoulder
12 7043335 1 ROD, Park Brake (1/4-20 thread)
13 7091294 2 WASHER, .28 x .63 x .06 Flat, GR 5
14 7100100 1 SPRING, Compression
15 7300007 1 BRACKET, Park Brake
16 7091495 2 SCREW, 1/4-20 x 3/4” Hex Head Cap, GR 5
17 7091705 1 NUT, 1/4-20 Hex Top Lock, GR B or 7092126, 1/4-20 Hex Center

18 7090122 2 WASHER, 3/8” Flat SAE
19 7091594 3 COTTER PIN, 1/2 Self Locking, YZ
20 7027230 1 SCREW, 1/4-20 x 1” Hex Head Cap, GR 5
21 7091603 6 NUT, 1/4-20 Hex Nyloc YZ
22 7091290 1 NUT, 10-24 Hex Nyloc
23 7043310 1 HOOK, Park Brake
24 7023355 1 SWITCH- DPDT also shown in Electrical Group
25 7900005 1 ROD, Hanger (1/4-20 both ends) used on series 0

tionItem Qt

Note

Lock Nut, Grade 5

Footnotes:

Manual No. 7006461RZT TWIN STICK HYDRO DRIVE 250 Z

SERIES 0 & 1

37

TP 400-5182-D-HZ-N

SNAPPER FENDER GROUP

Manual No. 7006461 RZT TWIN STICK HYDRO DRIVE 250 Z
TP 400-5182-D-HZ-N

38

SERIES 0 & 1

SNAPPER FENDER GROUP

p

y

Part No Descri

1 7100007 1 FENDER, LH RZT
2 7100006 1 FENDER, RH RZT
3 7091811 4 BOLT, 5/16-18 x 5/8” Hex Flange Lock, GR 5
4 7011791 4 BOLT RETAINER, 5/16” Black
5 7090951 4 NUT, 5/16-18 Hex Large Flange Center Lock
6 7300178 1 COVER, Front, Snapper
7 7091819 4 SCREW, 1/4-20 x 5/8” Hex Washer Self-Tap, YZ euro models
8 7300112 1 PANEL, Control
9 7090999 5 SCREW, 1/4-20 x 5/8” Pan Head Self-Tap (Torx)

10 7023295 1 U-NUT 1/4-20
11 7300283 1 BRACKET, RH Fender Support (Cardinal Red)
12 7091905 2 BOLT, 5/16-18 x 7/8” Hex Flange Lock, YZ
13 7091601 2 NUT, 5/16-18 Hex Flange Lock, GR 5
14 7100112 1 COVER, Engine, Double Vent

15 7091890 2 WASHER, 1/4” Internal/External Tooth Lock
16A 7023341 2 KNOB (1/4-20 thread) domestic, early production
16B 7100825 2 3-PRONG KNOB, 1/4-20 x 1/2” domestic, late production

17 7100012 1 GUARD, Rear Seat

18 7900023 2 SCREW, 1/4-15 x 1-1/4” Hex Washer Self-Tap

19 7091294 2 WASHER, .28 x .63 x .06 Flat, GR 5 euro models

20 7300532 1 HEAT SHIELD, Fender, ERZT/EJAV

tionItem Qt

Note

Footnotes:

Manual No. 7006461RZT TWIN STICK HYDRO DRIVE 250 Z

SERIES 0 & 1

39

TP 400-5182-D-HZ-N

SEAT GROUP

Manual No. 7006461 RZT TWIN STICK HYDRO DRIVE 250 Z
TP 400-5182-D-HZ-N

40

SERIES 0 & 1

SEAT GROUP

p

y

Part No Descri

1 7100005 1 ASSEMBLY, 15” Seat, w/Armrests Ref. Michigan Seat Co.
2 7300057 1 SEAT PLATE
3 7023191 2 KNOB, Three Prong, 5/16-18 thread
4 7090187 2 WASHER, 5/16” Split Lock
5 7043316 1 BRACKET, Seat Support
6 7091304 2 SCREW, 3/8-16 x 1” Hex Head Cap, GR 5, YZ
7 7090390 2 WASHER, 3/8” Internal Tooth Lock
8 7091619 2 NUT, 3/8-16 Hex Flange Lock

9 7091591 2 BOLT, 5/16-18 x 1” Hex Flange Lock, GR 5, YZ
10 7074218 2 SPRING, Compression- Seat Support
11 7091298 4 NUT, 5/16-18 Hex Nyloc
12 7200008 1 ROD, Seat Hinge
13 7024159 1 COTTER PIN, 3/8” Self-Locking
14 7011078 2 SHOULDER BOLT, 5/16-18 x 1” .220 long shoulder
15 7091742 2 SCREW, 5/16-18 x 1” Hex Washer Self-Tap, GR 5
16 7091315 2 WASHER, 5/16” Split Lock
17 7014098 2 WASHER, .34 x 1.0 x .09 Flat
18 7028620 2 SPACER, .340 I.D. x .63 O.D. x .310 Thick
19 7043308 1 BRACKET, Lower Seat
20 7091318 2 SCREW, 5/16-18 x 3/4” Hex Head Cap, GR 5, YZ
21 7091601 2 NUT, 5/16-18 Hex Flange Lock, GR 5

tionItem Qt

Note

Footnotes:

Manual No. 7006461RZT TWIN STICK HYDRO DRIVE 250 Z

SERIES 0 & 1

41

TP 400-5182-D-HZ-N

ENGINE GROUP (18.5 HP Briggs Intek)

Manual No. 7006461 RZT TWIN STICK HYDRO DRIVE 250 Z
TP 400-5182-D-HZ-N

42

SERIES 0 & 1

ENGINE GROUP (18.5 HP Briggs Intek)

p

y

Part No Descri

1 -- 1 * ENGINE, 18.5 HP B&S Intek Mod. 31P777-0122-B1, Euro RZT

2 7090324 4 SCREW, 3/8-16 x 1” Hex Washer Self-Tap

3 7043343 1 ASSEMBLY, Engine Pulley

4 7013250 1 KEY, 1/4 Square x 1”

5 1717664 1 CLUTCH, Ogura JD-11

6 7029138 1 WASHER, .468 ID x 1.50 OD x .188 Flat

7 7091301 1 WASHER, 7/16” Split Lock

8 7092130 1 SCREW, 7/16-20 x 4-1/2” Hex Head Cap, GR 5

9 1726498 1 HOSE, Oil Drain
10 7900020 1 HARNESS CLIP, 5/8”
11 7091867 1 SCREW, 5/16-18 x 5/8” Hex Washer Self-Tap, GR 2
12 7028564 1 CABLE, 26.25” Throttle Control
13 7100529 1 KNOB, Throttle, Red RZT
14 7091195 1 SCREW, #10-16 x 3/4” Pan Head Self-Tap
15 7090999 2 SCREW, 1/4-20 x 5/8” Pan Head Self-Tap (Torx)
16 7100797 1 CABLE, 30” Choke Control
17 7090390 1 WASHER, 3/8” Internal Tooth Lock
18 7090155 1 NUT, 3/8-24 Hex, GR B
19 7012080 3 CABLE TIE, 7”
20 7100101 1 MANIFOLD, 18 HP B&S Intek
21 7100160 1 ** MUFFLER, LC YZ 8.31 dimension from pipe

21 7101123 1 MUFFLER, RZT 7.56 dimension from pipe

22 7015352 1 GASKET, Exhaust
23 7091315 3 WASHER, 5/16” Split Lock
24 7091738 2 SET SCREW, 5/16-18 x 3/4” Socket Head, GR 8
25 7090290 2 SCREW, 1/4-20 x 3/4” Hex Washer Self-Tap
26 7300237 1 BRACKET, Muffler 18HP Briggs
27 7091495 2 SCREW, 1/4-20 x 3/4” Hex Head Cap, GR 5
28 7091294 4 WASHER, .28 x .63 x .06 Flat, GR 5
29 7090052 1 WASHER, 1/4” Split Lock
30 7091576 1 NUT, 1/4-20 Hex, GR 5 or B
31 7100666 1 CLAMP, Muffler Briggs p/n 222825
32 7500077 1 ASSEMBLY, Fuel Tank, RZT includes items 33 thru 37
33 7100037 1 FUEL TANK
34 7100283 1 DIP TUBE
35 7012337 1 GROMMET
36 7075288 1 ELBOW, 90 Degree

tionItem Qt

Note

centerline to exhaust hole

centerline to exhaust hole

Footnotes:

NOTE: * Purchase engine parts from engine manufacturer dealer.
NOTE: ** used on ERZT185440BVE

Manual No. 7006461RZT TWIN STICK HYDRO DRIVE 250 Z

SERIES 0 & 1

43

TP 400-5182-D-HZ-N

ENGINE GROUP (18.5 HP Briggs Intek)

Manual No. 7006461 RZT TWIN STICK HYDRO DRIVE 250 Z
TP 400-5182-D-HZ-N

44

SERIES 0 & 1

ENGINE GROUP (18.5 HP Briggs Intek)

p

y

Part No Descri

37 1715917 1 CAP, Fuel, 3-1/2”
38 7012222 4 CLAMP, Fuel Line
39 7073240 2 HOSE, Fuel, 5”
40 7016325 1 VALVE, Fuel Shut-Off
41 7100312 1 SEAL, Tank
42 7091908 1 SCREW, 5/16-18 x 1-3/4” Hex Head Cap, GR 5, YZ
43 7090188 2 WASHER, .34 x .69 x .08 Flat
44 7091511 1 NUT, 5/16-18 Hex, GR 5 or B
45 1926018 3 SPEED NUT, 1/4-20 U Type/070/.140 Black
46 7300192 1 HEAT SHIELD, Muffler, ERZT, MY06
47 7092117 2 SCREW, #8-32 x 1/2” Cross Recess Pan Head
48 7091787 3 SCREW, 1/4-20 x 5/8” Hex Flange Lock w/locking patch
49 3031014 3 BUSHING, .250 ID x .375 OD x .25 Long steel sleeve
50 1960518 3 RETAINER, 1/4” Bolt
51 1960521 1 PUSH NUT for .156 dia. Stud
52 7091928 1 BOLT, 5/16-18 x 1-1/4” Square Neck Carriage
53 7091601 2 NUT, 5/16-18 Hex Flange Lock, GR 5

tionItem Qt

Note

Footnotes:

NOTE: * Purchase engine parts from engine manufacturer dealer.
NOTE: ** used on ERZT185440BVE

Manual No. 7006461RZT TWIN STICK HYDRO DRIVE 250 Z

SERIES 0 & 1

45

TP 400-5182-D-HZ-N

ENGINE GROUP (20 & 22HP Briggs V-Twin)

Manual No. 7006461 RZT TWIN STICK HYDRO DRIVE 250 Z
TP 400-5182-D-HZ-N

46

SERIES 0 & 1

ENGINE GROUP (20 & 22HP Briggs V-Twin)

p

y

Part No Descri

1 7101094 1 * ENGINE, 20 HP Briggs Mod. 40G777-0184-E1 Extended Life

Series V-Twin
1 1730220 1 * ENGINE, 22 HP Briggs Mod. 441777-0117-B1 Intek Twin
2 7090324 3 SCREW, 3/8-16 x 1” Hex Washer Self-Tap
3 7043343 1 ASSEMBLY, Engine Pulley
4 7013250 1 KEY, 1/4 Square x 1”
5 1717664 1 CLUTCH, Ogura JD-11
6 7029138 1 WASHER, .468 ID x 1.50 OD x .188 Flat
7 7091301 1 WASHER, 7/16” Split Lock
8 7092130 1 SCREW, 7/16-20 x 4-1/2” Hex Head Cap, GR 5
9 1726498 1 HOSE, Oil Drain

10 7900020 1 HARNESS CLIP, 5/8”
11 7091811 2 BOLT, 5/16-18 x 5/8” Hex Flange Lock, GR 5
12 7075449 1 CABLE, 48” Throttle Control B&S 16HP Single Intek
13 7100529 1 KNOB, Throttle, Red RZT
14 7091195 1 SCREW, #10-16 x 3/4” Pan Head Self-Tap
15 7090999 2 SCREW, 1/4-20 x 5/8” Pan Head Self-Tap (Torx)
16 7100416 1 CABLE, 54” Choke Control
17 7090390 1 WASHER, 3/8” Internal Tooth Lock
18 7090155 1 NUT, 3/8-24 Hex, GR B
19 7012080 3 CABLE TIE, 7”
20 7078122 1 MANIFOLD, B&S V-Twin Intek
21 7100160 1 ** MUFFLER, LC YZ 8.31 dimension from pipe

21 7101123 1 MUFFLER, RZT 7.56 dimension from pipe

22 7063283 2 GASKET, Exhaust, 20 HP Intek
23 7091315 5 WASHER, 5/16” Split Lock
24 7091738 4 SET SCREW, 5/16-18 x 3/4” Socket Head, GR 8
25 7091906 5 SCREW, 1/4-20 x 3/4” Hex Head Flange, GR 5, YZ
26 7300238 1 BRACKET, Muffler 20/22HP Briggs
27 7027230 1 SCREW, 1/4-20 x 1” Hex Head Cap, GR 5
28 7091294 2 WASHER, .28 x .63 x .06 Flat, GR 5
29 7090052 1 WASHER, 1/4” Split Lock
30 7091576 1 NUT, 1/4-20 Hex, GR 5 or B
31 7100666 1 CLAMP, Muffler Briggs p/n 222825
32 7500077 1 ASSEMBLY, Fuel Tank, RZT includes items 33 thru 37
33 7100037 1 FUEL TANK
34 7100283 1 DIP TUBE
35 7012337 1 GROMMET

tionItem Qt

Note

centerline to exhaust hole

centerline to exhaust hole

Footnotes:

NOTE* Purchase engine parts from engine manufacturer dealer.
NOTE: ** used on ERZT20441BVE2 & RZT22500BVE2

Manual No. 7006461RZT TWIN STICK HYDRO DRIVE 250 Z

SERIES 0 & 1

47

TP 400-5182-D-HZ-N

ENGINE GROUP (20 & 22HP Briggs V-Twin)

Manual No. 7006461 RZT TWIN STICK HYDRO DRIVE 250 Z
TP 400-5182-D-HZ-N

48

SERIES 0 & 1

ENGINE GROUP (20 & 22HP Briggs V-Twin)

p

y

Part No Descri

36 7075288 1 ELBOW, 90 Degree
37 1715917 1 CAP, Fuel, 3-1/2”
38 7012222 4 CLAMP, Fuel Line
39 7029982 2 HOSE, Fuel, .25 I.D. x 14” long
39 7073240 2 HOSE, Fuel, .25 I.D. x 5” long used on ERZT20441BVE2
40 7016325 1 VALVE, Fuel
41 7100312 1 SEAL, Tank
42 7091908 1 SCREW, 5/16-18 x 1-3/4” Hex Head Cap, GR 5, YZ
43 7090188 2 WASHER, .34 x .69 x .08 Flat
44 7091511 1 NUT, 5/16-18 Hex, GR 5 or B
45 7200055 1 TUBE, Manifold Extension
46 225477 1 BRACKET, Fuel Pump Briggs part; used on item 1

47 7091928 1 BOLT, 5/16-18 x 1-1/4” Square Neck Carriage, GR 5
48 7091601 3 NUT, 5/16-18 Hex Flange Lock
49 7300192 1 HEAT SHIELD, Muffler, ERZT, MY06
50 7092117 2 SCREW, #8-32 x 1/2” Cross Recess Pan Head
51 7091787 3 SCREW, 1/4-20 x 5/8” Hex Flange Lock w/locking patch
52 3031014 3 BUSHING, .250 ID x .375 OD x .25 Long steel sleeve
53 1960518 3 RETAINER, 1/4” Bolt
54 1960521 1 PUSH NUT for .156 dia. Stud
55 1926018 3 SPEED NUT, 1/4-20 U Type/070/.140 Black

tionItem Qt

Note

(22HP engine)

Footnotes:

NOTE* Purchase engine parts from engine manufacturer dealer.
NOTE: ** used on ERZT20441BVE2 & RZT22500BVE2

Manual No. 7006461RZT TWIN STICK HYDRO DRIVE 250 Z

SERIES 0 & 1

49

TP 400-5182-D-HZ-N

DECK LIFT GROUP (44/50)

Manual No. 7006461 RZT TWIN STICK HYDRO DRIVE 250 Z
TP 400-5182-D-HZ-N

50

SERIES 0 & 1

DECK LIFT GROUP (44/50)

p

y

Part No Descri

1 1722302 1 GRIP
2 7300037 1 HANDLE, Deck Lift
3 7091588 2 BOLT, 3/8-16 x 3/4” Hex Flange Lock, GR 5, YZ
4 7010739 1 RETAINING RING, 5/8”, External
5 7091628 1 WASHER, .64 x .99 x .05 Flat, YZ
6 7091594 2 COTTER PIN, 1/2”, Self-Locking was 7091593
7 7100473 1 ROD, Link
8 7011231 1 SWIVEL, 3/8” w/thru hole, Special
9 7091518 1 NUT, 3/8-24 Hex Nyloc

10 7072934 2 BUSHING, Teflon Impregnated
11 7400095 1 WELDMENT, Handle Lift yellow zinc plated
12 7091619 3 NUT, 3/8-16 Hex Flange Lock
13 7090122 1 WASHER, 3/8” Flat SAE
14 7090072 2 SCREW, 1/4-20 x 5/8” Hex Head Cap, GR 5 or 7027172
15 7400100 1 WELDMENT, Handle Support
16 7091603 2 NUT, 1/4-20 Hex Nyloc
17 7100474 1 ROD, Timing (1/2-13 thread)
18 7091544 2 NUT, 1/2-13 Hex Flange Lock, GR 5, YZ
19 7091516 1 COTTER PIN, 5/32 x 1”, YZ
20 7092091 1 GROOVE PIN, 1/4 x 1-1/4”
21 7012802 1 CLEVIS PIN, 1/2 x 1-1/8” YZ
22 7400101 1 WELDMENT, Link Lift
23 7091587 2 WASHER, .531 x 1.062 x .121 Flat, YZ
24 7300254 2 BRACKET, Rear Support, RH
25 7091601 8 NUT, 5/16-18 Hex Flange Lock, GR 5
26 7015363 2 BEARING, Powdered Metal
27 7091905 4 BOLT, 5/16-18 x 7/8” Hex Flange Lock, YZ
28 7028728 4 ADJUSTER, Chain
29 7073607 4 SWIVEL, Shift Linkage, PM
30 7012316 4 WASHER, .390 I. D. Flat
31 7091511 8 NUT, 5/16-18 Hex, GR 5 or B
32 7091503 4 HAIR PIN, 3/32 x 1-1/2”
33 7400098 1 WELDMENT, Lift Rear yellow zinc plated
34 1715834 1 FOOT PEDAL, Rubber
35 7091894 1 NUT, 1/2-13 Hex Center Lock, GR 5, YZ
36 7091304 1 SCREW, 3/8-16 x 1” Hex Head Cap, GR 5, YZ
37 7300266 1 BRACKET, Foot Assist yellow zinc plated

tionItem Qt

Note

Footnotes:

Manual No. 7006461RZT TWIN STICK HYDRO DRIVE 250 Z

SERIES 0 & 1

51

TP 400-5182-D-HZ-N

DECK LIFT GROUP (44/50)

Manual No. 7006461 RZT TWIN STICK HYDRO DRIVE 250 Z
TP 400-5182-D-HZ-N

52

SERIES 0 & 1

DECK LIFT GROUP (44/50)

p

y

Part No Descri

38 7044858 1 SWIVEL, Timing Rod (1/2-13 external thread) yellow zinc plated
39 7400099 1 WELDMENT, Bellcrank, RH yellow zinc plated
40 7091803 1 KEY, 3/16” Square x 1-1/2”
41 7074720 2 BUSHING, Idler powdered metal
42 7091508 2 BOLT, 5/16-18 x 3/4” Short Neck Carriage, GR 5
43 7091811 2 BOLT, 5/16-18 x 5/8” Hex Flange Lock, GR 5
44 7300256 1 SUPPORT, Front Deck, RH
45 7300257 1 SUPPORT, Front Deck, LH
46 7090848 2 SET SCREW, 5-16-18 X 1/2” Square Head w/locking patch
47 7400102 1 WELDMENT, Front Lift yellow zinc plated

tionItem Qt

Note

Footnotes:

Manual No. 7006461RZT TWIN STICK HYDRO DRIVE 250 Z

SERIES 0 & 1

53

TP 400-5182-D-HZ-N

44" DECK GROUP (Sub-Assembly) ERZT

Manual No. 7006461 RZT TWIN STICK HYDRO DRIVE 250 Z
TP 400-5182-D-HZ-N

54

SERIES 0 & 1

44" DECK GROUP (Sub-Assembly) ERZT

p

y

Part No Descri

1 7400103 1 WELDMENT, 44” Deck- Simplicity finish: Cardinal Red
2 7500121 3 GROUP, 44” Spindle, ERZT includes items 3 thru 11, 12A,

3 7074467 3 * NUT, 3/4-16 Hex Jam, GR 8
4 7032027 6 * WASHER, .77 x 1.5 x .06 Flat case hardened steel
5 7014544 3 * PULLEY, 4-3/4” O.D.
6 7014407 2 * WASHER, Spindle (Special)
7 7012491 2 * RING, 1.85” Internal Retaining
8 7013313 2 * BEARING, Spindle
9 7200001 1 * SHAFT, Blade Spindle (6-11/16 overall length) top thread 3/4-16, bottom thread

10 7400000 1 * WELDMENT, Spindle Housing

11 7010817 1 * LUBE FITTING, 3/16” Press-In
12A 7100640 1 * BLADE, 16-1/8”, No Air-Lift, ERZT
12B 1704100 1 ** BLADE, 16-1/8” (Air Lift)

13 7016440 2 * WASHER, Beveled

14 7090658 1 * NUT, 5/8-18 Hex Jam

15 7091601 18 NUT, 5/16-18 Hex Flange Lock, GR 5

16 7091905 17 BOLT, 5/16-18 x 7/8” Hex Flange Lock, YZ

17 7091602 1 BOLT, 5/16-18 x 1-1/2” Hex Flange Lock, GR 5

18 7046780 2 PLUG, Hole (Polyethylene)

19 7091619 1 NUT, 3/8-16 Hex Flange Lock

20 7091541 7 SCREW, 5/16-18 x 3/4” Hex Washer Self-Tap

21 7091588 1 BOLT, 3/8-16 x 3/4” Hex Flange Lock, GR 5, YZ

22 7300137 1 IDLER PULLEY BRACKET, 44/50”

23 7092000 1 BOLT, 3/8-16 x 2-3/4” Round Head Square Neck, GR 5

24 7900009 2 BOLT, 3/8-16 x 2-1/4” Round Head Short Square Neck, GR 5

25 7100605 1 PAD, Rubber Adhesive

tionItem Qt

Note

13 & 14 shown below

5/8-18

Footnotes:

NOTE: * Quantity shown is per item 2 (7500121, Spindle Assembly).
NOTE: ** Item 12B is part of 7500031, GROUP, 44” Spindle, Simplicity

Manual No. 7006461RZT TWIN STICK HYDRO DRIVE 250 Z

SERIES 0 & 1

55

TP 400-5182-D-HZ-N

44" DECK GROUP (Final-Assembly) ERZT

Manual No. 7006461 RZT TWIN STICK HYDRO DRIVE 250 Z
TP 400-5182-D-HZ-N

56

SERIES 0 & 1

44" DECK GROUP (Final-Assembly) ERZT

p

y

Part No Descri

7500188 1 SUB-ASSEMBLY, 44” Deck, ERZT finish: Cardinal Red
1 7091594 2 COTTER PIN, 1/2 Self Locking, YZ
2 7100488 2 ROD, Stabilizer
3 7090377 2 NUT, 7/16-20 Hex Center Lock Jam, GR 5 or B
4 7090460 4 NUT, 7/16-20 Hex, GR 5 or B
5 7091301 4 WASHER, 7/16” Split Lock
6 7091595 4 WASHER, .47 x .92 x .065 Flat
7 7900027 2 SCREW, 7/16-20 x 4” Hex Head Cap, GR 5
8 7091508 7 BOLT, 5/16-18 x 3/4” Short Neck Carriage, GR 5
9 7090505 1 SCREW, 1/4-20 x 2” Hex Head Cap, GR 5

10 1705449 1 DEFLECTOR, Plastic
11 7091601 7 NUT, 5/16-18 Hex Flange Lock, GR 5
12 1716879 1 BAFFLE, Blowout, LH, 44” Mower
13 1731990 1 BAFFLE, Blowout, 44” Mower
14 1960518 2 RETAINER, 1/4” Bolt
15 7200039 1 SPACER, .380 ID x .750 OD x .895
16 7300204 1 COVER, Spindle, LH, Red, RZT 44/50”
17 7300203 1 COVER, Spindle, RH, Red, RZT 44/50”
18 7091541 5 SCREW, 5/16-18 x 3/4” Hex Washer Self-Tap
19 1916622 2 NUT, 1/4-20 Hex
20 1916964 2 LOCKWASHER, 1/4” Spring
21 1960353 1 WASHER, Large, 1/4 ID x 5/8 OD x .134/.109
22 1931318 1 BOLT, 1/4-20 x 7/8” Round Head Short Square Neck, GR 5

23 1706709 1 ROD, Deflector
24A 1723938 1 SPRING, Torsion
24B 7101082 1 SPRING, Torsion, Chute 44/50 replaces items 24A & 25

25 1723323 1 CAP, Spring End

26 1919326 1 WASHER, .34 ID x .75 OD Flat

27 1704873 1 CLAMP

28 7091299 3 NUT, 3/8-16 Hex Nyloc

29 7090122 6 WASHER, 3/8” Flat SAE

30 7072319 2 PULLEY, Flat Idler, 3-1/4” Dia.

31 7091962 3 WASHER, .468 x 1.625 x .25 Flat case hardened steel

32 7091331 2 WASHER, .406 x 1.50 x .120 Flat

33 7100448 1 PULLEY, 4” Flat Idler

34 7090546 1 NUT, 3/8-16 Hex Center Lock, GR 5 or B

35 7015363 2 BEARING, 3/4” I.D. powdered metal

tionItem Qt

Note

Footnotes:

Manual No. 7006461RZT TWIN STICK HYDRO DRIVE 250 Z

SERIES 0 & 1

57

TP 400-5182-D-HZ-N

44" DECK GROUP (Final-Assembly) ERZT

Manual No. 7006461 RZT TWIN STICK HYDRO DRIVE 250 Z
TP 400-5182-D-HZ-N

58

SERIES 0 & 1

44" DECK GROUP (Final-Assembly) ERZT

p

y

Part No Descri

36 7400057 1 WELDMENT, Idler Swing Arm

37 7200033 1 IDLER SPACER, .75 x .390 x 1.800

38 7900009 1 BOLT, 3/8-16 x 2-1/4” Round Head Short Square Neck, GR 5

39 7100425 1 BELT, 44” Deck, 138.25" E.L. HB Section

40 2108765 4 SHOULDER BOLT, 3/8-16 x 3/4” YZ replaces 7091526 (3/8-24 x 5/8”)

41 1714760 4 WHEEL, 4 x 1-7/8” Offset replaces 7026122 (1-1/2” offset)

42 7091585 4 NUT, 3/8-16 Hex Center Lock replaces 7090289 (HCLN, 3/8-

43 7091575 1 NUT, 5/16-18 Hex Center Lock, GR 5 or B, YZ

44 7091528 2 WASHER, 3/8” Flat

45 7029272 1 SPRING, Idler Primary

46 7028620 1 SPACER, .340 I.D. x .63 O.D. x .310 Thick

tionItem Qt

Note

24)

Footnotes:

Manual No. 7006461RZT TWIN STICK HYDRO DRIVE 250 Z

SERIES 0 & 1

59

TP 400-5182-D-HZ-N

50" DECK GROUP (Sub-Assembly)

Manual No. 7006461 RZT TWIN STICK HYDRO DRIVE 250 Z
TP 400-5182-D-HZ-N

60

SERIES 0 & 1

50" DECK GROUP (Sub-Assembly)

p

y

Part No Descri

1 7400079 1 WELDMENT, 50” Mower Deck, SNAPPER
2 7500022 3 GROUP, 50” Spindle, RZT
3 7074467 3 * NUT, 3/4-16 Hex Jam, GR 8
4 7032027 6 * WASHER, .77 x 1.5 x .06 Flat case hardened steel
5 7014544 3 * PULLEY, 4-3/4” O.D.
6 7014407 2 * WASHER, Spindle (Special)
7 7012491 2 * RING, 1.85” Internal Retaining
8 7013313 2 * BEARING, Spindle

9 7200001 1 * SHAFT, Blade Spindle (6-11/16” overall length)
10 7400000 1 * WELDMENT, Spindle Housing
11 7010817 1 * LUBE FITTING, 3/16” Press-In
12 1708229 1 * BLADE, 18-1/8”
13 7016440 2 * WASHER, Beveled
14 7090658 1 * NUT, 5/8-18 Hex Jam
15 7091601 17 NUT, 5/16-18 Hex Flange Lock, GR 5
16 7091905 16 BOLT, 5/16-18 x 7/8” Hex Flange Lock, YZ
17 7091602 1 BOLT, 5/16-18 x 1-1/2” Hex Flange Lock, GR 5
18 7046780 13 PLUG, Hole (Polyethylene)
19 7091619 1 NUT, 3/8-16 Hex Flange Lock
20 7091541 5 SCREW, 5/16-18 x 3/4” Hex Washer Self-Tap
21 7091130 1 WASHER, .33 x .88 x .09 Flat
22 7091588 1 BOLT, 3/8-16 x 3/4” Hex Flange Lock, GR 5, YZ
23 7300137 1 IDLER PULLEY BRACKET, 44/50”
24 7092000 1 BOLT, 3/8-16 x 2-3/4” Round Head Square Neck, GR 5
25 7900009 2 BOLT, 3/8-16 x 2-1/4” Round Head Short Square Neck, GR 5
26 7100605 1 PAD, Rubber Adhesive

tionItem Qt

Note

Footnotes:

NOTE: * Quantity shown is per item 2 (7500022, Spindle Assembly).

Manual No. 7006461RZT TWIN STICK HYDRO DRIVE 250 Z

SERIES 0 & 1

61

TP 400-5182-D-HZ-N

50" DECK GROUP (Final Assembly)

Manual No. 7006461 RZT TWIN STICK HYDRO DRIVE 250 Z
TP 400-5182-D-HZ-N

62

SERIES 0 & 1

50" DECK GROUP (Final Assembly)

p

y

Part No Descri

7050587 1 DECK GROUP, 50”
1 7091594 2 COTTER PIN, 1/2 Self Locking, YZ
2 7100488 2 ROD, Stabilizer
3 7090377 2 NUT, 7/16-20 Hex Center Lock Jam, GR 5 or B
4 7090460 4 NUT, 7/16-20 Hex, GR 5 or B
5 7091301 4 WASHER, 7/16” Split Lock
6 7091595 4 WASHER, .47 x .92 x .065 Flat
7 7900027 2 SCREW, 7/16-20 x 4” Hex Head Cap, GR 5
8 7091508 2 BOLT, 5/16-18 x 3/4” Short Neck Carriage, GR 5
9 1724538 1 BAFFLE, Anti-Blowout

10 1705449 1 DEFLECTOR, Black Plastic
11 7091601 2 NUT, 5/16-18 Hex Flange Lock, GR 5
12 7100157 1 SPRING, Idler, 44/50” Deck Ref. 7029272
13 7091528 2 WASHER, 3/8” Flat
14 7028620 1 SPACER, .340 I.D. x .63 O.D. x .310 Thick
15 7091575 1 NUT, 5/16-18 Hex Center Lock, GR 5 or B, YZ
16 7300204 1 COVER, Spindle, LH, Red, RZT 44/50”
17 7300203 1 COVER, Spindle, RH, Red, RZT 44/50”
18 7091541 5 SCREW, 5/16-18 x 3/4” Hex Washer Self-Tap
19 1916622 2 NUT, 1/4-20 Hex
20 1916964 2 LOCKWASHER, 1/4” Spring
21 1960353 2 WASHER, Large 1/4 ID x 5/8 OD x .134/.109
22 1960518 2 RETAINER, 1/4” Bolt
23 1931318 2 BOLT, 1/4-20 x 7/8” Round Head Short Square Neck Carriage,

GR 5

24 1706709 1 ROD, Pivot, Side Discharge, 50” Deck
25A 1723938 1 SPRING, Torsion
25B 7101082 1 SPRING, Torsion, Chute 44/50 replaces items 25A & 26

26 1723323 1 CAP, Spring End

27 1919326 1 WASHER, .34 ID x .75 OD Flat

28 1704873 1 CLAMP

29 7091299 3 NUT, 3/8-16 Hex Nyloc

30 7090122 7 WASHER, 3/8” Flat SAE

31 7100448 1 PULLEY, 4” Flat Idler

32 7091331 4 WASHER, .406 x 1.50 x .120 Flat

33 7034422 2 PULLEY, Flat Idler 5.0 x .375 belt clutch

34 7090546 1 NUT, 3/8-16 Hex Center lock

35 7091962 1 WASHER, .468 x 1.625 x .25 Flat

tionItem Qt

Note

Footnotes:

Manual No. 7006461RZT TWIN STICK HYDRO DRIVE 250 Z

SERIES 0 & 1

63

TP 400-5182-D-HZ-N

50" DECK GROUP (Final Assembly)

Manual No. 7006461 RZT TWIN STICK HYDRO DRIVE 250 Z
TP 400-5182-D-HZ-N

64

SERIES 0 & 1

50" DECK GROUP (Final Assembly)

p

y

Part No Descri

36 7015363 2 BEARING, Powdered Metal

37 7400057 1 WELDMENT, Idler Swing Arm

38 7200033 1 SPACER, Idler (.75 x .390 x 1.800)

39 7900009 1 BOLT, 3/8-16 x 2-1/4” Short Square Neck Carriage, GR 5

40 7100515 1 BELT, B Section, 150” Effective Length

41 2108765 4 SHOULDER BOLT, 3/8-16 x 3/4” YZ replaces 7091526 (3/8-24 x 5/8”)

42 1714760 4 WHEEL, 4 x 1-7/8” Offset replaces 7026122 (1-1/2” offset)

43 7091585 4 NUT, 3/8-16 Hex Center Lock replaces 7090289 (HCLN, 3/8-

tionItem Qt

Note

24)

Footnotes:

Manual No. 7006461RZT TWIN STICK HYDRO DRIVE 250 Z

SERIES 0 & 1

65

TP 400-5182-D-HZ-N

DECAL GROUP, Snapper RZT

Manual No. 7006461 RZT TWIN STICK HYDRO DRIVE 250 Z
TP 400-5182-D-HZ-N

66

SERIES 0 & 1

DECAL GROUP, Snapper RZT

p

y

Part No Descri

1 7100467 1 DECAL, Ignition, RZT
2 7100335 1 DECAL, Snapper Fender, RH
3 7100334 1 DECAL, Snapper Fender, LH
4 7100505 1 DECAL, SNAPPER
5 7100413 1 DECAL, Throttle Control, RZT
6 7100331 1 DECAL, Warning, Operation
7 7100340 1 DECAL, Height Of Cut, RZT
8 7100333 1 DECAL, Motion Control, RZT

9 7100332 1 DECAL, Park Brake, RZT
10 7100341 1 DECAL, Roll Release, RZT
11 7046720 1 DECAL, Chute/Deflector
12 7013010 2 DECAL, Danger, (Cut Finger)
13 7100422 1 DECAL, 250 Z 22HP RZT
14 1722790 1 DECAL-50”-Silver on black w/stripe
15 7078022 1 DECAL, OPEI Walk/Ride not shown, not a service part

tionItem Qt

Note

Footnotes:

Manual No. 7006461RZT TWIN STICK HYDRO DRIVE 250 Z

SERIES 0 & 1

67

TP 400-5182-D-HZ-N

DECAL GROUP, Snapper Euro RZT

Manual No. 7006461 RZT TWIN STICK HYDRO DRIVE 250 Z
TP 400-5182-D-HZ-N

68

SERIES 0 & 1

DECAL GROUP, Snapper Euro RZT

p

y

Part No Descri

1 7100335 1 DECAL, SNAPPER FENDER, RH

2 7100334 1 DECAL, SNAPPER FENDER, LH

3 7100505 1 DECAL, SNAPPER

4 7100413 1 DECAL, Throttle Control, RZT

5 7100467 1 DECAL, Ignition, RZT

6 7100583 1 DECAL, Motion Control, Symbols, ERZT

7 7029784 1 DECAL,Deck/Chute International Warning

8 7100557 1 DECAL, Safety Symbols- RZT

9 7100584 1 DECAL, Height of Cut, Symbols, ERZT
10 7022841 2 DECAL, Warning, International Symbol
11 7100590 1 DECAL, Roll Release, ERZT
12 7100420 1 DECAL, 250 Z 18.5HP RZT
12 7100421 1 DECAL, 250 Z 20HP RZT not shown; similar to 7100420
13 7100611 1 DECAL, 2006 Year of Mfg.
13 7101285 1 DECAL, 2007 Year of Mfg. not shown; similar to 7100611
14 7100558 1 DECAL, Park Brake, ERZT
15 1722789 1 DECAL-44”-Silver on Black w/stripe
16 7029776 1 DECAL, Euro Community (CE)
17 7074135 1 DECAL, Sound 100
18 7100739 1 DECAL, Deck Symbols, International
19 7100738 1 DECAL, Panel Symbols, Euro RZT

tionItem Qt

Note

Footnotes:

Manual No. 7006461RZT TWIN STICK HYDRO DRIVE 250 Z

SERIES 0 & 1

69

TP 400-5182-D-HZ-N

ELECTRICAL GROUP

Manual No. 7006461 RZT TWIN STICK HYDRO DRIVE 250 Z
TP 400-5182-D-HZ-N

70

SERIES 0 & 1

ELECTRICAL GROUP

p

y

Part No Descri

1 7075622 1 SOLENOID - Super Trombetta - 2 Terminal

2 7027230 2 SCREW, 1/4-20 x 1” Hex Head Cap, GR 5

3 7091584 6 NUT, 1/4-20 Hex Flange Lock, GR 5

4 7073090 1 12 VOLT DC POWER OUTLET

5 7091686 2 SCREW, 1/4-20 x 3/4” Hex Washer Self-Tap

6 7100326 1 HOUR METER, Inductive

7 7075132 1 SWITCH, PTO, Yellow

8 1722611 1 PLUG, Plastic Black

9 7023354 1 SWITCH, Seat (NC)(Grey)
10 7023355 2 SWITCH- DPDT (NC/NO)(Grey)
11 7100309 1 BATTERY BRACKET
12 7100308 1 BATTERY HOLD DOWN
13 7026343 1 SWITCH, Ignition-Afterfire Solenoid includes set of keys
14 7023787 1 MACHINERY BUSHING
15 7023506 1 BEZEL
16 7091294 4 WASHER, .28 x .63 x .06 Flat, GR 5
17 7090372 2 NUT, 1/4-20 Hex Center Lock, GR 5 or B
18 7090072 2 SCREW, 1/4-20 x 5/8” Hex Head Cap, GR 5
19 7100449 1 BATTERY, 12 Volt, 230 CCA
20 7071694 1 COVER, Battery Cable used on ERZT185440BVE &

21 7091314 1 WASHER, 1/4” Internal Tooth Lock, YZ

7016132 1 SPACER, .65 x .88 x .10 (not shown) used on RZT22500BVE2
7042956 1 WIRE, Negative, Black 14” #8 AWG (not shown)
7100636 1 CABLE, Battery Negative, RZT, Black 20" #8 AWG (not shown) used on ERZT185440BVE &

7100306 1 HARNESS, RZT (not shown)
7100307 1 CABLE, Battery Positive RZT, Red 20" #6 AWG (not shown)
7100324 1 WIRING HARNESS, Hour Meter, RZT (not shown)

tionItem Qt

Note

ERZT20441BVE2

ERZT20441BVE2

Footnotes:

Manual No. 7006461RZT TWIN STICK HYDRO DRIVE 250 Z

SERIES 0 & 1

71

TP 400-5182-D-HZ-N

WIRING HARNESS

Manual No. 7006461 RZT TWIN STICK HYDRO DRIVE 250 Z
TP 400-5182-D-HZ-N

72

SERIES 0 & 1

WIRING HARNESS

p

y

Part No Descri

1 7100306 1 WIRING HARNESS, Briggs RZT

2 7100307 1 CABLE, Battery Positive RZT, Red 20" #6 AWG

3 7100324 1 WIRING HARNESS, Hour Meter, RZT

4 7042956 2 WIRE, Negative, Black 14" #8 AWG

tionItem Qt

Note

Footnotes:

Manual No. 7006461RZT TWIN STICK HYDRO DRIVE 250 Z

SERIES 0 & 1

73

TP 400-5182-D-HZ-N

WIRING SCHEMATIC (Briggs Engine)

Manual No. 7006461 RZT TWIN STICK HYDRO DRIVE 250 Z
TP 400-5182-D-HZ-N

74

SERIES 0 & 1

WIRING SCHEMATIC (Briggs Engine)

p

y

Part No Descri

7100306 1 WIRING HARNESS, Briggs 18.5 & 20 HP

tionItem Qt

Note

Footnotes:

Manual No. 7006461RZT TWIN STICK HYDRO DRIVE 250 Z

SERIES 0 & 1

75

TP 400-5182-D-HZ-N

Parts Manual fo

r

Z

RZT TWIN STICK HYDRO DRIVE 250

44" & 50"

SERIES 0 & 1

IT IS THE POLICY OF BRIGGS & STRATTON CORP TO IMPROVE ITS

PRODUCTS WHENEVER IT IS POSSIBLE AND PRACTICAL TO DO SO.

WE RESERVE THE RIGHT TO MAKE CHANGES OR ADD

IMPROVEMENTS AT ANY TIME WITHOUT INCURRING ANY

OBLIGATION TO MAKE SUCH CHANGES ON PRODUCTS

Briggs & Startton Yard Power Products Group
Copyright © 2007
Milwaukee, WI USA. All Rights Reserved

Briggs & Startton Corporation

Revision D,

McDonough, GA, 30253 U.S.A.

10/31/2007

Manual No. 7006461

TP 400-5182-D-HZ-N
