Safety Instructions & Operator’s Manual for
EUROPEAN
21” STEEL DECK
WALK MOWERS
SERIES 18
MODEL NUMBER EXPLANATION
E R P 21 70 18 B V
EUROPEAN MODEL
RECYCLING MODEL ENGINE DESIGNATION
SELF-PROPELLED SERIES DESIGNATION
CUTTING WIDTH ENGINE HORSE POWER *
E – European Model R – Recycling Model 18 - Series Designation B – Briggs & Stratton
P – Self Propelled Model 21 – 21” Cutting Width V – Overhead Valve
70 – 7.0 HP (Engine Horse Power)
Thank you for buying a SNAPPER Product! Before operating your Walk Behind, read this manual carefully and pay
particular attention to the “IMPORTANT SAFETY INSTRUCTIONS” on Pages 2 - 4. Remember that all power
equipment can be dangerous if used improperly. Also keep in mind that SAFETY requires careful use in accordance
with the operating instructions and common sense.
NOTE: Specifications are correct at time of printing and are subject to change without notice.
* Actual sustained equipment horsepower will likely be lower due to operating limitations and environmental factors.
COPYRIGHT © 2004
SNAPPER – A DIVISION OF SIMPLICITY MFG., INC.
ALL RIGHTS RESERVED
MANUAL No. 2-9767 (I.R. 8/9/04)
MODELS
EP217018BV
ERP217018BV
IMPORTANT SAFETY INSTRUCTIONS
WARNING: This powerful cutting machine is capable of amputating hands and feet and can throw objects that
can cause injury and damage! Failure to comply with the follow ing SAFETY instructions could result in serious
injury or death to the operator or other persons. The owner of the machine must understand these instructions
and must allow only persons who understand these instructions to operate machine. Each person operating
the machine must be of sound mind and body and must not be under the influence of any substance, which
might impair vision, dexterity or judgment. If you have any questions pertaining to your machine which your
dealer cannot answer to your satisfaction, call or write the Customer Service Department at SNAPPER,
McDonough, Georgia 30253. Phone: (1-800-935-2967).
PROTECTION FOR CHILDREN
Tragic accidents can occur if the operator is not alert to
the presence of children. Children are often attracted to
the machine and the mowing activity. Never assume
that children will remain where you last saw them.
1. KEEP children out of the mowing area and under
the watchful care of a responsible adult other than
the operator.
2. DO NOT allow children in yard when machine is
operated and turn machine OFF if anyone enters
the area.
3. DO NOT allow pre-teenage children to operate
machine.
4. ALLOW only responsible adults & teenagers with
mature judgment under close adult supervision to
operate machine.
5. DO NOT pull mow er backwards unless absolutely
necessary. LOOK and SEE behind and down for
children, pets and hazards before and while
backing.
6. USE EXTRA CARE when approaching blind
corners, shrubs, trees, or other objects that may
obscure vision.
SLOPE OPERATION
1. Slopes are a major factor related to slip and fall
accidents, which can result in severe injury. All
slopes require extra caution. If you feel uneasy on
a slope, DO NOT mow it.
2. Mow across slopes, never up-and-dow n. Exercise
extreme CAUTION when changing directions on
slopes. DO NOT mow steep slopes or other areas
where stability or traction is in doubt.
3. Use extra care with grass catchers or other
attachments; these affect the handling and the
stability of the machine.
PREPARATION
1. Read, understand, and follow instructions and
warnings in this manual and on the mower, engine
and attachments. Know the controls and the
proper use of the mower before starting.
2. Only mature, responsible persons shall operate the
machine and only after proper instruction.
PREPARATION
(Continued From Previous Column)
3. Data indicates that operators age 60 and above, are
involved in a large percentage of mower-related
injuries. These operators should evaluate their
ability to operate the mower safely enough to
protect themselves and others from serious injury.
4. Handle fuel with extra care. Fuels are flammable
and vapors are explosive. Use only an approved
fuel container. DO NOT remove fuel cap or add fuel
with engine running. Add fuel outdoors only with
engine stopped and cool. Clean spilled fuel and oil
from machine. DO NOT smoke.
5. Check the area to be mowed and remove all
objects such as toys, wire, rocks, limbs and other
objects that could cause injury if thrown by blade
or interfere with mowing. Also note the location of
holes, stumps, and other possible hazards.
6. Keep people and pets out of the mowing area.
Immediately, STOP Blade, Stop engine and Stop
mower if anyone enters the area.
7. Check shields, deflectors, switches, blade controls
and other safety devices frequently for proper
operation and location.
8. Make sure all safety decals are clearly legible.
Replace if damaged.
9. Protect yourself when mowing and wear safety
glasses, long pants and substantial footwear. DO
NOT mow barefooted or with sandals.
10. Know how to STOP blade and engine quickly in
preparation for emergencies.
11. Use extra care when loading or unloading the
machine into a trailer or truck.
12. Check grass catcher components frequently for
signs of wear or deterioration and replace as
needed to prevent injury from thrown objects
going through weak or torn spots.
SAFE HANDLING OF GASOLINE
To avoid personal injury or property damage, use
extreme care in handling gasoline. Gasoline is
extremely flammable and the vapors are explosive
1. Extinguish all cigarettes, cigars, pipes and other
sources of ignition.
2. Use only an approved fuel container.
2
IMPORTANT SAFETY INSTRUCTIONS
SAFE HANDLING OF GASOLINE
(Continued From Previous Page)
3. DO NOT remove fuel cap or add fuel with the engine
running. Allow the engine to cool before refueling.
4. DO NOT refuel the machine indoors.
5. DO NOT store the machine or fuel container inside
where there is an open flame, spark or pilot light
such as on a water heater or other appliances.
6. DO NOT fill fuel containers inside a vehicle or on a
truck or trailer bed with a plastic liner. Always place
the containers on the ground away from the vehicle
before filling.
7. Remove gas-powered equipment from the vehicle or
trailer and refuel it on the ground. If this is not
possible, then refuel equipment using a portable
container, rather than a gasoline dispenser nozzle.
8. DO NOT start gas powered equipment in enclosed
vehicles or trailers.
9. Keep the nozzle in contact with the rim of the fuel
tank or container opening at all times until fueling is
complete. DO NOT use a nozzle lock-open device
10. If fuel is spilled on clothing, change clothing
immediately.
11. DO NOT overfill a fuel tank. Replace fuel cap and
tighten securely.
OPERATION
1. DO NOT put hands or feet near or under rotating
parts. Keep clear of discharge area while engine is
running.
2. STOP engine when crossing gravel drives, walks, or
roads, and under any conditions where thrown
objects might be a hazard.
3. Mow only in daylight or good artificial light.
4. DO NOT operate mower while under the influence of
alcohol or drugs.
5. After striking a foreign object or if mower vibrates
abnormally, STOP the engine, disconnect and
secure spark plug wire. Inspect the mow er for any
damage and repair the damage before starting.
6. DO NOT mow near drop offs, ditches or
embankments. Operator could lose footing or
balance.
7. STAY ALERT for holes and other hidden hazards.
Tall grass can hide obstacles. Keep away from
ditches, washouts, culverts, fences and protruding
objects.
8. DO NOT mow on wet grass. Always be sure of your
footing. Keep a firm hold on the handle and walk,
never run. Slipping could cause injury.
9. ALWAYS stay behind handle when engine (motor) is
running.
10. DO NOT leave the machine with the engine running.
STOP BLADE and STOP ENGINE before leaving the
operators position for any reason.
OPERATION
(Continued From Previous Column)
11. Before cleaning, repairing or inspecting make
certain engine, blade and all moving parts have
STOPPED. Disconnect and secure spark plug wire
away from plug to prevent accidental starting.
12. STOP engine and wait until the blade comes to
complete STOP before removing grass bag and/or
clearing grass.
13. DO NOT operate mower without the entire grass
catcher, discharge guard, rear guard or other safety
devices in place and working. D O NOT point dischar ge
at people, passing cars, windows or doors.
14. DO NOT discharge material against a wall or obstruction.
Material may ricochet back towards the operator.
15. Slow down before turning.
16. Watch out for traffic when near or crossing
roadways.
17. DO NOT operate engine in enclosed areas. Engine
exhaust gases contain carbon monoxide, a deadly
poison.
18. Only use accessories approved by the manufacturer. See
manufacturer’s instructions for proper operation and
installation of accessories.
MAINTENANCE AND STORAGE
1. DO NOT store mower or fuel container inside where
fumes may reach an open flame, spark or pilot light
such as in a water heater, furnace, clothes dryer or
other gas appliance. Allow engine to cool before
storing machine in an enclosure. Store fuel
container out of reach of children in a well
ventilated, unoccupied building.
2. Keep mower and engine free of grass, leaves or
excess grease to reduce fire hazard and engine
overheating.
3. When draining fuel tank, drain fuel into an approved
container outdoors and away from open flame.
4. Keep all bolts, especially blade bolts, nuts and
screws properly tight. Check that all cotter pins are
in proper position.
5. Always provide adequate ventilation when running
engine. Engine exhaust gases contain carbon
monoxide, a deadly poison.
6. Service engine and make adjustments only when
engine is stopped. Remove spark plug wire from
spark plug and secure wire away from spark plug to
prevent accidental starting.
7. DO NOT change engine governor speed settings or
overspeed engine.
8. Check grass bag assembly frequently for wear or
deterioration to avoid thrown objects and exposure
to moving parts. Replace with new bag if loose
seams or tears are evident. Replace slider or bag
adapter if broken or cracked.
3
IMPORTANT SAFETY INSTRUCTIONS
MAINTENANCE AND STORAGE
(Continued From Previous Page)
9. Mower blades are sharp and can cut. Wrap the
blades or wear heavy leather gloves and use
CAUTION when handling them.
10. DO NOT test for spark by grounding spark plug next
to spark plug hole; spark plug could ignite gas
exiting engine.
11. Have machine serviced by an authorized SNAPPER
dealer at least once a year and have the dealer install
any new safety devices.
12. Use only genuine SNAPPER replacement parts to
assure that original standards are maintained.
4
TABLE OF CONTENTS
IMPORTANT SAFETY INSTRUCTIONS...................................................................... 2 - 4
TABLE OF CONTENTS......................................................................................................5
SECTION 1 - FAMILIARIZATION.......................................................................................6
SECTION 2 - OPERATING INSTRUCTIONS............................................................... 7-11
Pre-start Checklist................................................................................................7
Starting & Stopping Engine & Blade..................................................................7
Starting & Stopping Wheel Drive........................................................................8
Handle Height Adjustment ..................................................................................8
Cutting Height Adjustment..................................................................................8
Installation of Grass Bag............................................................................... 9-10
Installation of Discharge Deflector...................................................................11
Installation of Recycling Cover.........................................................................11
Recycling Operation...........................................................................................11
SECTION 3 - MAINTENANCE INSTRUCTIONS .......................................................12-13
Change Engine Oil..............................................................................................12
Check Transmission Grease.............................................................................12
Check Mower Blade ...........................................................................................13
Check Engine Drive Belt....................................................................................13
Check Transmission Poly-V Belt......................................................................13
Service - Annually ..............................................................................................13
Engine ..............................................................................................................13
Air Filter............................................................................................................13
Engine Oil.........................................................................................................13
Storage Procedure .............................................................................................13
SECTION 4 - ADJUSTMENTS AND REPAIR............................................................ 14-20
Mower Blade Replacement................................................................................14
Blade Sharpening......................................................................................... 14-15
Wheel Drive Control Adjustment......................................................................15
Driven and Drive Disc Service .................................................................... 16-19
Cleaning Drive Disc and Driven Disc............................................................16
Drive Spring Repair/Replacement.................................................................16
Driven Disc Adjustment............................................................................ 16-17
Driven Disc Replacement......................................................................... 17-18
Driven Disc Bearing Replacement ................................................................18
Hex Shaft Bearing Replacement....................................................................19
Belt Service................................................................................................... 19-20
Engine Drive Belt Replacement............................................................... 19-20
Transmission Poly-V Belt Replacement.......................................................20
TROUBLESHOOTING......................................................................................................21
SERVICE SCHEDULE......................................................................................................22
Maintenance/Replacement Parts......................................................................22
DECAL IDENTIFICATION AND VIBRATION INFORMATION.................................. 23-24
WARRANTY......................................................................................................................25
! IMPORTANT !
The figures and illustrations in this manual are provided for reference only and may differ from your specific
model. Contact your local SNAPPER dealer if you have questions.
5
Section 1 - FAMILIARIZATION
A
WHEEL DRIVE
CONTROL
ENGINE
SPEED
CONTROL
ROPE
START
HANDLE
GRASS
BAG
REAR HEIGHT
ADJUSTMENT
LATCH
1.1 INTRODUCTION
This manual has been prepared for the operators of
the SNAPPER WALK BEHIND MOWERS. Its
purpose, aside from recommending operating and
routine service requirements, is to promote safety
through the use of accepted operating practices.
Read, Understand and Follow the “IMPORTANT
SAFETY INSTRUCTIONS” on Pages 2 - 4 of this
manual and all safety messages on the mower and
attachments before operating the mower.
BLADE
CONTROL
GROUND SPEED
CONTROL
GRASS BAG
ADAPTER
FIGURE 1.1
ENGINE
SPEED
CONTROL
FAST
SLOW
FUEL FILL
OIL FILL
ND DIPSTICK
ENGINE
PRIMER
FRONT HEIGHT
ADJUSTMENT
LATCHES
1.2 NOMENCLATURE
The nomenclature drawing above, Figure 1.1, shows
the essential parts of the SNAPPER WALK BEHIND
MOWERS. It is recommended that all operators of
the mower become thoroughly familiar with the
controls, parts and operation of the mower before
operating. Specific details involving the engine are
found in the separate engine owner’s manual. Study
these manuals before operating and keep both
handy for future reference.
6
Section 2 - OPERATING INSTRUCTIONS
2.1 PRE-START CHECK LIST
Make the following checks and perform the service
required before each start-up.
2.1.1. Check guards, deflectors, grass bag, adapter
and covers to make sure all are in place and securely
tightened.
2.1.2. Check blade control, wheel drive control, and
engine speed control to insure they work freely. See
Figure 2.1.
WHEEL
DRIVE
CONTROL
BLADE
CONTROL
2.1.6. Clean exterior surfaces of cutting deck and
engine of any accumulation of spilled fuel, dirt,
grass, oil, etc. Keep engine air intake screen and
cooling fins clear at all times.
2.2 STARTING & OPERATION
2.2.1. ENGINE & BLADE
1. Move engine speed control to “Fast” (Rabbit)
position. See Figure 2.4 and “FAMILIARIZATION”.
2. Push primer bulb three times to start a cold
engine. See Figure 2.3. NOTE: Primer should not
be required to restart a hot engine.
PRIMER
ENGINE
SPEED
CONTROL
FIGURE 2.1
2.1.3. Check cutting height. Adjust to desired height.
Refer to Section “OPERATING INSTRUCTIONS –
CUTTING HEIGHT ADJUSTMENT”.
2.1.4. Check engine oil and add as needed to bring
level up to ‘full’ mark on dipstick. See Figure 2.2. Refer
to Engine Owner’s Manual for oil specifications.
2.1.5. Add fuel to tank. See Figure 2.2. Fuel mower
outside where fumes can safely dissipate. Make sure
cap is tightened after refueling. Refer to Engine
Owners Manual for fuel specifications.
OIL FILL/
DIPSTICK
FUEL
FILL
FIGURE 2.2
FIGURE 2.3
3. Pull blade control against handle.
4. Pull rope start handle to crank engine.
BLADE
CONTROL
ROPE
START
HANDLE
ENGINE SPEED
CONTROL
FIGURE 2.4
5. After engine starts, reduce engine speed and
allow a brief warm-up until engine runs smooth.
NOTE: Stop the engine (and blade) by releasing the
blade control.
7
Section 2 - OPERATING INSTRUCTIONS
2.2.2. PROPELLING MOWER
1. Start engine. Refer to Section “Starting &
Operation”.
2. Move ground speed control to the desired speed
position. See Figure 2.6.
3. Move wheel drive control against handle to
engage wheel drive and propel mower forward.
Forward speed can be adjusted while the mower is
moving by changing position of the ground speed
control. See Figure 2.6.
ENGAGE
WHEEL
DRIVE
CONTROL
FIGURE 2.6
2.3 STOPPING
Stop forward motion of mower by releasing the
wheel drive control. Stop engine and blade by
releasing the blade control.
2.4 HANDLE HEIGHT ADJUSTMENT
The height of the mower handle can be adjusted as
follows:
1. Loosen the lower nuts on each lower handle as
shown in Figure 2.7.
LOWER
HANDLE
HIGHER
SLOWER
GROUND
SPEED
CONTROL
FASTER
STOP engine and mower blade by releasing the
blade control before adjusting cutting height or
handle height.
2.5 CUTTING HEIGHT ADJUSTMENT
1. Pull the height adjusting latch outward and move
to desired cutting height. See Figure 2.8.
2. Set all wheels at the same cutting height. The
highest cutting position is Notch 6. The lowest
cutting position is Notch 1. See Figures 2.8 & 2.9.
LATCH
POSITIONS
WARNING
LOWEST CUTTING
1
HEIGHT
1
2
3
4
5
6
FIGURE 2.8
LATCH
HIGHEST
CUTTING
HEIGHT
6
LOWER
LOOSEN LOWER
NUTS ON EACH
LOWER HANDLE
FIGURE 2.7
2. Move upper mower handle up or down until the
desired position is achieved.
3. Tighten the lower nuts on each lower handle to
maintain desired position.
CUTTING HEIGHT SETTINGS
FIGURE 2.9
8
Section 2 - OPERATING INSTRUCTIONS
A
2.6 INSTALLATION of GRASS BAG ADAPTER
WARNING
DO NOT attempt any maintenance, adjustments or
service with engine and blade running. STOP engine
and blade. Disconnect spark plug wire and secure
away from spark plug. Engine and components are
HOT. Avoid serious burns, allow sufficient time for
all components to cool.
STEP 1: Install the grass bag adapter and secure to the
side and top of the deck with the two nuts provided on the
machine. Slot in front edge of adapter must be under nut
located on top of deck. See Figure 2.10.
SECURE
WITH NUTS
ADAPTER
FIGURE 2.10
2.7 INSTALLATION of RECYCLING PLUG
(Optional Accessory on Some Models)
STEP 1: Once adapter has been installed, recycling may
be desired. Insert recycling plug completely and securely
into adapter. See Figure 2.11. Install grass bag as a
safeguard.
STEP 2: Refer to Section “OPERATING
INSTRUCTIONS – RECYCLING OPERATION”.
SECURE ADAPTER
TO DECK WITH NUTS
PLUG
DAPTER
2.8 INSTALLATION of GRASS BAG
(Door Type Bag)
Install grass bag by sliding connector over flange of
adapter. See Figure 2.12.
Attach grass bag hooks over middle handle cross bar.
See Figure 2.13.
HOOK TO MIDDLE
HANDLE CROSS BAR
INSERT RECYCLING PLUG
COMPLETELY AND SECURELY
INTO ADAPTER. INSTALL
GRASS BAG.
FIGURE 2.11
SLIDE CONNECTOR
OVER FLANGE
FIGURE 2.12
9
Section 2 - OPERATING INSTRUCTIONS
WARNING
DO NOT attempt any maintenance, adjustments or
service with engine and blade running. STOP
engine and blade. Disconnect spark plug wire and
secure away from spark plug. Engine and
components are HOT. Avoid serious burns, allow
sufficient time for all components to cool.
2.9 INSTALLATION of COLLECTOR GRASS BAG
(Optional accessory on some models)
STEP 1: Install the grass bag adapter and secure to
the side and top of the deck with the two nuts
provided on the machine. Slot in front edge of
adapter must be under nut located on top of deck.
See Figure 2.10.
STEP 2: Install grass catcher by sliding connector
over flange of adapter. See Figure 2.13
STEP 3: Grasp front and rear handles on bag and
begin bringing them together. Guide right and left
Bi-folds towards center of bag. See Figure 2.14
ADAPTER
FLANGE
FIGURE 2.13
FIGURE 2.14
CONNECTOR
BRING HANDLES
TOGETHER. GUIDE
FOLDS TOWARDS
CENTER OF BAG
STEP 4: Guide connector plate on rear handle
into slot on front handle. See Figure 2.15.
STEP 5: Attach grass bag hooks over middle
handle cross bar. See Figure 2.16.
DO NOT operate without entire Grass Catcher or
guard in place. Grass Catcher components are
subject to deterioration during normal use. Inspect
frequently and replace worn or damaged
components immediately.
WARNING
CONNECTOR
FIGURE 2.15
FIGURE 2.16
10
Section 2 - OPERATING INSTRUCTIONS
WARNING
DO NOT attempt any maintenance, adjustments or
service with engine and blade running. STOP engine
and blade. Disconnect spark plug wire and secure
away from spark plug. Engine and components are
HOT. Avoid serious burns, allow sufficient time for
all components to cool.
2.10 INSTALLATION of DISCHARGE DEFLECTOR
(Optional accessory on some models)
Install discharge deflector if discharging is desired. Grass
Bag and Bag Adapter or Recycling Cover must be
removed.
1. Remove front and rear nuts that secure Bag
Adapter or Recycling Cover to deck. Refer to
sections concerning these parts.
2. Install discharge deflector and secure to deck
using hardware removed in Step 1. Slot in front edge
of discharge deflector must be under nut as shown
and both bolts protruding through holes in the side of
the deflector. Secure nuts to the side of deflector.
Tighten nuts securely. See Figure 2.17.
INSTALL
DISCHARGE
DEFLECTOR
FIGURE 2.17
2.11 INSTALLATION of RECYCLING COVER
(Optional Accessory on Some Models)
It will be necessary to remove bag adapter and grass bag
or discharge deflector before installing recycling cover.
See previous section for instructions. Install the recycling
cover and secure to the side and top of the deck with the
two nuts provided on the machine. Slide top portion of
cover under nut secured to the deck. See Figure 2.18.
SLIDE
DEFLECTOR
SLOT
INSTALL
NUTS
RECYCLING
COVER
INSTALL RECYCLING
COVER TO THE DECK
USING THE TWO NUTS
2.12 RECYCLING OPERATION
NOTE: For best recycling results, cut up to a maximum of 1/3 of
grass blade length and recycle ONLY when grass is dry.
1. Set all wheels in the highest cutting position (Notch 6).
2. Move engine speed control to “FAST” (Rabbit)
position.
3. Move ground speed control to slowest speed setting.
4. Proceed mowing slowly. If grass is very dense, lower
each rear wheel latch one notch lower than the front
wheel latches to improve recycling performance.
DO NOT operate without entire Grass Catcher or
guard in place. Grass Catcher components are
subject to deterioration during normal use. Inspect
frequently and replace worn or damaged
components immediately.
Grass Catcher bags used on SNAPPER products are
made of woven fabric, and are subject to
deterioration and wear during normal usage. Check
condition of bag before each use. Immediately
replace worn or damaged catcher bags with only
bags recommended by SNAPPER. The grass catcher
is optional equipment on some models.
FIGURE 2.18
WARNING
WARNING
11
Section 3 – MAINTENANCE
3.1 INTRODUCTION
To retain the quality of the mower, use genuine
SNAPPER replacement parts only. Contact a local
SNAPPER dealer for parts and service assistance.
For the correct part or information for a particular
mower, always mention model and serial number.
WARNING
DO NOT attempt any maintenance, adjustments or
service with engine and blade running. STOP engine
and blade. Disconnect spark plug wire and secure
away from spark plug. Engine and components are
HOT. Avoid serious burns, allow sufficient time for
all components to cool.
3.2 SERVICE - AFTER FIRST 5 HOURS

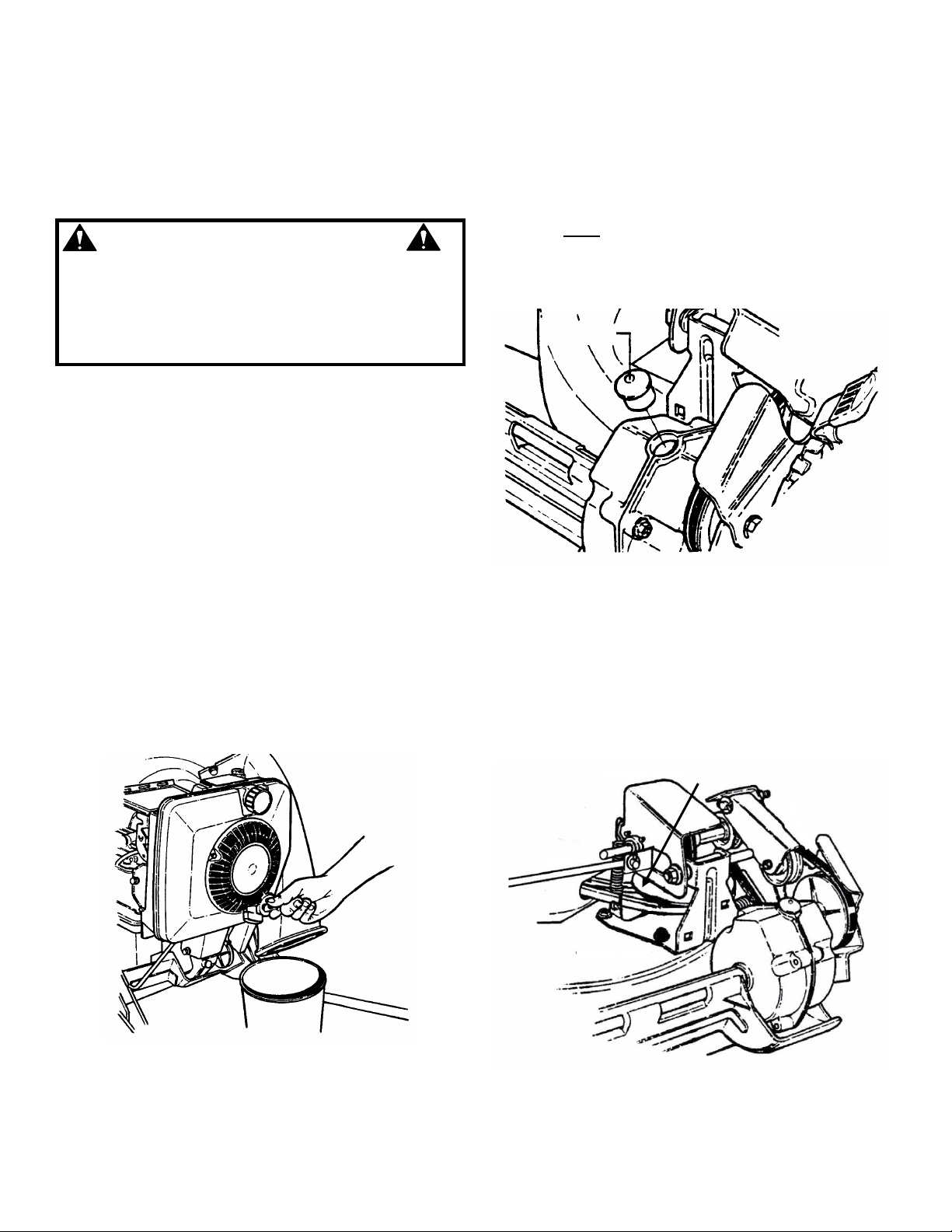

3.2.1. CHANGE ENGINE OIL
IMPORTANT: Drain fuel tank before tipping machine.
DO NOT tip machine with carburetor or spark plug down.
Oil from crankcase will saturate the air filter and cause the
engine to be hard to start or not start at all. If
contamination does occur, the air filter will have to be
replaced.
1. Refer to Engine Manual for proper oil
specifications, procedures and proper service
intervals.
2. For simplest/cleanest oil change, loosen lower
handle nuts and fold handles. Stand mower up on
lower handle brackets as shown in Figure 3.1. Drain
oil through dipstick tube into a container. Allow
sufficient time for all oil to drain. NOTE: Drive control
rod on self-propelled models prohibits handles from
folding. Simply tip mower on its side to drain oil.
NOTE: Check specific model engine owner’s
manual for changing engine oil procedure and oil
specifications.
3.2.2. CHECK GREASE LEVEL IN TRANSMISSION
1. Remove transmission fill plug. Roll machine
forward or backward while looking down into plug
hole.
2. If liquid
(the small gear below the plug hole), add an
amount, to cover gear, of Snapper “00” grease. See
Figure 3.2.
FILL PLUG
NOTE: Snapper “00” Grease (Part No. 2-9443) is
available at your SNAPPER dealer.
NOTE: Do not spill grease or oil on surface of drive disc.
See Figure 3.3.
3. Reinstall transmission plug.
4. Check grease level after each 25 hours of
operation.
grease IS NOT visible on the input gear
FIGURE 3.2
KEEP DRIVE DISC CLEAN !
FIGURE 3.1
3. Dispose of drain oil properly.
4. Fill engine with oil as specified in Engine Manual.
Do Not overfill.
FIGURE 3.3
IMPORTANT: Drain fuel tank before tipping mower.
12
DO NOT tip machine with carburetor or spark plug down. Oil
from crankcase will saturate the air filter and cause the
Section 3 – MAINTENANCE
WARNING
DO NOT attempt any maintenance, adjustments or
service with engine and blade running. STOP engine
and blade. Disconnect spark plug wire and secure
away from spark plug. Engine and components are
HOT. Avoid serious burns, allow sufficient time for
all components to cool. Wear heavy leather gloves
when handling or working around cutting blades.
Blades are extremely sharp and can cause severe
injury.
3.2.3. CHECK MOWER BLADE
1. Disconnect spark plug wire and secure end
away from plug.
2. Tilt mower up on its rear wheels for access to
the blade cap screw. Do not tilt mower with spark
plug or carburetor down. See Figure 3.4.
3. Check torque of blade retaining cap screw.
Recommended torque should be 40 ft. lbs. See
Figure 3.4.
4. Check blade for sharpness, wear and damage.
Refer to Section “Blade Wear Limits”.
3.2.4. CHECK ENGINE DRIVE BELT
1. Visually check engine drive belt for cracking,
fraying, severed or belt strands exposed. If worn or
damaged, replace belt before operating mower.
3.2.5. CHECK TRANSMISSION POLY-V BELT
1. Visually check poly-v belt for cracking, fraying,
severed or belt strands exposed. If worn or
damaged, replace belt before operating mower.
RECOMMENDED
BLADE RETAINING
CAP SCREW
TORQUE VALUE
SHOULD BE 40 FT.
LBS.
FIGURE 3.4
3.3 SERVICE - ANNUALLY
Perform all maintenance as described in the “Service
Schedule” section of this manual.
3.3.1. Engine
Service engine according to engine owner’s manual.
3.3.2. Air Filter
Refer to engine owner’s manual for service instructions.
3.3.3. Engine Oil
Refer to engine owner’s manual for service instructions.
engine to be hard to start or not start at all. If contamination
does occur, the air filter will have to be replaced.
3.4 STORAGE PROCEDURE
Refer to the Engine Owner’s Manual for directions
regarding engine storage preparations. Prepare the
mower for “end of season” storage as follows:
1. Drain fuel from fuel tank and let engine run until
all fuel is out of the carburetor.
2. Disconnect and remove the spark plug wire
away from spark plug before any other
preparations are made!
3. Tape all openings closed to prevent spraying
water into exhaust or air intakes during washing.
4. Tilt mower up on its rear wheels and thoroughly
clean the underside of the deck. Do not tilt mower
with spark plug or carburetor down. Scrape away
any accumulation of grass with a putty knife and or
wire brush.
5. Lubricate all exposed metal with a light coating
of oil to prevent corrosion.
6. On self-propelled models disconnect transfer
rod clip and remove ground speed control rod
before folding handles.
7. Loosen handle knobs. Carefully fold the handles
forward, “flexing” the control cables to prevent
cable damage.
8. Store the mower in a shed or other dry area,
protected from weather.
13
Section 4 - REPAIR & ADJUSTMENTS
WARNING
DO NOT attempt any maintenance, adjustments or
service with engine and blade running. STOP engine
and blade. Disconnect spark plug wire and secure
away from spark plug. Engine and components are
HOT. Avoid serious burns, allow sufficient time for
all components to cool. Wear heavy leather gloves
when handling or working around cutting blades.
Blades are extremely sharp and can cause severe
injury.
4.1 MOWER BLADE REPLACEMENT
4.1.1. STANDARD BLADE WEAR LIMIT
1. Inspect blade frequently for signs of excessive
wear or damage. See Figure 4.1.
4.1.1.A. NINJA BLADE WEAR LIMIT
1. Inspect blade frequently for signs of excessive
wear or damage. See Figure 4.2.
NEW BLADE
NEW BLADE
WEAR LIMIT
(NOTCH STARTS)
DANGEROUS CONDITION !
DO NOT USE ON MOWER !
REPLACE WITH NEW
BLADE.
FIGURE 4.1
WEAR LIMIT.
CRACKS OR
NOTCHES
BEGIN TO
APPEAR ON TIP
2. Replace the blade if it is badly chipped, bent,
noticeably out of balance or has cracks or notch in
either tip. See Figure 4.1 & 4.2. Replace with new
blade.
DO NOT use a cutting blade that shows signs of
excessive wear or damage. Refer to Section
“MOWER BLADE REPLACEMENT” for proper blade
inspection and service procedures.
4.1.2. BLADE SHARPENING
1. Disconnect spark plug wire and secure end away
from plug.
IMPORTANT: Drain fuel tank before tipping mower.
DO NOT tip machine with carburetor or spark plug down.
Oil from crankcase will saturate the air filter and cause the
engine to be hard to start or not start at all. If
contamination does occur, the air filter will have to be
replaced.
2. Tilt mower up on its rear wheels. Do not tilt
mower with spark plug or carburetor down.

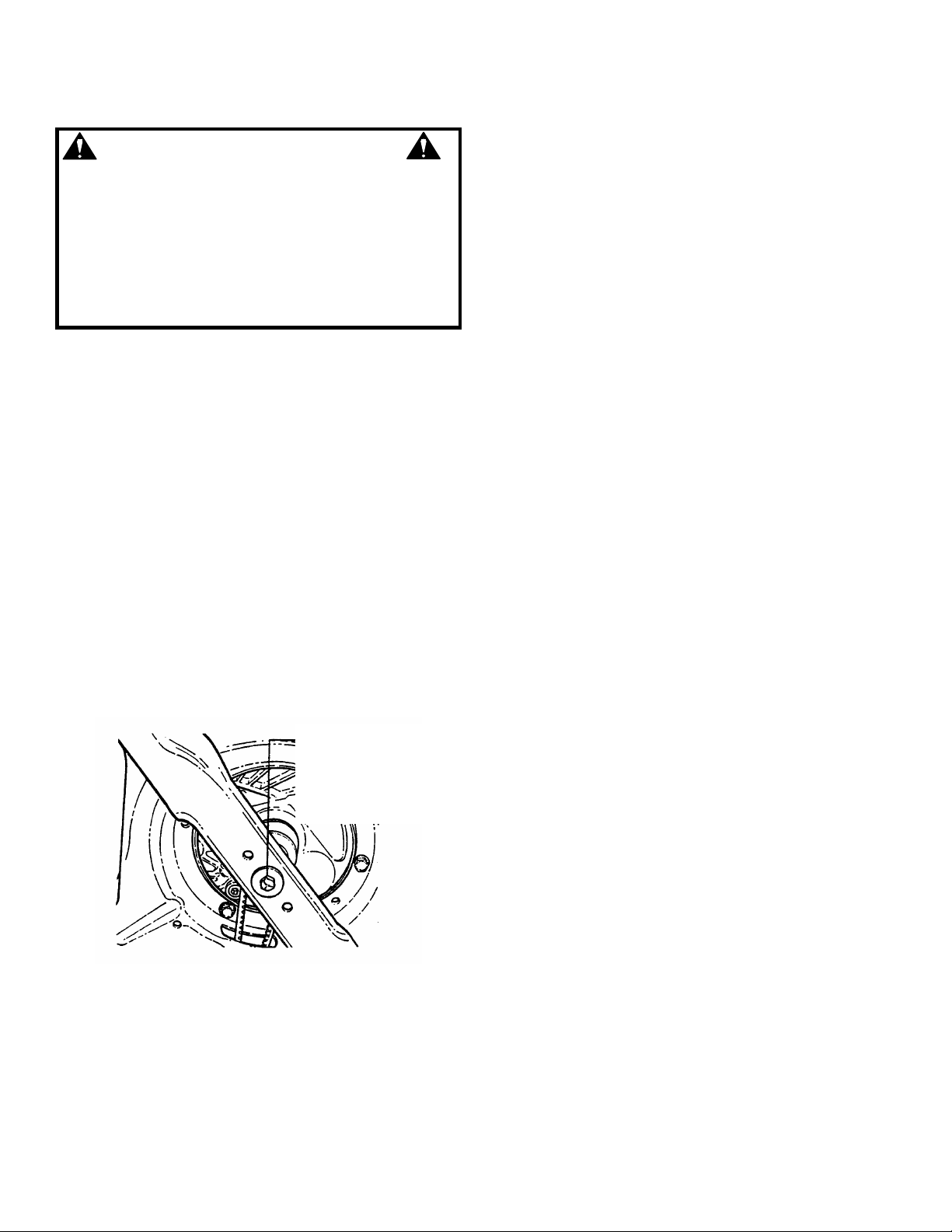

3. Remove blade. See Figure 4.3.
WARNING
BLADE
HUB
FLANGE
BLADE
CONE WASHER
(Concave Side Up)
MAKE SURE THAT
BLADE HUB IS
SEATED
BETWEEN
FLANGES
CAPSCREW
FIGURE 4.3
DANGEROUS !
DO NOT USE A BLADE IN
THIS CONDITION !
FIGURE 4.2
14
Section 4 - REPAIR & ADJUSTMENTS
V
WARNING
DO NOT attempt any maintenance, adjustments or
service with engine and blade running. STOP engine
and blade. Disconnect spark plug wire and secure
away from spark plug. Engine and components are
HOT. Avoid serious burns, allow sufficient time for
all components to cool.
4. Sharpen blade on a grinding wheel at an angle of
22 to 28 degrees. DO NOT sharpen blade beyond
original cutting edge. See Figure 4.4.
DO NOT SHARPEN
BEYOND ORIGINAL
CUTTING EDGE
ORIGINAL CUTTING EDGE
5. Check blade for balance. If necessary, correct
balance by grinding heavy end of blade.
6. Reinstall blade. See Figure 4.3. Check torque of
blade retaining cap screw. Recommended torque
should be 40 ft. lbs.

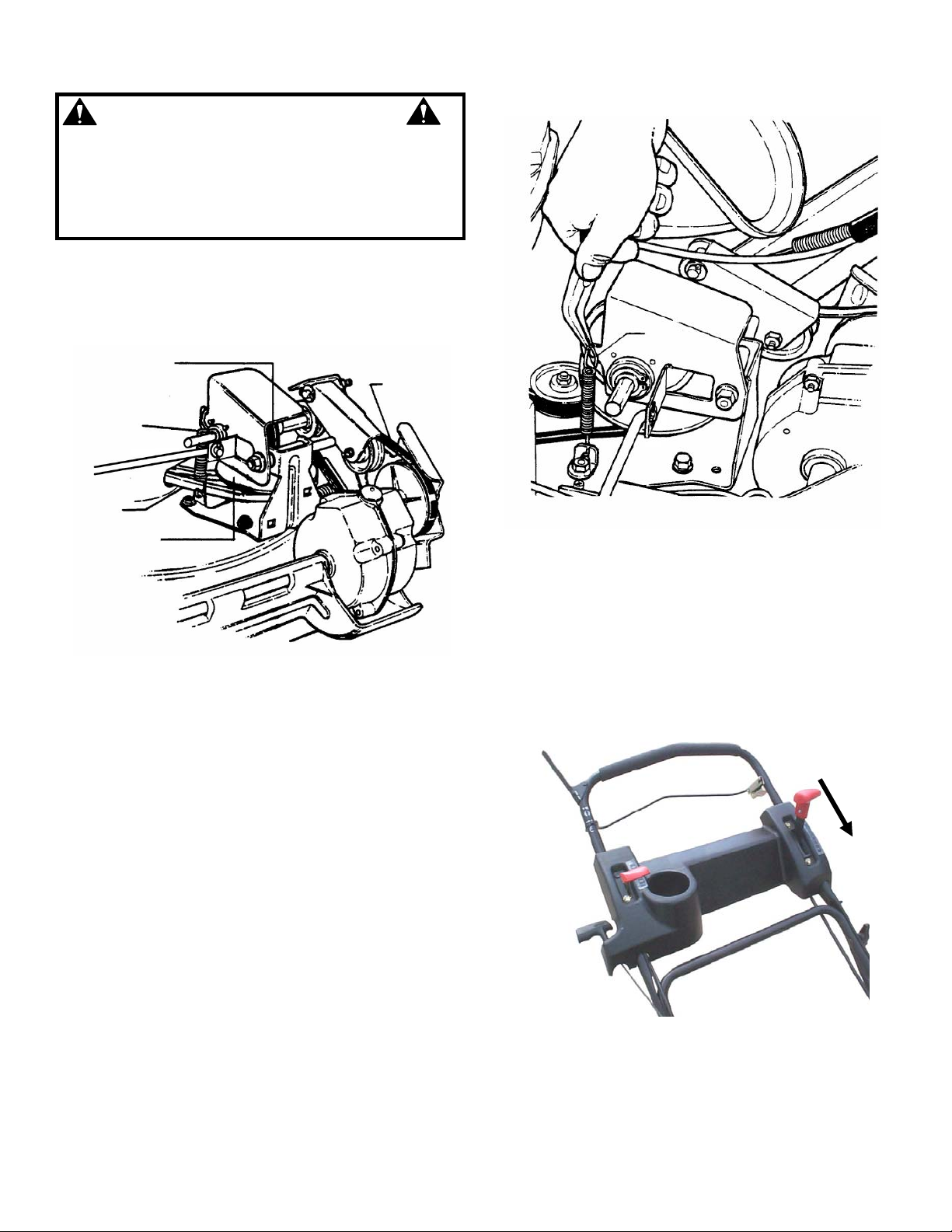

4.2 WHEEL DRIVE CONTROL ADJUSTMENT
1. The wheel drive control is properly adjusted
when there is 1/16” to 1/8” clearance between the
inside of the spring hook and the inside of the clutch
cable eye with the wheel drive control released. See
Figure 4.5.
22-28º
BLADE TIP
END VIEW OF
BLADE ASSEMBLY
FIGURE 4.4
CLUTCH CABLE
INYL SPRING
1/16” TO 1/8”
CLEARANCE
UPPER
SPRING
LOWER
SPRING
CABLE
CLUTCH CABLE EYE
SPRING
CLUTCH CABLE
EYE
SPRING HOOK
FIGURE 4.5
2. To adjust, unhook upper spring from cable eye
and rotate spring in direction required to extend or
shorten spring length.
3. Rehook upper spring to cable eye and check
clearance. Repeat procedure if required.
NOTE: The vinyl spring cover should be kept over the
spring at all times except for adjustments.
4. If the wheel drive control fails to return quickly to
the “OFF” position when released, check for binding
at the cable holdings located on the side of the right
handle. The upper clip should be located 2” below
the upper knob; the lower clip should be 4” above
the lower knob. The cable should slide freely with
the clips installed at these locations.
15
Section 4 - REPAIR & ADJUSTMENTS
WARNING
DO NOT attempt any maintenance, adjustments or
service with engine and blade running. STOP engine
and blade. Disconnect spark plug wire and secure
away from spark plug. Engine and components are
HOT. Avoid serious burns, allow sufficient time for
all components to cool.

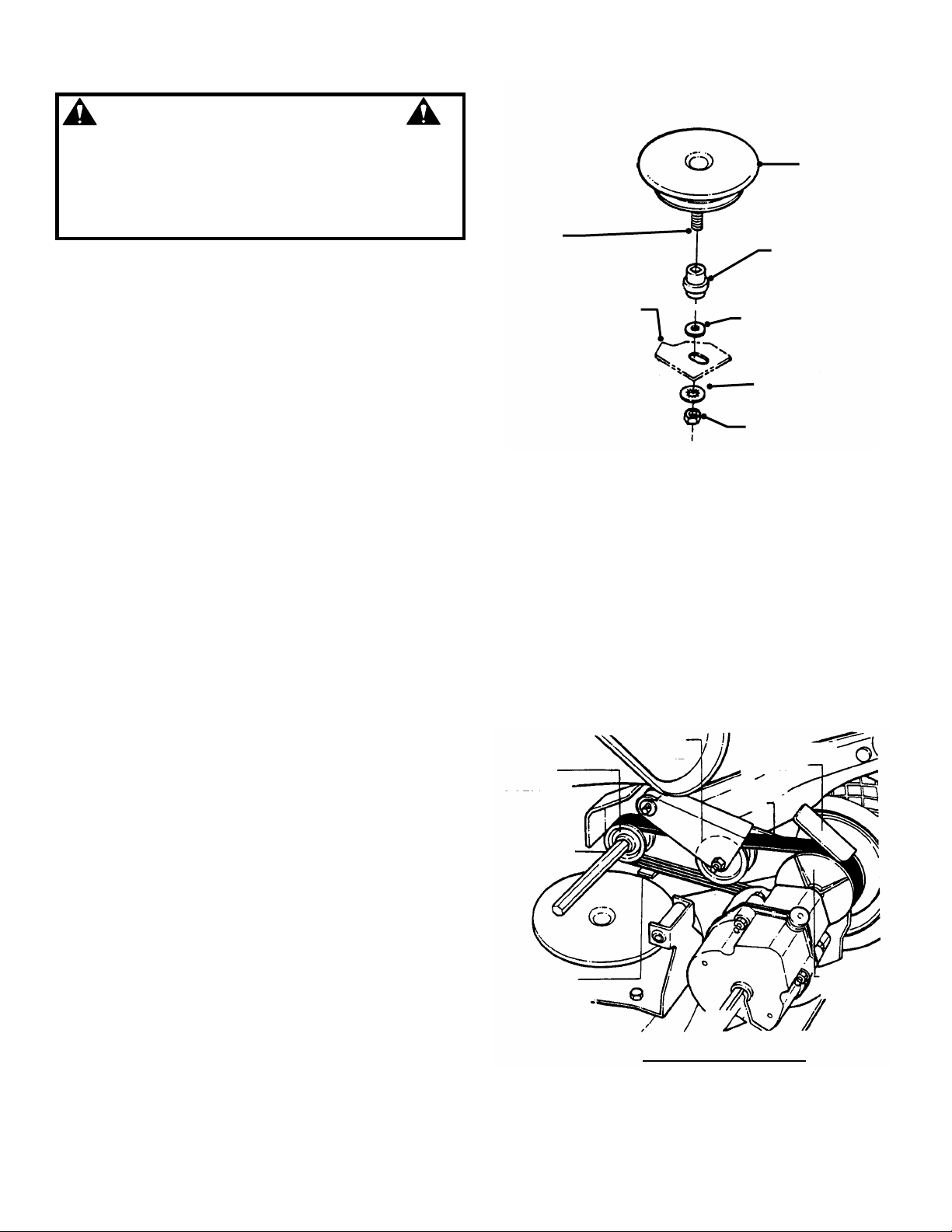

4.3 DRIVEN AND DRIVE DISC SERVICE
If the mower does not propel itself properly, See
Figure 4.6. Check for the following problems:
DRIVEN DISC &
POLY-V
DRIVE
SPRING
ENGINE
DRIVE
BELT
DRIVE
DISC
FIGURE 4.6
1. Grease on drive disc causing slippage.
2. Broken or disconnected drive spring.
3. Driven disc is out of adjustment.
4. Driven disc rubber is worn - does not contact
drive disc properly.
5. Worn Poly-V Belt or engine drive belt.
NOTE: If any of the above (1 thru 5) are causing
problems, service as follows:
4.3.1. Cleaning Drive Disc & Driven Disc.
If oil or grease on the drive disc or driven disc is
causing slippage, clean discs as follows:
1. Wipe away any oil or grease with a clean cloth.
2. Use either an approved grease solvent or hot,
soapy water to clean drive disc or driven disc.
3. Rinse components with clean water.
4. Dry components with a clean cloth.
4.3.2. Drive Spring Repair/Replacement
If drive spring is loose, reconnect as shown in
Figure 4.7. If spring is broken, replace with new
spring.
IMPORTANT: If machine drive system continues
slipping see Trouble Shooting section.
BELT
4.3.3. DRIVEN DISC ADJUSTMENT
If the drive disc and driven disc are clean and the
mower drive is still slipping, adjust the driven disc as
follows:
1. Move ground speed control into the ‘fast’
position. See Figure 4.8.
USE
NEEDLE
NOSE
PLIERS TO
INSTALL
DRIVE
SPRING
DRIVE
SPRING
FIGURE 4.7
MOVE GROUND
SPEED CONTROL TO
FAST POSITION
FIGURE 4.8
16
Section 4 - REPAIR & ADJUSTMENTS
WARNING
DO NOT attempt any maintenance, adjustments or
service with engine and blade running. STOP engine
and blade. Disconnect spark plug wire and secure
away from spark plug. Engine and components are
HOT. Avoid serious burns, allow sufficient time for
all components to cool.
4.3.3. DRIVEN DISC ADJUSTMENT
(Continued From Previous Page)
2. Remove driven disc spring from driven disc
assembly. Also remove pin and washer from transfer
rod, and remove end of transfer rod from hole in
driven disc assembly. See Figure 4.9.
DRIVEN DISC
ASSEMBLY
DRIVE
DISC
SLIDE DRIVEN
DISC ASSEMBLY
TOWARD OUTSIDE
EDGE
1/8” MEASUREMENT TO
OUTSIDE EDGE OF DRIVE
DISC
DRIVE
DISC
OUTSIDE
EDGE
REMOVE
DRIVEN DISC
SPRING
REMOVE END
OF TRANSFER
ROD FROM
DRIVEN DISC
ASSY
3. Slide driven disc assembly over to 1/8” from
outside edge of drive disc. See Figure 4.10.
4. Loosen jam nut securing transfer rod to ball joint
on pivot bracket. See Figure 4.11.
5. Turn rod in or out of ball joint until end of rod aligns
with hole in driven disc assembly from which rod was
removed. NOTE: Do not move pivot bracket.
6. Reinstall rod as removed in step 2. Move ground
speed control to ‘slow’ position, then back to ‘fast’
position. Recheck the 1/8” measurement described
previously. Readjust as needed. Tighten nut when
finished.
7. Reinstall driven disc spring to driven disc
assembly.
REMOVE
PIN AND
WASHER
FROM ROD
FIGURE 4.9
FIGURE 4.10
BALL JOINT
LOOSEN NUT
PIVOT
BRACKET
TURN ROD IN
OR OUT UNTIL
END ALIGNS
WITH HOLE
FIGURE 4.11
(Continued On Next Page)
4.3.4. Replacing Rubber Driven Disc
If the rubber is badly chunked or worn it must be
replaced. Install new Driven Disc as follows:
1. Remove pin and washer from transfer rod, and
remove end of transfer rod from hole in driven disc
assembly. See Figure 4.9.
17
Section 4 - REPAIR & ADJUSTMENTS
WARNING
DO NOT attempt any maintenance, adjustments or
service with engine and blade running. STOP engine
and blade. Disconnect spark plug wire and secure
away from spark plug. Engine and components are
HOT. Avoid serious burns, allow sufficient time for
all components to cool.
4.3.4. Replacing Rubber Driven Disc
(Continued from previous page)
2. Using needle nose pliers, unhook the drive
spring and slide the driven disc assembly off the
hex shaft. See Figure 4.12.
3. Remove the two snap rings which secure the
rubber driven disc to the driven disc assembly. See
Figure 4.13.
4. Install new rubber driven disc onto driven disc
assembly with retaining rings.
5. Reverse above procedures for reassembly and
installation of driven disc assembly.
REMOVE
SPRING
REMOVE
DRIVEN DISC
ASSEMBLY
4.3.5. Replacing Bearing In Driven Disc Assembly
IMPORTANT: The bearing on these machines is staked
into the thrust plate. The bearing will have to be driven
out with a mallet and a large punch. A new bearing with
four retaining screws will have to be purchased to
replace existing bearing.
If the driven disc bearing requires replacement,
remove the driven disc assembly and replace
bearing as follows:
1. Remove pin and washer from transfer rod, and
remove end of transfer rod from hole in driven disc
assembly. See Figure 4.9.
2. Using needle nose pliers, unhook the drive
spring and slide the driven disc assembly off the
hex shaft. See Figure 4.12.
3. Remove both snap rings that secure rubber
driven disc hub to thrust plate. See Figure 4.13.
4. Slide the rubber driven disc hub out of the
bearing.
5. Drive out existing bearing.
6. Install new bearing and secure to thrust plate
with four retaining screws. Tighten screws securely.
7. Reassemble components in reverse order.
INSTALL NEW
DRIVEN DISC
SNAP
RINGS
FIGURE 4.12
FIGURE 4.13
18
Section 4 - REPAIR & ADJUSTMENTS
WARNING
DO NOT attempt any maintenance, adjustments or
service with engine and blade running. STOP engine
and blade. Disconnect spark plug wire and secure
away from spark plug. Engine and components are
HOT. Avoid serious burns, allow sufficient time for
all components to cool.
4.3.6. Replacement Of Bearing On Pulley End Of
Hex Shaft
To replace the bearing on the pulley end of the hex
shaft, proceed as follows:
1. Hold the hex shaft with an adjustable wrench
held next to the pulley.
2. Remove the 3/8” hex lock nut which is located
on the outside of the right wheel bracket. See
Figure 4.14.
3. Remove holder, O-ring and bearing.
4. Install new bearing.
5. Carefully install new O-ring over the outside of the
new bearing.
6. Install bearing holder and secure with screws.
7. Install 3/8” hex lock nut.
BALL BEARING
“O” RING
3/8”
LOCK NUT
BALL BEARING
HOLDER
FIGURE 4.14
4.4 BELT SERVICE
On self-propelled mowers, the engine belt transmits
power from engine to drive disc. The drive disc
powers the poly-v belt, which engages the
transmission that powers the rear wheels. Should
these belts become worn, they could cause slippage,
which would impair mower performance. The
condition of the engine belt and poly-v belt should be
checked after every 25 hours of mower operation.
4.4.1. Engine Drive Belt Replacement
(Stretch Type Belts)
1. Empty the fuel tank.
2. Note the belt routing in Figure 4.15. There is no
idler pulley on these models to disconnect. See
Figure 4.15.
ENGINE DRIVE
PULLEY
TOP VIEW OF STRETCH TYPE BELT ROUTING
DRIVE BELT
DRIVE DISC
FIGURE 4.15
(Continued On Next Page)
19
Section 4 - REPAIR & ADJUSTMENTS
WARNING
DO NOT attempt any maintenance, adjustments or
service with engine and blade running. STOP engine
and blade. Disconnect spark plug wire and secure
away from spark plug. Engine and components are
HOT. Avoid serious burns, allow sufficient time for
all components to cool.
4.4.1. Engine Drive Belt Replacement
(Stretch Type Belts)
(Continued From Previous Page)
IMPORTANT: Drain fuel tank before tipping mower.
DO NOT tip machine with carburetor or spark plug down.
Oil from crankcase will saturate the air filter and cause the
engine to be hard to start or not start at all. If
contamination does occur, the air filter will have to be
replaced.
3. Remove the driven disc. Refer to Section
“Replacing Rubber Driven Disc” for driven disc
removal procedure.
4. Drain fuel tank before tipping mower. Do not tilt
mower with spark plug or carburetor down. Tilt
mower up on its rear wheels and remove blade and
blade hub. Assistance from another person may be
necessary to hold mower in the tilted position.
5. Hold the slotted end of the drive disc bolt with a
screwdriver and remove the nut and internal tooth
lock washer. See Figure 4.16.
6. Remove the belt cover located under deck.
7. Lift the drive disc up and remove worn belt.
8. Loop one end of new belt over engine pulley and
insert the other end through slot in deck. Refer to
Figure 4.15.
9. Loop the belt around the pulley on the bottom of
the drive disc.
10. Reinstall drive disc and retaining hardware.
IMPORTANT: 1) The square shoulder of the drive
disc bolt must fit into the square hole of the bushing.
2) The square end of bushing must fit into the
bracket slot.
11. Reinstall belt cover and tighten bolts securely.
12. Reinstall blade hub and cutter blade.
Recommended torque for blade cap screw is 40 ft. lbs.
SLOT IN END
OF DRIVE DISC
BOLT
DECK BRACKET
(PARTIALLY SHOWN)
4.4.2. Transmission Poly-V Belt Replacement
1. Remove the driven disc. Refer to Section on
“Replacing Driven Disc Rubber Ring” for procedure.
2. Note the routing of the old belt around the three
pulleys before removing it. See Figure 4.17.
3. Place new Poly-V Belt over end of hex shaft and
onto drive pulley.
4. Work belt onto top of idler pulley.
5. Twist belt sideways and pull it upward between
the differential bracket and driven pulley and then
down into the pulley groove. Make sure the Poly-V
Belt is above belt guide. See Figure 4.17.
DRIVE
PULLEY
HEX SHAFT
BELT GUIDE
20
PULLEY POSITION
BOLT RETAINER
FIGURE 4.16
IDLER
PULLEY
ROUTING OF POLY-V BELT
DIFFERENTIAL
BRACKET
POLY-V
BELT
FIGURE 4.17
DRIVE DISC
BUSHING
INTERNAL TOOTH
LOCKWASHER
NUT
DRIVEN
PULLEY
TROUBLESHOOTING
PROBLEM PROBABLE CAUSE CORRECTIVE ACTION
Engine Will Not Start 1. Fuel tank empty. 1. Fill fuel tank with fresh fuel.
Using Recoil Starter 2. Engine needs priming. 2. Prime engine. Check Engine Manual for
Instructions.
3. Spark plug wire disconnected. 3. Place spark plug wire onto spark plug.
Engine Stalls or Stops
After Running
2. Fuel tank empty. 2. Fill with fuel to proper level.
3. Engine air pre-cleaner and or air cleaner dirty. 3. Clean free of all debris.
4. Spark plug defective or gap set improperly. 4. Service spark plug.
5. Water, debris or stale fuel in fuel system. 5. Drain and clean fuel system.
Engine Loses Power 1. Engine air pre-cleaner or air cleaner dirty 1. Clean or replace filters.
2. Spark plug faulty. 2. Service spark plug.
3. Water, debris or stale fuel in fuel system. 3. Drain and clean fuel system.
Excessive Vibration 1. Damaged, out of balance or bent mower blade. 1. Service mower blade.
2. Loose blade components. 2. Service and tighten loose parts.
3. Loose or missing air lift (if equipped). 3. Replace air lifts. Tighten to proper torque.
4. Lumpy or frayed belt 4. Replace belt.
Mower Will Not Move
Loss Of Traction
(Self-Propelled Models)
Cutting Grass
Improperly
Poor Grass Discharge
Oil Leaking
1. Blade control is released or is not being held securely
against handle.
1. Damaged transmission
2. Traction drive belt requires replacement 2. Replace traction drive belt.
3. Driven disc slipping 3. Clean or replace driven disc.
1. Cutting height too low or high. 1. Adjust cutting height.
2. Engine speed too slow. 2. Move engine speed control to “FAST” position.
3. Forward ground speed too fast. 3. Move ground speed control to a slower speed.
4. Terraced cut, side to side. 4. Adjust height of cut with height adjust levers.
5. Excessive deck pitch, front to rear. 5. Adjust height of cut with height adjust levers.
6. Cutting blade dull or damaged. 6. Sharpen cutting edges or replace blade.
1. Engine speed too slow. 1. Move engine speed control to “FAST” position.
2. Forward speed too fast. 2. Move ground speed control to a slower speed.
3. Grass is wet. 3. Mow when grass is dry.
4. Excessively worn or damaged blade. 4. Service mower blade.
5. Build up of grass clippings and debris under deck. 5. Clean deck.
6. Improper blade installed on deck.
7. Blade installed improperly on deck. 7. Install blade properly.
1. Leaking engine case.
1. Blade control should be held securely against
handle at all times during operation of mower.
1. Contact authorized SNAPPER dealer.
6. Install proper SNAPPER blade.
1. Contact authorized SNAPPER dealer.
2. Check and tighten drain plug.
3. Make sure dip stick or oil filler cap is securely
in place.
21
SERVICE SCHEDULE
ITEM SERVICE PERFORMED REF. EACH
USE 5 HRS
Engine Oil
Check Oil Level Page 7
25
HRS
X
50
HRS
100
HRS
EACH
SEASON
Air Pre-Cleaner
Air Cleaner
Spark Plug
Engine Cooling
System
Drive Belts
Mower Blade
Mower Deck
Transmission
Grease
Drive Disc
*Change oil every 25 hours when operating under heavy load or high temperatures.
**Clean more often under dusty conditions or when air debris is present
4.6 MAINTENANCE/REPLACEMENT PARTS
Initial Oil Change Page 12
Periodic Oil Change Page 13
Clean Sponge Element Engine Manual
Clean or Replace Engine Manual
Replace Engine Manual
Clean Shroud & Fins Engine Manual
Check For Wear And
Tension
Check For Wear, Damage
& Replacement
Clean Debris
Accumulation
Check Grease Level Page 12
Periodic Grease Check Page 12
Check for Wear Damage
& Replacement
Pages 19-20
Pages 14-15
Page 7
Pages 16-18
X
X*
X**
X**
X
X**
X X X
X
X
X X
X
X
MAINTENANCE PARTS
Engine Speed Control 7-4460
Blade Control Cable 3-4608
Clutch Pull Cable (See Parts Manual) 3-4604
Cutter Blade (Air Lift Compatible) 1-9795
Cutter Blade (Mulching) 1-7168
Cutter Blade (Not Air Lift Compatible) 2-6691
Cutter Blade (Ninja - Quad Edge) 2-6407
Wheel Drive Pulley to Transmission Pulley Belt 1-2354
Engine to Drive Disc Belt 4-6784
Cantilever Drive Tire Assembly 7-3528
Rubber Drive Tire 4-1855
Parts Manual for 21” Steel Deck Walk Behind Mower Series 18 06139
22
DECAL IDENTIFICATION
SAFETY ALERT
SYMBOL. OBSERVE
AND FOLLOW ALL
SAFETY
INSTRUCTIONS.
(1) WARNING INSTRUCTIONS.
(2) WARNING: Do Not operate without entire Grass
Catcher or Guard in place.
(3) PRIME (on engine): Use for initial engine starting.
Read and follow engine operating and maintenance
instructions. Push bulb to prime engine.
(4) SPARK PLUG: Warns of potential electrical
shock from spark plug while engine is running.
READ, UNDERSTAND AND FOLLOW INSTRUCTIONS AND WARNINGS IN OPERATOR’S
MANUALS, AND ON THE MOWER, ENGINE AND ATTACHMENTS BEFORE OPERATING.
KEEP CHILDREN
AND OTHERS OUT
OF MOWING
(5) THROTTLE CONTROL: Indicates direction to
increase engine RPM (Hare), decrease engine RPM
(Tortoise).
(6) SPEED SELECTOR: Shows direction of motion
and the ability to select ground speed by moving
lever forward or backward.
23
DECAL IDENTIFICATION
(7) OPERATOR PRESENCE CONTROL (OPC):
Arrow points to the OPC bail. When bail is rotated
rearward, the engine may be started and will run as
indicated by the engine with rotating arrow. With
the engine running, the blade is rotating as
indicated by the cut grass symbol. When the bail is
released and rotates forward, the engine will stop.
(8) CLUTCH: Located on the plastic grip of the
traction control lever. Moving the lever toward the
handle engages the traction clutch and forward
motion starts. When the lever is released, the clutch
disengages and forward motion stops.
(8) INJURY WARNING: Indicates possible severe
injury from rotating cutting blades.
(9) CE DECAL: Indicates European Certification.
(10) LWA-100: Indicates European noise level
certification.
EUROPEAN PERFORMANCE:
Maximum level of vibration measured at the
operators hand 19.1 m/sec2
24
2 YEAR LIMITED WARRANTY
For two (2) years from purchase date for the original purchaser's residential, non-commercial use, SNAPPER, through
any authorized SNAPPER dealer will replace, free of charge (except for taxes where applicable), any part or parts
found upon examination by the factory at McDonough, Georgia, to be defective in material or workmanship or both.
For ninety (90) days from purchase date for the original purchaser's commercial, rental, or other non-residential use,
SNAPPER, through any authorized SNAPPER dealer will replace, free of charge, any part or parts found upon
examination by the factory at McDonough, Georgia, to be defective in material or workmanship or both.
All transportation costs incurred by the purchaser in submitting material to an authorized SNAPPER dealer for
replacement under this warranty must be paid by the purchaser.
This warranty does not apply to certain transmissions, to engines and their components, and batteries, as these items
are warranted separately. This warranty does not apply to parts that have been damaged by accident, alteration,
abuse, improper lubrication, normal wear, or other cause beyond the control of SNAPPER. This warranty does not
cover any machine or component part that has been altered or modified changing safety, performance, or durability.
Batteries have a one (1) year warranty period with free replacement if required for one (1) year from the original
purchase date. SNAPPER will not be responsible for any installation cost incurred. The battery warranty only covers
original equipment batteries and does not cover damage to the battery or machine caused by neglect or abuse,
destruction by fire, explosion, freezing, overcharging, improper maintenance, or use of improper electrolyte.
There is no other express warranty.
DISCLAIMER OF WARRANTY
Implied warranties, including those of merchantability and fitness for a particular purpose, are limited to two (2)
years from purchase date for the original purchaser's residential or other non-commercial use, and ninety (90)
days from purchase for the original purchaser's commercial, rental or other non-residential use, and to the
extent permitted by law, any and all implied warranties are excluded. This is the exclusive remedy. Liabilities
for consequential damages, under any and all warranties are excluded.
Some states do not allow limitations on how long an implied w arranty lasts, or do not allow the exclusion or
limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you.
This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.
WARNING: THE USE OF REPLACEMENT PARTS OTHER THAN GENUINE SNAPPER PARTS MAY IMPAIR THE
SAFETY OF SNAPPER PRODUCTS AND WILL VOID ANY LIABILITY AND WARRANTY BY SNAPPER
ASSOCIATED WITH THE USE OF SUCH PARTS.
IMPORTANT: Please fill out the attached SNAPPER Product Registration Card immediately and mail to:
Snapper’s Product Registration Center, P.O. Box 1379, McDonough, Georgia 30253
25
NOTES
___________________________________________________________________
___________________________________________________________________
___________________________________________________________________
___________________________________________________________________
___________________________________________________________________
___________________________________________________________________
___________________________________________________________________
___________________________________________________________________
___________________________________________________________________
___________________________________________________________________
___________________________________________________________________
___________________________________________________________________
___________________________________________________________________
___________________________________________________________________
___________________________________________________________________
___________________________________________________________________
___________________________________________________________________
___________________________________________________________________
___________________________________________________________________
___________________________________________________________________
___________________________________________________________________
___________________________________________________________________
___________________________________________________________________
___________________________________________________________________
___________________________________________________________________
___________________________________________________________________
___________________________________________________________________
___________________________________________________________________
___________________________________________________________________
___________________________________________________________________
___________________________________________________________________
___________________________________________________________________
___________________________________________________________________
___________________________________________________________________
___________________________________________________________________
___________________________________________________________________
___________________________________________________________________
___________________________________________________________________
___________________________________________________________________
___________________________________________________________________
___________________________________________________________________
___________________________________________________________________
26
NOTES
___________________________________________________________________
___________________________________________________________________
___________________________________________________________________
___________________________________________________________________
___________________________________________________________________
___________________________________________________________________
___________________________________________________________________
___________________________________________________________________
___________________________________________________________________
___________________________________________________________________
___________________________________________________________________
___________________________________________________________________
___________________________________________________________________
___________________________________________________________________
___________________________________________________________________
___________________________________________________________________
___________________________________________________________________
___________________________________________________________________
___________________________________________________________________
___________________________________________________________________
___________________________________________________________________
___________________________________________________________________
___________________________________________________________________
___________________________________________________________________
___________________________________________________________________
___________________________________________________________________
___________________________________________________________________
___________________________________________________________________
___________________________________________________________________
___________________________________________________________________
___________________________________________________________________
___________________________________________________________________
___________________________________________________________________
___________________________________________________________________
___________________________________________________________________
___________________________________________________________________
___________________________________________________________________
___________________________________________________________________
___________________________________________________________________
___________________________________________________________________
___________________________________________________________________
___________________________________________________________________
27
Safety Instructions & Operator’s Manual for
EUROPEAN
21” STEEL DECK
WALK BEHIND MOWERS
SERIES 18
IMPORTANT
Snapper products are built using engines that meet or exceed all applicable emissions requirements on the
date manufactured. The labels on those engines contain very important emissions information and critical
safety warnings. Read, Understand, and Follow all w arnings and instructions in this manual, the engine
manual, and on the machine, engine and attachments. If you have any questions about your Snapper
product, contact your local authorized Snapper dealer or contact Snapper Customer Service at Snapper,
McDonough, GA. 30253. Phone: (1-800-935-2967).
WARNING
BATTERY POSTS, TERMINALS AND RELATED ACCESSORIES CONTAIN LEAD AND LEAD COMPOUNDS,
CHEMICALS KNOWN TO THE STATE OF CALIFORNIA TO CAUSE CANCER AND BIRTH DEFECTS OR
OTHER REPRODUCTIVE HARM. WASH HANDS AFTER HANDLING.
WARNING
ENGINE EXHAUST, SOME OF ITS CONSTITUENTS, AND CERTAIN VEHICLE COMPONENTS CONTAIN OR
EMIT CHEMICALS KNOWN TO THE STATE OF CALIFORNIA TO CAUSE CANCER OR OTHER
REPRODUCTIVE HARM.
COPYRIGHT © 2004
SNAPPER – A DIVISION OF SIMPLICITY MFG., INC.
ALL RIGHTS RESERVED
MANUAL No. 2-9767 (I.R. 8/9/04)
28
Loading...
