Parts Manual fo
r
)
V
V
LAWN TRACTOR MANUAL CLUTCH
HYDRO DRIVE (1991 1/2
SERIES 1
MODEL
ELT140H331KV
ELT140H411KV
LT140H331K
LT140H411K
RLT140H331KV
COPYRIGHT ©2006
SNAPPER PRODUCTS, INC.
ALL RIGHTS RESERVED.
Revision 2,
McDonough, GA, 30253 U.S.A.
7/14/2006
Manual No. 7006427
TP 400-5213-2-TC-N
s
PAGE GROUP
4
6
8
10
14
16
18
20
22
24
28
32
34
36
38
44
48
50
52
54
Hood, Bumper, Headlights
Wheels - Front
Wheels - Rear
Engine, Engine Base & Drive Parts
Transmission Support & Components I
Transmission Support & Components II
Dash Panel
Steering And Front Axle Parts
Seat, Rear Fender
Clutch, Brake & Transmission Controls
Transmission Group
Transmission - Service Parts
Implement Lift Parts
Blade Engagement

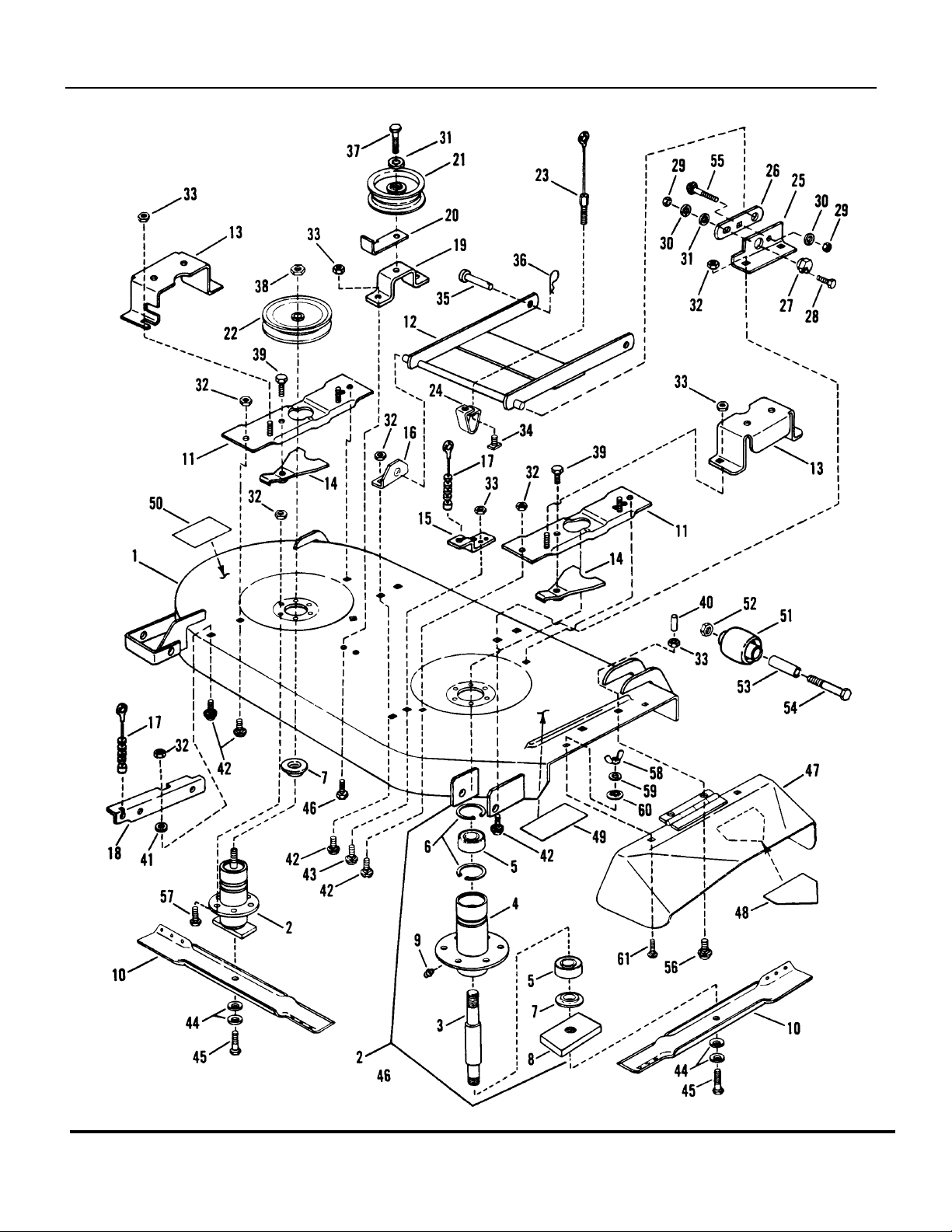

33" Cutting Deck, Belts, Brakes
41" Cutting Deck
Belt, Blade Brake, 41" Deck
Fuel Tank & Battery
Electrical System
Schematic Electrical System (Kohler Engines Only)
Table Of Content
SERIES 1
Manual No. 7006427LAWN TRACTOR MANUAL CLUTCH
3
TP 400-5213-2-TC-N
Hood, Bumper, Headlights
Manual No. 7006427 LAWN TRACTOR MANUAL CLUTCH
TP 400-5213-2-TC-N
4
SERIES 1
Hood, Bumper, Headlights
p
y
Part No Descri
1 7063298 1 KIT, Hood Assembly, Sloped Mozart Was 61082 or 61383 (Includes 2
2 1 HOOD (No longer available, use kit 7063298) Was 19411
3 7016766 1 ROD, Hood Latch
4 7076978 10 NUT, 1/4-20 Hex Lock
5 1 HEAT SHIELD, Hood 3" x 5" (No longer available) Was 17787
6 2 DECAL-SNAPPER, Molded Logo (No longer available) Was 16974 or 36438 or 24980
7 7090999 10 SCREW, 1/4-20 x 5/8" Torx, Truss Head
8 1 BUMPER (R.H.) (No longer available) Was 19412
1 BUMPER (L.H. Shown) (No longer available) Was 19413
9 7012691 2 CLIP, Wiring Harness .31"
10 7017174 1 DECAL, Reflect (R.H.)
7017175 1 DECAL, Reflect (L.H. Shown)
11 7033265 2 BRACKET, Latch Hook
12 1 BUMPER, Front (No longer available) Was 19414
13 7091106 5 SCREW, #12 x 1/2"
14 7024893 1 LENS, Clear Bezel Was 19415
15 7016756 2 BULB, Headlights, 1156
16 7016757 2 SOCKET, Headlight Bulb
17 7016765 1 HARNESS, Headlight Wiring
18 7017359 1 CLIP, Hood Latch
19 1 DECAL-SNAPPER, Molded Logo 4" - Blue (No longer available) Was 22968 (LT140H33 &
7022969 1 DECAL-SNAPPER, Molded Logo 4" - Green (RLT140H33)
20 1 DECAL, 1550LX - Blue (R.H.)(No longer available) Was 22986 (LT140H33 &
1 DECAL, 1550LX - Blue (L.H. Shown)(No longer available) Was 22987 (LT140H33 &
7022988 1 DECAL, 1550RX - Green (R.H.) (RLT140H33)
7022989 1 DECAL, 1550RX - Green (L.H. Shown) (RLT140H33)
21 7022975 1 DECAL, Convertible - Blue (LT140H33)
7022977 1 DECAL, Twin-Turbo - Blue (LT140H41)
1 DECAL, Recycling - Green (No longer available) Was 22972 (RLT140H33)
tionItem Qt
Note
thru 18)
LT140H41)
LT140H41)
LT140H41)
Footnotes:
Manual No. 7006427LAWN TRACTOR MANUAL CLUTCH
SERIES 1
5
TP 400-5213-2-TC-N
Wheels - Front
Manual No. 7006427 LAWN TRACTOR MANUAL CLUTCH
TP 400-5213-2-TC-N
6
SERIES 1
Wheels - Front
p
y
Part No Descri
1 7058517 2 ASSEMBLY, Front Tire & Rim 15x5.50-6.00 Was 52185 (Includes Items 2, 3
2 7022772 2 RIM, 6 x 4.50 Was 16739
3 7072704 2 TIRE, 15-5.50 x 6 Was 16740
4 7012234 2 VALVE, Air (Snap-in)
5 7014483 4 BEARING, Wheel Flanged PM .758 ID x 1.38 OD x 1.0 L
6 7032027 2 WASHER .77 x 1.5 x .06
7 7019417 2 WHEEL-COVER
8 7091516 2 COTTER-PIN 5/32 x 1 YZ Was 90364
9 7076998 2 FITTING, Lube 1/4-28 Tapered Thread Was 13876
tionItem Qt
Note
& 4)
Footnotes:
Manual No. 7006427LAWN TRACTOR MANUAL CLUTCH
SERIES 1
7
TP 400-5213-2-TC-N
Wheels - Rear
Manual No. 7006427 LAWN TRACTOR MANUAL CLUTCH
TP 400-5213-2-TC-N
8
SERIES 1
Wheels - Rear
p
y
Part No Descri
1 2 ASSEMBLY, Rear Tire & Rim (No longer available) Was 52187 (LT140H41)
2 ASSEMBLY, Rear Tire & Rim (No longer available) Was 52675 (LT140H33 &
2 7016744 2 TIRE, 18-8.50 x 8 (Used with 41" Deck)
7022688 2 TIRE, 18-7.50 x 8 (Used with 33" Deck)
3 7016742 2 RIM, 8 x 7 (Used with 41" Deck)
7016741 2 RIM, 8 x 5.375 (Used with 33" Deck)
4 7012234 2 VALVE, Air (Snap-in)
5 7091502 6 BOLT, 1/2-20 x 3/4" Lug Was 90367
6 7019418 2 WHEEL-COVER
7 7040720 2 HUB, Rear Wheel
8 7017173 2 KEY, Square, 3/16 x 2 1/2"
9 7012899 2 RING, Retaining EXT .75 Was 12829
tionItem Qt
Note
RLT140H33)
Footnotes:
Manual No. 7006427LAWN TRACTOR MANUAL CLUTCH
SERIES 1
9
TP 400-5213-2-TC-N
Engine, Engine Base & Drive Parts
Manual No. 7006427 LAWN TRACTOR MANUAL CLUTCH
TP 400-5213-2-TC-N
10
SERIES 1
Engine, Engine Base & Drive Parts
p
y
Part No Descri
1 7017358 1 DECAL, Engine 14 HP OHV
2 7017313 1 MUFFLER, Exhaust
3 1 ENGINE, Kohler Model CV14S, Spec. PS1431 (Purchase Engine Parts, Other
4 7091585 4 NUT, 3/8-16 Hex, Center Lock Was 90546
5 7033145 1 BASE, Engine Kohler
6 7091508 2 BOLT, 5/16-18 x 3/4" Short Neck Carriage Was 90788
7 7090595 2 BOLT, 5/16-18 x 3/4" Flange Lock
8 7091575 1 NUT, 5/16-18 Hex Lock Was 90184
9 7014438 1 EYE-BOLT
10 7091008 1 BOLT, 3/8-16 x 2 1/2" Short Neck Carriage
11 7090517 2 WASHER, 3/8" Flat Was 90600
12 7044752 1 BUSHING, Idler Arm .750 OD x .406 ID x .25 L Was 22062
13 7040565 1 ARM, Idler
14 7011029 2 PULLEY, Idler, 4" O.D.
15 7023199 1 PULLEY, Idler, 3 3/4" O.D.
16 7090629 1 BOLT, 3/8-16 x 2 1/4 Hex
17 7090118 1 WASHER, 3/8 Split Lock
18 7091302 1 NUT, 3/8-16 Hex Was 90130
19 7014527 1 SPACER .623 OD x .38 ID x .25 L
20 7011807 1 SPRING, Idler Arm
21 7091601 6 NUT, 5/16-18 Hex Flange Lock Was 90585
22 7019042 1 GUIDE, Belt
23 7090836 1 SCREW, 7/16-20 Socket, Hex Head Cap
24 7091301 1 WASHER, 7/16 Split Lock Was 90247
25 7019036 1 PULLEY ASSEMBLY, Engine
26 7012306 2 BUSHING
27 7023198 2 SCREW, Shoulder, 3/8-16 x 1 5/8"
28 7091619 2 NUT, 3/8-16 Hex Flange Lock Was 90613
29 7016724 1 V-BELT, Traction Drive, (111.6" EL) LT140H33, LT140H41, &
RLT140H33
30 1 AXLE SUPPORT (No longer available) Was 33100
31 7077692 4 BOLT, M8-1.25 x 25MM Hex Head
32 7090187 4 WASHER, 5/16 Split Lock
33 7090661 2 BOLT, 5/16-18 x 1" Hex Flange Lock
34 7091000 2 SCREW, 5/16-18 x 7/8" Truss Head Torx Was 91001
35 7033424 1 SPACER, Kohler Engine
36 7011791 2 RETAINER 5/16"
37 7016719 2 SPACER .750 x .39 ID x .5 L
tionItem Qt
Note
Than Those Listed, From
Engine Service Outlets.)
Footnotes:
Manual No. 7006427LAWN TRACTOR MANUAL CLUTCH
SERIES 1
11
TP 400-5213-2-TC-N
Engine, Engine Base & Drive Parts
Manual No. 7006427 LAWN TRACTOR MANUAL CLUTCH
TP 400-5213-2-TC-N
12
SERIES 1
Engine, Engine Base & Drive Parts
p
y
Part No Descri
38 7091580 2 BOLT, 3/8-16 x 1 3/4" Hex Flange Lock Was 90701
tionItem Qt
Note
Footnotes:
Manual No. 7006427LAWN TRACTOR MANUAL CLUTCH
SERIES 1
13
TP 400-5213-2-TC-N
Transmission Support & Components I
Manual No. 7006427 LAWN TRACTOR MANUAL CLUTCH
TP 400-5213-2-TC-N
14
SERIES 1
Transmission Support & Components I
p
y
Part No Descri
1 1 TRANSMISSION SUPPORT, R.H. (No longer available) Was 33063
2 2 BRACKET, Transmission Mount (No longer available) Was 33059
3 7016360 2 WASHER .406 x 1.38 x .25
4 7017164 1 ROD, Release
5 7023606 1 CAP, Release Rod Was 23525
6 7033061 1 BRACE, Torque
7 7016116 4 NUT, 5/16 Push-On
8 7090361 14 SCREW, 5/16-18 x 5/8" Self-Tapping
9 1 TRANSMISSION SUPPORT, L.H. (No longer available) Was 33062
10 7027198 4 BOLT, 3/8-16 x 1" Hex Flange Lock Was 90582
11 1 EXTENSION, Transmission Support, L.H. (No longer available) Was 35179
12 7091585 4 NUT, 3/8-16 Center Lock Was 90546
13 7090122 4 WASHER, 3/8 SAE
14 7091541 2 SCREW, 5/16-18 x 3/4" Self-Tapping Was 90368
15 1 BRACE, Shift Bracket (No longer available) Was 33065
16 1 EXTENSION, Transmission Support, R.H. (No longer available) Was 35180
17 7022289 2 U-BOLT
18 7033320 2 SADDLE, U-Bolt
19 7091601 2 NUT, 5/16-18 Hex Flange Lock Was 90585
24 7091000 1 SCREW, 5/16-18 X 7/8" Torx Self-Tap
tionItem Qt
Note
Footnotes:
Manual No. 7006427LAWN TRACTOR MANUAL CLUTCH
SERIES 1
15
TP 400-5213-2-TC-N
Transmission Support & Components II
Manual No. 7006427 LAWN TRACTOR MANUAL CLUTCH
TP 400-5213-2-TC-N
16
SERIES 1
Transmission Support & Components II
p
y
Part No Descri
8 7090361 14 SCREW, 5/16-18 x 5/8" Self-Tapping
20 7033068 1 COVER, Rear
21 7017209 1 DECAL, Roll
22 1 COVER, Transmission Oil Access (No longer available) Was 16863
23 7017327 2 SCREW, Expansion
tionItem Qt
Note
Footnotes:
Manual No. 7006427LAWN TRACTOR MANUAL CLUTCH
SERIES 1
17
TP 400-5213-2-TC-N
Dash Panel
Manual No. 7006427 LAWN TRACTOR MANUAL CLUTCH
TP 400-5213-2-TC-N
18
SERIES 1
Dash Panel
p
y
Part No Descri
1 7052685 1 PANEL, Dash Was 52686
2 7090996 4 SCREW, 1/4-20 x 1" Phillips
3 7040734 1 SUPPORT, Steering Shaft
4 7051915 1 CHANNEL, Foot Rest (Includes item 30)
5 7091000 14 SCREW, 5/16-18 x 7/8" Torx, S.T. Was 91001
6 7019400 1 TREAD, Left Side (Non-Skid)
7 7019399 1 TREAD, Right Side (Non-Skid)
8 7090361 2 SCREW, 5/16-18 x 5/8" Hex Cap S.T.
9 7033073 1 MOUNT, Fuel Tank/Battery
10 7026196 1 FLANGE ASSM'Y., Steering Shaft .75" ID Bearing Was 23173
11 7076978 4 NUT, 1/4-20 Hex
12 7090896 2 SCREW, #10-24 x 1/2" Self-Tapping Was 90853
13 7090858 4 SCREW, 5/16-18 x 1/2" Self-Tapping
14 7033078 1 PLATE, Fuel Tank & Battery Mount
15 7091122 4 SCREW, 1/4-20 x 1/2" Hex Cap, S.T. Was 90539
29 7016824 1 CONTROL, Throttle 41.6" Long
30 7017026 1 DECAL, Caution & Instruction
32 1 GROMMET, 5/16 I.D. for .75 Hole (No Longer available) Was 14856
33 7023655 1 HANDLE, Throttle Control
34 7091017 1 SCREW, #8-32 x 3/8" Recessed, Fillister Head
35 7091018 1 NUT, #8-32 Hex
36 1 ROD, Hood Latch (No longer available, try using 7033828) Was 17345
37 7090803 6 BOLT, 1/4-20 x 5/8" Flat Head Carriage
38 7091584 6 NUT, 1/4-20 Hex Flange Lock Was 90583
tionItem Qt
Note
Footnotes:
Manual No. 7006427LAWN TRACTOR MANUAL CLUTCH
SERIES 1
19
TP 400-5213-2-TC-N
Steering And Front Axle Parts
Manual No. 7006427 LAWN TRACTOR MANUAL CLUTCH
TP 400-5213-2-TC-N
20
SERIES 1
Steering And Front Axle Parts
p
y
Part No Descri
1 7017040 1 STEERING WHEEL
2 7012765 1 ROLL-PIN Spiral .26 x 2.25
3 7040610 1 SHAFT, Steering
4 7091313 1 PIN, Cotter 3/32 x 1.0 YZ Was 10076 retaining ring
5 7014296 3 WASHER, Shim .5 x .75 x .03
6 7091584 1 NUT, 1/4-20 hex Flange Lock Was 90583
7 7052562 1 ADJUSTER, Steering Was 51751
8 7011071 2 WASHER, Thrust
9 7047938 1 ASSEMBLY, Steering Support
10 7091573 1 BOLT, 1/4-20 x 5/8" Short Neck Carriage Was 90551
11 7090361 4 SCREW, 5/16-18 x 5/8" Self-Tapping
12 7010746 2 RING, Retaining EXT .625
13 7015140 2 BEARING
14 7051752 1 ASSEMBLY, Sector
15 7027936 2 ROD-END, Drag Link .377 ID Ball x 3/8-24 End Was 23200
16 7090118 4 WASHER, 3/8 Split Lock
17 7090163 2 SCREW, 3/8-24 x 1 1/4" Hex Head Cap Nylon Patch
18 7090482 4 JAM-NUT, 3/8-24 Hex
19 7016062 1 DRAG-LINK
20 7019034 1 ARM, Steering
21 7090842 1 ROLL-PIN 1/4 x 1.25"
22 7032027 3 WASHER, Flat .77 x 1.5 x .06
23 7012706 4 BEARING, Sleeve .875 OD
24 7013864 2 LUBE FITTING, Straight (press-fit for .187 dia. Hole)
25 7031036 2 WASHER, Thrust
26 7040977 1 SPINDLE ASSEMBLY, L.H.
27 7091516 2 COTTER-PIN 5/32 x 1 YZ Was 90364
28 7091630 2 NUT, 3/8-24 Hex Was 90155
29 7017608 1 TIE-ROD
30 7040976 1 SPINDLE ASSEMBLY, R.H.
31 7090993 1 SCREW, 1/2-20 x 4 1/2" Hex Head Cap
32 7057536 1 ASSEMBLY, Front Axle (Includes four item 23, two item
33 7022070 1 SPACER, Axle Pivot .748 OD x .508 ID x 3.77 L
34 7090819 1 NUT, 1/2-20 Hex Lock
35 7010935 1 WASHER .77 x 1.13 x .06
36 7014871 1 FITTING, Lube 3/16
37 7033264 1 HEAT SHIELD, Fuel Line
tionItem Qt
Note
24, one item 36)
Footnotes:
Manual No. 7006427LAWN TRACTOR MANUAL CLUTCH
SERIES 1
21
TP 400-5213-2-TC-N
Seat, Rear Fender
Manual No. 7006427 LAWN TRACTOR MANUAL CLUTCH
TP 400-5213-2-TC-N
22
SERIES 1
Seat, Rear Fender
p
y
Part No Descri
1 1 SEAT, Operator's 5 Hole (No longer available) Was 22544 or 22545
2 7022278 2 SPRING, Seat Switch
3 7022794 2 SPACER, Seat .467 OD x .328 x 1.375 L
4 7033362 1 HOLDER, Seat Switch
5 7091592 2 BOLT, 5/16-18 x 2" Hex Flange Lock Was 90586
6 7022793 2 BUSHING, Seat
7 7019348 2 CLIP, Seat Bumper
8 7019109 2 CUSHION, Seat
9 7023191 1 KNOB, 3 Prong 5/16-18 x 3/4
10 7011763 1 WASHER 5/16"
11 7033360 1 SUPPORT, Seat
12 7033361 1 BRACKET, Seat Support
13 7012431 1 PIN, Hair 1.12"
14 7090721 3 BOLT, 5/16-18 x 1/2" Hex Flange Lock
15 1 DECAL, SNAPPER, Molded Logo 8" - Blue (No longer available) Was 22971
1 DECAL, SNAPPER, Molded Logo 8" - Green (No longer available Was 22972
16 7091000 4 SCREW, 5/16-18 x 7/8" Torx Head, Self-Tapping
17 7033049 1 FENDER, Rear
18 7090999 6 SCREW, 1/4-20 x 5/8" Torx Head, Self-Tapping
19 7091105 4 SCREW, #10-16 x 1/2" Self-Tapping
20 7033120 1 DETENT, Shift
21 7019416 1 COVER, Shift Detent
22 7073424 1 DECAL, Shift Cover Was 16576
23 7023193 3 RIV-NUT, 5/16-18
24 7032692 3 SPACER, WEAR Nylon 2.0 x .62 x .055
25 7023192 2 WASHER, Flat .445 x 1.0 x .059
26 7015761 2 SCREW, Shoulder, 5/16-18 x 3/4"
27 7019035 1 ROD, Seat Hinge
tionItem Qt
Note
Footnotes:
Manual No. 7006427LAWN TRACTOR MANUAL CLUTCH
SERIES 1
23
TP 400-5213-2-TC-N
Clutch, Brake & Transmission Controls
Manual No. 7006427 LAWN TRACTOR MANUAL CLUTCH
TP 400-5213-2-TC-N
24
SERIES 1
Clutch, Brake & Transmission Controls
p
y
Part No Descri
1 7023656 1 KNOB, Shifter (Elongated)
2 7040716 1 SHIFTER, Transmission
3 7091597 1 COTTER-PIN, 3/32 x 3/4" Was 90037
4 7022182 1 PIN, Shifter
5 7033159 1 EXTENSION, Hub
6 7090112 1 SCREW, 1/4-28 x 2" Hex Head Cap
7 7090303 1 NUT, 1/4-28 Hex Lock
8 7052346 1 RUB PLATE ASSEMBLY
9 7052274 1 SHIFT PIVOT ASSEMBLY
10 1 BEARING, Shift Pivot Assembly (No longer available, try using
7015048)
11 7017818 1 SPRING, Shift
12 7017820 1 SPACER, 1.0 OD x .755 ID x .310 L
13 7040704 1 SPEED CONTROL
14 7091130 2 WASHER, 5/16 Flat
15 7091297 1 NUT, 5/16-24 Hex Was 90223
16 7017415 1 WASHER, Special
17 7017416 1 SPRING, Tension
18 7090517 1 WASHER, 3/8" Flat Was 90600
19 7090289 1 NUT, 3/8-24 Hex Lock
20 7017543 1 CAM FOLLOWER
21 7019039 1 CABLE, Clutch (22.5" Long)
22 7032926 1 BRACE
23 7023649 2 WASHER, Nylon 5/16"
24 7023189 1 RING, Tolerance 5/16" x 1/2"
25 7023188 1 KNOB, Latch 5/16"
26 7012661 1 PAD, Pedal
27 7017024 1 PEDAL, Clutch/Brake
28 7019033 1 LATCH, Clutch/Brake
29 7012431 PIN, Hair 1.12"
30 7091000 2 SCREW, 5/16-18 x 7/8" Torx
31 7014871 1 FITTING, Lube 3/16"
32 7052431 1 PIVOT, Clutch/Brake Pedal (Includes item 31)
33 7091601 2 NUT, 5/16-18 Hex Lock Was 90585
34 7090360 1 COTTER-PIN, 1/16 x 3/4"
35 7023645 1 PIN, Clevis, 3/16 x 1 1/2"
36 7041309 1 BRAKE ARM Was 41016
37 7091530 2 BOLT, 1/4-20 x 3/4" Short Neck Carriage Was 90074
tionItem Qt
Note
Was 16955
Footnotes:
Manual No. 7006427LAWN TRACTOR MANUAL CLUTCH
SERIES 1
25
TP 400-5213-2-TC-N
Clutch, Brake & Transmission Controls
Manual No. 7006427 LAWN TRACTOR MANUAL CLUTCH
TP 400-5213-2-TC-N
26
SERIES 1
Clutch, Brake & Transmission Controls
p
y
Part No Descri
38 7023182 1 SPOOL, Bracket
39 7012715 1 PIN, Clevis, 3/8 x 1 9/32"
40 7091809 1 COTTER-PIN, 1/8 x 1 1/4" Was 90042
41 1 BRACKET, Spool (No longer available, try modifying 7033328 to
fit)
42 7090858 4 SCREW, 5/16-18 x 1/2" Self-Tapping
43 7091593 1 COTTER-PIN, 3/8 Self-Lock Was 24159
tionItem Qt
Note
Was 32694 or 33154
Footnotes:
Manual No. 7006427LAWN TRACTOR MANUAL CLUTCH
SERIES 1
27
TP 400-5213-2-TC-N
Transmission Group
Manual No. 7006427 LAWN TRACTOR MANUAL CLUTCH
TP 400-5213-2-TC-N
28
SERIES 1
Transmission Group
p
y
Part No Descri
1 7026084 1 TRANSAXLE ASSEMBLY Was 19725
2 7033133 1 LEVER, Release
3 7076978 1 NUT, 1/4-20 Hex Lock
4 7017166 1 SPACER .37 OD x .271 ID x .120 L
5 7016927 1 SPRING, Brake Return
6 7091511 4 NUT, 5/16-18 Hex Was 90628
7 7090187 1 WASHER, 5/16 Split Lock
8 7052281 1 TORQUE BRACKET ASSEMBLY
9 7017121 1 ROD, Brake Spring
10 7090692 3 WASHER 5/16 x 7/8 x .083
11 7091598 2 COTTER-PIN, 5/32 x 1" Was 90365
12 7040702 1 ROD, Brake Stop
13 7091575 1 NUT, 5/16-18 Hex Center Lock Was 90184
14 7016721 1 SPRING, Brake
15 7015464 1 STUD, Neutral Pivot
16 7090390 1 WASHER, 3/8 Internal Tooth Lock
17 7091630 1 NUT, 3/8-24 Hex Was 90155
18 7091809 1 COTTER-PIN,1/8 x 1 1/4" Was 90042
19 7040703 1 NEUTRAL PIVOT ASSEMBLY
20 7072801 1 WASHER Was 12855
21 2 BEARING, 5/8 Flanged Nylon .625 ID x .719 x .325 (No longer
available)
22 7033056 1 SUPPORT, Neutral Pivot
23 7016723 1 SPRING, Torsion
24 1 SPACER, 1.120 OD x .635 ID x .38 L (No longer available) Was 17165
25 7090842 1 PIN, Roll, 1/4 x 1 1/4"
26 7016715 1 CAM, Neutral Return
27 7016726 1 TRANSMISSION, Hydro (HG BDU-105-120)
28 7016727 1 RESERVOIR ASSEMBLY (HG 2003081)
29 7016712 1 HUB, Speed Control
30 1 SCREW, 1/4-28, 1/8 Hex Socket Set (No longer available, try
using 7077667)
31 7017732 1 PIN, Spiral 5 MM x 36 MM
32 7027139 1 ROD END, Speed Control Was 17128
33 7091297 2 NUT, 5/16-24 Hex Was 90223
34 1 ROD, Adjustment 4.41" l, 5/16-24 Ends (No longer available) Was 17816
35 7016729 1 PIN, Eccentric
36 7090534 1 SCREW, 5/16-18 x 1/2" Hex Head Cap Was 90203
37 7014263 1 WASHER, Cone .32 x 1.4 x .1
tionItem Qt
Note
Was 16956
Was 13670
Footnotes:
Manual No. 7006427LAWN TRACTOR MANUAL CLUTCH
SERIES 1
29
TP 400-5213-2-TC-N
Transmission Group
Manual No. 7006427 LAWN TRACTOR MANUAL CLUTCH
TP 400-5213-2-TC-N
30
SERIES 1
Transmission Group
p
y
Part No Descri
38 7091130 2 WASHER, Flat .327 x .875 x .09
39 7011968 1 ROLLER
40 7033054 1 PLATE, Speed Control
41 1 NUT, Special 3/4 Hex Stock/5/16-24 Thru/9/16-18x1.0 Deep (No
longer available)
42 7076940 3 SCREW, 5/16-18 x 4 1/2" Hex Head Cap
7090924 1 SCREW, 5/16-18 x 4 1/8" Hex Head Cap (Not Shown)
43 7016716 1 PULLEY, Drive
44 7090322 1 SCREW, 5/16-24 x 1/2" Hex Head Cap
45 7011763 1 WASHER, Fender 5/16
46 7016728 1 FAN, 7" DIA 10 Blade
47 5023202 1 WASHER, 3/8 Wave Was 17855
48 7024235 4 PUMP COUPLING
49 7024425 1 KEY, 3/32" X 5/8" Hi-pro
50 7072385 1 SPACER 1.25 OD x .791 ID x 1.115 L Was 24858
51 7032027 2 WASHER, 3/4" Flat
tionItem Qt
Note
Was 16717
Footnotes:
Manual No. 7006427LAWN TRACTOR MANUAL CLUTCH
SERIES 1
31
TP 400-5213-2-TC-N
Transmission - Service Parts
Manual No. 7006427 LAWN TRACTOR MANUAL CLUTCH
TP 400-5213-2-TC-N
32
SERIES 1
Transmission - Service Parts
p
y
Part No Descri
1 7024395 1 TRANSAXLE ASSEMBLY HOUSING, L.H.
2 7091511 9 NUT, 5/16-18 Hex Was 90628
3 7024235 4 PUMP COUPLING
4 7024397 1 DIFFERENTIAL ASSEMBLY
5 7024399 1 REDUCTION GEAR ASSEMBLY
6 7024400 1 SHAFT, Drive
7 7024401 1 GEAR, Drive Pinion
8 7024402 1 SHAFT, Pinion Gear
9 7024396 1 TRANSAXLE ASSEMBLY HOUSING, R.H.
10 7024428 1 SEAL, Grease
11 7024416 1 KEY, 3/16 x 5/8" Hi-Pro
12 7024404 2 PUCK, Brake
13 7024403 1 DISC, Brake
14 7024405 1 PLATE, Puck
15 7024406 1 BRAKE YOKE ASSEMBLY
16 7024420 1 SPACER
17 7024419 1 WASHER, Flat, .265 I.D. x 7/8" O.D.
18 1921963 1 BOLT, 1/4-20 x 2" Hex Was 24418
19 7024412 1 PIN, Cotter
20 7024411 1 NUT, 5/16-24 Castle
21 7024410 1 WASHER, Flat, .343 I.D. x .88" O.D.
22 7024409 1 ARM, Brake Actuator
23 7024408 2 PIN, Brake Actuating
24 2816622 1 NUT, 1/4-20 Hex Was 24414
25 7024415 1 WASHER, 1/4 Spring Lock
26 7024421 4 BOLT, 1/4-20 x 2" Hex Hd., Self-Tapping
27 7024424 1 BOLT, 5/16-18 x 3 3/4" Hex Head
28 7024422 4 BOLT, 1/4-20 x 3" Hex Hd., Self-Tapping
29 7024398 1 INPUT PINION HOUSING ASSEMBLY
30 7024425 1 KEY, 3/32 x 5/8" Hi-Pro
31 7024413 3 SCREW, 1/4-20 x 3/4" Hex Head
32 7090841 2 PIN, Roll, 3/16 x 1.5" Was 24427
tionItem Qt
Note
Footnotes:
Manual No. 7006427LAWN TRACTOR MANUAL CLUTCH
SERIES 1
33
TP 400-5213-2-TC-N
Implement Lift Parts
Manual No. 7006427 LAWN TRACTOR MANUAL CLUTCH
TP 400-5213-2-TC-N
34
SERIES 1
Implement Lift Parts
p
y
Part No Descri
1 7040698 1 ARM, Implement Lift Lever
2 7033047 1 ROD, Lift Lever
3 7019363 1 GRIP, Lift Lever
4 7014361 1 CAP, Lift Release
5 7047967 1 ARM, Rear Lift
6 7091503 6 PIN, Hair, 3/32 x 1 1/2" Was 15067
7 7090122 4 WASHER, 3/8 SAE Flat
8 7033737 2 BRACKET, Hanger Was 33419
9 7090361 4 SCREW, 5/16-18 x 5/8" H.W.H.S.T.
10 7023171 1 LIFT-ROD
11 7015020 1 RING, Retaining EXT 7/8"
12 7014354 2 WASHER, Lift Lever .905 x 1.25 x .091
13 7023197 2 BEARING, Lift Lever
14 7015464 1 STUD
15 7047933 1 PIVOT ASSEMBLY, Lift Lever
16 7090390 1 WASHER, 3/8 Int. Tooth Lock
17 7091630 1 NUT, 3/8-24 Hex Was 90155
18 7029841 1 PIN, Clevis, 5/16 x 1 11/16" Was 12407
19 7033046 1 QUADRANT, Lift Lever
20 7091000 3 SCREW, 5/16-18 x 7/8" Self-Tapping Was 91001
21 7014432 1 SPRING, Lift Lever
22 7015019 1 PLUG, Lift Lever Nylon
23 7090881 1 GROOVE-PIN, 3/16 x 2"
24 7017445 1 DECAL, Cut Height
25 7033176 1 INDICATOR, Cut Height
26 7090803 2 BOLT, 1/4-20 x 5/8" Flt. Hd. Carr.
27 7091584 2 NUT 1/4-20 Hex Flg. Lock Was 90583
tionItem Qt
Note
Footnotes:
Manual No. 7006427LAWN TRACTOR MANUAL CLUTCH
SERIES 1
35
TP 400-5213-2-TC-N
Blade Engagement
Manual No. 7006427 LAWN TRACTOR MANUAL CLUTCH
TP 400-5213-2-TC-N
36
SERIES 1
Blade Engagement
p
y
Part No Descri
1 7016356 1 KNOB, Handle 7/16"
2 1 HANDLE, Blade Engagement (No longer available) Was 40996
3 7013321 4 BUSHING
4 7033364 1 BRACKET, Handle
5 7090122 3 WASHER, 3/8 SAE YZ
6 7091597 4 COTTER-PIN, 3/32 x 3/4" Was 90037
7 7090803 4 BOLT, 1/4-20 x 5/8 Flat Hd. Carriage
8 7091584 4 NUT, 1/4-20 Hex Flange Lock Was 90583
9 7023206 1 SPACER .625 OD x .380 ID x .560 L
10 7040570 1 PIVOT ARM ASSEMBLY
11 7091313 1 COTTER-PIN, 3/32 x 1" Was 90038
12 7032712 1 LINK
13 7023165 1 SPRING, Return
14 7033277 1 BRACKET, Idler Support
15 7017748 1 PULLEY, Idler 2.75" OD
16 7091580 1 BOLT, 3/8-16 x 1 3/4" Hex Flange Lock Was 90701
17 7091619 1 NUT, 3/8-16 Hex Lock Was 90613
18 7090731 2 BOLT, 5/16-18 x 1/2" Short Neck Carr.
19 7091601 2 NUT, 5/16-18 Hex Lock Flanged Was 90585
tionItem Qt
Note
Footnotes:
Manual No. 7006427LAWN TRACTOR MANUAL CLUTCH
SERIES 1
37
TP 400-5213-2-TC-N
33" Cutting Deck, Belts, Brakes
Manual No. 7006427 LAWN TRACTOR MANUAL CLUTCH
TP 400-5213-2-TC-N
38
SERIES 1
33" Cutting Deck, Belts, Brakes
p
y
Part No Descri
1 7023710 1 BELT, 33" Drive Kevlar (A-59 61" OD)
2 7018581 1 PULLEY, 8" O.D.
3 7074467 1 NUT, 3/4-16 Hex Jam Was 10027
4 7052886 1 BAND, Brake Assembly Was 57307
5 7032169 1 DRUM, Brake
6 7010740 2 RING, 2” External Retaining
7 7047961 1 ARM, Idler
8 7014304 1 PIN, 1/4 x 1 1/4" Clevis
9 7014302 1 BOLT, 1/4-20 Eye
10 7014303 1 NUT, 1/4-20 Tee
11 7091576 1 NUT, 1/4-20 Hex GR 5 YZ Was 90063
12 7090164 1 SCREW, 3/8-24 x 1 1/2" Hex Head Cap
13 7090122 3 WASHER, 3/8 SAE
14 7018574 1 PULLEY, Idler, 4.12 O.D.
15 7032368 1 GUIDE, Belt
16 7023180 1 CABLE, Front Lift 6.12"
17 7091601 10 NUT, 5/16-18 Hex Flange Lock Was 90585
18 7047959 1 LIFT, Front Arm
19 7012067 1 RING, Red (Right Side)
20 7023791 1 RING, Black (Left Side)(5/8" ID x .44" Wide) Was 10996
21 7090289 7 NUT, 3/8-24 Hex Lock
22 7038043 1 BRACKET, Front Lift Hanger
23 7090388 1 T-NUT, 5/16-18
24 7091503 1 PIN, Hair 3/32" x 1.5" Was 15067
25 7032323 1 PIN, Hinge Was 31914
26 7039586 1 HINGE, Deflector
27 7091588 14 BOLT, 3/8-16 x 3/4" Hex Flange Lock Was 90612
28 7091619 14 NUT, 3/8-16 Hex Flange Lock Was 90613
29 7052555 1 ASSEMBLY, Deflector Was 51978 (Includes item 30)
30 7013010 1 DECAL, Danger (Cut Finger)
31 7091537 1 WING-NUT, 5/16-18 Was 90492
32 7061956 1 DECK, Cutting, 33" Was 51917 or 60978 (Now
33 7014852 1 DECAL, Caution (Deflector)
34 7038455 1 ANCHOR, Brake
35 7032803 2 BRACKET, Cross-Shaft
36 7011016 2 BEARING, Cross-Shaft Bracket
37 7090721 10 BOLT, 5/16-18 x 1/2" Hex Flange Lock
tionItem Qt
Note
61956 + 52555)(Includes items
33 & 87)
Footnotes:
Manual No. 7006427LAWN TRACTOR MANUAL CLUTCH
SERIES 1
39
TP 400-5213-2-TC-N
33" Cutting Deck, Belts, Brakes
Manual No. 7006427 LAWN TRACTOR MANUAL CLUTCH
TP 400-5213-2-TC-N
40
SERIES 1
33" Cutting Deck, Belts, Brakes
p
y
Part No Descri
38 7038453 2 RAIL, Side
39 7091304 1 SCREW, 3/8-16 x 1" Hex Head Cap Was 90563
40 7015012 1 ECCENTRIC, Leveling
41 7091302 2 NUT, 3/8-16 Hex Was 90130
42 7090118 2 WASHER, 3/8 Split Lock
43 7032432 1 LINK, Adjustment
44 7091547 1 BOLT, 3/8-16 x 3/4" Carriage Was 90850
45 7059784 1 ASSEMBLY, Spindle (Includes items 46 thru 55)
46 7052294 1 HOUSING, Spindle 5.575" Tall (Includes item 47)
47 7010817 1 FITTING, Lube (Press into .187" hole, no ball)
48 7027711 1 SPINDLE, 33" Mower Deck 8.26" Long
49 7012491 2 RING, Retaining EXT 1.75"
50 7013313 2 BEARING, Spindle
51 7014407 2 WASHER, Spindle
52 7090559 4 NUT, 1/4-20 Hex Jam (2 in assembly)
53 7090392 4 SCREW, 1/2-20 Hex Head Cap (2 in assembly)
54 7037751 1 HOLDER, Blade
55 7090356 1 NUT, 5/8-18 Hex Lock
56 7090509 2 WASHER, 1/2 Int. Tooth Lock
58 7019523 1 BLADE, 33" Mower Deck
7024741 1 BLADE, 33" Mower Deck Ninja (Mulching) Not shown (Not Included With This
7016982 1 BLADE, 33" Mower Deck (Recycling) Not shown (Not Included With This
59 7037723 2 AIR-LIFT
60 7090228 6 SCREW, 5/16-24 x 11/16" Machine
61 7090391 2 WASHER, 5/16 Internal Tooth Lock
62 7091297 6 NUT, 5/16-24 Hex Was 90223
63 7033115 2 BRACKET, Rear Lift
64 7016844 2 CABLE, Support (4.25", 8 Spacers)
65 7012670 1 RING, Tolerance 2.0"
66 7047960 1 CROSS-SHAFT
67 7028652 1 SPRING Was 16153
68 7015753 2 BALL-JOINT
69 7023687 1 LINK, Ball Joint
70 7090053 2 WASHER, 1/4 Int. Tooth Lock
71 7090095 2 NUT, 1/4-28 Hex
72 7038018 1 BRACE, Spindle
73 7091508 1 BOLT, 5/16-18 x 3/4" Short Neck Carriage Was 90001
74 7091294 1 WASHER .28 x .63 x .065 YZ Was 90055
tionItem Qt
Note
Assembly)
Assembly)
Footnotes:
Manual No. 7006427LAWN TRACTOR MANUAL CLUTCH
SERIES 1
41
TP 400-5213-2-TC-N
33" Cutting Deck, Belts, Brakes
Manual No. 7006427 LAWN TRACTOR MANUAL CLUTCH
TP 400-5213-2-TC-N
42
SERIES 1
33" Cutting Deck, Belts, Brakes
p
y
Part No Descri
75 7091597 1 COTTER-PIN, 3/32 x 3/4" Was 90037
76 7033570 1 BRACKET, Gage Wheel (Front) Was 38451
77 7033571 2 BRACKET, Gage Wheel (Rear) Was 38450
78 7090731 6 BOLT, 5/16-18 x 1/2" Short Neck Carriage Was 90004
79 7091601 7 NUT, 5/16-18 Hex Flange Lock Was 90585
80 7015272 3 SPACER .625 OD x .423 ID x 3" L
81 7091532 3 SCREW, 3/8-24 x 3 3/4" Hex Head Cap Was 90859
82 7090289 3 NUT, 3/8-24 Hex Lock
83 7019190 3 WHEEL, Gage
84 7033352 1 GUIDE, Belt
85 7090188 2 WASHER, 5/16 Flat
86 7020908 2 SPACER
87 7014852 1 DECAL, Caution (Rotating Blades) Was 16973
1 DECAL 33" (RLT140H33) (No longer available) Was 22990
7022991 1 DECAL 33" (LT140H33) (Not Shown)
1 DECAL Deep Drawn (RLT140H33) (No longer available) Was 22993
tionItem Qt
Note
Footnotes:
Manual No. 7006427LAWN TRACTOR MANUAL CLUTCH
SERIES 1
43
TP 400-5213-2-TC-N
41" Cutting Deck
Manual No. 7006427 LAWN TRACTOR MANUAL CLUTCH
TP 400-5213-2-TC-N
44
SERIES 1
41" Cutting Deck
p
y
Part No Descri
1 7051916 1 DECK, Mower, 41" Shell (Includes items 49 & 50)
2 7051914 2 ASSEMBLY, Spindle (Includes items 3-9)
3 7027668 2 SPINDLE 6.5" Long
4 7051918 2 HOUSING, Spindle 5.1" Tall (Includes item 9)
5 7013313 2 BEARING, Spindle
6 7012491 2 RING, Retaining EXT 1.75"
7 7014407 2 WASHER, Spindle
8 7032294 2 HOLDER, Blade
9 7010817 2 FITTING, Lube (Press fit for .187 hole-no ball)
10 7019795 2 BLADE, 21" Cutter
11 7052487 2 ASSEMBLY, Rear Support
12 7042469 1 ASSEMBLY, Front Hanger 42" Was 49762
13 7034409 2 GUARD, Pulley Was 33367
14 7051747 2 ASSEMBLY, Spindle Lock
15 7033083 2 ASSEMBLY, Chain Support
16 7032297 1 BRACKET, Front Left Hanger
17 7016844 2 CABLE, Support (4.25", 8 Spacers)
18 7033086 1 ASSEMBLY, Rear Support
19 7051748 1 BRACKET, Idler Mount
20 7032368 1 GUIDE, Belt
21 7018574 2 PULLEY, Flat Idler 4.12" OD
22 7015724 2 PULLEY, Spindle "V" 5.75" OD .750" ID Hole
23 7023180 1 CABLE, Front Lift 6.12"
24 7038043 1 BRACKET, Front Lift Arm Hanger
25 7038382 1 BRACKET, Front Right
26 7032432 1 LINK, Adjustment
27 7015012 1 RING, Adjustment
28 7091304 1 SCREW, 3/8-16 x 1" Hex Head Cap Was 90563
29 7091302 2 NUT, 3/8-16 Hex Was 90130
30 7090118 2 WASHER, 3/8" Split Lock
31 7090122 2 WASHER, 3/8" Flat
32 7091619 22 NUT, 3/8-16 Hex Flange Lock Was 90613
33 7091601 9 NUT, 5/16-18 Hex Flange Lock Was 90585
34 7090388 1 T-NUT, 5/16-18
35 7012951 2 PIN, 1/2 x 1 3/8" Clevis
36 7091596 2 HAIRPIN, Cotter .148 x 2.62 YZ Was 13844
37 7091497 1 SCREW, 3/8-16 x 1 1/2" Hex Cap Was 90655
tionItem Qt
Note
Footnotes:
Manual No. 7006427LAWN TRACTOR MANUAL CLUTCH
SERIES 1
45
TP 400-5213-2-TC-N
41" Cutting Deck
Manual No. 7006427 LAWN TRACTOR MANUAL CLUTCH
TP 400-5213-2-TC-N
46
SERIES 1
41" Cutting Deck
p
y
Part No Descri
38 7074467 2 NUT, 3/4-16 Hex Jam Was 10027
39 7027198 2 BOLT, 3/8-16 x 1" Hex Flange Lock Was 90582
40 7023606 2 CAP, Vinyl
41 7090517 1 WASHER, 7/16 Flat Was 90600
42 7091547 9 BOLT, 3/8-16 x 3/4" Carriage Was 90850
43 7091508 2 BOLT, 5/16-18 x 3/4" Carriage Was 90788
44 7012063 4 WASHER, 13/32 x 1 13/32" Dia., Cone
45 7090824 2 SCREW, 3/8-24 x 1 1/4" Hex Cap
46 7090595 2 BOLT, 5/16-18 x 3/4" Hex Flange Lock
47 7051401 1 DEFLECTOR, Side Chute (Includes item 48)
48 7013010 1 DECAL, Danger
49 7014852 1 DECAL, Caution (Deflector in Place)
50 7014852 1 DECAL, Caution (Rotating Blades) Was 16973
51 7019190 4 WHEEL, Gage
52 7090289 4 LOCKNUT, 3/8-24 Hex
53 7015272 4 SPACER, .625 OD x .435 ID x 3" L
54 7091532 4 SCREW, 3/8-24 x 3 3/4" Hex Head Cap Was 90859
55 7091547 1 BOLT, 3/8-16 x 3/4" Short Neck Carriage Was 90850
56 7091303 2 BOLT, 5/16-18 x 1" Short Neck Carriage Was 90383
57 7091588 12 BOLT, 3/8-16 x 3/4" Hex Flange Lock Was 90612
58 7091537 2 WING-NUT, 5/16-18 Was 90375
59 7090187 2 WASHER, 5/16 Split Lock
60 7011791 2 RETAINER, 5/16 Bolt
61 7090799 2 BOLT, 5/16-18 x 5/8" Carriage
7022992 DECAL 41" (LT140H41) (Not Shown)
tionItem Qt
Note
Footnotes:
Manual No. 7006427LAWN TRACTOR MANUAL CLUTCH
SERIES 1
47
TP 400-5213-2-TC-N
Belt, Blade Brake, 41" Deck
Manual No. 7006427 LAWN TRACTOR MANUAL CLUTCH
TP 400-5213-2-TC-N
48
SERIES 1
Belt, Blade Brake, 41" Deck
p
y
Part No Descri
1 7015724 1 PULLEY, Drive 5.75" OD
2 7014799 1 BELT, Drive VA101
3 7052886 1 BAND, Brake Assembly Was 57307
4 7032169 1 DRUM, Brake
5 7047912 1 ASSEMBLY, Brake Arm
6 7018574 1 PULLEY, Idler Flat 4.12" OD
7 7032587 1 ANCHOR, Brake
8 7014303 1 TEE-NUT, 1/4-20
9 7014302 1 BOLT, 1/4-20 Eye
10 7011021 1 PIN, Clevis, 1/4 x 1 1/4"
11 7029788 1 SPRING, Blade Brake Was 23172
12 7035434 1 CABLE, Blade 28.5" Was 19040
13 7074467 1 NUT, 3/4-16 Hex Jam Was 10027
14 7091576 1 NUT, 1/4-20 Hex Was 90063
15 7090167 1 SCREW, 3/8-24 x 2" Hex Hd. Cap
16 7010740 2 RING, 2” External Retaining
17 7090289 2 NUT, 3/8-24 Hex Lock
tionItem Qt
Note
Footnotes:
Manual No. 7006427LAWN TRACTOR MANUAL CLUTCH
SERIES 1
49
TP 400-5213-2-TC-N
Fuel Tank & Battery
Manual No. 7006427 LAWN TRACTOR MANUAL CLUTCH
TP 400-5213-2-TC-N
50
SERIES 1
Fuel Tank & Battery
p
y
Part No Descri
16 7014475 1 CABLE, Negative Terminal 15" 8 AWG Black
17 7091568 2 WING-NUT, 1/4-20 Was 90311
18 7091530 2 BOLT, 1/4-20 x 3/4" Short Neck Carriage Was 90074
19 7012444 1 COVER, Positive Terminal
20 7022366 1 CLAMP, Battery
21 7014476 1 CABLE, Positive Terminal 11" 8 AWG Red
22 7060618 1 KIT, Battery, 12 Volt
23 7022696 1 SPRING, Battery Bracket
24 7012515 1 CAP, Fuel Tank Was 17808
25 7052258 1 TANK, Fuel w/cap (Includes item 24)
26 7029900 2 CLAMP, Fuel Line .490 x .31 Was 12222
27 1 LINE, Fuel (14.5" Long) (No longer available) Was 32633
28 7023195 1 CABLE-TIE, Fuel Tank Hold Down
31 1 HEAT SHIELD, Fuel Tank 3" x 5.5" (No longer available) Was 17788
tionItem Qt
Note
Footnotes:
Manual No. 7006427LAWN TRACTOR MANUAL CLUTCH
SERIES 1
51
TP 400-5213-2-TC-N
Electrical System
Manual No. 7006427 LAWN TRACTOR MANUAL CLUTCH
TP 400-5213-2-TC-N
52
SERIES 1
Electrical System
p
y
Part No Descri
1 7022699 1 HARNESS, Wiring (Kohler Engine)
2 7024126 1 HARNESS, Interlock
3 7023355 2 SWITCH, Clutch & PTO
4 7023354 1 SWITCH, Seat NC Was 17590
5 7075622 1 SOLENOID Was 18604
6 7023187 1 SWITCH, Light
7 7027698 1 SWITCH, Key Was 18562 (Includes 2 item 8)
8 7073406 2 KEY, Switch (With Cover) Was 23504
9 7012685 1 NUT, 5/8-32 Hex Was 23505
10 7012444 1 COVER, Positive Terminal
11 7014475 1 CABLE, Negative 15" 8 AWG Black
12 7091530 2 BOLT, 1/4-20 x 3/4" Carriage Was 90074
13 7091568 2 WING-NUT, 1/4-20 Was 90311
14 7060618 1 KIT, Battery
15 7091122 1 SCREW, 1/4-20 x 1/2" Self-Tapping Was 90539
16 7090913 1 SCREW, #10-24 x 1/2" Hex Washer Self-Tap (Torx) Was 90307
17 7014451 1 TIE, Wire
18 7012080 1 TIE, Cable 7"
19 7014476 1 CABLE, Positive 11" 8 AWG Red
20 7023506 1 BEZEL
21 7023653 1 FUSE, 20 Amp
22 7022690 1 AMMETER
23 7060982 1 OIL LIGHT Was 22691
1 RETAINER, 1/2 (Not shown on back of light switch)(No longer
available)
tionItem Qt
Note
Was 16245
Footnotes:
Manual No. 7006427LAWN TRACTOR MANUAL CLUTCH
SERIES 1
53
TP 400-5213-2-TC-N
Schematic Electrical System (Kohler Engines Only)
Manual No. 7006427 LAWN TRACTOR MANUAL CLUTCH
TP 400-5213-2-TC-N
54
SERIES 1
Schematic Electrical System (Kohler Engines Only)
p
y
Part No Descri
Wiring schematic includes harness #'s 7022699 & 7024126
tionItem Qt
Note
Footnotes:
Manual No. 7006427LAWN TRACTOR MANUAL CLUTCH
SERIES 1
55
TP 400-5213-2-TC-N
Parts Manual fo
r
)
LAWN TRACTOR MANUAL CLUTCH
HYDRO DRIVE (1991 1/2
SERIES 1
RESERVE THE RIGHT TO MAKE CHANGES OR ADD IMPROVEMENTS
COPYRIGHT ©2006
SNAPPER PRODUCTS, INC.
ALL RIGHTS RESERVED.
IT IS THE POLICY OF SNAPPER TO IMPROVE ITS PRODUCTS
WHENEVER IT IS POSSIBLE AND PRACTICAL TO DO SO. WE
AT ANY TIME WITHOUT INCURRING ANY OBLIGATION TO MAKE
SUCH CHANGES ON PRODUCTS MANUFACTURED PREVIOUSLY.
McDonough, GA, 30253 U.S.A.
Manual No. 7006427
Revision 2,
7/14/2006
TP 400-5213-2-TC-N
Loading...
