Snapper ELE3190R User Manual

Safety Instructions & Operator’s Manual for

L.E. SINGLE STAGE

SMALL FRAME

SNOW THROWER

SERIES 0

MODELS

ELE3190R

MODEL NUMBER EXPLANATION

EL E 3 19 0 R

MODEL DESIGNATION ENGINE OPTIONS ENGINE HP SERIES DESIGNATION AUGER WIDTH

EL – Light Weight Frame 19 – 19” Auger Width 0 -- Series Designation E – Easy Operation R – Recoil Start 3 – 3.0 HP (Engine Horse Power)

Thank you for buying a SNAPPER Product! Before operating your Snow Thrower, read this manual carefully and pay particular attention to the “IMPORTANT SAFETY INSTRUCTIONS” on Pages 2 & 3. Remember that all power equipment can be dangerous if used improperly. Also keep in mind that SAFETY requires careful use in accordance with the operating instructions and common sense.

INSTRUCTION No. 7-4235 (I.R. 1/29/01)

IMPORTANT SAFETY INSTRUCTIONS

WARNING: This powerful machine is capable of amputating hands and feet and can throw objects that can cause injury and damage! Failure to comply with the following instructions may result in serious injury to the operator or other persons. The owner of the snow thrower must understand these instructions and, furthermore, must allow only persons who understand these instructions to operate snow thrower. Each person operating the snow thrower must be of sound mind and body and must not be under the influence of any substance, which might impair vision, dexterity, or judgment. If you have any questions pertaining to your snow thrower which your dealer cannot answer to your satisfaction, call or write the Customer Service Department at SNAPPER, McDonough, Georgia 30253. Phone: 800/935-2967.

PROTECTION FOR CHILDREN

Tragic accidents can occur if the operator is not alert to the presence of children. Children are often attracted to the machine and the snow removal activity. Never assume that the children will remain where you last saw them.

1. DO NOT allow children in the area when snow thrower is being operated.

2. DO NOT allow pre-teenage children to operate snow thrower.

3. ALLOW only responsible adults and teenagers with mature judgment to operate the machine and then only after being thoroughly instructed and under the close supervision of an experienced adult operator.

4. Keep the area clear of all persons, particularly small children and pets.

5. Know how to STOP the snow thrower and disengage the controls quickly.

PREPARATION

1. Warn everyone in advance to stay clear of area.

Keep especially watchful for children and pets darting into area while operating.

2. Read, understand, and follow instructions and

warnings in this manual and on the machine. Know the controls and the proper use of the snow thrower before starting.

3. Data indicates th at operators, age 60 and above,

are involved in a large percentage of snow thrower-related injuries. These operators should evaluate their ability to operate t he snow thrower safely enough to protect themselves and others from serious injury.

4. Disengage all clutches and shift into neutral

before starting the engine (motor).

5. Wear adequate winter clothing including boots

which will giv e you maximum footing on slippery surfaces. Exercise CAUTION to avoid slipping or falling.

6. Before the first snow fall, check the area to be

cleared and remove all objects such as doormats, sticks, toys, wires, rocks, etc., which could be hurled or jam the snow thrower.

PREPARATION

7. Survey the area to be cleared beforehand and plan where snow is to be blown. Be prepared to release auger/impeller clutch or to change discharge chute direction quickly to discharge away from windows, cars, buildings and doorways to avoid property damage or personal injury from hurled objects.

8. Use only approved extension cords and receptacles in good condition and with sufficient capacity to carry the current to the machine if equipped with electric starting motors.

9. Handle fuel with extra care. Fuels are flammable and vapors are explosive. Store only in an approved fuel container. Never remove fuel cap or add fuel with the engine running. Add fuel outdoors only with the engine stopped and cool. Clean spilled fuel and oil from machine. DO NOT smoke. DO NOT run engine indoors.

OPERATIONAL PRECAUTIONS

1. Before starting, make v isual check to make sure auger/impeller housing is clear and all guards and shields are in place and tight.

2. DO NOT operate machine without proper guards shields, deflectors, or other safety protective devices in place and functioning properly.

3. Should the auger/impeller become clogged, release the auger/impeller clutch control an d, as an additional precaution, STOP the engine before attempting to unclog the auger/impeller or discharge chute.

4. DO NOT attempt to unclog the auger/impeller or discharge chute by reaching in wit h your hands. Use a long stick or similar implement to unclog.

5. DO NOT attempt to unclog the auger/impeller or discharge chute with the engine running. STOP engine and remove key.

6. STOP engine (motor) and remove key before leaving the operator position for any reason.

7. DO NOT put hands or feet near or under rotating parts. Keep clear of the discharge op ening at all times.

IMPORTANT SAFETY INSTRUCTIONS

OPERATIONAL PRECAUTIONS

8. Start engine only where exhaust fumes will be safely dissipated. Allow a brief warm-up period, and practice operation of controls outside before putting the machine to work.

9. After striking a foreign object, STOP the engine (motor), remove the key, and remove the wire from spark plug. Thoroughly inspect the snow thrower for any damage, and repair the damage before restarting and operating the snow thrower.

10. ST OP the engine if the machine starts to vibrate excessively as this normally indicates mechanical problems. Remove the key and disconnect the spark plug wire to prevent unintentional starting before servicing or repairing the machine.

11. DO NOT clear snow across the face of slopes. Exercise extreme CAUTION when changing direction on slopes. DO NOT attempt to clear steep slopes.

12. DO NOT leave machine unattended with the engine running. STOP engine and remove key to prevent unauthorized operation.

13. Release clutch control and make sure auger/impeller has STOPPED before rotating discharge chute, adjusting deflector, or placing hands near auger/impeller.

14. DO NOT use snow thrower on surfaces above ground level, such as, a roof of a building.

15. Exercise extreme CAUTION when operating on or crossing gravel drives, walks, or roads. Stay alert for hidden hazards or traffic.

16. DO NOT overload the machine capacity by attempting to clear snow at too fast a rate.

17. Never operate the machine at high transport speeds on slippery surfaces. Look behind and use care when backing.

18. Disengage power to the auger/impeller when snow thrower is transported or not in use.

19. Use only attachments and accessories approv ed by the manufacturer of the snow thrower (such as wheel weights, counterweights, cabs and the like).

20. Never operate the snow thrower without good visibility or light. Always be sure of your footing, and keep a firm hold on the han dles. Walk; never run.

MAINTENANCE AND STORAGE

1. DO NOT store machine or fuel container inside where fumes may reach an open flame, spark, or pilot light as in a water heater, furnace, clothes dryer or other gas appliance. Allow engine to cool before storing machine in an enclosure. Store fuel container out o f reach of children in a well ventilated, unoccupied building.

2. Keep machine and engine free of excess oil, grease and spilled fuel to reduce fire hazard.

3. When draining fuel tank, drain fuel into an approved container outdoors and away from open flame.

4. Insp ect all bolts, nuts and screws frequently and keep properly tightened.

5. Use only recommended shear bolts (if equipped) to prevent possible damage to machine.

6. Service engine and make adjustments only when engine is stopped. Remove key, remove wire from spark plug, secure wire away from plug, and disconnect cord from electric starting motors to prevent accidental starting.

7. DO NOT change engine governor speed settings or overspeed engine.

8. DO NOT test for spark by grounding the spark plug next to spark plug hole. Spark from the plug could ignite gas exiting engine.

9. Have machine serviced by an authorized SNAPPER dealer at least once a year and have the dealer install any new safety devices.

10. Use only genuine SNAPPER replacement parts to assure that original standards are maintained.

TABLE OF CONTENTS

SECTION 1 - IMPORTANT SAFETY INSTRUCTIONS.......................... 2-3

TABLE OF CONTENTS............................................................................ 4

SECTION 2 – DECALS: SYMBOLS AND SAFETY LABELS................5-6

SECTION 3 - OPERATING INSTRUCTIONS.......................................7-11

Pre-start Checklist ...........................................................................................7-8

Starting & Stopping Engine (Recoil Start Models)...................................... 9-10

Starting & Stopping Engine (Electric Start Models).................................. 10-11

Starting & Stopping Auger........................................................................... 10-11

SECTION 4 - MAINTENANCE INSTRUCTIONS .................................... 12

Checking Auger Drive Belt................................................................................ 12

Checking Auger Flite Shoes............................................................................. 12

Checking Clutch Control Cable........................................................................ 12

Annually – End of Each Season....................................................................... 12

Engine........................................................................................................... 12

Spark Plug.................................................................................................... 12

Storage Procedure............................................................................................. 12

SECTION 5 - REPAIR AND ADJUSTMENTS....................................13-15

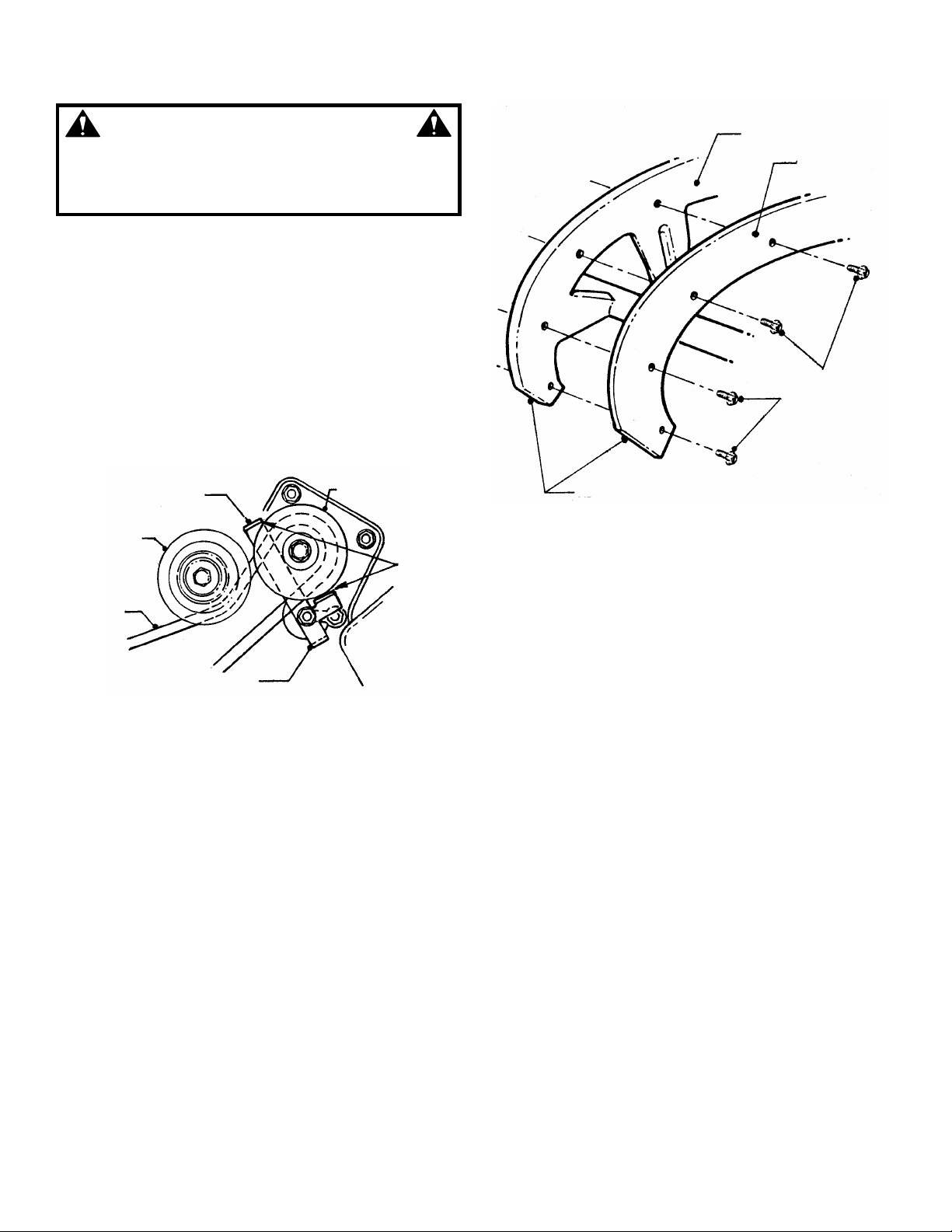

Auger Drive Belt Adjustment.......................................................................13-14

Auger Drive Belt Replacement .................................................................... 14-15

Auger Flite Shoe Replacement......................................................................... 15

TROUBLESHOOTING ............................................................................ 16

SERVICE SCHEDULE ............................................................................ 16

Maintenance/Replacement Parts...................................................................... 16

WARRANTY............................................................................................ 17

Section 2 – DECALS: SYMBOLS AND SAFETY LABELS

DANGER ROTATING IMPELLER. DO NOT use hand

to unclog auger/impeller or discharge chute. Stop engine and remove key before unclogging.

DANGER ROTATING AUGER. Keep Away. DO NOT allow children or others in the area when Snowthrower is being operated.

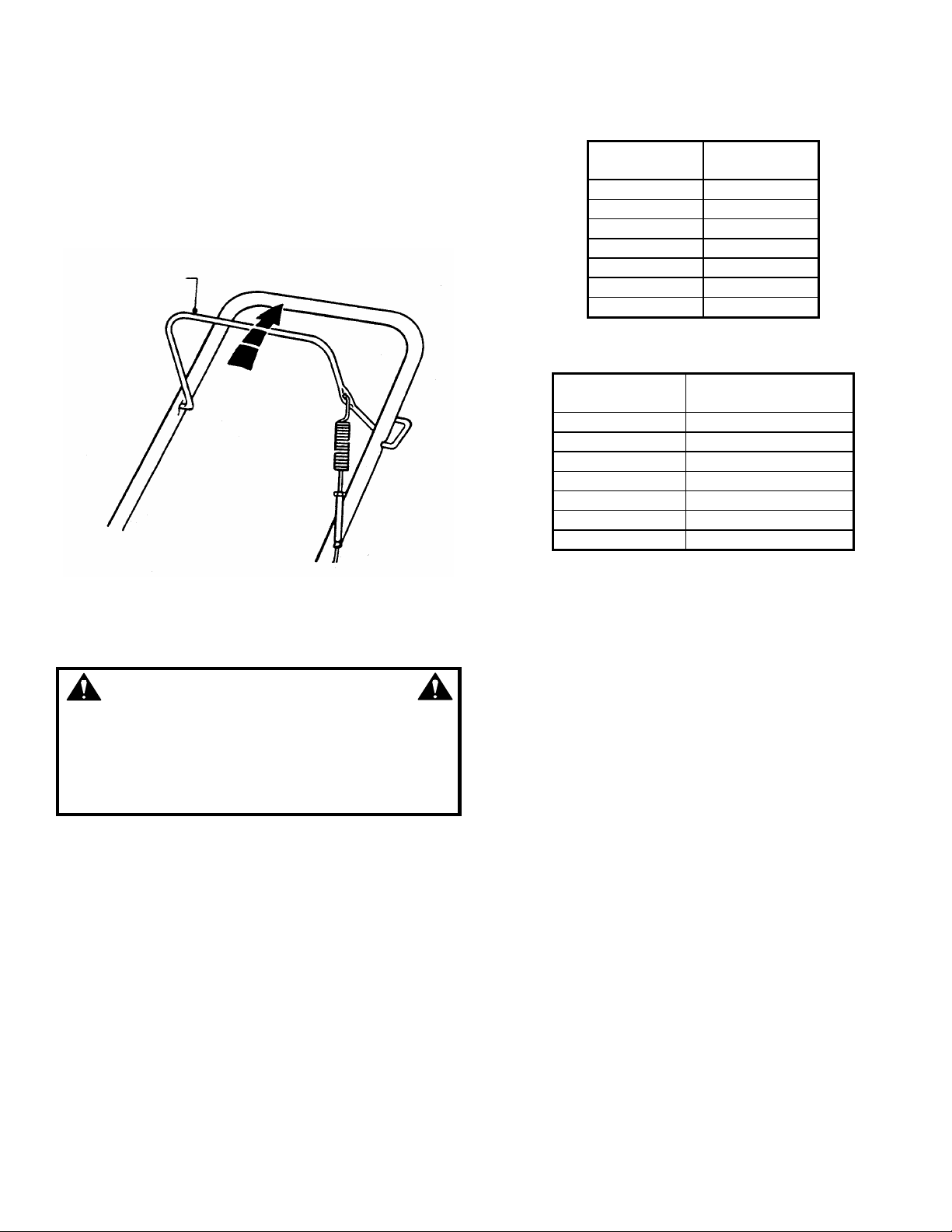

AUGER CONTROL. Release control to disengage/stop auger rotation. Pull control back to handle to engage/start auger rotation.

READ, UNDERSTAND & FOLLOW all manuals and instructions furnished with the Snowthrower.

SAFETY INSTRUCTIONS TO PREVENT INJURY:

1) Read Owner’s Manual for operating and safety

instructions.

2) Observe all labels and instructions.

3) DO NOT defeat safety features of controls. They

are for your protection.

4) Stop engine, wait for all moving parts to stop, remove spark plug wire before unclogging or servicing machine.

5) Never allow children to operate the equipment. Never allow adults to operate equipment without proper instruction.

6) Keep area of operations clear of all persons, especially children.

7) Never direct discharge at bystanders or allow anyone in front of unit.

8) Keep machine properly maintained and serviced with all shields, guards, or protective devices in place.

OFF

IGNITION SWITCH

ENGINE PRIMER

Section 2 – DECALS: SYMBOLS AND SAFETY LABELS

DANGER FIRE HAZARD. Remove all fuel from fuel tank and carburetor before tipping machine.

SOUND POWER LEVEL

HEARING PROTECTION REQUIRED.

MAXIMUM HANDLE VIBRATION 34 M/SEC

YEAR OF MANUFACTURE

EUROPEAN COMMUNITY

CHOKE
