Snapper E281320BE, E331520KVE User Manual

Safety Instructions & Operator’s Manual for

EUROPEAN

REAR ENGINE RIDING MOWER

SERIES 20

MODELS

E281320BE
E331520KVE

MODEL NUMBER EXPLANATION

E 33 15 20 K V E

EUROPEAN MODEL ENGINE OPTIONS
CUTTING WIDTH ENGINE TYPE
ENGINE HP ENGINE MODEL
SERIES DESIGNATION

E - European Model 28 - 28” Cutting Deck

Thank you for buying a SNAPPER Product! Before operating your REAR ENGINE RIDER, read this manual
carefully and pay particular attention to the “IMPORTANT SAFETY INSTRUCTIONS” on Pages 2 and 3.
Remember that all power equipment can be dangerous if used improperly. Also keep in mind that SAFETY
requires careful use in accordance with the operating instructions and common sense!

COPYRIGHT © 2000
SNAPPER INC.
ALL RIGHTS RESERVED

33

- 33” Cutting Deck

13 - 13.0 HP Engine

15

- 15.0 HP Engine

20 - Series Designation B

- Briggs Engine

K

- Kohler Engine

MANUAL No. 7-3553 (I.R. 3/29/00)

V – Over Head Valve
E - Electric Start

IMPORTANT SAFETY INSTRUCTIONS

WARNING: This powerf ul cutting machine is capab le of amputating hand s and feet and can throw objects that
can cause injury and damage! Failure to comply with the follow ing SAFETY instru ctions could resu lt in serious
injury or death to the operator or other persons. The owner of the machine must understand these instructions
and must allow only persons who understand these instructions to operate machine. Each person operating the
machine must be of sound mind and body and must not be under the influence of any substance, which might
impair vision, dexterity or judgment. If you have any questions pertaining to your machine which your dealer
cannot answer to your satisfaction, call or write the Customer Service Department at SNAPPER, McDonough,
Georgia 30253. Phone: [phone]).

PROTECTION FOR CHILDREN

Tragic accidents can occu r if the operator is not alert
to the presence of children. Children are often
attracted to the machine and the mowing activity.
Never assume that children will remain where you last
saw them.

1. KEEP children out of the mowing area and under
the watchful care of a responsible adult.

2. DO NOT allow children in yard when machine is
operated (even with the blade OFF).

3. DO NOT allow children or others to ride on
machine or on attachments (even with the blades
OFF). They may fall and be seriously injured.

4. DO NOT allow pre-teenage children to operate
machine.

5. ALLOW only responsible adults & teenagers with
mature judgment under close adult supervision to
operate machine.

6. DO NOT operate blad es in reverse. STO P BLADES.
LOOK and SEE behind an d down for children, pets
and hazards before and while backing.

7. USE EXTRA CARE when approaching blind
corners, shrubs, trees, or other objects that may
obscure vision.

PROTECTION AGAINST TIPOVERS

Slopes are a major factor related to loss-of-control
and tip-over accidents, which can result in severe
injury or death. All slopes require extra CAUTION. If
you cannot back up the slope or if you feel uneasy on
the slope, DO NOT mow it. Use extra care with grass
catchers or other attachments; these affect the
handling and the stability of the machine.

1. DO NOT operate machine on slopes exceeding 15
degrees (27% grade).

2. Exercise EXTREME CAUTION on slop es above 10
degrees (18% grade). Turn blades OFF when
traveling uphill. Use a slow speed and avoid
sudden or sharp turns.

3. DO NOT operate machine back and forth across
face of slopes. Operate up and down. Practice on
slopes with blades off.

4. AVOID uphill starts. If machine stops going uphill
or tires lose traction, turn blades OFF and back
slowly down the slope.

PROTECTION AGAINST TIPOVERS

(Continued From Previous Column)

5. STAY ALERT for holes and other hidden hazards.
Tall grass can hide obstacles. Keep away from
ditches, washouts, culverts, fences and
protruding objects.

6. KEEP A SAFE DISTANCE (at least 3 feet) away
from edge of ditches and other drop offs. The
machine could turn over if an edge caves in.

7. Always begin forward motion slowly and with
caution.

8. Use weights or a weighted load carrier in accordance
with instructions su pplied with a grass catcher. DO
NOT operate machine on slopes exceeding 10
degrees (18% grade) when equipped with grass
catcher.

9. DO NOT put your foot on the ground to try to
stabilize the machine.

10. DO NOT operate machine on wet grass. Reduced
traction could cause sliding.

11. DO NOT operate machine under any condition
where traction, steering or stability is doubtful.

PREPARATION

1. Read, understand, and follow instructions and
warnings in this manual and on the machine,
engine and attachments. Know the controls and
the proper use of the machine before starting.

2. Only mature, responsible persons shall operate
the machine and only after proper instruction.

3. Data indicates that operators age 60 and above,
are involved in a large percentage of mower­related injuries. These operators should evaluate
their ability to operate the mower safely enough to
protect themselves and others from serious injury.

4. Handle fuel with extra care. Fuels are flammable
and vapors are explosive. Use only an approved
fuel container. DO NOT remove fuel cap or add
fuel with engine running. Add fuel outdoors only
with engine stopped and cool. Clean spilled fuel
from machine. DO NOT smoke.

5. Practice operation of machine with BLADES OFF
to learn controls and develop skills.

6. Check the area to be mowed and remove all
objects such as toys, wire, rocks, limb s and other
objects that could cau se injury if thrown by blade
or interfere with mowing.

2

IMPORTANT SAFETY INSTRUCTIONS

PREPARATION

(Continued From Previous Page)

7. Keep people and pets out of mowing area.
Immediately STOP blades, STOP engine, and
STOP machine if anyone enters the area.

8. Check shields, deflectors, switches, blade
controls and other safety dev ices frequently for
proper operation and location.

9. Make sure all safety decals are clearly legible.
Replace if damaged.

10. Protect yourself w hen mowing and wear safety
glasses, long pants and substantial footwear.

11. Know how to STOP blades and engine quickly
in preparation for emergencies.

12. Use extra care when loading or unloading the
machine into a trailer or truck.

13. Check grass catcher components frequently for
signs of wear or deterioration and replace as
needed to prevent injury from thrown objects
going through weak or worn spots.

OPERATION

1. Mount and dismount machine from left side.

2. Start engine from operator's seat, if possible.
Make sure blades are OFF and parking brake is
set.

3. DO NOT leave machine with engine running.
STOP engine, STOP blades, SET brake, and
Remove key before leaving operators position
of any reason.

4. DO NOT operate machine unless properly
seated with feet on feet rests or pedal(s).

5. STOP BLADES and ENGINE and make sure
blades have stopped before removing grass
catcher or unclogging mower to prevent loss of
fingers or hand.

6. Blades must be OFF except when cuttin g grass.
Set blades in highest position when mowing
over rough ground.

7. Keep hands an d feet away from rotating blades
underneath deck. DO NOT place foot on ground
while BLADES are ON or machine is in motion.

8. DO NOT operate machine without entire grass
catcher or guards in place. DO NOT point
discharge at people, passing cars, windows or
doors.

9. Slow down before turning.

10. Watch out for traffic when near or crossing
roadways.

11. STOP engine immediately after striking an
obstruction. Inspect machine and repair
damage before resuming operation.

12. Operate machine only in daylight or with good
artificial light.

13. Move joystick (if equipped) SLOWLY to
maintain control during speed and directional
changes.

OPERATION

(Continued From Previous Column)

14. Exercise CAUTION when pulling loads. Limit
loads to those you can safely control and attach
loads to hitch plate as specified with SNAPPER
attachment instructions.

15. DO NOT operate engine in enclosed areas.
Engine exhaust gases contain carbon
monoxide, a deadly poison.

MAINTENANCE

1. DO NOT store machine or fuel container inside
where fumes may reach an open flame, spark or
pilot light such as in a water heater, furnace,
clothes dryer or other gas appliance. Allow
engine to cool before storing machine in an
enclosure. Store fuel container o ut of the reach
of children in a well ventilated, unoccupied
building.

2. Keep engine free of grass, leaves or excess
grease to reduce fire hazard and engine
overheating.

3. When draining fuel tank, drain fuel into an
approved container outdoors and away from
open flame.

4. Check brakes frequently; adjust, repair or
replace as needed.

5. Keep all bolts, nuts and screws properly tight.
Check that all cotter pins are in proper position.

6. Always provide adequate ventilation when
running engine. Exhaust gases contain carbon
monoxide, an odorless and deadly poison.

7. Disconnect negative (black) cable from battery
before performing maintenance or service.
Cranking engine could cause injury.

8. DO NOT work under machine without safety
blocks.

9. Service engine and make adjustments only
when engine is stopped. Remove spark plug
wire(s) from spark plug(s) and secure wire(s)
away from spark plug(s).

10. DO NOT change engine governor speed
settings or overspeed engine.

11. Lubricate machine at intervals specified in
manual to prevent controls from binding.

12. Mow er blades are sharp and can cut. Wrap the
blades or wear heavy leather gloves and use
CAUTION when handling them.

13. DO NOT test for spark by grounding spark plug
next to spark plug hole; spark plug could ignite
gas exiting engine.

14. Have machine serviced by an authorized
SNAPPER dealer at least once a year and have
the dealer install any new safety devices.

15. Use only genuine SNAPPER replacement parts
to assure that original standards are
maintained.

3

TABLE OF CONTENTS

IMPORTANT SAFETY INSTRUCTIONS..........................................................2-3

TABLE OF CONTENTS...................................................................................... 4

SECTION 1 - FAMILIARIZATION ....................................................................5-7

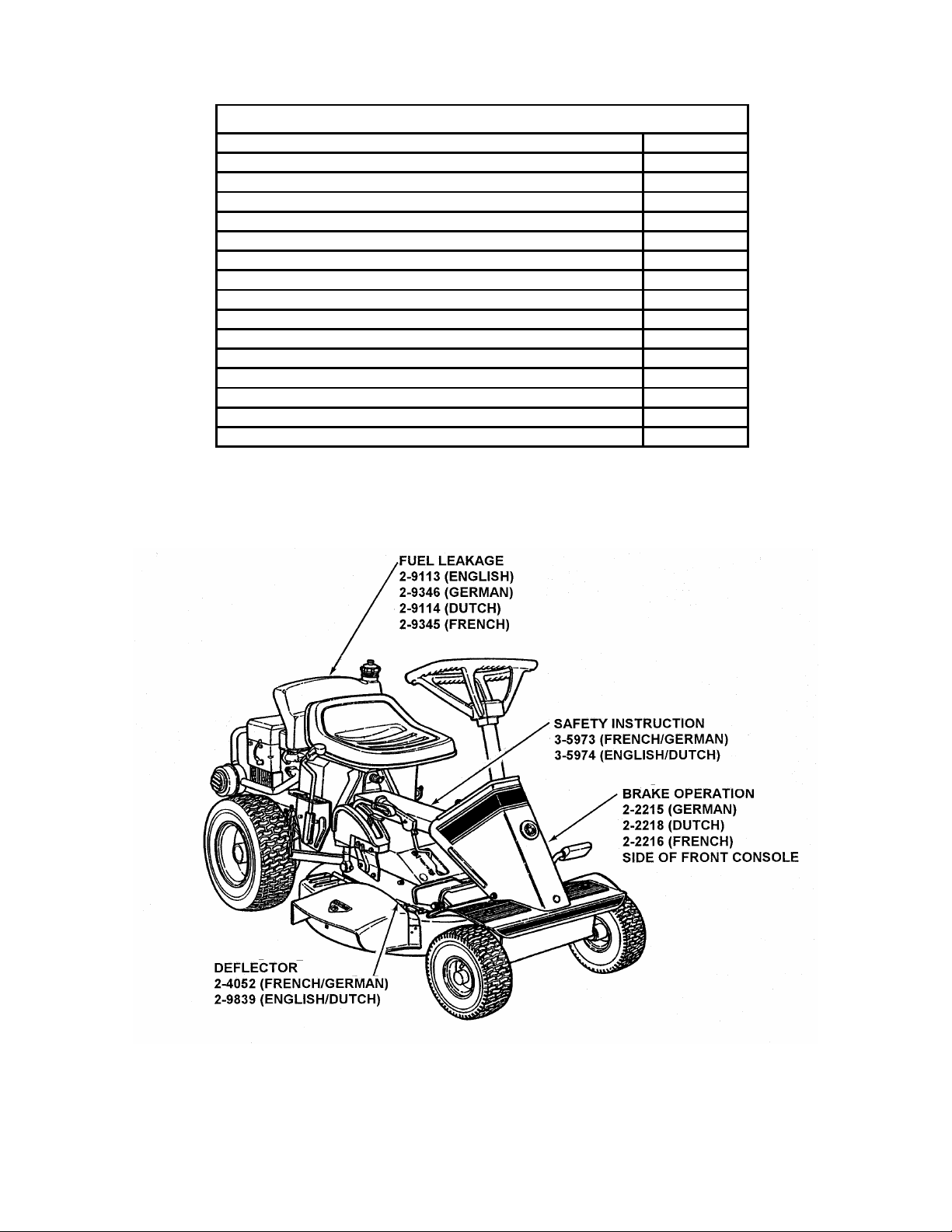

Decals / Symbols.........................................................................................................6-7

SECTION 2 - OPERATING INSTRUCTIONS.................................................8-13

Pre-Start Checklist .........................................................................................................8

Operator’s Seat Adjustment..........................................................................................8

Starting & Stopping Engine, Blade & Wheel Drive ................................................9-12

Starting & Stopping Mower Blades.......................................................................11-12

Starting & Stopping Wheel Drive...........................................................................11-12

Parking Brake ...............................................................................................................13

Cutting Height Adjustment..........................................................................................13

Reverse Lockout Mechanism......................................................................................14

SECTION 3 - MAINTENANCE INSTRUCTIONS..........................................15-20

Service – After First 5 Hours.......................................................................................15

Change Engine Oil....................................................................................................15

Service Engine Air Cleaner......................................................................................15

Check Mower Blade..................................................................................................15

Check Blade Drive Belt.............................................................................................16

Blade Brake ...............................................................................................................16

Service Brake / Park Brake.......................................................................................16

Check Interlock System............................................................................................16

Reverse Lockout Mechanism ..................................................................................17

Lubrication – Grease Fittings..................................................................................17

Service – Every 25 Operating Hours .....................................................................17-19

Battery Fluid Level....................................................................................................17

Mower Deck Levelness.............................................................................................17

Clean Mower Deck ....................................................................................................17

Mower Blade Spindle - Lubrication.........................................................................17

Mower Deck Linkage – Lubrication.........................................................................17

Front Wheel Bearing - Lubrication..........................................................................18

Rear Axle Bearing – Lubrication..............................................................................18

Differential / Chain Case - Lubrication...............................................................18-19

Engine Service ..........................................................................................................19

Service – Annually........................................................................................................19

Engine........................................................................................................................19

Fuel Filter ..................................................................................................................19

Every Two Years...........................................................................................................19

Storage - Out of Season ..............................................................................................19

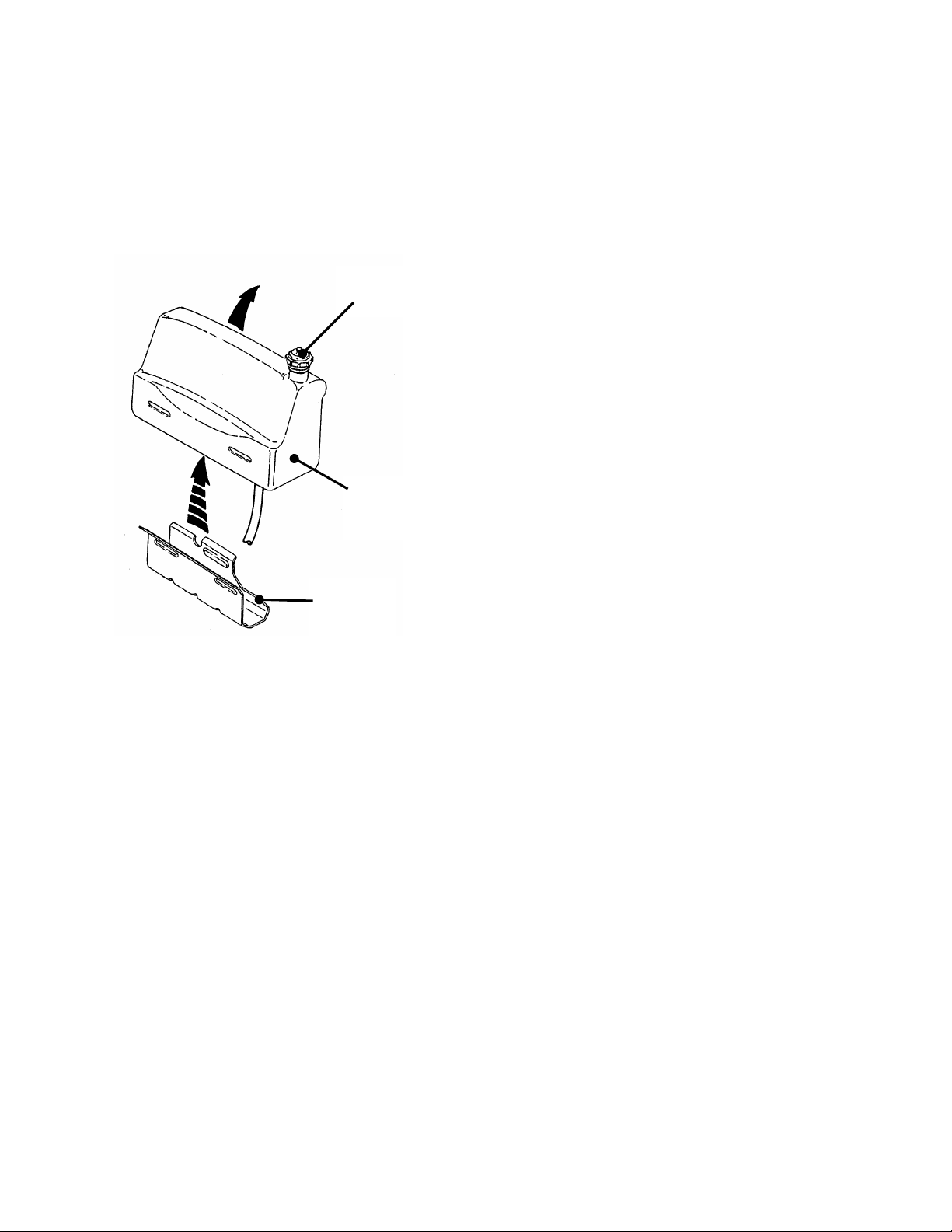

Removing Fuel Tank....................................................................................................20

SECTION 4- ADJUSTMENTS AND REPAIR............................................... 21-29

Engine Adjustments & Repair.....................................................................................21

Mower Deck & Component Adjustments...................................................................21

Blade Brake Adjustment..............................................................................................21

Mower Deck Adjustment (Side to Side Levelness)...................................................22

Mower Deck Adjustment (Front to Rear Levelness).................................................22

Cutting Height Adjustment..........................................................................................23

Wheel Brake Adjustment........................................................................................23-24

Mower Blade Replacement..........................................................................................25

Mower Drive Belt Removal/Replacement ..................................................................26

Battery Removal, Replacement, Service...............................................................27-28

ACCESSORIES................................................................................................ 29

TROUBLESHOOTING................................................................................. 30-31

MAINTENANCE SCHEDULE............................................................................ 32

PERFORMANCE DATA.................................................................................... 32

MAINTENANCE/REPLACEMENT PARTS........................................................33

DECAL LOCATION ..........................................................................................33

WARRANTY ..................................................................................................... 34

4

Section 1 - FAMILIARIZATION

BUMPER

FUEL TANK

VENT

REAR

TRANSMISSION
SHIFT LEVER

OVERRIDE
LEVER

DECK LIFT
LEVER

DISCHARGE
DEFLECTOR

MOWER DECK

ENGINE
SPEED
CONTROL

CONTROL PANEL

IGNITION
SWITCH

PARK
BRAKE
LEVER

1.1 INTRODUCTION

This manual has been prepar ed for the operator’s of the
SNAPPER Rear Engine Rider. Its purpose, aside from
recommending standard operating procedures and
routine service requirements, is to promote SAFETY
through the use of acc epted operating practices. Read,
Understand and Follow the IMPORTANT SAFETY
INSTRUCTIONS on Pages 2 and 3 of this manual and
All SAFETY messages on the Rear Engine Rider and its
attachments before operating.

FUEL
FILLER CAP

STEERING

OPERATOR’S SEAT

CONTROL PANEL
(See Inset)

CLUTCH/BRAKE
PEDAL

MOWER DRIVE
BELT

BLADE PEDALS

BLADE LEVER

FIGURE 1.1

1.2 NOMENCLATURE

The nomenclature drawing above, Figure 1.1, s hows the
essential parts of the SNAPPER Rear Engine Rider. It is
recommended that all operator’s of this equipment
become thoroughly familiar with the controls,
components, and operation of this machine before
operating. Specific details involving the engine are found
in the separate engine owner’s manual. Study these
manuals before operating and keep both handy for future
reference.

5

Section 1 – FAMILIARIZATION – DECALS / SYMBOLS

Catcher or Guard in plac

e

CUT

22841

DO NOT operate without entire Grass

SERIAL NUMBER

01015

GUARD WARNING

LOWEST
HEIGHT OF

HIGHEST
HEIGHT OF

WARNING

ROTATING BLADE

DEFLECTOR

CAUTION

DECAL 29839

BATTERY CAUTION

HEIGHT OF CUT

46218

EUROPEAN NOISE

23009

FUEL CAUTION

29113

29947

OFF

RUN

IGNITION

SWITCH

SYMBOLS

PATENT NUMBERS

2-9470

EUROPEAN

COMMUNITY

29776

BATTERY STORAGE

START

29948

6

Section 1 – FAMILIARIZATION – DECALS / SYMBOLS

SLOW

ENGINE SPEED CONTROL SYMBOLS

E
N

G

I
N
E

AUTOMATIC BLADE
STOP DECAL - 24072

BLADE ENGAGED
POSITION

BLADE LEVER

POSITION
SYMBOLS

BLADE DISENGAGED POSITION

CHOKE
POSITION

RABBIT
“FAST”

ENGINE
SPEED
CONTROL

TURTLE
“SLOW”

FAST

NEUTRAL

REVERSE

PARK
BRAKE

SAFETY INSTRUCTION

35974

TRANSMISSION SHIFT
LEVER SYMBOLS

MACHINE FRONT

CLUTCH/BRAKE,
PARKING BRAKE,
BLADE OPERATION

MACHINE REAR

TRACTION
CLUTCH

CLUTCH/BRAKE

DECAL - 2-8514

PARKING
BRAKE
SYMBOL

7

Section 2 - OPERATING INSTRUCTIONS

2.1 PRE-START CHECK LIST

Make the following checks and perform the service
required before each start-up.

2.1.1. Chec k tires and add or release air as needed
to bring pressure to 12 psi in front and 12 psi in rear
tires.

2.1.2. Chec k guards, deflectors and covers to mak e
sure all are in place and securely tightened.

2.1.3. Check engine oil and add oil as needed to
bring level up to the FULL mark. Refer to engine
owner’s manual for oil specifications. See Figure 2.1.

2.2 OPERATOR’S SEAT ADJUSTMENT

2.2.1. FRONT TO REAR ADJUSTMENT

1. With the engine stopped, loosen the two adjusting

knobs and move seat to desired position. After
adjustment, tighten knobs securely. If seat does not
move after loosening knobs, it may be necessary to
loosen the 5/16” patch lock s crews located at the rear
of the seat using a 1/2 inch wrench. See Figure 2.3.

SAFE
LEVEL
AREA

FIGURE 2.1

2.1.4. Adjust seat as needed to most comfortable

position. Refer to Section “OPERATOR’S SEAT
ADJUSTMENT”.

2.1.5. Check blade contr ol to insure it work s freely.
If blade pedals are depressed, blade lever can be
moved manually from “ON” to “OFF” to stop
blade.

2.1.6. Check Reverse Lockout Mechanism. With
blade pedals depressed, shift lever must not go into
reverse.

2.1.7. Clean exterior surfaces of cutting deck and
engine of any accumulation of dirt, grass, oil, etc.
Keep engine air intake s c reen and c ooling f ins clear at
all times.

2.1.8. Add fuel to tank af ter pushing the Rear Engine
Rider outside where fumes can dis sipate. Make sure
fuel filler cap is tight and vent is open after refueling.
Refer to engine owner’s manual fo r fuel s pecif ications.
See Figure 2.2.

FUEL
FILLER
CAP

FUEL
TANK

OPEN
VENT

FIGURE 2.2

5/16” PATCH LOCK
SCREWS (DO NOT
OVERTIGHTEN)

FRONT OF
SEAT

8

ADJUSTING
KNOBS P.N.
2-3191

OPERATOR’S
SEAT

5/16” PATCH LOCK
SCREWS (DO NOT
OVERTIGHTEN)

ADJUSTING
KNOBS P.N.
2-8659

FIGURE 2.3

Section 2 - OPERATING INSTRUCTIONS

WAY DOWN

2.3 STARTING & OPERATION

2.3.1. ENGINE (ELECTRIC START)
IMPORTANT: When the ignition key is turned to

“START”, the engine will turn over, but will

not start
unless the Clutch/Brake pedal is pr essed all the way
down, the Blade Lever is in the “Off” position (See
Figure 2.5). The operator should be in the seat. Start
engine as follows:

1. Move transmission shift lever to (N) Neutral
position. DO NOT start engine with transmission
shift lever in a drive position.

WARNING

It is possible to start engine w ith transmission shift
lever in a drive position. Follow starting instructions
carefully.

2. Make certain the Blade Lever is in the “Off”

position. See Figure 2.4.

BLADE LEVER
IN “OFF”
POSITION

TO APPLY
BRAKES, PUSH
CLUTCH/BRAKE
PEDAL ALL THE

FUEL
FILLER
CAP

FIGURE 2.5

OPEN
VENT

RELEASE BLADE
PEDALS

FIGURE 2.4

3. Press Clutch/Br ake Pedal all

the way down and

hold while starting engine. See Figure 2.5.

4. Open vent on fuel filler cap by turning
counterclockwise. IMPORTANT: Failure to open
vent on the fuel filler cap can cause engine to stall.
See Figure 2.6.

5. Move engine speed c ontrol to the chok e position to
start a cold engine. See Figure 2.7.

6. Turn key to the “START” position until engine
starts. See Figure 2.7. NOTE: If after 5 seconds of
cranking the engine and it does not start, releas e the
key, make sure the Clutch/Brake Pedal is fully
depressed and attempt starting again after waiting for
approximately 20 seconds.

7. After engine starts , move engine speed control to
the “FAST” position, allow a brief warm-up until engine
runs smooth.

FUEL
TANK

FIGURE 2.6

MOVE ENGINE SPEED
CONTROL TO CHOKE
POSITION

KEY

FIGURE 2.7

(Continued on Next Page)

9

Section 2 - OPERATING INSTRUCTIONS

TO “ON”

2.3 STARTING & OPERATION

2.3.1. ENGINE (ELECTRIC START) (Continued)

8. Should the battery be too weak to start the engine,

Refer to Section “ENGINE (MANUAL START)” to
manually start the electric start engines.

2.3.2. ENGINE (MANUAL START)
IMPORTANT: When the ignition key is turned to

“RUN”, and the recoil handle is pulled, the engine
will turn over, but will

not start unless the
Clutch/Brake Pedal is pressed all the way down with
Parking Brake engaged (See Figure 2.8) and the
Blade Lever is in the “Off” pos ition (See Figure 2.4) .
Start engine as follows:

1. Move transmission shift lever to (N) Neutral
position. DO NOT start engine with transm ission shift
lever in a drive position.

WARNING

It is possible to start engine w ith transmission shift
lever in a drive position. Follow starting instructions
carefully.

2. Make certain the Blade Lever is in the “Off”

position. See Figure 2.4.

3. Press Clutch/Brake Pedal all
Parking Brake Lever and release the Clutch/Brake
Pedal to set Parking Brake. See Figure 2.8.

PUSH CLUTCH/BRAKE
PEDAL ALL THE WAY
DOWN

FIGURE 2.8

4. Open vent on fuel filler cap by turning

counterclockwise. NOTE: Failure to open vent on
the fuel filler cap can cause engine to stall.

the way down, lift

MOVE PARK
BRAKE LEVER

5. Move engine speed control to the chok e position

to start a cold engine. See Figure 2.7.

6. Turn key to “RUN” position. See Figure 2.9.

KEY

7. Pull starter rope with a smooth, even motion until

engine starts. Always guide the starter rope back
into the recoil housing. DO NOT allow rope to snap
back. After Engine starts, move engine speed
control to the “FAST” position.

8. Allow a brief warm-up until engine runs smooth.

FIGURE 2.9

10

Section 2 - OPERATING INSTRUCTIONS

WARNING

Once blade is disengaged, it should come to a
complete stop in 3 seconds or less. If the blade
continues to rotate after 3 seconds, the blade brake
must be adjusted. Refer to Section “ BLADE BRAKE
ADJUSTMENT” for adjustment procedures or return
machine to an authorized SNAPPER dealer for
adjustment. DO NOT CONTINUE to operate machine
until blade brake is adjusted and functioning
properly.

2.3 STARTING & OPERATION

2.3.3. MOWER BLADE

1. With engine running, m ove engine speed contr ol

to the “FAST” position.

2. Move blade lever forward to the “ON” position,
then depress blade pedals to hold blade lever in the
“ON” position. See Figure 2.10.

IMPORTANT: You cannot engage the blade lever if the
blade pedal is depressed first.

BLADE LEVER SHOWN
IN “ON” POSITION

BLADE PEDAL
SHOWN
DEPRESSED

WARNING

DO NOT operate blades in reverse. STOP BLADES.
LOOK and SEE behind and down for children, pets
and hazards before and while backing.

DEPRESS
CLUTCH/BRAKE PEDAL

FIGURE 2.11

FIGURE 2.10

2.3.4. WHEEL DRIVE

1. With engine running, adjust engine speed control
to “FAST” position.

2. Depress clutch/brake pedal. See Figure 2.11.

THERE ARE FIVE
DIFFERENT FORWARD
GROUND SPEEDS AND
ONE REVERSE GROUND
SPEED

3. Place trans m ission shif t lever in the notch f or 1st

speed. See Figure 2.12.

4. Release clutch/brake pedal to start desired
direction.

SHIFT LEVER SHOWN IN
NEUTRAL POSITION

5. During forward motion, the transmission shift

lever may be placed in any desired forward speed
without depressing the clutch/brake pedal.

: For best cutting results, m ove the transmission

NOTE

shift lever into a slow forward speed and the engine
speed control to a fast position. This combination will
allow the mower blades to lift the grass while cutting
smoothly and evenly.

FIGURE 2.12

11

Section 2 - OPERATING INSTRUCTIONS

WARNING

DO NOT leave machine with the engine running.
Stop engine. Stop blade. Shift to neutral. Engage
parking brake. Remove key.

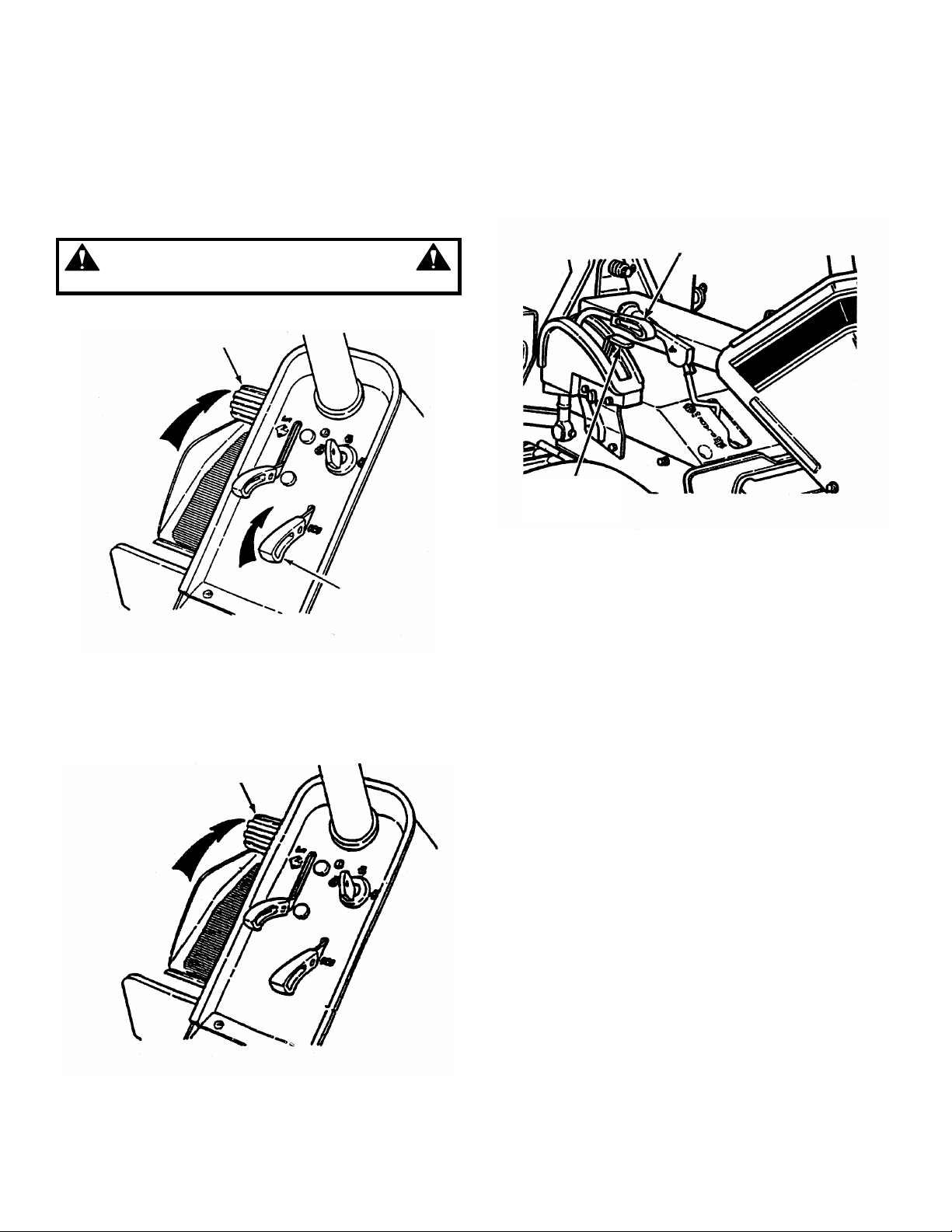

2.4 STOPPING - ENGINE, WHEEL DRIVE, BLADE

2.4.1. ENGINE

1. Stop engine by turning key to the “OFF” position.

See Figure 2.13.

KEY

TO APPLY
BRAKES, PUSH
CLUTCH/BRAKE
PEDAL ALL THE
WAY DOWN

FIGURE 2.14

BLADE LEVER
IN “OFF”
POSITION

RELEASE
BLADE
PEDALS

FIGURE 2.13

2.4.2. WHEEL DRIVE

1. Stop motion of Rear Engine Rider by pushing

clutch/brake pedal all the way “DOWN” to apply
brake. See Figure 2.14.

WARNING

Once blade is disengaged, it should come to a
complete stop in 3 seconds or less. If the blade
continues to rotate after 3 seconds, the blade brake
must be adjusted. Refer to Section “ BLADE BRAKE
ADJUSTMENT” for adjustment procedures or return
machine to an authorized SNAPPER dealer for
adjustment. DO NOT CONTINUE to operate machine
until blade brake is adjusted and functioning
properly.

2.4.3. MOWER BLADE

1. Stop mower blade by releasing blade pedals or

moving blade lever rearward to the “OFF” position.
See Figure 2.15.

FIGURE 2.15

(Continued on Next Page)

12

Section 2 - OPERATING INSTRUCTIONS

TO “ON”

2.4 STOPPING - ENGINE, WHEEL DRIVE, BLADE

2.4.4. PARK BRAKE

1. Engage park brake by pushing clutch/brake pedal

“DOW N” and m oving the park brak e lever to the “ON”
position. While holding the park brake lever “ON”,
release clutch/brake pedal to set park brake.
See Figure 2.16.

WARNING

DO NOT park the machine on slopes.

PUSH CLUTCH/BRAKE
PEDAL ALL THE WAY DOWN

MOVE PARK
BRAKE LEVER

FIGURE 2.16

2. Release park brake by pushing down on the

clutch/brake pedal to release park brake lever. See
Figure 2.17.

PUSH CLUTCH/BRAKE
PEDAL ALL THE WAY
DOWN

FIGURE 2.17

2.5. CUTTING HEIGHT ADJUSTMENT

1. Adjust cutting height as desired to any one of six

positions using deck lift lever. When in desired
height of cut, release latch, then try to move deck
lift lever to ensure lift lever latch is fully engaged.
See Figure 2.18.

LIFT LEVER
LATCH

DECK LIFT LEVER

FIGURE 2.18

13

Section 2 - OPERATING INSTRUCTIONS

2.6 REVERSE LOCKOUT MECHANISM

Data indicates that tragic back-over accidents occur
each year. These accidents usually involve
unsupervised children. Many times these childr en have
been given rides on the mac hine and have been trained
to view this potentially dangerous piece of m achinery as
fun rather than being taught how to avoid danger.

This riding mower has a Rever se Lockout Mechanism.
This mechanis m prevents the mower fr om being shifted
into reverse with the blade running. To shift into reverse
you must first stop the blade and then shift to rever se. It
is our recommendation that this mechanism remain
functional and the operator of this equipment develop
the habit of never backing up with the blade running. As
the Safety Instructions Indicate, DO NOT operate

blades in reverse. STOP BLADES, LOOK AND SEE
BEHIND AND DOWN for children, pets and hazards
before and while backing.

We realize that this could cause a change to your
previous mowing method but we encourage you to
adjust to this new system. Do not defeat the Reverse
Lockout Mechanism.

If you operate your mower near roadways or use
attachments that require quicker shifting to reverse,
there is an override lever provided. This lever can be
pushed and held before starting the blade and will allow
reverse operation until the blade pedals are released, at
which time the system will return to its Rever se Lock out
mode. This featur e s hould never be s elec ted unles s you
are absolutely sure that no children or others are
present in the mowing area and that all children are
away and supervised by a responsible adult.

2.6.1. Reverse Lockout Mechanism Override

1. Stop machine. Stop blade.

2. Depress and hold Override Lever.

3. Depress and hold Blade Pedals. Release

Override Lever.

4. Move blade lever forward to “ON” position.

LOOK and SEE b ehind and down fo r children, pets
and hazards before and while backing.

IMPORTANT: DO NOT use the Reverse Lockout

Mechanism Override as the nor mal operating mode. T o
return to the Reverse Lockout Mechanism mode,
release blade pedals to turn blade off. The Overr ide will
reset to Reverse Lock out. Check the Reverse Lockout
Mechanism frequently for proper function. With the
blade pedals depressed, the shift lever mus t not go into
reverse. DO NOT operate m achine if Reverse Lockout
Mechanism is not functioning properly. Contact your
local Snapper dealer for assistance.

WARNING

14

Section 3 - MAINTENANCE

WARNING

DO NOT attempt any adjustments, maintenance,
service or repairs with the engine running. STOP
engine. STOP blade. Engage parkin g brake. Remove
key. Remove spark plug wire from spark plug and
secure away from plug. Engine and components are
HOT. Avoid serious burns, allow all parts to cool
before working on machine. Fuel Filler Cap and vent
must be closed securely to prevent fuel spillage.

3.1 INTRODUCTION

To retain the quality of the Rear Engine Rider, use
genuine SNAPPER replacement par ts only. Contact a
local SNAPPER dealer for parts and service assistance.
For the correct part or inf ormation for a particular Rear
Engine Riding Mower, always mention the model and
serial number. SNAPPER recommends returning the
Rear Engine Rider to an authorized SNAPPER dealer
annually for inspection and addition of any new devices
which might upgrade the safety of the Rear Engine
Rider. For the nearest SNAPPER dealer in your area,
check the yellow pages under the heading LAWN
MOWERS. For engine parts and service, look for the
engine manufacturer’s dealers under the heading,
ENGINES - gasoline.

3.2 SERVICE - AFTER FIRST 5 HOURS

Routine maintenance is important to the performance
and life of your Rear Engine Rider. Service per formed
properly and at the recommended interval is es sential.
Refer to Section “MAINTENANCE SCHEDULE” in this
manual and in the Engine Owner’s Manual. Carefully
complete all of the recommended service procedures.

3.2.1. CHANGE ENGINE OIL

1. Place bricks or wooden blocks under the front

wheels to lower rear of engine.

2. Loosen or remove oil fill cap on engine.

3. Loosen oil drain plug.

4. Place a 2 quart minimum capacity container under

the end of the oil drain. Open oil dr ain. See Figure 3.1
for oil drains used on the Rear Engine Riders.

5. After all the oil has drained, close the drain and
wipe up any oil that may have spilled. See Figure 3.1.
Dispose of used oil properly.

6. Fill engine crankcase with new oil. Refer to your
engine owner’s manual for oil specifications.

7. Change oil filter on Kohler engines at every oil
change. Refer to your engine owner’s manual for
service instruct ion s.

3.2.2. SERVICE ENGINE AIR CLEANER

The engine is equipped with a dual element air
cleaner. Both the foam pre-cleaner and cartridge
require service. Refer to Engine Owner’s Manual for
recommended service procedures.

3.2.3. CHECK MOWER BLADE

1. Follow WARNING statement found on this page.

2. Check fuel level in tank. If over 3/4 full, remove

tank. Refer to Section “REMOVING FUEL T ANK”. If
3/4 or less, proceed to next step.

3. Carefully stand Rear Engine Rider on rear bumper.

WARNING

Remove the battery if the Rear Engine Rider will be
left standing on the rear bumper for longer than 2
hours. Refer to Section “BATTERY REMOVAL”. DO
NOT use a cutting blade that shows signs of
excessive wear or damage on the Rear Engin e Rider.
Refer to Section “MOWER BLADE REPLACEMENT”
for proper blade inspection and service procedures.

4. Check torque of blade mounting bolts. As

necessary, torque to 30 to 40 ft. lbs. See Figure 3.2.

5. Check blade for sharpness, wear and damage.
Refer to Section “BLADE WEAR LIMITS”.

REMOVE OIL PLUG
TO ALLOW OIL TO
DRAIN

ROTATE
COUNTER­CLOCKWISE
AND PULL OUT
TO OPEN

TORQUE BLADE
MOUNTING
BOLTS TO 30 TO

FIGURE 3.2

PUSH AND ROTATE
CLOCKWISE TO
CLOSE

6. Check blade for straightness. Refer to Section

“ADJUSTING MOWER BLADE”.

FIGURE 3.1

15

Section 3 - MAINTENANCE

WARNING

DO NOT attempt any adjustments, maintenance,
service or repairs with the engine running. STOP
engine. STOP blade. Engage parkin g brake. Remove
key. Remove spark plug wire from spark plug and
secure away from plug. Engine and components are
HOT. Avoid serious burns, allow all parts to cool
before working on machine. Fuel Filler Cap and vent
must be closed securely to prevent fuel spillage.

3.2 SERVICE - AFTER FIRST 5 HOURS

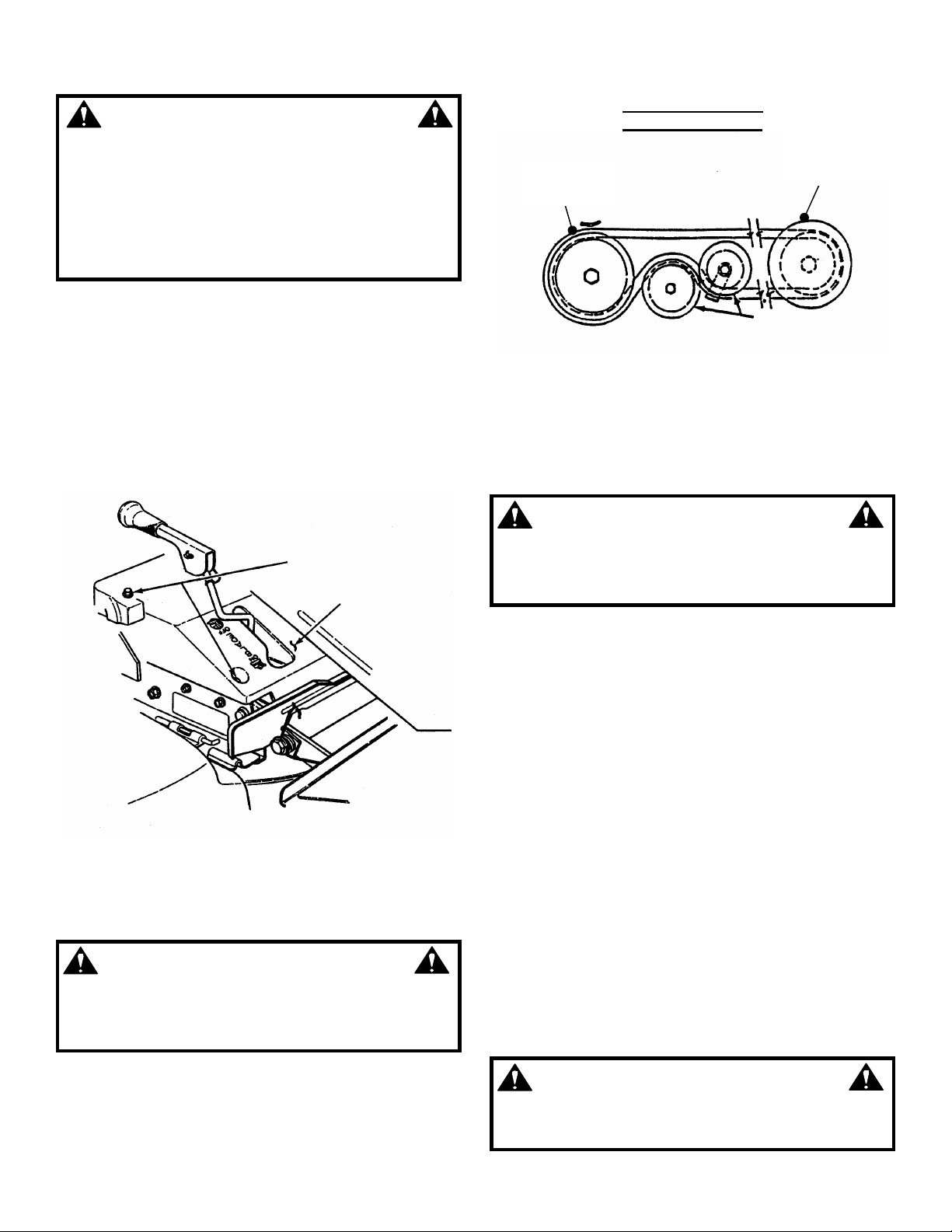

3.2.4. CHECK BLADE DRIVE BELT

The blade drive consists of a single belt from the
engine to the deck. Inspect for s igns of deterioration
and proper tension.

1. Lower deck to lowest setting.

2. Remove four self-tapping screws, two on each

side of mower drive belt cover. See Figure 3.3.

3. Slide cover back and rotate out on left side of
mower deck.

28” & 33” MODELS
(Dual Idler System)

SPINDLE
PULLEY

FIGURE 3.4

3.2.5. BLADE BRAKE

1. Check blade brak e for proper func tion. Blade should

stop rotating in 3 sec onds or less after moving the blade
control lever to the “OFF” position or after releasing the
blade pedals.

ENGINE DRIVE
PULLEY
ASSEMBLY

IDLER’S

REMOVE FOUR (4)
SELF-TAPPING

REMOVE COVER

FIGURE 3.3

4. Check belt for excessive wear or damage and

replace if necessary; there are no adjustments on
these models. See Figure 3.4.

WARNING

The following procedure requires the engine and
blades to be operated. Exercise extreme caution.
Clear area of loose parts & tools first. Only operate
blades when seated in the operator’s seat.

WARNING

Blades must stop rotating in 3 seconds or less after
the blade has been turned off. DO NOT operate
machine until blade brake has been adjusted and
functioning properly.

2. If the blade continues to rotate longer than 3

seconds do not operate machine. Refer to Section
“BLADE BRAKE ADJUSTMENT” or contact your
SNAPPER dealer for assistance.

3.2.6. SERVICE BRAKE / PARK BRAKE

1. Check machine brake for proper function. Engage

park brake. Push m achine. Rear tires should sk id. Drive
machine forward and apply brake. Machine s hould come
to a complete stop in less than 5 ft.

2. If brakes are not functioning properly brake
adjustment must be completed before operating
machine. Refer to Section “SERVICE BRAKE – PARK
BRAKE ADJUSTMENT”.

3.2.7. INTERLOCK SYSTEM

Check interlock controls for proper function:

The engine MUST NOT start if:

1. Blade Control is “ON” and/or clutch/brake pedal is

released.

The engine and blades MUST STOP if:

2. The operator leaves the operator pos ition with Blade

Control “ON” and/or clutch/brake pedal is released.

WARNING

DO NOT operate machine if interlock system is not
functioning properly. Contact your SNAPPER dealer
immediately for assistance.

16

Section 3 - MAINTENANCE

3.2.8. REVERSE LOCKOUT MECHANISM

Check function of Reverse Lockout Mechanism with
engine off.

1. Depress and hold blade pedals.

2. Depress and hold clutch/brake pedal.

3. Shift lever must not go into reverse.

WARNING

DO NOT operate machine if Reverse Lockout
Mechanism is not functioning properly. Contact your
SNAPPER dealer immediately for assistance.

3.2.9. LUBRICATION – GREASE FITTINGS

The following components on the Rear Engine
Rider are equipped with grease fittings and
require periodic lubrication. Apply General
Purpose grease (NLGI No.2) with a grease gun.

1. Front Wheel Bearings. Refer to Section
“FRONT WHEEL BEARINGS – LUBRICATION”.

2. Rear Axle Bearing. Refer to Section “REAR
AXLE BEARING – LUBRICATION”.

3. Mower Blade Spindle. Refer to Section
“MOWER BLADE SPINDLE – LUBRICATION”.

3.3 SERVICE - EVERY 25 OPERATING HOURS

3.3.1. Per form all service required after the f irst 5 hours

of operation. Refer to Section “SERVICE – AFTER 5
HOURS”.

WARNING

DO NOT attempt any adjustments, maintenance,
service or repairs with the engine running. Stop
engine. Stop blade. Engage parking brake. Remove
key. Remove spark plug wire from spark plug and
secure away from plug. Engine and components are
HOT. Avoid serious burns, allow all parts to cool
before working on machine. Fuel Filler Cap and Vent
must be closed securely to prevent fuel spillage.

3.3.2. BATTERY FLUID LEVEL

1. Remove battery. Refer to Section “BATTERY

REMOVAL”.

2. Remove battery caps. Check fluid level.

3. Add water only to bring fluid to proper level –

approximately 3/16” above plates.

DO NOT OVERFILL.

4. Reinstall battery. Refer to Section “BATTERY

INSTALLATION”.

3.3.3. MOWER DECK LEVELNESS

Check mower deck for proper level. Adjust as required.
Refer to Section “MOWER DECK ADJUSTMENT –
LEVELNESS”.

3.3.4. CLEAN MOWER DECK

1. Follow WARNING statement found on this page.

2. Check fuel level in tank. If over 3/4 full, remove

tank. Refer to Sec tion “REMOVING FUEL TANK”. If
3/4 or less, proceed to next step.

3. Carefully stand Rear Engine Rider on rear bumper.

4. Clean underside of mower deck, removing all

accumulation of grass clippings and debris.

5. Clean top of deck , rem oving all gras s clippings and
debris.

3.3.5 MOWER BLADE SPINDLE - LUBRICATION

1. Follow WARNING statement found on this page.

2. Check fuel level in tank. If over 3/4 full, remove

tank. Refer to Section “FUEL TANK REMOVAL”. If 3/4
or less, proceed to next step.

3. Carefully stand Rear Engine Rider on rear bumper.

4. Lubricate spindle with three shots of general

purpose grease from grease gun. See Figure 3.5.

IMPORTANT: If the Rear Engine Rider will be on its
rear bumper for longer than two hours, remove the
battery. Refer to Section “BATTERY REMOVAL”.

3.3.6. MOWER DECK LINKAGE - LUBRICATION

Lubricate all mower deck linkage pivot points with a
light coat of motor oil.

SPINDLE
GREASE FITTING

FIGURE 3.5

17

Section 3 - MAINTENANCE

FITTING

WARNING

DO NOT attempt any adjustments, maintenance,
service or repairs with the engine running. STOP
engine. STOP blade. Engage parkin g brake. Remove
key. Remove spark plug wire from spark plug and
secure away from plug. Engine and components are
HOT. Avoid serious burns, allow all parts to cool
before working on machine. Fuel Filler Cap and vent
must be closed securely to prevent fuel spillage.

3.3.7. FRONT WHEEL BEARING - LUBRICA TION

1. Lubricate front wheel bearings with f ive shots of

general purpose grease, from grease gun. See
Figure 3.6.

LEFT REAR
AXLE BEARING
GREASE

FRONT WHEEL
GREASE FITTING

FIGURE 3.6

3.3.8. REAR AXLE BEARING - LUBRICATION

1. The left rear axle bearing on 28” machines

requires three shots of general purpose grease
from grease gun. See Figure 3.7.

NOTE: Some models are equipped with a pre­lubricated sealed bearing and require no additional
lubrication.

2. The right rear axle bearing is lubricated by the
differential lubricant and requires no grease.

FIGURE 3.7

3.3.9. DIFFERENTIAL/CHAIN CA SE - LUBRICA TION

1. Stand rear engine rider on its rear bumper and

check the fill/level plug, for cracks and wear. Replace
fill/level plug if signs of wear are visible.

IMPORTANT: If the Rear Engine Rider will be on
its rear bumper for longer than two hours, remove
the battery. Refer to Section “BATTERY
REMOVAL”.

2. To check lubricant, remove fill/level plug and
visually inspect for lubricant on the internal parts of the
differential. If no lubricant is visible on the internal
parts of the differential, add “ SNAPPER T rans mission”
grease as needed. See Figure 3.8.

IMPORTANT: Overfilling of the differ ential with lubricant will
cause lubricant to leak onto dr ive components of the Rear
Engine Rider.

DIFFERENTIAL

FILL/LEVEL PLUG
P.N. 1-1024

FIGURE 3.8

18

SECTION 3 – MAINTENANCE

CLAMPS

WARNING

DO NOT attempt any adjustmen ts, maintenance, service
or repairs with the engine running. Stop engine. Stop
blade. Engage parking brake. Remove key. Remove
spark plug wire from spark plug and secure away from
plug. Engine and components are HOT. Avoid serious
burns, allow all parts to cool before working on machine.
Fuel Filler Cap and Vent must be closed securely to
prevent fuel spillage.

3. Check fill/level plug for damage. If signs of wear or

cracks are visible, replace plug with new plug. See
Figure 3.9.

4. To check lubricant in chain case, remove fill/level
plug and look for lubricant on the internal
components of the chain case. If no lubricant is
visible, add "SNAPPER Transmission” grease as
needed. See Figure 3.9.

AXLE BOOTS

CHAIN
CASE

FILL/LEVEL PLUG
P.N. 1-1024

FIGURE 3.9

3.3.10. Check “MAINTENANCE SCHEDULE”

Section of Engine Owner’s Manual for additional
engine service.

3.4 SERVICE - ANNUALLY

3.4.1. Perform all maintenance as specified in

“MAINTENANCE SCHEDULE” Section of this manual.

3.4.2. FUEL FILTER

Service fuel filter as instructed below, on COLD
ENGINE ONLY!

IMPORTANT: T o stop flow of fuel, tank may be removed
from bracket and set on the floor so the fuel level will be
below the filter. Refer to Section “REMOVING FUEL TANK”.

1. Remove hose clamps from fuel filter.

2. Remove fuel lines from filter. Discard filter.

3. Install new fuel filter. See Figure 3.10.

4. Reinstall fuel tank into bracket.

HOSE

FUEL TANK

FUEL
FILTER

P.N. 1-4359

FIGURE 3.10

3.5 EVERY TWO YEARS

In addition to regular maintenance, the following
components of the Rear Engine Rider should be
carefully inspected every two years for wear or
damage. Replace worn or damaged parts with
genuine SNAPPER replacement parts available
from an authorized SNAPPER dealer.

3.5.1. All bushings and pivot areas.

3.5.2. Check both front wheel king pins.

3.5.3. Transmission shift lever and detent.

3.5.4. Clutch disc.

3.5.5. Clutch yoke.

3.5.6. Mower deck linkage and pivot areas.

3.6 STORAGE (OUT OF SEASON)

If desired, the Rear Engine Rider can be s tored on
the rear bumper. Perfor m the following procedures
to insure the Rear Engine Rider will operate
properly when taken out of storage.

3.6.1. Thor oughly clean the Rear Engine Rider by
removing all grass clippings and debris.

3.6.2. Perform maintenance and lubrication as
required.

3.6.3. Drain fuel from fuel tank.

3.6.4. Start engine and allow it to run until engine

runs out of fuel. This allows the carburetor and fuel
system to remain clean during storage.

3.6.5. Remove battery. Refer to Section
“BATTERY STORAGE”.

3.6.6. Close vent on fuel filler cap.

3.6.7. Carefully stand Rear Engine Rider on rear

bumper in desired location for storage.

19

SECTION 3 – MAINTENANCE

3.7 REMOVING FUEL TANK

Before removing fuel tank from rear engine rider,
move rider outdoors where fumes can be easily
dissipated. Removal of the tank is accomplished
from the left side of the machine by pulling the tank
straight up and away from the fuel tank bracket.

Holding the fuel tank, remove the f uel filler cap and
pour remaining fuel in an approved container.

FUEL
FILLER CAP

FUEL
TANK

FUEL
TANK
BRACKET

FIGURE 3.11

20

Section 4 - ADJUSTMENTS & REPAIR

TENSION

WARNING

DO NOT attempt any adjustments, maintenance,
service or repairs with the engine running. Stop
engine. Stop blade. Engage parking brake. Remove
key. Remove spark plug wire from spark plug and
secure away from plug. Engine and components are
HOT. Avoid serious burns, allow all parts to cool
before working on machine. Fuel Filler Cap and Vent
must be closed securely to prevent fuel spillage.

4.1 ENGINE ADJUSTMENTS & REPAIR

Refer to the engine owner’s manual for those
adjustments and/or repairs that can be m ade by the
owner.

4.2 MOWER DECK & COMPONENT ADJUSTMENTS

The following mower deck and component
adjustments and repairs can be made by the owner.
However, if there is difficulty in achieving these
adjustments and repairs, it is recommended that
these repairs be made by an authorized SNAPPER
dealer.

WARNING

Once blade is disengaged it should come to a stop in 3
seconds or less. If the blade continues to rotate after 3
seconds the blade brake must be adjusted. DO NOT
continue to operate the machine if the blade brake is
not operating properly.

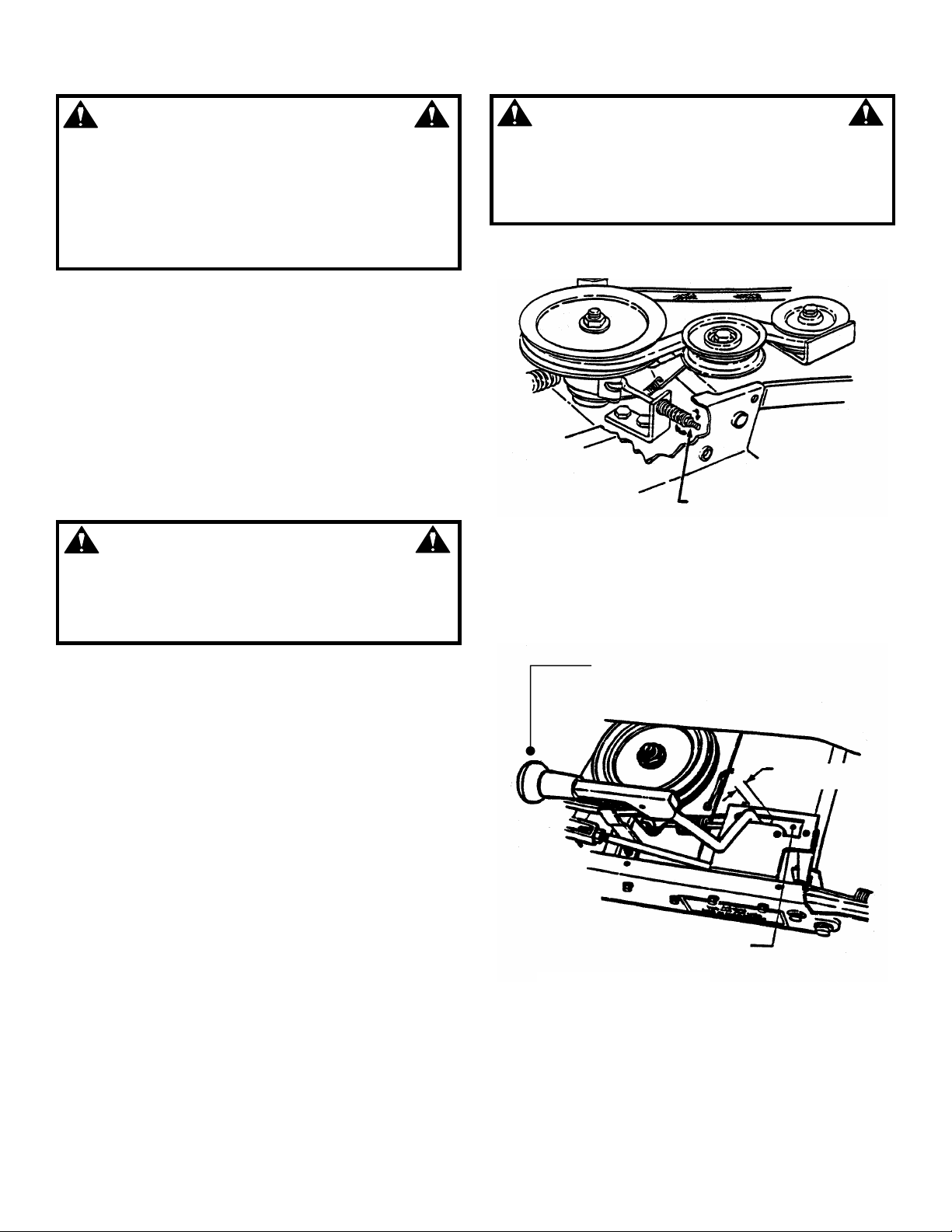

4.2.1. BLADE BRAKE ADJUSTMENT

The automatic Blade Brak e should stop the blades
within 3 seconds anytime the blades are
disengaged by moving blade lever to the "OFF"
position or by releasing the Blade Pedals. When
the Blade Brake is properly adjusted there should
be 1/8" to 1/4" clearance between the Blade
Engagement Lever and the back of the Latch
Plate. Check this by disengaging the Blade Lever
and depressing the Blade Pedals as shown in
Figure 4.2. If clearance is greater than 1/4"
perform the following adjustment.

1. Remove Belt Cover. Refer to Section “BLADE
BELT COVER REMOVAL”.

2. With the blade engagement lever disengaged,
hold the blade pedals down and measure the
distance between the front of the blade lever and the
rear of the latch plate. The dim ens ion should be 1/8”
to 1/4” clearance between lever and plate. See
Figure 4.2. If the dimension is incorrect go to step 3.

3. If dimension is greater than 1/4”, rotate nut
clockwise to increas e brake tension. If dimension
is less than 1/8”, rotate nut counter-clockwise to
decrease brake tension. See Figure 4.1.

4. Reinstall belt cover.

WARNING

DO NOT operate machine until blade brake is
adjusted and functioning properly. If blade stop time
can not be achieved with the adjustment procedure
described above, take machine immediately to an

authorized Snapper dealer.

ROTATE NUT CLOCKWISE

BLADE ENGAGEMENT LEVER

NOTE: BLADE PEDALS
ARE ENGAGED

TO INCREASE BRAKE

FIGURE 4.1

1/8” TO 1/4”
DIMENSION

LATCH
PLATE

FIGURE 4.2

21

Section 4 - ADJUSTMENTS & REPAIR

R BOLT

BOLT

WARNING

DO NOT attempt any adjustments, maintenance,
service or repairs with the engine running. STOP
engine. STOP blade. Engage parkin g brake. Remove
key. Remove spark plug wire from spark plug and
secure away from plug. Engine and components are
HOT. Avoid serious burns, allow all parts to cool
before working on machine. Fuel Filler Cap and vent
must be closed securely to prevent fuel spillage.

4.2.2. MOWER DECK ADJUSTMENT

(Side-To-Side Levelness)

Before making deck leveling adjustments, check the
tire pressure. Front tires 12 psi, rear tires 12 psi. If
tires are properly inflated and mowing is still uneven,
adjust side-to-side deck levelness.

1. Place Rider on a smooth level surface.

2. Turn engine off and remove key, remove spark

plug wire from spark plug and secure wire away from
plug.

3. Place a piece of angle iron, pipe, or similar object
under center of deck at the rear.

4. Remove rear hanger chains and allow center, rear
of deck to rest on angle iron.

5. Measur e the distance f rom blade tips to floor. If the
measurement is within 1/8” f rom side-to-side, the deck
attitude is satisfactory. If difference from side-to-side is
greater than 1/8”, continue with adjustment.

6. Loosen the shoulder bolt retaining the left side of
blade pedals.

7. Turn eccentric “UP” or “DOW N” as required until
blade tips are within 1/8” of each other. See Figure

4.3.

8. Tighten shoulder bolt loosened in step “6”.

ECCENTRIC

LOOSEN
SHOULDE

LIFT
ARM

TURN ECCENTRIC AS
REQUIRED

BLADE
PEDAL

BLADE PEDAL

SHOULDER

FIGURE 4.3

22

9. Readjust rear hanger chain pivots to align with

holes in support brackets.
See Figure 4.4.

10. Remove angle iron, pipe, or similar object and
proceed to check front to rear levelness.

4.2.3. MOWER DECK ADJUSTMENT
(Front to Rear Levelness - 28”, & 33” Decks)

With the Rear Engine Rider on a smooth, level
surface, rotate blade until blade tips are at f ront and
rear of deck . Measur e the distance from blade tips
to floor. The distance should be the sam e, or the
rear 1/8” lower than the front. If the rear blade tip is
higher or is more than 1/8” lower than the front,
proceed with adjustment.

With the Rear Engine Rider on a smooth, level
surface, rotate blade until blade tips are at f ront and
rear of deck. Measur e the distance from blade tips
to floor. The distance should be the same, or the
rear 1/8” to 1/4” higher than the front. If the rear
blade tip is higher or is more than 1/4” higher than
the front, proceed with adjustment.

1. Remove rear hanger chains.

2. Turn each hanger pivot the same number of

rotations on the eye-bolt to raise or lower the rear of
the deck. See Figure 4.4.

3. Reinstall rear hanger c hains and measure blade

tips again.

4. Repeat steps “1” through “3” until proper

levelness is obtained.

(Front to Rear Levelness - 30” Decks)

SECTION 4 - ADJUSTMENTS & REPAIR

BOLT

FLOOR

HANGER

HAIR PIN

SUPPORT
BRACKET

HANGER
CHAIN

CHAIN PIVOT

FIGURE 4.4

WARNING

DO NOT attempt any adjustments, maintenance,
service or repairs with the engine running. STOP
engine. STOP blade. Engage parkin g brake. Remove
key. Remove spark plug wire from spark plug and
secure away from plug. Engine and components are
HOT. Avoid serious burns, allow all parts to cool
before working on machine. Fuel Filler Cap and vent
must be closed securely to prevent fuel spillage.

4.2.4. CUTTING HEIGHT ADJUSTMENT

The deck cutting height range may be adjusted.

1. Place the Rear Engine Rider on a smooth, level
surface.

2. Move deck lift lever to the lowest cutting position.

3. Loosen the two lift quadrant mounting bolts and

eccentric bolt. See Figure 4.5.

LOOSEN
MOUNTING
BOLTS

SHOWN WITH COVER REMOVED

4. Rotate ecc entric to raise or lower desired cutting

height range.

5. Tighten lift quadrant mounting bolts and

eccentric bolt.

NOTE: Lift quadrant in lowest position gives 1” to 3 1/2”
cutting height range. Lift quadrant in highest position
gives 1-1/2” to 4” cutting height range.

4.3 REAR ENGINE RIDER DRIVE COMPONENTS
Your Snapper rider is equipped with a patented smooth
start clutch. The clutch should operate smoothly and
provide ample traction. If problems are experienced,
contact your Snapper dealer for repair.

4.3.1. WHEEL BRAKE ADJUSTMENT

Test the wheel brake on a dry concrete surface. When
properly adjusted, the Rear Engine Rider will stop
within 5 feet from fastest speed. If stopping distance is
more than 5 feet, the wheel brake should be adjusted
as follows:

1. Follow WARNING statement found on this page.

2. Check fuel level in tank. If over 3/4 full, remove

tank. Refer to Sec tion “REMOVING FUEL TANK”. If
3/4 or less, proceed to next step.

3. Carefully stand Rear Engine Rider on rear bumper.

23

LOOSEN
ECCENTRIC

FIGURE 4.5

(Continued on next page)

RAISE OR
LOWER LIFT
QUADRANT
AS DESIRED

ROTATE
ECCENTRIC

Section 4 - ADJUSTMENTS & REPAIR

TO “ON”

WARNING

DO NOT attempt any adjustments, maintenance,
service or repairs with the engine running. STOP
engine. STOP blade. Engage parkin g brake. Remove
key. Remove spark plug wire from spark plug and
secure away from plug. Engine and components are
HOT. Avoid serious burns, allow all parts to cool
before working on machine. Fuel Filler Cap and vent
must be closed securely to prevent fuel spillage.

4.3 REAR ENGINE RIDER DRIVE COMPONENTS
(Continued from previous page)

4.3.1. WHEEL BRAKE ADJUSTMENT

4. Depress clutch/brake pedal all the way down.

Move and hold the park brake lever in the “ON”
position and release the clutch/bra ke pedal to lock
the park brake. See Figure 4.6.

PUSH CLUTCH/BRAKE
PEDAL ALL THE WAY DOWN

CHAIN
CASE

CLUTCH
YOKE

HOUSING

COTTER PIN

MOVE PARK
BRAKE LEVER

FIGURE 4.6

5. Measure the distance between end of

clutch/brake cable and bottom of housing.
Measurement should be no less than 1/2” and no
greater than 3/4”. See inset of Figure 4.7.

6. If measurement is less than 1/2” or greater than
3/4”, loosen the two jam-nuts (shown in Figure 4.8)
holding the clutch/brake cable to the chain case
bracket.

7. Adjust cable up or down using the jam-nuts to
obtain a distance of 1/2” to 3/4” between end of
clutch/brake cable (adjustment shown in inset of
Figure 4.7) and bottom of housing. See Figure 4.7.

8. After adjustment is complete, securely tighten cable
jam-nuts.

FIGURE 4.7

BRAKE
CABLE

CHAIN
CASE

LOOSEN
JAM NUTS

FIGURE 4.8

24

Section 4 - ADJUSTMENTS & REPAIR

BOLTS

WARNING

DO NOT attempt any adjustments, maintenance,
service or repairs with the engine running. STOP
engine. STOP blade. Engage parkin g brake. Remove
key. Remove spark plug wire from spark plug and
secure away from plug. Engine and components are
HOT. Avoid serious burns, allow all parts to cool
before working on machine. Fuel Filler Cap and vent
must be closed securely to prevent fuel spillage.
DO NOT use a cutting blade that shows signs of
excessive wear or damage on the Rear Engin e Rider.
On Rear Engine Riders equipped with a grass
catcher attachment, the air lifts should be replaced
when the blade is replaced.

4.4 MOWER BLADE REPLACEMENT

4.4.1. BLADE WEAR LIMITS

1. Inspect blade frequently for signs of excessive

wear or damage. See Figure 4.9.

NEW BLADE

5. Inspect condition of blade. See Figure 4.9.

6. If blade is in good condition, sharpen at 22 to 28

degrees. DO NOT sharpen beyond existing cutting
edge. See Figure 4.11.

7. Check blade balance after sharpening. If
necessary, correct blade balance by grinding the
heavy end of blade.

8. Reinstall blade. See Figure 4.10. Torque blade
mounting bolts to recom mended range of 30 to 40
ft. lbs.

NUT

LOCKWASHER

WEAR LIMIT.
(NOTCH
STARTS)

DANGEROUS CONDITION!
DO NOT USE ON MOWER!
REPLACE WITH NEW BLADE.

FIGURE 4.9

WARNING

Blades are extremely sharp and can cause severe
injuries. Wear heavy leather gloves when working on or
handling blades. DO NOT use blades that show signs
of wear or damage.

4.4.2. BLADE SHARPENING

1. Follow WARNING statement found on this page.

2. Check fuel level in tank. If over 3/4 full, remove

tank. Refer to Section “REMOVING FUEL TANK”. If
3/4 or less, proceed to next step.

3. Carefully stand Rear Engine Rider on rear bumper.

4. Remove blade. See Figure 4.10.

25

DO NOT SHARPEN
BEYOND ORIGINAL
CUTTING EDGE

BLADE
MOUNTING

BLADE

FIGURE 4.10

22ºTO 28º

ORIGINAL CUTTING EDGE

FIGURE 4.11

Section 4 - ADJUSTMENTS & REPAIR

WARNING

DO NOT attempt any adjustments, maintenance,
service or repairs with the engine running. STOP
engine. STOP blade. Engage parkin g brake. Remove
key. Remove spark plug wire from spark plug and
secure away from plug. Engine and components are
HOT. Avoid serious burns, allow all parts to cool
before working on machine. Fuel Filler Cap and vent
must be closed securely to prevent fuel spillage.

4.5 BLADE DRIVE BELT REPLACEMENT

Inspect mower drive belt as described in Section
“CHECK MOWER DRIVE BELT”. Replace belt if signs
of excessive wear and/or damage are present.

4.5.1. BELT REMOVAL

1. Remove mower drive belt cover. Refer to

Section “Drive Belt Cover Removal”.

2. Remove old belt.

4.5.2. BELT REPLACEMENT

1. Follow WARNING statement found on this page.

2. Check fuel level in tank. If over 3/4 full, remove

tank. Refer to Sec tion “REMOVING FUEL TANK”. If
3/4 or less, proceed to next step.

3. Carefully stand Rear Engine Rider on rear bumper.

4. Route new belt through engine belt guide up to

engine pulley.

ENGINE
PULLEY

9. Route belt onto spindle pulley. Make sure belt is

inside belt guide. See Figure 4.14.

10. Reinstall fixed idler removed in Step 8. Tighten
idler pulley bolt securely.

BELT MUST BE TO THE INSIDE OF BELT GUIDE

11. Adjust belt guide. See Figure 4.14 for proper

belt-to-belt guide clearances.

12. Reinstall mower drive belt cover.

1/16” NOMINAL

FIXED
IDLER
PULLEY

FIGURE 4.13

28”, 30”, & 33” MODE LS
(DUAL IDLER SYSTEM)

BELT
GUIDE

ENGINE
BELT
GUIDE

FIGURE 4.12

5. Move transmission shift lever to the neutral (N)

position.

6. Rotate clutch yoke out with y our hand and work belt
between drive disc and rubber driven disc.

7. To clear the primary chain case, move
transmission shift lever to the #5 position. Route
belt around drive disc and into drive pulley belt
groove. See Figure 4.12.

8. Remo ve fixed idler. Make sure belt is inside belt
guide and idler. See Figure 4.13.

FIGURE 4.14

26

Section 4 - ADJUSTMENTS & REPAIR

WARNING

DO NOT attempt any adjustments, maintenance,
service or repairs with the engine running. Stop
engine. Stop blade. Engage parking brake. Remove
key. Remove spark plug wire from spark plug and
secure away from plug. Engine and components are
HOT. Avoid serious burns, allow all parts to cool
before working on machine. Fuel Filler Cap and Vent
must be closed securely to prevent fuel spillage. DO
NOT attempt to service o r charge the battery while it
is installed on the machine.

4.6 BATTERY

4.6.1. BATTERY REMOVAL

1. Carefully pull each side of battery cover away

from ratchet fasteners and remove cover. See
Figure 4.15.

BATTERY COVER

RED POSITIVE (+)
CABLE

BLACK
NEGATIVE (-)
CABLE

POSITIVE
TERMINAL
INSULATOR

INSTALL BATTERY POSITIVE (+)
END FIRST INTO BATTERY
COMPARTMENT IN DIRECTION OF
ARROW AS SHOWN

FIGURE 4.16

RATCHET
FASTENERS

FIGURE 4.15

2. Remove the hair pin and swivel from the deck

support to allow clearance for battery removal.

3. Slide battery from battery box to gain access to
terminal cables.

4. Observe and note cable positions on battery.
See Figure 4.16.

5. Disconnect cables from battery terminals,
disconnecting BLACK (Negative) cable f irst. Retain
mounting bolts and nuts.

WARNING

Cables must be connected to batt ery terminals in t he
proper position as show in Figure 4.16. DO NOT
attempt to charge battery wh ile installed on the Rear
Engine Rider. DO NOT use “BOOST” chargers on
the battery.

4.6.2. BATTERY INSTALLATION

1. Slide battery partially into battery housing.

2. Connect positive (+) cable (red) first, from wiring

harness to the positive terminal (+) on battery using
bolt and nut provided in hardware bag. Connect
negative (-) cable (black) last, to negative terminal (-)
on battery using bolt and nut. Apply a small amount of
grease over terminals to prevent corrosion. Install
positive terminal insulator.

3. Reinstall positive terminal cover.

4. Insert battery completely into battery housing.

5. Reinstall tall battery cover. See Figure 4.15.

6. Reinstall swivel and hair pin for deck support.

27

Section 4 - ADJUSTMENTS & REPAIR

WARNING

The electrolyte (acid) produces a h ighly explosive gas.
Keep all sparks, flame and fire away from area when
charging battery or when handling electrolyte or
battery. Electrolyte (acid) is a highly corrosive liquid.
Wear eye protection. Wash affected areas immed iately
after having eye or skin contact w ith electrolyte (acid).
Battery acid is corrosive. Rinse empty acid containers
with water and mutilate before discarding. If acid is
spilled on battery, bench, or clothing, etc., Flush with
clear water and neutralize with baking soda.

4.6.3. BATTERY SERVICE

1. Remove battery. Refer to Section “BATTERY

REMOVAL”.

2. Place battery in a well ventilated area on a level
surface.

3. Using distilled water, refill cells as required to
cover cell plates of which can also be visualized
through the plastic battery case.

4. With cell caps r emoved, connect battery charger
to battery terminals. Red to positive (+) terminal
and black to negative (-) terminal.

5. Slow charge battery at 1 amp for 10 hours.

6. If battery will not accept charge or is partially

charged after 10 hours of charging at 1 amp,
replace with new battery.

4.6.4. BATTERY STORAGE

If mower is to be stored out of season on its rear
bumper, it is recom mended the battery be removed,
charged and stored.

1. Remove battery. Refer to Section “BATTERY
REMOVAL”.

2. Perform battery service.

3. Bring battery to full charge, if required.

4. Store battery in an area away from the RIDER on a

wood surface. DO NOT STORE BATTERY ON A
CONCRETE SURFACE.

4.6.5. BATTERY TESTING

There are two types of battery tests: Unloaded and
Loaded. The unloaded test is the proc edur e that will
be discussed. It’s the sim plest and most comm only
used. An unloaded test is made on a battery without
discharging current. To perform unloaded testing,
check charge condition using either a hydrometer or
voltmeter.

1. Using a voltmeter, voltage readings appear
instantly to show the state of charge. Remember to
hook the positive lead to the battery’s positive
terminal, and the negative lead to the negative
terminal.

2. A hydrometer measures the specific gravity of
each cell. The specific gravity tells the degree of
charge; generally, a specific gravity of about 1.265
to 1.280 indicates full charge. A reading of 1.230 to

1.260 indicates the battery should be charged. The
chart on the next page shows the charge level as
measured by syringe float hydrometer, digital
voltmeter and five ball hydrometer.

4.6.6. NEW BA TTERY PREPARA TION

1. Remove battery from carton.

2. Place battery in a well ventilated area on a level

non-concrete surface.

3. Remove battery cell caps. Fill cells as required
with electrolyte (purchased separately) to proper
level. Fill to 3/16” above cell plates. Filling battery
with electrolyte will bring the battery to 80% charged
state.

4. With cell caps rem oved, connec t battery charger to
battery terminals; RED to positive (+) and BLACK to
negative (-) terminal.

IMPORTANT: 3/16” above cell plates is the recommended
level. DO NOT place anything in battery other than specified
electrolyte.

DO NOT attempt to charge battery while installed on the
Riding Mower. DO NOT use “BOOST” chargers on the
battery. DO NOT OVERFILL!

5. Slow c harge the battery at 1 amp for 2 hours to

bring the battery to full charge.

6. Af ter char ging, check level of electrolyte and add
as needed to bring level to 3/16” above cell plates.

7. Reinstall cell caps.

8. Remove the hair pin and swivel from the deck

support to allow clearance for battery installation.

9. Slide battery partially into battery housing.

10. Connect positive (+) cable ( red) first, from wiring

harness to the positive terminal (+) on battery using
bolt and nut provided in hardware bag. Connect
negative (-) cable (black) last, to negative terminal (-)
on battery using bolt and nut. Apply a small amount of
grease over terminals to prevent corrosion.

11. Insert battery completely into battery housing.

12. Reinstall battery cover. See Figure 4.15.

13. Reinstall swivel and hair pin for deck support.

Shield the positive terminal with terminal cover
located on battery harness. T his p rev ent s metal f rom
touching the positive terminal which could cause
sparks.

WARNING

WARNING

(Battery Testing Chart on Next Page)

28

Section 4 - ADJUSTMENTS & REPAIR

Battery Condition Chart

4.6.6. BATTERY TESTING

State of Charge Syringe Hydrometer Digital Voltmeter Five Ball Hydrometer

100% Charged w/ Sulfate Stop 1.280 12.80v Five Balls Floating
100% Charged 1.265 12.60v Four Balls Floating
75% Charged 1.210 12.40v Three Balls Floating
50% Charged 1.160 12.10v Two Balls Floating
25% Charged 1.120 11.90v One Ball Floating
0% Charged Less than 1.100 Less than 11.80v Zero Balls Floating

SNAPPER REAR ENGINE RIDER ACCESSORIES

PART NO. DESCRIPTION OF KIT MODELS USED ON

6-0517................................Wheel Weight (8” Wheels) ...............................All Rear Engine Riders

6-0601................................Smooth Start Clutch..........................................All Rear Engine Riders

6-0697................................Dump Cart.........................................................All Rear Engine Riders

6-1400................................Gauge Wheel....................................................All 33” Deck Rear Engine Riders

6-0794................................Gauge Wheel....................................................All 41” & 42” Deck Rear Engine Riders

6-0941................................Single Bag Catcher...........................................All 25” Deck Rear Engine Riders

6-0942................................Single Bag Catcher...........................................All 26” & 30” Deck Rear Engine Riders

6-0943................................Single Bag Catcher...........................................All 28” & 33” Deck Rear Engine Riders

6-0944................................Single Bag Catcher...........................................All 41” & 42” Deck Rear Engine Riders

6-0945................................Twin Bag Catcher .............................................All 41” & 42” Deck Rear Engine Riders

6-1414................................Twin Bag Catcher .............................................All 28” & 33” Deck Rear Engine Riders

6-0947................................Bag-N-Wagon...................................................All 28” & 33” Deck Rear Engine Riders

6-0948................................Thatcherizer......................................................All Series 7 & Newer Riders

6-0964................................Wagon Cover....................................................All 28” & 33” Deck Rear Engine Riders

6-1190................................Weight (Front)...................................................All Series 7 & Newer Riders

6-0959................................Dozer Blade (36” Blade)....................................All Rear Engine Riders

6-0357................................Tire Chains (Tires-16 x 6.50-8).........................All Rear Engine Riders

6-0358................................Tire Chains (Tires-16 x 4.80-8).........................All Rear Engine Riders

6-1823................................Ninja Recycling (Cover) ....................................All 25” Deck Rear Engine Riders

6-1049................................Recycling (Cover)..............................................All 25” Deck Rear Engine Riders

6-1253................................Ninja Recycling (Cover) ....................................All 28” Deck Rear Engine Riders

6-1254................................Ninja Recycling (Cover) ....................................All 30” Deck Rear Engine Riders

6-1255................................Ninja Recycling (Cover) ....................................All 33” Deck Rear Engine Riders

6-1987................................Ninja Recycling (Cover) ....................................All 41” & 42” Deck Rear Engine Riders

6-1910................................Utility Trailer

6-1911................................Aerator

6-1912................................Dethatcher

6-1913................................Lawn Sweeper

6-1914................................Dethatcher Kit

6-1915................................Lawn Roller

6-1916................................Broadcast Spreader

29

TROUBLESHOOTING

PROBLEM PROBABLE CAUSE CORRECTIVE ACTION

Engine Will Not

Start Using

Recoil Starter

4. Faulty parking brake, blade or ignition switch.

5. Park brake not engaged. 5. Engage park brake.

6. Ignition is in the OFF position. 6. Turn ignition switch to the RUN position.

Engine Will Not

Start Using

Electric Starter

4. Faulty parking brake, blade or ignition switch.

5. Park brake not engaged. 5. Engage park brake.

6. Blown Fuse. 6. Replace with new 20 AMP fuse.

7. Faulty interlock module.

8. Ignition is in the OFF position. 8. Turn i g n i t i o n s w i t c h to t h e S TART posit i o n .

9. Battery is weak or dead. 9. C h ar g e o r r e place wit h n e w batter y.

10. Battery cables loose, broken disconnected or

11. Faulty electric starter or starter solenoid.

12. Starter cable loose, broken or disconnected 12. Connect starter cable. If broken, replace

13. Electrical wiring harness disconnected or broken. 13. Connect or replace with new wiring harness.

Engine Stalls After

Running

3. Fuel tank empty. 3. Fill fuel tank with fresh fuel to proper level.

4. Engine air pre-cleaner and or air cleaner dirty. 4. Clean free of all debris.

5. Spark plug defective or gap set improperly. 5. Service spark plug.

6. Fuel filter restricted. 6. Replace fuel filter.

7. Water, debris or stale fuel in fuel system. 7. Drain and clean fuel system.

8. Vent on Fuel Cap closed. 8. Open vent.

Engine Loses

Power

3. Spark plug faulty. 3. Service spark plug.

4. Water, debris or stale fuel in fuel system. 4. Drain and clean fuel system. Replace filter.

5. Debris build up on engine cooling screen. 5. Clean all debris from engine cooling screen.

Engine Backfires

When Turned To

“STOP”

Excessive Vibration

2. Loose blade components. 2. Service and tighten loose parts.

3. Loose or missing air lift (if equipped). 3. Replace air lifts. Tighten to proper torque.

4. Lumpy or frayed belt 4. Replace belt.

5. Bent Idler, stationary or spindle pulley 5. Replace pulley.

1. Fuel tank empty. 1. Fill fuel tank with fresh fuel to proper level.

2. Engine needs choking. 2. Move choke control to “CHOKE” position.

3. Spark plug wire disconnected. 3. Place spark plug wire onto spark plug.

4. Contact authorized SNAPPER dealer.

1. Fuel tank empty. 1. Fill fuel tank with fresh fuel to proper level.

2. Engine needs choking. 2. Move choke control to “CHOKE” position.

3. Spark plug wire disconnected. 3. Place spark plug wire onto spark plug.

4. Contact authorized SNAPPER dealer.

7. Contact authorized SNAPPER dealer.

10. Clean and connect battery cables. If

corroded.

1. Operator not in seat. 1. Sit in operator’s seat.

2. Choke control in the “CHOKE” position. 2. Move choke control to “OFF” position.

1. Excessive load on engine. 1. Lessen load.

2. Engine air pre-cleaner or air cleaner dirty 2. Clean or replace filters.

1. Throttle control set too “FAST”. 1. Set throttle control to “SLOW” and allow

1. Damaged, out of balance or bent mower blades. 1. Service mower blade(s).

broken, replace with new battery cables.

11. Contact authorized SNAPPER dealer.
with new starter cable.

engine to idle. Then, turn key to “OFF”.

(Trouble Shooting Continued on Next Page)

30

TROUBLESHOOTING

Rider Will Not Move

1. Drive disc worn or damaged.

1. Replace drive disc.

PROBLEM PROBABLE CAUSE CORRECTIVE ACTION

Loss Of Traction

Blade(s) Not Cutting

Cutting Grass

Improperly

Poor Grass

Discharge

Oil Leaking

2. Rubber drive disc is not tracking properly on
drive disc.

3. Tapered axle bolt and nut missing.

4. Axle bearing seized.

5. Insufficient lubrication in chain case or
transmission/differential.

1. Blade engagement lever in the “OFF” position. 1. Move lever to the “ON” position.

2. Mower belt slipping. 2. Adjust or replace mower belt.

3. Cutting blade is dull, worn or damaged. 3. Sharpen or replace cutting blade.

1. Uneven tire pressure. 1. Bring to proper pressure. 12 PSI front tire

2. Cutting height too low or high. 2. Adjust cutting height.

3. Engine speed too slow. 3. Move throttle control to “FAST” position.

4. Forward speed too fast. 4. Move transmission shift lever to a slower

5. Terraced cut, side to side. 5. Adjust side to side level.

6. Excessive deck pitch, front to rear. 6. Adjust front to rear pitch.

7. Cutting blade(s) dull or damaged. 7. Sharpen cutting edges or replace blade(s).

8. Mower belt slipping. 8. Adjust tension or replace mower belt.

1. Engine speed too slow. 1. Move throttle control to “FAST” position.

2. Forward speed too fast. 2. Move transmission shift lever to a slower

3. Grass is wet. 3. Mow when grass is dry.

4. Excessively dull, worn or damaged blade(s). 4. Service mower blade.

5. Build up of grass clippings and debris under
deck.

6. Improper blade installed on deck.

1. Leaking chain case or differential plugs. 1. Verify plugs are not cracked & are in good

2. Leaking engine block.

2. Adjust rubber drive disc.

3. Replace with SNAPPER tapered bolt & nut.

4. Contact authorized SNAPPER dealer.

5. Contact authorized SNAPPER dealer.

& 12 PSI rear tire.

speed.

speed.

5. Clean the underside of deck.

6. Install proper SNAPPER blades.

shape. Check gaskets.

2. Contact authorized SNAPPER dealer.

31

MAINTENANCE SCHEDULE

SUBJECT SERVICE

TO BE PERFORMED

REFERENCE

PAGES

EACH

USE 5 HOURS

Engine Check Oil Level Page 8 X
Engine Initial Oil Change Page 15 X
Engine Periodic Oil Change Page 15 X*

25

HOURS

50

HOURS

100

HOURS

EACH

SEASON

Air Pre-Cleaner Service Sponge Pre-

Engine Manual X**

Cleaner Element

Air Cleaner Replace Element Engine Manual. X**
Spark Plug Replace Plugs Engine Manual. X
Fuel Filter Replace Filter Page 19 X
Engine Cooling

Clean Shrouds & Fins Engine Manual X**
System
Battery Check Electrolyte Page 27 X X

Battery Charge Battery Page 27-29 X
Tires Check Pressures Page 8 X
Drive Belts Check For Wear And

Pages 16, 26 X X

Tension
Mower Blades Check For Wear And

Pages 25 X

Damage
Mower Deck Clean Debris

Page 17 X X X

Accumulation
Lubrication Points Grease or Oil Pages 17-18 X X

Lubricate Chain Case

Check Grease Level Pages 18-19 X X
& Transmission
Blade Brake
Stopping Time
Clutch/Brake System Check Clutch/Brake for

Check blade stopping

for proper operation

Pages 12, 13, 21 X X

Page 9-12, 22 X X

proper operation
Reverse Lockout

Check function. Page 8 , 1 4 & 1 7 X X
Mechanism

*Change oil every 25 hours when operating under heavy load or high temperatures.
**Clean more often under dusty conditions or when air debris is present.

PERFORMANCE DATA

MOWER MODEL ENGINE RPM

(BLADE ON)
E281318BE 3000 9.8 m/sec 2 RMS 3.2 m/sec 2 RMS 99.6
E331518KVE 3200 9.9 m/sec 2 RMS 3.2 m/sec 2 RMS 99.9

STEERING WHEEL

VIBRATION (Max.)

32

SEAT VIBRATION

(Less Than)

SOUND

POWER (LWA)

MAINTENANCE/REPLACEMENT PARTS

MAINTENANCE PARTS

Engine Speed Control (Briggs Engine) 2-4155
Engine Speed Control (Kohler Engine) 2-2483
Clutch/Brake Cable 2-9913
Brake Cable 2-2344
28” Cutter Blade (Standard - Not Air Lift Compatible) 3-5635
28” Cutter Blade (Standard - Air Lift Compatible) 1-9515
28” Cutter Blade (Mulching) 1-6980
28” Cutter Blade (Ninja - Quad Edge) 2-6453
33” Cutter Blade (Standard - Not Air Lift Compatible) 3-4168
33” Cutter Blade (Standard - Air Lift Compatible) 1-9523
33” Cutter Blade (Mulching) 1-6982
33” Cutter Blade (Ninja - Quad Edge) 2-4741
Air Lift Kit (28”, & 33” Decks) 6-0480
Engine to Cutting Deck Belt 2-2252
Rubber Drive Disc 5-3103
Parts Manual for Rear Engine Rider Series 18 & 20 06103

DECAL IDENTIFICATION/LOCATION

33

3 YEAR LIMITED WARRANTY

For three (3) years from pur chase date f or the original pur chaser 's res idential, non-com m erc ial use, SNAPPER, through
any authorized SNAPPER dealer will replace, free of charge (except for taxes where applic able), any part or parts found
upon examination by the factory at McDonough, Georgia, to be defective in material or workmanship or both.

For ninety (90) days from purchase date for the or iginal purchaser's commercial, rental, or other non-residential use,
SNAPPER, through any authorized SNAPPER dealer will replace, free of charge, any part or parts found upon
examination by the factory at McDonough, Georgia, to be defective in material or workmanship or both.

All transportation costs incurred by the purchaser in submitting material to an authorized SNAPPER dealer for
replacement under this warranty must be paid by the purchaser.

This warranty does not apply to engines and their components , and batteries, as these item s are warranted separately.
This warranty does not apply to parts that have been damaged by accident, alteration, abuse, improper lubrication,
normal wear, or other cause beyond the control of SNAPPER. This warranty does not cover any machine or com ponent
part that has been altered or modified changing safety, performance, or durability.

Batteries have a one (1) year prorated warranty period with free replacement if requir ed during the first ninety (90) days
from the original purchas e date. SNAPPER will not be responsible for any installation cost incurred. T he battery warranty
only covers original equipment batteries and does not cover dam age to the battery or machine caused by neglect or
abuse, destruction by fire, explosion, freezing, overcharging, improper maintenance, or use of improper electrolyte.

There is no other express warranty.

DISCLAIMER OF WARRANTY
Implied warranties, including those of merchantability and fitness for a particular purpose, are limited to three
(3) years from purchase date for the original purchaser's residential or other non-commercial use, and ninety
(90) days from purchase for the original purchaser's commercial, rental or other non-residential use, and to the
extent permitted by law, any and all implied warranties are excluded. This is the exclusive remedy. Liabilities for
consequential damages, under any and all warranties are excluded.

Some states do not allow limitations on how long an implied warranty lasts, or do not allow the exclusion or
limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you.

This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

WARNING: THE USE OF REPL ACEMENT PARTS OTHER THAN GENUINE SNAPPER PARTS MAY IMPAIR THE
SAFETY OF SNAPPER PRODUCTS AND WILL VOID ANY LIABILITY AND WARRANTY BY SNAPPER
ASSOCIATED WITH THE USE OF SUCH PARTS.

IMPORTANT: Please fill out the attached SNAPPER Product Registration Card immediately and mail to:

Snapper’s Product Registration Ce nter, P.O. Box 1379, McDonough, Georgia 30253

34

SERVICE NOTES

______________________________________________________________________________
______________________________________________________________________________
______________________________________________________________________________
______________________________________________________________________________
______________________________________________________________________________
______________________________________________________________________________
______________________________________________________________________________
______________________________________________________________________________
______________________________________________________________________________
______________________________________________________________________________
______________________________________________________________________________
______________________________________________________________________________
______________________________________________________________________________
______________________________________________________________________________
______________________________________________________________________________
______________________________________________________________________________
______________________________________________________________________________
______________________________________________________________________________
______________________________________________________________________________
______________________________________________________________________________
______________________________________________________________________________
______________________________________________________________________________
______________________________________________________________________________
______________________________________________________________________________
______________________________________________________________________________
______________________________________________________________________________
______________________________________________________________________________
______________________________________________________________________________
______________________________________________________________________________
______________________________________________________________________________
______________________________________________________________________________
______________________________________________________________________________
______________________________________________________________________________
______________________________________________________________________________
______________________________________________________________________________
______________________________________________________________________________
______________________________________________________________________________
______________________________________________________________________________
______________________________________________________________________________
______________________________________________________________________________
______________________________________________________________________________
______________________________________________________________________________
______________________________________________________________________________
______________________________________________________________________________
______________________________________________________________________________
______________________________________________________________________________
______________________________________________________________________________
______________________________________________________________________________

35

SERVICE NOTES

______________________________________________________________________________
______________________________________________________________________________
______________________________________________________________________________
______________________________________________________________________________
______________________________________________________________________________
______________________________________________________________________________
______________________________________________________________________________
______________________________________________________________________________
______________________________________________________________________________
______________________________________________________________________________
______________________________________________________________________________
______________________________________________________________________________
______________________________________________________________________________
______________________________________________________________________________
______________________________________________________________________________
______________________________________________________________________________
______________________________________________________________________________
______________________________________________________________________________
______________________________________________________________________________
______________________________________________________________________________
______________________________________________________________________________
______________________________________________________________________________
______________________________________________________________________________
______________________________________________________________________________
______________________________________________________________________________
______________________________________________________________________________
______________________________________________________________________________
______________________________________________________________________________
______________________________________________________________________________
______________________________________________________________________________
______________________________________________________________________________
______________________________________________________________________________
______________________________________________________________________________
______________________________________________________________________________
______________________________________________________________________________
______________________________________________________________________________
______________________________________________________________________________
______________________________________________________________________________
______________________________________________________________________________
______________________________________________________________________________
______________________________________________________________________________
______________________________________________________________________________
______________________________________________________________________________
______________________________________________________________________________
______________________________________________________________________________
______________________________________________________________________________
______________________________________________________________________________
______________________________________________________________________________

36

SERVICE NOTES

______________________________________________________________________________
______________________________________________________________________________
______________________________________________________________________________
______________________________________________________________________________
______________________________________________________________________________
______________________________________________________________________________
______________________________________________________________________________
______________________________________________________________________________
______________________________________________________________________________
______________________________________________________________________________
______________________________________________________________________________
______________________________________________________________________________
______________________________________________________________________________
______________________________________________________________________________
______________________________________________________________________________
______________________________________________________________________________
______________________________________________________________________________
______________________________________________________________________________
______________________________________________________________________________
______________________________________________________________________________
______________________________________________________________________________
______________________________________________________________________________
______________________________________________________________________________
______________________________________________________________________________
______________________________________________________________________________
______________________________________________________________________________
______________________________________________________________________________
______________________________________________________________________________
______________________________________________________________________________
______________________________________________________________________________
______________________________________________________________________________
______________________________________________________________________________
______________________________________________________________________________
______________________________________________________________________________
______________________________________________________________________________
______________________________________________________________________________
______________________________________________________________________________
______________________________________________________________________________
______________________________________________________________________________
______________________________________________________________________________
______________________________________________________________________________
______________________________________________________________________________
______________________________________________________________________________
______________________________________________________________________________
______________________________________________________________________________
______________________________________________________________________________
______________________________________________________________________________
______________________________________________________________________________

37

Safety Instructions & Operator’s Manual for

ERTAIN VEHICLE COMPONENTS CONTAIN OR

EMIT CHEMICALS KNOWN TO THE STATE OF CALIFORNIA TO CAUSE CANCER OR OTHER

BATTERY POSTS, TERMINALS AND RELATED ACCESSORIES CONTAIN LEAD AND LEAD COMPOUNDS,

E OF CALIFORNIA TO CAUSE CANCER AND BIRTH DEFECTS OR OTHER

EUROPEAN
REAR ENGINE RIDING MOWER
SERIES 20

MPORTANT

Snapper products are built using engines that meet or exceed all applicable emissions requirements on the
date manufactured. The labels on those engines contain very important emissions information and critical
safety warnings. Read, Understand, and Follow all warnings and instructions in this manual, the engine
manual, and on the machine, engine and attachments. If you have any questions about your Snapper product,
contact your local authorized Snapper dealer or contact Snapper Customer Service at Snapper, McDonough,
GA. 30253. Phone: [phone]).

CHEMICALS KNOWN TO THE STAT
REPRODUCTIVE HARM. WASH HANDS AFTER HANDLING.

ENGINE EXHAUST, SOME OF ITS CONSTITUENTS, AND C

REPRODUCTIVE HARM.

WARNING

WARNING

COPYRIGHT © 2000
SNAPPER INC.
ALL RIGHTS RESERVED

MANUAL No. 7-3553 (I.R. 3/29/00)

38
