Snapper 13388E, E13388E User Manual
Parts Manual fo
r
E
O
E
E
TWO STAGE LARGE FRAM
SNOW THROWER PR
SERIES 8
MODEL
13388
E13388
Briggs & Startton Yard Power Products Group
Copyright © 2006
Milwaukee, WI USA. All Rights Reserved
Briggs & Startton Corporation
McDonough, GA, 30253 U.S.A.
Revision IR,
12/4/2006
Manual No. 7006160
TP 400-5246-IR-LF-N
s
PAGE GROUP
4
8
10
12
16
20
24
26
Handle & Controls Group
Auger Drive Group
Gear Box Assembly
Auger Housing & Chute Group

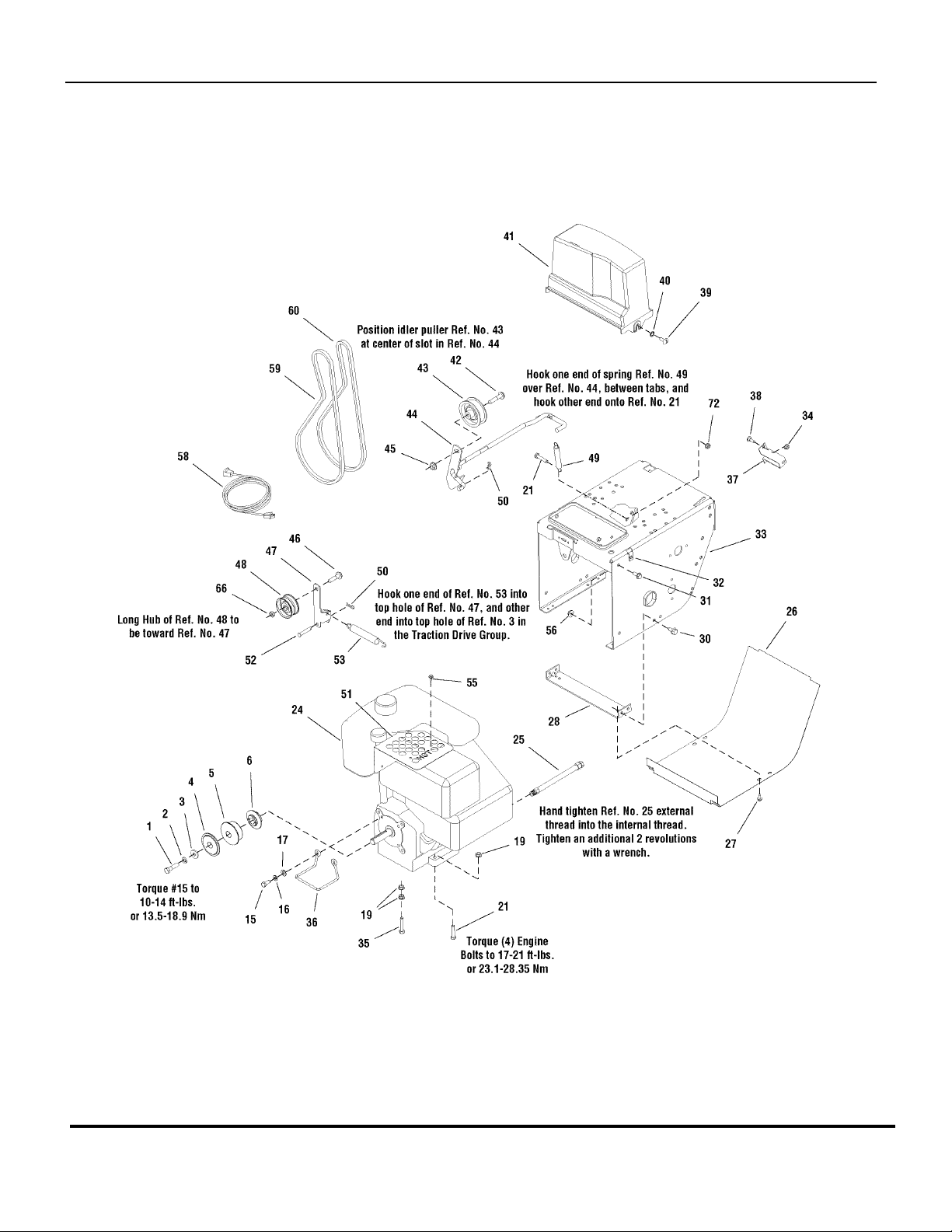

Engine & Frame Group

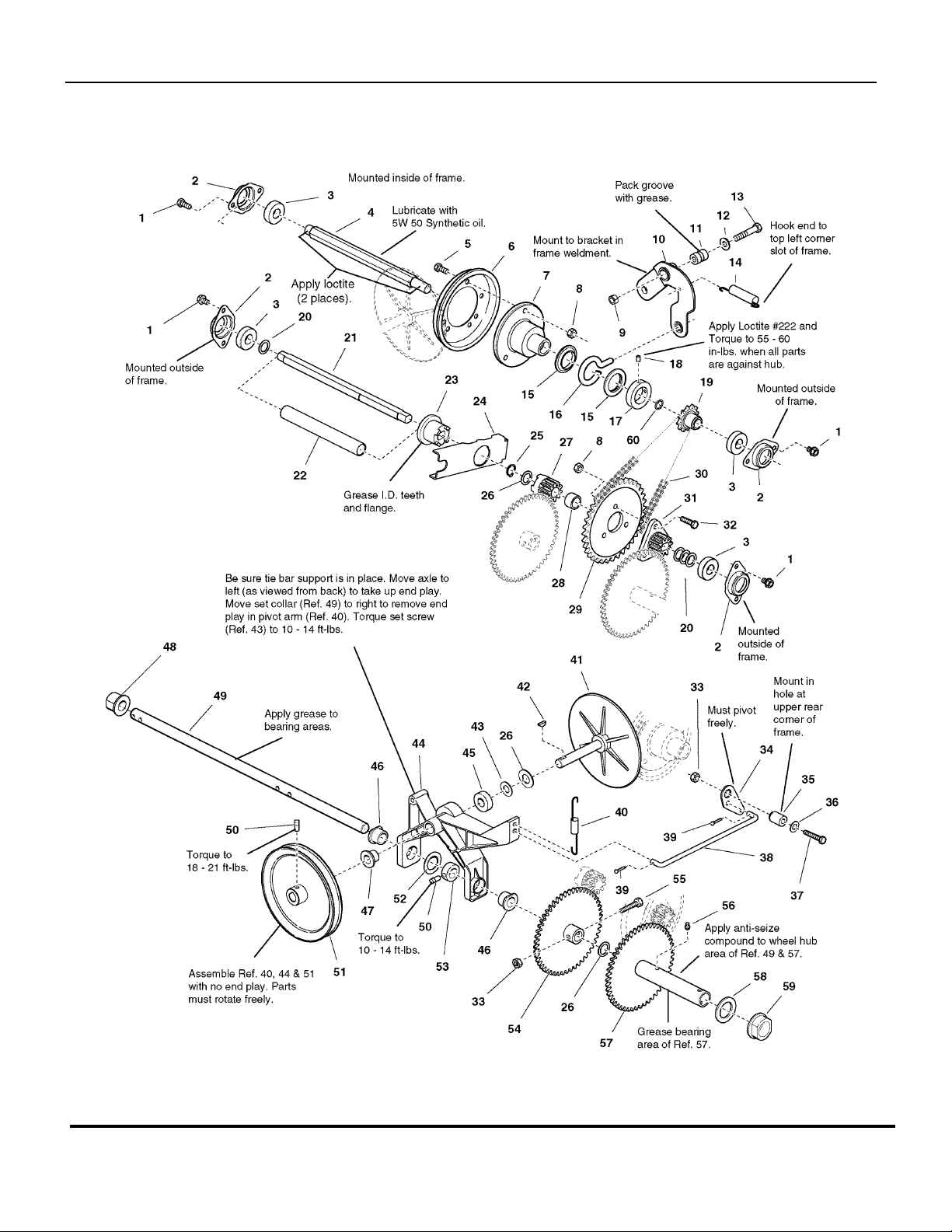

Traction Drive Group

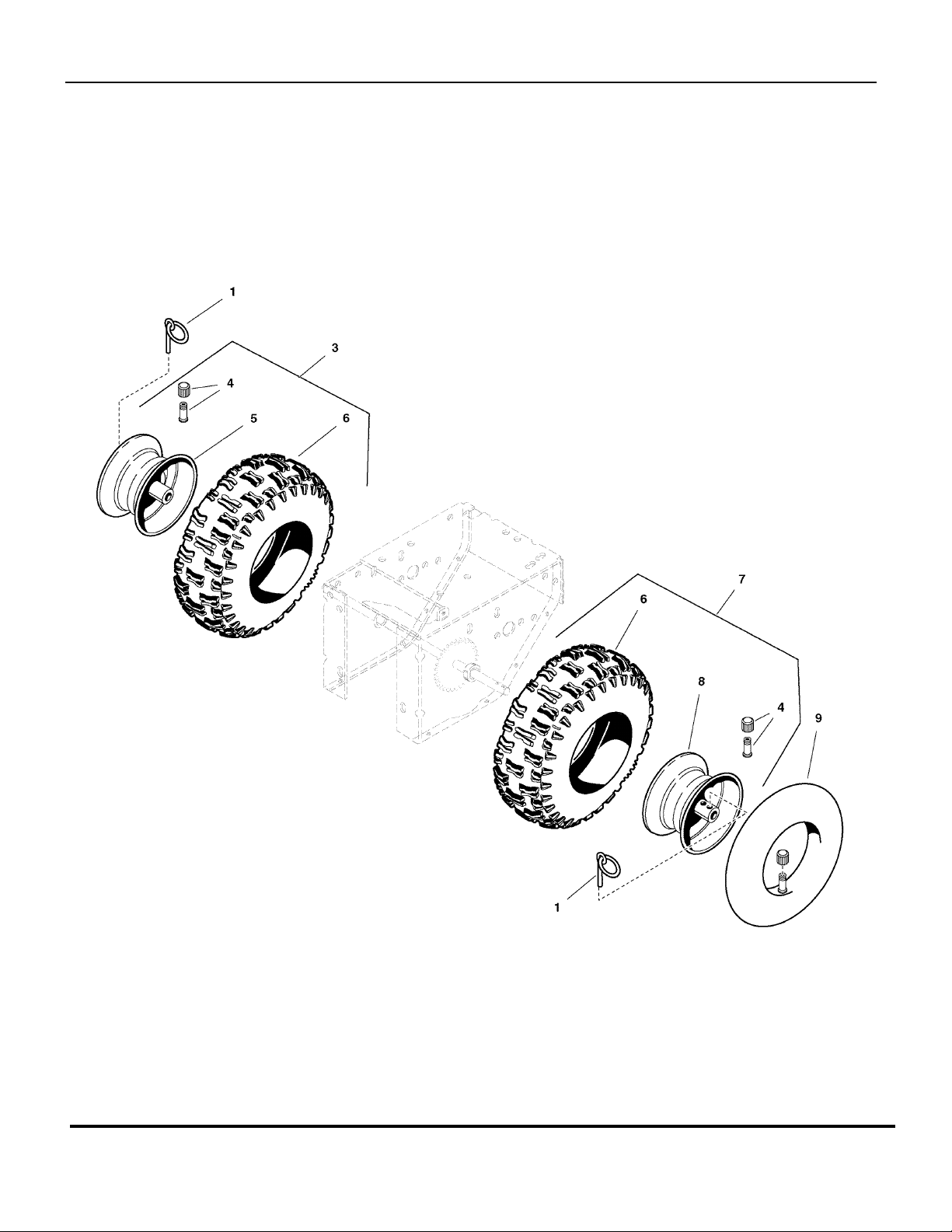

Wheels & Tires Group
Decal Group
Table Of Content
SERIES 8
Manual No. 7006160TWO STAGE LARGE FRAME
3
TP 400-5246-IR-LF-N
Handle & Controls Group
Manual No. 7006160 TWO STAGE LARGE FRAME
TP 400-5246-IR-LF-N
4
SERIES 8
Handle & Controls Group
p
Part No Descri
2 1960729 1 SCREW, Hex Head Serrated Flange Taptite, 5/16-18 x 1
5 1960730 2 SCREW, Hex Head Serrated Flange Taptite, 5/16-18 x 2
7 1931317 2 CARRIAGE BOLT, 1/4-20 x 3/4, G5
11 1726832 1 CABLE & SPRING ASSEMBLY
18 1731333A 1 HANDLE, Tube L.H. 2006 Snow
19 1920397 2 NUT, Hex Lock ESNA Light, 1/4-20 NC3B
20 1921319 2 WASHER, 1/4, .27 ID x .62 OD x .05 THK
21 1722631A 1 LEVER, Pivot
22 1960662 1 CAPSCREW, Hex Head, 1/4-20 x 2, G5
23 1722630 1 ROD, Hold Down
24 1960556 2 SCREW, Pan Head Torx Taptite, 1/4-20 x 3/4
25 1715654 1 SPACER
26 1722667 1 GRIP, Clutch L.H., Plastisol Dip
27 1722633 1 ROD with PIN ASSEMBLY
29 1723965 2 HAND GRIP, Heated
30 1718791 1 CABLE & HANDLE ASSEMBLY
32 1725702 1 SCREW, Pan Head Torx, #10 x 1/2 THK
33 1722690 1 SPRING, Compression
34 1726734 1 KNOB, Tapered, 3/8 Internal Thread
35 1668523 1 ROD & CLEVIS ASSEMBLY
36 1960685 6 NUT, Hex Keps, 1/4-20 Conical Washer
37 1960705 1 SCREW, Hex Whiz Lock Flange, 1/4-20 x 2-1/4
38 1960074 1 CLIP, Hair Pin, .093 DIA, 1-5/8 LG
39 1668185 2 BUSHING, 1/2 ID x 3/4 OD x 1/4 LG Nylon
40 1720240 1 PIVOT ASSEMBLY
41 1668524 2 BLOCK, Pivot
42 1715123 1 SPRING, Compression
43 1924361 1 WASHER, 1/2, .53 ID x 1-1/4 x .08 THK
44 1726983A 1 DASH ASSEMBLY
45 1723967 1 SWITCH, Hand Warmer
50 1724037 1 RESISTOR
51 1923341 3 CAPSCREW, Hex Head, 1/4-20 x 3/4, G5
52 1722638 1 GRIP, Clutch R.H., Plastisol Dip
53 1720452 2 CLAMP, Saddle, Snow Handle E-Coat
54 1922837 2 CAPSCREW, Hex Head, 1/4-20 x 1-1/2, G5
55 1726833 1 CABLE & SPRING ASSEMBLY
56 1715655 2 SPACER, .259 ID x .377 OD x 1.1 LG
tionItem Qty Note
Footnotes
SERIES 8
Manual No. 7006160TWO STAGE LARGE FRAME
5
TP 400-5246-IR-LF-N
Handle & Controls Group
Manual No. 7006160 TWO STAGE LARGE FRAME
TP 400-5246-IR-LF-N
6
SERIES 8
Handle & Controls Group
p
Part No Descri
57 1731334A 1 HANDLE, Tube R.H. 2006 Snow
58 1921221 3 CAPSCREW, Hex Head, 5/16-18 x 1-1/2, G5
59 1722460 1 PIN, Quick
60 1726304 1 ROD, 3/8 DIA 11.38 LG
71 1960686 4 NUT, Hex Flange, 5/16-18 ESNA
72 1666255 1 ROD, Shift Lower
73 1728968 1 HARNESS, Hand Warmers/Spout Snow 2006
74 1923358 2 NUT, Hex Centerlock, 1/4-20
75 1922127 1 CAPSCREW, Hex Head, 5/16-18 x 1-3/4, G5
76 1715956 1 CLIP, Wire
77 1724489 1 PLUG, Button for .437 DIA Hole, Plastic
79 1701011 2 TIE, Self-Locking, .184 WD 7.31 LG
80 1701011 1 TIE, Self-Locking, .184 WD 15 LG
82 1728969 1 SWITCH, Rocker Chute Rotator, Snow 5 Pin
83 1729792A 1 SUPPORT, Switch, 14GA WB Snow
85 1919326 1 WASHER, 5/16, .34 ID x 3/4 OD x .06 THK
86 2820426 1 LOCKWASHER, External Tooth, 5/16
87 1732322 1 HEADLIGHT ASSEMBLY, Oval Clear 2007 Snow
88 1733259A 1 BRACKET, Headlight, 10GA Pro Snow
tionItem Qty Note
Footnotes
SERIES 8
Manual No. 7006160TWO STAGE LARGE FRAME
7
TP 400-5246-IR-LF-N
Auger Drive Group
Manual No. 7006160 TWO STAGE LARGE FRAME
TP 400-5246-IR-LF-N
8
SERIES 8
Auger Drive Group
p
Part No Descri
1 1731321A 1 AUGER ASSEMBLY, 38” Housing, R.H.
2 1731322A 1 AUGER ASSEMBLY, 38” Housing, L.H.
5 1931333 1 CARRIAGE BOLT, 5/16-18 x 3/4, G5
6 1931277 1 NUT, Hex Whiz Lock Flange, 5/16-18
7 1732303 1 GEAR BOX ASSEMBLY (See Gear Box Assembly
8 2818312 2 KEY, Woodruff, 3/16 x 5/8 #61 SAE 1035
10 1612187A 1 IMPELLER ASSEMBLY, Large Frame Snow
11 1960474 1 SCREW, Set Square Head Cup, 3/8-16 x 1/2, G8
12 1928721 2 SCREW, Set Square Head Cup, 5/16-18 x 1/2, G8
13 1732468 1 PULLEY, 9 OD x 0.752 ID x .72 WD w/Hub
23 1709894 2 BUSHING, 1.009ID x 1-1/8 OD x 1.13 Long Zytel
24 1733104A 2 SHAFT, 0.98 Diameter 4.85 Long
27 1668344 4 PIN, Shear, .248 ID x 1-3/4 Long
28 1918447 4 COTTER PIN, Self-Locking, 1/4
tionItem Qty Note
Group)
Footnotes
SERIES 8
Manual No. 7006160TWO STAGE LARGE FRAME
9
TP 400-5246-IR-LF-N
