Parts Manual fo
r
E
(
7
)
)
)
)
)
)
)
)
TWO STAGE LARGE FRAM
SNOW THROWER
2006) SERIES
MODEL
95247E (1694853
105287E (1694855
115327E (1694857
13387E (1694859
E95247 (1694854
E105287 (1694856
E115327 (1694858
E13387 (1694860
COPYRIGHT ©2006
SNAPPER PRODUCTS, INC.
ALL RIGHTS RESERVED.
McDonough, GA, 30253 U.S.A.
Manual No. 7006080
Revision 1,
2/7/2006
TP 400-5135-1-LF-N
s
PAGE GROUP
4
8
12
16
20
24
28
30
32
Handles and Controls Group
Auger Housing and Chute Group - 24, 28 & 32 inch
Auger Housing and Chute Group - 38 inch
Auger and Impeller Group
Engine and Frame Group
Traction Drive Group
Wheel & Tires Group
Decals Group
Headlight Group
Table Of Content
(2006) SERIES 7
Manual No. 7006080TWO STAGE LARGE FRAME
3
TP 400-5135-1-LF-N
Handles and Controls Group
Manual No. 7006080 TWO STAGE LARGE FRAME
TP 400-5135-1-LF-N
4
(2006) SERIES 7
Handles and Controls Group
p
y
Part No Descri
1 1726833 1 CABLE AND SPRING ASSEMBLY, R.H. Auger
2 1731334A 1 HANDLE, Tube, R.H.
3 1922127 1 CAPSCREW, Hex Head, 5/16-18 x 1-3/4 G5
4 1921221 3 CAPSCREW, Hex Head, 5/16-18 x 1-1/2 G5
5 1960671 2 SCREW, Pan Head Torx, 1/4-20 x 3/4, Thread Cutting
6 1715654 2 SPACER, 1/4ID x 25/64OD x 11/64LG
7 1922837 2 CAPSCREW, Hex Head, 1/4-20 x 1-1/2 G5
8 1722638 1 HANDLE, Clutch R.H.
9 1715655 2 SPACER
10 1923358 2 NUT, Hex Centerlock, 1/4-20
11 1726317 2 GRIP On all except 38” models
12 1723965 2 HAND GRIP, Heated 1” Diameter Used on 38” models
13 1923341 3 CAPSCREW, Hex Head 1/4-20 x 3/4 G5 Used on 38” models
14 1724037 1 RESISTOR BLOCK, 2 Male Terminal Used on 38” models
15 1723967 1 SWITCH, Hand Warmer Used on 38” models
16 1728968 1 HARNESS, Wiring Used on 38” models
17 1715956 1 CLIP, Wire Used on 38” models
18 1726983A 1 DASH AND SUPPORT ASSEMBLY, Tubular
19 1667588 4 BUSHING, 47/125ID x 437/1000OD x 1/5LG On all except 38” models
20 1714084 1 KNOB, Spinner On all except 38” models
21 1960093 1 NUT, Push Pal, 3/8” Diameter Stud Capped On all except 38” models
22 1722690 1 SPRING, Complete
23 1722633 1 ROD AND SPRING ASSEMBLY, w/Pin (Includes Ref. No. 26)
24 1960519 1 PUSH NUT, Stud Cap, 1/2
25 1722630 1 ROD, 4/25” Diameter, E-Coat
26 1722667 1 HANDLE, Clutch L.H.
27 1731333A 1 HANDLE, Tube, L.H.
28 1960662 1 CAPSCREW, Hex Head, 1/4-20 x 2 G5
29 1920397 2 NUT, Hex Lock ESNA Light, 1/4-20NC-3B
30 1921319 2 WASHER, 1/4
31 1933896 1 NUT, Hex Lock, 10-24
32 1722631A 1 LEVER, Pivot
33 1718791 1 CABLE AND HANDLE ASSEMBLY, Clutch
34 1725702 1 SCREW, Pan Head Torx, #10 x 1/2 Thread Cut
35 1726995 1 SPACER, 1-1/4 LG Beveled End
36 1726728 1 CLIP, Snow Stick
37 1960727 1 SCREW, Hex Flange Slot, #10-24 x 2-1/2
tionItem Qt
Note
Footnotes:
Manual No. 7006080TWO STAGE LARGE FRAME
(2006) SERIES 7
5
TP 400-5135-1-LF-N
Handles and Controls Group
Manual No. 7006080 TWO STAGE LARGE FRAME
TP 400-5135-1-LF-N
6
(2006) SERIES 7
Handles and Controls Group
p
y
Part No Descri
38 7075909 1 STICK, Snow Removal
39 1720452 2 CLAMP, Saddle Snow Handle E-Coat
40 1726727A 1 BRACKET, Clean Out Tool
41 1960730 2 CAPSCREW, Hex Head Serrated Flange Taptite, 5/16-18 x 2 G5
42 1960729 1 CAPSCREW, Hex Whiz Lock Flange, 5/16-18 x 3/4
43 1726832 1 CABLE AND SPRING ASSEMBLY, L.H. Traction
44 1707452 1 SPRING, Extension
45 1727088 1 ROD, 3/8” Diameter, 26”LG, E-Coat On all except 38” models
46 1718793 1 SUPPORT, Gear On all except 38” models
47 1960518 2 NUT, Push for 1/4 Diameter Thread On all except 38” models
48 1960252 2 CARRIAGE BOLT, 1/4-20 x 5/8 G5 On all except 38” models
49 1960294 2 NUT, Hex Flange, 1/4-20, Whiz Lock Small On all except 38” models
50 1611911 1 SUPPORT, Worm On all except 38” models
51 1931333 1 CARRIAGE BOLT, 5/16-18 x 3/4 G5 On all except 38” models
52 1960684 2 NUT, Hex Keps, 5/16-18, Conical Washer Uses quantity of 1 on 38” models
53 2816168 2 PIN, Spring 1/8 x 3/4 On all except 38” models
54 1668186 1 WORM, Chute, L.H. On all except 38” models
55 1725283 1 ROD, 3/8” Diameter, Chute Worm E-Coat On all except 38” models
56 1718593 2 GEAR, Powdered Metal, Metafusion On all except 38” models
57 1918452 1 PIN, Cotter 1/4 x 1 On all except 38” models
58 1722460 1 PIN, Quick
59 1666255 1 ROD, 3/4” Diameter
60 1960685 3 NUT, Hex KEPS, 1/4-20, Conical Washer Uses quantity of 6 on 38” models
61 1931317 2 CARRIAGE BOLT, 1/4-20 x 3/4 G5
62 1726304 1 ROD, 3/4” Diameter, Shift Upper E-Coat, 11-19/50LG
63 1726734 1 KNOB, Intermediate Thread, 3/8-16
64 1960705 1 SCREW, Hex Whiz Lock Flange, 1/4-20 x 2-1/4
65 1668523 1 ROD AND CLEVIS ASSEMBLY, Shift, Threaded
66 1924361 1 WASHER, 1/2
67 1668524 2 BLOCK, Pivot, 3/4 x 3/4, Powdered Metal
68 1720240 1 ROD AND ARM ASSEMBLY, Pivot
69 1715123 1 SPRING, Torsion
70 1960074 1 CLIP, Hair Pin
71 1668185 2 BUSHING, 1/2ID x 3/4OD x 1/4LG
72 1960686 4 NUT, Hex Flange, 5/16-18 ESNA
tionItem Qt
Note
Footnotes:
Manual No. 7006080TWO STAGE LARGE FRAME
(2006) SERIES 7
7
TP 400-5135-1-LF-N
Auger Housing and Chute Group - 24, 28 & 32 inch
Manual No. 7006080 TWO STAGE LARGE FRAME
TP 400-5135-1-LF-N
8
(2006) SERIES 7
Auger Housing and Chute Group - 24, 28 & 32 inch
p
y
Part No Descri
1 1921332 2 CAPSCREW, Hex Head, 5/16-18 x 3/4 G5 Uses quantity of 5 on 28”
2 7072881 1 CHUTE AND DEFLECTOR ASSEMBLY, w/Remote
2 7072850 1 CHUTE AND DEFLECTOR ASSEMBLY, Manual
3 1931335 1 CARRIAGE BOLT, 5/16-18 x 1 G5
4 1670578 1 KNOB, Internal Thread, 5/16
5 1960686 4 NUT, Hex Flange ESNA, 5/16-18 Used quantity of 5 on on 28” &
6 1960001 3 SCREW, Hex Washer Head Pastite, 10-14 x 5/8
7 1960282 1 CARRIAGE BOLT, 5/16-18 x 3/4
8 1726958A 1 RING AND TABS ASSEMBLY, Gear
9 1667865 3 SPRING, Flat
10 1666613 3 HOLD DOWN, Chute
11 1960738 3 CAPSCREW, Hex Head Whiz Lock, 5/16-18 x 5/8 G5
12 1665982A 1 RETAINER, Bearing
13 1729578 1 BEARING, Ball
14 1930659 3 NUT, Retainer Speed, 5/16-18
15 1729642D 2 CUTTER, Drift, 1/4” Thick, 20LG Used on 28” & 32” models
16 1664847 1 CAPSCREW, Hex Head Taptite, 5/16-18 x 3/4 G5 Uses quantity of 2 on 38” models
17 1931277 6 NUT, Hex Keps, 5/16-18, Conical Washer
18 1923325 6 CAPSCREW, Hex Head 5/16-18 x 7/8 G5
19 1668639D 2 CAP, Bearing, 3-3/4OD
20 1665980 2 BEARING, Flange
21 1663189 2 SPACER, Low
22 1960687 4 NUT, Hex Flange 3/8-16 ESNA
23 1727854D 2 SKID SHOE, Reversible
24 1960711 4 CARRIAGE BOLT, 3/8-16 x 3/4 G5
25 1709946A 1 BLADE, Scraper, 24” Used on 24” models
25 1709947A 1 BLADE, Scraper, 28” Used on 28” models
25 1709948A 1 BLADE, Scraper, 32” Used on 32” models
26 1935048 5 NUT, Hex Flange, 5/16-18, Two-Way Lock GA Uses quantity of 7 on 32” models
27 1960699 5 CARRIAGE BOLT, 5/16-18 x 5/8 G5 Uses quantity of 7 on 32” models
28 1729724D 1 HOUSING AND IMPELLER ASSEMBLY, 24” Used on 24” models
28 1729726D 1 HOUSING AND IMPELLER ASSEMBLY, 28” Used on 28” models
28 1729728D 1 HOUSING AND IMPELLER ASSEMBLY, 32” Used on 32” models
29 1960252 2 CARRIAGE BOLT, 1/4-20 x 5/8 G5 Used on 38” models
30 2825094 1 TIE, Self Locking
31 7032813 1 MOUNT, Cable Used on 38” models
32 1921880 2 LOCKWASHER, External Tooth, 1/4 Used on 38” models
tionItem Qt
Note
models and quantity of 6 on 32”
models
32” models
Footnotes:
Manual No. 7006080TWO STAGE LARGE FRAME
(2006) SERIES 7
9
TP 400-5135-1-LF-N
Auger Housing and Chute Group - 24, 28 & 32 inch
Manual No. 7006080 TWO STAGE LARGE FRAME
TP 400-5135-1-LF-N
10
(2006) SERIES 7
Auger Housing and Chute Group - 24, 28 & 32 inch
p
y
Part No Descri
33 1960294 3 NUT, Hex Whiz Lock, 1/4-20 NC-2B Used on 38” models
34 7045172 1 CABLE, Remote Chute Deflector, 60” Used on 38” models
35 7023798 1 EYEBOLT, 1/4-20 x 1-1/2 LG Used on 38” models
36 1960694 1 NUT, Hex Lock ESNA Light, 1/4-20NC-3B Used on 38” models
37 1923341 2 CAPSCREW, Hex Head 1/4-20 x 3/4 G5 Used on 38” models
38 1726992A 1 SUPPORT, Cable Tubular Handles, 12GA Used on 38” models
39 1960685 2 NUT, Hex KEPS, 1/4-20, Conical Washer Used on 38” models
tionItem Qt
Note
Footnotes:
Manual No. 7006080TWO STAGE LARGE FRAME
(2006) SERIES 7
11
TP 400-5135-1-LF-N
Auger Housing and Chute Group - 38 inch
Manual No. 7006080 TWO STAGE LARGE FRAME
TP 400-5135-1-LF-N
12
(2006) SERIES 7

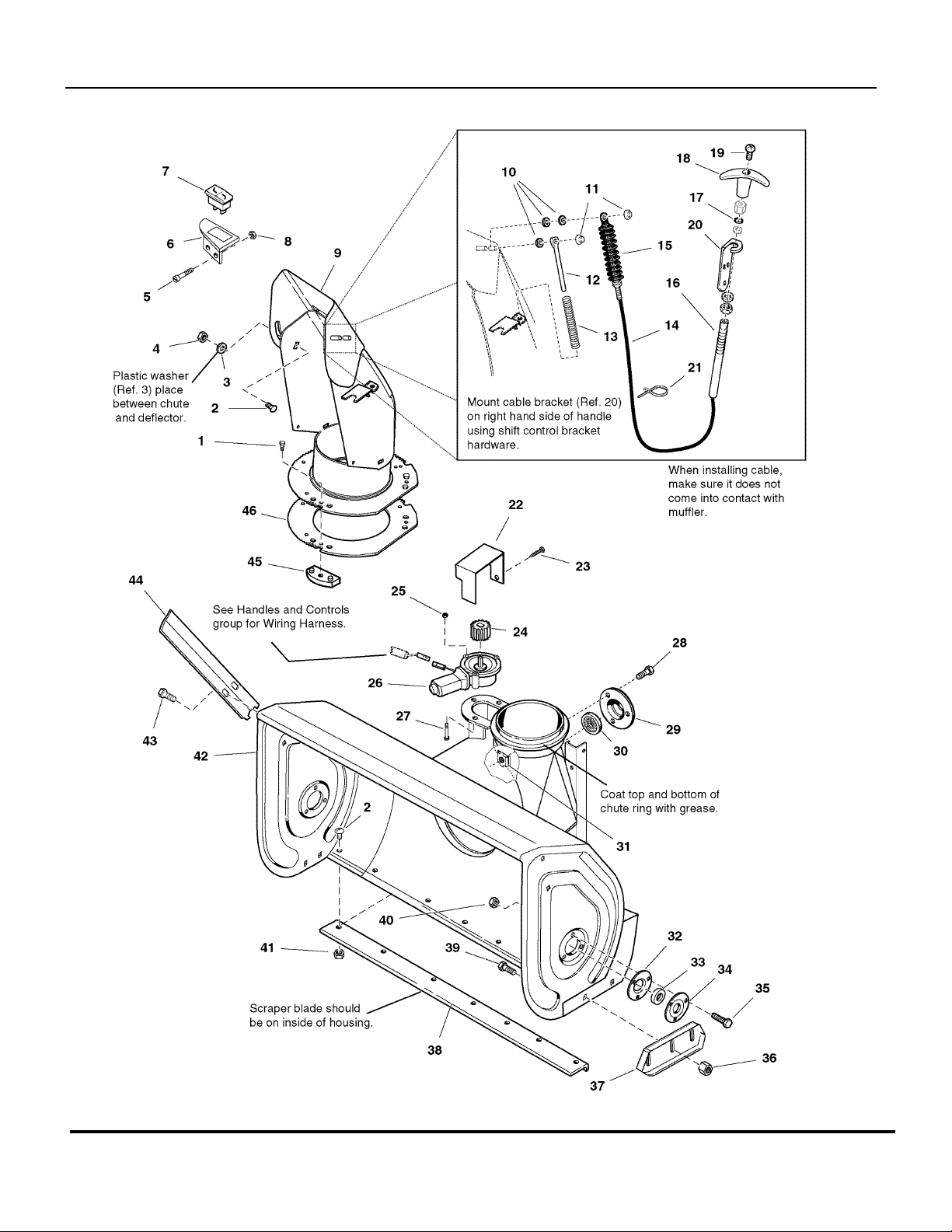

Auger Housing and Chute Group - 38 inch
p
y
Part No Descri
1 1960001 3 SCREW, Hex Washer Head Pastite, 10-14 x 5/8
2 1931333 10 CARRIAGE BOLT, 5/16-18 x 3/4 G5
3 2860210 1 WASHER, Special, 97/250ID x 1-3/25OD x 3/100 Thick
4 1960686 1 NUT, Hex Flange ESNA, 5/16-18
5 1923341 1 SCREW, Hex Whiz Lock, 1/4-20 x 3/4
6 1729792A 1 BRACKET, Mounting Switch
7 1728969 1 SWITCH, Rocker Chute
8 1933896 2 NUT, Hex Nylon 10-24
9 1731498A 1 CHUTE AND DEFLECTOR ASSEMBLY
10 1702219 3 SPACER, Heat Treated
11 1960126 2 NUT, Push Pal, 1/4” Diameter Stud Capped
12 1611945 1 ROD, 5/16” Diameter, Spring Guide
13 1611939 1 SPRING, Complete
14 1720446 1 CABLE AND KNOB ASSEMBLY, Chute (Includes Ref. No. 18,
19, 20, 21 & 22)
15 1611989 1 BOOT, Bellows
16 1719140 1 COLLET
17 1719139 1 SEAL, Rod
18 1719138 1 KNOB
19 1960600 1 SCREW, 8-32
20 1726411A 1 SUPPORT, Cable
21 2825094 1 TIE, Self Locking
22 1729645A 1 COVER, Pinion, 18GA
23 1925003 2 CAPSCREW, Hex Washer Head Taptite, 1/4-20 x 1/2
24 1728967 1 PINION, 1-3/20 LG
25 1960745 4 NUT, Hex KEPS, #10-24
26 1728965 1 MOTOR, Electric
27 2860604 3 SCREW, Hex Washer Head Slot, #10-24 x 1-1/4
28 1960738 9 CAPSCREW, Hex Head Whiz Lock, 5/16-18 x 3/4
29 1665982A 1 RETAINER, Bearing
30 1729578 1 BEARING, Ball
31 1930659 3 NUT, Retainer Speed, 5/16-18
32 2172279A 2 FLANGE, Bearing, w/Fitting
33 2173934 2 BEARING, Cartridge
34 2172278A 2 FLANGE, Bearing, 3/8” Deep
35 1925205 6 CAPSCREW, Hex head, 5/16-18 x 5/8
36 1960687 4 NUT, Hex Flange, 3/8-16 ESNA
37 1725747A 2 SKID SHOE, 7GA Formed, Heat Treated
tionItem Qt
Note
Footnotes:
Manual No. 7006080TWO STAGE LARGE FRAME
(2006) SERIES 7
13
TP 400-5135-1-LF-N
Auger Housing and Chute Group - 38 inch
Manual No. 7006080 TWO STAGE LARGE FRAME
TP 400-5135-1-LF-N
14
(2006) SERIES 7
Auger Housing and Chute Group - 38 inch
p
y
Part No Descri
38 1723921A 1 BLADE, Scraper, 35-3/4 for 38”
39 1960702 4 CARRIAGE BOLT, 3/8-16 x 1 G5
40 1931277 15 NUT, Hex Flange Whiz Lock, 5/16-18
41 1935043 9 NUT, Flange Lock, 5/16-18
42 1729734D 1 HOUSING AND IMPELLER ASSEMBLY, 38”
43 1664847 4 CAPSCREW, Hex Washer Head Taptite, 5/16-18 x 3/4 G5
44 1729642D 2 CUTTER, Drift, Red
45 1666613 3 HOLD DOWN, Chute
46 1717477A 1 GEAR, Chute
tionItem Qt
Note
Footnotes:
Manual No. 7006080TWO STAGE LARGE FRAME
(2006) SERIES 7
15
TP 400-5135-1-LF-N
Auger and Impeller Group
Manual No. 7006080 TWO STAGE LARGE FRAME
TP 400-5135-1-LF-N
16
(2006) SERIES 7
Auger and Impeller Group
p
y
Part No Descri
1 1679293 1 PULLEY, w/Hub
2 1928721 2 SCREW, Set Square Head Cup Point, 5/16-18 x 1/2 G8
3 1612187A 1 IMPELLER ASSEMBLY
4 1960474 1 SCREW, Set Square Head Cup Point, 3/8-16 x 1/2 G8
5 1612093 1 SEAL, Oil 1/4” Thick
6 1612149 2 BUSHING, 377/500 ID x 1-1/10 OD x 1-1/100 LG Powerdered
Metal
7 1612127 1 COLLAR, Thrust 3/4 LG
8 2836098 1 PIN, Drive Lock Type A 3/16 x 1-1/2
9 1612129 1 SHAFT, Worm 18-1/10 LG
10 2818312 3 KEY, Woodruff, 47/250 x 5/8
11 1612111 1 TUBE, 9/10 OD 39/50 ID, 7-1/2 LG
12 1612142 1 GEAR, Worm 1-3/8 LG
13 2168111 1 WASHER, Thrust
14 2118118 2 SEAL, Oil, 1/4” Thick
15 1930642 6 NUT, Hex Flange , 1/4-20 Toplock Small Qauntity 8 used on 38” models
16 1612137 1 CASE, Gear R.H.
17 1612124 1 GASKET, Gear Case
18 2118315 2 WASHER, Thrust
19 1612117 1 SHAFT, 16 LG Auger 3 Holes
20 2830246 1 KEY, Woodruff 1/4 x 3/4
21 1612141 1 GEAR, Worm 7/8 LG
22 1612136 1 CASE, Gear L.H.
23 1923282 2 CAPSCREW, Hex Head, 1/4-20 x 2-1/2 G5 Used on 38” models
24 1960346 4 CAPSCREW, Hex Head, 1/4-20 x 2-1/4 G5 Quantity 4 used on 38” models
25 1668344 2 PIN, Flat Head Drilled
26 1918447 2 PIN, Cotter 47/50 x 3/4
27 1718782A 1 AUGER ASSEMBLY, L.H. 9-1/2 LG Used on 24” models
27 1718784A 1 AUGER ASSEMBLY, L.H. 11-1/2 LG Used on 28” models
27 1718786A 1 AUGER ASSEMBLY, L.H. 13-1/2 LG Used on 32” models
27 1723945A 1 AUGER ASSEMBLY, L.H. 15-9/10 LG (without Bushing) Used on 38” models
27 1731322A 1 AUGER ASSEMBLY, L.H. 15-9/10 LG (with Bushing Ref. No. 37) Used on 38” models
28 1718783A 1 AUGER ASSEMBLY, R.H. 9-1/2 LG Used on 24” models
28 1718785A 1 AUGER ASSEMBLY, R.H. 11-1/2 LG Used on 28” models
28 1718787A 1 AUGER ASSEMBLY, R.H. 13-1/2 LG Used on 32” models
28 1723944A 1 AUGER ASSEMBLY, R.H. 15-9/10 LG (without Bushing) Used on 38” models
28 1723944A 1 AUGER ASSEMBLY, R.H. 15-9/10 LG (with Bushing Ref. No. 37) Used on 38” models
29 2821133 2 FITTING, Lube 1/4 Drive, No Check Ball
tionItem Qt
Note
Footnotes:
Manual No. 7006080TWO STAGE LARGE FRAME
(2006) SERIES 7
17
TP 400-5135-1-LF-N
Auger and Impeller Group
Manual No. 7006080 TWO STAGE LARGE FRAME
TP 400-5135-1-LF-N
18
(2006) SERIES 7
Auger and Impeller Group
p
y
Part No Descri
30 1668971 1 FITTING, Pipe Plug, Square Head
31 1921962 2 CAPSCREW, Hex Head, 1/4-20 x 1-3/4 G5 Used on 38” models
32 1723931 2 SHAFT, 5 LG Used on 38” models
33 1920397 2 NUT, Hex Lock ESNA Light, 1/4-20NC-3B Used on 38” models
34 1931277 2 NUT, Hex Flange, 5/16-18, Whiz Lock Small Used on 38” models
35 1931333 2 CARRIAGE BOLT, 5/16-18 x 3/4 G5 Used on 38” models
36 1723922A 1 SUPPORT, Gear Box 10GA Used on 38” models
37 1709894 2 BUSHING, Plastic Used on 38” models
tionItem Qt
Note
Footnotes:
Manual No. 7006080TWO STAGE LARGE FRAME
(2006) SERIES 7
19
TP 400-5135-1-LF-N
Engine and Frame Group
Manual No. 7006080 TWO STAGE LARGE FRAME
TP 400-5135-1-LF-N
20
(2006) SERIES 7
Engine and Frame Group
p
y
Part No Descri
1 1700415 1 V-BELT, 3L 32.3” On all except 38” models
1 1672732 1 V-BELT, 3L 31.0” Used only on 38” models
2 1928731 1 NUT, Hex, Toplock, Jam, 3/8-16
3 1668477 1 PULLEY, Idler
4 1960647 1 SCREW, Hex Head, 3/8-16 x 1-1/2
5 1665994 1 PIN, Flat Head Drilled
6 1703046A 1 ARM, Idler, 5-3/4 LG
7 1727149 1 SPRING, Extension
8 1722460 2 PIN, Quick
9 1725416 1 V-BELT, HA On all except 38” models
9 1666655 1 V-BELT, HA Used only on 38” models
10 1727058A 1 ROD AND ARM ASSEMBLY, Clutch, Brake
11 1928352 1 NUT, Hex Flange, 3/8-16 Whiz Lock Large
12 1726348 1 PULLEY, Idler
13 2860709 1 CAPSCREW, Hex Whiz Lock Flange, 3/8-16 x 1-3/4
14 2159106 1 SPRING, Extension, 4-1/4 Long
15 1725287 1 COVER, Belt
16 1935255 2 NUT, Speed, 5/16-18, Lug Type
17 2820426 2 LOCKWASHER, External Tooth, 5/16
18 1918249 2 SCREW, Truss head Slotted, 5/16-18 x 3/4
19 1724064 1 CORD, Electric Extension
20 1921221 1 CAPSCREW, Hex Head, 5/16-18 x 1-1/2 G5 Uses quantity of 3 on 38” models
21 1726568D 1 FRAME ASSEMBLY, Chain/Tube Handles
22 1931317 2 CARRIAGE BOLT, 1/4-20 x 3/4 G5
23 1960685 2 NUT, Hex KEPS, 1/4-20, Conical Washer
24 1720404A 1 SUPPORT, Clutch Cable, 16GA
25 1930591 4 SCREW, Hex Whiz Lock Flange, 5/16-18 x 3/4
26 1664847 4 SCREW, Hex Washer Head Taptite, 5/16-18 x 3/4
27 1726870D 1 COVER, Bottom Frame, 20GA
28 1925003 2 SCREW, Hex Washer Head Taptite, 1/4-20 x 1/2
29 1727004A 1 SUPPORT, Tie Bar
30 1927557 4 NUT, Hex Flange, 5/16-18, Whiz Lock Large
31 1929477 3 SCREW, Hex Washer Head Taptite, #10-24 x 1/2
32 1725664A 1 GUARD, Muffler, 18GA
33 * 1 ENGINE, 9.5HP B&S Electric Start Model: 20A414-0111-E1
33 * 1 ENGINE, 10.5HP B&S Electric Start Model: 20E214-0110-E1
33 * 1 ENGINE, 11.5HP B&S Electric Start Model: 21C214-0110-E1
tionItem Qt
Note
Footnotes:
See your local Briggs distributor for engine service parts.
Manual No. 7006080TWO STAGE LARGE FRAME
(2006) SERIES 7
21
TP 400-5135-1-LF-N
Engine and Frame Group
Manual No. 7006080 TWO STAGE LARGE FRAME
TP 400-5135-1-LF-N
22
(2006) SERIES 7
Engine and Frame Group
p
y
Part No Descri
33 * 1 ENGINE, 13HP B&S Electric Start Model: 21A414-0112-E1
34 1726942 1 HOSE, Oil Drain, w/Fittings
35 1664847 1 CAPSCREW, Hex Washer Head, 5/16-18 x 3/4
36 1727068 1 CLIP, “J”
37 1727033 1 SCREW, Muffler Deflector
38 1727032 1 DEFLECTOR, Rain Guard, B&S Snow Muffler
39 2831277 5 NUT, Hex Flange, 5/16-18, Whiz Lock Small Uses quantity of 4 only on 24”
40 1725326A 4 SUPPORT, Engine Riser, 3/8” Thick, 1-1/4 x 4-31/50 On all except 24” models
41 1935159 3 CAPSCREW, Hex Whiz Lock Flange, 5/16-18 x 2-1/4 On all except 24” models
42 2860551 1 CAPSCREW, Hex Washer Head Taptite, 5/16-18 x 2-1/2 On all except 24” models
42 2822127 1 CAPSCREW, Hex Head 5/16-18 x 1-3/4 G5 Used only on 24” models
43 1727785 1 STOP, Belt
44 1919326 2 WASHER, 5/16
45 1917356 2 LOCKWASHER, Spring, 5/16
46 1921515 2 CAPSCREW, Hex Head, 5/16-24 x 3/4 G5
47 1922128 1 CAPSCREW, Hex Head, 3/8-24 x 1-1/2 G8
48 1916965 1 LOCKWASHER, Spring, 3/8
49 1922755 1 WASHER, 3/8
50 1726867 1 PULLEY, Engine Outside, Powdered Metal
51 1726866 1 PULLEY, Engine Middle, Powdered Metal
52 1726865 1 PULLEY, Half Powdered Metal
tionItem Qt
Note
models
Footnotes:
See your local Briggs distributor for engine service parts.
Manual No. 7006080TWO STAGE LARGE FRAME
(2006) SERIES 7
23
TP 400-5135-1-LF-N
Traction Drive Group
Manual No. 7006080 TWO STAGE LARGE FRAME
TP 400-5135-1-LF-N
24
(2006) SERIES 7
Traction Drive Group
p
y
Part No Descri
1 1930601 8 SCREW, Hex Washer Head Taptite, 5/16-18 x 5/8
2 1667341 4 RETAINER, Bearing
3 1722703 4 BEARING, Ball
4 1726856 1 SHAFT, Hex
5 1921332 3 CAPSCREW, Hex Head, 5/16-18 x 3/4 G5
6 1725428 1 DISC, Friction with Insert
7 1665995 1 HUB, Friction Disc
8 1960684 6 NUT, Hex Keps, 5/16-18, Conical Washer
9 1960687 1 NUT, Hex Flange, 3/8-16 ESNA
10 1669256 1 ARM ASSEMBLY, Shift w/Bushing
11 1666114 1 BUSHING, 19/50 ID x 3/4 OD x 1-3/100 LG
12 1924940 1 WASHER, 3/8
13 1923701 1 CAPSCREW, Hex Head, 3/8-16 x 2 G5
14 1668255 1 SPRING, Extension
15 1678956 2 COLLAR, Thrust
16 1666207 1 PIN, Loop
17 1667335 1 COLLAR, Set
18 1724333 2 SCREW, Set Square Head Cup Point, 1/4-20 x 1/2
19 1726931 1 SPROCKET, 10 Tooth
20 2860164 4 WASHER, 5/8
21 1718752 1 JACKSHAFT, Double D
22 1720298 1 SPRING, Complete
23 1718689 1 CLUTCH, Sliding, 1/5LG, Powdered Metal
24 1720078A 1 ARM, Clutch
25 2827732 1 RING, Retaining Extension
26 1960114 3 WASHER, 3/4
27 1718688 1 GEAR, Stationary Clutch
28 1679556 1 SPACER, Heat Treated, 31/100 LG
29 1667330 1 SPROCKET
30 1666980 1 CHAIN, Roller
31 1718687 1 GEAR, Double D
32 1921333 3 CAPSCREW, Hex Head, 5/16-18 x 1 G5
33 1960686 2 NUT, Hex Flange, 5/16-18 ESNA
34 1700473 1 BELLCRANK
35 1666106 1 BUSHING, 11/32 ID x 3/4 OD x 1-3/50 LG
36 1919326 1 WASHER, 11/32 x 3/4 x 1/16
37 1922127 1 CAPSCREW, Hex Head, 5/16-18 x 1-3/4 G5
tionItem Qt
Note
Footnotes:
Manual No. 7006080TWO STAGE LARGE FRAME
(2006) SERIES 7
25
TP 400-5135-1-LF-N
Traction Drive Group
Manual No. 7006080 TWO STAGE LARGE FRAME
TP 400-5135-1-LF-N
26
(2006) SERIES 7
Traction Drive Group
p
y
Part No Descri
38 1726467 1 ROD, Pivot, 9-15/100 LG
39 1722460 1 PIN, Quick
40 1725666 1 SPRING, Extension
41 1719879 1 DRIVE DISC with SPINDLE
42 2818312 1 KEY, Woodruff, 47/250 x 5/8
43 1924366 1 WASHER, 5/8
44 1670849 1 ARM, Pivot with Bushings & Bearings (Includes Ref. Nos 45, 46,
47 & 48)
45 1665521 1 BEARING, Ball
46 1666425 2 BUSHING, 3/4 ID x 1 OD x 3/4 LG, Powder Metal
47 1666855 1 BUSHING, 5/8 ID x 13/16 OD x 3/4 LG, Powder Metal
48 1666001 1 BUSHING, 377/100 ID x 1-13/100 OD x 1 LG, Powdered Metal
49 1720299 1 AXLE, Round
50 1928721 2 SCREW, Set Square Head Cup Point, 5/16-18 x 1/2 G8
51 1672595A 1 PULLEY AND HUB ASSEMBLY
52 1919394 1 WASHER, 1
53 1729254 1 COLLAR, Set
54 1720300 1 GEAR AND HUB ASSEMBLY, RH
55 1930570 1 CAPSCREW, Hex Head, 5/16-18 x 1-1/2 G8
56 2812808 1 FITTING, Lube 1/4-28, Tappered with Check Ball
57 1730228 1 GEAR AND HUB ASSEMBLY, with Bushings
58 2860169 1 WASHER, 1-47/250
59 1720305 1 BUSHING, 1-27/200 ID x 1-157/250 OD x 3/4 LG
60 2172206 1 RING, Retaining External #87
tionItem Qt
Note
Footnotes:
Manual No. 7006080TWO STAGE LARGE FRAME
(2006) SERIES 7
27
TP 400-5135-1-LF-N

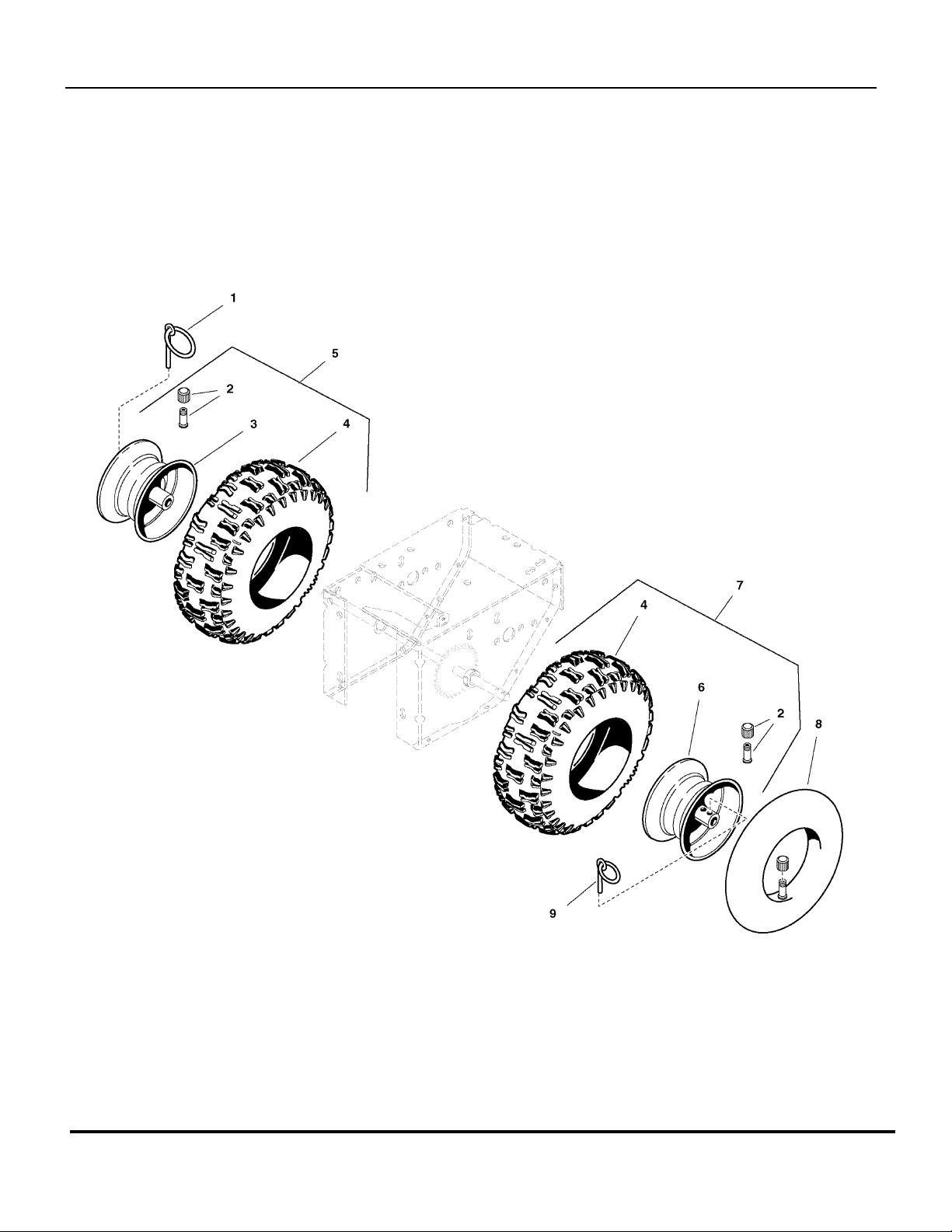

Wheel & Tires Group
Manual No. 7006080 TWO STAGE LARGE FRAME
TP 400-5135-1-LF-N
28
(2006) SERIES 7
Wheel & Tires Group
p
y
Part No Descri
1 1731186 1 PIN, Klik
2 2172353 2 VALVE STEM & CAP
3 1714242 1 HUB, Wheel, RH Used on 24” & 28” models
3 1722762 1 HUB, Wheel, RH Used on 32” & 38” models
4 1612000 2 TIRE, 4.80-4.00-8 Used on 24” & 28” models
4 1722597 2 TIRE, 16 x 6.50-6 Used on 32” & 38” models
5 1714235 1 WHEEL & TIRE ASSEMBLY, RH (Includes Ref. Nos. 3, 4 & 5) Used on 24” & 28” models
5 1722599 1 WHEEL & TIRE ASSEMBLY, RH (Includes Ref. Nos. 3, 4 & 5) Used on 32” & 38” models
6 1720307 1 HUB, Wheel, LH Used on 24” & 28” models
6 1722761 1 HUB, Wheel, LH Used on 32” & 38” models
7 1720306 1 WHEEL & TIRE ASSEMBLY, LH (Includes Ref. Nos. 3, 5 & 7) Used on 24” & 28” models
7 1722598 1 WHEEL & TIRE ASSEMBLY, LH (Includes Ref. Nos. 3, 5 & 7) Used on 32” & 38” models
8 2153038 2 TUBE, Tire
9 1666969 1 PIN, Klik
tionItem Qt
Note
Footnotes:
Manual No. 7006080TWO STAGE LARGE FRAME
(2006) SERIES 7
29
TP 400-5135-1-LF-N
Decals Group
Manual No. 7006080 TWO STAGE LARGE FRAME
TP 400-5135-1-LF-N
30
(2006) SERIES 7
Decals Group
p
y
Part No Descri
1 1726945 1 DECAL, Dashboard
1 1727022 1 DECAL, Dashboard (CE)
2 1715557 1 DECAL, Shift Pattern
3 1726946 1 DECAL, Auger Control
3 1727023 1 DECAL, Auger Control (CE)
4 1726721 1 DECAL, Snapper, Front Dash, 1-3/4 x 7-1/2
5 1722867 1 DECAL, Handle Lubrication
6 1716532 1 DECAL, Auger Impeller Warning
6 1727208 1 DECAL, Auger Impeller Warning (CE)
7 1731191 1 DECAL, Snapper, 9.5HP 24” Stripe
7 1731192 1 DECAL, Snapper, 10.5HP 28” Stripe
7 1731194 1 DECAL, Snapper, 11.5HP 32” Stripe
7 1731193 1 DECAL, Snapper, 13HP 38” Stripe
8 7071880 1 DECAL, Discharge Chute, Danger
8 1727207 1 DECAL, Discharge Chute, Danger (CE)
9 * 1 DECAL, Patent Not a serivceable part.
10 1725072 1 DECAL, Touch Up Paint Snapper/Massey Red
11 * 1 DECAL, OPEI Certified ANSI Not a serivceable part.
12 * 2 LABEL, ID Plate Not a serivceable part.
13 * 2 LABEL, Decibel (CE) Not a serivceable part.
tionItem Qt
Note
Footnotes:
Manual No. 7006080TWO STAGE LARGE FRAME
(2006) SERIES 7
31
TP 400-5135-1-LF-N
Headlight Group
Manual No. 7006080 TWO STAGE LARGE FRAME
TP 400-5135-1-LF-N
32
(2006) SERIES 7
Headlight Group
p
y
Part No Descri
1 1727076 1 HEADLIGHT ASSEMBLY, Clear Rectangle
2 1715509A 1 STRAP, Torque
3 1960684 1 NUT, Hex Keps, 5/16-18, Conical Washer
4 2825094 2 TIE, Self Locking
5 1919326 1 WASHER, 5/16
tionItem Qt
Note
Footnotes:
Manual No. 7006080TWO STAGE LARGE FRAME
(2006) SERIES 7
33
TP 400-5135-1-LF-N
Parts Manual fo
r
(
TWO STAGE LARGE FRAME
SNOW THROWER
2006) SERIES 7
RESERVE THE RIGHT TO MAKE CHANGES OR ADD IMPROVEMENTS
COPYRIGHT ©2006
SNAPPER PRODUCTS, INC.
ALL RIGHTS RESERVED.
IT IS THE POLICY OF SNAPPER TO IMPROVE ITS PRODUCTS
WHENEVER IT IS POSSIBLE AND PRACTICAL TO DO SO. WE
AT ANY TIME WITHOUT INCURRING ANY OBLIGATION TO MAKE
SUCH CHANGES ON PRODUCTS MANUFACTURED PREVIOUSLY.
McDonough, GA, 30253 U.S.A.
Manual No. 7006080
Revision 1,
2/7/2006
TP 400-5135-1-LF-N
Loading...
