Parts Manual fo
r
D
7
V
21" STEEL DECK WALK BEHIN
COMMERCIAL
SERIES 1
MODEL
CP214017R2
CP215017HV
CP215017KW
CP215517HV
CP216017RV
COPYRIGHT ©2005
SNAPPER PRODUCTS, INC.
ALL RIGHTS RESERVED.
Revision 2,
McDonough, GA, 30253 U.S.A.
12/19/2005
Manual No. 7006137
TP 400-5155-2-WB-N
s
PAGE GROUP
4
8
10
14
16
18
20
24
26
28
30
32
34
36
38
40
42
44
HANDLES & CONTROLS (Upper End)
HANDLES & CONTROLS (Lower End)
CUTTING DECK, BLADE
FRONT WHEEL BRACKET, LATCHES
REAR WHEEL BRACKETS, LATCHES
FRONT AND REAR WHEELS
DRIVE SYSTEM SELF-PROPELLED
TRANSMISSION (DIFFERENTIAL)
ENGINE SPECIFICATION
THROTTLE CONTROLS
GRASS BAG ACCESSORY
SIDE CHUTE ADAPTER, BRACKETS
DECALS PT. 1
DECALS PT. 2
DECALS PT. 3
RECYCLING KITS ACCESSORY
SNAPPERIZER ACCESSORY
THATCHERIZER ACCESSORY
Table Of Content
SERIES 17
Manual No. 700613721" STEEL DECK WALK BEHIND
3
TP 400-5155-2-WB-N
HANDLES & CONTROLS (Upper End)
Manual No. 7006137 21" STEEL DECK WALK BEHIND
TP 400-5155-2-WB-N
4
SERIES 17
HANDLES & CONTROLS (Upper End)
p
Part No Descri
1 7074384 1 HANDLE, Upper
2 7046737 1 HANDLE, Middle
3 7047011 1 CONTROL, Blade
4 7033904 1 CLIP, Blade Control (Kawasaki & Robin Models)
-- 7034872 1 CLIP, Blade Control (Honda Models)

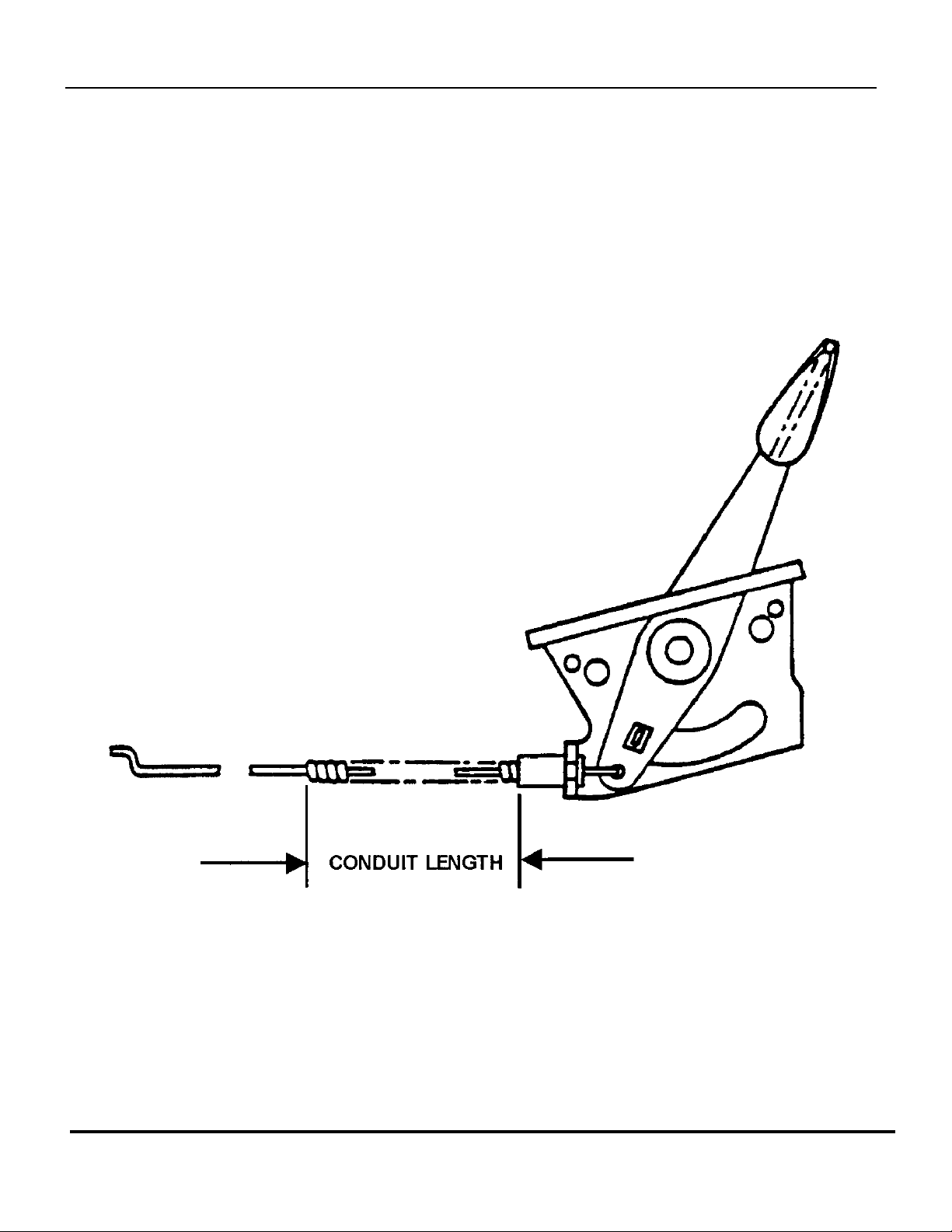

5 7073444 1 CABLE, Blade Control (47.85/3.93 length) Kawasaki Engines Models
-- 7074448 1 CABLE, Blade Control (46.00/4.12 length) Robin 4-Cycle Engine
-- 7074447 1 CABLE, Blade Control (46.12/3.50 length) Robin 2-Cycle Engine
-- 7074830 1 CABLE, Blade Control (44.00/4.16 length) Honda Engine Models
6 7032826 1 HANDLE, Wheel Drive
7 7014307 1 GRIP, Wheel Drive Handle Kawasaki & Robin Models
-- 7075305 1 GRIP, Wheel Drive Handle Honda Models
8 7047092 1 CABLE, Clutch Pull (Z-bend) (38.31” length)
9 7012121 1 COVER, Vinyl
10 7012122 1 SPRING, Clutch
11 7038478 1 SECTOR, Speed
12 7074255 1 LEVER, Speed Control
13 7012093 1 SPRING, Speed Control
14 7090188 1 WASHER, 3/8” Flat
15 7023801 1 GRIP, Speed Control Handle
16 7091190 2 BOLT, 5/16-18 x 1-1/2” Curved Head Carriage
17 7090303 1 NUT, 1/4-28 Hex Top Lock
18 7023813 3 CLIP, Wiring Harness
19 7091025 1 SCREW, 1/4-28 x 1-3/8” Hex Head Cap GR5
20 7026219 1 CLAMP, 7/8” Double Cable
21 7079577 2 SCREW, 1/4-20 x 1-1/2” Hex Head Cap GR5
22 7090053 4 WASHER, 1/4” Internal Tooth Lock Was 91023
23 7091576 4 NUT, 1/4-20 Hex Was 91100
24 7090505 1 SCREW, 1/4-20 x 2” Hex Head Cap GR5
25 7014343 2 BUSHING
26 7023792 1 PIN, 1/4” x 1-1/2” (for clutch handle)
27 7091020 1 PUSH-NUT, 1/4” (for handle pin)
28 7022460 1 GRIP, Foam Kawasaki & Robin Models
-- 7075634 1 GRIP, Foam Was 73115, Honda Models
29 7090391 2 WASHER, 5/16” Internal Tooth Lock
30 7024087 1 DECAL, Speed Select
31 7091511 6 NUT, 5/16-18 Hex, GR5 Was 91069
tionItem Qty Note
Footnotes
SERIES 17
Manual No. 700613721" STEEL DECK WALK BEHIND
5
TP 400-5155-2-WB-N
HANDLES & CONTROLS (Upper End)
Manual No. 7006137 21" STEEL DECK WALK BEHIND
TP 400-5155-2-WB-N
6
SERIES 17
HANDLES & CONTROLS (Upper End)
p
Part No Descri
32 7024211 1 DECAL, Blade Control
33 7046465 1 GUIDE, Rope (1/4-20 thread)
tionItem Qty Note
Footnotes
SERIES 17
Manual No. 700613721" STEEL DECK WALK BEHIND
7
TP 400-5155-2-WB-N
HANDLES & CONTROLS (Lower End)
Manual No. 7006137 21" STEEL DECK WALK BEHIND
TP 400-5155-2-WB-N
8
SERIES 17
HANDLES & CONTROLS (Lower End)
p
Part No Descri
2 7046737 1 HANDLE, Middle
12 7074255 1 LEVER, Speed Control
16 7091190 2 BOLT, 5/16-18 x 1-1/2” Curved Head Carriage
29 7090391 2 WASHER, 5/16” Internal Tooth Lock
31 7091511 6 NUT, 5/16-18 Hex, GR5 Was 91069
34 7033986 1 HANDLE, Lower Right Hand NOTE: Handles and controls
35 7033985 1 HANDLE, Lower Left Hand
36 7090799 3 BOLT, 5/16-18 x 5/8” Short Neck Carriage GR5 Was 91026
37 7046707 2 STRAP, Handle
38 7091601 1 NUT, 5/16-18 Hex Flange Lock GR5 Was 91070
39 7032830 1 ANCHOR, Speed Control
40 7090595 3 BOLT, 5/16-18 x 5/8” Hex Flange Lock GR5
41 7015752 1 ROD, Transfer (1/4-28 thread)
42 7010937 1 CLIP, Transfer Rod
43 7090095 1 NUT, 1/4-28 Hex, GR5
44 7015753 1 BALL JOINT (1/4-28 thread)
45 7090238 1 SCREW, 5/16-24 x 1” Hex Head Cap, GR5
46 7012114 1 BUSHING, Differential
47 7090895 1 NUT, 5/16-18 Tee
48 7032408 1 GUIDE, Lower V-Belt
49 7091606 1 NUT, 5/16-24 Hex Center Lock GR5 Was 91074
tionItem Qty Note
are continued from previous
page.
Footnotes
SERIES 17
Manual No. 700613721" STEEL DECK WALK BEHIND
9
TP 400-5155-2-WB-N
CUTTING DECK, BLADE
Manual No. 7006137 21" STEEL DECK WALK BEHIND
TP 400-5155-2-WB-N
10
SERIES 17
CUTTING DECK, BLADE
p
Part No Descri
1 7057663 1 DECK, Mower (Includes painted deck with decals)
2A 7091601 10 NUT, 5/16-18 Hex Flange Lock, GR5 Was 90585 or 91070
2B 7091601 10 NUT, 5/16-18 Hex Flange Lock, GR5 Was 90585 or 91070
3 7090731 9 BOLT, 5/16-18 x 1/2” Short Neck Carriage GR5
4 7091169 1 BOLT, 5/16-18 x 1-1/8” Short Neck Carriage GR5
5A 7090324 3 SCREW, 3/8-16 x 1” Self-Tap (engine mount)
5B 7090324 3 SCREW, 3/8-16 x 1” Self-Tap (engine mount)
6 7090700 1 BOLT, 5/16-18 x 1-1/2” Hex Flange Lock, GR5
7 7031961 1 WASHER, 1/2” Flat
8 7090595 1 BOLT, 5/16-18 x 5/8” Hex Flange Lock GR5
9 7090483 1 SCREW, 3/8-24 x 1-3/4 Hex Head Cap GR5 Robin & Honda Models
10 7090228 4 SCREW, 5/16-24 x 21/32” Oval Head Machine
11 7091297 4 NUT, 5/16-24 Hex, GR5 Was 90223
12 7090167 1 SCREW, 3/8-24 x 2” Hex Head Cap, GR5 used on Kawasaki
13 7012063 1 WASHER, Cone
14 7026691 1 BLADE, Cutter (Standard Lift) (20.75”)
14A 7026407 1 BLADE, 21” Ninja (Quad Edge) (20.75”)
14B 7019795 1 BLADE, Cutter (European) (20.75”)
15 7015626 1 HUB, Blade Drive 25mm Robin Models
-- 7012927 HUB, Blade Drive 7/8” Kawasaki & Honda Models
16 7010783 2 KEY, Woodruff #505 Hi-Pro Kawasaki & Honda Models
-- 7016755 1 KEY, 1/4” Square x 3/4” Robin Models
17 7090201 1 SCREW, 5/16-18 x 5/16” Hex Socket Set
18 7022106 1 PULLEY, Engine, (25mm x 2.12”) Robin Models
-- 7021764 1 PULLEY, Engine (7/8” I.D. x 2-1/8” O.D.) Kawasaki & 5HP Honda Models
-- 7021822 1 PULLEY, Engine 5.5HP Honda Models
19 7090391 4 WASHER, 5/16” Internal Tooth Lock
20 7032558 2 LIFT, Air
21 7091508 2 BOLT, 5/16-18 x 3/4” Short Neck Carriage GR5 Was 90001
22 7011791 2 RETAINER, 5/16” Bolt
23 7011762 1 COVER, Spark Plug not shown
-- 7060785 1 KIT, Air Lift (Includes items 10, 11, 19 & 20)
24 7074568 1 BAFFLE, Belt
25 7090731 9 BOLT, 5/16-18 x 1/2” Short Neck Carriage GR5
26 7091601 10 NUT, 5/16-18 Hex Flange Lock, GR5 Was 90585 or 91070
27 7046780 2 PLUG, Hole
28 7045264 2 PLUG, 5/16” Round Hole
tionItem Qty Note
Footnotes
SERIES 17
11
Manual No. 700613721" STEEL DECK WALK BEHIND
TP 400-5155-2-WB-N
CUTTING DECK, BLADE
Manual No. 7006137 21" STEEL DECK WALK BEHIND
TP 400-5155-2-WB-N
12
SERIES 17
CUTTING DECK, BLADE
p
Part No Descri
29 7044770 1 SPACER, Blade Hub (1/16” thick)
tionItem Qty Note
Footnotes
SERIES 17
13
Manual No. 700613721" STEEL DECK WALK BEHIND
TP 400-5155-2-WB-N
FRONT WHEEL BRACKET, LATCHES
Manual No. 7006137 21" STEEL DECK WALK BEHIND
TP 400-5155-2-WB-N
14
SERIES 17
FRONT WHEEL BRACKET, LATCHES
p
Part No Descri
1 7051885 1 ASSEMBLY, Left Wheel Arm (Consists of items 2, 3, 4, 5A &
-- 7051886 1 ASSEMBLY, Right Wheel Arm (Consists of items 2, 3, 4, 5B &
2 7015761 2 BOLT, 5/16-18 Hex Washer Face Shoulder
3 7012325 2 LATCH, Height
4 7027702 2 GRIP, Latch
5A 7031016 1 ARM, Left Wheel (Square Hole) not shown
5B 7031017 1 ARM, Right Wheel (Round Hole)
6 7011791 2 RETAINER, 5/16” Bolt (Black)
7 7091601 2 NUT, 5/16-18 Hex Flange Lock Was 91070
8 7074702 1 WELDMENT, Front Wheel Bracket Was 41770
9 7021119 1 AXLE
tionItem Qty Note
6)
6)
Footnotes
SERIES 17
15
Manual No. 700613721" STEEL DECK WALK BEHIND
TP 400-5155-2-WB-N
REAR WHEEL BRACKETS, LATCHES
Manual No. 7006137 21" STEEL DECK WALK BEHIND
TP 400-5155-2-WB-N
16
SERIES 17
REAR WHEEL BRACKETS, LATCHES
p
Part No Descri
1 7012312 1 BALL BEARING, 9/16” I.D. per side
2 7091012 3 SCREW, #10-32 x 3/8” Hex Washer Self-Tap (Torx) per side
3 7035717 1 LATCH, Height Adjusting (Long) per side
4 7091576 1 NUT, 1/4-20 Hex Was 90063
5 7091601 6 NUT, 5/16-18 Hex Flange Lock, GR5 Was 90585
6 7054230 1 ASSEMBLY, Wheel Arm (Right Rear) Was 54230 (Self-Propelled
7 7054247 1 ASSEMBLY, Wheel Arm (Left Rear) Was 54231 (Self-Propelled
8 7032722 1 ARM, Wheel, Right Rear used on Self-Propelled models
9 7032723 1 ARM, Wheel, Left Rear used on Self-Propelled models
10 7011078 1 BOLT, 5/16-18 x 1” Shoulder per side
11 7011791 1 RETAINER, 5/16” Bolt per side
12 7027702 1 GRIP, Latch per side
13 7033494 1 BRACKET, Right Rear Wheel
14 7033495 1 BRACKET, Left Rear Wheel
15 7029008 1 GUARD, Rear Foot used on Self-Propelled
16 7023791 1 RING, Split (Black)
17 7012616 1 SUPPORT, Foot Guard
18 7091604 1 BOLT, 1/4-20 x 1/2” Short Neck Carriage GR5 Was 90005
19 7090053 1 WASHER, 1/4” Internal Tooth Lock Was 91023
20 7090731 6 BOLT, 5/16-18 x 1/2” Short Neck Carriage GR5
tionItem Qty Note
models)(Incl. 1, 2, 3, 8, 10, 11 &
12)
models)(Incl. 1, 2, 3, 9, 10, 11 &
12)
Footnotes
SERIES 17
17
Manual No. 700613721" STEEL DECK WALK BEHIND
TP 400-5155-2-WB-N
FRONT AND REAR WHEELS
Manual No. 7006137 21" STEEL DECK WALK BEHIND
TP 400-5155-2-WB-N
18
SERIES 17
FRONT AND REAR WHEELS
p
Part No Descri
1 7035726 2 WHEEL, Rear 10.0 x 1.75 Diamond Grey
2 7035727 2 WHEEL, Front 8.0 x 1.75 Diamond Black
3 7031121 4 HUB-CAP (Front Wheels)
-- 7031960 2 HUB-CAP (Rear Wheels)
4 7090377 4 NUT, 7/16-20 Hex Center Lock Jam
5 7031961 6 WASHER, 7/16 x 1” O.D. Flat
tionItem Qty Note
Footnotes
SERIES 17
19
Manual No. 700613721" STEEL DECK WALK BEHIND
TP 400-5155-2-WB-N
DRIVE SYSTEM SELF-PROPELLED
Manual No. 7006137 21" STEEL DECK WALK BEHIND
TP 400-5155-2-WB-N
20
SERIES 17
DRIVE SYSTEM SELF-PROPELLED
p
Part No Descri
1 7012354 1 BELT, Poly-Vee
2 7034179 1 LINK, Differential
-- 7051921 1 ASSEMBLY, Clutch Idler (Includes items 3 thru 7)
3 7032832 1 ARM, Clutch Idler
4 7012124 1 PULLEY, Idler
5 7091025 1 SCREW, 1/4-28 x 1-3/8” Hex Head Cap GR5
6 7090303 1 NUT, 1/4-28 Hex Top Lock
7 7012117 2 BUSHING, 3/8” Plastic
8 7072284 1 SHAFT, Hex Drive
9 7019383 1 PULLEY, Poly-Vee
10 7012316 1 WASHER, 3/8” Flat
11 7012126 1 SPRING, Torsion
12 7012111 1 STUD, Idler (3/8-24 thread)
13 7031873 1 HOLDER, Bearing (Inner Half)
14 7028014 1 BEARING, Ball, .38 I.D. Spherical O.D.
15 7011025 1 O-RING
16 7090289 1 NUT, 3/8-24 Hex Center Lock GR5 or B
17 7031809 1 HOLDER, Bearing (Outer Half)
18 7010937 1 CLIP, 1/4” Right Arc (Transfer Rod)
19 7090095 1 NUT, 1/4-28 Hex GR5
20 7046784 1 BELT, Engine Drive 3L (Stretch)
-- 7053225 1 ASSEMBLY, Driven Disc (Cantilever) (Incl. items 21 thru 28)
21 7035477 1 PLATE, Thrust
22 7010746 1 RING, 5/8” External Retaining
23 7029027 1 BEARING, Ball
24 7090981 4 SCREW, #10-32 x 1/4” Self-Tap Machine
25 7061276 1 ASSEMBLY, Hub (Includes 11108 Bushing & 90913 Screws) Was 53217
26 7023364 1 RING, Driven
27 7031013 1 PLATE, Ring Retaining
28 7090913 5 SCREW, #10-24 x 1/2" Hex Washer Self-Tap (Torx)
29 7012125 1 GUIDE, Thrust Plate (3/8-24 thread)
30 7090390 3 WASHER, 3/8” Internal Tooth Lock
31 7090122 1 WASHER, 3/8” Flat
32 7091630 3 NUT, 3/8-24 Hex, GR B Was 90155
33 7091294 1 NUT, 1/4-28 Hex GR5 Was 90055
34 7090053 1 WASHER, 1/4” Internal Tooth Lock
35 7015753 1 BALL JOINT, 1/4-28
tionItem Qty Note
Footnotes
SERIES 17
21
Manual No. 700613721" STEEL DECK WALK BEHIND
TP 400-5155-2-WB-N
DRIVE SYSTEM SELF-PROPELLED
Manual No. 7006137 21" STEEL DECK WALK BEHIND
TP 400-5155-2-WB-N
22
SERIES 17
DRIVE SYSTEM SELF-PROPELLED
p
Part No Descri
36 7015752 1 LINK, Transfer
37 7061275 1 KIT, Drive Disc Assembly
38 7017696 1 BUSHING
39 7029025 1 SPRING, Wheel Drive
40 7091601 2 NUT, 5/16-18 Hex Flange Lock, GR5 Was 91070
41 7013847 1 RETAINER, 3/8” Bolt
42 7090731 1 BOLT, 5/16-18 x 1/2” Short Neck Carriage GR5
43 7012122 1 SPRING, Clutch
-- 7052987 1 ASSEMBLY, Deck Bracket (Includes items 44 thru 46)
44 7033774 1 BRACKET, Deck
45 7012306 2 BUSHING, Flange, Plastic
46 7021758 1 SPACER
47 7090534 1 SCREW, 5/16-18 x 1/2” Hex Head Cap, GR5
48 7090391 1 WASHER, 5/16” Internal Tooth Lock
49 7011724 1 WASHER, 7/16” Curved Spring
50 7091597 1 PIN, 3/32 x 1/2” Cotter Was 90555
51 7091122 2 SCREW, 1/4-20 x 1/2” Hex Washer Self-Tap Was 90539
52 7090799 1 BOLT, 5/16-18 x 5/8” Short Neck Carriage GR5 Was 91026
tionItem Qty Note
Footnotes
SERIES 17
23
Manual No. 700613721" STEEL DECK WALK BEHIND
TP 400-5155-2-WB-N
TRANSMISSION (DIFFERENTIAL)
Manual No. 7006137 21" STEEL DECK WALK BEHIND
TP 400-5155-2-WB-N
24
SERIES 17
TRANSMISSION (DIFFERENTIAL)
p
Part No Descri
-- 7053943 1 ASSEMBLY, Transmission (Incl. items 1 thru 30)
1 7092062 4 NUT, 5/16-24 Hex Lock, GR C
2 7092063 2 WASHER, 5/16” I.D. Cone
3 7019213 1 PULLEY, Poly-Vee Belt
4 7091720 1 WASHER, Spring
5 7053941 1 ASSEMBLY, Housing, Right (Incl. items 6 thru 10)
6 7029034 1 HOUSING, Right Side
7 7014155 3 SCREW, 5/16-24 x 1-1/8” Rib Neck, GR5
8 7012314 2 SEAL, 5/8” Internal Dia.
9 7029035 2 BEARING, Tapered- (Differential Housing)
10 7073963 1 BEARING, Ball
11 7016544 1 PLUG, Housing
12 7050767 1 GEAR, Input
13 7050830 1 AXLE, Short
14 7012495 1 GEAR, Differential (46 tooth)
15 7031970 2 PLATE, 46T Gear
16 7031965 2 WASHER, Thrust, 3/4” I.D.
17 7090557 4 SCREW, #10-32 x 1-1/2” Hex Head Cap GR5
18 7011774 1 GASKET, Housing
19 7090189 3 WASHER, 5/16” Internal/External Tooth Lock
20 7051903 1 BRACKET, Differential
21 7091825 4 SCREW, 1/4-20 x 1” Hex Washer Self-Tap Was 92064
22 7012543 1 SPACER, Axle Gear
23 7050831 1 AXLE, Long
24 7021115 4 GEAR, Pinion (12 tooth)
25 7012500 4 SPACER, Pinion Gear
26 7011110 4 SHAFT, Pinion
27 7090376 4 NUT, #10-32 Hex Nyloc
28 7053938 1 ASSEMBLY, Left Housing (Includes items 8, 9 & 29)
29 7029033 1 HOUSING, Left
30 7024442 1 GASKET, 5/8” O. D.
tionItem Qty Note
Footnotes
SERIES 17
25
Manual No. 700613721" STEEL DECK WALK BEHIND
TP 400-5155-2-WB-N
ENGINE SPECIFICATION
Manual No. 7006137 21" STEEL DECK WALK BEHIND
TP 400-5155-2-WB-N
26
SERIES 17
ENGINE SPECIFICATION
p
Part No Descri
-- -- 1 ENGINE, 4 HP 2-Cycle Robin, Recoil Model EC13V; Type n/a
-- -- 1 ENGINE, 6 HP 4-Cycle Robin, Recoil Model EH18V; Type n/a
-- -- 1 ENGINE, 5 HP Kawasaki, Recoil Model FC150V; Type GS13
-- -- 1 ENGINE, 5 HP Honda, Recoil Model GXV140A1KT; Type
-- -- 1 ENGINE, 5.5 HP Honda, Recoil Model GXV160KA12; Type
tionItem Qty Note
566700
575000
Footnotes
SERIES 17
Note* Purchase engine parts from engine manufacturer dealer.
27
Manual No. 700613721" STEEL DECK WALK BEHIND
TP 400-5155-2-WB-N
THROTTLE CONTROLS
Manual No. 7006137 21" STEEL DECK WALK BEHIND
TP 400-5155-2-WB-N
28
SERIES 17
THROTTLE CONTROLS
p
Part No Descri
7029590 1 Throttle Control (50” conduit length) used on Robin 2-Cycle Engine
7074450 1 Throttle Control (42.75” conduit length) used on Robin 4-Cycle Engine
7074449 1 Throttle Control (48.90” conduit length) used on Kawasaki 4-Cycle
7074829 1 Throttle Control used on Honda 4-Cycle Engine
tionItem Qty Note
Engine
Footnotes
SERIES 17
29
Manual No. 700613721" STEEL DECK WALK BEHIND
TP 400-5155-2-WB-N
GRASS BAG ACCESSORY
Manual No. 7006137 21" STEEL DECK WALK BEHIND
TP 400-5155-2-WB-N
30
SERIES 17
GRASS BAG ACCESSORY
p
Part No Descri
-- 7060936 1 KIT, Grass Bag Catcher (Incl. Items 1, 2, 3 & 4)
1 7074426 1 BAG, Grass Slider (Black/Gold) (10.75” Wide) Was 23774
2 7050711 1 ASSEMBLY, Slider
3 7042489 1 CONNECTOR, Grass Bag (weldment)
4 7019247 1 WIRE, Bag Connector (12” Wide)
4A 7016050 1 ADAPTER, Grass Bag
5 7058037 1 ASSEMBLY, Grass Bag Adapter (Includes items 6 thru 13)
6 7047081 1 ADAPTER, Bag
7 7047082 1 BRACKET, Rope Pulley
8 7091984 1 SCREW, 5/16-18 x 1-1/4” Pan Head Machine
9 7012306 1 BUSHING, Flange
10 7024228 1 PULLEY, Plastic
11 7091601 1 NUT, 5/16-18 Hex Flange Lock GR5 Was 91070
12 7072107 4 WASHER, 15/32” Flat
13 7013860 4 RIVET, 3/16 x .344
14 7024340 1 SPACER
15 7024085 2 NUT, 5/16-18 Wing (Nylon Patch)
16 7011791 1 RETAINER, 5/16” Bolt
17 7091076 2 WASHER, 5/16” Flat
18 7090951 1 NUT, 5/16-18 Hex Large Flange Center Lock
tionItem Qty Note
Footnotes
SERIES 17
31
Manual No. 700613721" STEEL DECK WALK BEHIND
TP 400-5155-2-WB-N
SIDE CHUTE ADAPTER, BRACKETS
Manual No. 7006137 21" STEEL DECK WALK BEHIND
TP 400-5155-2-WB-N
32
SERIES 17
SIDE CHUTE ADAPTER, BRACKETS
p
Part No Descri
1 7016050 1 ADAPTER, Grass Bag
2 7024340 1 SPACER, .316 I.D. x .375 O.D. x .310 thick
3 7024085 2 NUT, 5/16-18 Wing (Nylon Patch)
4 7011791 2 RETAINER, 5/16” Bolt
5 7091508 2 BOLT, 5/16-18 x 3/4” Short Neck Carriage GR5 Was 90001
6 7042965 KIT, Side Chute (Incl. a quantity of 10 of item 16) Was 60955
7 7042965 1 CHUTE, Side
8 7091076 2 WASHER, 5/16” Flat
9 7090951 1 NUT, 5/16-18 Hex Large Flange Center Lock
10 7058037 1 ASSEMBLY, Grass Bag Adapter (Incl. items 11 thru 18)
11 7047081 1 ADAPTER, Grass Bag
12 7047082 1 BRACKET, Rope Pulley
13 7091984 1 SCREW, 5/16-18 x 1-1/4” Pan Head Machine
14 7012306 1 BUSHING, Flange
15 7024228 1 PULLEY, Plastic
16 7091601 1 NUT, 5/16-18 Hex Flange Lock GR5 Was 91070
17 7072107 4 WASHER, 15/32” Flat
18 7013860 4 RIVET, 3/16 x .344
19 7047101 1 BRACE, Bag Adapter
20 7091835 1 BOLT, M6 1.0 x 12mm Hex Head Cap
tionItem Qty Note
Footnotes
SERIES 17
33
Manual No. 700613721" STEEL DECK WALK BEHIND
TP 400-5155-2-WB-N
DECALS PT. 1
Manual No. 7006137 21" STEEL DECK WALK BEHIND
TP 400-5155-2-WB-N
34
SERIES 17
DECALS PT. 1
p
Part No Descri
1 7024211 1 DECAL, Blade Control
2 7024087 1 DECAL, Speed Select
3 7013010 1 DECAL, Danger, Cut Finger
4 7072921 1 DECAL, Deck Warning
5 7035738 1 DECAL, SNAPPER (3.38 Dia.) (Black & Gold)
6 7035737 1 DECAL, 4HP 2CY (Black & Gold)
tionItem Qty Note
Footnotes
SERIES 17
35
Manual No. 700613721" STEEL DECK WALK BEHIND
TP 400-5155-2-WB-N
DECALS PT. 2
Manual No. 7006137 21" STEEL DECK WALK BEHIND
TP 400-5155-2-WB-N
36
SERIES 17
DECALS PT. 2
p
Part No Descri
7 7074386 1 DECAL, SNAPPER (Commercial)
8 7046357 1 DECAL, Warning
9 7046720 1 DECAL, Warning Chute/Deflector
10 7073335 1 DECAL, OPEI
11 7029470 1 DECAL, Patent Numbers
tionItem Qty Note
Footnotes
SERIES 17
37
Manual No. 700613721" STEEL DECK WALK BEHIND
TP 400-5155-2-WB-N
DECALS PT. 3
Manual No. 7006137 21" STEEL DECK WALK BEHIND
TP 400-5155-2-WB-N
38
SERIES 17
DECALS PT. 3
p
Part No Descri
12 7014115 1 DECAL, Warning Thatcherizer
13 7014062 1 DECAL, Thatcherizer
14 7016134 1 DECAL, Caution Tag not used in 2003 model year
tionItem Qty Note
Footnotes
SERIES 17
39
Manual No. 700613721" STEEL DECK WALK BEHIND
TP 400-5155-2-WB-N
RECYCLING KITS ACCESSORY
Manual No. 7006137 21" STEEL DECK WALK BEHIND
TP 400-5155-2-WB-N
40
SERIES 17
RECYCLING KITS ACCESSORY
p
Part No Descri
-- 7061200 KIT, Recycling Cover (Includes the 2 items below) for 4HP & above engines
-- 7061201 KIT, Recycling Plug (Incl. items 1 & 2 below) for 4HP & above engines
1 7029149 1 COVER, 21” Deck
2 7016814 1 PLUG, Chute Adapter
3 7026407 1 BLADE, 21” Quad Edge Ninja
tionItem Qty Note
Footnotes
SERIES 17
41
Manual No. 700613721" STEEL DECK WALK BEHIND
TP 400-5155-2-WB-N

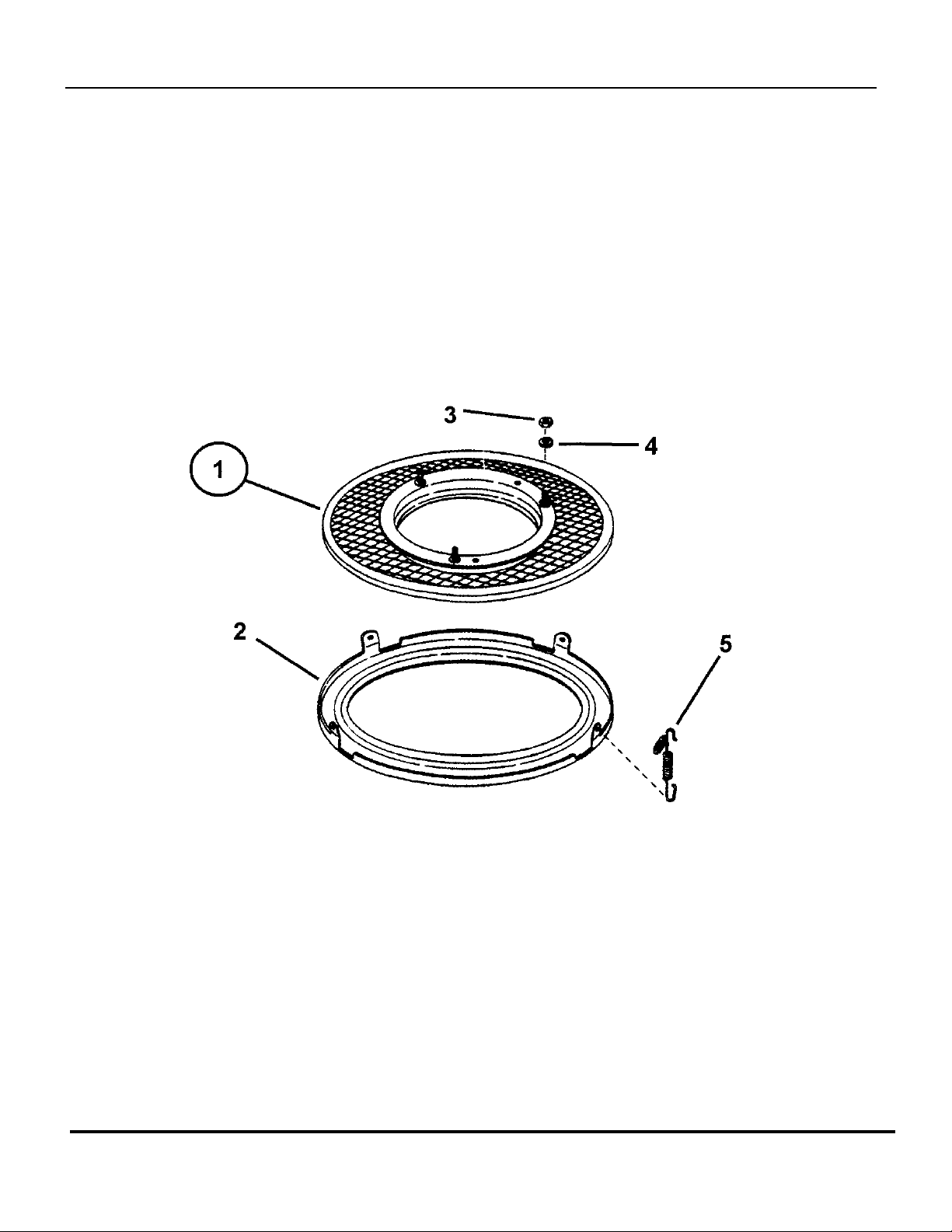

SNAPPERIZER ACCESSORY
Manual No. 7006137 21" STEEL DECK WALK BEHIND
TP 400-5155-2-WB-N
42
SERIES 17
SNAPPERIZER ACCESSORY
p
Part No Descri
-- 7060440 1 KIT, Snapperizer used on Hi-Vac Rolled Under-
1 7051243 1 SCREEN, Fastener Assembly
2 7039759 1 RING, Bottom (21.77” Inside Diameter)
3 7091297 3 NUT, 5/16-24 Hex Was 90223
4 7090187 3 WASHER, 5/16” Split Lock only 1 shown
5 7012587 3 SPRING only 1 shown
tionItem Qty Note
Lip Decks) (Incl. items 1 thru 5)
Footnotes
SERIES 17
43
Manual No. 700613721" STEEL DECK WALK BEHIND
TP 400-5155-2-WB-N
THATCHERIZER ACCESSORY
Manual No. 7006137 21" STEEL DECK WALK BEHIND
TP 400-5155-2-WB-N
44
SERIES 17
THATCHERIZER ACCESSORY
p
Part No Descri
-- 7061256 1 KIT, Thatcherizer (Incl. items 1 thru 27)
1 7032891 2 LATCH, Frame Attachment
2A 7026572 1 BAR, Mount (Right Hand)
2B 7026573 1 BAR, Mount (Left Hand)
3 7018499 2 ROD, Tine
4 7018700 1 SUPPORT, Wheel
5 7019948 1 TRAY, Tine
6 7018496 6 KIT, Tine Thatching Spring Was 60574
7 7014100 1 BUSHING, Wheel Adjuster
8 7018493 1 AXLE, Wheel
9 7018189 1 WHEEL, 7.00 x 1.50 Gage
10 7091705 10 NUT, 1/4-20 Hex Top Lock Was 90761 (only 9 shown)
11 7091294 4 WASHER, 1/4” Flat Was 90055
12 7022425 2 SPRING, Compression
13 7090825 2 BOLT, 1/4-20 x 1-1/4” Hex, GR5
14 7091576 2 NUT, 1/4-20 Hex, GR5 Was 90063
15 7022424 2 CAP, Vinyl
16 7090015 2 BOLT, 1/4-20 x 1-3/4” Square Neck Carriage only 1 shown
17 7091303 6 BOLT, 5/16-18 x 1” Square Neck Carriage, GR5 Was 90383 (only 1 shown)
18 7091530 2 BOLT, 1/4-20 x 3/4” Square Neck Carriage, GR5 Was 90074
19 7014098 6 WASHER, Reinforcing only 1 shown
20 7090187 6 WASHER, 5/16” Split Lock only 1 shown
21 7091511 6 NUT, 5/16-18 Hex, GR5 Was 90196 (only 1 shown)
22 7014101 2 NUT, 1/2” Push
23 7014342 4 BEARING, Nyliner
24 7014103 1 SCREW, 5/16-18 x 1/4” Set
25 7090250 2 WASHER, 1/2” Flat
26 7014115 1 DECAL, Adjustment
27 7014062 1 DECAL, Thatcherizer
tionItem Qty Note
Footnotes
SERIES 17
45
Manual No. 700613721" STEEL DECK WALK BEHIND
TP 400-5155-2-WB-N
Parts Manual fo
r
21" STEEL DECK WALK BEHIND
COMMERCIAL
SERIES 17
RESERVE THE RIGHT TO MAKE CHANGES OR ADD IMPROVEMENTS
COPYRIGHT ©2005
SNAPPER PRODUCTS, INC.
ALL RIGHTS RESERVED.
IT IS THE POLICY OF SNAPPER TO IMPROVE ITS PRODUCTS
WHENEVER IT IS POSSIBLE AND PRACTICAL TO DO SO. WE
AT ANY TIME WITHOUT INCURRING ANY OBLIGATION TO MAKE
SUCH CHANGES ON PRODUCTS MANUFACTURED PREVIOUSLY.
McDonough, GA, 30253 U.S.A.
Manual No. 7006137
Revision 2,
12/19/2005
TP 400-5155-2-WB-N
Loading...
