Snapper COMMERCIAL WALK-BEHIND User Manual

Parts Manual for
COMMERCIAL WALK-BEHIND
ACCESSORIES
IT IS THE POLICY O F SNAPPER TO IMPROVE IT S PRODUCT S WHENEVER IT IS PO SSIBLE AND PRACTICAL TO DO SO. WE RESERVE THE RIGHT TO MAKE CHANGES OR ADD IMPROVEMENTS AT ANY TIME WITHOUT INCURRING ANY OBLIGATION TO MAKE SUCH CHANGES ON PRODUCTS MANUFACTURED PREVIOUSLY.
COPYRIGHT © 2002 SNAPPER INC. ALL RIGHTS RESERVED
(IR, 12/02/02) MANUAL No. 06929
CONTENTS
COMMERCIAL WALK-BEHIND MODEL IDENTIFICATION
Positive identification of the machine will be necessary. Identify the machine with the model number to insure the correct kit is used for th at model. T he series number or let ter of the mo del number is used in this manual to match the correct kit with the correct model. Refer to Owner’s Manual for correct Series number.
KIT No. DESCRIPTION PAGE
Caster Wheels
6-1004 Wheels, Caster (36” Pro Mid Size)..................................................................................................4
6-1005 Wheels, Caster (48”, 52” & 61” Pro Mid Size).................................................................................4
6-1097 Wheels, Caster (PRO 736, PRO 748 & PRO 752)..........................................................................5
6-0800 Quick Height Adjustment, (Caster) (Semi-pneumatic) .................................................................6
6-0801 Quick Height Adjustment, (Caster) (Pneumatic) ..........................................................................7
6-1300 Roller, Corner (PRO 736 & PRO 748)............................................................................................8
Ballast/Weights
6-1194 Ballast, Front (for Sulky) (PRO 736)..............................................................................................9
6-1195 Ballast, Front (for Sulky) (PRO 748)..............................................................................................9
6-3048 Ballast, Front (PRO 36) ................................................................................................................10
6-3091 Ballast, Front (PRO Express 48” Deck)........................................................................................11
Dual-Wheel Conversion
6-0803 Dual Wheel Conversion (PRO Gear Drive w/bolt-in axles)..........................................................12
6-0804 Dual Wheel Conversion, complete (PRO Gear Drive w/bolt-in axles)........................................13
6-0937 Dual Traction Belt (PRO 36 & PRO 48 Hydro).............................................................................14
6-1001 Traction Idler.................................................................................................................................15
Sulky
6-3080 Sulky, Stand/Sit (PRO Walk-Behind)................................................................................... 16 & 17
6-1176 Sulky, PRO 7 (PRO 7 Gear & Hydro)............................................................................................18
6-0848 Sulky, Riding ................................................................................................................................19
6-0799 Sulky, Riding (Kees Kit# 361700).................................................................................................20
Note 1 Sulky, Riding (Kees Kit# 601700).................................................................................................21
Bagger Kits
6-0798 Grass Catcher w/Hopper (32, 36 & 48” Commercial Mowers, Kees Kit# 361502)......................23
6-1105 Grass Catcher, Hopper Replacement (32, 36 & 48” Commercial Mowers)................................24
6-3032 Grass Catcher Mount (PRO units with SP, SPA & SPE Decks)..................................................25
6-3033 Grass Catcher, Cloth (PRO units with SP, SPA & SPE Decks)...................................................26
6-3108 Grass Catcher, Cloth (PRO units with SP, SPA & SPE Decks)...................................................26
6-1853 Grass Catcher Mount ..................................................................................................................27
6-1110 Grass Catcher Mount (PRO 700 Walk-Behind) ...........................................................................28
6-1111 Grass Catcher, Cloth (PRO 700 Walk-Behind; requires 6-1853).................................................28
6-0835 Grass Catcher (Mid-Duty Walk-Behind)........................................................................................29
Blade Kits
6-1976 Mulching, 32” Deck (PRO Mowers) .............................................................................................30
6-1977 Mulching, 36” Deck (PRO Mowers) .............................................................................................30
6-1220 Mulching, 41” Deck (PRO Mowers) .............................................................................................30
6-1978 Mulching, 48” Deck (PRO Mowers) .............................................................................................31
6-1979 Mulching, 52” Deck (PRO Mowers) .............................................................................................31
6-1885 Mulching, 61” Deck (PRO Mowers) .............................................................................................31
6-1218 Mulching, 36” Deck (PRO 736 Deck)...........................................................................................32
6-1219 Mulching, 48” Deck (PRO 748 Deck)...........................................................................................33
Note 1: No Snapper Kit; however individual parts may be obtained from Snapper.
2
CONTENTS (continued)
KIT No. DESCRIPTION PAGE
R. A. D. Kits
6-3002 Quick Hitch (PRO Gear, PRO Hydro & PRO 7 Series 4 Mid-Size)...............................................34
6-3005 46” Dozer Blade (PRO Gear & PRO Hydro Mid-Size)..................................................................35
6-3006 Debris Blower (PRO Gear, PRO Hydro & PRO 7 Series 4 Mid-Size) .............................36 thru 41
6-3007 47” Rotary Broom (PRO Gear, PRO Hydro & PRO 7 Series 4 Mid-Size).......................42 thru 47
6-3004 40” 2 Stage Snowblower (PRO Gear, PRO Hydro & PRO 7 Series 4 Mid-Size)............48 thru 55
Miscellaneous Kits
6-1868 Belt Tension Reduction (SPA360 Deck) .....................................................................................56
6-1205 Belt Alignment Improvement (PRO 736 and PRO 748) .............................................................56
6-1871 Engine Frame Brace (some SP360, SPA360 & SPA480 decks; see chart).................................57
6-1207 Backside Idler (PP71250KW).............................................................................................. 58 & 59
6-1208 Backside Idler (PP7140KWV).......................................................................................................60
6-1209 Backside Idler (PL71250KW) .......................................................................................................60
6-1210 Backside Idler (PL7140KWV).......................................................................................................60
6-0802 Gas Tank Retrofit, 4 Gallon (Kees Kit #362080) .........................................................................61
6-0896 Interlock Switch Update (PRO Mowers with 32”, 36” or 48” decks)............................................62
6-3104 Belt Anti-Vibration (PRO Mowers with SP480 or SPA480 decks)...............................................62
6-1783 Reverse Throttle Interlock (PRO 7 Series 1 & 2 Mowers)...........................................................63
6-0899 Taperlock Pulley (PRO Mowers with 48” decks)..........................................................................63
6-3136 Shift Arm Extension (Electric Start PRO Hydro Series 0)............................................................64
6-1077 Driven Disc Replacement (Mid-Duty Walk-Behind).....................................................................64
7-7288 Oil Filters (engine and hydraulic system)......................................................................................65
6-0974 Battery (Electric Start Models).......................................................................................................65
None Exhaust Mufflers & Heat Shields (Various models)........................................................... 66 & 67
3
13 12 11 10
18 16 15 14 17
20
2A, 2B
CASTER WHEEL ASSEMBLY
6
3
4
3
ITEM PART NO. DESCRIPTION
-- 6-1004* KIT, Caster (36” Deck only) (Incl. items 1A, 2A & 3 thru 22)
-- 6-1005* KIT, Caster (48/52/61” Decks) (Incl. items 1B, 2B & 3 thru 22) 1A 5-2086 ASSEMBLY, Caster (36” Deck only) (Incl. Items 2A, 3 & 4) 1B 5-2084 ASSEMBLY, Caster (48”, 52” & 61” Decks) (Incl. Items 2B, 3 & 4) 2A 4-0678 SUPPORT, Caster (36” Deck only) (Incl. Items 3 & 4) 2B 4-9798 SUPPORT, Caster (48”, 52’ & 61” Decks) (Incl. Items 3 & 4) 3 2-3556 BUSHING, Flange (2)
4 7-6998 FITTING, 1/4-28, Straight Lube 5 2-3747 BUSHING, Machinery, 1” 6 2-1960 BUSHING 7 1-9152 SPACER, Caster 8 4-9805 WELDMENT, Caster Yoke
9 1-7711 PIN, 7/16” Lynch 10 9-1050 BUSHING, Machinery, 3/4” 11 9-0603 SCREW, 3/8-16 x 7/8”, Hex Head, Grade 5 12 9-0118 WASHER, 3/8” Split Lock 13 9-0517 WASHER, 3/8” Flat 14 1-9289 MOUNT, caster Axle 15 1-6460 AXLE, Caster 16 1-2705 RING, 3/4” External Retaining 17 5-2085 ASSEMBLY, Wheel & Tire (Incl. Items 18, 19 & 20) 18 1-7786 BEARING, 3/4” Flange (2) 19 1-7785 BEARING, 3/4” x 1” Roller 92) 20 1-7784 TIRE, 4-Ply Smooth Tread 21 9-0613 NUT, 3/8-16 Hex Flange Lock (2) 22 9-0563 SCREW, 3/8-16 x 1” Hex Head Cap, Grade 5 (6)
*NOTE: Kit 6-1004 will fit models: PMA360 and PMA8360.
Kit 6-1005 will fit models: PMA8480, PMA520, PMA8610, PMA8520, PMA610 & PMA480.
9
5
20
8
7
4
19
18
19
MANUAL No. 06929 COMMERCIAL WALK-BEHIND ACCESSORIES
4
CASTER WHEEL ASSEMBLY
15 14 13 12 11 10 14 20 19 18
-- 6-1097 KIT, Caster (Incl. items items 1 thru 20)
2 2-2394 RETAINER, Flanged (2) 3 2-2392 TIRE, 9 x 3.50 - 4 (Includes Tube) 4 2-2393 ASSEMBLY, Wheel (Includes Items 2 & 5) 5 2-2395 BEARING, Roller 6 2-2151 SLEEVE, Axle 7 9-1121 NUT, 1/2-13 Hex (Nyloc) 8 9-1123 BOLT, 1/2-13 x 5-1/2" Hex Head Cap, Grade 5 9 4-0726 YOKE, Caster (weldment) 10 1-7711 PIN, Lynch 11 1-9152 SPACER (3) 12 2-1960 SPACER, 1.005/1.010 I.D. x .270/.300 Thick 13 2-3747 BUSHING, 1.025/1.010 I.D. x .048 Thick 14 2-3556 BUSHING, Caster (2) 15 5-2298 ASSEMBLY, Caster Support (Includes Items 14 & 16) 16 7-6998 FITTING, Lube 17 9-0563 SCREW, 3/8-16 x 1" Hex Head Cap, Grade 5 (4) 18 9-0118 WASHER, 3/8 Split Lock (2) 19 9-0517 WASHER, 3/8 Flat (4) 20 7-6979 NUT, 3/8-16 Hex (Nyloc) (2)
MANUAL No. 06929 COMMERCIAL WALK-BEHIND ACCESSORIES
17
9
7
16
17
2
5
6
ITEM PART NO. DESCRIPTION
1 2-2258 ASSEMBLY, Wheel & Tire (Includes items 2 thru 5)
3
4
NOTE: Kit 6-1097 will fit models PRO 736, PRO 748 and PRO 752.
5
8
2
1
CASTER, HEIGHT ADJUSTMENT
10
15
13 11 13
4
4
3
16*
ITEM PART NO. DESCRIPTION
-- 6-0800 KIT, Quick Height Adjust (Semi­ (Pneumatic) (Incl. 1-13 & 15) 1 7-6515 BUSHING, Straight (2) 2 7-6399 SUPPORT, Caster w/Bushings (7-6514 & 7-6515) (2) 3 9-0517 WASHER, 3/8” Flat (4) 4 7-6979 NUT, 3/8-16 Hex Nyloc (4) 5 7-6997 FITTING, Lube, 1/8 NPT Straight (2) 6 7-6514 BEARING, Flange Thrust (powdered metal)
MANUAL No. 06929 COMMERCIAL WALK-BEHIND ACCESSORIES
2
4
3
5
6
7
1
14*
This kit will fit on the following Models: W32080, W32120, W32120K, W32081, W32121, W32121K, W321252KW, W32142BV, W36120, W36120K, W36121, W36121K, W361252KW, W36142BV, W48120, W48120K, W48140S, W48121, W48121K, W481252KW, W48142BV, As well as PRO 736 and PRO 748 units.
9
12
8
*NOTE: Items marked with asterisk are pre-existing and are not a part of this kit.
ITEM PART NO. DESCRIPTION
7 7-6400 YOKE, Caster (weldment) (2) 8 7-6506 ASSEMBLY, Semi-Pneumatic Tire (2) 9 7-6552 AXLE, Caster (2) 10 7-6967 LYNCH PIN, 3/16” Diameter (2) 11 7-6998 FITTING, Lube, 1/4-28, Straight 12 7-7320 BEARING, Roller (2) 13 7-7321 CAP, End (2) 14 7-7000 COLLAR, Clamp 7/8” (existing) 15 7-6927 SCREW, 3/8-16 x 1-14” Hex Head Cap (4) 16 7-6949 BOLT, 3/8-16 x 1-3/4” Hex Head Cap (existing)
6
CASTER, HEIGHT ADJUSTMENT
11
20
18 14 13
12 15 17
4
4
3
21*
ITEM PART NO. DESCRIPTION
-- 6-0801 KIT, Quick Height Adjust (Pneu.) (Incl. 1-18 & 20) 1 7-6516 BUSHING, Straight (2) 2 7-6399 SUPPORT, Caster w/Bushings (7-6514 & 7-6515) (2) 3 9-0517 WASHER, 3/8” Flat (4) 4 7-6979 NUT, 3/8-16 Hex Nyloc (4) 5 7-6997 FITTING, Lube, 1/8 NPT Straight (2) 6 7-6514 BEARING, Flange Thrust (powdered metal) 7 1-2234 STEM, Air Valve 8 7-6401 YOKE, Caster (weldment) (2) 9 7-6408 ASSEMBLY, Pneumatic Tire (Incl. 7, 12-16 & 18 (2) 10 7-6549 AXLE, Caster (2)
MANUAL No. 06929 COMMERCIAL WALK-BEHIND ACCESSORIES
2
4
3
5
6
8
1
19*
This kit will fit on the following Models: W32080, W32120, W32120K, W32081, W32121, W32121K, W321252KW, W32142BV, W36120, W36120K, W36121, W36121K, W361252KW, W36142BV, W48120, W48120K, W48140S, W48121, W48121K, W481252KW, W48142BV, As well as PRO 736 and PRO 748 units.
10
22
16
7
9
14
*NOTE: Items marked with asterisk are pre-existing and are not a part of this kit.
ITEM PART NO. DESCRIPTION
11 7-6967 LYNCH PIN, 3/16” Diameter (2) 12 7-7356 CAP, End 13 7-6998 FITTING, Lube, 1/4-28, Straight 14 7-7353 BEARING, Roller (2) 15 7-7346 TIRE, Pneumatic 16 7-7350 RIM, Pneumatic Tire 17 7-7720 WASHER, Tab (4) 18 2-3557 CAP, End 19 7-7000 COLLAR, Clamp 7/8” (existing) 20 9-0563 SCREW, 3/8-16 x 1” Hex Head Cap (4) 21 7-6949 BOLT, 3/8-16 x 1-3/4” Hex Head Cap (existing) 22 1-0821 TUBE, Inner (optional)
7
3
2
1
3
-- 6-1300 KIT, Corner Roller (Incl. items 1 thru 8)
2 2-7209 SPACER, Roller 3 9-0517 WASHER, 3/8” Flat (3) 4 2-7208 BOLT, 3/8-16 x 5-1/2” Hex Head Cap 5 9-0563 SCREW, 3/8-16 x 1” Hex Head Cap, Grade 5 (2) 6 9-0118 WASHER, 3/8” Split Lock 7 3-3080 BRACKET, Roller 8 7-6979* NUT, 3/8-16 Hex Nyloc (3)
*NOTE: Only two of these nuts are needed on the 48” Deck. The 48” Deck is equipped with weld-nuts as illustrated above.
MANUAL No. 06929 COMMERCIAL WALK-BEHIND ACCESSORIES
4
5
6
3
8
ITEM PART NO. DESCRIPTION
1 1-6829 ROLLER, Corner
NOTE: Kit 6-1300 will fit models PRO 736 & PRO 748
CORNER ROLLER
NOTE: THE WELDNUTS SHOWN
7
5
HERE ARE USED ON THE 48” DECK ONLY.
36” & 48” CUTTING DECKS
8
8
FRONT BALLAST
ITEM PART NO. DESCRIPTION
-- 6-1194 KIT, Front Ballast (Incl. items 1 thru 5) 1 4-1338 STRUCTURE, Front Ballast 2 9-0629 BOLT, 3/8-16 x 2-1/4” Hex Head, Grade 5 (5) 3 9-0517 WASHER, 3/8” Flat (10) 4 9-0118 WASHER, 3/8” Split Lock (5) 5 7-6979 NUT, 3/8-16 Hex Nyloc (5)
NOTE: This kit is for the PRO 736 mid-size walk-behind mower.
ITEM PART NO. DESCRIPTION
-- 6-1195 KIT, Front Ballast (Incl. items 1 & 2) 1 2-4510 BALLAST, Front (2) 2 9-0655 SCREW, 3/8-16 x 1-1/2”, Grade 5 (6)
MANUAL No. 06929 COMMERCIAL WALK-BEHIND ACCESSORIES
LEFT IN PLACE
NOTE: This kit is for the PRO 748 mid-size walk-behind mower.
5
4
3
3
1
2
1
LEFT IN PLACE
1
2
NOTE: Re-use existing washers
9
FRONT BALLAST
ITEM PART NO. DESCRIPTION
-- 6-3048 KIT, Weight (Incl. items 1 thru 8) 1 4-6664 WEIGHT, Front, PRO 36” Deck (painted) 2 9-1884 SCREW, 1/2-13 x 1-1/2” Hex Head Cap (2) 3 9-1322 WASHER, 1/2” Split Lock (2) 4 9-1316 NUT, 1/2-13 Hex, Grade 5 (2) 5 3-5756 WEIGHT, Top (2) 6 2-7181 BOLT, 3/8-16 x 1-1/4” Short Neck Carriage, Grade 5 (2) 7 9-1299 NUT, 3/8-16 Hex Nyloc (2) 8 7-3647 DECAL, Caution Guard/Catcher
NOTE: This weight kit fits the Express Deck used with gear drive units SPP1250KW, SPP140KW, SPP140KH, SPL1250KW, SPL140KW & SPL140KH; as well as hydro drive units SPLH140KW, SPLH140KH, SPLH160BV & SPLH180KHE.
MANUAL No. 06929 COMMERCIAL WALK-BEHIND ACCESSORIES
6
7
2
5
3
4
8
1
10
FRONT BALLAST
-- 6-3091 KIT, Ballast 48” Express Deck (Incl. items 1 thru 5)
MANUAL No. 06929 COMMERCIAL WALK-BEHIND ACCESSORIES
2
1
4
ITEM PART NO. DESCRIPTION
1 7-2735 BALLAST, 48” Express Deck (2) 2 9-1328 SCREW, 3/8-16 x 1-1/4” Hex Head Cap, Grade 5 (4) 3 9-0122 WASHER, 3/8” Flat (8) 4 9-1299 NUT, 3/8-16 Nyloc (4) 5 7-3647 DECAL, Caution Guard/Catcher
NOTE: This kit fits the Pro Commercial Walk Behind with 48” Express Mower Deck.
4
5
2
2
1
*
3
3
3 3
4
4
*NOTE:
These holes must be drilled in the deck for installation Of this kit.
11
DUAL WHEEL CONVERSION
This kit will fit PRO Commercial Walk-Behind (Gear Drive) mowers, built prior to 1990, that have bolt-in rear axles.
-- 6-0803 KIT, Dual Wheel Conversion (Incl. items 1 thru )
MANUAL No. 06929 COMMERCIAL WALK-BEHIND ACCESSORIES
existing clamp collar
ITEM PART NO. DESCRIPTION
1 7-6389 ASSEMBLY, Sulky Tire (complete) (Incl. items 2 thru 7) (2) 2 7-7311 RIM (Includes items 3 & 7) 3 1-2234 STEM, Air Valve 4 7-7313 BEARING, Roller (2) 5 2-3788* TIRE, 13 x 6.50-6 6 7-7312 BEARING, Flange (2) 7 7-6998 FITTING, Lube, 1/4-28, Straight 8 7-6539 COUPLING-DRIVE, Inside 9 7-6540 COUPLING, Drive, Outside
10 7-6396 WELDMENT, Rear Axle, Dual Wheel, PTD 11 7-6542 SPACER, Dual Wheel (2)
9
11
6
3
1
10
8
4
existing spacer
existing tire assembly
2
6
4
5
7
*or 77310
12
DUAL WHEEL CONVERSION
15
-- 6-0804 KIT, Dual Wheel Conversion (complete) (Incl. items 1 thru 16)
This kit will fit PRO Commercial Walk-Behind (Gear Drive) mowers, Built prior to 1990, that have bolt-in rear axles.
11
9
16
14
ITEM PART NO. DESCRIPTION
1 7-6394 ASSEMBLY, Drive Tire (complete, dual wheel) (Incl. items 2 thru 7) (2) 2 7-6410* RIM & PULLEY, Drive (dual wheel) 3 1-2234 STEM, Air Valve 4 7-7313 BEARING, Roller (2) 5 2-3788** TIRE, 13 x 6.50-6 6 7-7312 BEARING, Flange (2) 7 7-6998 FITTING, Lube, 1/4-28, Straight 8 9-0118 WASHER, 3/8” Split Lock (4) 9 7-7748 SCREW, 3/8-24 x 3/4” Hex Head Cap, Grade 5 (4)
10 7-6539 COUPLING-DRIVE, Inside 11 7-6440 DRUM, Brake, PTD 12 7-6395 TIRE, Driven (complete, dual wheel) (Incl item 14) (2) 13 7-7284 RIM, Driven 14 7-6540 COUPLING, Drive, Outside 15 7-6396 WELDMENT, Rear Axle, Dual Wheel, PTD 16 7-6542 SPACER, Dual Wheel (2)
MANUAL No. 06929 COMMERCIAL WALK-BEHIND ACCESSORIES
10
8
3
5
7
4
6
13
1
existing clamp collar
2
*or 7-7283 **or 7-7310
6
4
existing spacer
12
13

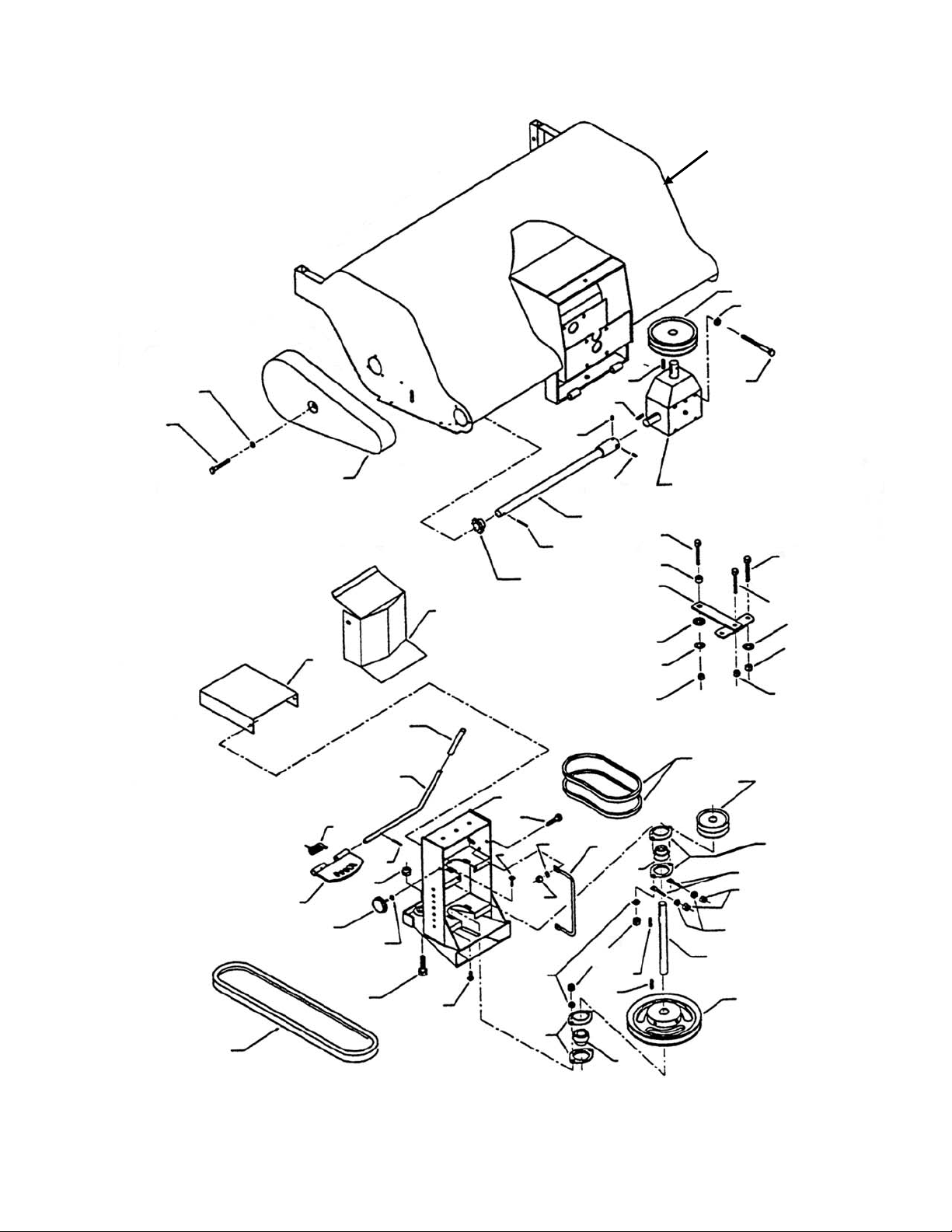

DUAL TRACTION BELT
17 16 15 13 12 11 10 18 24 23 21 20 19 19 11 11
ITEM PART NO. DESCRIPTION
-- 6-0937 KIT, Dual Traction Belt
(Incl. 1 thru 25) 1 1-9202 BELT, Traction (Dual Band) (2) 2 1-9223 PULLEY, Output (2) 3 1-9224 HUB, Brake (2) 4 1-9225 PULLEY, Idler (2) 5 5-9800 ASSEMBLY, Wheel (Includes 1-9206 & items 17-22) (2)
-- 1-9206 ASSEMBLY, Wheel w/o pulley
6 2-3515 SPACER (8) 7 2-3787 BUSHING, 7/8” (2) 8 3-8473 PULLEY, Traction (4) 9 4-0606 SCRAPER (2) 10 7-7670* SCREW, 3/8-24 x 1-3/4” Hex Head Cap, Grade 5 (2)
-- 9-0629 SCREW, 3/8-16 x 2-1/4” Hex
Head Cap, Grade 5 (2)
MANUAL No. 06929 COMMERCIAL WALK-BEHIND ACCESSORIES
5
2
24
4
22
*this bolt used on units with serial numbers starting with 9 **installs on idler pulley
9
1
7
3
8
6
18
ITEM PART NO. DESCRIPTION
11 9-0118 WASHER, 3/8” Split Lock (10) 12 9-0187 WASHER, 5/16” Split Lock (2) 13 9-0196 NUT, 5/16” Hex, Gr. 5 or B (2) 14 9-0517 WASHER, 3/8” Flat (10) 15 9-0585 NUT, 5/16-18 Flange Lock (2) 16 9-0164 SCREW, 3/8-24 x 1-1/2” Hex Head Cap, Grade 5 (8) 17 2-3788 TIRE, 13 x 6.50-6 (4 Ply) 18 7-7312 BUSHING, Flange (2) 19 7-7313 BEARING, Roller (2) 20 7-6998 FITTING, Lube, 1/4-28, Straight 21 1-9256 ASSEMBLY, RIM, w/Flange 22 1-2234 STEM, Air Valve 23 7-7000 COLLAR CLAMP w/Set Screw (2) 24 3-8513 GUIDE, Belt (2) 25 3-2865** GUIDE, Belt (2)
This kit will fit 36 & 48” PRO Commercial Walk-Behind (Hydro Drive) mowers built. Prior to 1990.
14
TRACTION IDLER
-- 6-1001 KIT, Traction Idler (Incl. items 1 thru 13)
MANUAL No. 06929 COMMERCIAL WALK-BEHIND ACCESSORIES
This kit will fit SNAPPER Commercial (KEES) Walk­Behind mowers built Prior to 1990.
6
8
9
BELLCRANK (RE-USE)
10
5
ITEM PART NO. DESCRIPTION
1 5-2090 ASSEMBLY, Left Support Bracket (Incl. items 2 thru 10) 2 4-0679 WELDMENT, Left Bearing Support 3 7-6998 FITTING, Lube, 1/4-28, Straight 4 7-7860 WELDMENT, Traction, Left 5 1-6473 COLLAR, Shaft 6 9-0517 WASHER, 3/8” Flat (3) 7 1-9225 IDLER PULLEY 8 9-0118 WASHER, 3/8” Split Lock 9 7-7670 SCREW, 3/8-24 x 1-3/4” Hex Head Cap, Grade 5
10 9-1030 BUSHING, Machine (3) 11 5-2091 ASSEMBLY, Right Support Bracket (Incl. items 3, 5, 12 & 13) 12 7-7846 WELDMENT, Right Support Bracket 13 7-7859 WELDMENT, Traction, Right
7
10
6
12
1
2
4
3
11
5
13
7
15
STAND/SIT SULKY
29 14 22
17 20
18
30 31 19
11 25 25 27 27
32 30
12
MANUAL No. 06929 COMMERCIAL WALK-BEHIND ACCESSORIES
9
29
16
2
6
1
19
5
20
1
29
13
4
9
6
20
3
5
30
24
6
3
30
2
15
26
6
23
29
28
3
24
8
20
10
3
33 (orient
7
21
3
15
as shown)
16
STAND/SIT SULKY
ITEM PART NO. DESCRIPTION
-- 6-3080 KIT, Stand/Sit Sulky (Includes items 1 thru 36) 1 2-9617 WASHER, 3/4” Flat (4) 2 1-1022 CAP, Hub (2) 3 9-1891 BOLT, 3/8-16 x 1”, Grade 5 (6) 4 2-4351 PIN, 1/2 x 1-3/16” Clevis 5 2-4352 SPRING (2) 6 9-1619 NUT, 3/8-16 Hex Flange Lock (6) 7 3-3607 HITCH, Bottom 8 3-3608 HITCH, Top 9 5-2268 ASSEMBLY, Wheel ( includes 6 items below) (2)
-- 2-3828 TIRE, 4.10/3.50-4
-- 1-0821 TUBE, Tire
-- 1-7146 RIM, Wheel
-- 1-1807 BALL BEARING, Flange (2)
-- 1-4669 LUBE FITTING
-- 1-2234 VALVE STEM
10 7-2092 WELDMENT, Seat Support 11 7-2090 BRACKET, Seat 12 7-2091 SEAT 13 7-2268 HITCH, Draw Bar 14 7-2269 DRAW BAR 15 7-2270 BRACE, Draw Bar (2) 16 7-2271 PAD, Friction 17 9-1299 NUT, 3/8-16 Hex Nyloc (4) 18 7-7780 PIN, 7/16 HD Lynch 19 9-1516 PIN, 5/32 x 1” Cotter (2) 20 9-1514 WASHER, 13/32” Flat (4) 21 9-1821 SCREW, 1/2-13 x 3” Hex Head Cap, Grade 5 22 9-1811 BOLT, 5/16-18 x .5/8” Hex Flange Lock, Grade 5 (2) 23 9-1560 SCREW, 3/8-16 x 2-1/4” Hex Head Cap, Grade 5 (2) 24 9-1304 SCREW, 3/8-16 x 1”Hex Head Cap, Grade 5 (2) 25 9-1315 WASHER, 21/64” Split Lock (2) 26 9-1316 NUT, 1/2-13 Hex Grade 5 (2) 27 9-1527 SCREW, 5/16-18 x 1-1/4” Hex Head Cap, Grade 5 (2) 28 9-1587 WASHER, 17/32” Flat 29 9-1601 NUT 5/16-18 Hex Flange Lock, Grade 5 (6) 30 9-1908 SCREW, 5/16-18 x 1.3/4”, Grade 5 (4) 31 7-2093 WELDMENT, Carriage/Axle 32 7-2321 TUBE, Seat Extension 33 7-2646 DECAL, Warning 34 1-9293 NAMEPLATE, Snapper (not shown) 35 9-1585 NUT, 3/8-16 Hex Center Lock (Not shown in illustration) (2) 36 7-2536 DECAL, Snapper (not shown)
MANUAL No. 06929 COMMERCIAL WALK-BEHIND ACCESSORIES
17
SULKY, PRO 7
ITEM PART NO. DESCRIPTION
-- 6-1176 KIT, Sulky (Incl. 1 thru 47)
1 2-4353 ASSEMBLY, Wheel (incl. tire, rim, 2 ball bearings, air valve & grease fitting (2) 2 3-3516 TUBE, Seat Support 3 3-3604 BRACE, Draw Bar (2) 4 4-1308 WELDMENT, Seat Adjust 5 4-1329 WELDMENT, Channel Brace 6 5-2821 ASS’Y, Drawbar/Hitch (incl. items 7 thru 15) 7 1-4438 HOOK (5/16-18 thread) 8 2-4352 SPRING, 3/4” O. D. x 1-1/2”
9 3-3610 HITCH 10 3-3611 DRAWBAR 11 7-6979 NUT, 3/8-16 Hex Nyloc (2) 12 9-0188 WASHER, 5/16” Flat (11) 13 9-0517 WASHER, 3/8” Flat (2) 14 9-0629 BOLT, 3/8-16 x 2-1/4” (2) 15 9-0717 NUT, 5/16-18 Hex Nyloc (6) 16 5-2822 SEAT (with 1-9295 Decal) 17 5-2823 WELDMENT, Frame (with 7-7774 Decal) 18 1-3370 WASHER, 1” I. D. Flat 19 1-3492 WASHER, Special (8) 20 2-2960 SPACER, Seat (2) 21 2-3735 KNOB (5/16-18 thread) 22 2-4350 SPACER, Axle (2) 23 2-4351 PIN, 1/2 x 1-3/16” Clevis 24 2-4623 CHAIN, Hitch 25 3-3606 CLAMP 26 3-3607 HITCH, Bottom
MANUAL No. 06929 COMMERCIAL WALK-BEHIND ACCESSORIES
ITEM PART NO. DESCRIPTION
27 3-3608 HITCH, Top 28 3-3626 LEVER, Shift Sulky 29 3-3638 SADDLE 30 7-6526 GRIP, Adj. Lever 31 7-6934 SCREW, 5/16-18 x 3/4” Hex Head Cap, Grade 5 (6) 32 7-6938 SCREW, 5/16-18 x 2-1/4” Hex Head Cap, Grade 5 33 7-6979 NUT, 3/8-16 Hex Nyloc (5) 34 7-7780 PIN, Lynch 35 9-0187 WASHER, 5/16” Split Lock (7) 36 9-0250 WASHER, 1/2” Flat (2) 37 9-0297 PIN, 1/8 x 1-1/2” Cotter 38 9-0364 PIN, 5/32 x 1” Cotter (2) 39 9-0563 SCREW, 3/8-16 x 1” Hex Head Cap, Grade 5 (3) 40 9-0588 SCREW, 3/8-16 x 2” Hex Head Cap, Grade 5 (2) 41 9-0669 SCREW, 5/16-18 x 1-3/4”
Hex Head Cap, Grade 5 (2)
42 9-0930 BOLT, 5/16-18 x 2” Hex, Grade 5 43 9-0959 BOLT, 5/16-18 x 2-1/2” Sq. Neck Carriage, Grade 5 44 9-0975 NUT, 1/2-13 Hex Center Lock, Grade 5 or B (2) 45 9-1046 SCREW, 5/16-18 x 2-1/2” Hex Head Cap, Grade 5 46 9-1170 BOLT, 1/2-13 x 1-3/4” Bolt,
Grade 5
47 2-4354 INSTRUCTIONS
18
This kit will fit SNAPPER PRO 7 Gear and Hydro Walk-Behind mowers.
SULKY
10
15 16 28
20 17
25 26
11 12
4
ITEM PART NO. DESCRIPTION
-- 6-0848 KIT, Sulky (Includes 1 thru 28) 1 7-6926 SCREW, 5/16-18 x 1” Hex (2) 2 7-7768 WELDMENT, Hitch 3 7-7780 PIN, Lynch 4 9-0717 NUT, 5/16-18 Hex Nyloc (6) 5 7-7772 WELDMENT, Frame 6 7-7787 AXLE, Roller 7 9-0297 PIN, 1/8 x 1-1/2” Cotter 8 1-4661 ROLLER 9 9-0258 NUT, 1/2-13 Hex, Gr. 5 or B (2)
10 9-0254 WASHER, 1/2” Split Lock (3) 11 7-7778 PAD, Abrasive (2) 12 7-7777 FOOT REST (w/o pad) 13 9-0692 WASHER, 5/16” Flat (4) 14 7-6389 ASS’Y, Tire (incl. 16-20) (2)
MANUAL No. 06929 COMMERCIAL WALK-BEHIND ACCESSORIES
1
2
6
7
24
23
3
5
13
4
10
9
8
19
27
22
21
15
16
14
ITEM PART NO. DESCRIPTION
15 7-7000 CLAMP, Collar (4) 16 7-7312 BEARING, Flange (2) 17 7-7313 BEARING, Roller (2) 18 7-6998 FITTING, 1/4-28 Grease 19 7-7310 TIRE, 2 Ply Turfmaster 20 7-7311 ASS’Y, Rim (incl. air valve & grease fitting) 21 7-7776 AXLE, Main 22 7-6604 U-Bolt (5/16-18 threads) (2) 23 7-6596 STIFFENER 24 7-6929 SCREW, 1/2-13 x 2” Hex (2) 25 7-7774 DECAL, Warning 26 7-7775 SPRING, Seat (incl. item 25) 27 7-6928 SCREW, 1/2-13 x 1” Hex Head 28 7-7303 SEAT w/Decal
19
18
SULKY, RIDING
21 18 20 26 19 16 17 17 20 14 27
24 28 23
27 13 15 12 11
25
5
14
9
4
1
10
ITEM PART NO. DESCRIPTION
-- 6-0799 KIT, Sulky (Includes 1 thru 28)
(Was Kees #361700)
1 7-7302 FRAME (with decal) 2 7-6595 SPRING 3 7-6596 STIFFENER 4 7-6603 SHIM (2) 5 7-6929 SCREW, 1/2-13 x 2” Hex (2) 6 7-6928 SCREW, 1/2-13 x 1” Hex 7 9-0254 WASHER, 1/2” Split Lock (4) 8 9-0258 NUT, 1/2-13 Hex, Gr. 5 or B (3) 9 7-6224 CHAIN, #8 Sash (9” long)
10 7-6995 PIN, Quick Release Hitch 11 7-6999 SPLIT RING 12 7-6602 EYEBOLT, 1/2” Dia. Forged 13 7-6925 BOLT, 5/16-18 x 3/4” Hex (2) 14 9-0717 NUT, 5/16-18 Hex Nyloc (10)
MANUAL No. 06929 COMMERCIAL WALK-BEHIND ACCESSORIES
2
7
8
3
7
6
23
22
14
8
ITEM PART NO. DESCRIPTION
15 7-6413 HITCH 16 7-7313 BEARING, Roller (2) 17 7-7312 BEARING, Flange (2) 18 7-7310 TIRE, 2 Ply Turfmaster 19 7-7311 ASS’Y, Rim (incl. air valve & grease fitting) 20 7-7000 CLAMP, Collar (4) 21 7-7303 SEAT w/Decal 22 7-6607 AXLE 23 7-6604 U-Bolt (5/16-18 threads) (2) 24 7-6606 FOOT REST 25 7-6389 ASS’Y, Tire (includes items 16-19 & 26) (2) 26 7-6998 FITTING, 1/4-28 Grease 27 9-0692 WASHER, 5/16” Flat (8) 28 7-6996 GRIP, Foot Rest (2)
20
SULKY, RIDING
15 16
19 20
11 12
2
ITEM PART NO. DESCRIPTION
-- *Note 1 KIT, Sulky (Includes 1 thru 21)
(Was Kees #601700)
1 7-6998 FITTING, 1/4-28 Grease (2) 2 7-7312 BEARING, Flange (2) 3 7-7313 BEARING, Roller (2) 4 7-7435 TIRE, Straight Ribbed w/Rim 5 7-7607 PIN, Axle 6 7-6508 SPACER (2) 7 9-0297 PIN, 1/8 x 1-1/2” Cotter (2) 8 7-7435 ASSEMBLY, Tire (2) 9 7-7437 WELDMENT, Swivel
10 7-7000 7/8” CLAMP, Collar
MANUAL No. 06929 COMMERCIAL WALK-BEHIND ACCESSORIES
1
3
4
5
*NOTE1 : Although there is no Snapper Kit, individual parts may be ordered under the Snapper part numbers as shown in the above table.
2
8
2
1
9
6
7
21
10
18
21
17
6
12
14
13
ITEM PART NO. DESCRIPTION
11 7-6979 NUT, 3/8-16 Hex Nyloc (4) 12 7-7612 BRACKET, Hitch 13 9-0563 SCREW, 3/8-16 x 1” Hex Head
Cap, Grade 5 (4) 14 7-6967 PIN, 3/16” Dia. Lynch 15 7-7436 FRAME 16 7-7666 SCREW, 1/2-13 x 3/4” Hex 17 9-0254 WASHER, 1/2” Split Lock (4) 18 7-7303 SEAT w/Decal 19 7-7438 KIT, Arm 20 7-7620 PLUG, Square (2) 21 7-7221 BEARING, Roller (2)
