Parts Manual for
N
TWO STAGE
LARGE FRAME
SNOW THROWER
SERIES 6
MODELS
MODEL 11306
SHOW
8246
9266
9266E
E9266
11306
E11306
COPYRIGHT © 2002
SNAPPER INC.
ALL RIGHTS RESERVED
IT IS THE POLICY OF SNAPPER TO IMPROVE ITS PRODUCTS WHENEVER IT IS POSSIBLE
AND PRACTICAL TO DO SO. WE RESERVE THE RIGHT TO MAKE CHANGES OR ADD
IMPROVEMENTS AT ANY TIME WITHOUT INCURRING ANY OBLIGATION TO MAKE SUCH
CHANGES ON PRODUCTS MANUFACTURED PREVIOUSLY.
(Rev. 1, 6/30/02) MANUAL No. 06069
FAMILIARIZATION
BLOWER CLUTCH
Pages 16 - 19
LIGHTS
Pages 18 - 19
CHUTE CONTROL
Page 16 - 19
TRACTION CLUTCH
Pages 16 - 19
DISCHARGE CHUTE
Pages 4 & 5
DIRECTIONAL CONTROL
Pages 16 - 19
BLOWER HOUSING
Pages 6 & 7
DECALS
Pages 22 - 24
HANDLE BARS
Pages 16 - 19
CONTROL PANEL
Pages 16 - 19
ENGINE
Page 20
FRAME
Pages 12 & 13
AUGERS
Page 3
SCRAPERS
Pages 6 & 7
HARDWARE
BAG KITS
PAGE 25
GEAR BOX, SHAFTS
Pages 10 & 11
MODEL 11306 SHOWN
WHEELS
Page 21
TRACTION DRIVE
Pages 14 & 15
IMPELLER
Page 3
SKID SHOES
Pages 6 & 7
ACCESSORIES
PAGE 25 - 27
MANUAL No. 06069 LARGE FRAME SNOWTHROWER
2
RIGHT SIDE
GEARBOX, SHAFTS
(See Pages 10 – 11)
AUGERS, IMPELLER
LEFT SIDE
ITEM PART NO. DESCRIPTION
1 4-9928 AUGER, Right Side (Weldment) (8246 Models)
- 4-9935 AUGER, Right Side (Weldment) (9266E & E9266 Models)
- 4-9922 AUGER, Right Side (Weldment) (11306 & E11306 Models)
2 1-3864 FITTING, Grease (2)
3 9-1550 BOLT, 5/16-18 x 1-7/8" Shear (2)
4 9-1298 NUT, 5/16-18 Hex Nyloc (2)
5 4-9927 AUGER, Left Side (Weldment) (8246 Models)
- 4-9936 AUGER, Left Side (Weldment) (9266E & E9266 Models)
- 4-9921 AUGER, Left Side (Weldment) (11306 & E11306 Models)
6 4-9677 FAN, Impeller (Weldment)
7 1-3862 PIN, 1/4 x 1-1/2" Roll (2)
8 5-1350 ASSEMBLY, Bearing (Includes Item 11)
9 9-0699 BOLT, 1/4-20 x 3/4" Hex Flange Lock, Grade 5 (6)
10 9-1065 NUT, 1/4-20 Hex Flange Lock (6)
11 1-0817 FITTING, Grease (2)
12 2-8221 SPACER (Used on Model 8246 Models Only) (2)
LARGE FRAME SNOWTHROWER MANUAL No. 06069
3
DISCHARGE CHUTE
(
)
A
#10-32 HEX JAM NUTS and
#10 LARGE OUTSIDE DIAMETER
FLAT WASHERS
PART OF CONTROL CABLE
23
9
6
19
22
21
18
16
19
24
14
25
3
4
8
2
26
25
7
15
20
COLLECTOR HOUSING
17
13
14
10
11
6
5
5B
1
12
MANUAL No. 06069 LARGE FRAME SNOWTHROWER
4
DISCHARGE CHUTE
ITEM PART NO. DESCRIPTION
1 2-8208 CHUTE, Discharge
-- 2-8217 CHUTE, Remote Control Discharge (8246 Model Only)
2 2-4773 DECAL, Hand Danger
-- 7-4197 DECAL, Hand Danger (Euro)
3 2-8235 DEFLECTOR, Remote Control Discharge
-- 2-8184 DEFLECTOR (8246 Model Only)
4 2-8253 PIN, Hinge
5A 1-6324 T-KNOB (Plastic)
5B 3-5744 T-KNOB (w/5/16-18 insert)
6 9-1076 WASHER, 5/16 Flat (2)
7 9-1072 BOLT, 5/16-18 x 1” Square Neck Carriage, Grade 5
8 9-1021 SCREW, 5/16-24 x 3/4" Hex Head Cap, Grade 5 (3)
9 9-1074 NUT, 5/16-24 Hex Center Lock, Grade B
10 3-9765 RING, Chute (59 Tooth, 229 Degrees)
-- 4-7855 RING, Chute (Euro) (48 Tooth, 187 Degrees)
11 1-1938 RETAINER (Chute Ring to Housing) (2)
12 9-1077 BOLT, 5/16-18 x 5/8" Square Neck Carriage, Grade 5 (3)
13 9-1070 NUT, 5/16-18 Hex Flange Lock, Grade 5 (3)
14 9-1075 SCREW, #10-24 x 5/8" Hex Washer Self-Tap, Grade 5 (8)
15 9-1069 NUT, 5/16-18 Hex, Grade B or 5
16 3-2813 MOUNT, Cable
17 9-1064 BOLT, 1/4-20 x 1/2" Short Neck Carriage, Grade 5 (2)
18 9-1023 WASHER, 1/4” Internal Tooth Lock (2)
19 9-1100 NUT, 1/4-20 Hex (3)
20 4-5172 CABLE, Control
21 9-1099 NUT, 1/4-20 Hex Center Lock, Grade B or 5
22 9-1098 WASHER, 1/4 Flat (2)
23 2-3798 BOLT, 1/4-20 x 1-1/2" Eye
24 1-9692 WIRE, Safety
25 2-3673 PUSH-ON Fastener, 5/32” Dia. (2)
26 3-2559 RETAINER, Safety Wire (2)
LARGE FRAME SNOWTHROWER MANUAL No. 06069
5
COLLECTOR HOUSING
6
32
20
31
21
30
7
9
12
8
22
14
11
18
2
13
10
16
27
6
4
13
19
28
29
5
15
25
2
3
24
23
22
21
5
22
17
20
25
1
19
5
MANUAL No. 06069 LARGE FRAME SNOWTHROWER
6
COLLECTOR HOUSING
ITEM PART NO. DESCRIPTION
1 5-2134 ASSEMBLY, 24" Blower (8246 Models) (Includes 1-6578 Decal)
-- 5-2135 ASSEMBLY, 26" Blower (9266E & E9266 Models) (Incl. 1-6578 Decal)
-- 5-3421 ASSEMBLY, 30" Blower (11306 & E11306 Models) (Includes 2-6629 Decal)
2 3-3035 GUIDE, Cable (9266E, E9266, 11306 & E11306)
3 9-1021 SCREW, 5/16-24 x 3/4” Hex Head Cap, Grade 5
4 9-1074 NUT, 5/16-24 Hex Center Lock, Grade B
5 9-1070 NUT, 5/16-18 Hex Flange Lock, Grade 5 (9)
6 2-8280 DECAL, Danger Rotating Auger
-- 2-8711 DECAL, Foot Danger (Euro)
7 2-8281 DECAL, Heavy Duty Snow
8 3-4303 BRACKET, Worm Shaft Support
9 1-2117 BUSHING
10 1-4001 PIN, 1/8 x 3/4" Roll
11 2-8222 CONNECTOR
12 7-4311 SHAFT, Worm (3/8-16 threaded)
13 1-1724 WASHER, 13/32 Spring (2)
14 2-8348 WORM
15 9-0539 SCREW, 1/4-20 x 1/2” Hex Washer Self-Tap
16 9-0858 SCREW, 5/16-18 x 1/2" Hex Washer Self-Tap (2)
17 3-8009 BAR, Stiffener (11306 & E11306 Models Only)
18 9-1082 PIN, 3/32 x 3/4" Cotter
19 3-7982 SHOE, Skid (2)
20 9-0324 SCREW, 3/8-16 x 1" Hex Washer Self-Tap (2)
21 1-6360 WASHER, 3/8” Flat
22 9-0001 BOLT, 5/16-18 x 3/4" Short Neck Carriage, Grade 5 (11)
23 9-0731 BOLT, 5/16-18 x 1/2" Short Neck Carriage, Grade 5 (5)
24 3-6122 BLADE, Scraper (8246 Models)
-- 3-9770 BLADE, Scraper (9266E & E9266 Models)
-- 3-6006 BLADE, Scraper (11306 & E11306 Models)
25 9-1076 WASHER, 5/16 Flat
26 2-8177 BRACKET, Worm
27 4-2895 PLUG, 5/16” Dome (2)
-- 4-2894 PLUG, 3/16” Dome (2)
28 9-1514 WASHER, 3/8” Flat
29 9-1585 NUT, 3/8-16 Hex Center Lock, Grade 5 or B
30 3-7971 DRIFT CUTTER (2)
31 9-0187 WASHER, 5/16 Split Lock (4)
32 9-0196 NUT, 5/16-18 Hex (4)
LARGE FRAME SNOWTHROWER MANUAL No. 06069
7
BELTS, IDLER, DRIVE PLATE, SHEAVE
27
26
18
12
15
29
13
5
4
1
6
7
23
ENGINE PULLEY
(See Page 20)
10
8
3
2
11
10
25
9
14
17
IDLER
(See Page 20)
28
20
13
16
21
24
22
22
19
18
24
23
MANUAL No. 06069 LARGE FRAME SNOW THROWER
8
BELTS, IDLER, DRIVE PLATE, SHEAVE
ITEM PART NO. DESCRIPTION
1 5-3580 ASSEMBLY, Idler Arm (Includes Items 2 & 3)
2 9-1559 RIVET (2)
3 1-3859 PAD, Brake
4 1-3919 SPRING
5 9-0791 BOLT, 3/8-16 x 1-1/2" Square Neck Carriage, Grade 2
6 9-0122 WASHER, 3/8 Flat
7 1-3850 PULLEY, Idler
8 9-0499 NUT, 3/8-16 Hex Top Lock
9 9-1069 NUT, 5/16-18 Hex, Grade B or 5
10 1-6314 WASHER, 5/16 x 1-1/4" Flat
11 1-3849 SPACER
12 9-1072 BOLT, 5/16-18 x 1" Square Neck Carriage, Grade 5
13 1-3931 HOUSING, Bearing (2)
14 1-3924 BEARING (Includes Two #10-32 Socket Set Screws)
15 9-0001 BOLT, 5/16-18 x 3/4" Short Neck Carriage, Grade 5
16 9-1070 NUT, 5/16-18 Hex Flange Lock, Grade 5 (3)
17 1-3867 SHEAVE, Blower (Includes Two 5/16 Set Screws)
18 1-3937 V-BELT (4L, 38.5”), Blower (All Models with Briggs Engines)
-- 1-3939 V-BELT (4L, 36.5”), Blower (All Models with Tecumseh Engines)
19 1-0776 RING, 1/2 External Snap (Heavy Duty)
20 1-3861 KEY, #11 Woodruff
21 5-1358 PLATE, Drive (Includes Item 22)
22 1-4295 BEARING, Ball (2)
23 1-3936 V-BELT (3L, 37.75”), Traction (Models with Briggs Engines)
-- 2-9101 V-BELT (3L, 37.75”), Traction (Models with Tecumseh Engines)
24 1-4296 WASHER, 1/2 Shim (4) (Used with Item 21) (4)
25 9-0187 WASHER, 5/16 Split Lock
26 1-7734 COVER, Belt Guard
27 9-1122 SCREW, 1/4-20 x 1/2" Hex Washer Self-Tap
28 3-4302 WASHER, 3/4 x 1-1/8" Flat
29 1-1791 RETAINER, 5/16 Bolt
LARGE FRAME SNOWTHROWER MANUAL No. 06069
9
GEARBOX, SHAFTS
7
1
6
5
8
4
2
15
11
9
1
4
3
12
11
16
14
5
13
10
NOTE: USE 4 OZ. OF #2-9577
17
BENALENE 900 GREASE
FOR LUBRICATION.
18
19
20
21
MANUAL No. 06069 LARGE FRAME SNOW THROWER
10
GEARBOX, SHAFTS
ITEM PART NO. DESCRIPTION
1* 2-8220 SHAFT, Auger (8246 Models)
- 2-7621 SHAFT, Auger (9266E & E9266 Models)
- 2-9552 SHAFT, Auger (11306 & E11306 Models)
2 1-3857 KEY, 1/4 x 7/8" Woodruff
3 5-1305 GEAR, Worm
4 1-3855 WASHER, 1.0 x 1-1/2" Thrust (2)
5 1-3858 SEAL, 1-1/2” O.D. Oil (2)
6 1-8451 COVER, Gear Case
7 9-0290 SCREW, 1/4-20 x 3/4" Hex Washer Self-Tap (4)
8 1-3854 O-RING, Case Cover
9 1-9674 CASE, Gear
10 9-0815 SCREW, 3/8-16 x 1/2" Hex Washer Self-Tap
11 2-7630 SHAFT, Impeller
12 1-3313 BEARING, Impeller Shaft
13 1-3862 PIN, 1/4 x 1-1/2" Roll
14 1-3856 SPACER, Gear Bearing
15 1-3861 KEY, 3/16 x 7/8" Woodruff
16 2-7606 GEAR, Rolled Worm
17 1-0935 WASHER, 3/4 x 1-1/8" Thrust (2)
18 1-2252 BUSHING, Impeller Shaft
19 1-3853 O-RING, Case Cap
20 1-8450 CAP, Case
21 9-1075 SCREW, #10-24 x 5/8" Hex Washer Self-Tap (3)
*NOTE: The following assemblies are made
of items 1 through 21 above:
5-3426, 24” Gear Case Assembly
5-7305, 26” Gear Case Assembly
5-7304, 30” Gear Case Assembly
LARGE FRAME SNOWTHROWER MANUAL No. 06069
11
FRAME, TRACTION DRIVE
21
22
25
20
23
3
38
42
43
39
41
5
40
6
40
7
41
24
44
40
39
40
8
2
4
26
36
35
CLUTCH LEVER
(See Pages 16 – 19)
1
39
38
46
45
1 (Ref.)
19
19
10
18
2
9
27
28
14
15
29
13
37
44
44
11
16
17
30
1934
9
CHAIN CASE
(See Pages 14 & 15)
12
33
32
31
WHEELS
& HUBS
(Page 21)
MANUAL No. 06069 LARGE FRAME SNOW THROWER
12
FRAME, TRACTION DRIVE
ITEM PART NO. DESCRIPTION
1 1-9684 ROD, Activating
2 1-2117 BUSHING (2)
3 1-3887 ROD, Lower Shift
4 3-9768 COVER, Frame Back
5 3-7967 LEVER, Shift
6 1-3872 STUD, Shift Lever
7 3-2124 BELLCRANK, Traction
8 3-4306 FRAME (Order Items 9 & 10 W hen Replacing)
9 1-5363 BUSHING, Axle Shaft (2)
10 1-3874 BUSHING, Hex Shaft
11 1-0756 BEARING
12 3-2121 RETAINER, Bearing
13 3-9769 COVER, Frame Bottom
14 1-8460 GEAR, Axle Shaft
15 2-7610 SHAFT, Hex
16 1-0614 KEY, 1/8 x 5/8" Woodruff
17 1-3884 PINION, Hex Shaft
18 3-2120 BRACKET, Idler Mounting
19 2-9549 SHAFT, Axle
20 5-7276 BRACE, Frame (11306 & E11306 Models Only)
21 3-7965 BRACKET, Clutch
22 3-2130 BRACKET, Spring
23 1-2264 SPRING
24 2-1843 SHAFT, Cross
25 9-1082 PIN, 3/32 x 3/4" Cotter
26 1-3875 ROD, Push
27 1-3878 PIN, 3/16 x 1-1/4" Roll (2)
28 1-3861 KEY, 3/16 x 7/8" Woodruff
29 3-4302 WASHER, 3/4 x 1-1/8" Flat
30 9-1064 BOLT, 1/4-20 x 1/2" Short Neck Carriage, Grade 5 (2)
31 9-1065 NUT, 1/4-20 Hex Flange Lock
32 9-0858 SCREW, 5/16-18 x 1/2" Hex Washer Self-Tap (3)
33 1-1763 WASHER, 5/16 x 1" Flat
34 1-0690 WASHER, 5/8 Shim
35 9-0001 BOLT, 5/16-18 x 3/4" Short Neck Carriage, Grade 5 (3)
36 9-1612 BOLT, 5/16-18 x 1-1/2" Sqare Neck Carriage, Grade 5
37 1-1791 RETAINER, 5/16 Bolt (4)
38 9-0206 SCREW, 5/16-18 x 3/4" Hex Head Cap, Grade 2
39 9-1067 NUT, 5/16-18 Hex Center Lock, Grade B (3)
40 1-6314 WASHER, 5/16 x 1-1/4" Flat (4)
41 1-3849 SPACER, 5/16 x 5/8" (2)
42 9-1084 SCREW, 1/4-20 x 3/8" Hex Washer Self-Tap
43 9-1302 NUT, 3/8-16 Hex, Grade B or 5
44 9-0361 SCREW, 5/16-18 x 5/8" Hex Washer Self-Tap (20)
45 9-0362 SCREW, 1/4-20 x 5/8" Hex Washer Self-Tap (4)
46 3-4303 BRACKET, Worm Shaft
LARGE FRAME SNOWTHROWER MANUAL No. 06069
13
CHAIN CASE (TRACTION DRIVE)
1
CHAIN CASE ASSEMBLY
22
11
3
12
13
19
20
17
18
21
14
4
5
14
16
15
6
5
9
7
8
2
10
HEX SHAFT
(See Item #15, Pages 12- 13
NOTE: USE “00” GREASE
FOR LUBRICATION
MANUAL No. 06069 LARGE FRAME SNOW THROWER
8
7
14
CHAIN CASE (TRACTION DRIVE)
ITEM PART NO. DESCRIPTION
1 5-1269 ASSEMBLY, Chain Case (Includes Items 2 Thru 22)
2 3-3543 COVER, Sprocket
3 9-0913 SCREW, #10-24 x 1/2" Hex Washer Self-Tap (Torx)
4 2-8761 GASKET
5 1-0756 BEARING, Ball (2)
6 1-0940 ASSEMBLY, Shaft & Sprocket
7 1-3881 BUSHING (2)
8 1-3882 WASHER, Thrust (2)
9 1-0941 CHAIN
10 4-0465 ASSEMBLY, Hub & Sprocket
11 4-7776 CHASE, Sprocket
12 2-0908 ROLLER
13 1-0776 RING, 1/2” External Snap (Heavy Duty)
14 1-1121 WASHER, Belleville (3)
15 1-0614 KEY, 1/8 x 5/8" Woodruff
16 9-0356 NUT, 5/8-18 Hex Center Lock Jam
17 5-0614 ASSEMBLY, Drive Disc (Includes Items 18 Thru 22)
18 1-0765 DISC, Drive
19 9-0731 BOLT, 5/16-18 x 1/2" Short Neck Carriage, Grade 5 (3)
20 2-0911 HUB
21 9-0585 NUT, 5/16-18 Hex Flange Lock, Grade 5 (3)
22 1-1024 PLUG
LARGE FRAME SNOWTHROWER MANUAL No. 06069
15
HANDLES, CONTROLS (MODEL 8246)
3
2
22
18
17
21
29
4
30
13
24
29
6
16
27
2
1
30
5
31
14
15
19
6
18
27
SEE PAGE 17
18
36
35
9
26
10
20
7
25
23
34
12
11
28
8
32
* connects to item 3
on page 12.
*
MANUAL No. 06069 LARGE FRAME SNOW THROWER
16
HANDLES, CONTROLS (MODEL 8246)
5
18
39
38
ITEM PART NO. DESCRIPTION
1 7-4294 BAR, Right Side Handle
2 3-2921 BRACKET, Handle (2)
3 3-2908 HANDLE, Right Side
4 1-1870 GRIP, Handle (2)
5 2-8223 CABLE, Clutch (2) (Includes Chain & Spring)
6 9-1020 NUT, 1/4” Push (2)
7 9-1074 NUT, 5/16-24 Hex Center Lock, Grade B
8 7-4313 ROD, Lower Shift
9 1-6304 CONNECTOR (3/8-16 thread)
10 7-4312 ROD, Upper Shift
11 1-6334 KNOB, Shift Handle
12 4-0660 HANDLE, Shift (weldment)
13 3-7962 BRACKET, Shift Lever
14 7-4488 PANEL, Control
15 1-2117 BUSHING
16 7-4309 CRANK, Chute
17 1-3901 KNOB, Chute Crank
18 9-1067 NUT, 5/16-18 Hex Center Lock, Grade B (4)
19 2-8214 DECAL, Control- 8/24
20 7-4295 BAR, Left Side Handle
21 3-2907 HANDLE, Left Side
22 2-3933 SPRING, Shift Lever
23 9-1076 WASHER, 5/16 Flat
24 9-1065 NUT, 1/4-20 Hex Flange Lock (3)
25 9-0244 SCREW, 5/16-24 x 1-3/4" Hex Head Cap, Grade 2
26 9-1066 SCREW, 5/16-18 x 1-1/2" Hex Head Cap, Grade 5 (4)
27 9-0303 NUT, 1/4-28 Hex Top Lock (2)
28 9-1603 NUT, 1/4-20 Hex Nyloc
29 1-6297 PIN, 1/4 x 1-7/8" Clevis
30 9-1025 SCREW, 1/4-28 x 1-3/8" Hex Head Cap, Grade 5 (2)
31 9-1064 BOLT, 1/4-20 x 1/2" Short Neck Carriage, Grade 5 (3)
32 9-1071 NUT, 3/8-16 Hex, Grade B (2)
33 9-1070 NUT, 5/16-18 Hex Flange Lock, Grade 5 (4)
34 9-0041 PIN, 1/8 x 1" Cotter
35 9-0760 BOLT, 5/16-18 x 2”, Square Neck Carriage, Grade 5 (2)
36 7-4297 HANDLE BAR, Lower
37 9-1612 BOLT, 5/16-18 x 1-1/2”, Square Neck Carriage, Grade 5
38 1-3849 SPACER, 5/16” (4)
39 1-6314 WASHER, 5/16” Flat (3)
40 3-2910 LEVER, Clutch
(NOTE: See Pages 18 Thru 19 for Models 9266E, E9266, 11306 & E11306)
40
33
39
38
36
37
LARGE FRAME SNOWTHROWER MANUAL No. 06069
17
HANDLE, CONTROLS (9266E, E9266, 11306 & E11306 MODELS)
4
3
2
6
16
43
45
42
41
46
9
18
17
1
6
29
34
3
33
44
32
31
20
15
30
13
36
14
37
40
11
14
10
7
15
9
47
8
13
8
16
37
9
7
8
39
27
24
12
20
20
21
19
22
28
9
53
26
48
49
50
7
5
23
29
25
38
23
54
9
52
35
55
38
51
MANUAL No. 06069 LARGE FRAME SNOW THROWER
18
HANDLE, CONTROLS (9266E, E9266, 11306 & E11306 MODELS)
ITEM PART NO. DESCRIPTION
1 7-4294 BAR, Handle (Right Side)
2 7-4295 BAR, Handle (Left Side)
3 1-1870 GRIP, Handle (2)
4 3-2907 HANDLE, Left Side
5 7-4297 HANDLE BAR, Lower
6 1-6297 PIN, 1/4 x 1-7/8" Clevis (2)
7 1-6311 CABLE, Left Side Clutch
8 9-1066 SCREW, 5/16-18 x 1-1/2" Hex Head Cap, Grade 5 (4)
9 9-1067 NUT, 5/16-18 Hex Center Lock, Grade B (6)
10 7-4487 PANEL, Control
11 1-2117 BUSHING
12 9-0041 PIN, 1/8 x 1" Cotter
13 9-1025 SCREW, 1/4-28 x 1-3/8" Hex Head Cap, Grade 5 (2)
14 9-1020 NUT, 1/4” Push (2)
15 3-2921 BRACKET, Handle (2)
16 9-0303 NUT, 1/4-28 Hex Top Lock (2)
17 7-4309 CRANK, Chute
18 1-3901 KNOB, Chute Crank
19 9-0074 BOLT, 1/4-20 x 3/4" Short Neck Carriage, Grade 5 (2)
20 9-1065 NUT, 1/4-20 Hex Flange Lock (3)
21 1-5960 GUIDE, Cable
22 3-2651 BRACKET, Cable Guide Support
23 1-3849 SPACER, 5/16” (5)
24 9-1085 BOLT, #10-24 x 1/2" Flat Head Carriage (2)
25 3-2910 LEVER, Clutch
26 9-0548 SCREW, 1/4-20 x 1" Hex Head Cap, Grade 5
27 9-0623 NUT, #10-24 Hex Flange Lock (2)
28 3-8352 BRACKET, Cam
29 1-6310 CABLE, Auger (Right Side)
30 1-5966 SPRING Cam Lock
31 1-5969 SPACER
32 1-8980 LOCK, Cam
33 9-0055 WASHER, 1/4” Flat
34 9-1099 NUT, 1/4-20 Hex Center Lock, Grade B or 5
35 1-6314 WASHER, 5/16 x 1-1/4" Flat (3)
36 3-2908 HANDLE, Right Side
37 9-1064 BOLT, 1/4-20 x 1/2" Short Neck Carriage, Grade 5 (4)
38 9-1070 NUT, 5/16-18 Hex Flange Lock, Grade 5 (4)
39 ----- DECAL, Instruction (see decal pages)
40 1-6334 KNOB, Shift Handle
41 4-0660 WELDMENT, Shift Handle
42 3-7962 BRACKET, Shift Lever
. 43 9-1074 NUT, 5/16-24 Hex Center Lock, Grade B
44 9-1076 WASHER, 5/16” Flat
45 2-3933 SPRING
46 9-0244 SCREW, 5/16-24 x 1-3/4" Hex Head Cap, Grade 5
47 6-1191 KIT, Light Assembly (Rectangular) (2)
48 9-0760 BOLT, 5/16-18 x 2”, Square Neck Carriage, Grade 5 (2)
49 9-1612 BOLT, 5/16-18 x 1-1/2” Square Neck Carriage, Grade 5
50 7-4312 ROD, Upper Shift
51 1-6304 NUT, 3/8-16 x 1-13/16 Connector
52 9-1071 NUT, 3/8-16 Hex, Grade B
53 9-1149 WASHER, 3/8 Flat
54 9-1603 NUT, 1/4-20 Hex Nyloc
55 7-4313 ROD, Lower Shift
NOTE: See Pages 16 Thru 17
For Models 8246.
LARGE FRAME SNOWTHROWER MANUAL No. 06069
19
ENGINES, PULLEY, IDLER
3
9
20
4
10
10
17
5
14
15
16
ENGINE SPECS used on:
8 HP Tecumseh
Model HMSK80
Type 155527W.......8246
9 HP Tecumseh
Model HMSK90
Type 156538E........9266
Type 156519E........E9266
11 HP Tecumseh
Model OHSK110
Type 221721C.......11306 &
E11306
13
18
1
12
19
8
11
7
2
6
ITEM P/N DESCRIPTION
1 3-8545 GUARD, Engine
2 3-2128 ARM, Idler
3 1-7734 COVER, Belt
4 9-0196 NUT, 5/16-18 Hex, Grade B or 5 (4)
5 1-0210 KEY, 1/4 x 2" Square
6 1-3850 IDLER
7 2-8212 SPRING, Idler
8 3-2150 FINGER, Belt
9 9-1122 SCREW, 1/4-20 x 1/2" Hex Washer Self-Tap (2)
10 9-0954 SCREW, 5/16-18 x 5/16" Socket Head Set (4)
11 9-0791 BOLT, 3/8-16 x 1-1/2" Square Neck Carriage, Grade 2
12 9-1076 WASHER, 5/16 Flat (5)
13 1-3849 SPACER
14 1-6314 WASHER, 3/8 Flat
15 9-1273 SCREW, 5/16-24 x 7/8" Hex Head Cap, Grade 5
16 9-0499 NUT, 3/8-16 Hex Top Lock
17 1-5376 PULLEY, Blower
18 1-5377 PULLEY, Traction
19 9-1021 SCREW, 5/16-24 x 3/4" Hex Head Cap, Grade 5
20 1-5368 CORD, 10’ Extension for 110V (9266E Model
Only)(Tecumseh Part Number 1A174-17)
-- 7-2611 CORD, 8’ Extension for 230V
21 9-1076 WASHER, 5/16 Flat (4)
22 9-0187 WASHER, 5/16 Split Lock (4)
23 2-8747 MUFFLER GUARD, Tecumseh 8 & 10 HP (not shown)
(Tecumseh Part Number 127-20)
22
21
MANUAL No. 06069 LARGE FRAME SNOW THROWER
20

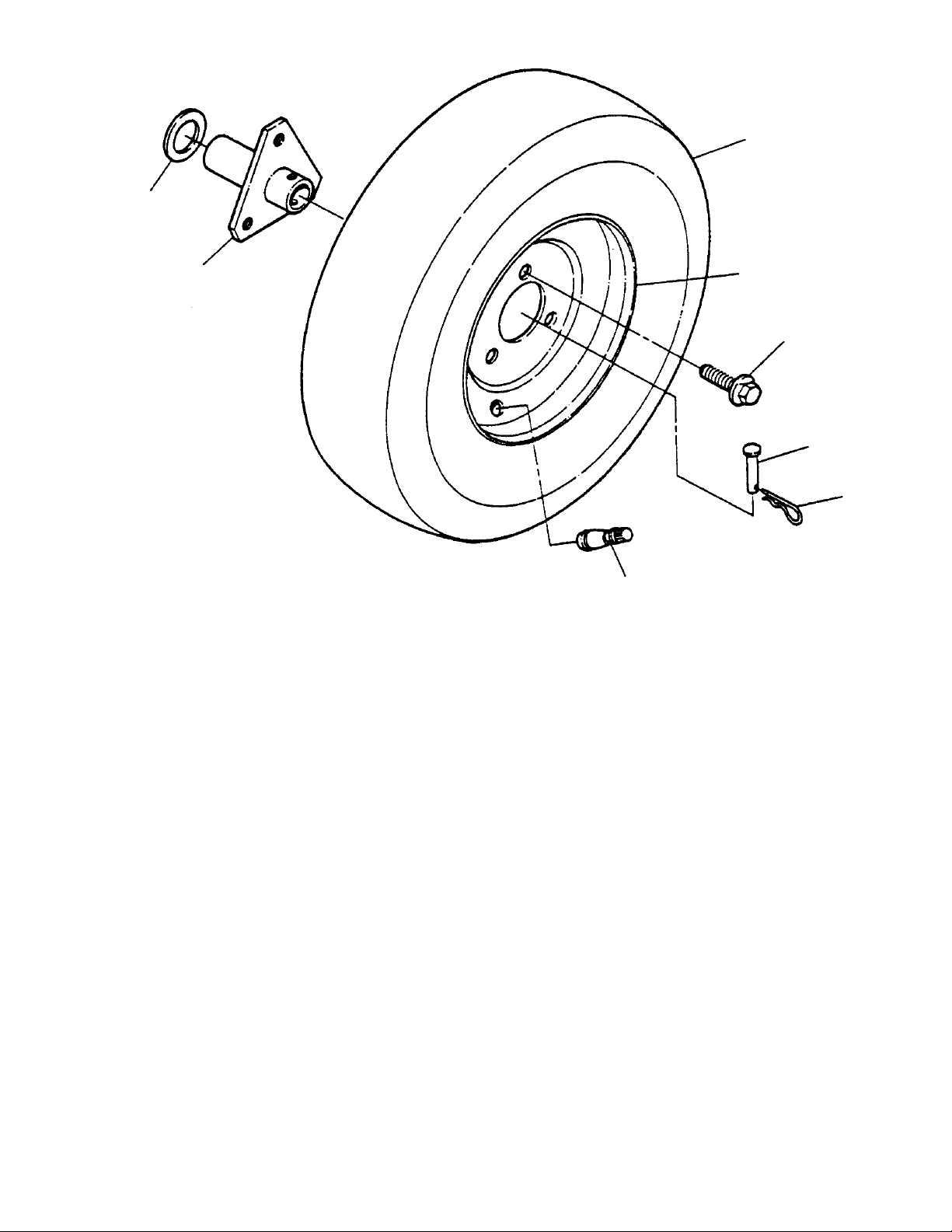

WHEELS, HUB
2
6
5
3
4
ITEM PART NO. DESCRIPTION
1 5-1803 ASSEMBLY, Wheel & Tire (Snow Hog) (8246, 9266E, & E9266 Models)
(Includes Items 2A, 3A, & 4)
- 5-1871 ASSEMBLY, Wheel & Tire (Snow Hog) (11306 & E110306 Models)
(Includes Items 2B, 3B, & 4)
2A 2-3495 TIRE, 16 x 4.80 x 8 (Snow Hog)
2B 2-3672 TIRE, 16 x 6.50 x 8 (Snow Hog)
7
8
9
3A 1-2162 RIM
3B 1-2163 RIM
4 1-2234 VALVE, Snap-In
5 4-0464 HUB, Wheel (weldment) (2)
6 1-0935 WASHER, 3/4 x 1-1/8" Thrust
7 9-1502 BOLT, 1/2-20 x 3/4" Hex Head Lug (Nyloc) Grade 5 (6)
8 1-2407 PIN, 5/16 x 1-11/16" Clevis (2)
9 1-5067 PIN, 3/32 x 1-1/2" Hair (2)
LARGE FRAME SNOWTHROWER MANUAL No. 06069
21
DECALS
1
2
3
4
5
7
ITEM PART NO. DESCRIPTION
1 2-9776 DECAL, European Community (CE)
2 7-4548 DECAL, 2002 Year of Manufacture
3 2-8280 DECAL, Foot Danger/Blank
6
4 2-6629 DECAL, Foot Danger/Blank
5 7-4197 DECAL, Chute/Euro
6 2-7733 DECAL, Ear Protection
7 2-4773 DECAL, Hand Danger
MANUAL No. 06069 LARGE FRAME SNOW THROWER
22
DECALS
(Continued)
8
9
13
10
11
12
14
ITEM PART NO. DESCRIPTION
8 2-8281 DECAL, Heavy Duty Snow
9 2-8711 DECAL, Foot Danger (Euro)
10 2-8700 DECAL, Chute/Read Manual (Euro)
11 7-4329 DECAL, Sound 110
12 2-8744 DECAL, Turn To Lock
13 7-3342 DECAL, OPEI Snow
14 1-6134 DECAL, Caution Tag
LARGE FRAME SNOWTHROWER MANUAL No.06069
23
DECALS
(Continued)
16
20
MANUAL No. 06069 LARGE FRAME SNOW THROWER
ITEM PART NO. DESCRIPTION
15 2-8214 DECAL, Control- 8/24 (not shown)
16 4-5177 DECAL, Control- 9/26
17 4-5183 DECAL, Control- E9/26 (not shown)
18 7-3483 DECAL, Control- 11/30 (not shown)
19 7-3482 DECAL, Control- E11/30 (not shown)
20 7-3844 DECAL, Fuel Safety
24
HARDWARE BAG KIT #6-3192 (for Model 8246)
PART NO. DESCRIPTION
9-0717 NUT, 5/16-18 Hex Nyloc (2)
9-1603 NUT, 1/4-20 Hex Nyloc
9-0760 BOLT, 5/16-18 x 2" Square Neck Carriage (2)
9-1298 NUT, 5/16-18 Hex Nyloc (2)
9-1082 PIN, 3/32 x 3/4” Cotter (2)
9-1550 BOLT, 5/16-18 x 1-7/8" Shear (2)
HARDWARE BAG KIT #6-3191
(for Models: 9266E, E9266, 11306, E11306
PART NO. DESCRIPTION
9-0717 NUT, 5/16-18 Hex Nyloc (2)
1-2080 CABLE TIE, 7” (2)
9-1603 NUT, 1/4-20 Hex Nyloc
9-0760 BOLT, 5/16-18 x 2” Square Neck Carriage (2)
9-1298 NUT, 5/16-18 Hex Nyloc (2)
9-0001 BOLT, 5/16-18 x 3/4" Short Neck Carriage (2)
9-0187 WASHER, 5/16 Split Lock (2)
9-0196 NUT, 5/16-18 Hex (2)
9-1082 PIN, 3/32 x 3/4” Cotter (2)
9-1550 BOLT, 5/16-18 x 1-7/8" Shear (2)
ACCESSORIES
MANUAL No. 06069 LARGE FRAME SNOWTHROWER
25
ACCESSORIES (continued)
*9-0196 HEX NUT (2)
*9-0187 LOCK WASHER (2)
DRIFT CUTTER KIT #6-0472
3-7971 DRIFT CUTTER
*9-0001 CARRIAGE
BOLT (2)
*INCLUDED IN 6-0502 HARDWARE
BAG (PART OF THIS KIT)
TIRE CHAIN KITS FOR SNOW HOG TIRES
MODELS
8246,
9266E & E9266
MODELS
11306 & E11306
TIRE SIZE
16-4.80 x 8
TIRE SIZE
16-6.50 x 8
KIT NO.
6-0911*
KIT NO.
6-0927*
*Each Kit Includes
Two (2) Chains
LARGE FRAME SNOWTHROWER MANUAL No.06069
26
ACCESSORIES (Continued)
ELECTRIC START KITS
6-0759, KIT, 120 Volt Electric Start for Tecumseh HMSK 8 & 10 HP Engines
(Tecumseh Kit No. 179-84C) (Includes Snapper Kit 1-5380, Tecumseh Kit No. 179-84E)
For use on USA Models 8246, 9266E and 11306
6-3109, KIT, 230 Volt Electric Start for Tecumseh HMSK 8, 9 & 10 HP Engines
Includes 7-2610, Electric Starter Kit (Tecumseh No. 179-160) and
7-2611, 8’ Extension Cord
For use on Euro Models: E9266 & E11306
LIGHT KIT
6-1191, KIT, Light (for engines built with 18 watt internal alternator)
For use on Models 8246, 9266E, E9266, 11306 and E11306)
SINGLE HANDLE CONTROL KIT
6-0991, KIT, Single Handle Control Retro-Fit
Fits Large Frame Snow Throwers After Models 8242, 8262 & 10302
REMOTE DEFLECTOR CONTROL KIT
6-1014, KIT, Remote Deflector Control
ACCESSORY LUBRICATION
Part No. 2-9577 GREASE, Benalene 900
MANUAL No. 06069 LARGE FRAME SNOWTHROWER
27
Parts Manual for
TWO STAGE
LARGE FRAME
SNOW THROWER
SERIES 6
MODELS
8246
9266
9266E
E9266
IT IS THE POLICY OF SNAPPER TO IMPROVE ITS PRODUCTS WHENEVER IT IS POSSIBLE
AND PRACTICAL TO DO SO. WE RESERVE THE RIGHT TO MAKE CHANGES OR ADD
IMPROVEMENTS AT ANY TIME WITHOUT INCURRING ANY OBLIGATION TO MAKE SUCH
CHANGES ON PRODUCTS MANUFACTURED PREVIOUSLY.
11306
E11306
COPYRIGHT © 2002
SNAPPER INC.
ALL RIGHTS RESERVED
MANUAL No. 06069 (Rev. 1, 6/30/02) Printed in U.S.A.
28
Loading...
