Snapper 7800979 User Manual

Parts ManualParts ManualParts ManualParts Manual

Mfg. No: 7800979-00

2185020, 21" 8.75 GTP HV Steel Deck

Copyright © Briggs and Stratton. All Rights reserved

11-Mar-2019

Attachments and AccessoriesAttachments and AccessoriesAttachments and AccessoriesAttachments and Accessories

7061201 - 21" Recycling Steel Deck Plug Kit. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

7061200 - 21" Recycling Steel Deck Cover Kit. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Not For

Reproduction

Copyright © Briggs and Stratton. All Rights reserved

2 11-Mar-2019

Table Of ContentsTable Of ContentsTable Of ContentsTable Of Contents

Model ComponentsModel ComponentsModel ComponentsModel Components PagePagePagePage

Bag, Discharge & Mulch Group. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Decals. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Engine Group. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Handle Group. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Wheel Group. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Torque Specification Chart. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Not For

Reproduction

Copyright © Briggs and Stratton. All Rights reserved

3 11-Mar-2019

Bag, Discharge & Mulch GroupBag, Discharge & Mulch GroupBag, Discharge & Mulch GroupBag, Discharge & Mulch Group

Mfg. No: 7800979-00Note: Unless noted otherwise, use the standard torque specifications

Not For

Reproduction

Copyright © Briggs and Stratton. All Rights reserved

4 11-Mar-2019

Bag, Discharge & Mulch GroupBag, Discharge & Mulch GroupBag, Discharge & Mulch GroupBag, Discharge & Mulch Group

REF NOREF NOREF NOREF NO PART NOPART NOPART NOPART NO QTYQTYQTYQTY DESCRIPTIONDESCRIPTIONDESCRIPTIONDESCRIPTION
0010 7600117YP 1 KIT, Bag Adapter Assembly, W/pulley (Includes items 6 - 13)

0010-10 ----- 1 USE 7600117, Bag Adapter
0010-20 704032 3 RIVET, 3/16 x .344, Truss HD, ZC/CL
0010-30 7024228SM 1 PULLEY, Nylon, .75 ID, 1.3 OD
0010-40 703973 1 BUSHING, Flanged, .381 x .625 x .62, Metal, CZ/CL
0010-50 7047082AYP 1 BRACKET, Rope Pulley
0010-60 703942 3 WASHER, 5/32 Flat, ZC/CL
0010-70 703409 1 NUT, Serrated Lock Flange, 5/16-18
0010-80 703570 1 CAPSCREW, Hex Head, 5/16-18 x 1 1/4
0030 703936 2 WASHER, .325 ID X .850 OD X .041 Thk, Internal External Lock, Type A, ZC/CL
0040 7101022YP 2 KNOB, Fluted (5/16-18 thread) on side chute
0060 7500153YP 1 ASSEMBLY, Grass Bag, Door, No Graphics, 12.5" W, 26.5" L
0060-10 7042489AYP 1 WELDMENT, Bag Connector
0060-20 7051906AYP 1 ASSEMBLY, Bag Wire, 12.25" Wide
0060-30 7100433YP 1 GRASS BAG, Door, No Graphics, 12.5" W, 26.5" L
0070 7016814YP 1 PLUG, Chute Adapter Mulching
0080 7029149YP 1 COVER, Mulching, 21" Deck
0090 7042965YP 1 CHUTE, 21" Side Discharge

Not For

Reproduction

Copyright © Briggs and Stratton. All Rights reserved

5 11-Mar-2019

DecalsDecalsDecalsDecals

Mfg. No: 7800979-00Note: Unless noted otherwise, use the standard torque specifications

Not For

Reproduction

Copyright © Briggs and Stratton. All Rights reserved

6 11-Mar-2019

DecalsDecalsDecalsDecals

REF NOREF NOREF NOREF NO PART NOPART NOPART NOPART NO QTYQTYQTYQTY DESCRIPTIONDESCRIPTIONDESCRIPTIONDESCRIPTION
0010 7102996YP 1 DECAL, Compliance, ICES

0030 7104148YP 1 DECAL, Logo, SNAPPER 7.88”
0040 7075532YP 1 DECAL, Throttle Control, B&S
0510 7029782MA 1 DECAL, OPC Bail, INT'L Symbol
0600 7106353YP 1 DECAL, Sheet, WBM Compliance
0600-10 7105261YP 1 DECAL, FR/ENG, CPSC
0600-20 ----- 1 DECAL, Warning/Danger, ENG/FRENCH

-(Included on Decal Sheet #7106353YP)

0600-40 ----- 1 DECAL, Spark Arrestor, ENG/FRENCH

-(Included on Decal Sheet #7106353YP)

0600-50 ----- 1 DECAL, Danger, English

-(Included on Decal Sheet #7106353YP)

0600-60 ----- 1 DECAL, Danger, French

-(Included on Decal Sheet #7106353YP)
0610 7106322YP 1 DECAL, HI-VAC
0620 709542 1 DECAL, Turtle, 8.5TP
0620 7106319YP 1 DECAL, TURTLE, 8.75TP

Not For

Reproduction

Copyright © Briggs and Stratton. All Rights reserved

7 11-Mar-2019

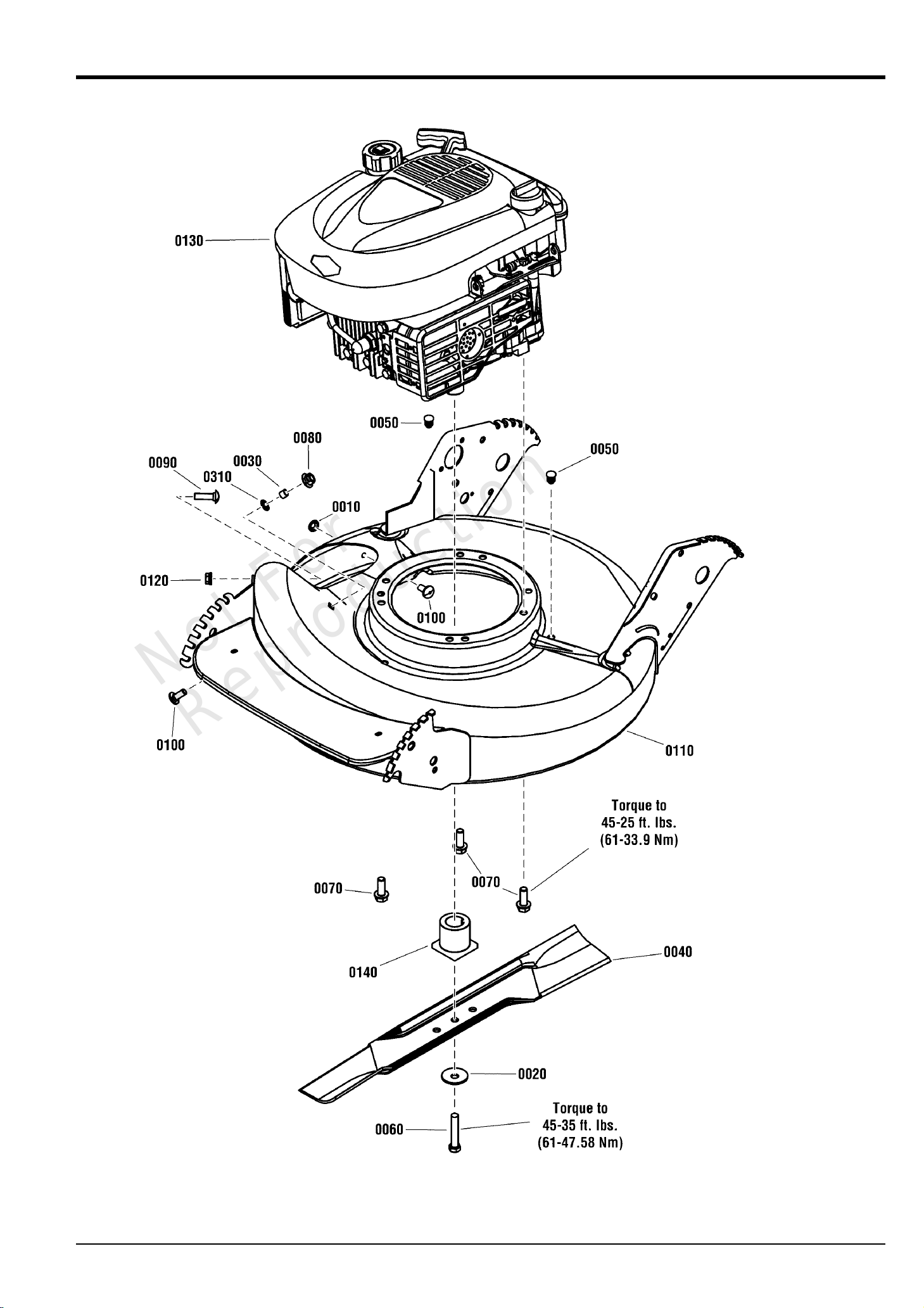

Engine GroupEngine GroupEngine GroupEngine Group

Mfg. No: 7800979-00Note: Unless noted otherwise, use the standard torque specifications

Not For

Reproduction

Copyright © Briggs and Stratton. All Rights reserved

8 11-Mar-2019

Engine GroupEngine GroupEngine GroupEngine Group

REF NOREF NOREF NOREF NO PART NOPART NOPART NOPART NO QTYQTYQTYQTY DESCRIPTIONDESCRIPTIONDESCRIPTIONDESCRIPTION
0010 703297 1 RETAINER, 5/16 X .625, Push Nut, GR 5, Zinc/Clear

0020 703963 1 WASHER, 13/32x1-13/32” Dia. Cone
0030 7024340SM 1 SPACER, .316 I.D. x .375 O.D. x .310 thick
0040 7026691BZYP 1 BLADE, 21” L, .97” Standard Lift
0050 7046780SM 2 PLUG, Hole, .44” OD
0060 703999 1 SCREW, 3/8-24 X 2, Hex Head Cap, GR5
0070 704000 3 SCREW, 3/8-16 X 1.0, Hex Washer Self-Tap, ZC/CL
0080 704001 1 NUT, 5/16-18 Large Flange Center Lock, ZC/CL
0090 704002 1 BOLT, 5/16-18 X 1.125, Carriage, ZC/CL
0100 703185 2 BOLT, Carriage, 5/16-18 X 3/4
0110 7500549DYP 1 KIT, Deck Weldment, 21”, Part Sales, HV, SP, ES (red, w/decals)
0120 690272MA 1 NUT, 5/16-18, Serated Lock Flange, GR5, Zinc/Clear
0130 ----- 1 * ENGINE, B&S 8.75 GT, PRO Model 121S02-0066-F1

-(Used on 7980946-02)
0130 121Q02-0028-F1 1 * ENGINE, B&S 8.5 GT, PRO Model 121Q02-0028-F1

-(Used on 7980079-00)
0140 7015626YP 1 HUB, Blade Drive, .25MM ID
0310 704015 1 WASHER, Flat, 5/16

Not ForNot ForNot ForNot For

ReproductionReproductionReproductionReproduction

Footnotes:Footnotes:Footnotes:Footnotes:

NOTE: * Purchase engine & engine parts from engine service outlets.

Copyright © Briggs and Stratton. All Rights reserved

9 11-Mar-2019

Handle GroupHandle GroupHandle GroupHandle Group

Mfg. No: 7800979-00Note: Unless noted otherwise, use the standard torque specifications

Not For

Reproduction

Copyright © Briggs and Stratton. All Rights reserved

10 11-Mar-2019

Handle GroupHandle GroupHandle GroupHandle Group

REF NOREF NOREF NOREF NO PART NOPART NOPART NOPART NO QTYQTYQTYQTY DESCRIPTIONDESCRIPTIONDESCRIPTIONDESCRIPTION
0010 7028488MA 1 GUIDE, 1/4-20, Rope, CL/ZC

0020 690798 1 CLAMP, Casing
0030 704324 1 SCREW, #10-32 X .615, Hex Head Cap Slotted, Zinc/Clear
0040 703232 1 NUT, 1/4-20, Nylock, GR A, Zinc/Clear
0050 703234 2 SCREW, 1/4-20 X 1.5, Hex Head Cap, GR5, ZC/CL
0060 703462 3 WASHER, 1/4 Internal Tooth Lock, YZ
0070 703587 4 WASHER, 5/16, Internal Lock, Zinc/Clear
0080 703588 1 SCREW, 1/4-20 X 1.75, GR 5 Zinc/Clear
0090 7074003YP 1 BRACKET, Shift, Black Zinc
0100 703589 1 SCREW, 3/8-16 x 2, Hex Head Cap, GR5, Zinc/Clear
0110 703347 1 NUT, 3/8-16, Hex Center-Lock, GR B, Zinc/Clear
0120 7023810YP 1 FOAM GRIP, 18.75”
0130 7105085YP 4 KNOB, 5/16-18, Handle, Fluted 5 Prong, Black
0140 7033985AYP 1 HANDLE, Lower, ADJ, LH
0150 7033986AYP 1 HANDLE, Lower, ADJ, RH
0170 703409 4 NUT, Serrated Lock Flange, 5/16-18
0180 7106258AYP 1 HANDLE, Upper, 17.53” Wide, Black
0180-70 703127 3 NUT, 1/4-20, G5 Zinc/Clear
0180-190 7106255AYP 1 BAIL, OPC, Over-the-Top, Black
0190 7106232AYP 1 HANDLE, Middle, Black
0190-10 7024641YP 5 WIRE TIE, 5.5” L
0190-50 7102594YP 1 CONTROL, Throttle, W14, 63.12” L
0190-020 7075308YP 1 KNOB, Throttle, Red
0190-050 703961 4 SCREW, 1/4-20 X .550, T-30 Pan Head Torx, Self-Tapping, Zinc/Clear
0190-100 703059 4 BOLT, 5/16-18 X 2.00 Conical Head, SN ZC/CL
0190-140 7106280YP 1 CONTROL PANEL, Push W/Throttle
0190-150 7106257YP 1 CABLE, OPC, 50.56” Long, Z Ends, Snap-in, for Over-the-Top Bail
0190-180 703354 4 SCREW, Flange, Whiz-Lock, 5/16-18 X 3/4

Not For

Reproduction

Copyright © Briggs and Stratton. All Rights reserved

11 11-Mar-2019

Wheel GroupWheel GroupWheel GroupWheel Group

Mfg. No: 7800979-00Note: Unless noted otherwise, use the standard torque specifications

Not For

Reproduction

Copyright © Briggs and Stratton. All Rights reserved

12 11-Mar-2019

Wheel GroupWheel GroupWheel GroupWheel Group

REF NOREF NOREF NOREF NO PART NOPART NOPART NOPART NO QTYQTYQTYQTY DESCRIPTIONDESCRIPTIONDESCRIPTIONDESCRIPTION
0010 703966 4 WASHER, 1 OD x .387 ID, Flat

0020 7600180YP 1 KIT, Front Wheel Arm Assembly, RH
0020-10 703297 4 RETAINER, 5/16 X .625, Push Nut, GR 5, Zinc/Clear
0020-20 7012325YP 2 LATCH, Height
0020-30 703839 2 BOLT, 5/16-18 X .750, Hex Washer Head Shoulder, Zinc/Clear
0020-40 7103793YP 4 GRIP, Height Latch, Black
0020-50 7031017YP 1 WHEEL ARM, Front, Round Hole, RH, Clear
0030 7054228YP 1 ASSEMBLY, Wheel Arm, Right Rear (Round hole) (Push)
0030-10 703840 2 BOLT, 5/16-18 X 1.0, Hex Washer Head .435 Dia. Shoulder, ZC/CL
0030-40 7033776YP 1 WHEEL ARM, Rear R.H. Push Models (round hole) Zinc/Clear
0030-50 7035717YP 2 LATCH, Height Adjusting, (long)
0040 703347 4 NUT, 3/8-16, Hex Center-Lock, GR B, Zinc/Clear
0050 703409 4 NUT, Serrated Lock Flange, 5/16-18
0060 703835 4 WASHER, Shim, .875 x .531 x .060
0070 7100752YP 2 AXLE, Easy Line (20.44” L, 3/8-16 Threads)
0080 7600183YP 1 ASSEMBLY, Front Left Wheel Arm (.512 Square Hole)
0080-50 7011393YP 1 WHEEL ARM, L.H. Front (.512 Square Hole) CZ/CL
0090 7503281 2 ASSEMBLY, Wheel, 10 x 2 Push, BB, Snapper Tread Charcoal Gray
0100 7503282 2 ASSEMBLY, Wheel, 8 X 2 Push w/Bearings, Gray
0100-10 7101380YP 8 BALL BEARING, Flange, 1-1/8 O.D. (Not Shown)
0110 7106302YP 4 HUBCAP, Round, 1.7” OD, Gray
0120 7600175YP 1 KIT, Wheel Arm Assembly, Left Rear Long (Push)
0120-50 7102587YP 1 WHEEL ARM, Rear, LH, Clear Zinc
0130-10 709674 1 SHIELD
0130-20 709675 1 SHIELD, Rubber
0130-30 703978 5 BOLT, 1/4-20 X 1/2, Carriage, GR5 YZ
0130-40 703332 5 WASHER, Flat, 1/4
0130-50 703251 7 NUT, 1/4-20, GR5, Hex Center Lock, Zinc/Clear
0140 703820 2 SCREW, 1/4-20 X 1.0, GR5, YZ, Hex Head Cap

Not For

Reproduction

Copyright © Briggs and Stratton. All Rights reserved

13 11-Mar-2019

in/lbs

ft/lbs

3

Torque Specification Chart

FOR STANDARD METRIC MACHINE HARDWARE (Tolerance ± 20%)

Property
Class

Class 8.8

Class 10.9

Class 12.9

Size Of
Hardware

Nm. Nm. Nm.

Nm.

M3 1.28

2.90

5.75

9.9

16.5
24
48
83

132
200
275
390
530
375

995
1350
1830
2360
3050

13.44 1.80

4.10

8.10
14
23
34

67
117
185
285
390
550
745
960

1400
1900
2580
3310
4290

19.2 22.92 2.15

M4 30.72 43.44 52.56 4.95
M5 60.96 5.97 7.15

16.5

9.7

M6 7.3 10.3 12.1
M7 12.1 16.9 19.9

27

M8 17.7

25

29

40

M10 35 50

59

81

M12 61 86.2 103 140
M14

101

136 162 220

M16 147 210 250 340
M18 202 287 346 470
M20 290 405 486 660
M22 390 559 656 890
M24 497

708

840 1140

M27 733 1032 1239 1680
M30 995 1401 1681 2280
M33

1349

1902 2278 3090

M36 1740 2441

3798

2935 3980

M39 2249 3163

Torque Specification Chart

FOR STANDARD MACHINE HARDWARE (Tolerance ± 20%)

Hardware
Grade

SAE Grade 2 SAE Grade 5 SAE Grade 8

Size Of

in/lbs

ft/lbs

in/lbs

ft/lbs

in/lbs

ft/lbs

in/lbs in/lbs

Hardware ft/lbs Nm. ft/lbs Nm. ft/lbs Nm.

8-32 19 2.1 30 3.4 41 4.6
8-36 20 2.3 31 3.5 43 4.9
10-24 27 3.1 43 4.9 60 6.8
10-32 31 3.5 49 5.5 68 7.7
1/4-20 66 7.6 8 10.9 12 16.3
1/4-28 76 8.6 10 13.6 14 19.0
5/16-18 11 15.0 17 23.1 25 34.0
5/16-24 12 16.3 19 25.8 29 34.0
3/8-16 20 27.2 30 40.8 45 61.2
3/8-24 23 31.3 35 47.6 50 68.0
7/16-14 30 40.8 50 68.0 70 95.2
7/16-20 35 47.6 55 74.8 80 108.8
1/2-13 50 68.0 75 102.0 110 149.6
1/2-20 55 74.8 90 122.4 120 163.2
9/16-12 65 88.4

110 149.6 150 204.0
9/16-18 75 102.0 120 163.2 170 231.2
5/8-11 90 122.4 150 204.0 220 299.2
5/8-18 100 136 180 244.8 240 326.4
3/4-10 160 217.6 260 353.6 386 525.0
3/4-16 180 244.8 300 408.0 420 571.2
7/8-9 140 190.4 400 544.0 600 816.0
7/8-14 155 210.8 440 598.4 660 897.6
1-8 220 299.2 580 788.8 900 1,244.0
1-12 240 326.4 640 870.4 1,000 1,360.0

Hex Head Capscrew

Hex Nut

Lockwasher

Washer

Carriage Bolt

NOTES

1. These torque values are to be used for all hardware
excluding: locknuts, self-tapping screws, thread forming
screws, sheet metal screws and socket head setscrews.

2. Recommended seating torque values for locknuts:

a. for prevailing torque locknuts - use 65% of grade 5

torques.

b. for flange whizlock nuts and screws - use 135% of

grade 5 torques.

3. Unless otherwise noted on assembly drawings, all torque
values must meet this specification.

Hardware Identification & Torque Specifications

Common Hardware Types

No

Marks

The guides and ruler furnished below are designed to
help you select the appropriate hardware.

8.8

10.9

12.9

Class 5.6

5.6

5150

13.44

1.28

5.88

26.4

2.50

44.64

4.3

5.2

7.1

7.7

10.5

15

21

988

1340

759

1030

590

800

435

590

320

435

217

295

169

230

126

171

89

121

64

88

42

58

26

36

.56

Thread
Diameter (mm)

Screw, 1/2- 16 x 2

Body
Diameter

Diameter

Inside
Diameter (in)

Nut, 1/2-16

0

1/4 3/4

1/2

21

1/4 3/4

1/2

1/4 3/4

1/2

1/4 3/4

1/2

4

90

100

70

80

50

60

30

40

010

20

Thread
Diameter (mm)

Nut, M8

Screw, M8- 1.25 x 25

Distance between
threads (mm)

Body
Length (in)

Body
Length (mm)

3/8” Bolt or Nut

Wrench—9/16”

5/16” Bolt or Nut

Wrench—1/2”

1/4” Bolt or Nut

Wrench—7/16”

1/2” Bolt or Nut

Wrench—3/4”

7/16” Bolt or Nut

Wrench (Bolt)—5/8”
Wrench (Nut)—11/16”

in/lbs

Threads
per inch

Threads
per inch

Body Length

Body

When a washer or nut is identified as

1/2”

(M8), this is
the Nominal size, meaning the inside diameter is 1/2 inch
(8mm metric thread diameter); if a second number is present
it represents the threads per inch (distance between threads).

When bolt or capscrew is identified as

1/2 - 16 x 2” (M8 - 1.25 x 50),

this means the Nominal size, or body diameter is 1/2 inch (8mm
metric thread diameter), the second number,16, represents the

threads per inch, (distance between threads). The final number
is the body length of the bolt or screw, 2 inches (50mm).

Standard Hardware Sizing

M6 Bolt or Nut

Wrench—10mm

M8 Bolt or Nut

Wrench—13mm

M10 Bolt or Nut

Wrench—17mm

M12 Bolt or Nut

Wrench—19mm

M14 Bolt or Nut

Wrench—22 mm

Wrench & Fastener Size Guide

Copyright © Briggs and Stratton. All Rights reserved

11-Mar-2019
