Snapper 5600 User Manual

Illustrated Parts List

5600 Watt

Generator

Model No. 030215 (5600 Watt AC Generator) Manual No. 195609A Revision 3 (04/01/2005)

BRIGGS & STRATTON POWER PRODUCTS GROUP, LLC

JEFFERSON,WISCONSIN, U.S.A.

Snapper™ is a licensed trademark of Briggs & Stratton Power Products.

Snapper Model 030215 Portable Generator

2

EXPLODED VIEW - MAIN UNIT

Copyright © 2005 Briggs & Stratton Power Products Group,LLC. All rights reserved. No part of this material may be
reproduced or transmitted in any form by any means without the express written permission of Briggs & Stratton Power
Products Group, LLC.

Snapper Model 030215 Portable Generator

3

EXPLODED VIEW - PARTS LIST

Item Part # Description

1 M189503GS CRADLE
2 194150GS KIT,Vibration Mount 45°
4 190220GS HOUSING, Engine Adapter
5 NSP ASSY,Alternator (see page 4)
6 194151GS KIT, Hardware Mounting Adapter

8 96796GS WASHER, M8 Flat
10 190274BGS SBHCS, 3/8-16 x 1.0 Lg.
11 187365FGS HHCS, 5/16-24 x 7-7/16
14 194729GS KIT, Muffler Bracket w/ Hardware
15 695398 GASKET, Exhaust
17 189008GS MUFFLER
18 60706GS SCREW, 5/16 - 18 x 3/4"
19 83083GS SCREEN, Spark Arrest
20 B4986GS DECAL, Ground, Green
21 194153GS KIT,Vibration Mount
22 86494GS SCREW,Wing M6 1.0 x 16
23 86292GS SCREW, 10-16 x 3/4 Self Drill
24 194390GS SHIELD, Heat
25 191190GS CAP
26 74908GS SCREW, M5-0.8 x 10,Taptite
31 191436GS DECAL, Hot Muffler
34 195422GS COVER, Bearing Carrier
35 194265GS KIT, Fuel Hose w/ Clamps
37 B2153GS SCREW, 12-14 x 7/8 Self Drilling
38 56893GS SCREW, 10-24 x 1/2 Crimptite
40 195477GS KIT, Fuel Tank Hardware
41 192980GS KIT,Valve,Tank
44 194217GS ASSY,Tank, Fuel (Includes Items 41,50, 51 & 52)
45 90878GS CAP, Fuel Gauge
48 195373GS WIRE, Ground
50 188333GS DECAL, Gas Fill
51 194799GS DECAL, Danger
52 189235GS DECAL, Start Instructions
54 194448GS KIT, Insulation w/ Clip
55 191435GS DECAL, Fuel Shut-off
58 190355GS ASSY, Control Panel (see page 5)
59 * NUT, Palnut, 3/16"
60 194389GS SHIELD, Heat

900 § ENGINE

Parts Not Illustrated

BB3061GS BOTTLE,Oil
195609GS MANUAL, Owners
MS5242 MANUAL, Engine
195706GS KIT, Decals, SRV

* - Items without part numbers are common fasteners and are available at your local hardware store.

§ - Contact Engine Manufacturer

Snapper Model 030215 Portable Generator

4

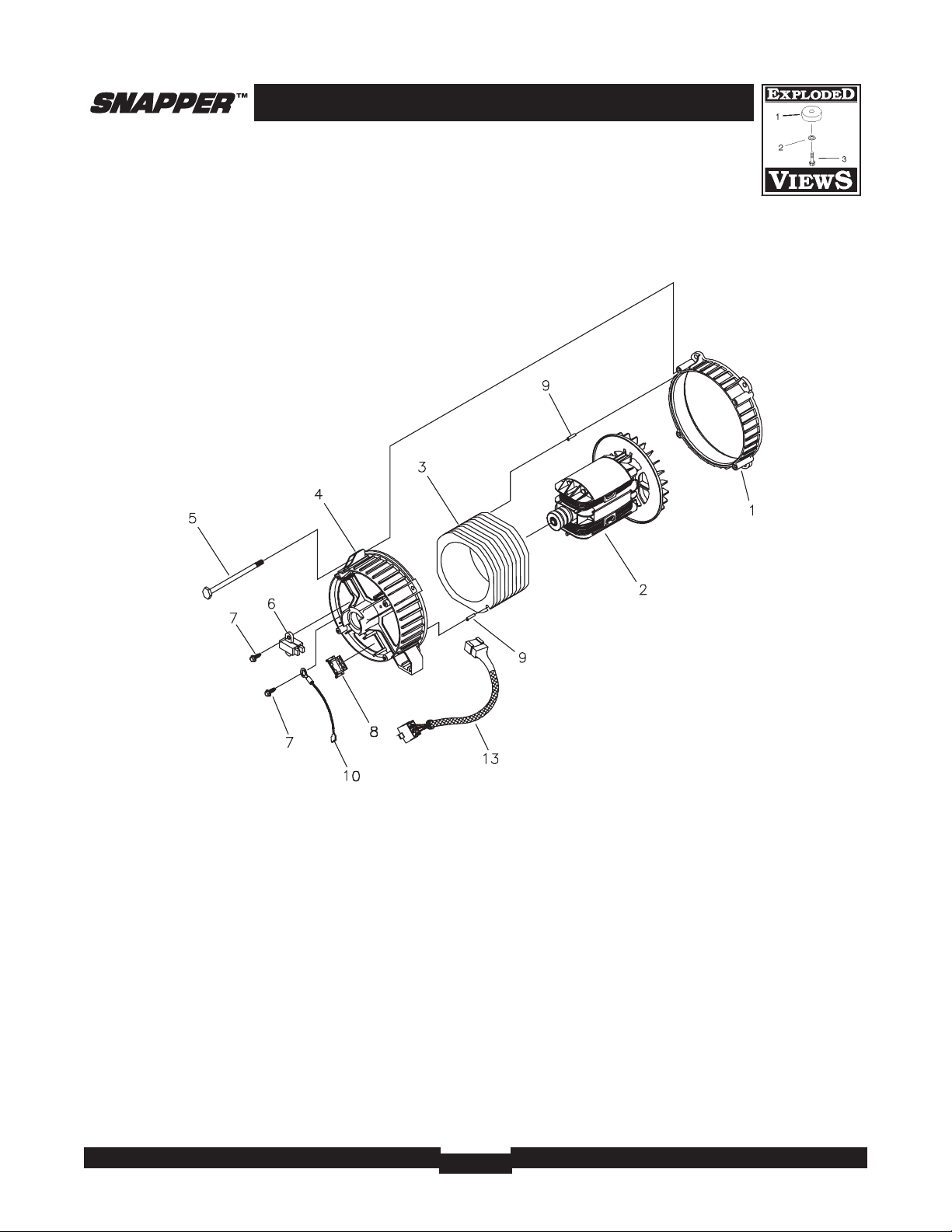

EXPLODED VIEW AND PARTS LIST - ALTERNATOR

Item Part # Description

1 186059GS ADAPTER, Mounting, Alternator
2 190032GS ROTOR
3 190079AGS STATOR
4 186060GS RBC, with O-Ring (p/n 189197GS)
5 86308HGS HHCS, M6 - 1.0 x 140 SEMS
6 91825GS ASSY, Holder, Rectifier/Brush
7 66849GS TAPTITE, M5 - 0.8 x 16
8 22694GS RECEPTACLE, 6 pin

9 81917GS PIN, Roll, 4mm x 10
10 193428AGS ASSY,Wire, Ground
13 194274GS HARNESS,Wire, Power

Snapper Model 030215 Portable Generator

5

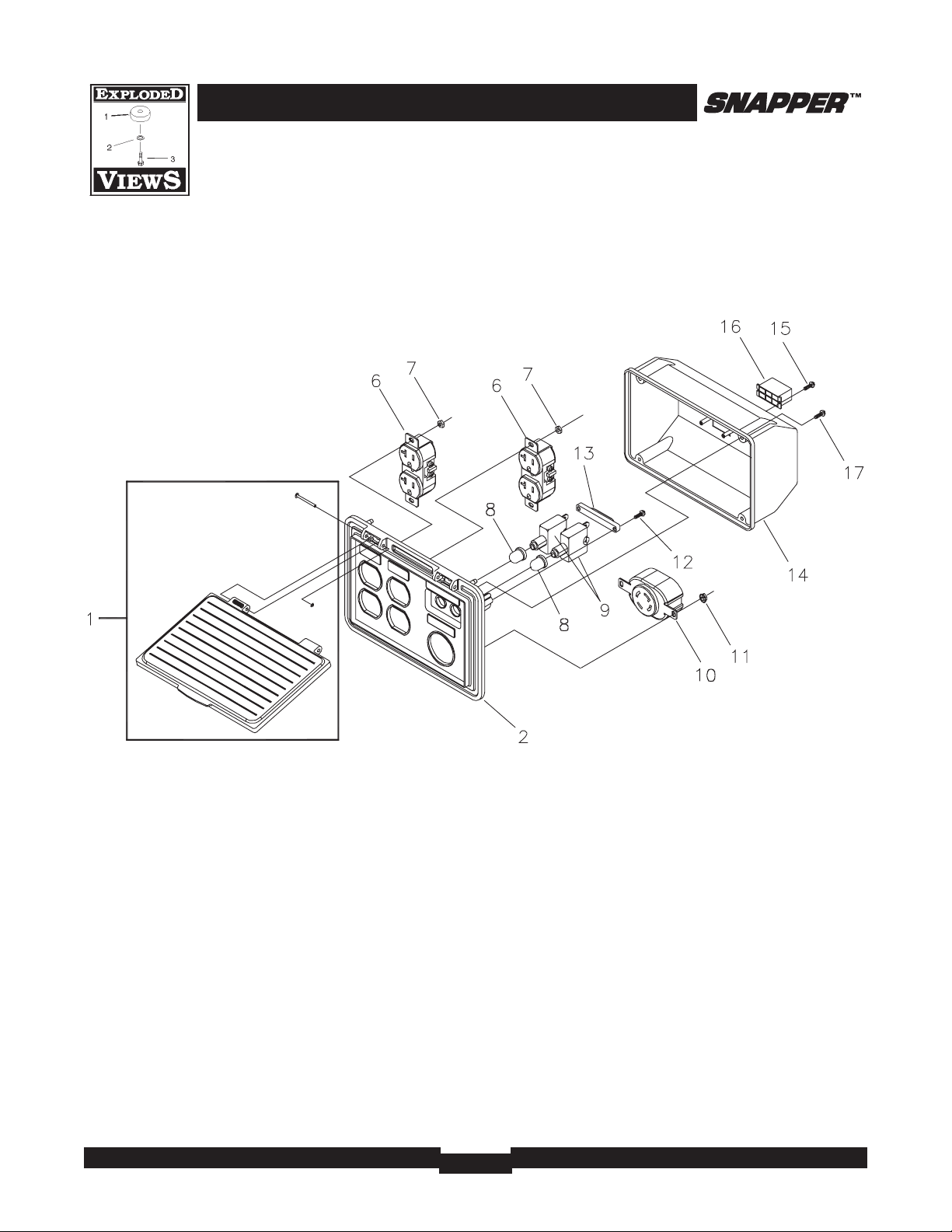

EXPLODED VIEW AND PARTS LIST - CONTROL PANEL

Item Part # Description

1 195112GS KIT, Control Panel Lid
2 188889GS CONTROL PANEL, Compact
6 68759GS OUTLET, 120V, 20A, Duplex
7 * NUT, Palnut, Pushnut, 5/32
8 84198GS CAP, Breaker, Circuit

9 75207GS BREAKER, Circuit
10 43437GS OUTLET, 120/240V Locking, 30A
11 * NUT, Palnut, Pushnut, 3/16
12 * SCREW, Phillips, Head 3.5 x 18
13 93857GS BAR, Retaining
14 188890GS COVER, Back, Control Panel
15 * SCREW, Self Tapping, STC 3 x 18
16 22694GS HOUSING, Receptacle
17 * SCREW, Phillips, 3.5 x 14

* - Items without part numbers are common fasteners and
are available at your local hardware store.

Snapper Model 030215 Portable Generator

6

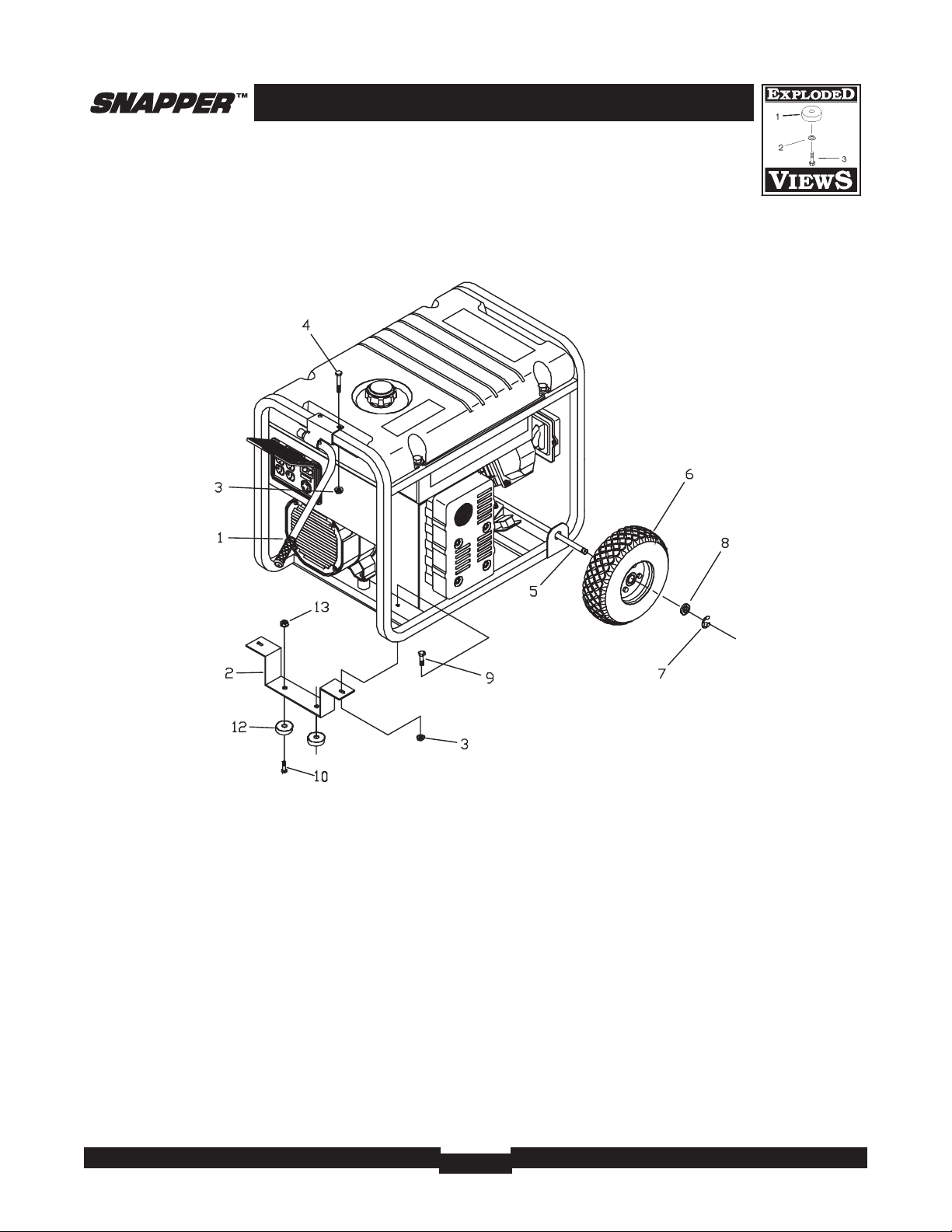

EXPLODED VIEW AND PARTS LIST - WHEEL KIT

Item Part # Description

1 189715GS ASSY, Handle
2 B187101GS LEG, Mounting
3 52858GS NUT, Locking Hex M8 - 1.25
4 39287GS HHCS, M8 - 1.25 x 45
5 191267GGS AXLE, 5/8" x 23.62"
6 B4966GS WHEEL,10" Diameter
7 191265GS E-RING
8 22247GS WASHER, Flat, 5/8"

9 39253GS HHCS, M8 - 1.25 x 20
10 22413GS HHCS, 1/4 - 20 x 1.00 Lg
12 191413GS VIBE MOUNT, with Washer
13 192432GS NUT, 1/4 - 20 Serrated Lock

* - Items without part numbers are common fasteners and
are available at your local hardware store.
