Snapper 4WD User Manual
Parts Manual
g
Prestige
4WD Series Garden Tractor & Mower Decks
27HP Product
Mf
. No. Description
2690735 Prestige, 27HP Hydro 4WD w/PS RMO TRACTOR ONLY
Mower Decks
Mfg. No. Description
1695424 44" Mower Deck
1695390 50" Mower Deck
1695266 54" Mower Deck
Rev.
1735721
01/2008
Part No.:
TP 400-4802-00-PR-S
Table Of Content
s
PRODUCT COMPONENTS PAGES
Frame & Front Axle Group - 4WD .......................................................................................................................
Steering Group - Power Steering .........................................................................................................................
Engine & Electric Clutch Group - 23HP, 25HP & 27HP Kohler ...........................................................................
Transmission Group .............................................................................................................................................
Controls Group .....................................................................................................................................................
Cruise Control Group ...........................................................................................................................................
Electrical Group ....................................................................................................................................................

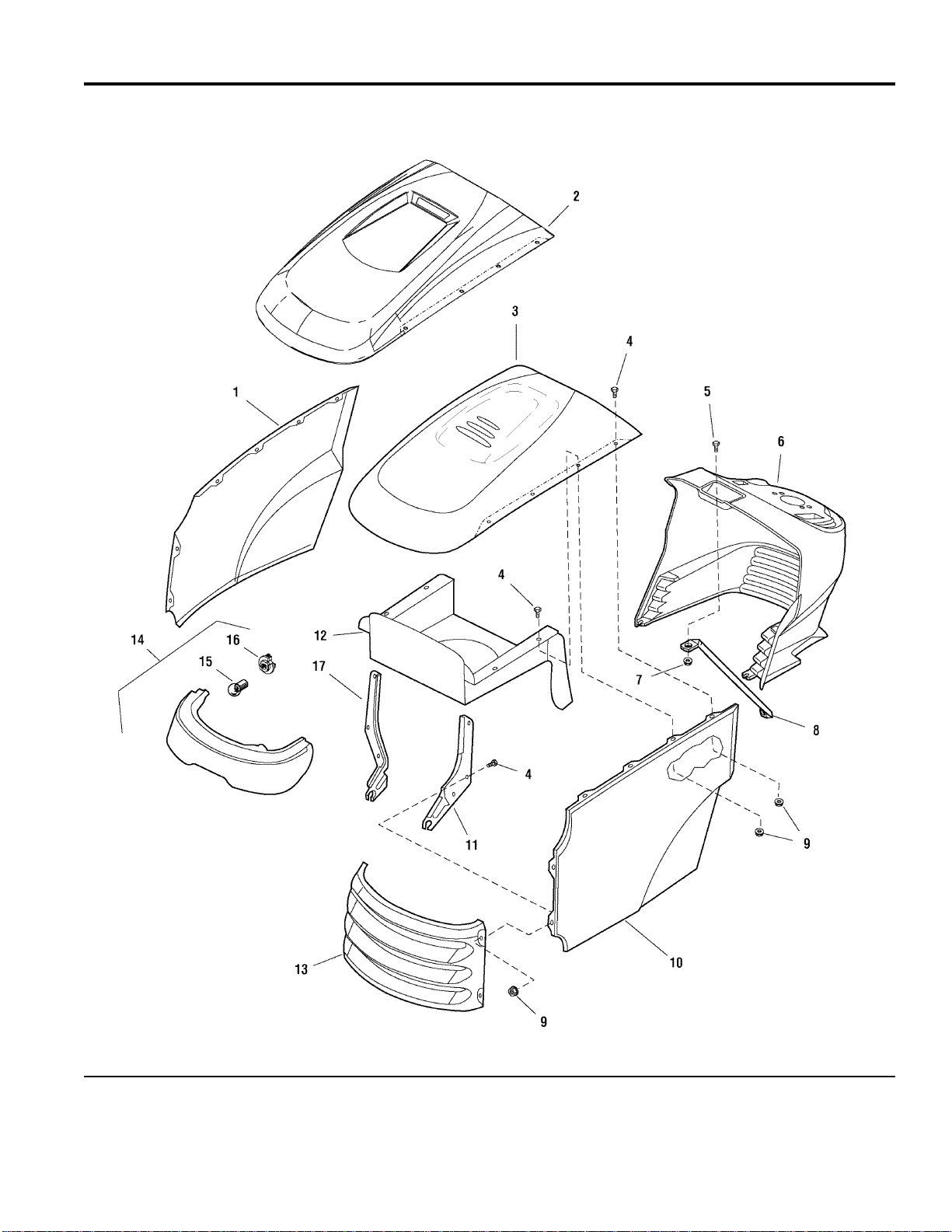

Hood, Grille & Dash Group ..................................................................................................................................
Seat & Seat Deck Group ......................................................................................................................................
Lift Group - Hydraulic Lift with Power Steering ....................................................................................................
Wheels & Tires Group ..........................................................................................................................................

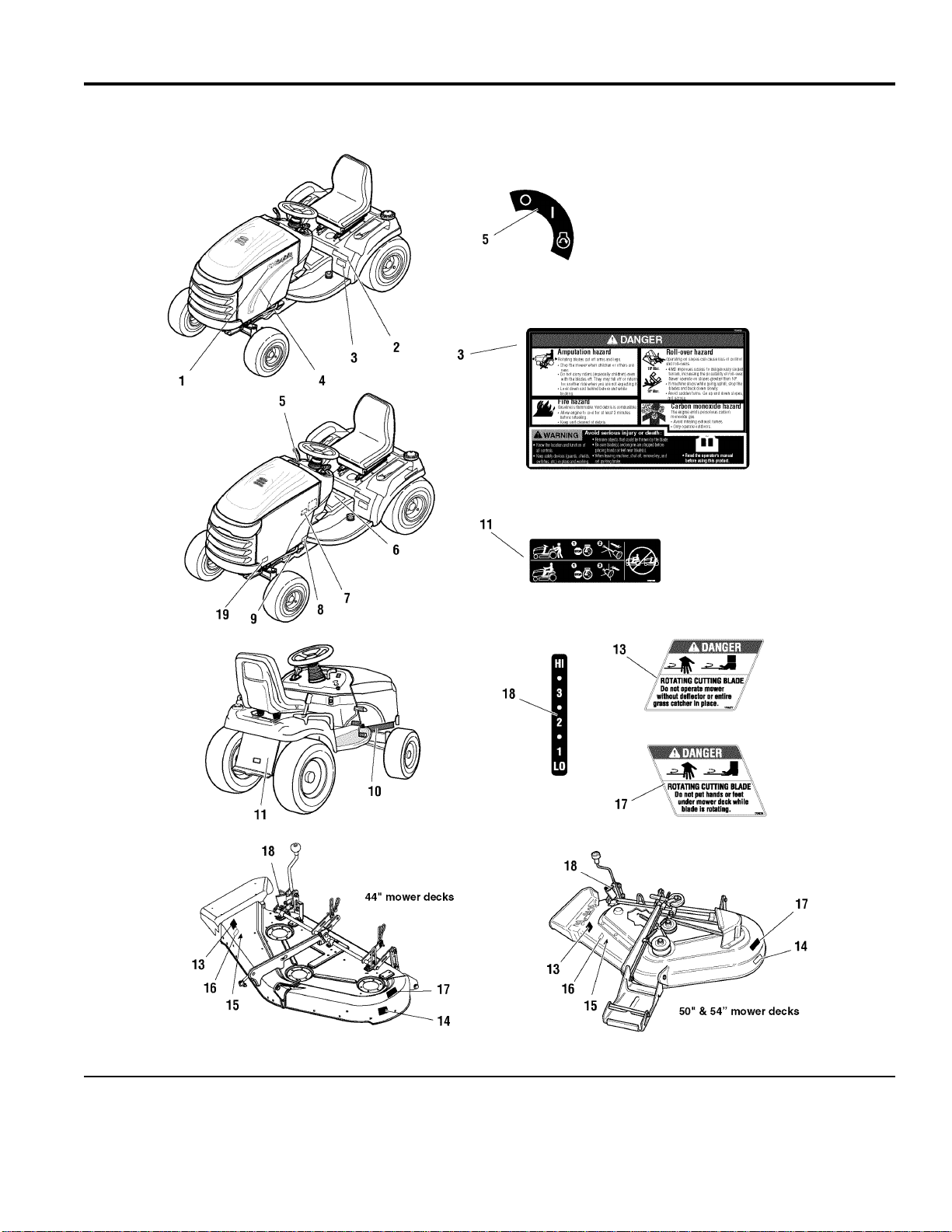

Decals Group .......................................................................................................................................................

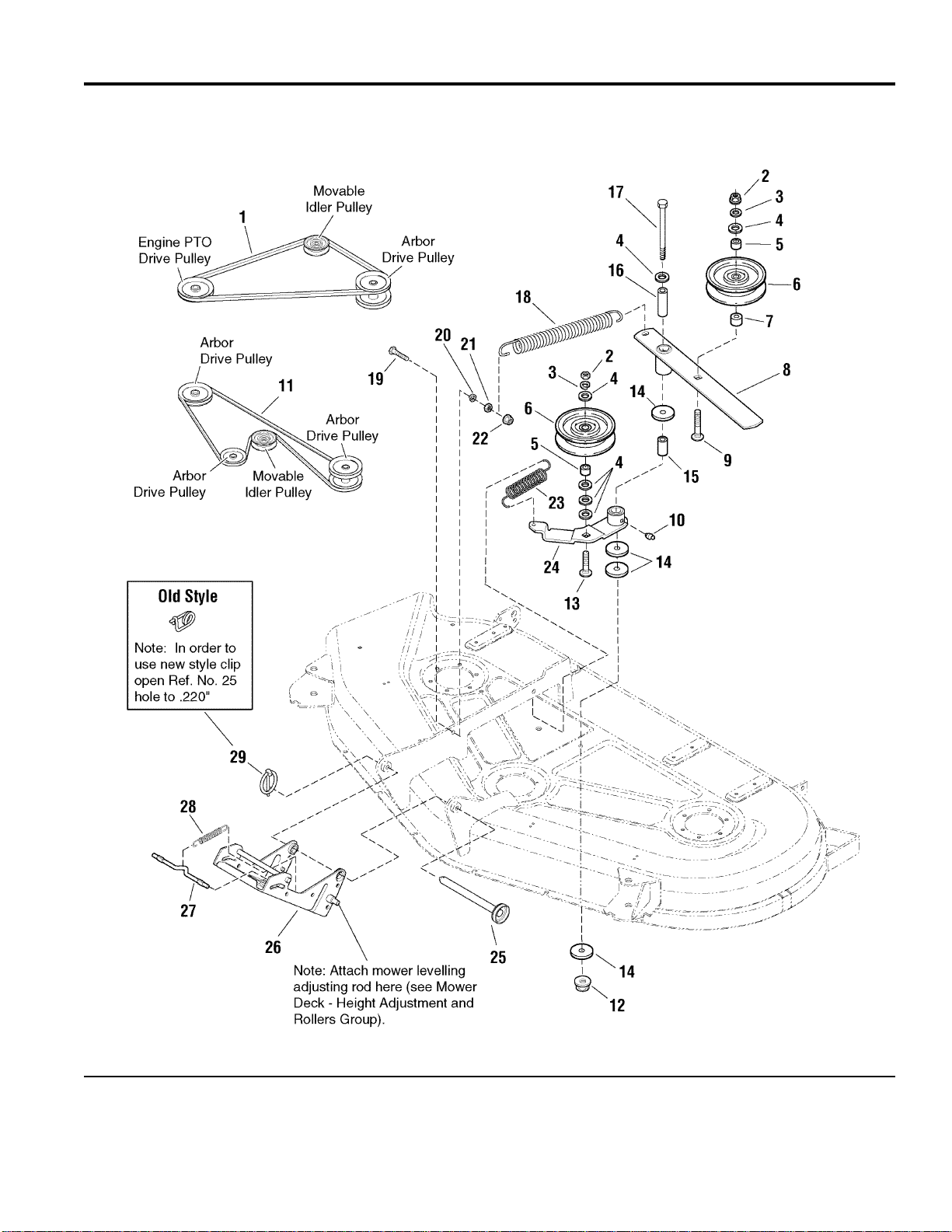

44" & 50" Mower Deck - Clutch & Support Group ...............................................................................................

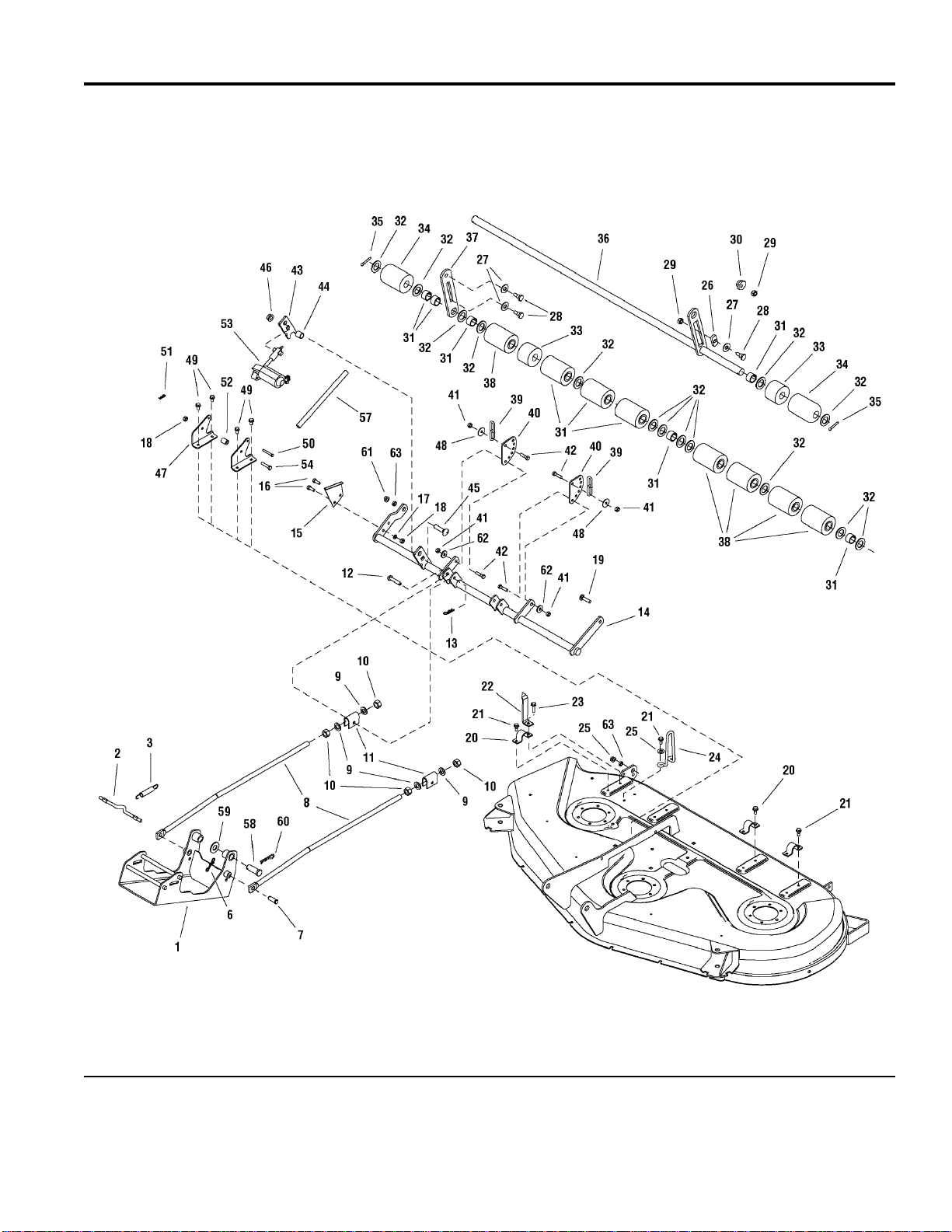

44" Mower Deck - Electric Height Adjustment & Roller Bar Group .....................................................................

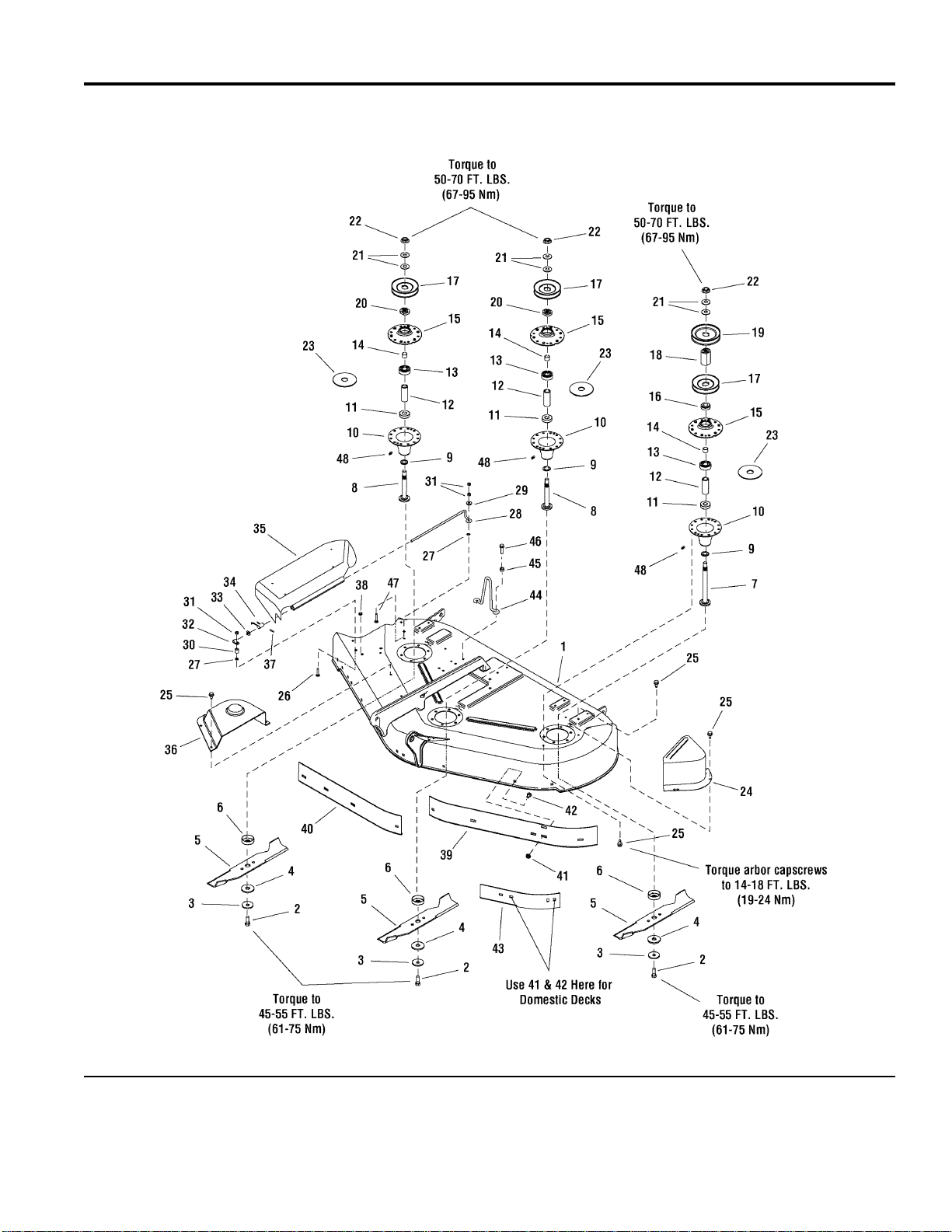

44" Mower Deck - Housing, Arbors & Blades Group ...........................................................................................
50" Mower Deck - Height Adjustment & Roller Group .........................................................................................
50" Mower Deck - Housing, Arbors & Blades Group ...........................................................................................

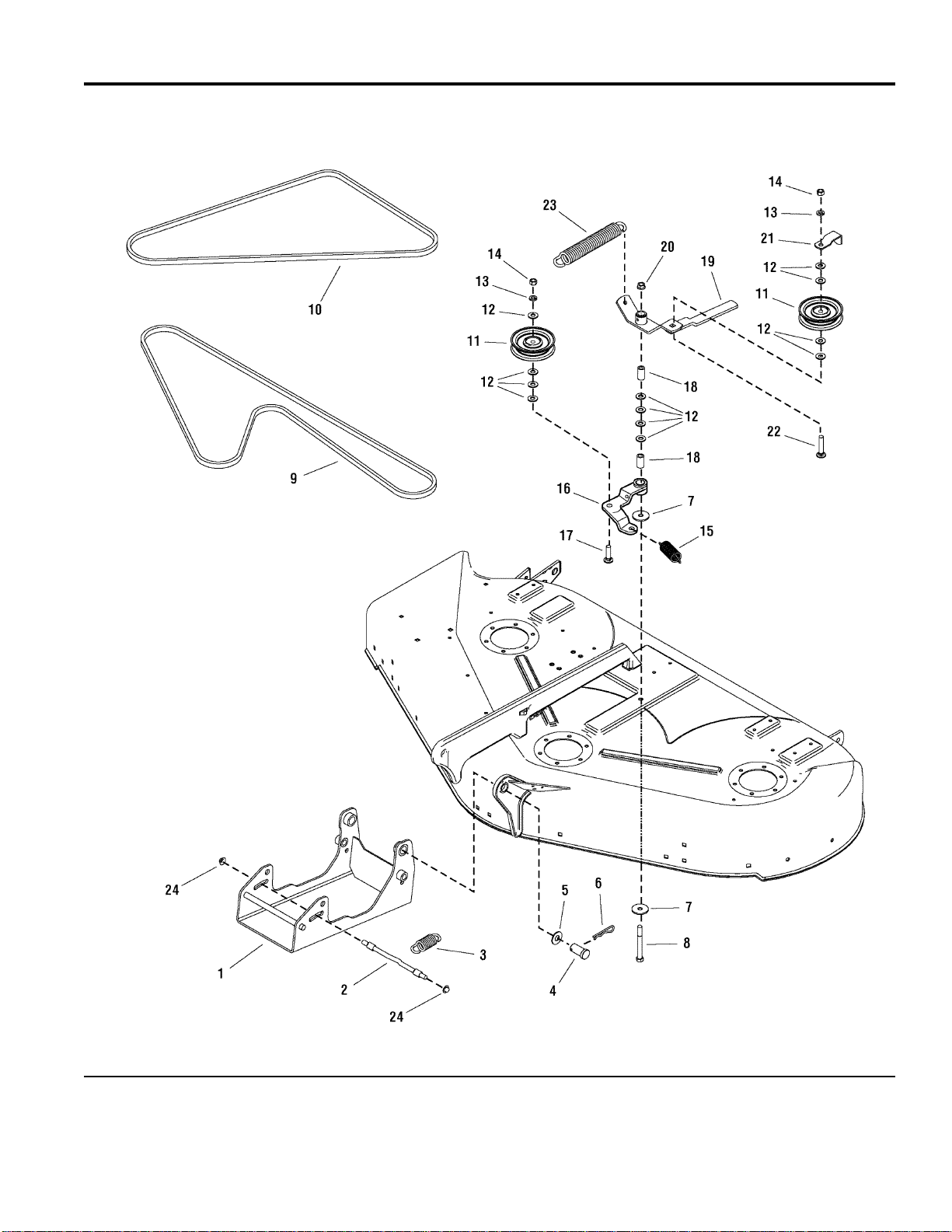

54" Mower Deck - Clutch & Support Group .........................................................................................................
54" Mower Deck - Electric Height Adjustment & Roller Bar Group ................................................................

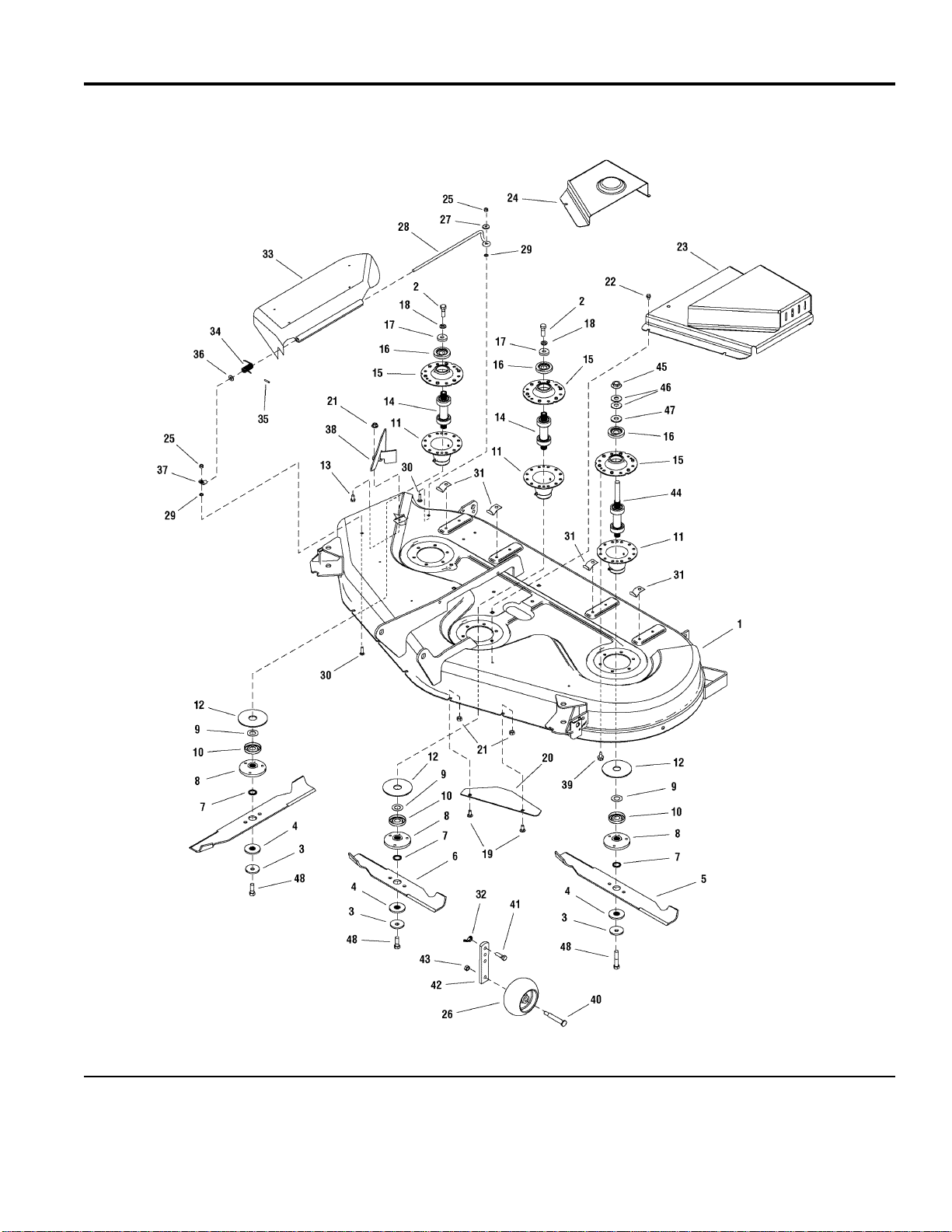

54" Mower Deck -
Housing & Arbor Group ..........................................................................................................
.....
10
12
16
18
20
22
24
26
30
32
34
36
40
44
48
52
54
58

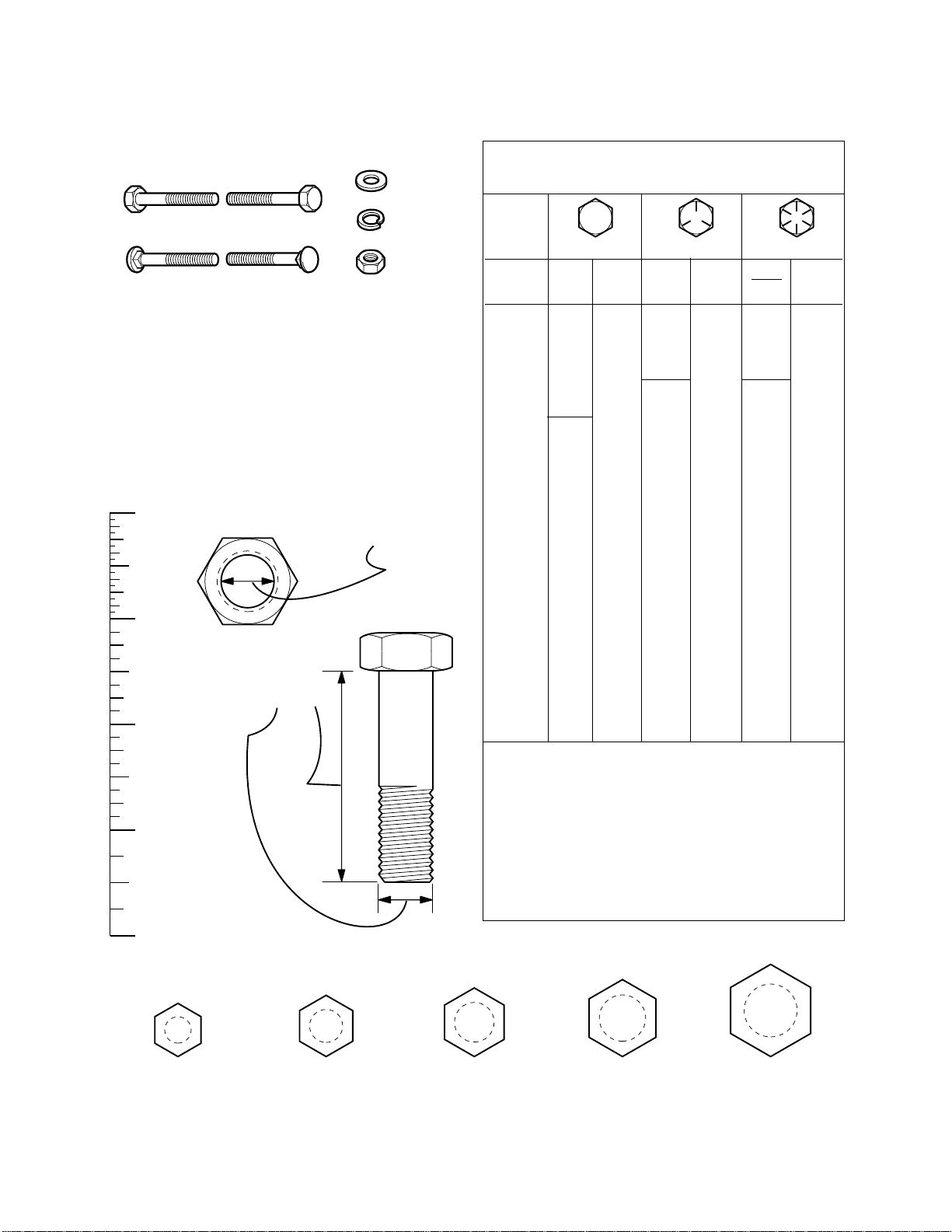

Torque Specification Chart ..................................................................... Inside Back Cover
4
8
Frame & Front Axle Group - 4WD
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
987590
The above parts group applies to the following Mfg. Nos.:
2690735 - Prestige
Briggs and Stratton Yard Power Products Group
2008Copyright © by Briggs and Stratton Corporation
Milwaukee, WI, USA. All rights reserved
4
TP 400-4802-00-PR-S
Frame & Front Axle Group - 4WD
PART NO. DESCRIPTIONREF NO QTY.
FRAME ASSEMBLY, Front & Rear 4WD 1 1734731ASM 1
TOWER & SUPPORT ASSEMBLY 2 1733139ASM 1
SUPPORT, Seat Deck 3 1723528ASM 1
BACKPLATE, Hitch 4 1722602ASM 1
BRACKET ASSEMBLY, Steering 4WD 5 1733918ASM 1
BUMPER, 4GA 6 1721805ASM 1
AXLE ASSEMBLY, Front 7 1733480SM 1
PIVOT ASSEMBLY, Axle w/Bushings 8 1734241ASM 1
CAPSCREW, Hex Head, 5/8-11 x 2-1/2 G5 9 1960755SM 1
CARRIAGE BOLT, 3/9-16 x 3/4 G5 12 1931348SM 2
JOINT, Ball 1/2-20 13 1702779SM 1
SPACER 14 1708236SM 1
NUT, Hex Jam, 1/2-20 15 1919262SM 1
NUT, Hex Flange, 3/8-16 Two-Way Lock 16 1930645SM 1
BRACKET, Cylinder Mounting 18 1733166ASM 1
SPACER 20 2172914SM 1
CYLINDER, Hydraulic Steering 21 1733759SM 1
CAPSCREW, Hex Head, M12-1-3/4 x 35 22 197487SM 3
SHAFT & BRACKET ASSEMBLY, Axle Pivot 23 1733863SM 1
WASHER, 5/8 24 1960035SM 2
STOP, "L" Steering 25 1734511ASM 1
SCREW, Hex Washer Head Taptite, 5/16-18 x 3/4 26 1664847SM 4
NUT, Hex Flange 5/8-11 Two-Way Lock 27 2860646SM 2
SCREW, Hex Washer head, Taptite, 3/8-16 x 3/4 28 1923683SM 4
NUT, Hex Flange 1/2-13 Whiz Lock 29 2860668SM 2
NUT, Hex Flange 3/8-16 Whiz Lock 30 1928352SM 4
CAPSCREW, Hex Head 1/2-13 x 1 G5 31 1923114SM 2
CAPSCREW, Hex Head 3/8-16 x 1 G5 32 1921210SM 2
SCREW, Truss Head Torx Drive 5/16-18 x 7/8 33 1960086SM 4
PIN, Dowel 34 1733581SM 2
WASHER, 1/2 35 1960170SM 3
LOCKWASHER, Spring 36 1916966SM 3
PIN, Cotter 37 1923360SM 1
LOCKWASHER, Spring 38 1960754SM 6
CAPSCREW, Hex Head 39 1950036SM 6
SPACER, Powdered Metal 40 1667812SM 1
FITTING, Hose Elbow, 45 Degrees, 13/16-16 x 3/4-16 41 1733403SM 2
HOSE ASSEMBLY, Hydraulic 42 1733400SM 1
HOSE ASSEMBLY, Hydraulic 43 1733891SM 1
BRACKET, Hose Mounting 10GA 44 1733501ASM 1
FITTING, Bulkhead Union 13/16-16 45 1733402SM 2
CARRIAGE BOLT, 5/16-18 x 3/4 G5 46 1931333SM 2
NUT, Hex KEPS, 5/16-18 47 1960636SM 2
NUT, Jam 13/16-16 48 1733947SM 2
WASHER, 3/8 49 1960103SM 1
Footnotes
The above parts group applies to the following Mfg. Nos.:
2690735 - Prestige
Briggs and Stratton Yard Power Products Group
2008Copyright © by Briggs and Stratton Corporation
Milwaukee, WI, USA. All rights reserved
5
TP 400-4802-00-PR-S
Frame & Front Axle Group - 4WD
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
987590
The above parts group applies to the following Mfg. Nos.:
2690735 - Prestige
Briggs and Stratton Yard Power Products Group
2008Copyright © by Briggs and Stratton Corporation
Milwaukee, WI, USA. All rights reserved
6
TP 400-4802-00-PR-S
Frame & Front Axle Group - 4WD
PART NO. DESCRIPTIONREF NO QTY.
SUPPORT, Steering Unit 7GA 51 1733044ASM 1
SCREW, Hex Washer Head Taptite 5/16-18 x 1/2 52 1924856SM 4
Footnotes
The above parts group applies to the following Mfg. Nos.:
2690735 - Prestige
Briggs and Stratton Yard Power Products Group
2008Copyright © by Briggs and Stratton Corporation
Milwaukee, WI, USA. All rights reserved
7
TP 400-4802-00-PR-S
Steering Group - Power Steering
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
987424
The above parts group applies to the following Mfg. Nos.:
2690735 - Prestige
Briggs and Stratton Yard Power Products Group
2008Copyright © by Briggs and Stratton Corporation
Milwaukee, WI, USA. All rights reserved
8
TP 400-4802-00-PR-S
Steering Group - Power Steering
PART NO. DESCRIPTIONREF NO QTY.
STEERING WHEEL 1 1733363SM 1
PLATE, Steering Mounting 4 1724685ASM 1
CARRIAGE BOLT, 5/16-18 x 1-1/4 G5 5 1960655SM 2
ADAPTER, Tilt 6 1725294SM 1
SPACER 7 1723898SM 2
NUT, Push Pal 8 1933988SM 2
NUT, Hex Keps 5/16-18 9 1960636SM 2
STEERING UNIT, Tilt 10 1733790SM 1
BELLOWS, Tilt Steering Unit w/Slot 11 1686970SM 1
CAP, Steering Wheel 12 1725024SM 1
DECAL, Power Steering (Not Shown) 13 1716518SM 2
WASHER, 5/8 14 1924366SM 1
NUT, Hex Lock ESNA Light 5/8-18 15 1960576SM 1
Footnotes
The above parts group applies to the following Mfg. Nos.:
2690735 - Prestige
Briggs and Stratton Yard Power Products Group
2008Copyright © by Briggs and Stratton Corporation
Milwaukee, WI, USA. All rights reserved
9
TP 400-4802-00-PR-S
Engine & Electric Clutch Group - 23HP, 25HP & 27HP Kohler
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
985906
The above parts group applies to the following Mfg. Nos.:
2690735 - Prestige
Briggs and Stratton Yard Power Products Group
2008Copyright © by Briggs and Stratton Corporation
Milwaukee, WI, USA. All rights reserved
10
TP 400-4802-00-PR-S
Engine & Electric Clutch Group - 23HP, 25HP & 27HP Kohler
PART NO. DESCRIPTIONREF NO QTY.
ENGINE, 23HP Kohler Command - Model CV23S Spec PS-75553 1* 1
ENGINE, 25HP Kohler Courage Twin - Model SV730S Spec PS-SV730-0020 1* 1
ENGINE, 25HP Kohler Command Twin - Model CV730S 1* 1
ENGINE, 27HP Kohler Command Twin - Model CV740S Spec PS-CV740-0040 1* 1
SEAL, Foam (Only used on 23HP Models) 2 1719847SM 1
HOSE, Oil Drain 3 1723165SM 1
BULKHEAD 4 1722388ASM 1
SCREW, Hex Washer Head Taptite 5/16-18 x 1/2 5 1924856SM 2
6 1727223SM 1
21 2827187SM 3/4
CONTROL, Throttle Double 39.0 LG w/Knobs (Used on all models except 25HP Kohler
Courage)
THROTTLE, Control Double 51.0 LG w/Knobs (Only used on 25HP Kohler Courage) 6 1727375SM 1
CLAMP, Hose 7 2860112SM 1
HOSE, Fuel 8 1718678SM 1
TIE, Self Locking 9 1701011SM 3
SHIELD, Side 10 1722392ASM 2
MUFFLER, Kohler Twin 11 1721705SM 1
DUCT, Muffler (Used on all models except 25HP Kohler Courage) 12 1722390ASM 1
DUCT, Muffler (Only used on 25HP Kohler Courage) 12 1733884ASM 1
SCREW, Hex Whiz Lock Flange 1/4-20 x 5/8 13 1960295SM 4
CLIP, Speed Wire 14 2834683SM 2
DUCT, Muffler Top 15 1722389ASM 1
SCREW, Hex Washer Head Taptite 1/4-20 x 3/8 16 1929000SM 8
SHIELD, Muffler 17 1722414ASM 1
NUT, Speed 1/4-20 Lug Type 18 1960368SM 4/8
NUT, Speed 5/16-18 Lug Type 19 1935255SM 2
LOCKWASHER, External Tooth 3/8 20 2820427SM 1
SCREW, Hex Washer Head Taptite 3/8-16 x 1 (Used only on 25HP Courage & 27HP
Command)
SCREW, Hex Washer Head Taptite 3/8-16 x 1-1/2 (Used on all models except 27HP) 22 2830598SM 1/4
KEY, Hi-Pro 23 1720463SM 1
PULLEY & HUB ASMY 24 1722288SM 1
WASHER, Hex 25 1708264SM 1
LOCKWASHER, Spring 26 1918199SM 1
CAPSCREW, Hex Head 7/16-20 x 3-1/2 G5 27 1960649SM 1
CLUTCH, Electric 28 1686883SM 1
TIE, Self Locking (Used only on 23HP models) 29 2832747SM 1
SCREW, Hex Washer Head Taptite 1/4-20 x 1/2 30 1925003SM 2
WASHER, 3/8 (Used on all models except 23HP) 31 1924940SM 1
RETAINER, Clutch (Used on all models except 23HP) 32 1732026SM 1
EDGING, Rubber (Used on all models except 23HP) 33 1731971SM 1
Footnotes
Note * See your local Kohler distributor for parts and service.
The above parts group applies to the following Mfg. Nos.:
2690735 - Prestige
Briggs and Stratton Yard Power Products Group
2008Copyright © by Briggs and Stratton Corporation
Milwaukee, WI, USA. All rights reserved
11
TP 400-4802-00-PR-S
Transmission Group
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
987547
The above parts group applies to the following Mfg. Nos.:
2690735 - Prestige
Briggs and Stratton Yard Power Products Group
2008Copyright © by Briggs and Stratton Corporation
Milwaukee, WI, USA. All rights reserved
12
TP 400-4802-00-PR-S
Transmission Group
PART NO. DESCRIPTIONREF NO QTY.
Footnotes
TRANSMISSION ASSEMBLY, K664 1 1733478SM 1
PULLEY & HUB ASSEMBLY 2 1722194SM 1
FAN 3 1719233SM 1
SCREW, Hex Washer Head, Taptite, 1/4-20 x 1-1/4 4 1933958SM 3
BELT, 94.05 5 1721392SM 1
STRAP, 4-1/4 Long 6 1721593ASM 1
ARM, Control 7GA 7 1733318ASM 1
ROD, 17-27/64 Long 8 1721424SM 1
SPRING, Compression 9 1722684SM 1
SPRING, Compression 10 1729277SM 1
CAP, Expansion 11 1722711SM 1
SCREW, Pan Head Torx, 1/4-20 x 1-1/4 Taptite 12 1960676SM 2
FASTENER, Panel 13 1704351SM 15
PAD, Footrest L.H. 14 1722174SM 1
PAD, Footrest R.H. 15 1722173SM 1
ROD, Free Wheel 16 1721622SM 1
KNOB, Interior Thread 17 1723126SM 1
SUPPORT, Transmission 18 1721728ASM 2
HOSE, Hydraulic 19 1733531SM 1
BOLT, Shoulder, 3/8-16 21 1732129SM 3
CLIP, Hair Pin 22 1960074SM 1
SPACER 23 1734337SM 1
CLAMP, Hose Worm 24 2860266SM 1
WASHER, 1/2 25 1960027SM 3
WASHER, 3/8 26 1924940SM 1
PIN, Quick 27 1722460SM 1
TANK, Oil Natural 28 1732989SM 1
CLAMP, Hose Worm 29 1723214SM 2
NUT, Hex Flange 5/16-18 ESNA 30 1960686SM 6
COTTER PIN 31 1918447SM 1
CAPSCREW, Hex Head 5/16-18 x 2-1/2 G5 32 1921719SM 1
WASHER, 5/16 33 1960141SM 1
CARRIAGE BOLT, 5/16-18 x 1 G5 34 1931335SM 1
NUT, Hex KEPS 5/16-18 35 1960636SM 2
NUT, Hex Flange 36 1719968SM 1
NUT, Hex Flange 3/8-16 ESNA 42 1960687SM 4
WASHER, 7/16 43 1918267SM 1
CARRIAGE BOLT, 3/8-16 x 1 G5 44 1931350SM 6
CAPSCREW, Hex Head 5/16-18 x 3 G5 45 1960590SM 4
WASHER, 5/16 46 1919326SM 3
NUT, Hex Keps 3/8-16 47 1960637SM 6
ACTUATOR, Switch 48 1727215ASM 1
POP RIVET 49 1960241SM 2
PIN, Clevis 50 1724107SM 1
BEARING 51 1722648SM 1
The above parts group applies to the following Mfg. Nos.:
2690735 - Prestige
Briggs and Stratton Yard Power Products Group
2008Copyright © by Briggs and Stratton Corporation
Milwaukee, WI, USA. All rights reserved
13
TP 400-4802-00-PR-S
Transmission Group
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
987547
The above parts group applies to the following Mfg. Nos.:
2690735 - Prestige
Briggs and Stratton Yard Power Products Group
2008Copyright © by Briggs and Stratton Corporation
Milwaukee, WI, USA. All rights reserved
14
TP 400-4802-00-PR-S
Transmission Group
PART NO. DESCRIPTIONREF NO QTY.
CAPSCREW, Hex Head, 5/16-18 x 2-1/4 G5 53 1921160SM 1
SPACER 54 1713588SM 1
PIVOT ASSEMBLY, Control 55 1733320ASM 1
ARM, Control 56 1733525ASM 1
TUBE, Hydraulic 4WD 57 1733483SM 1
TUBE, Hydraulic Rear 58 1733484SM 1
Footnotes
The above parts group applies to the following Mfg. Nos.:
2690735 - Prestige
Briggs and Stratton Yard Power Products Group
2008Copyright © by Briggs and Stratton Corporation
Milwaukee, WI, USA. All rights reserved
15
TP 400-4802-00-PR-S
Controls Group
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
986599
The above parts group applies to the following Mfg. Nos.:
2690735 - Prestige
Briggs and Stratton Yard Power Products Group
2008Copyright © by Briggs and Stratton Corporation
Milwaukee, WI, USA. All rights reserved
16
TP 400-4802-00-PR-S
Controls Group
PART NO. DESCRIPTIONREF NO QTY.
ROD, Brake Lock 1 1721353SM 1
KNOB, Push On, Red Plastic "P" 2 1721891SM 1
CAPSCREW, Hex Flange Whiz Lock, 5/16-18 x 3/4 3 1930591SM 1
WASHER, 5/16, Black 4 1919326SM 2
ROD, Brake 5 1721476SM 1
CARRIAGE BOLT, 3/8-16 x 1 3/4 6 1931353SM 2
BUSHING, 5/8 x 3/4 x 3/4, Nylon 7 1663114SM 2
FITTING, Lube, 1/4 8 2821133SM 1
SPRING, Extension 9 1725250SM 1
PIN, Quick 10 1722460SM 3
ARM & HUB ASSEMBLY, Idler 11 1724917SM 1
WASHER, 5/8 12 1960020SM 1
RING, Clipring Extension 13 1704420SM 1
PULLEY, w/Bearing 14 1721134SM 1
WASHER, 3/8 15 1924940SM 1
NUT, Hex Flange ESNA, 3/8-16 16 1960687SM 2
PULLEY, Idler 17 1721133SM 1
BUSHING, 1 x 1-1/8 x 5/8, Nylon 18 1723237SM 2
ARM, Brake 19 1722513SM 1
PEDAL ASSEMBLY, Foot 20 1726763SM 1
CARRIAGE BOLT, 1/4-20 x 1-1/4 21 1931320SM 1
PIN, Cotter, Black 22 1918447SM 1
LATCH, Brake 23 1721354ASM 1
CAPSCREW, Hex Washer Head Taptite, 5/16-18 x 3/4 24 1664847SM 3
NUT, Hex Lock ESNA Light, 5/16-18 25 1919438SM 1
WASHER, 5/16, Black 26 1919381SM 1
NUT, Hex Flange Whiz Lock Large, 5/16-18 27 1927557SM 2
PEDAL, Brake 28 1722535ASM 1
PAD, Brake Pedal 29 1721577SM 1
CARRIAGE BOLT, 5/16-18 x 7/8 30 1931334SM 4
CAPSCREW, 5/16-18 x 1 31 1921333SM 2
ACTUATOR, Switch 2.53" Long 32 1722083ASM 1
CAPSCREW, Hex Washer Head Taptite, 3/8-16 x 3/4 33 1923683SM 1
PEDAL, Forward 34 1722070ASM 1
NUT, Hex KEPS, 5/16-18 35 1960636SM 4
PAD, Foot Pedal Forward 36 1721675SM 1
PEDAL, Reverse 37 1722071ASM 1
PAD, Foot Pedal Reverse 38 1721674SM 1
NUT, Hex Lock ESNA Light, 1/4-20 39 1920397SM 1
CAM, Roller 40 1686612SM 1
SPRING, Extension 41 1721995SM 1
Footnotes
The above parts group applies to the following Mfg. Nos.:
2690735 - Prestige
Briggs and Stratton Yard Power Products Group
2008Copyright © by Briggs and Stratton Corporation
Milwaukee, WI, USA. All rights reserved
17
TP 400-4802-00-PR-S
Cruise Control Group
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
985883
The above parts group applies to the following Mfg. Nos.:
2690735 - Prestige
Briggs and Stratton Yard Power Products Group
2008Copyright © by Briggs and Stratton Corporation
Milwaukee, WI, USA. All rights reserved
18
TP 400-4802-00-PR-S
Cruise Control Group
PART NO. DESCRIPTIONREF NO QTY.
COVER, w/Cruise Icon 1 1722314SM 1
SCREW, Torque Head Plus Socket Head, 1/4-20 x 7/8 2 1960666SM 1
KNOB, Cruise 3 1722303SM 1
NUT, Hex Lock ESNA Light, 1/4-20 4 1920397SM 1
LEVER & BRACKET ASSEMBLY, Cruise 5 1722003SM 1
WASHER, 3/8, Black 6 1960103SM 2
CARRIAGE BOLT, 5/16-18 x 3/4 7 1931333SM 1
WASHER, 1/2 8 1924361SM 2
SPACER, w/Flange, 11/32 x 15/32 x 3/4 9 1709043SM 1
CARRIAGE BOLT, 5/16-18 x 2-3/4 10 1931342SM 1
CARRIAGE BOLT, 5/16-18 x 2-1/4 11 1960273SM 1
PIN, Quick 12 1722460SM 2
ROD, Cruise 13 1722117SM 1
ROD, Return 14 1733719SM 1
SPRING, Cruise Return to Frame 15 2159106SM 1
NUT, Hex KEPS, 5/16-18 16 1960636SM 2
CAPSCREW, Hex Washer Head Plastite, 10-14 x 5/8 17 1960001SM 2
SWITCH, Push, Neutral Start, Gray 18 1717050SM 1
SPACER, 11/32 x 5/8 x 1-13/32 19 1722080SM 1
WASHER, 5/16, Black 20 1919326SM 1
WASHER, 5/16, Black 21 1919381SM 1
NUT, Hex Lock ESNA Light, 5/16-18 22 1919438SM 1
SPRING, Compression 23 1677746SM 1
PIN, Cotter 24 1918447SM 1
Footnotes
The above parts group applies to the following Mfg. Nos.:
2690735 - Prestige
Briggs and Stratton Yard Power Products Group
2008Copyright © by Briggs and Stratton Corporation
Milwaukee, WI, USA. All rights reserved
19
TP 400-4802-00-PR-S
Electrical Group
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
986606
The above parts group applies to the following Mfg. Nos.:
2690735 - Prestige
Briggs and Stratton Yard Power Products Group
2008Copyright © by Briggs and Stratton Corporation
Milwaukee, WI, USA. All rights reserved
20
TP 400-4802-00-PR-S
Loading...
