Snapper 4560 User Manual

Download

Parts Manual

Baron XL

Series Lawn Tractors & Mower Decks

18HP Product

. No. Description

2690622 Baron XL, 18HP and 40" Mower Deck (CE/Export)

20HP Product

Mfg. No. Description

2690621 Baron XL, 20HP and 40" Mower Deck (CE/Export) 2690625 2420 XL, 20HP and 40" Mower Deck (CE/Export)

21HP Product

Mfg. No. Description

2690762 Baron, 21HP and 40" Mower Deck (CE/Export) 2690772 2421, 21HP and 40" Mower Deck (CE/Export)

Mower Decks

Mfg. No. Description

1695200 40" Mower Deck (CE/Export) 1695201 40" Mower Deck (CE/Export)

Rev.

1734840 05/2008

Part No.:

TP 400-4560-02-BR-SM

Table Of Content

PRODUCT COMPONENTS PAGES

Frame & Front Axle Group ...................................................................................................................................

Steering Group .....................................................................................................................................................

Engine & Electric Clutch Group - 21HP Briggs & Stratton, Vanguard .................................................................

Engine Group - 18HP & 20HP Briggs & Stratton, VANGUARD Twin .................................................................

Engine Group - 18HP Briggs & Stratton, INTEK Single ......................................................................................

Transmission Group - Tuff Torq K-46BF .............................................................................................................

Controls Group .....................................................................................................................................................

Cruise Control Group ...........................................................................................................................................

Electrical Group ....................................................................................................................................................

Hood, Grille & Dash Group ..................................................................................................................................

Seat Deck & Fuel Tank Group .............................................................................................................................

Hopper Group ......................................................................................................................................................

Wheels & Tires Group ..........................................................................................................................................

Decals Group - Brand & Model ............................................................................................................................

Decals Group - Safety & Common ......................................................................................................................

40" Mower Deck - Belt, Idle Arm & Hitch .............................................................................................................

40" Mower Deck - Height Adjustment & Roller Bar .............................................................................................

40" Mower Deck - Housing, Arbors & Blade ........................................................................................................

10 12 14 18 22 24 28 30 32 36 40 42 44 46 48 52

Torque Specification Chart ..................................................................... Inside Back Cover

4 6 8

Frame & Front Axle Group

NOTE: Unless noted otherwise, use the standard hardware torque specification chart.

986818

The above parts group applies to the following Mfg. Nos.:

2690621 - Baron XL 2690622 - Baron XL 2690625 - 2420 XL 2690762 - Baron 2690772 - 2421

Briggs and Stratton Yard Power Products Group

TP 400-4560-02-BR-SM

Frame & Front Axle Group

PART NO. DESCRIPTIONREF NO QTY.

NUT, Hex Flange Lock, 3/8-16 1 1930645SM 7 WASHER 2 1960035SM 2 NUT, Hex Flange, 5/8-11 3 2860646SM 1 PLATE, Axle 4 1722212ASM 1 TOWER & SUPPORT ASSEMBLY 5 1724081ASM 1 CAPSCREW, Hex Head Taptite, 3/8-16 x 3/4 6 1923683SM 4 SUPPORT 7 1723528ASM 1 CAPSCREW, Hex Head Taptite, 5/16-18 x 3/4 8 1664847SM 4 FRAME ASSEMBLY 9 1727396A 1 CAPSCREW, 5/8-11 x 3-1/2 10 2860645SM 1 FITTING, Grease for Wear Plate, 1/4-20, with Ball 11 1704314SM 2 CAPSCREW, Hex Head, Flange Lock, 3/8-16 x 3/4 12 1933260SM 4 LINK, Drag 13 1722541SM 1 WASHER 14 1922755SM 1 WASHER 15 1960103SM 2 NUT, Hex Jam, 1/2-20 16 1919262SM 1 JOINT, Ball 17 1702779SM 1 SPACER 18 1708236SM 1 CARRIAGE BOLT, 3/8-16 x 1 19 1931350SM 2 SPACER 20 1611705SM 2 ROD, Tie 21 1722626ASM 1 BUSHING 22 1721682SM 6 NUT, Hex Flange Lock, 7/16-14 23 1930650SM 2 FITTING, Lube 24 2821133SM 3 SPINDLE REPLACEMENT KIT, LH (Includes Ref. Nos. 22, 26, 27, 28, 29 & 30) 25 1686985SM 1 CAPSCREW, 3/8-16 x 7/8, GR8 26 2823485SM 1 WASHER, Spring, 3/8 27 1663151SM 1 HUB & ARM ASSEMBLY 28 1725112SM 1 KEY, Woodruff 29 2830671SM 1 SPINDLE, LH 30 1724264SM 1 AXLE ASSEMBLY, w/ LH Spindle, Complete (Includes Ref. Nos. 22, 24, 41, 42 & 43) 31 1722200ASM 1 CARRIAGE BOLT, 3/8-16 x 1-1/2 32 1931352SM 1 CAPSCREW, Hex Head, 7/16-14 x 2, GR8 33 1927531SM 2 HOOK, "J" 34 1721918ASM 1 SPACER 35 1721752SM 1 SCREW, Torx Head, 5/16-18 x 7/8 36 1960086SM 4 BUMPER, Black, Steel, Standard 37 1721805ASM 1 BUMPER, Chrome, Optional 37 1723502SM 1 CAPSCREW, Hex Whiz Lock, 5/16-18 x 3/4 38 1930591SM 2 PLATE, Axle Wear 39 1724801ASM 1 NUT, Hex Falnge Whiz Lock, 5/16-18 40 1931277SM 2 SPINDLE, RH 41 1722199SM 1 WASHER 42 1919394SM 1 RETAINING RING 43 2832577SM 1

Footnotes

The above parts group applies to the following Mfg. Nos.:

2690621 - Baron XL 2690622 - Baron XL 2690625 - 2420 XL 2690762 - Baron 2690772 - 2421

Briggs and Stratton Yard Power Products Group

TP 400-4560-02-BR-SM

Steering Group

NOTE: Unless noted otherwise, use the standard hardware torque specification chart.

986091

The above parts group applies to the following Mfg. Nos.:

2690621 - Baron XL 2690622 - Baron XL 2690625 - 2420 XL 2690762 - Baron 2690772 - 2421

Briggs and Stratton Yard Power Products Group

TP 400-4560-02-BR-SM

Steering Group

PART NO. DESCRIPTIONREF NO QTY.

STEERING WHEEL, Straight Shaft 1 1722318SM 1 CAP, Steering Wheel, Simplicity Logo 2 1722319SM 1 CAP, Steering Wheel, Plain 2 1725024SM 1 PIN, Spring 3 1960540SM 1 COVER, Black Rubber 4 1722749SM 1 BUSHING 5 2176440SM 2 PLATE, Mounting Steering 6 1721736ASM 1 WASHER 7 1960114SM 5 CAPSCREW, Hex Head Flange Lock, 3/8-16 x 3/4 8 1933260SM 2 NUT, Hex Whiz Lock, 3/8-16 9 1931211SM 2 BEARING, Flange 10 1722459SM 1 SPACER 11 1722461SM 1 GEAR & SHAFT ASSEMBLY 12 1724470ASM 1 CAPSCREW, Hex Head, 3/8-16 x 1-1/4 13 1960032SM 1 NUT, Hex Flange Lock, 3/8-16 14 1930645SM 1 CAPSCREW, Hex Head Taptite, 5/16-18 x 3/4 15 1664847SM 2 SHAFT ASSEMBLY 16 1723604SM 1 PIN, Cotter 17 1919314SM 1 CARRIAGE BOLT, 1/4-20 x 3/4 18 1931317SM 2 NUT, Hex,1/4-20 19 2828372SM 2 RING, Clipring Extension 20 1611710SM 1 WASHER 21 1960114SM 2 NUT, Push, 5/16 22 1933988SM 2

Footnotes

The above parts group applies to the following Mfg. Nos.:

2690621 - Baron XL 2690622 - Baron XL 2690625 - 2420 XL 2690762 - Baron 2690772 - 2421

Briggs and Stratton Yard Power Products Group

TP 400-4560-02-BR-SM

Engine & Electric Clutch Group - 21HP Briggs & Stratton, Vanguard

NOTE: Unless noted otherwise, use the standard hardware torque specification chart.

2987912

The above parts group applies to the following Mfg. Nos.:

2690762 - Baron 2690772 - 2421

Briggs and Stratton Yard Power Products Group

TP 400-4560-02-BR-SM

Engine & Electric Clutch Group - 21HP Briggs & Stratton, Vanguard

PART NO. DESCRIPTIONREF NO QTY.

HOSE, Oil Drain, 10-1/2" Long, 3/8-18 Fittings 1 1723165SM 1 ENGINE, 21HP Briggs & Stratton Vanguard Twin, Model 385777, Type 0119-G1 2* 1 BULKHEAD 4 1722388ASM 1 CAPSCREW, Hex Washer Head Taptite, 1/2-20 x 1/2, Black 5 1925003SM 2 CONTROL, Throttle Double 39" Long w/Knobs 6 1734506SM 1 TIE, Wire, 7-5/16" Long 7 2825094SM 2 CLAMP, Hose Type E 8 *791850 2 HOSE, Fuel, 59" Long 9 1734984SM 1 SHIELD, Side 10 1722392ASM 2 CAPSCREW, Hex Washer Head Taptite, 1/4-20 x 3/8 11 1927428SM 8 PULLEY & HUB ASSEMBLY 12 1722288SM 1 TIE, Self Locking, 3-5/8 Long 13 2832747SM 1 WASHER, Hex, 7/16, Black 14 1708264SM 1 LOCKWASHER, 7/16 15 1918199SM 1 CAPSCREW, Hex Head, 7/16-20 x 3-3/4 16 1960648SM 1 CLUTCH, Electric 17 1686880SM 1 KEY, HI PRO, 1/4 x 2 1/2 18 1720463SM 1 CAPSCREW, Hex Washer Head Taptite, 3/8-16 x 1-1/2 19 2830598SM 4 LOCKWASHER, External Tooth, 3/8 20 2820427SM 1 SHIELD, Muffler Bottom 21 1722414ASM 1 NUT, Speed, 1/4-20, Lug 22 1960368SM 8 CAPSCREW, Hex Flange Whiz Lock, 1/4-20 x 5/8 23 1960295SM 4 NUT, Speed, 5/16-18, Lug, Black 24 1935255SM 2 DUCT, Muffler Top 25 1722389ASM 1 CLIP, Wire 1/8 26 2834683SM 2 DUCT, Muffler Extension 27 1722390ASM 1 CAPSCREW, Hex Washer Head Taptite, 5/16-18 x 1/2, Black 28 1924856SM 2 MUFFLER, Briggs & Stratton, Vanguard Twin 29 1726920SM 1 GASKET, Briggs & Stratton, Vanguard Twin 30 * 1 LOCKWASHER, 5/16 31 * 4 CAPSCREW, Hex Flange Whiz Lock, 5/16-18 x 7/8 32 * 4 RETAINER, Clutch 33 1732026SM 1 WASHER, Flat 3/8 34 1924940SM 1 CAPSCREW, 3/8-16 x 1 35 2827187SM 1 PLATE, RMP Limiter 36 1732396SM 1 SCREW, Pan Head Torx 37 1728125SM 1 THROTTLE CABLE - Clamp 38 1728126SM 1

Footnotes

Note* See your local Briggs & Stratton distributor for parts and service.

The above parts group applies to the following Mfg. Nos.:

2690762 - Baron 2690772 - 2421

Briggs and Stratton Yard Power Products Group

TP 400-4560-02-BR-SM

Engine Group - 18HP & 20HP Briggs & Stratton, VANGUARD Twin

NOTE: Unless noted otherwise, use the standard hardware torque specification chart.

986833

The above parts group applies to the following Mfg. Nos.:

2690621 - Baron XL 2690625 - 2420 XL

Briggs and Stratton Yard Power Products Group

TP 400-4560-02-BR-SM

Engine Group - 18HP & 20HP Briggs & Stratton, VANGUARD Twin

PART NO. DESCRIPTIONREF NO QTY.

MUFFLER 1 1722625SM 1 GASKET 2* 1 LOCKWASHER, 5/16 3 1917356SM 2 CAPSCREW, Socket Head, 5/16-18 x 7/8, G8 4 2860660SM 2 SCREW, Pan Head Trox, #10-32 x 5/8 5 1728125SM 1 CLAMP, Throttle Cable 6 1728126SM 1 PLATE, Limiter RPM 7 1727696SM 1 HOSE, Oil Drain 8 1723165SM 1 ENGINE, 18HP Briggs & Stratton INTEK Twin, Model 356777, Type 0113E1 9* 1 ENGINE, 20HP Briggs & Stratton INTEK Twin, Model 358777, Type 0110E1 9* 1 SEAL, Circle 10 1722949SM 1 BULKHEAD 11 1722388ASM 1 CAPSCREW, Hex Head Taptite, 1/4-20 x 1/2 12 1925003SM 2 CONTROL, Throttle Double 39" Long w/Knobs 13 1727223SM 1 TIE 14 1701011SM 1 CLAMP, Hose Type E 15 2860112SM 2 HOSE, 59" Long 16 1723165SM 1 CLIP, Wire 17 2834683SM 2 SHIELD 18 1722392ASM 2 SCREW, Hex Head Taptite, 1/4-20 x 3/8 19 1929000SM 8 KEY 20 1720463SM 1 PULLEY & HUB ASSEMBLY, 4-1/2 OD 21 1722288SM 1 WASHER, Hex 22 1708264SM 1 LOCKWASHER, 7/16 23 1918199SM 1 CAPSCREW, Hex Head, 7/16-20 x 2-3/4 24 1960648SM 1 CLUTCH, Electric, OGURA 25 1720532SM 1 TIE 26 2832747SM 1 CAPSCREW, Hex Head Taptite, 3/8-16 x 1-1/2 27 2830598SM 4 LOCKWASHER, External Tooth, 3/8 28 2820427SM 1 SHIELD, Muffler Bottom 29 1722414ASM 1 CAPSCREW, Hex Head Flange Lock, 1/4-20 x 5/8 30 1960295SM 8 CAPSCREW, Hex Head Taptite, 5/16-18 x 1/2 31 1924856SM 2 NUT, Speed, 1/4-20 32 1960368SM 8 NUT, Speed, 5/16-18 33 1935255SM 2 DUCT, Muffler Top 34 1722389ASM 1 DUCT, Muffler Extension 35 1722390ASM 1

Footnotes

Note* See your local Briggs & Stratton distributor for parts and service.

The above parts group applies to the following Mfg. Nos.:

2690621 - Baron XL 2690625 - 2420 XL

Briggs and Stratton Yard Power Products Group

TP 400-4560-02-BR-SM

Engine Group - 18HP Briggs & Stratton, INTEK Single

NOTE: Unless noted otherwise, use the standard hardware torque specification chart.

986722

The above parts group applies to the following Mfg. Nos.:

2690622 - Baron XL

Briggs and Stratton Yard Power Products Group

TP 400-4560-02-BR-SM

Engine Group - 18HP Briggs & Stratton, INTEK Single

PART NO. DESCRIPTIONREF NO QTY.

MUFFLER 1 1723467SM 1 GASKET 2* 2 LOCKWASHER, 5/16 3 1917356SM 4 CAPSCREW, Socket Head, 5/16-18 x 7/8, G8 4 2860660SM 4 HOSE, Oil Drain 5 1723165SM 1 ENGINE, 18HP Briggs & Stratton INTEK Single, Model 31H777, Type 0118E1 6* 1 SEAL, Circle 7 1722950SM 1 BULKHEAD 8 1722388ASM 1 CAPSCREW, Hex Head Taptite, 1/4-20 x 1/2 9 1925003SM 2 CONTROL, Throttle/Choke 10 1724013SM 1 TIE 11 1701011SM 1 EDGING, Rubber 12 1723894SM 1 CLAMP, Hose Type E 13 2860112SM 2 HOSE, 59" Long 14 1718678SM 1 SCREW, Trox Head Taptite, #8-32 x 1/2 15 1726466SM 1 PLATE, Limiter RPM 16 1726465SM 1 CLIP, Wire 17 2834683SM 2 SHIELD 18 1722392ASM 2 SCREW, Hex Head Taptite, 1/4-20 x 3/8 19 1929000SM 3 KEY 20 1720463SM 1 PULLEY & HUB ASSEMBLY, 4-1/2 OD 21 1722288SM 1 WASHER, Hex 22 1708264SM 1 LOCKWASHER, 7/16 23 1918199SM 1 CAPSCREW, Hex Head, 7/16-20 x 2-3/4 24 1960648SM 1 CLUTCH, Electric, OGURA 25 1720532SM 1 TIE 26 2832747SM 1 CAPSCREW, Hex Head Taptite, 3/8-16 x 1-1/2 27 2830598SM 4 LOCKWASHER, External Tooth, 3/8 28 2820427SM 1 SHIELD, Muffler Bottom 29 1722414ASM 1 CAPSCREW, Hex Head Flange Lock1/4-20 x 5/8 30 1960295SM 6 CAPSCREW, Hex Head Taptite, 5/16-18 x 1/2 31 1924856SM 2 NUT, Speed, 1/4-20 32 1960368SM 5 NUT, Speed, 5/16-18 33 1935255SM 2 DUCT, Muffler Top 34 1722389ASM 1 GUARD, Manifold Pipe 35 1723897ASM 1 CLIP, Wire 36 2172434SM 1

Footnotes

Note* See your local Kohler distributor for parts and service.

The above parts group applies to the following Mfg. Nos.:

2690622 - Baron XL

Briggs and Stratton Yard Power Products Group

TP 400-4560-02-BR-SM

Transmission Group - Tuff Torq K-46BF

NOTE: Unless noted otherwise, use the standard hardware torque specification chart.

986828

The above parts group applies to the following Mfg. Nos.:

2690621 - Baron XL 2690622 - Baron XL 2690625 - 2420 XL 2690762 - Baron 2690772 - 2421

Briggs and Stratton Yard Power Products Group

TP 400-4560-02-BR-SM

Transmission Group - Tuff Torq K-46BF

PART NO. DESCRIPTIONREF NO QTY.

SCREW, Pan Head Torx Taptite, 1/4-20 x 1-1/4 1 1960676SM 2 FASTENER, Panel 3/4 Head 2 1704351SM 15 PAD, Footrest, RH Black Vinyl Textured 3 1722173SM 1 PAD, Footrest with Differential Lock, LH Black Vinyl Textures 4 1722174SM 1 NUT, Hex KEPS, 3/8-16 5 1960637SM 4 NUT, Hex Flange, 3/8-16 Whiz Lock Large 6 1928352SM 2 CARRIAGE BOLT, 3/8-16 x 1-3/4 G5 7 1931353SM 1 SUPPORT, Idler, RH 8 1726052ASM 1 CARRIAGE BOLT, 5/16-18 x 3/4 G5 9 1931333SM 3 PULLEY, 3 in. 10 2174561SM 1 NUT, Hex Flange3/8-16 ESNA 11 1960687SM 3 WASHER, 3/4 12 1922755SM 3 CARRIAGE BOLT, 3/8-16 x 1 G5 13 1931350SM 4 WASHER, 5/16 14 1919326SM 10 NUT, Hex KEPS, 5/16-18 Conical Washer 15 1960684SM 2 BRACKET, Chute Locator 16 1727431A 1 PULLEY, Idler, 4 in. 17 1710545SM 1 SUPPORT, Idler, LH 18 1726053A 1 CARRIAGE BOLT, 3/8-16 x 1-1/2 G5 19 1931352SM 1 CAPSCREW, Hex Head, 3/8-16X1.000 G5 BLK 20 1921210SM 2 DRAWBAR, 1/4 in. Thick 21 1727400A 1 NUT, Hex KEPS, 5/16-18 22 1960636SM 1 NUT, Hex Lock ESNA Light, 5/16-18NC-3B 23 1919438SM 6 ROD, Transmission Release 24 1727526SM 1 CLIP, Hair Pin Spring 25 1960221SM 1 CAPSCREW, Hex Head 5/16-18 x 2 G5 26 1921978SM 1 WASHER, 5/16 27 1960141SM 2 STRAP, Torque, 1/4 Thick 4 in. Long 28 1726055A 1 CAPSCREW, Hex Head, 5/16-18 x 2-3/4 G5 29 1923141SM 4 PIN, Quick 30 1722460SM 3 ROD, Control 31 1723045SM 1 PIN, Cotter 32 1918447SM 2 SHAFT & ARMS ASSEMBLY, Control 33 1727552SM 1 SPACER, Powered Metal 34 1666697SM 1 V-BELT, Drive Belt 35 1727407SM 1 CAPSCREW, Hex Washer Head Taptite, 5/16-18 x 1/2 36 1924856SM 2 ACTUATOR, Switch 37 1727215ASM 1 WASHER, 3/8 38 1924940SM 1 ROD, Brake 39 1726057SM 1 ARM & PIN ASSEMBLY, Speed Control 40 1727473SM 1 CAPSCREW, Hex Head, 5/16-18 x 1 G5 41 1921333SM 1 BRACKET & PIN ASSEMBLY, Brake 42 1723267SM 1 SPRING, Compression 43 1729277SM 1 BUSHING, Nylon 44 2176440SM 2

Footnotes

The above parts group applies to the following Mfg. Nos.:

2690621 - Baron XL 2690622 - Baron XL 2690625 - 2420 XL 2690762 - Baron 2690772 - 2421

Briggs and Stratton Yard Power Products Group

TP 400-4560-02-BR-SM

Transmission Group - Tuff Torq K-46BF

NOTE: Unless noted otherwise, use the standard hardware torque specification chart.

986828

The above parts group applies to the following Mfg. Nos.:

2690621 - Baron XL 2690622 - Baron XL 2690625 - 2420 XL 2690762 - Baron 2690772 - 2421

Briggs and Stratton Yard Power Products Group

TP 400-4560-02-BR-SM

Transmission Group - Tuff Torq K-46BF

PART NO. DESCRIPTIONREF NO QTY.

RING, E Retaining 45 2827794SM 2 TRANSMISSION ASSEMBLY, Tuff Torq K46BF 46 1727712SM 1

Footnotes

The above parts group applies to the following Mfg. Nos.:

2690621 - Baron XL 2690622 - Baron XL 2690625 - 2420 XL 2690762 - Baron 2690772 - 2421

Briggs and Stratton Yard Power Products Group

TP 400-4560-02-BR-SM

Controls Group

NOTE: Unless noted otherwise, use the standard hardware torque specification chart.

987595

The above parts group applies to the following Mfg. Nos.:

2690621 - Baron XL 2690622 - Baron XL 2690625 - 2420 XL 2690762 - Baron 2690772 - 2421

Briggs and Stratton Yard Power Products Group

TP 400-4560-02-BR-SM

Controls Group

PART NO. DESCRIPTIONREF NO QTY.

ROD, Brake 1 1721353SM 1 KNOB, Push On, Red 2 1721891SM 1 CAPSCREW, Hex Head Flange Lock, 5/16-18 x 3/4 3 1930591SM 1 NUT, Hex Flange, 3/8-16 ESNA 4 1960687SM 3 PULLEY ASSEMBLY, 3 OD, W/Bearing 5 1721134SM 1 SPACER 6 1667811SM 2 WASHER, 3/8 7 1922755SM 3 PULLEY, Idler 4 OD 8 1710545SM 1 CARRIAGE BOLT, 3/8-16 x 2 G5 9 1960315SM 2 BUSHING 10 1663114SM 2 ARM & HUB ASSEMBLY, Idler 11 1727370SM 1 SPRING, Extension 12 1733844SM 1 WASHER, 5/8 13 1960020SM 1 WASHER, 5/8 14 1924366SM 1 RING, Clipring 15 1704420SM 1 FITTING, Lube, 1/4 Ball Check 16 1704314SM 1 PULLEY, Idler 3-1/4 OD 17 1710539SM 1 CARRIAGE BOLT, 3/8-16 x 2 G5 18 1960315SM 1 PIN, Cotter 19 1918447SM 1 WASHER 20 1924940SM 1 ROD, Brake (Flat Ends) 21 1727408SM 1 PIN, Quick 22 1722460SM 1 WASHER 23 1919326SM 1 LATCH, Brake 24 1721354ASM 1 CONTROL ASSEMBLY, Foot Pedal 25 1726763SM 1 SPRING, Extension 26 1721995SM 1 CAM, Roller 27 1686612SM 1 NUT, Hex Lock ESNA, 1/4-20 28 1920397SM 1 NUT, Hex KEPS, 5/16-18 29 1960636SM 8 CARRIAGE BOLT, 1/4-20 x 1-1/4 30 1931320SM 1 CAPSCREW, Hex head Washer Taptite, 5/16-18 x 3/4 31 1664847SM 3 WASHER 32 1919381SM 1 NUT, Hex Lock ESNA, 5/16-18 33 1919438SM 1 NUT, Hex Flange Lock, 5/16-18 34 1927557SM 3 PEDAL, Brake 35 1722535ASM 1 PAD, Brake Pedal 36 1721577SM 1 CARRIAGE BOLT, 5/16-18 x 7/8 37 1931334SM 4 ACTUATOR, Switch 38 1722083ASM 1 CAPSCREW, Hex Head, 5/16-18 x 1 39 1921333SM 3 PEDAL, Forward 40 1722070ASM 1 PAD, Foot Pedal Forward 41 1721675SM 1 PAD, Foot Pedal Reverse 42 1721674SM 1 PEDAL, Reverse 43 1722071ASM 1 CARRIAGE BOLT, 5/16-18 x 3/4 44 1931333SM 4

Footnotes

The above parts group applies to the following Mfg. Nos.:

2690621 - Baron XL 2690622 - Baron XL 2690625 - 2420 XL 2690762 - Baron 2690772 - 2421

Briggs and Stratton Yard Power Products Group

TP 400-4560-02-BR-SM

Controls Group

NOTE: Unless noted otherwise, use the standard hardware torque specification chart.

987595

The above parts group applies to the following Mfg. Nos.:

2690621 - Baron XL 2690622 - Baron XL 2690625 - 2420 XL 2690762 - Baron 2690772 - 2421

Briggs and Stratton Yard Power Products Group

TP 400-4560-02-BR-SM

Controls Group

PART NO. DESCRIPTIONREF NO QTY.

CARRIAGE BOLT, 3/8-16 x 3/4 45 1931348SM 1 SUPPORT, Idler 46 1726087ASM 1

Footnotes

The above parts group applies to the following Mfg. Nos.:

2690621 - Baron XL 2690622 - Baron XL 2690625 - 2420 XL 2690762 - Baron 2690772 - 2421

Briggs and Stratton Yard Power Products Group

TP 400-4560-02-BR-SM

Cruise Control Group

NOTE: Unless noted otherwise, use the standard hardware torque specification chart.

986814

The above parts group applies to the following Mfg. Nos.:

2690621 - Baron XL 2690622 - Baron XL 2690625 - 2420 XL 2690762 - Baron 2690772 - 2421

Briggs and Stratton Yard Power Products Group

TP 400-4560-02-BR-SM

Cruise Control Group

PART NO. DESCRIPTIONREF NO QTY.

CAPSCREW, Torx Socket Head, 1/4-20 x 7/8 1 1960666SM 1 KNOB, Cruise 2 1722303SM 1 NUT, Hex ESNA Lock, 1/4-20 3 1920397SM 1 LEVER & BRACKET ASSEMBLY, Cruise 4 1723258SM 1 WASHER 5 1960103SM 3 CARRIAGE BOLT, 5/16-18 x 3/4 6 1931333SM 1 WASHER, 9/16 x 1-1/4 x 1/8 7 1926192SM 2 SPACER 8 1709043SM 1 CARRIAGE BOLT, 5/16-18 x 2-3/4 9 1931342SM 1 CARRIAGE BOLT, 5/16-18 x 2-1/4 10 1960273SM 1 PIN, Cotter 11 1918447SM 2 ROD, Cruise 12 1726059SM 1 NUT, Hex KEPS, 5/16-18 13 1960636SM 2 CAPSCREW, Hex Head Plastite, 10-14 x 5/8 14 1960001SM 2 SWITCH, Push, Neutral Start, Gray 15 1717050SM 1 SPACER 16 1722080SM 1 WASHER 17 1919326SM 1 WASHER 18 1919381SM 2 NUT, Hex ESNA Lock, 5/16-18 19 1919438SM 1 SPRING, Compression 20 1677746SM 1 PIN, Quick 21 1722460SM 2 ROD, Cruise Return 22 1723099SM 1

Footnotes

The above parts group applies to the following Mfg. Nos.:

2690621 - Baron XL 2690622 - Baron XL 2690625 - 2420 XL 2690762 - Baron 2690772 - 2421

Briggs and Stratton Yard Power Products Group

TP 400-4560-02-BR-SM

Electrical Group

NOTE: Unless noted otherwise, use the standard hardware torque specification chart.

986631

The above parts group applies to the following Mfg. Nos.:

2690621 - Baron XL 2690622 - Baron XL 2690625 - 2420 XL 2690762 - Baron 2690772 - 2421

Briggs and Stratton Yard Power Products Group

TP 400-4560-02-BR-SM

Electrical Group

PART NO. DESCRIPTIONREF NO QTY.

HEADLIGHT ASSEMBLY, 4 Bulb 1 1721810SM 1 HARNESS, Headlight 2 1722669SM 1 SWITCH, PTO Push/Pull w/Symbols 3 1722887SM 1 CAPSCREW, Hex Head, 1/4 x 5/8 4 1921959SM 1 SOLENOID 5 1722739SM 1 MODULE, RMO (Includes Ref. No. 7) 6 1726556SM 1 KEY, RMO Module Plastic 7 1726557SM 1 KEY, w/Hang Tag for RMO Module 7 1726557SM 1 PLUG, Hole Black 8 1722611SM 1 WIRE, 12GA 8 Long Red 9 1665237SM 1 NUT, Hex, 5/16-24 NF-2B 10 2820263SM 2 LOCKWASHER, External Tooth 5/16 11 2820426SM 3 BREAKER, Circuit 12VOLT 20AMPS w/Tabs 12 1665238SM 1 SWITCH ASSEMBLY, Ingition, 6 Pin Indak (Includes Ref. Nos. 14 thru 18) 13 1686734SM 1 WASHER, 5/8 14 2101025SM 1 LOCKWASHER, Internal Tooth, 5/8 15 1960547SM 1 NUT, Hex Flange, 5/8-32 Ignition Switch 16 1717549SM 1 COVER, Ignition Switch, Black 17 1717550SM 1 KEYS, Ignition Set of 2 18 1717163SM 1 CABLE, # 6 x 25 Long Red, 2 Ring Terminals 19 1721830SM 1 METER, Hour Digital w/Oil & Lube Alarms 20 1731184SM 1 PLUG, Dash, Hour Meter 21 1725524SM 1 PLUG, Dash, No Hour Meter Hole 21 1725698SM 1 CLIP, Hour Meter, Holds In Daash 22 1725835SM 1 BUZZER, Pulse, Grass Bag Full 23 1720117SM 1 SWITCH, Headlights, 2 Terminal 24 1716951SM 1 HARNESS, Wiring Upper 25 1730195SM 1 BOOT, Insulator, Battery Terminal 26 1677296SM 1 NUT, Hex, 1/4-20 NC-2B 27 2816622SM 3 DEFLECTOR, Switch 14GA 28 1727776ASM 1 NUT, Hex KEPS Conical Washer, 1/4-20 29 1960685SM 2 HARNESS, Wiring Rear 30 1723954SM 1 SWITCH, Push Button w/Boot, Bagger 31 1720411SM 1 CARRIAGE BOLT, 1/4-20 x 5/8 G5 32 1960252SM 3 PIVOT, Actuator 14GA, E-Coat 33 1727428SM 1 WASHER, 3/8 34 1960103SM 1 NUT, Wing Lock, 1/4-20 35 2860293SM 1 PIN, Clevis 36 1960607SM 1 CLIP, Hair Pin 37 1960221SM 1 SUPPORT, Actuator 14GA, E-Coat 38 1727427SM 1 SCREW, Hex Washer Head Plastite, 1/4 x 1/2 (Used only on Seat Switch 1716368SM) 39 1960536SM 2 SWITCH, Operator Presents, Seat (Mounted with screw Syte) 40 1716368SM 1 SWITCH, Operator Presents, Seat (Twist in Style) 40 1718981SM 1 SCREW, Hex Washer Head Taptite, 1/4-20 x 3/8 41 1929000SM 1

Footnotes

The above parts group applies to the following Mfg. Nos.:

2690621 - Baron XL 2690622 - Baron XL 2690625 - 2420 XL 2690762 - Baron 2690772 - 2421

Briggs and Stratton Yard Power Products Group

TP 400-4560-02-BR-SM

Electrical Group

NOTE: Unless noted otherwise, use the standard hardware torque specification chart.

986631

The above parts group applies to the following Mfg. Nos.:

2690621 - Baron XL 2690622 - Baron XL 2690625 - 2420 XL 2690762 - Baron 2690772 - 2421

Briggs and Stratton Yard Power Products Group

TP 400-4560-02-BR-SM

Electrical Group

PART NO. DESCRIPTIONREF NO QTY.

BRACKET, Switch Mounting, RMO 42 1726810ASM 1 SWITCH, Push Button, Reverse Pedal 43 1732004SM 2 SWITCH, Push Button, Foot Pedal 44 1723507SM 1 SWITCH, Push Button, Cruise Control 45 1717050SM 1 CABLE, # 6 x 9 Long, 2 Ring Terminals 46 1603618SM 1 BATTERY, 12VOLT 6CELL 230AMPS CCA 47 1685215SM 1 STRAP, Battery 14 Long, Black Rubber 48 1722009SM 1 CABLE, # 6 x 26 Long Black, 2 Ring Terminals 49 1713163SM 1 CAPSCREW, Hex Head, 1/4-20 x 3/4 G5 50 2823341SM 2 WASHER, 1/4 51 2821319SM 2 LOCKWASHER, Spring 1/4 52 2816964SM 2 BOOT, Insulator Red, Cable Terminal 53 1713535SM 1 TIE, Self Locking, 7-5/16 54 1701011SM 4 HARNESS, Wiring Lower 55 1730194SM 1 TIE, Self Locking (Used only on Seat Switch 1718981SM) 56 2825094SM 1

Footnotes

The above parts group applies to the following Mfg. Nos.:

2690621 - Baron XL 2690622 - Baron XL 2690625 - 2420 XL 2690762 - Baron 2690772 - 2421

Briggs and Stratton Yard Power Products Group

TP 400-4560-02-BR-SM

Hood, Grille & Dash Group

NOTE: Unless noted otherwise, use the standard hardware torque specification chart.

986611

The above parts group applies to the following Mfg. Nos.:

2690621 - Baron XL 2690622 - Baron XL 2690625 - 2420 XL 2690762 - Baron 2690772 - 2421

Briggs and Stratton Yard Power Products Group

TP 400-4560-02-BR-SM

Hood, Grille & Dash Group

PART NO. DESCRIPTIONREF NO QTY.

PANEL, RH Side 1 1721804CSM 1 PANEL, RH Side, Red 1 1721804DSM 1 HOOD, with Scoop 2 1728031DSM 1 HOOD, with Louvers 3 1722110CSM 1 CAPSCREW, Hex Head Flange Lock,1/4-20 x 5/8 4 1960295SM 12 SCREW, Phillips Head, #10-24 x 1/2 5 1960392SM 1 DASHBOARD, RMO with Buzzer Hole, Black 6 1687056SM 1 NUT, Hex Nylock,#10-24 7 1933896SM 1 ROD, Dash Support 8 1723123SM 1 NUT, Hex Flange Lock, 1/4-20 9 1930641SM 12 PANEL, LH Side 10 1721803CSM 1 PANEL, LH Side, Red 10 1721803DSM 1 HINGE, LH 11 1721808ASM 1 DUCT, Air Inlet 12 1733457ASM 1 GRILLE 13 1721802CSM 1 GRILLE, Red 13 1721802DSM 1 HEADLIGHT ASSEMBLY, (Includes Ref. Nos. 15 & 16) 14 1721810SM 1 BULB, Headligh 15 1677371SM 4 SOCKET, Headlight 16 1723451SM 4 HINGE, RH 17 1721809ASM 1 COVER, Lift 18 1722285SM 1 SCREW, Plastite #8-16 x 1/2 19 1722607SM 1

Footnotes

The above parts group applies to the following Mfg. Nos.:

2690621 - Baron XL 2690622 - Baron XL 2690625 - 2420 XL 2690762 - Baron 2690772 - 2421

Briggs and Stratton Yard Power Products Group

TP 400-4560-02-BR-SM

Seat Deck & Fuel Tank Group

NOTE: Unless noted otherwise, use the standard hardware torque specification chart.

986812

The above parts group applies to the following Mfg. Nos.:

2690621 - Baron XL 2690622 - Baron XL 2690625 - 2420 XL 2690762 - Baron 2690772 - 2421

Briggs and Stratton Yard Power Products Group

TP 400-4560-02-BR-SM

Seat Deck & Fuel Tank Group

PART NO. DESCRIPTIONREF NO QTY.

SEAT, 15" Back 1 1687201SM 1 TUNNEL, Orange 3 1722105CSM 1 TUNNEL, Red 3 1722105DSM 1 POD, R.H. 5 1722108SM 1 SUPPORT, Seat 6 1722128ASM 1 SLIDE, Seat 7 1722356SM 1 PLUG, Hole 8 1722309SM 2 BRACKET, Seat 9 1722129ASM 1 SCREW, Hex Whiz Lock Flange 5/16-18 x 3/4 10 1930591SM 8 NUT, Hex Lock Esna Light 5/16-18 11 1919438SM 2 SPRING, Compression 12 1714263SM 2 WASHER, Spring 13 1709256SM 6 SPRING 14 1717051SM 2 TUBE & ELBOW ASSEMBLY, Fuel Line w/Screen 15 1726902SM 1 CARRIAGE BOLT, 5/16-18 x 2 G5 16 1931339SM 2 CARRIAGE BOLT, 3/8-16 x 1 G5 17 1931350SM 2 NUT, Speed, 5/16-18 Lug Type 18 1935255SM 4 POD, w/Cup Holder 19 1729711SM 1 SCREW, Hex Flange, Whiz Lock 5/16-18 x 1 20 1960667SM 4 SCREW, Hex Sems Washer 1/4c x 7/8 22 2860664SM 8 BUSHING, Fuel TankFUEL TANK 23 1654930SM 1 CAP, Fuel Tank 24 1715917SM 1 TANK, Fuel 26 1722652SM 1 SPACER 27 1663752SM 2 SCREW, Hex Washer Head Taptite 5/16-18 x 5/8 28 1930601SM 2 CLIP, Wire, Panel 29 2172434SM 1 WASHER, 3/8 30 1924940SM 2 NUT, Hex Lock Esna Light 5/16-18 31 1919438SM 4 NUT, Hex Flange 3/8-16 Two-Way Lock 32 1930645SM 2 DECK, Seat Orange 33 1727397CSM 1 DECK, Seat Red 33 1727397DSM 1 SCREW, Hex Whiz Lock Flange 5/16-18 x 5/8 34 2834665SM 1 FUEL, Gauge 35 1722300SM 1 GROMMET 36 1722337SM 1 NUT, Hex Flange 5/16-18 Whiz Lock Small 37 1931277SM 4

Footnotes

The above parts group applies to the following Mfg. Nos.:

2690621 - Baron XL 2690622 - Baron XL 2690625 - 2420 XL 2690762 - Baron 2690772 - 2421

Briggs and Stratton Yard Power Products Group

TP 400-4560-02-BR-SM

Hopper Group

NOTE: Unless noted otherwise, use the standard hardware torque specification chart.

986813

The above parts group applies to the following Mfg. Nos.:

2690621 - Baron XL 2690622 - Baron XL 2690625 - 2420 XL 2690762 - Baron

Briggs and Stratton Yard Power Products Group

TP 400-4560-02-BR-SM

Hopper Group

PART NO. DESCRIPTIONREF NO QTY.

ROD & TABS ASSEMBLY, Bagger Front 1 1727486ASM 1 NUT, Hex KEPS Conical Washer, 1/4-20 2 1960685SM 22 WASHER, 1/4 3 1960353SM 8 CARRIAGE BOLT, 1/4-20 x 1-1/4 4 1931320SM 4 CAPSCREW, Hex Head, 5/16-18 x 1 G5 5 1921333SM 6 LOCKWASHER, Spring 5/16 6 1917356SM 6 WASHER, 5/16 7 1919326SM 6 CARRIAGE BOLT, 1/4-20 x 3/4 G5 8 1931317SM 15 SPACER 9 1715654SM 2 CLIP, L 12GA 10 1727674SM 6 FRAME ASSEMBLY, Hopper 11 1727420A 1 CAPSCREW, Hex Head, 1/4-20 x 7/8 G5 12 1924009SM 4 WASHER, 1/4 13 1921319SM 3 LOCKWASHER, Spring 1/4 14 1916964SM 4 NUT, Hex 1/4-20 15 1916622SM 4 CABLE, Bagger, 17.72 Long 16 1727832SM 2 CLIP, L 12GA 17 1727676A 4 BAR, Bagger Top 7GA 18 1727671ASM 1 WASHER, 5/8 19 1724684SM 2 HANDLE, Hopper, 13.59 Long 20 1724399ASM 1 LID & SCREEN ASSEMBLY, Orange 21 1727930SM 1 LID & SCREEN ASSEMBLY, Red 21 1727931SM 1 BAG, Grass Black Cloth 22 1727423SM 1 CARRIAGE BOLT, 5/16-18 x 7/8 G5 23 1931334SM 9 PLATE, Tube Stop Bagger 14GA 24 1727520A 1 BAR, Bagger Bottom 7GA 25 1727670A 1 BRACE, Angle 26 1727675ASM 2 WASHER, 5/16 27 1960044SM 1 NUT, Hex KEPS Conical Washer, 5/16-18 28 1960684SM 5 CAPSCREW, Hex Head 5/16-18 x 2 G5 29 1921978SM 1 WASHER, 5/16 30 1960044SM 2 LATCH, Release 10GA 31 1724651ASM 1 CAPSCREW, Hex Head, 5/16-18 x 1 G5 32 1921333SM 1 WASHER, 5/16 33 1919326SM 2 SPACER, Powdered Metal 34 1666697SM 1 SPRING, Compression 35 1714263SM 1 PIN, Cotter 36 1923360SM 1 ROD, Foot Pedal Bagger Release, 11.66 Long, 2 Bends 37 1724652SM 1 NUT, Hex Lock ESNA Light, 5/16-18 NC-3B 38 1919438SM 2 PIVOT ASSEMBLY, Latch 39 1727580A 1 NUT, Hex Flange Whiz Lock, 3/8-16 Large 40 1928352SM 5 CAPSCREW, Hex Head, 3/8-16 x 3/4 G5 41 1921965SM 4 BACKPLATE ASSEMBLY 42 1727419A 1 BRACKET, Latch LH, 7GA 43 1723182ASM 1

Footnotes

The above parts group applies to the following Mfg. Nos.:

2690621 - Baron XL 2690622 - Baron XL 2690625 - 2420 XL 2690762 - Baron

Briggs and Stratton Yard Power Products Group

TP 400-4560-02-BR-SM

Hopper Group

NOTE: Unless noted otherwise, use the standard hardware torque specification chart.

986813

The above parts group applies to the following Mfg. Nos.:

2690621 - Baron XL 2690622 - Baron XL 2690625 - 2420 XL 2690762 - Baron

Briggs and Stratton Yard Power Products Group

TP 400-4560-02-BR-SM

Hopper Group

PART NO. DESCRIPTIONREF NO QTY.

NUT, Hex Flange Whiz Lock, 5/16-18 Small 44 1931277SM 4 CLIP, Hair Pin, Spring Wire 45 1960074SM 2 ROD, 25.12 Long, 2 Bends 46 1724458SM 1 CAPSCREW, Hex Head, 3/8-16 x 2-3/4 G5 47 1921973SM 1 WASHER, 3/8 48 1924940SM 1 BUSHING, Powdered Metal 49 1676148SM 2 SPACER, 1-1/2 Long, Hardened 50 1669105SM 1 SPRING, Extansion 51 1718016SM 1 ROD & TUBE ASSEMBLY, Differential Lock Pedal 52 1725036SM 1 KNOB, Hole 1/2, 1.37 Long 53 1719940SM 1 CARRIAGE BOLT, 3/8-16 x 1-1/4 G5 54 1960268SM 4 SHAFT & ARMS ASSEMBLY, Latch 55 1724540SM 1 SCREW, Pan Head Torx Taptite, 1/4-20 x 3/4 56 1960556SM 4 NUT, Hex Flange Two Way Lock, 3/8-16 GA 57 1930645SM 1 CAPSCREW, Hex Head, 1/4-20 x 3/4 G5 58 1923341SM 1 CHUTE, Discharge Black Poly 59 1727429SM 1 CAPLUG, Black Poly, 3/4 Hole 60 1724553SM 1 KNOB, Bagger Release 61 1713855SM 1 PIN, Klik 5/164 62 1666969SM 1 HANDLE, Tube, 39.75 Long 63 1727523ASM 1 GRIP, Hopper Lift Rod 64 1723359SM 1 TRANSITION, Hopper Black 65 1727406SM 1 BRACKET, Latch RH, 7GA 66 1723181ASM 1

Footnotes

The above parts group applies to the following Mfg. Nos.:

2690621 - Baron XL 2690622 - Baron XL 2690625 - 2420 XL 2690762 - Baron

Briggs and Stratton Yard Power Products Group

TP 400-4560-02-BR-SM

Hopper Group

NOTE: Unless noted otherwise, use the standard hardware torque specification chart.

986824

The above parts group applies to the following Mfg. Nos.:

2690772 - 2421

Briggs and Stratton Yard Power Products Group

TP 400-4560-02-BR-SM

Hopper Group

PART NO. DESCRIPTIONREF NO QTY.

ROD & TABS ASSEMBLY, Bagger Front 1 1727486ASM 1 NUT, Hex KEPS Conical Washer, 1/4-20 2 1960685SM 22 WASHER, 1/4 3 1960353SM 8 CARRIAGE BOLT, 1/4-20 x 1-1/4 4 1931320SM 4 CAPSCREW, Hex Head, 5/16-18 x 1 G5 5 1921333SM 6 LOCKWASHER, Spring 5/16 6 1917356SM 6 WASHER, 5/16 7 1919326SM 6 CARRIAGE BOLT, 1/4-20 x 3/4 G5 8 1931317SM 15 SPACER 9 1715654SM 2 CLIP, L 12GA 10 1727674SM 6 FRAME ASSEMBLY, Hopper 11 1727420A 1 CAPSCREW, Hex Head, 1/4-20 x 7/8 G5 12 1924009SM 4 WASHER, 1/4 13 1921319SM 3 LOCKWASHER, Spring 1/4 14 1916964SM 4 NUT, Hex 1/4-20 15 1916622SM 4 CABLE, Bagger, 17.72 Long 16 1727832SM 2 CLIP, L 12GA 17 1727676A 4 BAR, Bagger Top 7GA 18 1727671ASM 1 WASHER, 5/8 19 1724684SM 2 HANDLE, Hopper, 13.59 Long 20 1724399ASM 1 LID & SCREEN ASSEMBLY, Red 21 1727931SM 1 BAG, Grass Black Cloth 22 1727423SM 1 CARRIAGE BOLT, 5/16-18 x 7/8 G5 23 1931334SM 9 PLATE, Tube Stop Bagger 14GA 24 1727520A 1 BAR, Bagger Bottom 7GA 25 1727670A 1 BRACE, Angle 26 1727675ASM 2 WASHER, 5/16 27 1960044SM 1 NUT, Hex KEPS Conical Washer, 5/16-18 28 1960684SM 5 CAPSCREW, Hex Head 5/16-18 x 2 G5 29 1921978SM 1 WASHER, 5/16 30 1960044SM 2 LATCH, Release 10GA 31 1724651ASM 1 CAPSCREW, Hex Head, 5/16-18 x 1 G5 32 1921333SM 1 WASHER, 5/16 33 1919326SM 2 SPACER, Powdered Metal 34 1666697SM 1 SPRING, Compression 35 1714263SM 1 PIN, Cotter 36 1923360SM 1 ROD, Foot Pedal Bagger Release, 11.66 Long, 2 Bends 37 1724652SM 1 NUT, Hex Lock ESNA Light, 5/16-18 NC-3B 38 1919438SM 2 PIVOT ASSEMBLY, Latch 39 1727580A 1 NUT, Hex Flange Whiz Lock, 3/8-16 Large 40 1928352SM 5 CAPSCREW, Hex Head, 3/8-16 x 3/4 G5 41 1921965SM 4 BACKPLATE ASSEMBLY 42 1727419A 1 BRACKET, Latch LH, 7GA 43 1723182ASM 1

Footnotes

The above parts group applies to the following Mfg. Nos.:

2690772 - 2421

Briggs and Stratton Yard Power Products Group

TP 400-4560-02-BR-SM

Hopper Group

NOTE: Unless noted otherwise, use the standard hardware torque specification chart.

986824

The above parts group applies to the following Mfg. Nos.:

2690772 - 2421

Briggs and Stratton Yard Power Products Group

TP 400-4560-02-BR-SM

Hopper Group

PART NO. DESCRIPTIONREF NO QTY.

Footnotes

The above parts group applies to the following Mfg. Nos.:

2690772 - 2421

Briggs and Stratton Yard Power Products Group

TP 400-4560-02-BR-SM

Wheels & Tires Group

NOTE: Unless noted otherwise, use the standard hardware torque specification chart.

W986625

The above parts group applies to the following Mfg. Nos.:

2690621 - Baron XL 2690622 - Baron XL 2690625 - 2420 XL 2690762 - Baron 2690772 - 2421

Briggs and Stratton Yard Power Products Group

TP 400-4560-02-BR-SM

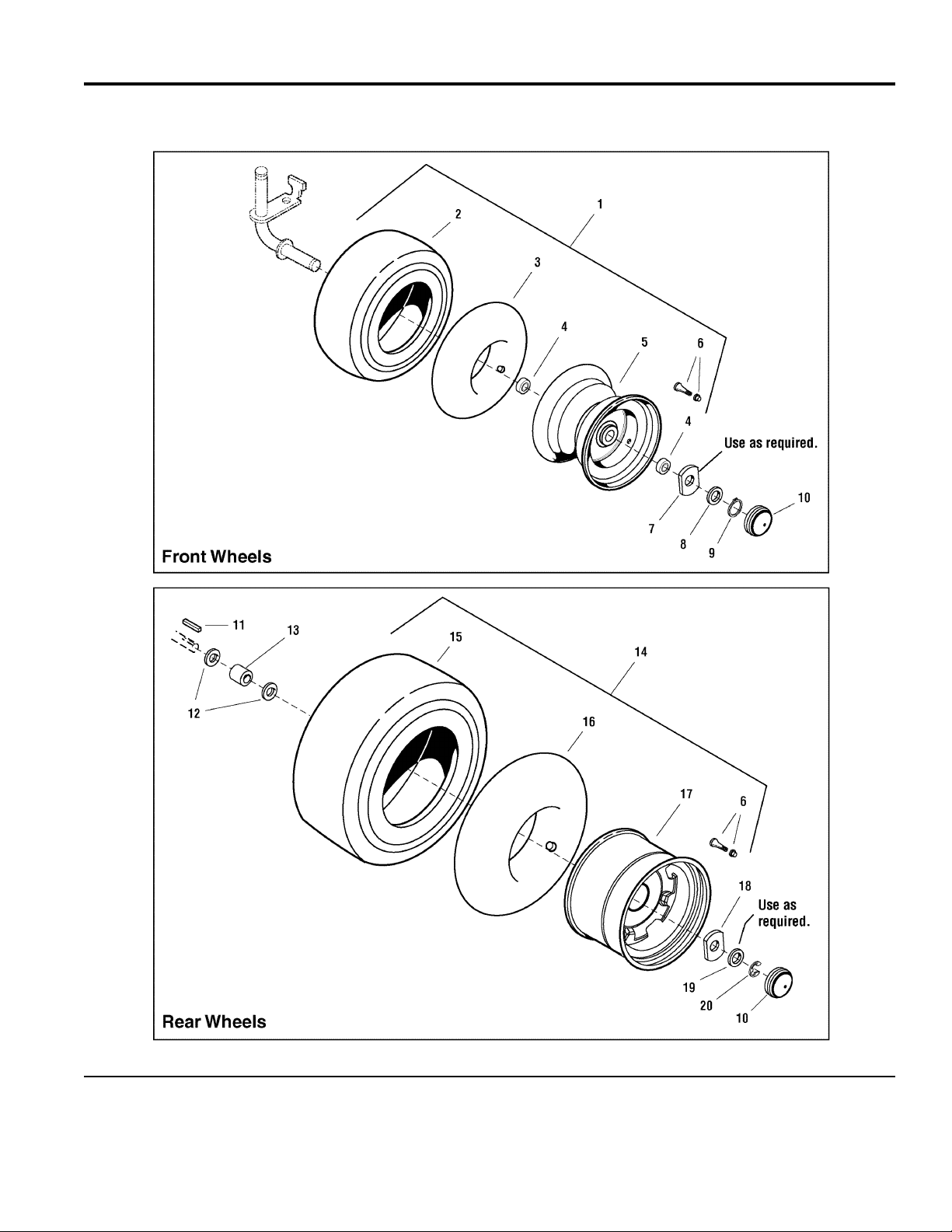

Wheels & Tires Group

PART NO. DESCRIPTIONREF NO QTY.

WHEEL & TIRE ASSEMBLY, Front, (Includes Ref. Nos. 2, 3, 4, 5, & 6) 1 1732202SM 2 TIRE, 15 x 6, Super Turf 2 1733882SM 1 TUBE, Tire, Front, 4.10/3.50 3 1664090SM 1 BEARING, Ball 4 1717056SM 2 WHEEL, 4-1/2" x 6" 5 1722837SM 1 VALVE STEM & CAP ASSEMBLY 6 2172353SM 4 WASHER, Special, (As Required) 7 1722726SM 4 WASHER, 1, (As Required) 8 1919394SM 4 RING, Retaining, External #98 9 2832577SM 2 CAP, Hub, Gray 10 1722676SM 4 KEY, Parellel, 3/16 x 3/16 x 1-1/2 11 1729279SM 2 WASHER, 3/4 12 2860202SM 4 SPACER 13 1709527SM 2 WHEEL & TIRE ASSEMBLY, (Includes Ref. Nos. 6, 15, 16 & 17) 14 1732203SM 2 TIRE, 20 x 10, 8 Super Turf 15 1733881SM 1 TUBE, Tire, 20 x 8, Rear 16 2173477SM 1 WHEEL, 7 x 7.96, W/ 3/4 OD Shaft 17 1722835SM 1 WASHER, Special 18 1722717SM 2 WASHER, 3/4 19 1960114SM 2 RING, "E" External 20 2827794SM 2

Footnotes

The above parts group applies to the following Mfg. Nos.:

2690621 - Baron XL 2690622 - Baron XL 2690625 - 2420 XL 2690762 - Baron 2690772 - 2421

Briggs and Stratton Yard Power Products Group

TP 400-4560-02-BR-SM

Decals Group - Brand & Model

NOTE: Unless noted otherwise, use the standard hardware torque specification chart.

B986625

The above parts group applies to the following Mfg. Nos.:

2690621 - Baron XL 2690622 - Baron XL 2690625 - 2420 XL 2690762 - Baron 2690772 - 2421

Briggs and Stratton Yard Power Products Group

TP 400-4560-02-BR-SM

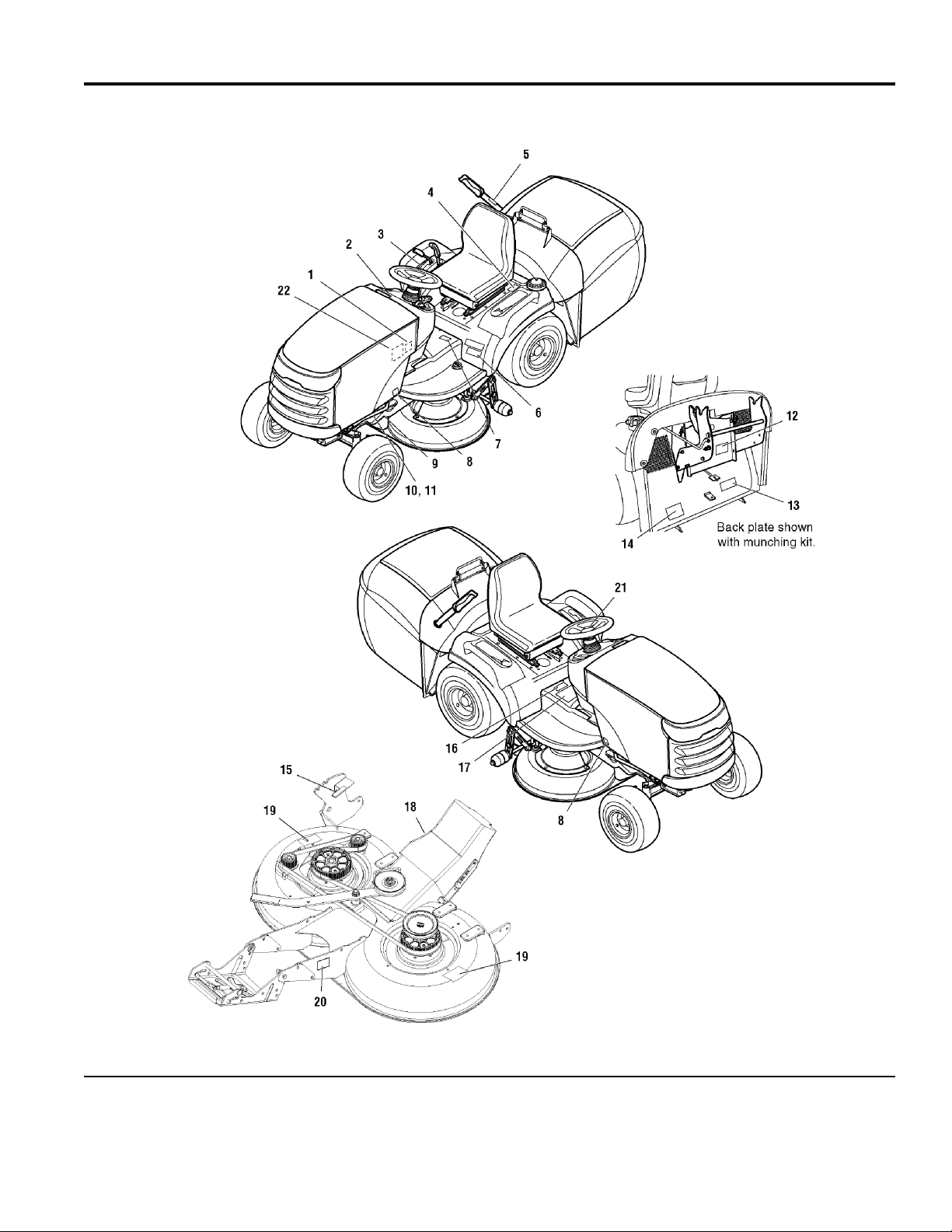

Decals Group - Brand & Model

PART NO. DESCRIPTIONREF NO QTY.

DECAL, Hood Stripe RH, Simplicity 1 1722773SM 1 DECAL, Hood Stripe RH, Massey Baron 1 1727784SM 1 DECAL, Hood LH, Simplicity 2 1727718SM 1 DECAL, Hood RH, Simplicity 3 1727717SM 1 DECAL, Baron XL 4 1727714SM 1 DECAL, Simplicity 5 1723859SM 1 DECAL, Baron 6 1722784SM 1 DECAL, Hood Stripe LH, Simplicity 7 1722774SM 1 DECAL, 2420 Massey Ferguson 8 1728095SM 2 DECAL, 2418 Massey Ferguson 8 1728121SM 2 DECAL, 2421 Massey Ferguson 8 1728121SM 2 DECAL, Hood Stripe LH, Massey Ferguson 9 1727784SM 1 DECAL, Hood Stripe LH, Massey Baron 9 1727783SM 1 DECAL, Hood Stripe LH, Simplicity 10 1722774SM 1 DECAL, Touch Up Paint (Orange & Red) 11 1720454SM 1

Footnotes

The above parts group applies to the following Mfg. Nos.:

2690621 - Baron XL 2690622 - Baron XL 2690625 - 2420 XL 2690762 - Baron 2690772 - 2421

Briggs and Stratton Yard Power Products Group

TP 400-4560-02-BR-SM

Decals Group - Safety & Common

NOTE: Unless noted otherwise, use the standard hardware torque specification chart.

C986625

The above parts group applies to the following Mfg. Nos.:

2690621 - Baron XL 2690622 - Baron XL 2690625 - 2420 XL 2690762 - Baron 2690772 - 2421

Briggs and Stratton Yard Power Products Group

TP 400-4560-02-BR-SM

Decals Group - Safety & Common

PART NO. DESCRIPTIONREF NO QTY.

DECAL, Belt and Blade 1 1732413SM 1 DECAL, Ignitiaon Switch Symbols 2 1722806SM 1 DECAL, Cruise/Lift 3 1723713SM 1 DECAL, Hopper Release 4 1724680SM 1 DECAL, Hopper Lever 5 1723310SM 1 DECAL,18HP 6 1722779SM 1 DECAL, 20HP 6 1722780SM 1 DECAL, 21HP 6 1730206SM 1 DECAL, Hopper Pedal 7 1723317SM 1 STICKER, Protective Clear, 1-3/4 x 1-3/4 8 1723296SM 2 LABEL, Decibel 9* 2 ID PLATE, Tractor 10 * 1 DECAL, Patent 11 * 1 DECAL, Transmission Release Valve, Symbol 12 1723425SM 1 DECAL, Drawbar Max Load 13 1721141SM 1 DECAL, Danger Operating without Catcher 14 1720391SM 1 DECAL, Height of Cut 15 1723470SM 1 DECAL, Danger Catcher Open, Symbol 16 1720390SM 1 DECAL, Operator Tunnel Icons (CE/Export) 17 1723175SM 1 DECAL, Operator Tunnel Icons ACS (CE/Export) 17 1734027SM 1 DECAL, Danger Discharge Tube, Symbols (Right side of discharge chute) 18 1721107SM 1 DECAL, Danger Rotating Blades, Symbols 19 1720389SM 2 ID PLATE, Mower Deck 20 * 1 DECAL, SMI Steering Wheel, Orange 21 1731418SM 1 DECAL, Touch Up Paint, Orange, Black, Red 22 1720454SM 1

Footnotes

Note* Not a serviceable part.

The above parts group applies to the following Mfg. Nos.:

2690621 - Baron XL 2690622 - Baron XL 2690625 - 2420 XL 2690762 - Baron 2690772 - 2421

Briggs and Stratton Yard Power Products Group

TP 400-4560-02-BR-SM

40" Mower Deck - Belt, Idle Arm & Hitch

NOTE: Unless noted otherwise, use the standard hardware torque specification chart.

986896

The above parts group applies to the following Mfg. Nos.:

1695200 - 40" Mower 1695201 - 40" Mower 2690621 - Baron XL 2690622 - Baron XL 2690625 - 2420 XL

Briggs and Stratton Yard Power Products Group

2690762 - Baron 2690772 - 2421

TP 400-4560-02-BR-SM

40" Mower Deck - Belt, Idle Arm & Hitch

PART NO. DESCRIPTIONREF NO QTY.

IDLER ARM ASSEMBLY, w/Bushings 1 1720444SM 1 SPRING, Extension 3 1715435SM 1 SPACER 4 1657242SM 1 CARRIAGE BOLT, 3/8-16 x 2-1/2 6 1960615SM 1 WASHER 7 1922755SM 3 CAPSCREW, Hex Head, 3/8-16 x 3, G8 8 1960614SM 1 WASHER 9 1933263SM 1 PULLEY, 4-1/2 OD 10 2101096SM 1 WASHER 11 1924940SM 6 SPACER 12 1732443 2 NUT, Hex Lock ESNA, 3/8-16 13 1919439SM 1 WASHER & LOCK NUT ASSEMBLY, 3/8-16 14 1721425SM 1 V-BELT 15 1735714 1 NUT, Push 16 1960519SM 1 HITCH, Mower 17 1720044ASM 1 ROD 18 1715759SM 1 SPRING, Extension 19 2156302 1 SPACER 20 2157081SM 2 NUT, Hex Flange Lock, 3/8-16 22 1928352SM 2 NUT, Spiral Flange Toplock, 3/8-16 21 2860681SM 2 CAPSCREW, Hex Head, 3/8-16 1-3/8 23 1921968SM 2 ROD 24 1713578SM 1 BELT, Timing 25 1724626SM 1 CAPSCREW, Hex Head, 3/8-16 x 2 27 1923701SM 2 PULLEY, Idler 28 1731892SM 2 SPRING, Extension 30 1674671SM 1 ARM, Idler 31 1726387ASM 1 SPACER 32 1666697SM 1 CAPSCREW, Hex Head Taptite, 5/16-18 x 5/8 33 1930601SM 1 HUB, Pulley 34 1719221SM 2 STOP, Belt 35 1719842ASM 1

Footnotes

The above parts group applies to the following Mfg. Nos.:

1695200 - 40" Mower 1695201 - 40" Mower 2690621 - Baron XL 2690622 - Baron XL 2690625 - 2420 XL

Briggs and Stratton Yard Power Products Group

2690762 - Baron 2690772 - 2421

TP 400-4560-02-BR-SM

40" Mower Deck - Height Adjustment & Roller Bar

NOTE: Unless noted otherwise, use the standard hardware torque specification chart.

987502

The above parts group applies to the following Mfg. Nos.:

1695200 - 40" Mower 1695201 - 40" Mower 2690621 - Baron XL 2690622 - Baron XL 2690625 - 2420 XL

Briggs and Stratton Yard Power Products Group

2690762 - Baron 2690772 - 2421

TP 400-4560-02-BR-SM

40" Mower Deck - Height Adjustment & Roller Bar

PART NO. DESCRIPTIONREF NO QTY.

CAPSCREW, Hex Head, 5/16-18 x 1-1/4 G5 1 1921977SM 4 WASHER, 5/16 2 1960044SM 3 SPACER 3 1960236SM 3 SHAFT & BAR ASSEMBLY, Roller 4 1733081ASM 1 WASHER, 5/8 5 1924366SM 5 ROLLER, Round-End, 4.1 6 1722036SM 2 ROLLER, Flat-End, 4.1 7 1668513SM 6 ROLLER, Round-End, 2.05 8 1717675SM 1 SPACER 9 1602946SM 1 WASHER, Flat, 3/8 10 1924940SM 8 WASHER. Flat, 1/2 11 1960170 2 NUT, Hex Flange 5/16-18 Colar Lock 12 2860643SM 3 BUTTON, Red Nylon for 1/4 Rod 13 1723124SM 1 GRIP, Soft 14 1713995SM 1 NUT, Push Pal 1/4 Diameter Thread 15 1960674SM 1 SPRING, Compression 16 1723321SM 1 HANDLE ASSEMBLY, Lift Curved 17 1732751ASM 1 ROD, Curved, Latch 18 1732754SM 1 CAPSCREW, Hex Head 1/4-20 x 2-1/4 G5 19 1921159SM 1 LATCH 20 1720599SM 1 NUT, Hex Lock ESNA Light 1/4-20 21 1920397SM 1 BOLT, Carriage, 5/16-18 x 1 G5 22 1931335SM 2 LOCKWASHER, Spring 5/16 23 1917356SM 2 NUT, Hex 5/16-18 24 1917372SM 2 WHEEL 25 1714760SM 2 Bolt, Shoulder, 3/8-16 x 2.87 26 2108765 2 NUT, Push for 5/8 Diameter Stud Capped 27 1960520SM 1 CAPSCREW, Hex Head 3/8-16 x 1-3/4 G8 28 1922606SM 1 ROD, Pitch Adjust 29 1722661SM 1 SPACER, 3/8 x 3/4 x 15/16 30 1706644SM 1 NUT, Hex Toplock Spiralock Flange 3/8-16 31 2860681SM 1 PIN, Round Head Drilled 3/8 x 2 32 2118053SM 1 TRUNNION, Pitch Adjust 33 1706645ASM 1 NUT, Hex 5/8-11 34 1915726SM 2 PIN, Quick, Retaining 35 1722460SM 1 SCREW, Hex Washer Head Taptite 5/16-18 x 1-1/4 36 1931202SM 4 WASHER, 3/8 37 1919381SM 4 NUT, Push Pal 5/16 Diameter Thread 38 1933988SM 4 STRAP, Rocker Shaft 39 1665374SM 3 SCREW, Hex Washer Head Taptite 5/16-18 x 3/4 40 1664847SM 2 BRACKET, Height of Cut 41 1720931ASM 1 BAR, Roller 42 1734987 1 STOP, Up 43 1719929SM 2 WASHER, 5/8 44 1960703SM 2

Footnotes

The above parts group applies to the following Mfg. Nos.:

1695200 - 40" Mower 1695201 - 40" Mower 2690621 - Baron XL 2690622 - Baron XL 2690625 - 2420 XL

Briggs and Stratton Yard Power Products Group

2690762 - Baron 2690772 - 2421

TP 400-4560-02-BR-SM

40" Mower Deck - Height Adjustment & Roller Bar

NOTE: Unless noted otherwise, use the standard hardware torque specification chart.

987502

The above parts group applies to the following Mfg. Nos.:

1695200 - 40" Mower 1695201 - 40" Mower 2690621 - Baron XL 2690622 - Baron XL 2690625 - 2420 XL

Briggs and Stratton Yard Power Products Group

2690762 - Baron 2690772 - 2421

TP 400-4560-02-BR-SM

40" Mower Deck - Height Adjustment & Roller Bar

PART NO. DESCRIPTIONREF NO QTY.

NUT, Hex Lock Esna Light 5/16-18 45 1919438SM 1 PIVOT, 3/4 Hex 46 2108512SM 1 PIN, Cotter, .75 47 1918447SM 1 BRACKET, Adjusting 48 1723409ASM 1 SPACER 49 1666697SM 1 ROD & WASHER ASSEMBLY 50 1720704SM 1 GRIP, Black Vinyl 51 1651820SM 1 NUT, Hex Jam 3/8-16 52 1917421SM 1 NUT, Hex Flange 3/8-16 53 1960601SM 1 GUIDE ASSEMBLY, Rod 54 2108241SM 1 WASHER, 5/16 55 1918265SM 1 SHAFT ASSEMBLY, Rocker 56 1735095 1 HANGER, R.H. 57 1727102ASM 1 HANGER, L.H. 58 1727103ASM 1 CLIP, Hair Pin 59 1960074SM 2 NUT, Hex Jam 5/16-18 60 1920161SM 2 CHAIN, Link, 4 links 61 1708088ASM 2 CLIP, Hair Pin 62 1960033SM 2 TRUNNION 63 1731382SM 2 ROD, Height Adjusting 64 1731384SM 2 NUT, Hex Flange 3/8-16 Two-Way Lock 65 1930645SM 1 SPACER, .70 66 1718762 1 CAPSCREW, Hex Head 5/16-18 x 2-1/2 67 1921972 1 Locktite 410 68 1726384 .01 BAR, Extension 69 1736359A 2 CAPSCREW, 3/8-16 x 1.0 70 1923490 3 NUT, Adjusting 71 1704082 1 NUT, Hex-Flange, 3/8-16, ESNA, BLK 72 1960687 6

Footnotes

The above parts group applies to the following Mfg. Nos.:

1695200 - 40" Mower 1695201 - 40" Mower 2690621 - Baron XL 2690622 - Baron XL 2690625 - 2420 XL

Briggs and Stratton Yard Power Products Group

2690762 - Baron 2690772 - 2421

TP 400-4560-02-BR-SM

40" Mower Deck - Housing, Arbors & Blade

NOTE: Unless noted otherwise, use the standard hardware torque specification chart.

987503

The above parts group applies to the following Mfg. Nos.:

1695200 - 40" Mower 1695201 - 40" Mower 2690621 - Baron XL 2690622 - Baron XL 2690625 - 2420 XL

Briggs and Stratton Yard Power Products Group

2690762 - Baron

TP 400-4560-02-BR-SM

40" Mower Deck - Housing, Arbors & Blade

PART NO. DESCRIPTIONREF NO QTY.

HOUSING ASSEMBLY, 40" Orange 1 1687321SM 1 HOUSING ASSEMBLY, 40" Red 1 1687322SM 1 SCREW, Hex Washer Head Taptite 5/16-18 x 3/4 3 1664847SM 6 HOUSING ASSEMBLY, 40" Red 1 1687322SM 1 SCREW, Hex Washer Head Taptite 5/16-18 x 3/4 3 1664847SM 6 CAPSCREW, Hex Head 7/16-14 x 2-3/4 G8 4 2830584SM 1 WASHER, 7/16 5 1933263SM 1 CAPSCREW, Hex Head 7/16-14 x 2-3/4 G8 4 2830584SM 1 WASHER, Spring 7 1656916SM 3 WASHER, 7/16 5 1933263SM 1 WASHER, Spring 7 1656916SM 3 PULLEY 8 1732123SM 1 HUB 9 1719862SM 1 PULLEY 8 1732123SM 1 HUB 9 1719862SM 1 SPROCKET & FLANGE ASSEMBLY, Rivets/Screws 40" 10 1732590SM 2 SHIELD, Bearing, Mower Arbor Uppoer Heat Treated 11 1657969SM 2 SPROCKET & FLANGE ASSEMBLY, Rivets/Screws 40" 10 1732590SM 2 HOUSING, Arbor Top 12 1655729ASM 2 SHIELD, Bearing, Mower Arbor Uppoer Heat Treated 11 1657969SM 2 HOUSING, Arbor Top 12 1655729ASM 2 GASKET, Foam 13 1707335SM 2 GASKET, Foam 13 1707335SM 2 ARBOR SHAFT & BEARINGS ASSEMBLY, 40" 14 1722396SM 1 HOUSING & FITTING ASSEMBLY, Lower 15 1703273ASM 2 ARBOR SHAFT & BEARINGS ASSEMBLY, 40" 14 1722396SM 1 ADAPTER, Arbor 16 1677274ASM 2 HOUSING & FITTING ASSEMBLY, Lower 15 1703273ASM 2 ADAPTER, Arbor 16 1677274ASM 2 WASHER, Shim 17 1700230SM 2 SHIELD, Bearing 18 1700229SM 2 WASHER, Shim 17 1700230SM 2 ADAPTER, Blade 19 1655777SM 2 SHIELD, Bearing 18 1700229SM 2 ADAPTER, Blade 19 1655777SM 2 BLADE, Mower L.H. 20 1727477SM 1 BLADE, Mower L.H. 20 1727477SM 1 BLADE, Mower R.H. 21 1727478SM 1 PIN, Blade 22 1722258SM 2 BLADE, Mower R.H. 21 1727478SM 1 WASHER, Spline 23 1722257SM 2 PIN, Blade 22 1722258SM 2 WASHER, Spline 23 1722257SM 2 CAPSCREW, Hex Head 7/16-14 x 2-1/4 G8 24 2827120SM 2 SCREW, Hex Washer Head Taptite 5/16-18 x 1 25 1960373SM 12

Footnotes

The above parts group applies to the following Mfg. Nos.:

1695200 - 40" Mower 1695201 - 40" Mower 2690621 - Baron XL 2690622 - Baron XL 2690625 - 2420 XL

Briggs and Stratton Yard Power Products Group

2690762 - Baron

TP 400-4560-02-BR-SM

40" Mower Deck - Housing, Arbors & Blade

NOTE: Unless noted otherwise, use the standard hardware torque specification chart.

987503

The above parts group applies to the following Mfg. Nos.:

2690772 - 2421

Briggs and Stratton Yard Power Products Group

TP 400-4560-02-BR-SM

40" Mower Deck - Housing, Arbors & Blade

PART NO. DESCRIPTIONREF NO QTY.

Footnotes

The above parts group applies to the following Mfg. Nos.:

2690772 - 2421

Briggs and Stratton Yard Power Products Group

TP 400-4560-02-BR-SM

Hex Head Capscrew

Hex Nut

Lockwasher

Washer

Carriage Bolt

Hardware Identification & Torque Specifications

Screw, 1/2 x 2

Body

Diameter

Body

Length

Inside Diameter

Nut, 1/2”

Marks

3/8” Bolt or Nut

Wrench—9/16”

3/8

5/16” Bolt or Nut

Wrench—1/2”

5/16

1/4” Bolt or Nut

Wrench—7/16”

1/4

1/2” Bolt or Nut

Wrench—3/4”

1/2

DIA.

7/16 DIA.

7/16” Bolt or Nut

Wrench (Bolt)—5/8”

Wrench (Nut)—11/16”

Wrench & Fastener Size Guide

1/4 3/4

1/2

1/4 3/4

1/2

1/4 3/4

1/2

1/4 3/4

1/2

Common Hardware Types

Torque Specification Chart

FOR STANDARD MACHINE HARDWARE (Tolerance ± 20%)

Hardware Grade

Size Of

Standard Hardware Sizing

When a washer or nut is identified as 1/2”, this is the

Nominal size

second number is present it represent the

When bolt or capscrew is identified as 1/2 - 16 x 2”, this means the second number represents the example, and the final number is the bolt or screw (in this example 2 inches long).

, meaning the

Nominal size

inside diameter

, or

body diameter

threads per inch

is 1/2 inch; if a

threads per inch

is 1/2 inch; the

body length

(16 in this

of the

The guides and ruler furnished below are designed to help you select the appropriate hardware and tools.

Hardware ft/lbs Nm. ft/lbs Nm. ft/lbs Nm.

8-32 8-36 10-24 10-32 1/4-20 1/4-28 5/16-18 11 15.0 17 23.1 25 34.0 5/16-24 12 16.3 19 25.8 27 34.0 3/8-16 20 27.2 30 40.8 45 61.2 3/8-24 23 31.3 35 47.6 50 68.0 7/16-14 30 40.8 50 68.0 70 95.2 7/16-20 35 47.6 55 74.8 80 108.8 1/2-13 50 68.0 75 102.0 110 149.6 1/2-20 55 74.8 90 122.4 120 163.2 9/16-12 65 88.4 110 149.6 150 204.0 9/16-18 75 102.0 120 163.2 170 231.2 5/8-11 90 122.4 150 204.0 220 299.2 5/8-18 100 136 180 244.8 240 326.4 3/4-10 160 217.6 260 353.6 386 525.0 3/4-16 180 244.8 300 408.0 7/8-9 140 190.4 400 544.0 600 816.0 7/8-14 155 210.8 440 598.4 660 897.6 1-8 220 299.2 580 788.8 900 1,244.0 1-12 240 326.4 640 870.4 1,000 1,360.0

1. These torque values are to be used for all hardware excluding: locknuts, self-tapping screws, thread forming screws, sheet metal screws and socket head setscrews.

2. Recommended seating torque values for locknuts:

a. for prevailing torque locknuts - use 65% of grade 5

b. for flange whizlock nuts and screws - use 135% of

3. Unless otherwise noted on assembly drawings, all torque values must meet this specification.

SAE Grade 2 SAE Grade 5 SAE Grade 8

in/lbs in/lbs

2.1

2.3

3.1

3.5

7.6 8 10.9 12 16.3

8.6 10 13.6 14 19.0

torques.

grade 5 torques.

30 31 43 49

NOTES

in/lbs

3.4

3.5

4.9

5.5

41 43 60 68

420 571.2

4.6

4.9

6.8

7.7

MANUFACTURING, INC.

500 N. Spring Street / PO Box 997 Port Washington, WI 53074-0997 USA

www.simplicitymfg.com

Briggs and Stratton Yard Power Products Group

Snapper 4560 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
