Parts Manual
Lancer / 4400
Series Riding Mowers & Mower Decks
16HP Product
Mfg. No. Description
1694772 Lancer, 16HP Hydro (CE)
1694785 4416XL, 16HP Hydro (CE)
1694786 Lancer, 16HP Hydro (CE)
1694787 4416XL, 16HP Hydro (CE)
Mower Decks
Mfg. No. Description
1694344 40" Mower Deck (CE)
1694345 40" Mower Deck (CE)
1694783 44" Mower Deck (CE)
1694784 44" Mower Deck (CE)
Rev.
1731174
09/2005
Part No.:
TP 400-4206-01-LN-SM
Table Of Content
s
PRODUCT COMPONENTS PAGES
Frame Group ........................................................................................................................................................
Steering Group .....................................................................................................................................................
Engine & Electric Clutch - 16HP Briggs & Stratton ..............................................................................................
Transmission Group .............................................................................................................................................
Transmission SERVICE PARTS - Tuff Torq K-46Q ............................................................................................

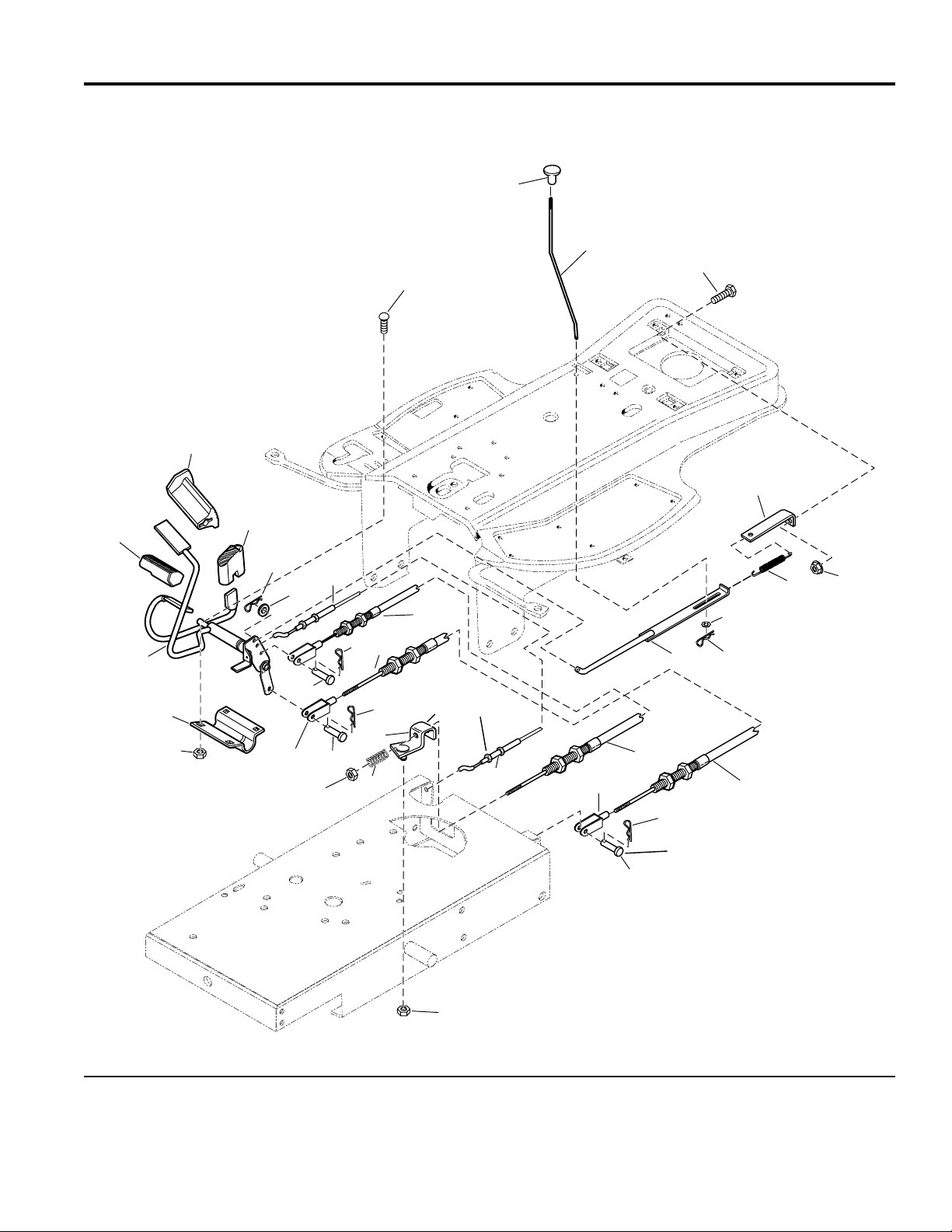

Controls Group .....................................................................................................................................................

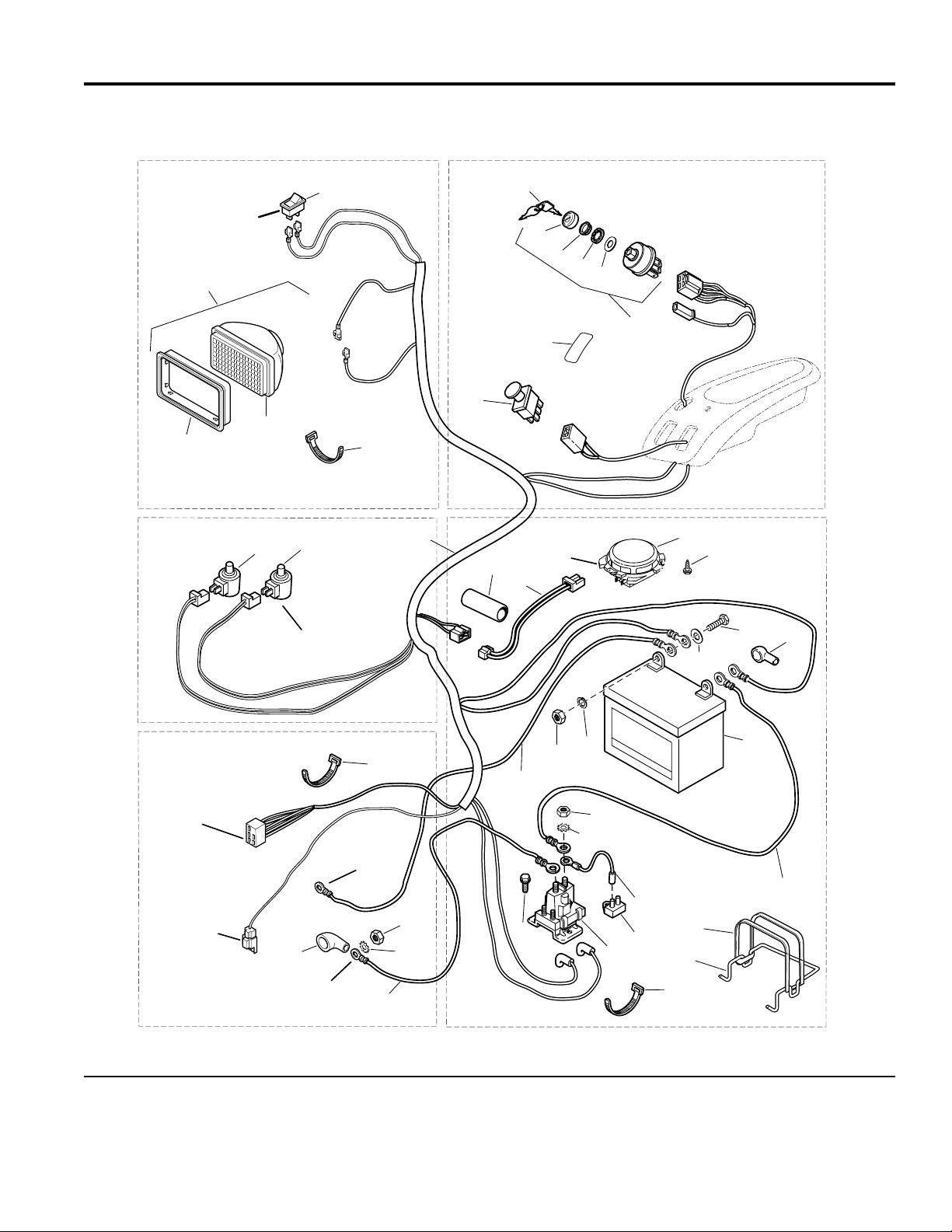

Electrical Group ....................................................................................................................................................
Seat Deck & Fuel Tank Group .............................................................................................................................
Lift Group ..............................................................................................................................................................
Wheels & Tires Group ..........................................................................................................................................
Decals - Brand & Model .......................................................................................................................................
Decals - Safety & Common ..................................................................................................................................

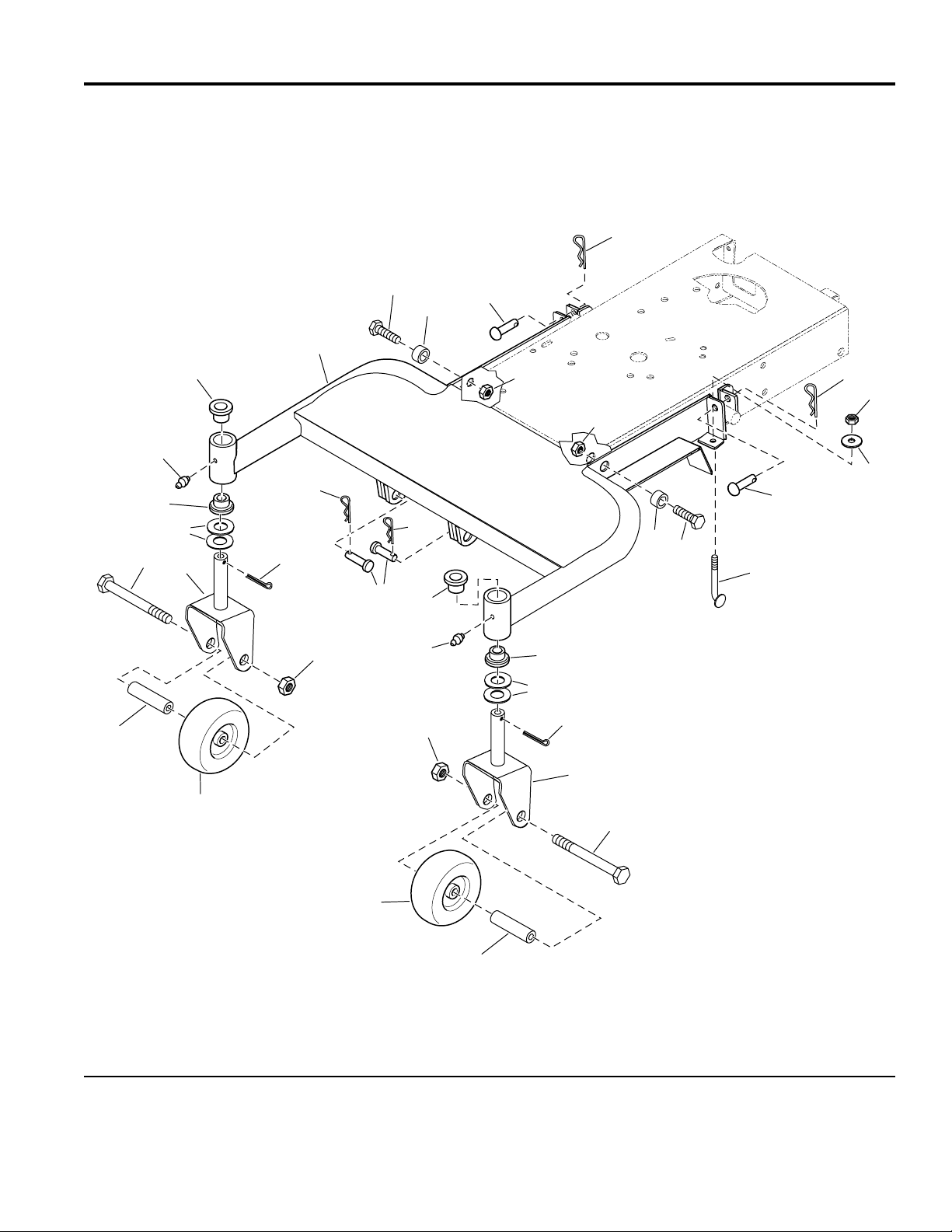

Mower Frame Group - with Height Adjustment ...................................................................................................
40" Mower Deck - Belt, Idler Arm & Hitch ............................................................................................................

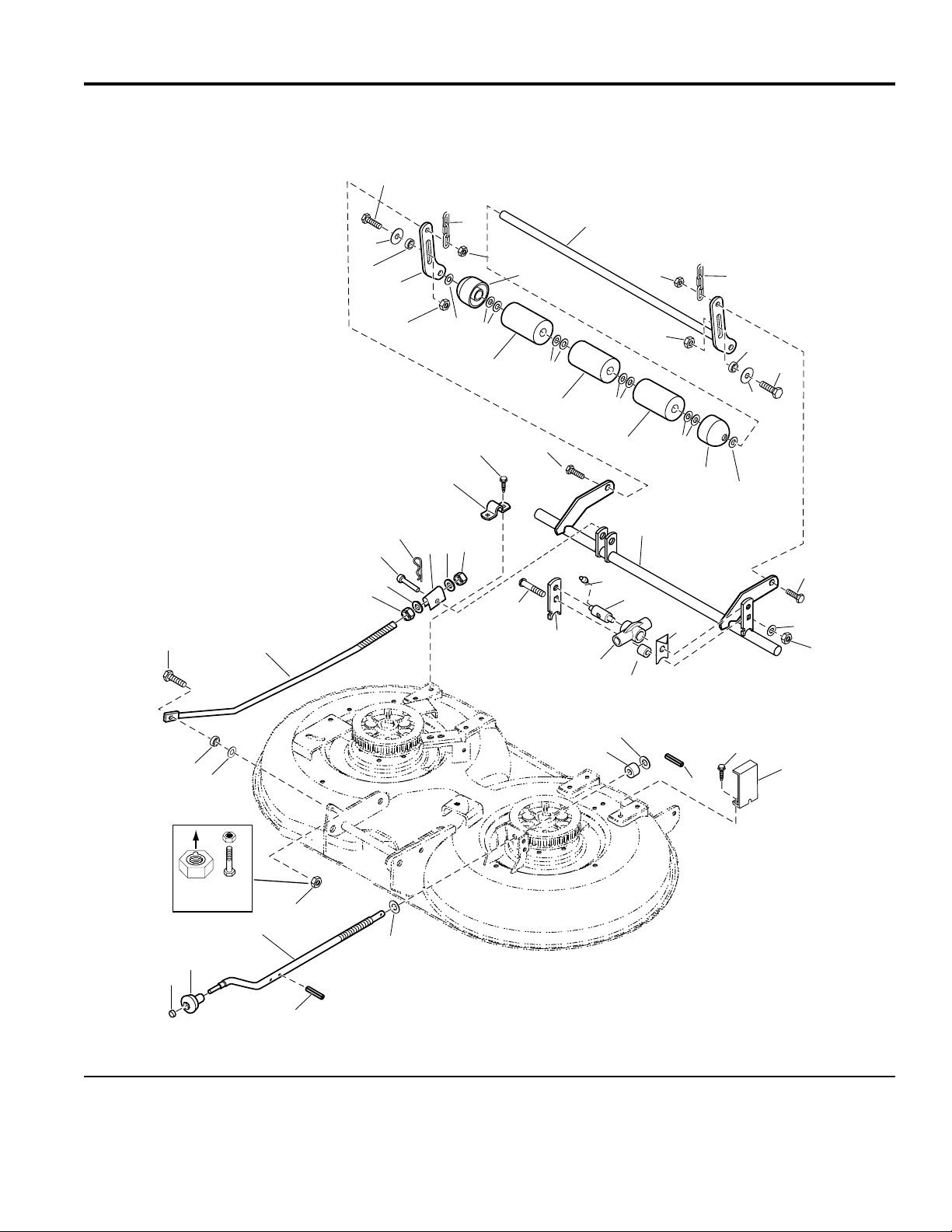

40" Mower Deck - Height Adjustment & Roller Bar .............................................................................................
40" Mower Deck - Height Adjustment & Roller Bar (Later) .................................................................................
40" Mower Deck - Housing, Arbors & Blades ......................................................................................................

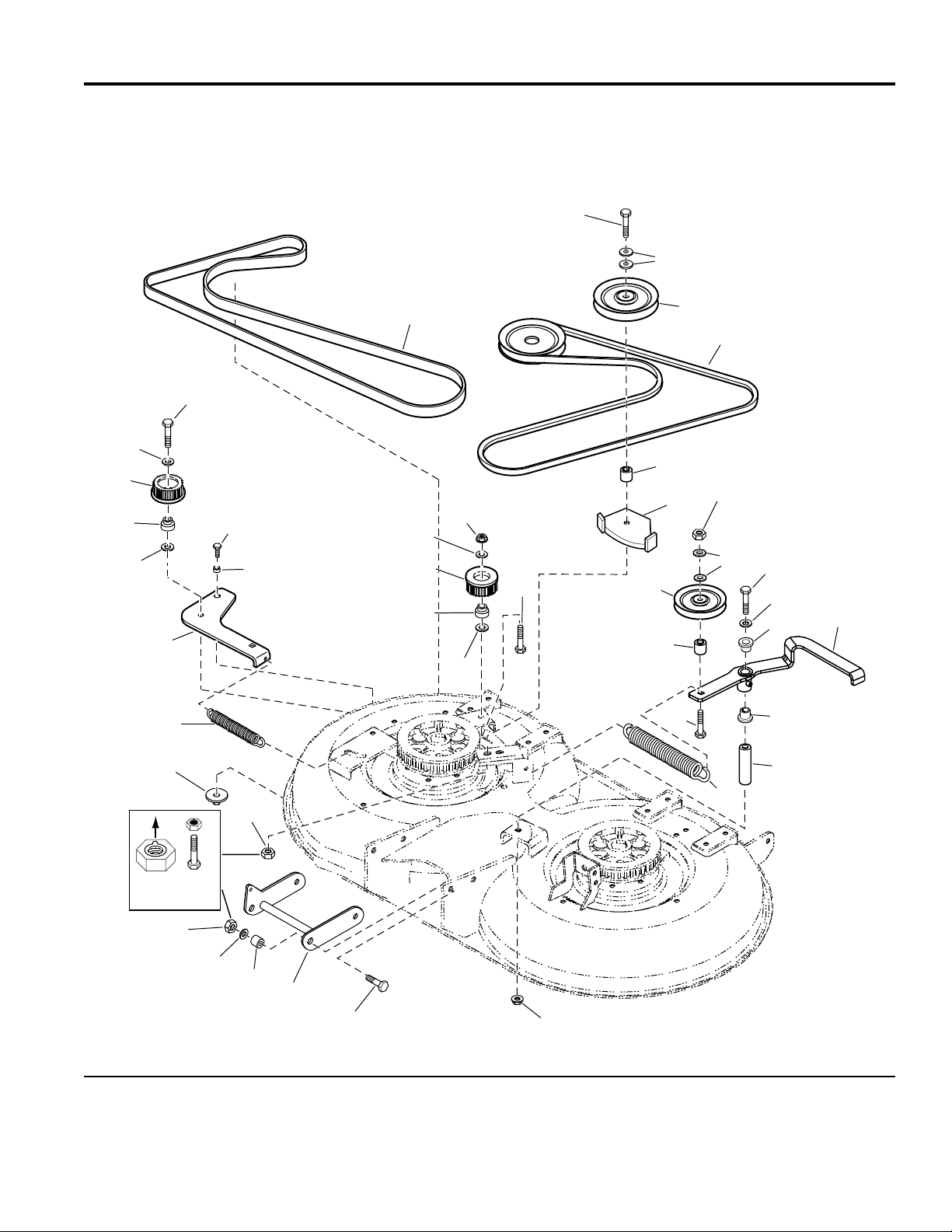

44" Mower Deck - Belt, Idler Arm & Hitch ............................................................................................................

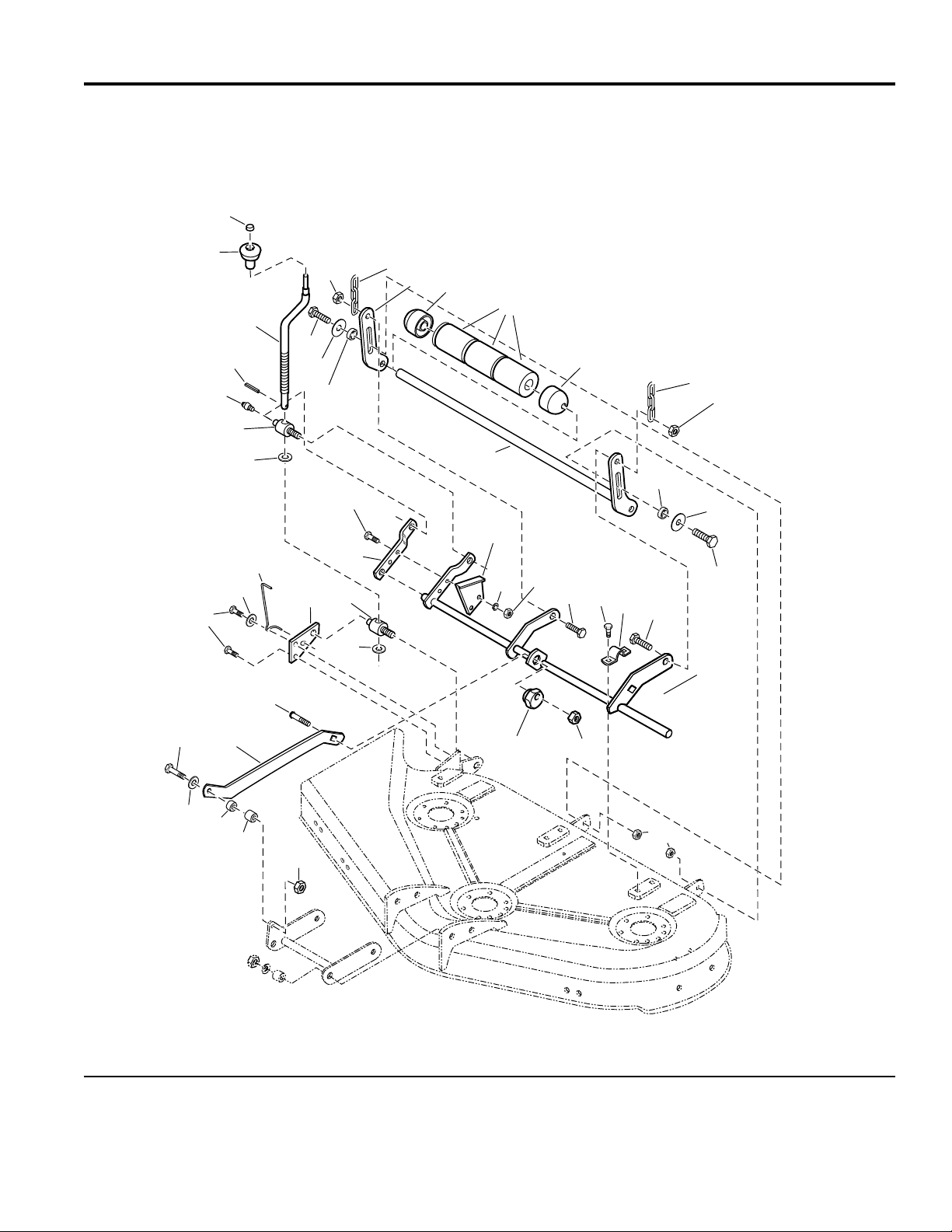

44" Mower Deck - Height Adjustment & Roller Bar .............................................................................................
44" Mower Deck - Housing, Arbors & Blades ......................................................................................................
10
12
14
18
20
22
24
26
28
30
32
34
36
40
42
46
48
50
Torque Specification Chart ..................................................................... Inside Back Cover
4
6
Frame Group
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
8
7
10
985955
12
14
12
16
13
17
9
11
15
18
26
62
Insert Must
Face Out
66
2
5
2
5
3
1
23
4
6
24
64
1
64
6
4
12
5
3
62
19
27
Torque nut
15-17ft. lbs.
20
21
10
2
22
25
The above parts group applies to the following Mfg. Nos.:
1694772 - Lancer
1694785 - 4416XL
1694786 - Lancer
1694787 - 4416XL
© Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
2005
4
TP 400-4206-01-LN-SM
Frame Group
PART NO. DESCRIPTIONREF NO QTY.
1 1722359A 2 PLATE, Pivot
2 1920415 8 CAPSCREW, Hex Head, 3/8-16 x 1-1/4, Black
3 1960071 2 WASHER, 3/8, Black
4 1928352 6 NUT, Hex Flange Lock, Black
5 2154177 4 SPACER
6 1931648 6 CAPSCREW, Hex Head, Flange Lock, 5/16-18 x 1/2, Black
7 1723144 1 SHROUD, Wheel, RH
8 1723290A 1 SKIRT, Side, RH
9 1960001 2 CAPSCREW, Hex Washer Head, Plastite, # 10-14 x 5/8, Black
10 1723691 2 CLIP, Shroud
11 1715015 1 PLUG, Hole
12 1704351 14 FASTENER, Panel
13 1714418 1 PAD, Footrest, RH
14 1714417 1 PAD, Footrest, LH
15 1930591 4 CAPSCREW, Hex Head Whiz Lock, 5/16-18 x 3/4, Black
16 1722453A 1 WRAPPER, Rear Frame
17 1935255 4 NUT, Speed, Lug, 5/16-18
18 1722514A 1 FRAME ASSEMBLY, Rear
19 1960294 1 NUT, Hex, Flange, 1/4-20, Black
20 1723289A 1 SKIRT, Side, LH
21 1924009 1 CAPSCREW, Hex Head, 1/4-20 x 7/8, Black
22 1723145 1 SHROUD, Wheel, LH
23 1722494A 1 FRAME ASEMBLY, Transmission
24 2860641 2 NUT, Hex Lock Aluminum Insert, 3/8-16
25 1723873A 1 WEIGHT & TAB ASSEMBLY, 75 lbs.
26 1931335 2 CARRIAGE BOLT, 5/16-18 x 1
27 1927557 2 NUT, Hex, Flange Whiz Lock, 5/16-18
Footnotes
The above parts group applies to the following Mfg. Nos.:
1694772 - Lancer
1694785 - 4416XL
1694786 - Lancer
1694787 - 4416XL
© Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
2005
5
TP 400-4206-01-LN-SM
Steering Group
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
46
Torque to
36-44 ft. lbs.
45
44
5
4
47
985951
14
11
1
9
10
63
647
48
2
1
643
18
13
12
19
20
15
17
21
16
6
(Ref. 1 & 8) Grease
bushings (three locations)
Torque to 25-30 ft. lbs.
(34-40 Nm)
Torque to 65-75 ft. lbs.
(88-102 Nm)
Grease Spindle & Lever
Assembly after assembly.
22
23
1
34
1
624
625
29
37
31
30
33
35
36
Torque to 25-30 ft. lbs.
(34-40 Nm)
32
42
8
7
Coat gear teeth
with grease.
43
41
37
40
3
39
35
42
Torque to 25-30 ft. lbs.
(34-40 Nm)
27
28
32
38
Torque nuts
to 30 ft. lbs.
(40 Nm)
22
1
26
1
27
28
The above parts group applies to the following Mfg. Nos.:
1694772 - Lancer
1694785 - 4416XL
1694786 - Lancer
1694787 - 4416XL
© Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
2005
6
TP 400-4206-01-LN-SM
Steering Group
PART NO. DESCRIPTIONREF NO QTY.
1 2176440 6 BUSHING, Nylon
2 1703508A 1 PLATE, Mounting
3 1928352 4 NUT, Hex Flange Whiz Lock, 3/8-16, Black
4 1722495 1 SHAFT & PINION ASSEMBLY
5 1919314 1 PIN, Cotter, Black
6 1960540 1 PIN, Spring, 5/16 x 2-1/2, Black
7 2860202 1 WASHER, 3/4
8 1666001 1 BUSHING, Metal
9 1931317 2 CARRIAGE BOLT, 1/4-20 x 3/4
10 1722497A 1 SUPPORT ASSEMBLY
11 1960518 2 NUT, Push, 1/4, Black
12 1721736A 1 PLATE, Mounting
13 2828732 2 NUT, Hex KEPS, 1/4-20, Black
14 1722749 1 COVER, Black Rubber
15 1722738 1 STEERING WHEEL
16 1722319 1 CAP, Steering Wheel
17 1723111 1 DASHBOARD
18 1921525 1 CAPSCREW, Hex Head, 1/2-13 x 1-3/4, Black
19 2105386 1 SPACER
20 1723129 1 SPACER
21 1960245 1 CAPSCREW, Hex Head, 1/2-13 x 3, Black
22 1611710 2 RING, Klip, External 3/4, Black
23 1724616 1 AXLE ASSEMBLY,w/Bushings & Lube Fitting
24 1960355 2 NUT, Hex Lock ESNA Heavy, 1/2-13, Black
25 1918431 2 WASHER, 1/2, Black
26 2821133 3 FITTING, Lube
27 1921210 2 CAPSCREW, Hex Head, 3/8-16 x 1, Black
28 1611705 2 SPACER, Powder Metal
29 1722387 1 ROD, Tie
30 1677131 1 SPINDLE & LEVER ASSEMBLY, RH (Lancer LH)
31 1921969 1 CAPSCREW, Hex Head, 3/8-16 1-1/2
32 1960339 2 NUT, Hex Flange Lock, 3/8-16, Black
33 1708236 1 SPACER
34 1677133 1 SPINDLE & LEVER ASSEMBLY, LH (Lancer RH)
35 1702779A 2 BALL JOINT
36 1930645 1 NUT, Hex Flange Lock, 3/8-16, Black
37 1919262 2 NUT, Hex Head, 1/2-20, Black
38 1722504 1 DRAG LINK
39 1930644 1 NUT, Hex Flange Two Way Lock, 1/2-13, Black
40 1724793A 1 SHAFT & GEAR ASSEMBLY
41 1920328 1 CAPSCREW, Hex Head, 1/2-13 x 1-1/2, Black
42 1930591 2 CAPSCREW, Hex Head, 5/16-18 x 3/4
43 1931350 4 CARRIAGE BOLT, 3/8-16 x 1 , Black
44 1935255 6 NUT, Speed, 5/16-18
Footnotes
The above parts group applies to the following Mfg. Nos.:
1694772 - Lancer
1694785 - 4416XL
1694786 - Lancer
1694787 - 4416XL
© Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
2005
7
TP 400-4206-01-LN-SM
Steering Group
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
46
Torque to
36-44 ft. lbs.
45
44
5
4
47
985951
14
11
1
9
10
63
647
48
2
1
643
18
13
12
19
20
15
17
21
16
6
(Ref. 1 & 8) Grease
bushings (three locations)
Torque to 25-30 ft. lbs.
(34-40 Nm)
Torque to 65-75 ft. lbs.
(88-102 Nm)
Grease Spindle & Lever
Assembly after assembly.
22
23
1
34
1
624
625
29
37
31
30
33
35
36
Torque to 25-30 ft. lbs.
(34-40 Nm)
32
42
8
7
Coat gear teeth
with grease.
43
41
37
40
3
39
35
42
Torque to 25-30 ft. lbs.
(34-40 Nm)
27
28
32
38
Torque nuts
to 30 ft. lbs.
(40 Nm)
22
1
26
1
27
28
The above parts group applies to the following Mfg. Nos.:
1694772 - Lancer
1694785 - 4416XL
1694786 - Lancer
1694787 - 4416XL
© Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
2005
8
TP 400-4206-01-LN-SM
Steering Group
PART NO. DESCRIPTIONREF NO QTY.
45 1715998C 1 SHROUD, Steering
46 1927429 3 CAPSCREW, Hex Head, 1/4-20 x 5/8, Black
47 1960114 4 WASHER, 3/4, Black
48 1927557 2 NUT, Hex Flange Lock, 5/16-18, Black
Footnotes
The above parts group applies to the following Mfg. Nos.:
1694772 - Lancer
1694785 - 4416XL
1694786 - Lancer
1694787 - 4416XL
© Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
2005
9
TP 400-4206-01-LN-SM
Engine & Electric Clutch - 16HP Briggs & Stratton
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
4
3 7
2
Coat threads
with sealant
1
Apply anti-seize
to crankshaft
986795
8
6
5
9
610
3
9
13
28-34 ft. lbs.
Note:
Orentation
of All Keys
Tie clutch wire
away from clutch
Torque to
32
28
27
25
30
31
26
29
Chamfer facing up
33
24
22
611
611
Torque to
45-50 ft. lbs.
12
611
14
623
17
18
617618
19
20
620621
15
16
The above parts group applies to the following Mfg. Nos.:
1694772 - Lancer
1694785 - 4416XL
1694786 - Lancer
1694787 - 4416XL
© Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
2005
10
TP 400-4206-01-LN-SM
Engine & Electric Clutch - 16HP Briggs & Stratton
PART NO. DESCRIPTIONREF NO QTY.
1 * 1 ENGINE, 16HP Briggs & Stratton Vanguard, Model 303777, Type 1114-E1
2 1708405 1 VALVE, Shut Off
3 2825094 1 TIE, Self Locking, 7-5/16" Long
4 1727907 1 GUARD, Debris
5 1727452 4 BRACKET, L
6 960732 4 SCREW, Hex Head w/SEMS Washer
7 1727474 4 SCREW, Hex Head Flange
8 1727375 1 CONTROL ASSEMBLY, Throttle (Dual)
9 2860112 2 CLAMP, Hose
10 1727438 1 HOSE, Fuel
11 1927429 1 CAPSCREW, Washer Head Taptite, 1/4*20 x 5/8
12 1727455A 1 MUFFLER, Bracket
13 1727447A 1 HEALT SHIELD, Muffler
14 1727465 1 DEFLECTOR, Muffler
15 960731 3 SCREW, #8-18 x 3/8, Hex Head
16 1727453 1 MUFFLER, Briggs & Stratton
17 1917372 1 NUT, Hex 5/16-18
18 1917356 5 LOCKWASHER, Spring 5/16
19 1676183A 1 CLAMP, Muffler
20 1960483 1 CARRIAGE BOLT, 5/16-18 x 1-1/4
21 1960407 4 CAPSCREW, Metric (for Manifold)
22 1727454 1 MANIFOLD
23 1650670 2 GASKET, Exhaust
24 1723390 1 SPACER
25 1713187 1 PULLEY & HUB ASSEMBLY
26 2105337 1 KEY, Hi Pro, 1/4 x 2
27 1686883 1 CLUTCH, Electric
29 1708264 1 WASHER, Hex
28 2832747 1 TIE, Self Locking, 3-5/8" Long
30 1918199 1 LOCKWASHER, 7/16
31 1960649 1 CAPSCREW, Hex Head, 7/16-20 x 3-1/2
32 2830598 4 CAPSCREW, Hex Washer Head, Taptite, 3/8-16 x 1-1/2
33 2820427 1 LOCKWASHER, External Tooth, 3/8
Footnotes
* See your local Briggs & Stratton distributor for parts and service.
The above parts group applies to the following Mfg. Nos.:
1694772 - Lancer
1694785 - 4416XL
1694786 - Lancer
1694787 - 4416XL
© Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
2005
11
TP 400-4206-01-LN-SM
Transmission Group
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
4
Attach to
slot "A"
5
6
4
63
2
Slot "A"
7
985949
10
8
3
28
9
11
12
11
613
14
17
18
16
15
10
1
23
21
19
22
20
27
29
24
25
26
25
627
The above parts group applies to the following Mfg. Nos.:
1694772 - Lancer
1694785 - 4416XL
1694786 - Lancer
1694787 - 4416XL
© Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
2005
12
TP 400-4206-01-LN-SM
Transmission Group
PART NO. DESCRIPTIONREF NO QTY.
1 1923701 1 CAPSCREW, Hex Head, 3/8-16 x 2, Black
2 1674669A 1 SPACER
3 1924940 7 WASHER, 3/8, Black
4 1676148 2 BUSHING
5 1723278 1 SPRING, Extension, 7-3/4" Long
6 1722969A 1 ARM ASSEMBLY
7 2812808 1 FITTING, Lube
8 1921969 1 CAPSCREW, Hex Head, 3/8-16 x 1-1/2, Black
9 1724387 1 PULLEY, Idler, 3-1/4
10 1960339 2 NUT, Hex Flange Lock, 3/8-16, Black
11 1927557 2 NUT, Hex Flange Lock, 5/16-18, Black
12 1921978 1 CAPSCREW, Hex Head, 5/16-18 x 2, Black
13 1921719 6 CAPSCREW, Hex Head, 5/16-18 x 2-1/2, Black
14 1724316 2 SNAP RING
15 1724312 2 SPLINE COLAR
16 1723415 1 LOCKWASHER
17 1715128 1 V-BELT
18 1724313 1 PULLEY
19 1724314 1 FAN
20 1718076 1 "E" RING
21 1723161 1 ROD, Hydro Bypass
22 1923360 1 PIN, Cotter
23 1721022 1 TRANSMISSION ASSEMBLY, Foot Control, K46Q
24 1717749 2 KEY, Parallel
25 2860202 4 WASHER, 3/4
26 1723820 2 SPACER
27 1935048 7 NUT, Hex Flange Lock, 5/16-18
28 1666294 1 SPACER
29 1960585 1 CAPSCREW, Hex Head, 5/16-18 x 1-3/4
Footnotes
The above parts group applies to the following Mfg. Nos.:
1694772 - Lancer
1694785 - 4416XL
1694786 - Lancer
1694787 - 4416XL
© Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
2005
13
TP 400-4206-01-LN-SM
Transmission SERVICE PARTS - Tuff Torq K-46Q
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
THICKER PLATE
38
1721022
87
84
86
85
53
58
95
13
90
52
51
91
54
60
74
44
45
47
199
46
49
56
72
89A
57
55
79
59
50
634
89
11
14
48
32
8383
34
33
83
19
12
20
16
15
8
9
35
7
4
6
23
5
6
80
82
76
78
23
81
89A
72
82
8
77
69
200
SEAL KIT (Includes Ref.)
#8
#19
#20
#26
#59
#72
#81•
#91•
#99•
Sealant
92
30
28
29
27
73
79
25
27
26
70
71
62
61
27
24
PLATE OF S MALL E R IN NER DI A.
SHOULD CONTACT PIST ONS.
71
70
75
31
39
36
40
41
SEAL SIDE; OUTER
66
43
42
65
37
64
65
67
63
73
68
3
22
21
99
100
21
99
100
The above parts group applies to the following Mfg. Nos.:
1694772 - Lancer
1694785 - 4416XL
1694786 - Lancer
1694787 - 4416XL
© Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
2005
14
TP 400-4206-01-LN-SM
Transmission SERVICE PARTS - Tuff Torq K-46Q
PART NO. DESCRIPTIONREF NO QTY.
3 1724278 1 LOWER HOUSING
4 1724334 1 RESERVOIR TANK
5 1724335 1 TUBE
6 1724336 2 MINIATURE CLAMP
7 1718052 1 VENT VALVE
8 1724279 2 MAGNET
9 1724337 1 HOLDER, MAGNET
11 1708684 1 SPRING
12 1724338 1 SHAFT, Bypass
13 1720418 1 LEVER, Bypass
14 1718061 1 RING
15 1724282 1 SEALING CAP
16 1708650 1 RING, Snap
19 1708691 2 "O" RING
20 1724283 1 SEAL
21 1707789 14 SCREW, Tapping
22 1724284 2 TAPPING SCREW
23 1724339 1 SUPPORT
24 1724340 1 CENTER CASE, Complete
25 1718070 1 PIN
26 1724341 1 FILTER K55
27 1720805 3 BOLT
28 1724286 2 IDS VALVE
29 1724287 2 IDS SPRING
30 1724288 2 BALL, 3/16
31 1718079 1 CYLINDER BLOCK
32 1724290 1 SPRING, Pump
33 1724291 1 PUMP SHAFT
34 1718076 3 RING, "E"
35 1718083 1 BEARING
36 1718077 1 HOUSING
37 1718078 1 BEARING
38 1725831 1 CYLINDER BLOCK
39 1718084 1 WASHER
40 1724293 1 SHAFT MOTOR
41 1708672 1 RING, Snap
42 1724294 1 MOTOR GEAR
43 1718083 1 BEARING
44 1724342 2 THRUST METAL
45 1720426 1 SWASH PLATE COMPLETE
46 1718086 1 BEARING
47 1718087 1 THRUST PLATE
48 1718088 1 THRUST PLATE
49 1724343 1 CONTROL SHAFT
Footnotes
The above parts group applies to the following Mfg. Nos.:
1694772 - Lancer
1694785 - 4416XL
1694786 - Lancer
1694787 - 4416XL
© Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
2005
15
TP 400-4206-01-LN-SM
Transmission SERVICE PARTS - Tuff Torq K-46Q
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
THICKER PLATE
38
1721022
87
84
86
85
53
58
95
13
90
52
51
91
54
60
74
44
45
47
199
46
49
56
72
89A
57
55
79
59
50
634
89
11
14
48
32
8383
34
33
83
19
12
20
16
15
8
9
35
7
4
6
23
5
6
80
82
76
78
23
81
89A
72
82
8
77
69
200
SEAL KIT (Includes Ref.)
#8
#19
#20
#26
#59
#72
#81•
#91•
#99•
Sealant
92
30
28
29
27
73
79
25
27
26
70
71
62
61
27
24
PLATE OF S MALL E R IN NER DI A.
SHOULD CONTACT PIST ONS.
71
70
75
31
39
36
40
41
SEAL SIDE; OUTER
66
43
42
65
37
64
65
67
63
73
68
3
22
21
99
100
21
99
100
The above parts group applies to the following Mfg. Nos.:
1694772 - Lancer
1694785 - 4416XL
1694786 - Lancer
1694787 - 4416XL
© Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
2005
16
TP 400-4206-01-LN-SM
Transmission SERVICE PARTS - Tuff Torq K-46Q
PART NO. DESCRIPTIONREF NO QTY.
50 1724344 1 FULCRUM, Eccentric
51 1724345 1 SPRING, Torsion
52 1724346 1 CONTROL ARM
53 1724347 1 CONTROL LEVER
54 1724348 1 JERKY PLATE
55 1708689 1 WASHER
56 1724349 1 COTTER PIN
57 1724311 2 PIN, SPRING
58 1718100 1 PIN, Roll
59 1707879 2 "O" RING
60 1708692 1 NUT
61 1724297 2 DIFF PINION, Kit
62 1724298 1 FINAL GEAR
63 1724299 1 COLLAR, Final
64 1724300 1 REDUCTION SHAFT
65 1720439 2 WASHER
66 1724301 1 REDUCTION GEAR
67 1724302 1 FINAL PINION
68 1724303 1 AXLE SHAFT, LH
69 1724304 1 AXLE SHAFT, RH
70 1718112 2 THRUST WASHER
71 1718113 2 RING
72 1718111 2 SEAL
73 1718110 2 BUSHING
75 1724305 1 SHOE, BRAKE
76 1724306 1 ARM, Brake
77 1724307 1 SHAFT, BRAKE
78 1724308 1 RETURN SPRING
79 1724309 1 ACTUATOR, Brake
80 1724310 1 PIN
81 1708690 2 "O" RING
82 1720421 2 PIN
83 1724312 2 SPLINE COLLAR
84 1724313 1 PULLEY
85 1724314 1 FAN
86 1724315 1 LOCK WASHER
87 1724316 2 SNAP RING
89 1724350 1 UPPER HOUSING, (Includes Ref. No. 89A)
89A 1720814 2 BUSHING
90 1707839 1 ROLL PIN
91 1724318 1 OIL SEAL
99 1724323 2 WASHER, Seal
100 1724324 2 SCREW, Cap
199 1724942 1 BEARING, Thrust (Includes Ref. Nos. 46, 47 & 48)
200 1727541 1 SEAL KIT, K46 (Includes Ref. Nos. 8, 19, 20, 26, 59, 72, 81, 91, 99 & Sealant)
Footnotes
The above parts group applies to the following Mfg. Nos.:
1694772 - Lancer
1694785 - 4416XL
1694786 - Lancer
1694787 - 4416XL
© Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
2005
17
TP 400-4206-01-LN-SM
Controls Group
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
5
6
4
985950
10
11
12
9
13
7
3
2
20
18
22
15
21
7
17
16
8
7
14
Secure into
transmission.
7
24
1
27
26
19
25
22
27
21
17
7
Secure into
transmission.
19
The above parts group applies to the following Mfg. Nos.:
1694772 - Lancer
1694785 - 4416XL
1694786 - Lancer
1694787 - 4416XL
© Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
2005
23
18
TP 400-4206-01-LN-SM
Controls Group
PART NO. DESCRIPTIONREF NO QTY.
1 1919438 4 NUT, Hex Lock ESNA, 5/16-18, Black
2 1713784 1 CLAMP
3 1722524A 1 FOOT PEDAL & BRAKE ARM ASSEMBLY
4 1715834 1 PEDAL, Foot, Forward
5 1721577 1 PAD, Brake Pedal
6 1715835 1 PEDAL, Foot, Reverse
7 1960221 5 CLIP, Hair Pin, Black
8 1921319 1 WASHER, 1/4, Black
9 1931333 4 CARRIAGE BOLT, 5/16-18 x 3/4, Black
10 1713855 1 KNOB, 1/4-20 Thread
11 1714385 1 ROD, Parking Brake, Yellow
12 1930591 1 CAPSCREW, Hex Head, Whiz Lock 5/16-18 x 3/4, Black
13 1723794A 1 BRACKET
14 1931277 1 NUT, Hex, 5/16, Black
15 2165068 1 SPRING, Extension, 6-1/2" Long
16 1722529 1 LEVER & ROD ASSEMBLY
17 1722974 1 CABLE, Forward/Reverse
18 1960261 1 PIN, Yoke, Drilled, 1/4 x 3/4, Black
19 1711115 2 PIN, Clevis, 11/32 x 1-1/4
20 1919326 1 WASHER, 5/16, Black
21 1722616 1 CABLE, Brake Control
22 1722617 1 CABLE, Clutch Control
23 1935048 1 NUT, Hex Flange Lock, 5/16-18, Black
24 1717728 1 GUIDE BELT & STUD ASSEMBLY
25 1708360 1 SPRING, Compression
26 1960608 1 NUT, Hex Center Lock, 1/4-20
27 1722975 2 CLEVIS
Footnotes
The above parts group applies to the following Mfg. Nos.:
1694772 - Lancer
1694785 - 4416XL
1694786 - Lancer
1694787 - 4416XL
© Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
2005
19
TP 400-4206-01-LN-SM
Electrical Group
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
CONSOLE MOUNTED
Headlight
Switch
3
2
1
UNDER REAR
FRAME
20
4
For Hour
Meter if
installed
5
37
Under RH Foot Rest
38
985954
8
9
10
11
12
13
7
6
Seat
39
Switch
(NC)
40
POD MOUNTED
14
15
UNDER SEAT
UNDER FRONT
FRAME
To Engine
To Electric
Clutch
Pedal
Switches
36
To Engine
Starter
31
To Engine
Ground
23
35
34
23
30
22
21
26
25
29
27
28
31
33
32
18
17
16
19
24
The above parts group applies to the following Mfg. Nos.:
1694772 - Lancer
1694785 - 4416XL
1694786 - Lancer
1694787 - 4416XL
© Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
2005
20
TP 400-4206-01-LN-SM
Electrical Group
PART NO. DESCRIPTIONREF NO QTY.
1 1719227 1 BEZEL, Headlight
2 1719226 1 HEADLIGHT HOUSING
3 1719230 1 HEADLIGHT ASSEMBLY (Includes Ref. Nos. 1 & 2)
4 1703799 1 SWITCH, Rocker, Headlight
5 2832747 1 TIE, Self Locking, 3-5/8, Black
6 1722887 1 SWITCH, PTO, Push/Pull, w/Symbols
7 1709188 1 PLUG
8 1717163 2 KEYS, Ignition
9 1717550 1 COVER, Ignition Switch
10 1717549 1 NUT, Hex, 5/8-32
11 1960547 1 LOCKWASHER, Intrnal Tooth, 5/8, Thin, Black
12 2101025 1 WASHER, 5/8, Thin, Black
13 1686734 1 SWITCH ASSEMBLY, Ignition (Includes Ref. Nos. 8, 9, 10, 11, & 13)
14 1718981 1 SWITCH, Seat, NC
15 1960536 2 CAPSCREW, Hex Head Plastite, 1/4-20 x 1/2
16 1677296 1 BOOT, Insulator
17 2823341 2 CAPSCREW, Hex Head, 1/4-20 x 3/4
18 2821319 2 WASHER, 1/4
19 1685215 1 BATTERY, 12 Volt
20 1720401 1 SWITCH, Push,Grey, Pedal Switch, (Domestic Only)
21 2816964 2 LOCKWASHER, 1/4
22 2816622 3 NUT, Hex, 1/4-20
23 1703484 2 CABLE, # 6 x 42-1/2" Long, 2 Ring Terminals
24 1716549 1 CABLE, # 6 x 10" Long, 2 Ring Terminals
25 2820263 2 NUT, Hex, 5/16-24
26 2820426 2 LOCKWASHER, External Tooth, 5/16
27 1665237 1 WIRE, 12GA, 6" Long Red
28 1665238 1 BREAKER, Circuit, 12Volt, 20Amps
29 1686981 1 SOLENOID, 4 Pole 12Volt
30 1927429 2 CAPSCREW, Hex Head Taptite, 14-20 x 5/8
31 1701011 2 TIE, Self Locking, 7-5/16 Long, Black
32 1665872 1 STRAP, Black Rubber
33 1667805 1 BRACE, Battery
34 2816950 1 NUT, Hex, 3/8-16
35 2820427 1 LOCKWASHER, External Tooth, 3/8
36 2122023 1 COVER, Terminal, Red
37 1720411 1 SWITCH, Push, Black, Pedal Switch
38 1724903 1 HARNESS, Wiring
39 1715014 1 SHRINK TUBE
40 1715010 1 WIRE ASSEMBLY, 16GA, 16" Long, Black/Tan
Footnotes
The above parts group applies to the following Mfg. Nos.:
1694772 - Lancer
1694785 - 4416XL
1694786 - Lancer
1694787 - 4416XL
© Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
2005
21
TP 400-4206-01-LN-SM
Seat Deck & Fuel Tank Group
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
13
12
10
9
1
986392
218
16
17
15
621
14
11
6
5
8
4
3
2
7
22
23
24
25
319
420
See
Frame Group
24
26
31
24
See Frame Group
for Side Panels
The above parts group applies to the following Mfg. Nos.:
1694772 - Lancer
1694785 - 4416XL
1694786 - Lancer
1694787 - 4416XL
27
28
29
22
224
30
© Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
2005
22
TP 400-4206-01-LN-SM
Seat Deck & Fuel Tank Group
PART NO. DESCRIPTIONREF NO QTY.
1 1714542 1 POD, Control
2 1960086 3 SCREW, Torx Truss Head, 5/16-18 x 7/8, Black
3 1708008 1 CLAMP, Wire
4 1919326 3 WASHER, 5/16
5 1668681 3 WASHER, Curved, Special
6 1960027 3 WASHER, Plain
7 1661348 2 EDGING, 3"
8 1713597 1 LEVER, Seat Latch, Black
9 1715047 1 CAP, Black
10 2159106 1 SPRING, Extension, 4-1/4 Long
11 1714318 2 PANEL, Side
12 1725527A 1 SLIDE, Seat
13 1725526A 1 PLATE, Rear Seat
14 1960667 4 CAPSCREW, Whiz Lock, Flange Lock
15 1718981 1 SEAT SWITCH, NC
16 1725486 1 SEAT, w/Cushion
17 1715768A 1 PLATE, Spring
18 1919438 2 NUT, Hex Lock ESNA, 5/16-18, Black
19 1709256A 2 WASHER, Spring
20 1717051 2 SPRING
21 1931335 2 CARRIAGE BOLT, 5/16-18 x 1, Black
22 1931277 6 NUT, Hex Whiz Lock, 5/16-18, Black
23 1718985 1 PAN & ROD ASEMBLY
24 1930591 12 CAPSCREW, Hex Head, Whiz Lock, 5/16-18 x 3/4, Black
25 1713794 2 STOP, Seat
26 1713758 2 BAR
27 1722918C 1 SEAT DECK
28 1719104 6 MOLDING, PCV, 12-3/8" Long
29 1722904 1 FUEL TANK
30 1722905 1 CAP, Fuel
31 1935255 6 NUT, Speed, 5/16-18
Footnotes
The above parts group applies to the following Mfg. Nos.:
1694772 - Lancer
1694785 - 4416XL
1694786 - Lancer
1694787 - 4416XL
© Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
2005
23
TP 400-4206-01-LN-SM
Lift Group
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
12
69
10
11
5
8
67
4
3
6
986041
18
13
4
14
3
15
17
19
20
22
23
21
16
32
24
22
2
1
25
631
Insert Must
Face Out
The above parts group applies to the following Mfg. Nos.:
1694772 - Lancer
1694785 - 4416XL
1694786 - Lancer
1694787 - 4416XL
30
16
29
27
26
28
16
3
1
4
13
2
4
3
5
627
© Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
2005
24
TP 400-4206-01-LN-SM
Lift Group
PART NO. DESCRIPTIONREF NO QTY.
1 1960071 2 WASHER, 3/8, Black
2 1723194A 2 LINK, Lift
3 2154177 4 SPACER
4 1922755 4 WASHER,3/8, Black
5 1921971 2 CAPSCREW, Hex Head, 3/8-16 x 1-3/4, Black
6 1722357 1 CAPSCREW, Hex Washer Head, 5/16-18 x 4-1/2, Black
7 1917372 2 NUT, Hex, 5/16-18, Black
8 1723202A 1 ANCHOR, Spring
9 1921719 2 CAPSCREW, Hex Head, 5/16-18 x 2-1/2
10 1723499 1 RETAINER, Spring
11 1935255 1 NUT, Speed, 5/16-18
12 1675232 1 SPRING, Extension, 9" Long
13 1930645 4 NUT, Hex Flange Lock, 3/8-16, Black
14 1723203A 1 BAR & HUB ASSEMBLY
15 2815523 1 PIN, Spring, 5/16 x 1-1/2
16 1920415 4 CAPSCREW, Hex Head, 3/8-16 x 1-1/4, Black
17 1931277 2 NUT, Hex Flange Whiz Lock, 5/16-18, Black
18 1722291 1 GRIP, Lift Lever
19 1723124 1 BUTTON, Red
20 1960674 1 NUT, Push, 1/4, Black
21 1723321 1 SPRING, Compression, 3.85" Long
22 1723200A 1 HANDLE ASSEMBLY, Lift
23 1723224 1 ROD
24 1723285A 1 QUADRANT, Lift
25 1920397 1 NUT, Hex Lock ESNA, 1/4-20, Black
26 1720599 1 LATCH "U" Wire
27 1930591 4 CAPSCREW, Hex Head, Whiz Lock, 5/16-18 x 3/4, Black
28 1921159 1 CAPSCREW, Hex Head, 1/4-20 x 2-1/4, Black
29 1665374A 1 STRAP
30 1723529A 1 BRACE, Support
31 2860641 2 NUT, Hex Lock Aluminum Insert, 3/8-16
32 1928352 2 NUT, Hex Whiz Lock , 3/8-16
Footnotes
The above parts group applies to the following Mfg. Nos.:
1694772 - Lancer
1694785 - 4416XL
1694786 - Lancer
1694787 - 4416XL
© Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
2005
25
TP 400-4206-01-LN-SM
Wheels & Tires Group
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
W986796
REAR WHEELS & TIRES
2
2
3
64
1
5
6
7
8
9
15
7
7
14
16
13
12
21
20
FRONT WHEELS & TIRES
10
11
64
7
8
19
18
17
9
The above parts group applies to the following Mfg. Nos.:
1694772 - Lancer
1694785 - 4416XL
1694786 - Lancer
1694787 - 4416XL
© Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
2005
26
16
TP 400-4206-01-LN-SM
Wheels & Tires Group
PART NO. DESCRIPTIONREF NO QTY.
1 1724460 2 WHEEL & TIRE ASEMBLY, Rear, (Includes Ref. Nos. 2, 3, 4, 5, & 6)
2 1720098 2 BEARING, Ball
3 1720097 WHEEL, 4.5 x 6
4 2172353 4 VALVE STEM & CAP ASSEMBLY
5 1713166 1 TIRE, 15 X 6.00, 6 SUPER TURF TL
6 1664090 1 TUBE, Tire, 4.10/3.50, Rear
7 2860202 8 WASHER
8 2827794 4 RING, "E", External
9 1722675 4 CAP, Hub
10 1724461 2 WHEEL & TIRE ASSEMBLY, Front, (Includes Ref. Nos. 4, 11, 12, & 13)
11 1716132 1 WHEEL, 7.00 x 8.00
12 2164247 1 TUBE, Tire, 18 x 8.50
13 1713170 1 TIRE, 18 x 8.50, 8 SUPER TURF TL
14 1723820 2 SPACER
15 1726886 2 KEY, Parellel
16 1724450 2 WHEEL WEIGHT ASSEMBLY, (Includes Ref Nos. 17 thru 21)
17 1960513 4 CAPSCREW, Hex Head, 3/8-16 x 8
18 1924940 4 WASHER, Plain 3/8
19 1724852 2 WHEEL WEIGHT, Unfilled
20 1916965 4 LOCKWASHER, 3/8 Spring
21 1916950 4 Nut, Hex Head, 3/8
Footnotes
The above parts group applies to the following Mfg. Nos.:
1694772 - Lancer
1694785 - 4416XL
1694786 - Lancer
1694787 - 4416XL
© Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
2005
27
TP 400-4206-01-LN-SM
Decals - Brand & Model
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
B986796
1
2
3
4
1
5
5
6
3
4
The above parts group applies to the following Mfg. Nos.:
1694772 - Lancer
1694785 - 4416XL
1694786 - Lancer
1694787 - 4416XL
© Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
2005
28
TP 400-4206-01-LN-SM
Decals - Brand & Model
PART NO. DESCRIPTIONREF NO QTY.
1 1722551 2 DECAL, Simplicity, Silver & Blue, w/Icon
2 1722832 1 DECAL, Lancer, Silver & Blue
3 1722549 1 DECAL, 16HP
4 1723785 1 DECAL, Stripe, Blue & Silver
4 1723919 1 DECAL, Stripe, Massey Ferguson
5 1714363 2 DECAL, Massey Ferguson, 3 Triangle Logo
6 1727442 1 DECAL, Model 4416XL
Footnotes
The above parts group applies to the following Mfg. Nos.:
1694772 - Lancer
1694785 - 4416XL
1694786 - Lancer
1694787 - 4416XL
© Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
2005
29
TP 400-4206-01-LN-SM
Decals - Safety & Common
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
C986796
Decal under
4
7
6
5
seat
2
1
3
Decal under
seat
9
8
16
15
14
19
4
13
15, 17
14
The above parts group applies to the following Mfg. Nos.:
1694772 - Lancer
1694785 - 4416XL
1694786 - Lancer
1694787 - 4416XL
15, 16
12
6
10
11
14
4
20
19
13
15, 17
18
© Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
2005
30
TP 400-4206-01-LN-SM
Decals - Safety & Common
PART NO. DESCRIPTIONREF NO QTY.
1 1708927 1 DECAL, USA Logo
2 1725156 1 DECAL, Belt & Blade 40"
2 1727574 1 DECAL, Belt & Blade 44"
3 1720454 1 DECAL, Touch Up Paint, (Orange)
3 1725072 1 DECAL, Touch Up Paint, (Red)
4 * 2 LABEL, CE & Serial Number, Export (Not Serviced)
4 * 1 DECAL, Serial Number (Not Serviced)
5 1723786 1 DECAL, Belt Removal
6 * 1 DECAL, Patent (Not Serviced)
7 1723823 2 DECAL, Warning Shear Point (Export Only)
8 1723160 1 DECAL, Transmission Release Valve
9 1723143 1 DECAL, Lift Lever Symbols
10 1723824 1 DECAL, Caution, Read Manual
11 1722814 1 DECAL, Operating Instructions
11 1723175 1 DECAL, Operating Instructions, Icons (Export Only)
12 1723826 1 DECAL, Ignition Switch
13 1723825 1 DECAL, Cutting Height Icons
14 1723470 1 DECAL, Height of Cut
14 1720919 1 DECAL, Height of Cut, 40" (Export)
15 1720389 2 DECAL, Danger Rotating Blades
16 1704277 1 DECAL, Danger, Do Not Operate W/O Deflector
17 1704276 1 DECAL, Danger Rotating Blades
18 1722771 1 DECAL, Free Floating
19 * 1 DECAL, OPEI, (Not Serviced)
20 1722789 1 DECAL, 44"
Footnotes
* Not a service Part.
The above parts group applies to the following Mfg. Nos.:
1694772 - Lancer
1694785 - 4416XL
1694786 - Lancer
1694787 - 4416XL
© Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
2005
31
TP 400-4206-01-LN-SM
Mower Frame Group - with Height Adjustment
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
5
6
5
64
2
3
15
12
SL985961
12
8
9
11
7
10
12
19
10
18
11
12
9
8
17
614
5
16
1
6
16
5
64
15
3
13
2
13
1
The above parts group applies to the following Mfg. Nos.:
1694772 - Lancer
1694785 - 4416XL
1694786 - Lancer
1694787 - 4416XL
© Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
2005
32
TP 400-4206-01-LN-SM
Mower Frame Group - with Height Adjustment
PART NO. DESCRIPTIONREF NO QTY.
1 1722952 2 SPACER
2 1923161 2 CAPSCREW, Hex Head, 1/2-13 x 4-1/2, Black
3 1721878 2 BRACKET & SHAFT ASSEMBLY
4 2860202 4 WASHER, 3/4, Black
5 1666001 4 BUSHING
6 1704314 2 FITTING, Lube
7 1724960 1 FRAME ASSEMBLY
8 1920415 2 CAPSCREW, Hex Head, 3/8-16 x 1-1/4, Black
9 2154177 2 SPACER
10 1928352 2 NUT, Hex Flange Lock, 3/8-16, Black
11 2118053 2 PIN, Round Head, Drilled, 3/8 x 2, Black
12 1960074 4 CLIP, Hair Pin, Black
13 1722951 2 WHEEL, Caster
14 1724107 2 PIN, Clevis, Black
15 1918452 2 PIN, Cotter,1/4 x 2, Black
16 1960379 2 NUT, Hex Lock Light, 1/2-13, Black
17 1724959 2 ROD, Height Adjuster
18 1919326 2 WASHER
19 1919438 2 NUT, Hex Lock, 5/16-18
Footnotes
The above parts group applies to the following Mfg. Nos.:
1694772 - Lancer
1694785 - 4416XL
1694786 - Lancer
1694787 - 4416XL
© Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
2005
33
TP 400-4206-01-LN-SM
40" Mower Deck - Belt, Idler Arm & Hitch
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
7
4
6
5
8
11
986260
12
613
14
15
16
30
17
10
4
4
3
2
1
Insert Must
Face Out
18
13
18
28
613
9
6
7
19
5
20
21
4
22
23
4
25
21
24
26
29
27
The above parts group applies to the following Mfg. Nos.:
1694344 - 40" Mower
1694345 - 40" Mower
© Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
2005
34
10
TP 400-4206-01-LN-SM
40" Mower Deck - Belt, Idler Arm & Hitch
PART NO. DESCRIPTIONREF NO QTY.
1 1721425 1 WASHER & LOCK NUT ASSEMBLY
2 1674671 1 SPRING, Extension, 3/4
3 1719923 1 ARM, Idler
4 1922755 7 WASHER, 3/8, Black
5 1719221 2 HUB
6 1724802 2 PULLEY, Idler, 38 Tooth
7 1923701 2 CAPSCREW, Hex Head, 3/8-16 x 2
8 1930601 1 CAPSCREW, Hex Head, 5/16-18 x 5/8, Black
9 1666697 1 SPACER
10 1928352 2 NUT, Hex Flange Whiz Lock, 3/8-16, Black
11 1724625 1 BELT, Timming, 38 Tooth
12 1960315 1 CARRIAGE BOLT, 3/8-16 x 2, Black
13 1924940 6 WASHER, 3/8, Black
14 1721710 1 PULLEY, Idler
15 1719746 1 BELT, Arbor Drive
16 1667812 1 SPACER
17 1724650A 1 PLATE & ROD ASSEMBLY
18 2860641 3 NUT, Hex Lock Aluminum Insert, 3/8-16
19 1723952 1 PULLEY, Idler
20 1928957 1 CAPSCREW, Hex Head, 3/8-16 x 2-3/4, Black
21 1663114 2 BUSHING
22 1724646 1 ARM ASSEMBLY, w/Bushungs & Lube Fitting
23 1667811 1 SPACER
24 1657242 1 SPACER
25 1922606 1 CAPSCREW, Hex Head, 3/8-16 x 1-3/4, GR 8, Black
26 1715435 1 SPRING, Extension, 6" Long, Black
27 1921969 2 CAPSCREW, Hex Head, 3/8-16 x 1-1/2, Black
28 2157081 2 SPACER
29 1722040A 1 HITCH ASSEMBLY, 40" Front Cut
30 1919439 1 NUT, Hex Flange Lock, 3/8-16, Black
Footnotes
The above parts group applies to the following Mfg. Nos.:
1694344 - 40" Mower
1694345 - 40" Mower
© Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
2005
35
TP 400-4206-01-LN-SM
40" Mower Deck - Height Adjustment & Roller Bar
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
1
2
14
13
12
985960
14
15
11
46
44
5
4
3
43
10
43
16
10
19
20
620
17
9
8
3
4
7
26
18
620
17
45
25
14
10
46
620
17
620
24
27
23
19
22
28
46
29
16
20
10
12
15
13
14
30
31
32
37
42
Insert Must
Face Out
40
41
47
39
38
6
The above parts group applies to the following Mfg. Nos.:
1694344 - 40" Mower
1694345 - 40" Mower
36
35
33
34
9
9
21
6
© Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
2005
36
TP 400-4206-01-LN-SM
40" Mower Deck - Height Adjustment & Roller Bar
PART NO. DESCRIPTIONREF NO QTY.
1 1922606 1 CAPSCREW, Hex Head, 3/8-16 x 1-3/4, GR 8, Black
2 1723900 1 ROD & STRAP ASSEMBLY
3 1915726 2 NUT, Hex, 5/8-11, Black
4 1924366 2 WASHER
5 2118053 1 PIN, Round Head, Drilled, 3/8 x 2, Black
6 2816001 3 PIN, Spring
7 1706645A 1 TRUNNION
8 1665374A 3 STRAP
9 1664847 9 CAPSCREW, Hex Washer Head, Tap Tite, 5/16-18 x 3/4, Black
10 1960339 5 NUT, Hex Flange Lock, 3/8-16, Black
11 1723150A 1 BAR, Roller
12 1960236 2 SPACER
13 1960044 2 WASHER, 5/16, Black
14 1921969 4 CAPSCREW, Hex Head, 3/8-16 x 1-1/2, Black
15 1921977 2 CAPSCREW, Hex Head, 5/16-18 x 1-1/4, Black
16 1669241 2 CHAIN, Link, 5-5/8 Long, 4 Links
17 1668513 3 ROLLER, 5/8 ID x 2-1/2 OD x 4 Long
18 1722078A 1 SHAFT & BAR ASSEMBLY
19 1717675 2 ROLLER, 5/8 ID x 2-1/2 OD x 2 Long
20 1924366 12 WASHER, 5/8, Black
21 1723148A 1 PLATE, Indicator
22 1924874 1 WASHER, 5/16, Black
23 1714879 1 CAM, Eccentric
24 1722056 1 ARM
25 1960489 1 CARRIAGE BOLT, 1/2-13 x 2-1/2, Black
26 1722077 1 SHAFT ASSEMBLY, Rocker
27 1722978A 1 ARM
28 1704314 1 FITTING, Lube
29 1715892A 1 TRUNNION
30 1716424 1 COVER, Rod
31 1679166 1 SPACER
32 1723147A 1 POINTER, Height of Cut
33 1916966 1 LOCKWASHER, 1/2, Black
34 1916951 1 NUT, Hex, 1/2-13, Black
35 2860171 1 WASHER, Special, Nylon
36 1715891 1 BEARING, Thrust
37 1706644 1 SPACER
38 1960035 1 WASHER, 5/8, Black
39 1723153 1 CRANK, Height of Cut
40 1714084 1 KNOB, Spinner
41 1960093 1 NUT, Push, 3/8
42 1924940 1 WASHER, 3/8, Black
43 1922755 2 WASHER, 3/8
44 1918452 1 PIN, Cotter
Footnotes
The above parts group applies to the following Mfg. Nos.:
1694344 - 40" Mower
1694345 - 40" Mower
© Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
2005
37
TP 400-4206-01-LN-SM
40" Mower Deck - Height Adjustment & Roller Bar
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
1
2
14
13
12
985960
14
15
11
46
44
5
4
3
43
10
43
16
10
19
20
620
17
9
8
3
4
7
26
18
620
17
45
25
14
10
46
620
17
620
24
27
23
19
22
28
46
29
16
20
10
12
15
13
14
30
31
32
37
42
Insert Must
Face Out
40
41
47
39
38
6
The above parts group applies to the following Mfg. Nos.:
1694344 - 40" Mower
1694345 - 40" Mower
36
35
33
34
9
9
21
6
© Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
2005
38
TP 400-4206-01-LN-SM
40" Mower Deck - Height Adjustment & Roller Bar
PART NO. DESCRIPTIONREF NO QTY.
45 1960655 1 CARRIAGE BOLT, 5/16-18 x 1-1/4
46 2860643 3 NUT, Hex Lock, 3/8-16
47 2860641 1 NUT, Hex Lock, Aluminum Insert, 3/8-16
Footnotes
The above parts group applies to the following Mfg. Nos.:
1694344 - 40" Mower
1694345 - 40" Mower
© Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
2005
39
TP 400-4206-01-LN-SM
40" Mower Deck - Height Adjustment & Roller Bar (Later)
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
1
2
13
12
SL985960
614
16
10
11
23
24
5
4
3
20
9
8
3
4
7
19
620
17
15
25
18
10
23
620
17
27
30
28
620
17
29
31
620
26
32 33
16
12
14
13
19
20
15
34
37
42
Insert Must
Face Out
40
41
22
39
38
6
The above parts group applies to the following Mfg. Nos.:
1694344 - 40" Mower
1694345 - 40" Mower
36
35
9
21
6
© Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
2005
40
TP 400-4206-01-LN-SM
40" Mower Deck - Height Adjustment & Roller Bar (Later)
PART NO. DESCRIPTIONREF NO QTY.
1 1923701 1 CAPSCREW, Hex Head, 3/8-16 x 2, GR 8, Black
2 1723900 1 ROD & STRAP ASSEMBLY
3 1915726 2 NUT, Hex, 5/8-11, Black
4 1924366 2 WASHER
5 2118053 1 PIN, Round Head, Drilled, 3/8 x 2, Black
6 2816001 3 PIN, Spring
7 1706645A 1 TRUNNION
8 1665374A 3 STRAP
9 1664847 9 CAPSCREW, Hex Washer Head, Tap Tite, 5/16-18 x 3/4, Black
10 1960339 3 NUT, Hex Flange Lock, 3/8-16, Black
11 1723150A 1 BAR, Roller
12 1960236 2 SPACER
13 1960044 2 WASHER, 5/16, Black
14 1921969 2 CAPSCREW, Hex Head, 3/8-16 x 1-1/2, Black
15 1921977 2 CAPSCREW, Hex Head, 5/16-18 x 1-1/4, Black
16 1656835A 2 CHAIN, Link, 3 Links
17 1668513 3 ROLLER, 5/8 ID x 2-1/2 OD x 4 Long
18 1722078A 1 SHAFT & BAR ASSEMBLY
19 1717675 2 ROLLER, 5/8 ID x 2-1/2 OD x 2 Long
20 1924366 12 WASHER, 5/8, Black
21 1723148A 1 PLATE, Indicator
22 2860641 1 NUT, Hex Lock, Aluminum Insert, 3/8-16
23 2860643 3 NUT, Hex Lock, 3/8-16
24 1960074 1 PIN, Hair
25 1960489 1 CARRIAGE BOLT, 1/2-13 x 2-1/2, Black
26 1724970A 1 SHAFT ASSEMBLY, Rocker
27 1722978A 1 ARM
28 1704314 1 FITTING, Lube
29 1715892A 1 TRUNNION
30 1716424 1 COVER, Rod
31 1679166 1 SPACER
32 1723147A 1 POINTER, Height of Cut
33 1916966 1 LOCKWASHER, 1/2, Black
34 1916951 1 NUT, Hex, 1/2-13, Black
35 2860171 1 WASHER, Special, Nylon
36 1715891 1 BEARING, Thrust
37 1706644 1 SPACER
38 1960035 1 WASHER, 5/8, Black
39 1723153 1 CRANK, Height of Cut
40 1714084 1 KNOB, Spinner
41 1960093 1 NUT, Push, 3/8
42 1924940 1 WASHER, 3/8, Black
Footnotes
The above parts group applies to the following Mfg. Nos.:
1694344 - 40" Mower
1694345 - 40" Mower
© Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
2005
41
TP 400-4206-01-LN-SM
40" Mower Deck - Housing, Arbors & Blades
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
16
14
7
6
5
4
63
13
986259
17
642
43
47
46
19
20
45
44
47
48
12
15
11
10
9
8
Torque to 50-70 ft. lbs.
(68-102 Nm)
621
641
622
623
24
625
26
27
18
29
28
2
1
38
37
36
35
32
18
33
40
39
34
Torque to 45-55 ft. lbs.
(61-75 Nm)
The above parts group applies to the following Mfg. Nos.:
1694344 - 40" Mower
1694345 - 40" Mower
37
36
35
38
18
30
34
31
33
32
© Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
2005
42
TP 400-4206-01-LN-SM
40" Mower Deck - Housing, Arbors & Blades
PART NO. DESCRIPTIONREF NO QTY.
1 1931318 1 CARRIAGE BOLT,1/4-20 x 7/8, Black
2 1960518 1 NUT, Push, 1/4, Black
3 1960353 2 WASHER, 1/4, Black
4 1704873 1 CLAMP, Wire, Black
5 1916964 1 LOCKWASHER, 1/4, Black
6 1916622 1 NUT, Hex, 1/4-10, Black
7 1723938 1 SPRING, Torsion, Black
8 1931335 1 CARRIAGE BOLT, 5/16-18 x 1, Black
9 1933988 1 NUT, Push, 5/16, Black
10 1919381 1 WASHER, 5/16, Black
11 1917356 1 LOCKWASHER, 5/16, Black
12 1917372 1 NUT, Hex, 5/16, Black
13 1719617 1 ROD
14 1719597 1 DOOR, Mulching
15 1726825 1 ARBOR SHAFT & BEARING ASSEMBLY
16 1720600 1 DEFLECTOR, Discharge
17 1714419 1 NUT, Hex Flange, 9/16-18
18 1656916 4 WASHER, Spring, 7/16, Black
19 1713091 1 PULLEY, 5" OD x 1" ID
20 1719870 1 HUB
21 1724453 2 SPROCKET & FLANGE ASSEMBLY, 38 Tooth
22 1655729A 2 HOUSING, Arbor, Top
23 1707335 2 GASKET, Foam
24 1722396 2 ARBOR SHAFT & BEARINGS ASSEMBLY
25 1703273A 2 HOUSING, Arbor, Bottom, w/Lube Fitting
26 1930584 1 CAPSCREW, Hex Head, 7/16-14 x 2-3/4, GR 8, Black
27 1933263 1 WASHER, 7/16, Black
28 1721254 1 COVER, Arbor, LH, Black
29 1664847 6 CAPSCREW, Hex Washer Head, Tap Tite, 5/16-18 x 3/4, Black
30 1686977 1 HOUSING ASSEMBLY, Orange
30 1686977 1 HOUSING ASSEMBLY, Red
31 1719624A 1 BLADE, Mower, 20-3/8, LH
32 1722258 2 PIN, Blade
33 1722257 2 WASHER, Spline
34 2827120 2 CAPSCREW, Hex Head, 7/16-14 x 1-1/4, GR 8
35 1655777 2 ADAPTER, Blade
36 1700229A 2 SHIELD, Bearing
37 1700230 2 WASHER, Shim, Black
38 1677274A 2 ADAPTER, Arbor
39 1960373 12 CAPSCREW, Hex Head, 5/16-18 x 1, Black
40 1719623A 1 BLADE, Mower, 20-3/8, RH
41 1657969A 2 BEARING SHIELD
42 1713675 2 WASHER, Bellville
43 1721155 1 COVER ASSEMBLY, Arbor, RH (Includes Ref. Nos. 43 thru 48)
Footnotes
The above parts group applies to the following Mfg. Nos.:
1694344 - 40" Mower
1694345 - 40" Mower
© Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
2005
43
TP 400-4206-01-LN-SM
40" Mower Deck - Housing, Arbors & Blades
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
16
14
7
6
5
4
63
13
986259
17
642
43
47
46
19
20
45
44
47
48
12
15
11
10
9
8
Torque to 50-70 ft. lbs.
(68-102 Nm)
621
641
622
623
24
625
26
27
18
29
28
2
1
38
37
36
35
32
18
33
40
39
34
Torque to 45-55 ft. lbs.
(61-75 Nm)
The above parts group applies to the following Mfg. Nos.:
1694344 - 40" Mower
1694345 - 40" Mower
37
36
35
38
18
30
34
31
33
32
© Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
2005
44
TP 400-4206-01-LN-SM
40" Mower Deck - Housing, Arbors & Blades
PART NO. DESCRIPTIONREF NO QTY.
44 1724600 1 COVER, Arbor RH
45 1721259A 1 GUARD ASSEMBLY, RH
46 1721132A 1 GUARD, Extension
47 1675044 1 RIVIT, Pop
48 1960096 4 WASHER, 3/16 x 3/4 x 1/16
Footnotes
The above parts group applies to the following Mfg. Nos.:
1694344 - 40" Mower
1694345 - 40" Mower
© Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
2005
45
TP 400-4206-01-LN-SM
44" Mower Deck - Belt, Idler Arm & Hitch
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
1
ARBOR
PULLEY
ARBOR DRIVE
PULLEY
MOVABLE IDLER
PULLEY
ARBOR DRIVE
PULLEY
986160
14
15
16
PTO Clutch
12
5
17
13
11
MOVABLE IDLER
PULLEY
FIXED IDLER
PULLEY
12
11
10
5
18
19
18
20
8 3
7
3
22
21
18
ARBOR DRIVE
2
PULLEY
3
6
23
115
19
4
9
Insert Must
Face Out
29
5
28
The above parts group applies to the following Mfg. Nos.:
1694783 - 44" Mower
1694784 - 44" Mower
26
27
21
2224
24
3
25
© Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
2005
46
TP 400-4206-01-LN-SM
44" Mower Deck - Belt, Idler Arm & Hitch
PART NO. DESCRIPTIONREF NO QTY.
1 1713549 1 V-BELT, Arbor Drive
2 1721532 1 V-BELT, Arbor Drive
3 1960339 4 NUT, Hex Flange Lock, 3/8-16
4 1724387 1 PULLEY, Idler
5 1924940 7 WASHER, 3/8
6 1718561 1 LEVER ASEMBLY, Idler, w/Bushings
7 1960268 1 CARRIAGE BOLT, 3/8-16 x 1-1/4, Black
8 1665835 1 GRIP, Black
9 1722040A 1 HITCH ASSEMBLY
10 1714062 1 SPRING, Extension, 8" Long
11 1724005 1 LEVER & HANDLE ASSEMBLY, w/Bushings
12 1667812 2 SPACER
13 2171247 1 PULLEY, Idler
14 1923903 1 CAPSCREW, Hex Head, 3/8-16 x 3, Black
15 1724178A 1 PLATE, Upstop
16 1923938 1 CAPSCREW, Hex Head, 3/8-16 x 3-1/2, Black
17 1706510 1 PULLEY, Idler
18 1676148 3 BUSHING
19 2812808 2 FITTING, Lube
20 1657242 1 SPACER
21 1667811 2 SPACER
22 1674669A 1 SPACER
23 1703801 1 SPRING, Extension, 5-13/16" Long
24 1924356 3 WASHER, 3/8, Black
25 1921972 1 CAPSCREW, Hex Head, 3/8-16 x 2-1/2, Black
26 1921969 2 CAPSCREW, Hex Head, 3/8-16 x 1-1/2, Black
27 1723794A 1 BRACKET, "L"
28 2157081 2 SPACER
29 2860641 2 NUT, Hex Lock, Aluminum Insert, 3/8-16
Footnotes
The above parts group applies to the following Mfg. Nos.:
1694783 - 44" Mower
1694784 - 44" Mower
© Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
2005
47
TP 400-4206-01-LN-SM
44" Mower Deck - Height Adjustment & Roller Bar
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
17
16
15
14
13
12
11
5
4
63
23
986868
20
24
25
10
6
8
21
22
26
627
26
21
20
28
25
24
31
9
32
33
18
29
30
18
23
7
2
36
1
37
38
39
40
See Belt,
Idler Arm
& Hitch
The above parts group applies to the following Mfg. Nos.:
1694783 - 44" Mower
1694784 - 44" Mower
19
34
35
641
© Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
2005
48
TP 400-4206-01-LN-SM
44" Mower Deck - Height Adjustment & Roller Bar
PART NO. DESCRIPTIONREF NO QTY.
1 1724833A 1 ARM,Pitch
2 1931352 1 CARRIAGE BOLT,3/8-16 x 1-1/2, Black
3 1931202 2 CAPSCREW, Hex Washer Head, Tap Tite, 5/16-18 x 1-1/4, Black
4 1919381 1 WASHER, 5/16, Black
5 1704114 1 ROD, Height of Cut
6 1704080A 1 PLATE
7 1704097 1 WASHER, Detent, Black
8 1724009 1 TRUNNION
9 1704083A 1 ARM
10 1921977 2 CAPSCREW, Hex Head, 5/16-18 x 1-1/4, Black
11 1960170 1 WASHER, 1/2, Black
12 1704087 1 TRUNNION
13 1704314 1 FITTING, Lube
14 2816001 1 PIN, Spring
15 1727681 1 CRANK, Height Adjustment, Black
16 1714084 1 KNOB, Spinner
17 1960093 1 NUT, Push, 3/8, Black
18 1921969 2 CAPSCREW, Hex Head, 3/8-16 x 1-1/2, Black
19 1704082 1 NUT, Hex Adjusting
20 1960339 2 NUT, Hex MAC Large, 3/8-16, Black
21 1656835A 2 CHAIN, Link, 3 Links
22 1723150A 1 BAR, Roller
23 1921977 2 CAPSCREW, Hex Head, 5/16-18 x 1-1/4, Black
24 1960044 2 WASHER, 5/16, Black
25 1960236 2 SPACER
26 1717675 2 ROLLER, Rounded, 5/8 ID x 2-1/2 OD x 2" Long
27 1668513 3 ROLLER, 5/8 ID x 2-1/2 OD x 4" Long
28 1722078A 1 SHAFT & BAR ASSEMBLY
29 1664847 6 CAPSCREW, Hex Washer Head, Tap Tite, 5/16-18 x 3/4, Black
30 1665374A 3 STRAP
31 1704116A 1 BRACKET, Height of Cut
32 1917356 2 LOCKWASHER, 5/16
33 1917372 2 NUT, Hex, 5/16-18, Black
34 1724968A 1 SHAFT ASSEMBLY
35 1916950 1 NUT, Hex, 3/8-16, Black
36 1923701 1 CAPSCREW, Hex Head, 3/8-16 x 1-3/4
37 1924940 1 WASHER
38 1611705 1 SPACER
39 1667812 1 SPACER
40 2860641 1 NUT, Hex, 3/8-16
41 2860643 2 NUT, Hex Flange Lock, 5/16-18
Footnotes
The above parts group applies to the following Mfg. Nos.:
1694783 - 44" Mower
1694784 - 44" Mower
© Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
2005
49
TP 400-4206-01-LN-SM
44" Mower Deck - Housing, Arbors & Blades
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
986798
The above parts group applies to the following Mfg. Nos.:
1694783 - 44" Mower
1694784 - 44" Mower
© Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
2005
50
TP 400-4206-01-LN-SM
44" Mower Deck - Housing, Arbors & Blades
PART NO. DESCRIPTIONREF NO QTY.
1 1714419 3 NUT, Hex Flange, 9/16-18
2 1713675 6 WASHER, Bellville
3 1713161 1 PULLEY
4 1713158 1 HUB
5 1713098 3 PULLEY
6 1713533 1 HUB
7 1713197 2 HUB
8 1655729A 3 COVER, Arbor Housing
9 2108202 3 BEARING
10 1715724 3 SPACER
11 1715723 3 SPACER
12 1705897 3 BEARING
13 1707335 3 GASKET, Foam
14 1713338 3 HOUSING, Arbor, Bottom (Includes Ref. No. 15)
15 1704314 3 FITTING, Lube
16 1718374 1 COVER, Arbor
17 1664847 31 CAPSCREW, Hex Washer Head, Taptite, 5/16-18 x 3/4, Black
18 1686937 1 HOUSING ASSEMBLY, 44" Front Cut
19 1713619 3 WASHER, Cup
20 1713195 2 SHAFT
21 1713196 3 SHIELD, Grass
22 1716696A 3 BLADE, Mower, 44" Deck, 16-1/4
23 1713089 3 WASHER, Hex, Special
24 1656916 3 WASHER, Black
25 2823471 3 CAPSCREW, Hex Head, 7/16-14 x 1-1/4, Black
26 1713612 1 SHAFT, Arbor
27 1716149A 1 BAFFLE, Anti-Blowout, LH (Export)
28 1721946A 1 BAFFLE, Anti-Blowout, RH (Export)
29 1931333 8 CARRIAGE BOLT, 5/16-18 x 3/4, Black (qty. 2 for Domestic)
30 1927557 8 NUT, Hex Flange Whiz Lock, 5/16-18, Black (qty. 2 for Domestic)
31 1703601 1 COVER, Arbor
32 1931318 2 CARRIAGE BOLT, 1/4-20 x 7/8, Black
33 1960518 2 NUT, Push, 1/4, Black
34 1960353 3 WASHER, 1/4, Black
35 1704873 1 CLAMP
36 1919326 1 WASHER, 5/16, Black
37 1723938 1 SPRING, Torsion
38 1916964 2 LOCKWASHER, 1/4, Black
39 1916622 2 NUT, Hex, 1/4-20, Black
40 1706709A 1 ROD
41 1705115 1 PLUG, Hole
42 1705449 1 DEFLECTOR, Plastic
43 1921332 2 CAPSCREW, Hex Head, 5/16-18 x 3/4
44 1727448A 1 PLATE, Closure Discharge
Footnotes
The above parts group applies to the following Mfg. Nos.:
1694783 - 44" Mower
1694784 - 44" Mower
© Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
2005
51
TP 400-4206-01-LN-SM
Hardware Identification & Torque Specifications
Common Hardware Types
Hex Head Capscrew
Carriage Bolt
Standard Hardware Sizing
When a washer or nut is identified as 1/2”, this is the
Nominal size
second number is present it represent the
When bolt or capscrew is identified as 1/2 - 16 x 2”, this
means the
second number represents the
example, and the final number is the
bolt or screw (in this example 2 inches long).
, meaning the
Nominal size
inside diameter
, or
body diameter
threads per inch
body length
Washer
Lockwasher
Hex Nut
is 1/2 inch; if a
threads per inch
is 1/2 inch; the
(16 in this
of the
The guides and ruler furnished below are designed to
help you select the appropriate hardware and tools.
0
1/4 3/4
1/2
Nut, 1/2”
Inside
Diameter
1
1/4 3/4
1/2
Screw, 1/2 x 2
2
1/4 3/4
1/2
3
1/4 3/4
1/2
4
Body
Diameter
Body
Length
Torque Specification Chart
FOR STANDARD MACHINE HARDWARE (Tolerance ± 20%)
Hardware
Grade
Size Of
Hardware ft/lbs Nm. ft/lbs Nm. ft/lbs Nm.
8-32
8-36
10-24
10-32
1/4-20
1/4-28
5/16-18 11 15.0 17 23.1 25 34.0
5/16-24 12 16.3 19 25.8 27 34.0
3/8-16 20 27.2 30 40.8 45 61.2
3/8-24 23 31.3 35 47.6 50 68.0
7/16-14 30 40.8 50 68.0 70 95.2
7/16-20 35 47.6 55 74.8 80 108.8
1/2-13 50 68.0 75 102.0 110 149.6
1/2-20 55 74.8 90 122.4 120 163.2
9/16-12 65 88.4 110 149.6 150 204.0
9/16-18 75 102.0 120 163.2 170 231.2
5/8-11 90 122.4 150 204.0 220 299.2
5/8-18 100 136 180 244.8 240 326.4
3/4-10 160 217.6 260 353.6 386 525.0
3/4-16 180 244.8 300 408.0
7/8-9 140 190.4 400 544.0 600 816.0
7/8-14 155 210.8 440 598.4 660 897.6
1-8 220 299.2 580 788.8 900 1,244.0
1-12 240 326.4 640 870.4 1,000 1,360.0
1. These torque values are to be used for all hardware
excluding: locknuts, self-tapping screws, thread forming
screws, sheet metal screws and socket head setscrews.
2. Recommended seating torque values for locknuts:
a. for prevailing torque locknuts - use 65% of grade 5
torques.
b. for flange whizlock nuts and screws - use 135% of
grade 5 torques.
3. Unless otherwise noted on assembly drawings, all torque
values must meet this specification.
No
Marks
SAE Grade 2 SAE Grade 5 SAE Grade 8
in/lbs in/lbs
19
2.1
20
2.3
27
3.1
31
3.5
66
7.6 8 10.9 12 16.3
76
8.6 10 13.6 14 19.0
30
31
43
49
NOTES
3.4
3.5
4.9
5.5
in/lbs
41
43
60
68
420 571.2
4.6
4.9
6.8
7.7
Wrench & Fastener Size Guide
1/4
1/4” Bolt or Nut
Wrench—7/16”
5/16
5/16” Bolt or Nut
Wrench—1/2”
3/8
3/8” Bolt or Nut
Wrench—9/16”
7/16
DIA.
7/16” Bolt or Nut
Wrench (Bolt)—5/8”
Wrench (Nut)—11/16”
1/2
DIA.
1/2” Bolt or Nut
Wrench—3/4”
MANUFACTURING, INC.
500 N. Spring Street / PO Box 997
Port Washington, WI 53074-0997 USA
www.simplicitymfg.com
© Copyright Simplicity Manufacturing, Inc.
All Rights Reserved. Printed In USA.
2005
Loading...
