Snapper 355Z SERIES User Manual

Parts Manual fo

r

R

24HP HYDRO DRIVE ZT

355Z SERIES

MODEL

355ZB2444 (5900681)
355ZB2450 (5900682)

355ZB2450CE (5900685)

Briggs & Stratton Yard Power Products Group

535 Macon Road
McDonough, GA, 30253 U.S.A.
800-935-2967

Revision C,

Manual No. 5101225

TP 400-5275-C-HZ-N6/3/2008

s

PAGE GROUP

4
6

8
10
12
14
18
20
22
24
26
28
30
32
34
38
40
44
46
48
50

Wheel & Tire Group
Main Frame Group
Seat & Floor Plate Group
Fuel Tank & Replacement Parts Group
Engine & PTO Group - 24 HP Briggs & Stratton
Motion Control Group

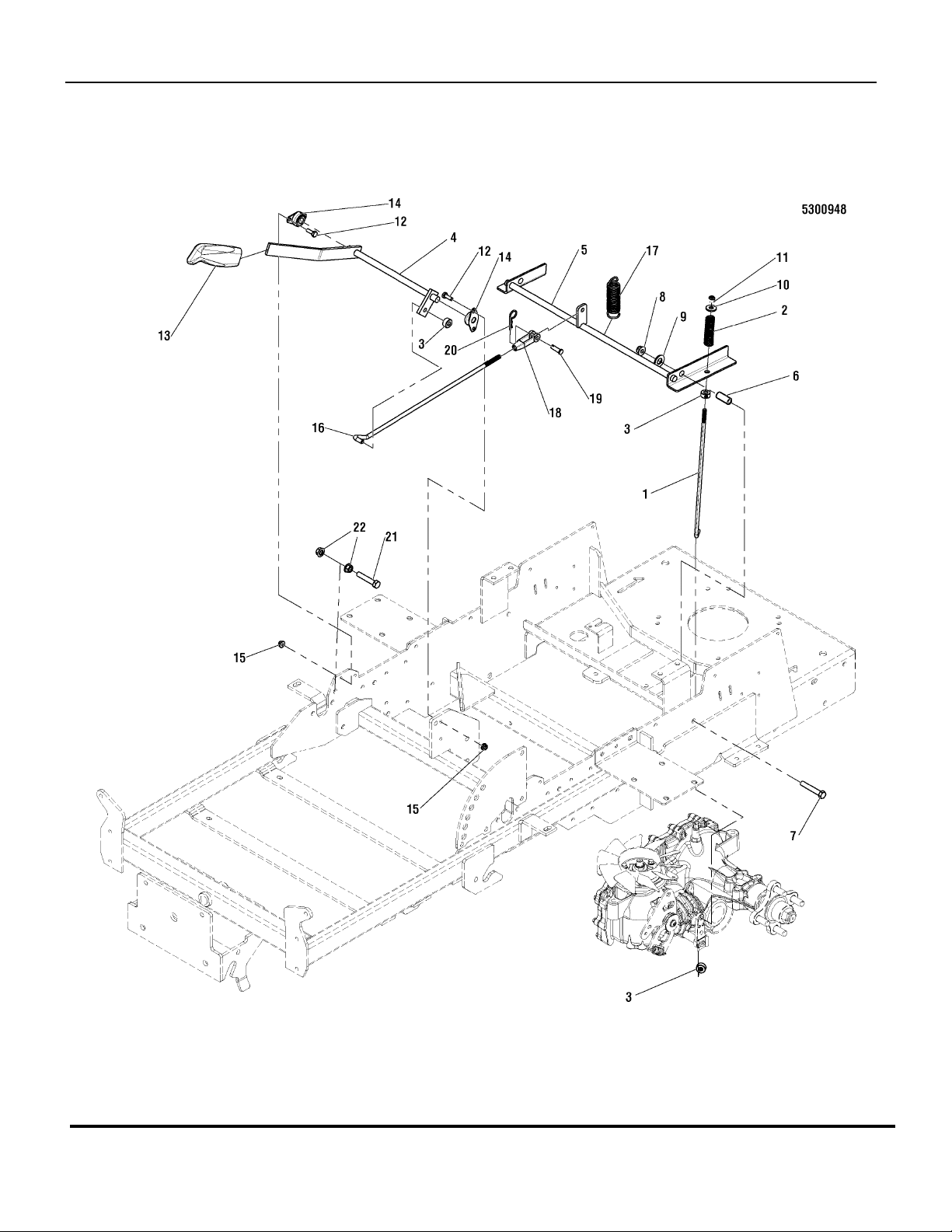

Parking Brake Group
Pump Drive Group
Hydraulic Group
Transmission SERVICE PARTS
Rear Bumper Group

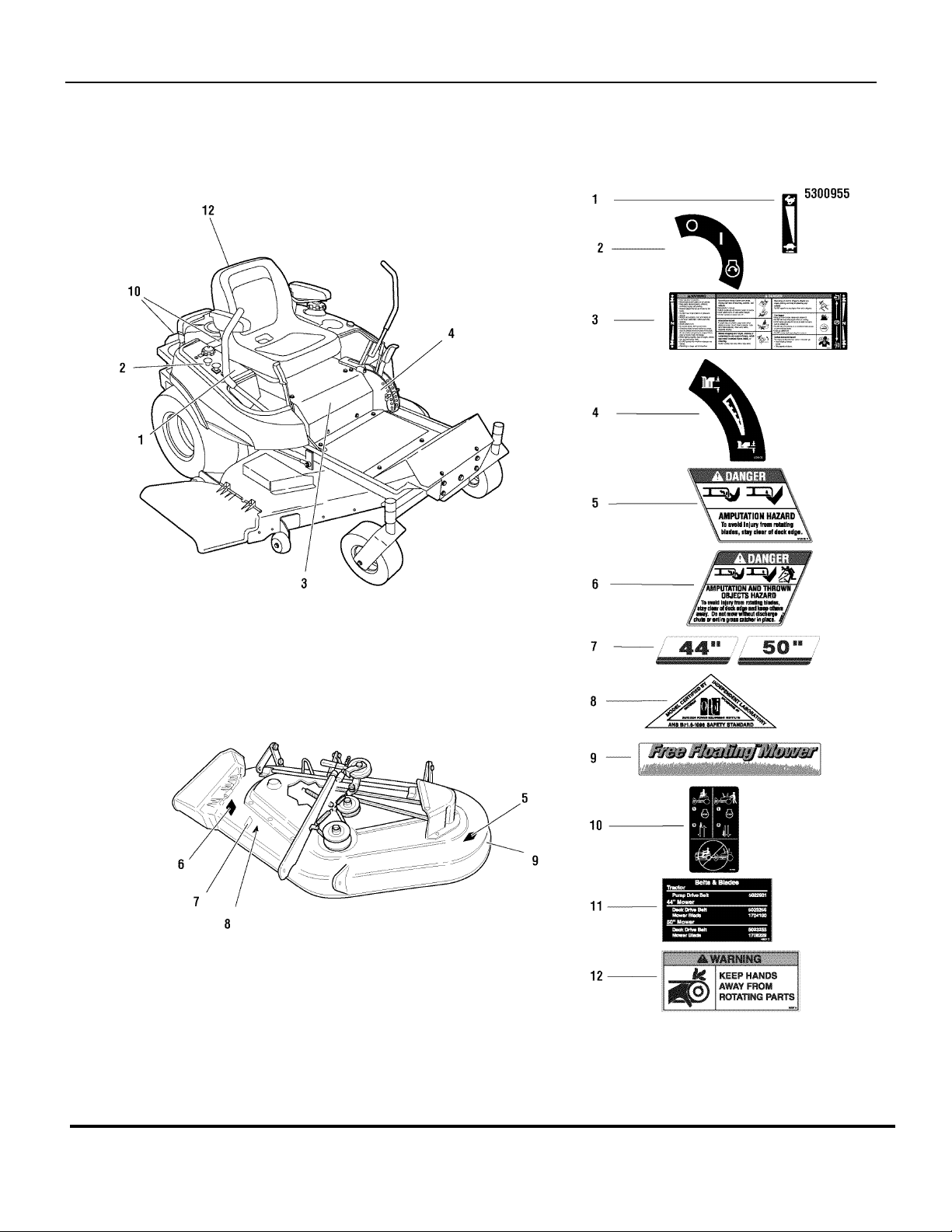

Decal Group - Brand & Model
Decal Group - Safety & Common
Export Decal Group - Safety & Common
Deck Lift Group
44" & 50" Mower Deck - Belt & Idler Group

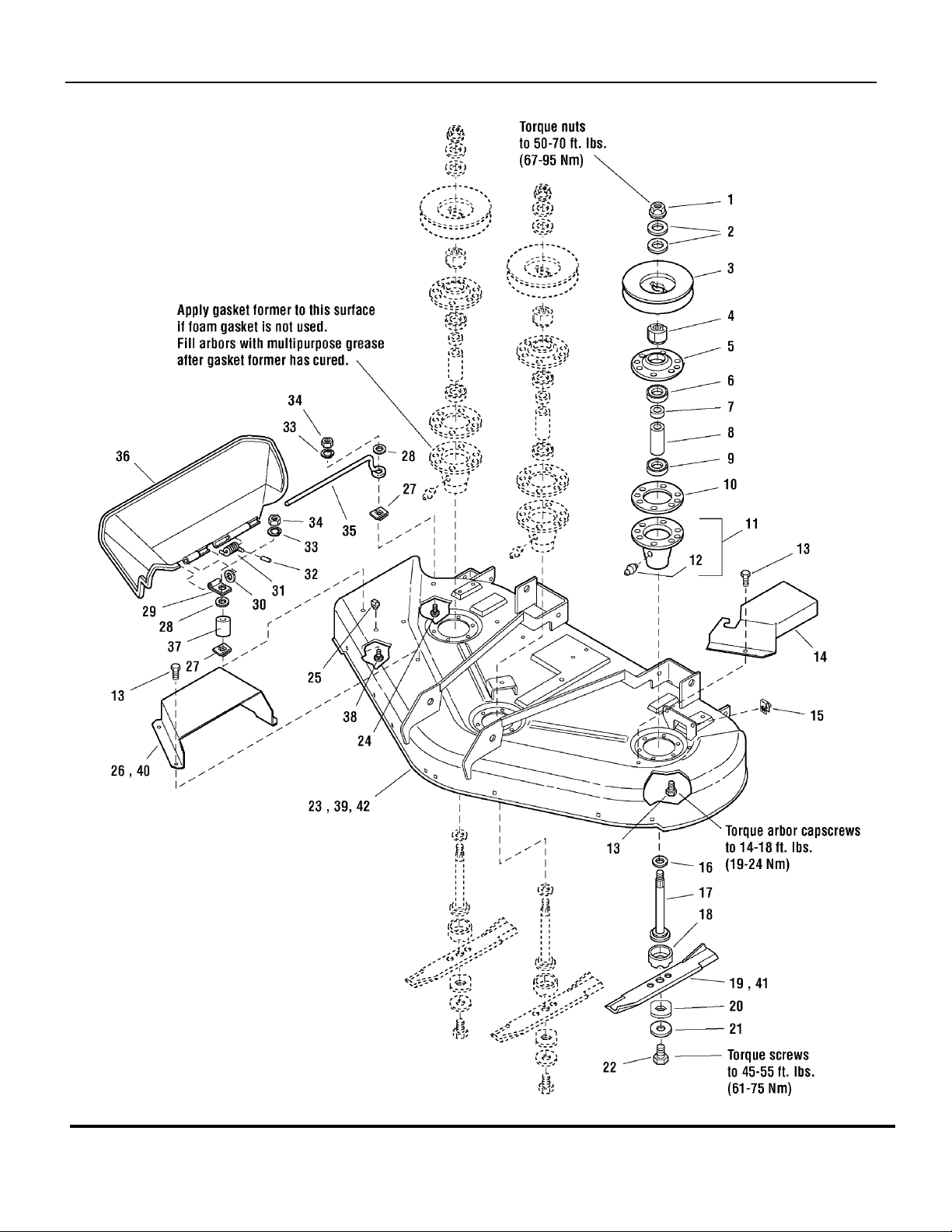

44" & 50" Mower Deck - Housing, Arbors & Blades Group
44" & 50" Mower Deck - Rollers Group
Instrument Control Panel Group
Electrical Group
Wiring Schematic - 24 HP Briggs & Stratton

Table Of Content

24HP HYDRO DRIVE ZTR
355Z SERIES

Manual No. 5101225

3

TP 400-5275-C-HZ-N

Wheel & Tire Group

Manual No. 5101225
TP 400-5275-C-HZ-N

24HP HYDRO DRIVE ZTR

4

355Z SERIES

Wheel & Tire Group

p

y

Part No Descri

1 5022433S 2 WHEEL & TIRE ASSEMBLY, 11 X 4.0 - 5, Complete (INCLUDES REF NO. 2 - 6)

2 5022433X1 2 TIRE, Front, 11 X 4.0 - 5 (SV)
3 5022433SX2 2 WHEEL ASSEMBLY, Complete (INCLUDES REF NO. 4 & 5)
4 2172353 4 VALVE STEM & CAP ASSEMBLY (SV)
5 5022579 4 BEARING, Roller (2 PER TIRE)
6 5021043 4 BEARING, Retainer (2 PER TIRE)
7 5045996 2 AXLE, Front Caster
8 5025017X52 2 CAPSCREW, Hex Head, 1/2-13 X 6-1/2
9 5025056 2 NUT, Hex Nylon Lock, 1/2-13

10 5023095 2 WHEEL & TIRE ASSEMBLY, 20 X 8.0 - 10, Complete (INCLUDES REF NO. 4, 11 &

11 5023095X1 2 TIRE, Rear 20 X 8.0 X 10 (SV)
12 5023095X2 2 WHEEL ASSEMBLY, For 20 X 8.0 X 10 Tire (SV)
13 5020601 8 LUG NUT, 1/2-20
14 5025158 4 WASHER, SAE, 1/2
15 5101418 2 WHEEL, CASTER, 11 X 4.0-5 SILVER BEAD LO (INCLUDES REF NO. 2, 4-6,

16 5101418X1 2 WHEEL ASSEMBLY, Complete (INCLUDES REF NO. 4 & 5)

tionItem Qt

Note

(S/N: 2013129510 & Below)

12)

16) (S/N: 2013129511 & Above)

Footnotes:

Manual No. 510122524HP HYDRO DRIVE ZTR

355Z SERIES

5

TP 400-5275-C-HZ-N

Main Frame Group

Manual No. 5101225
TP 400-5275-C-HZ-N

24HP HYDRO DRIVE ZTR

6

355Z SERIES

Main Frame Group

p

y

Part No Descri

1 5021541 4 BUSHING, FLANGE
2 5400405D 1 WELD, PIVOTING FRONT END - RED
3 5048775D 2 WELD, CASTER YOKE - RED
4 5025057 4 NUT, 5/16-18 HEX NYLON LOCK
5 5020095 2 GREASE FITTING, 1/4-28 STRAIGHT
6 5020602 2 COLLAR, 1" SPLIT
7 5402896D 1 WELD, MAINFRAME, SNAPPER ZT, RED
8 5025303 4 SCREW, 5/16-18 X 1 FLAT HD SC

9 5100930 2 PAD, FRICTION, .375 X 1.25 X 4.00
10 5025284 1 NUT, 3/4-16 HEX NYLON LOCK
11 5025160 1 WASHER, 3/4 SAE
12 5025265X56 1 BOLT, 3/4-16 X 7" YZ GD5
13 5047489 1 SPACER, .75 X 1.00 X 2.38
14 5022852 1 PIVOT BEARING, 1.00" X 1.125" OD X 1.50"
15 5100358 1 PIVOT BEARING, 1.00 X 1.125 OD X .50
16 5400756 1 SPACER, .76X 1.50 X .79
17 5023214 2 CAP, VINYL 1.687 X 1-1/2

tionItem Qt

Note

Footnotes:

Manual No. 510122524HP HYDRO DRIVE ZTR

355Z SERIES

7

TP 400-5275-C-HZ-N

Seat & Floor Plate Group

Manual No. 5101225
TP 400-5275-C-HZ-N

24HP HYDRO DRIVE ZTR

8

355Z SERIES

Seat & Floor Plate Group

p

y

Part No Descri

1 5402937D 1 PLATE, SEAT SUPPORT, CONS Z - RED

2 5025011X8 8 BOLT, 5/16-18 X 1 GD 5 YZ

3 5025292 6 WASHER, 5/16 GD. 9 FLAT

4 5025392 8 NUT, 5/16-18 HEX NYLOCK FLANGE

5 7078299 2 SPRING, SEAT SUPPORT

6 5025156 2 WASHER, 3/8 SAE

7 5100999 1 SAFETY WALK, FLOOR PLATE, 17.38 X 11.50

8 5101007 1 SAFETY WALK, FLOOR REST, 17.38 X 6.00

9 5061599 1 SEAT, XB-180, NO LOGO, BLACK
10 5025057 4 NUT, 5/16-18 HEX NYLON LOCK
11 5025394 2 NUT, 3/8-16 HEX NYLOCK FLANGE
12 5403488D 1 WELD, SEAT PLATE - RED
13 5403043D 1 PLATE, FLOOR, CONSUMER Z - RED
14 5403044D 1 PLATE, FLOOR, FRONT, CONS Z - RED
15 35097 6 MOUNT, VIBRATION, 30 DURO
16 197546 4 MOUNT, VIBRATION, RUBBER
17 5025481 6 BOLT, 3/8-16 X 5/8, SERRATED UNDER HEAD
18 5025013X28 2 BOLT, 3/8-16 X 3-1/2 GD5 YZ
19 5044617 2 WASHER, .34 X 1.25 X 10 GA
20 5025128 4 NUT, 3/8-18 HEX SERRATED FLANGE
21 5021500 1 CLAMP, VINYL INSULATED
22 5025010X6 1 BOLT, 1/4-20 X 3/4 GD5 YZ
23 5025154 1 WASHER, 1/4 SAE
24 5025391 1 NUT, 1/4-20 HEX NYLOCK FLANGE
25 1686907 1 ARM REST, SET OF TWO (SV)
26 5100636 1 SPRING, SEAT ADJUSTMENT (SV)
27 5061599X1 1 KIT, SEAT RAILS. COMPLETE (SV)
28 5025394 2 NUT, 3/8-16 HEX NYLOCK FLANGE
29 5025480 6 WASHER, 3/8" ID, INTERNAL TOOTH
30 5025011X6 1 BOLT, 5/16-18 X 3/4 GDS
31 5025392 1 NUT, 5/16-18 HEX NYLOCK FLANGE
32 5025155 1 WASHER, 5/16 SAE
33 5403372D 1 PLATE, SUPPORT, FRONT FLOOR - RED

tionItem Qt

Note

Footnotes:

Manual No. 510122524HP HYDRO DRIVE ZTR

355Z SERIES

9

TP 400-5275-C-HZ-N

Fuel Tank & Replacement Parts Group

Manual No. 5101225
TP 400-5275-C-HZ-N

10

24HP HYDRO DRIVE ZTR

355Z SERIES

Fuel Tank & Replacement Parts Group

p

y

Part No Descri

1 5101181 1 TANK, FUEL, LH (INCLUDES REF. NOS. 16 - 18)

2 5048752 1 TANK, FUEL, RH

3 5048909D 2 PLATE, FUEL TANK BADGE

4 5025011X6 18 BOLT, 5/16-18 X 3/4 GD5

5 5025155 18 WASHER, 5/16 SAE

6 5025170 10 WASHER, 5/16 LOCK YZ

7 5400836D 1 BRACKET, REAR SUPPORT - LH - RED

8 5048763D 1 BRACKET, REAR SUPPORT - RH

9 5022158 1 CAP, FUEL TANK, 3-1/2 NECK
10 5025386 6 SCREW, #10-24 X 3/8 ALLEN BHBZ
11 5025299X4 2 SCREW, 1/4-20 X 1/2 ALLEN BH
12 5403004D 1 PLATE, SUPPORT, REAR TANK - SNP RED
13 5025392 4 NUT, 5/16-18 HEX NYLOCK FLANGE
14 5050831X28 1 HOSE, 1/4" FUEL, 28.00"
15 5020835 2 CLAMP, HOSE, EXTERNAL, 1/2 - RED
16 5023197 1 FUEL GAUGE (SV)
17 5022917X1 1 GROMMET (SV)
18 5101190 1 PICK UP TUBE ASSM, FUEL TANK (SV)

tionItem Qt

Note

Footnotes:

Manual No. 510122524HP HYDRO DRIVE ZTR

355Z SERIES

11

TP 400-5275-C-HZ-N

Engine & PTO Group - 24 HP Briggs & Stratton

Manual No. 5101225
TP 400-5275-C-HZ-N

12

24HP HYDRO DRIVE ZTR

355Z SERIES

Engine & PTO Group - 24 HP Briggs & Stratton

p

y

Part No Descri

1 -- 1 * ENGINE, 24HP B&S, ELS Mod. #44M777-0121-E1

2 5023100 1 CLUTCH, #51110100, ELECTRIC, 1" SHAFT

3 5043636 1 CLUTCH ANCHOR PAD

4 5044617 5 WASHER, .34 X 1.25 X 10 GA

5 5023253 1 CAPSCREW, CRANKSHAFT, 7/16-20 x 3-1/4"YZ

6 5042132 1 SPACER, .45 X 1.62 X .37

7 5025011X8 1 BOLT, 5/16-18 X 1 GD5 YZ

8 5025155 6 WASHER, 5/16 SAE

9 5025392 7 NUT, 5/16-18 HEX NYLOCK FLANGE
10 5050407X18 1 KEY, 1/4" SQ. X 2 1/4
11 5025011X18 4 BOLT, 5/16-18 X 2-1/4" GD 5 YZ
12 5025188 4 WASHER, 5/16" INT. TOOTH LOCK
13 5403059D 1 PLATE, HEAT SHIELD - RED
14 5048681 1 HOSE, OIL DRAIN
15 690970 2 GASKET, EXHAUST
16 690341 4 SCREW, SEM HEX HEAD
17 5100907 1 MUFFLER, B&S-ELS 22-26HP
18 5100969 1 EXTENSION, TAILPIPE, 3"
19 5021808X8 2 SCREW
20 5022308 2 BODY CLIP, 5/16-18 X 1/2 DEEP
21 792303 1 PRE CLEANER (SV)
22 792105 1 AIR CLEANER W/ PRE CLEANER (SV) (INCLUDES REF NO 21)
23 95050 1 SCREW, CROSS RECESSED THREAD (EXPORT MODELS ONLY)
24 793821 1 COVER, STATIC / LABEL ASSY (EXPORT MODELS ONLY)
25 5021500 1 CLAMP, VINYL INSULATED (NOT SHOWN - FOR OIL

26 5025010X6 1 BOLT, 1/4-20 X 3/4 GD5 YZ (NOT SHOWN - FOR OIL

27 5025391 1 NUT, 1/4-20 HEX NYLOCK FLANGE (NOT SHOWN - FOR OIL

28 5025154 1 WASHER, 1/4 SAE (NOT SHOWN - FOR OIL

29 5025139 2 NUT, 5/16-18 HEX SERRATED FLANGE (LARGE)
30 5025011X10 2 BOLT, 5/16-18 X 1-1/4 GD5 YZ
31 696854 1 OIL FILTER (SV) (NOT SHOWN)

tionItem Qt

Note

DRAIN HOSE)

DRAIN HOSE)

DRAIN HOSE)

DRAIN HOSE)

Footnotes:

NOTE* Purchase engine parts from engine manufacturer dealer.

Manual No. 510122524HP HYDRO DRIVE ZTR

355Z SERIES

13

TP 400-5275-C-HZ-N

Motion Control Group

Manual No. 5101225
TP 400-5275-C-HZ-N

14

24HP HYDRO DRIVE ZTR

355Z SERIES

Motion Control Group

p

y

Part No Descri

1 5022068 2 GRIP, FOAM, 3/4 ID, 16 LONG

2 5025011X8 4 BOLT, 5/16-18 X 1 GD5 YZ

3 5025155 18 WASHER, 5/16 SAE

4 5025170 4 WASHER, 5/16 LOCK YZ

5 5048264 8 SPACER, .39 X .63 X 1.50

6 5025011X20 8 BOLT, 5/16-18 X 2-1/2" GD5 YZ

7 5025392 16 NUT, 5/16-18 HEX NYLOCK FLANGE

8 5025179X4 4 SCREW, #10-24 X 1/2 ROUND PHILLIPS

9 5025029 4 NUT, #10-24 HEX
10 5025055X16 4 BOLT, 5/16-18 X 2 GD5 TFL
11 5021499 2 BEARING, FLANGE
12 5021098 2 BEARING, BRONZE FLANGE, 3/4
13 5047004 2 MOUNT, CONTROL ARM
14 5025327 4 BOLT, 3/8-16 X 1-1/4 SHCS
15 5025096 4 NUT, 3/8-16 HEX NYLON LOCK
16 5025013X8 2 BOLT, 3/8-16 X 1 GD5 YZ
17 5025013X14 4 BOLT, 3/8-16 X 1-3/4 GD5
18 5025394 6 NUT, 3/8-16 HEX NYLOCK FLANGE
19 5025139 4 NUT, 5/16-18 HEX SERRATED FLANGE (LARGE)
20 5025011X10 4 BOLT, 5/16-18 X 1-1/4 GD5 YZ
21 5402852D 2 WELD, PLATE, NEUTRAL - RED
22 5100940 2 DAMPENER, CONTROL, #(P6709/P3610)
23 5402851D 1 WELD, CONTROL SHAFT, LH - RED
24 5402850D 1 WELD, CONTROL SHAFT, RH - RED
25 5100941 4 BALL STUD, 5/16 X .50, # PC-477-2)
26 5402872D 2 PLATE, CONTROL LINK, TRANSAXLE - RED
27 5101057 2 ROD, HYDRO LINKAGE - CONZ - YZ
28 5025015X6 2 BOLT, 7/16-14 X 3/4, GD 5 YZ
29 5025044 2 NUT, 7/16-14 HEX TOP LOCK
30 5025010X6 2 BOLT, 1/4-20 X 3/4 GD5 YZ
31 5025391 2 NUT, 1/4-20 HEX NYLOCK FLANGE
32 5023212 2 NUT, 5/16-24 HEX, LH
33 5023216 2 NUT, 5/16-24 JAM
34 5022628 2 BALL JOINT, 5/16-24, LH FEMALE
35 5021146 2 BALL JOINT, 5/16-24, FEMALE
36 5025127 8 NUT, 5/16-18 HEX SERRATED FLANGE (SMALL)
37 5025055X12 2 BOLT, 5/16-18 X 1-1/2" GD5 TFL

tionItem Qt

Note

Footnotes:

Manual No. 510122524HP HYDRO DRIVE ZTR

355Z SERIES

15

TP 400-5275-C-HZ-N

Motion Control Group

Manual No. 5101225
TP 400-5275-C-HZ-N

16

24HP HYDRO DRIVE ZTR

355Z SERIES

Motion Control Group

p

y

Part No Descri

38 5047055D 1 WELD, HANDLE MOTION CONTROL - LH
39 5047056D 1 WELD, HANDLE MOTION CONTROL - RH

tionItem Qt

Note

Footnotes:

Manual No. 510122524HP HYDRO DRIVE ZTR

355Z SERIES

17

TP 400-5275-C-HZ-N
