Snapper 5900681, 355ZB2444, 5900775, 355ZB2446, 5900682 Parts Manual

Not for

Reproduction

Parts Manual fo

r

6

24HP & 26HP HYDRO DRIVE ZTR

355Z, 360Z & 365Z SERIES

DescriptionModel No.

5900681 355ZB2444
5900775 355ZB2446
5900682 355ZB2450
5900685 355ZB2450CE
5900760 360ZB2450CE
590094

365ZB2652CE

Briggs & Stratton Yard Power Products Group

535 Macon Road
McDonough, GA, 30253 U.S.A.
800-935-2967

Manual No.
Revision:

5101225

J 3/30/2011

Not for

Reproduction

Not for

Reproduction

s

PAGE GROUP

4
6

8
10
12
14
16
18
20
22
24
26
28
30
34
36
40
42
44
46
48
50
52
54
56
58
60
62
64
66
68

Wheel & Tire Group
Main Frame & Front Suspension Group
Seat & Floor Plate Group
Fuel Tank & Mount Group
Engine & PTO Group - 24 HP Briggs & Stratton
Engine & PTO Group - 26 HP Briggs & Stratton
Evap Canister Group
Motion Control Group
Parking Brake Group
Pump Drive Group

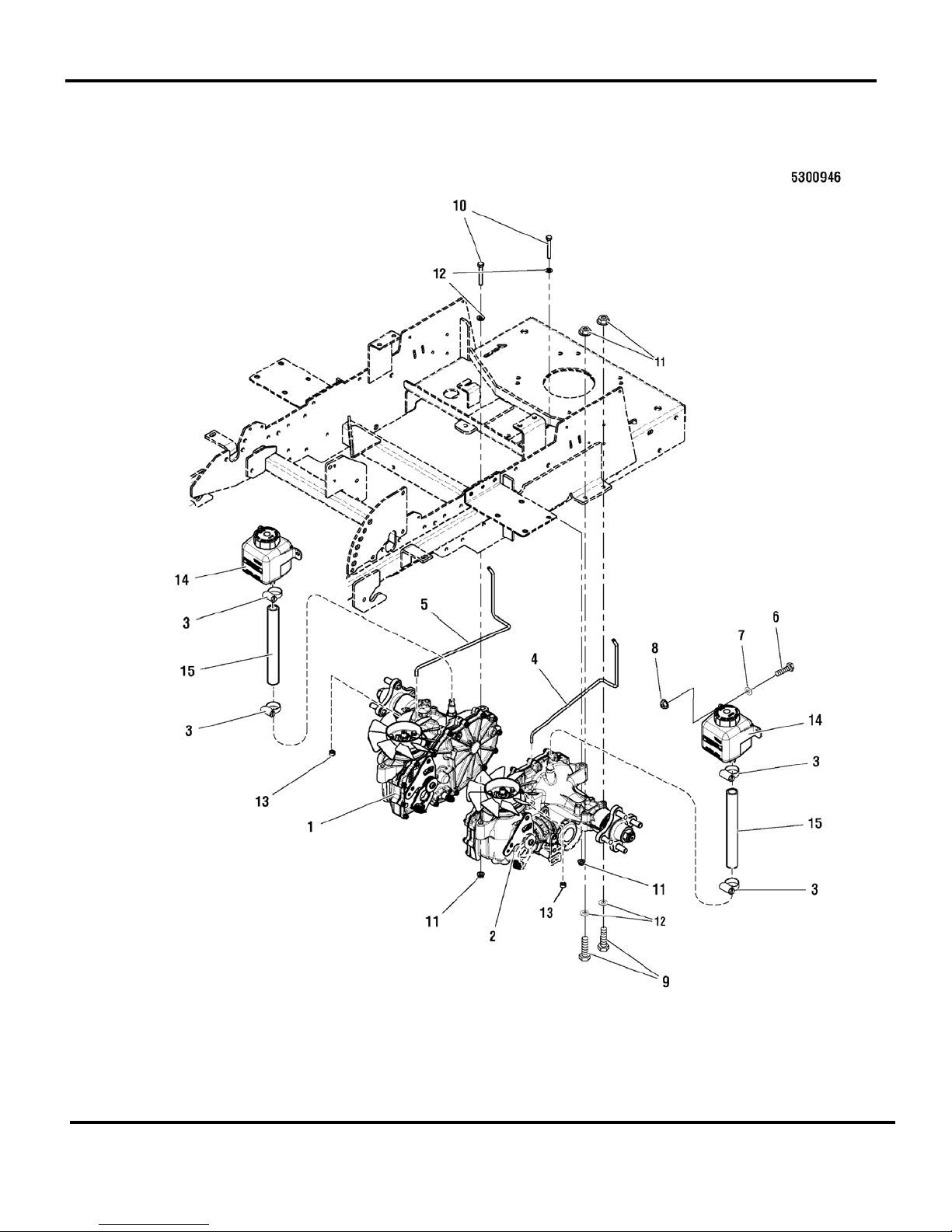

Hydraulic Group
Transmission SERVICE PARTS

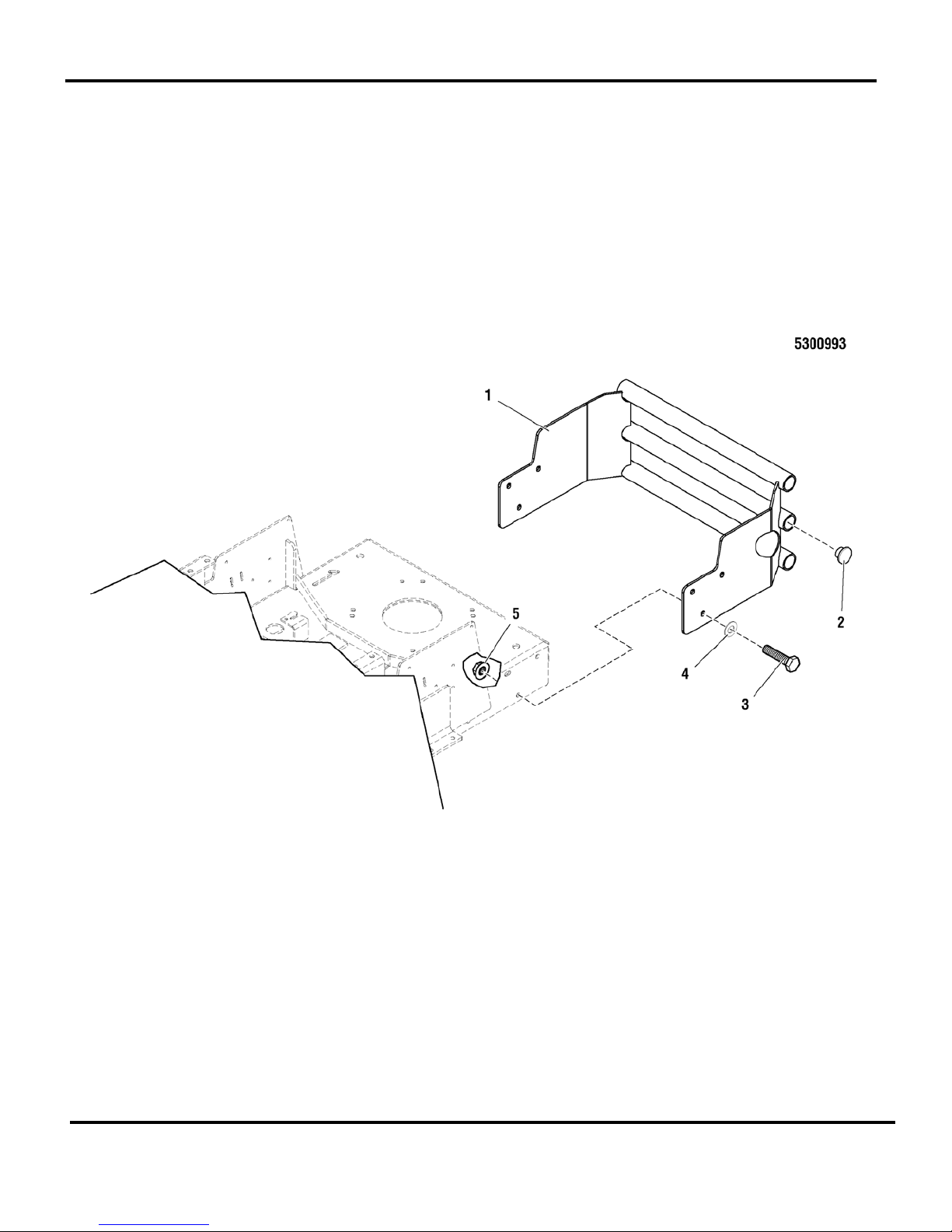

Rear Bumper Group
Deck Lift Group
44" & 50" Mower Deck - Belt & Idler Group
44" & 50" Mower Deck - Housing, Arbors & Blades Group
44" & 50" Mower Deck - Rollers Group
46" Mower Deck Group - Pulleys, Belts & Idler Arm
46" Mower Deck Group - Housing, Covers, Spindles & Blades
46" Mower Deck Group - Rollers
52" Mower Deck - Pulleys, Belt & Idler Arm Group
52" Mower Deck - Housing, Spindles & Blades Group

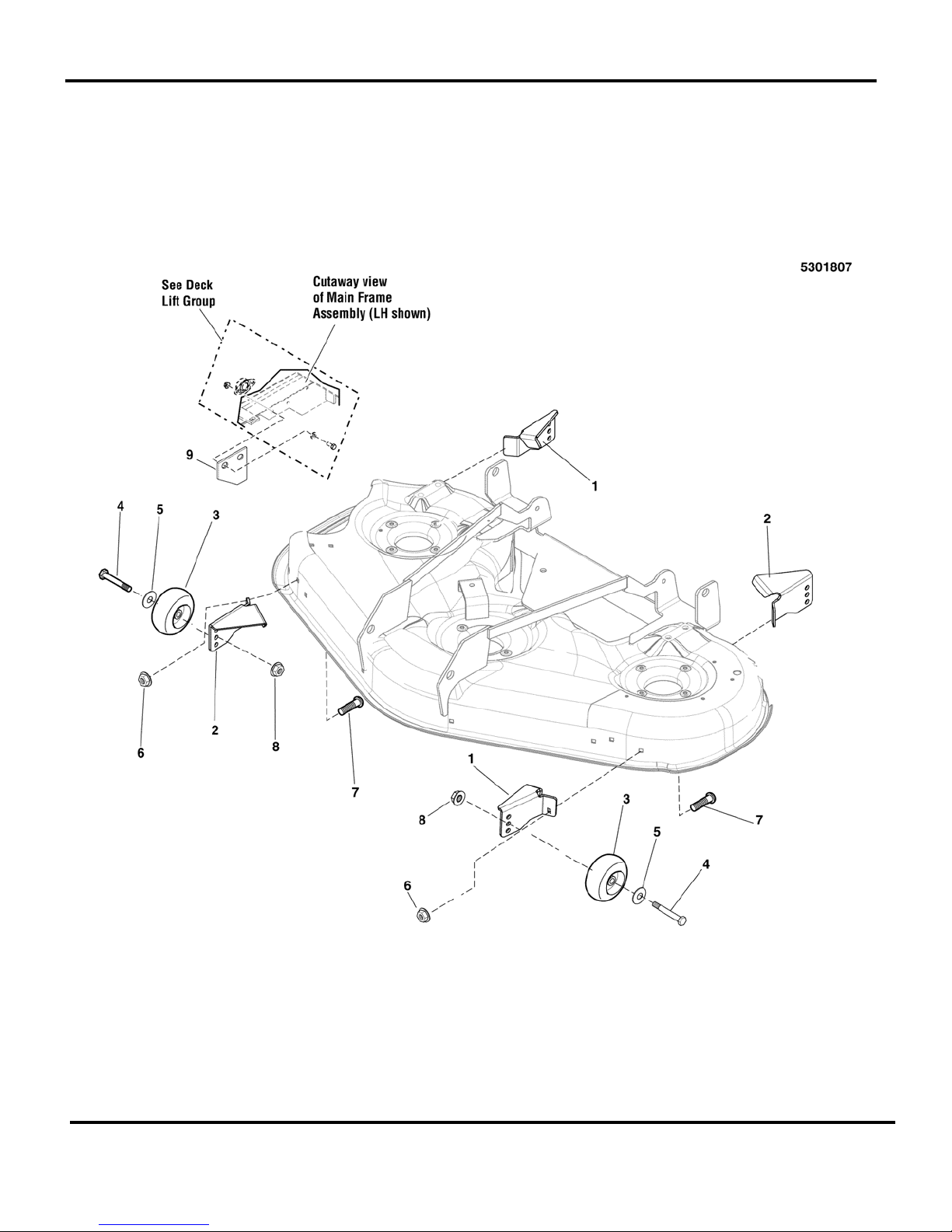

52" Mower Deck - Rollers & Casters Group

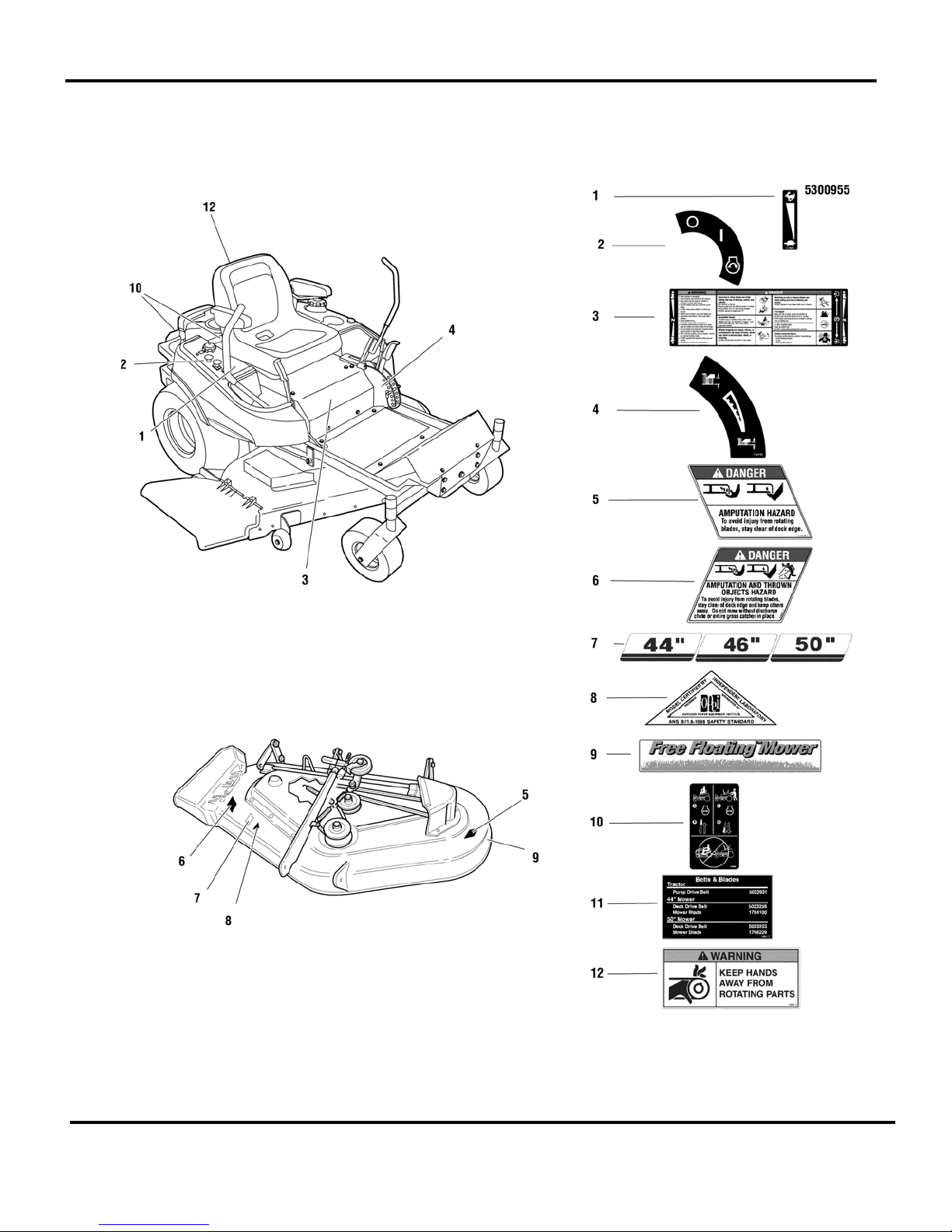

Decal Group - Brand & Model

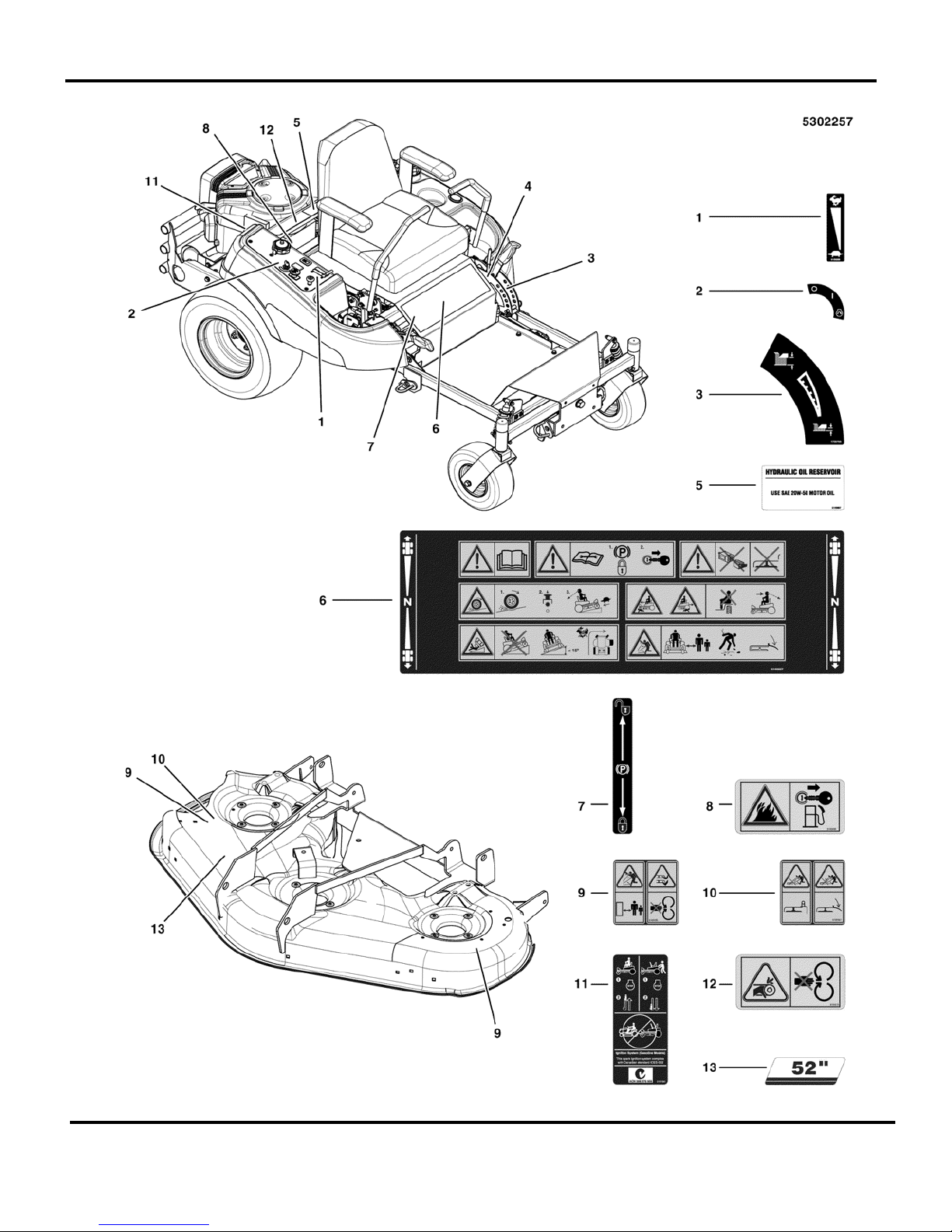

Decal Group - Safety & Common
Decal Group - Safety & Common (355Z & 360Z Export Models)
Decal Group - Safety & Common (365Z Export Models)
Instrument Control Panel Group
Electrical Group
Wiring Schematic - 24 HP Briggs & Stratton
Wiring Schematic - 26 HP Briggs & Stratton

Table Of Content

24HP & 26HP HYDRO DRIVE ZTR

Manual No.

3

TP 400-5275-J-HZ-N

5101225

Not for

Reproduction

Wheel & Tire Group

Manual No.

5101225 24HP & 26HP HYDRO DRIVE ZTR

4

Not for

Reproduction

Wheel & Tire Group

Part No DescriptionItem Qty

1 5101418 2 WHEEL, CASTER, 11 X 4.0-5 SILVER BEAD LO
2 2172353 2 VALVE STEM & CAP ASSEMBLY (SV)
3 5101418X1 4 BEARING, CASTER WHEEL, 11 X 4.0 - 5 BEAD LOCK (SV) (Two per wheel)
4 5021043 4 BEARING, RETAINER (SV) (Two per wheel)
5 5045996 2 CASTER AXLE DDSH
6 5025158 2 WASHER, 1/2 SAE
7 5025017X52 2 BOLT, 1/2-13 X 6-1/2 GD8 YZ
8 5025056 2 NUT, Hex Nylon Lock, 1/2-13
9 5023095 2 WHEEL & TIRE ASSEMBLY, 20 X 8.0 - 10, Complete
10 5020601 8 NUT, 1/2-20, FOR WHEEL BOLT SILVER

Footnotes:

Manual No.

5

510122524HP & 26HP HYDRO DRIVE ZTR

Not for

Reproduction

Main Frame & Front Suspension Group

Manual No.

5101225 24HP & 26HP HYDRO DRIVE ZTR

6

Not for

Reproduction

Main Frame & Front Suspension Group

Part No DescriptionItem Qty

1 5025392 2 NUT, 5/16-18 HEX NYLOCK FLANGE (360Z & 365Z Models Only)
2 5025011X30 2 BOLT, 5/16-18 X 3-3/4 GD5 (360Z & 365Z Models Only)
3 5025155 4 WASHER, 5/16 SAE (360Z & 365Z Models Only)
4 5025057 6 NUT, 5/16-18 HEX NYLON LOCK (355Z Models Use Qty. 4)
5 5025011X14 2 BOLT, 5/16-18 X 1-3/4 GD5 YZ (360Z & 365Z Models Only)
6 5023213 2 SHOCK (360Z & 365Z Models Only)
7 5402816D 1 WELD, MAINFRAME, SIMPLICITY ZT (360Z & 365Z Models Only)
7 5402896D 1 WELD, MAINFRAME, SNAPPER ZT (355Z Models Only)
8 5025303 4 SCREW, 5/16-18 X 1 FLAT HD SC
9 5100930 2 PAD, FRICTION, .375 X 1.25 X 4.00
10 5025284 1 NUT, 3/4-16 HEX NYLON LOCK
11 5025160 1 WASHER, 3/4 SAE
12 5025265X56 1 BOLT, 3/4-16 X 7" YZ GD5
13 5047489 1 SPACER, .75 X 1.00 X 2.38
14 5022852 1 PIVOT BEARING, 1.00" X 1.125" OD X 1.50"
15 5100358 1 PIVOT BEARING, 1.00 X 1.125 OD X .50
16 5400756 1 SPACER, .76X 1.50 X .79
17 5023214 2 CAP, VINYL 1.687 X 1-1/2
18 5020602 2 COLLAR, 1" SPLIT
19 5020095 2 GREASE FITTING, 1/4-28 STRAIGHT
20 5048775D 2 WELD,CASTER YOKE
21 5400962D 1 WELD, PIVOTING FRONT END - ORG
22 5021541 4 BUSHING, FLANGE

Footnotes:

Manual No.

7

510122524HP & 26HP HYDRO DRIVE ZTR

Not for

Reproduction

Seat & Floor Plate Group

Manual No.

5101225 24HP & 26HP HYDRO DRIVE ZTR

8

Not for

Reproduction

Part No DescriptionItem Qty

1 5402937D 1 PLATE, SEAT SUPPORT, CONS Z - RED
2 5025011X8 8 BOLT, 5/16-18 X 1 GD 5 YZ
3 5025292 6 WASHER, 5/16 GD. 9 FLAT
4 5025392 8 NUT, 5/16-18 HEX NYLOCK FLANGE
5 7078299 2 SPRING, SEAT SUPPORT
6 5025156 2 WASHER, 3/8 SAE
7 5100999 1 SAFETY WALK, FLOOR PLATE, 17.38 X 11.50
8 5101007 1 SAFETY WALK, FLOOR REST, 17.38 X 6.00
9 5061599 1 SEAT, XB-180, NO LOGO, BLACK
10 5025057 4 NUT, 5/16-18 HEX NYLON LOCK
11 5025394 2 NUT, 3/8-16 HEX NYLOCK FLANGE
12 5402946D 1 WELD, SEAT PLATE - RED
13 5403043D 1 PLATE, FLOOR, CONSUMER Z - RED
14 5403044D 1 PLATE, FLOOR, FRONT, CONS Z - RED
15 35097 6 MOUNT, VIBRATION, 30 DURO
16 197546 4 MOUNT, VIBRATION, RUBBER
17 5025481 6 BOLT, 3/8-16 X 5/8, SERRATED UNDER HEAD
18 5025013X28 2 BOLT, 3/8-16 X 3-1/2 GD5 YZ
19 5044617 2 WASHER, .34 X 1.25 X 10 GA
20 5025128 4 NUT, 3/8-18 HEX SERRATED FLANGE
21 5021500 1 CLAMP, VINYL INSULATED
22 5025010X6 1 BOLT, 1/4-20 X 3/4 GD5 YZ
23 5025154 1 WASHER, 1/4 SAE
24 5025391 1 NUT, 1/4-20 HEX NYLOCK FLANGE
25 1686907 1 ARM REST, SET OF TWO (SV)
26 5100636 1 SPRING, SEAT ADJUSTMENT (SV)
27 5061599X1 1 KIT, SEAT RAILS. COMPLETE (SV)
28 5025394 2 NUT, 3/8-16 HEX NYLOCK FLANGE
29 5025480 6 WASHER, 3/8" ID, INTERNAL TOOTH
30 5025011X6 1 BOLT, 5/16-18 X 3/4 GDS
31 5025392 1 NUT, 5/16-18 HEX NYLOCK FLANGE
32 5025155 1 WASHER, 5/16 SAE
33 5403372D 1 PLATE, SUPPORT, FRONT FLOOR - RED

Seat & Floor Plate Group

Footnotes:

Manual No.

9

510122524HP & 26HP HYDRO DRIVE ZTR

Not for

Reproduction

Fuel Tank & Mount Group

Manual No.

5101225 24HP & 26HP HYDRO DRIVE ZTR

10

Not for

Reproduction

Fuel Tank & Mount Group

Part No DescriptionItem Qty

1 5101181 1 TANK, FUEL, LH (S/N: 2014648788 & BELOW)
1 5102544 1 TANK, FUEL, LH (S/N: 2014648789 - 2014923025)
1 5102988 1 TANK, FUEL, LH (S/N: 2014923026 & ABOVE)
2 5048752 1 TANK, FUEL, RH
3 5048909D 2 PLATE, FUEL TANK BADGE
4 5025011X6 18 BOLT, 5/16-18 X 3/4 GD5
5 5025155 18 WASHER, 5/16 SAE
6 5025170 10 WASHER, 5/16 LOCK YZ
7 5400836D 1 BRACKET, REAR SUPPORT - LH - RED
8 5048763D 1 BRACKET, REAR SUPPORT - RH
9 5101651 1 FUEL CAP, 3.5", VENTED (S/N: 2014923025 & BELOW)
9 5103005 1 FUEL CAP, 3-1/2", MANAGED VENT OUT, 12" (S/N: 2014923026 & ABOVE)
10 5025386 6 SCREW, #10-24 X 3/8 ALLEN BHBZ
11 5025299X4 2 SCREW, 1/4-20 X 1/2 ALLEN BH
12 5403004D 1 PLATE, SUPPORT, REAR TANK - SNP RED
13 5025392 4 NUT, 5/16-18 HEX NYLOCK FLANGE
14 5050831X28 1 HOSE, 1/4 FUEL 28" LONG
15 5020835 2 CLAMP, HOSE, EXTERNAL, 1/2 - RED
16 5023197 1 FUEL GAUGE (SV)
17 5022917X1 1 GROMMET (SV)
18 5101190 1 PICK UP TUBE ASSM, FUEL TANK (SV)

Footnotes:

11

Manual No.

510122524HP & 26HP HYDRO DRIVE ZTR

Not for

Reproduction

Engine & PTO Group - 24 HP Briggs & Stratton

Manual No.

5101225 24HP & 26HP HYDRO DRIVE ZTR

12

Not for

Reproduction

Engine & PTO Group - 24 HP Briggs & Stratton

Part No DescriptionItem Qty

1 44M777-0144-G1 1 * ENGINE, 24HP B&S, ELS (was 44M777-0121-E1)
2 5023100 1 CLUTCH, #51110100, ELECTRIC, 1" SHAFT
3 5043636 1 CLUTCH ANCHOR PAD
4 5044617 5 WASHER, .34 X 1.25 X 10 GA
5 5023253 1 CAPSCREW, CRANKSHAFT, 7/16-20 x 3-1/4"YZ
6 5042132 1 SPACER, .45 X 1.62 X .37
7 5025011X8 1 BOLT, 5/16-18 X 1 GD5 YZ
8 5025155 6 WASHER, 5/16 SAE
9 5025392 7 NUT, 5/16-18 HEX NYLOCK FLANGE
10 5050407X18 1 KEY, 1/4" SQ. X 2 1/4
11 5025011X18 4 BOLT, 5/16-18 X 2-1/4" GD 5 YZ
12 5025188 4 WASHER, 5/16" INT. TOOTH LOCK
13 5403059D 1 PLATE, HEAT SHIELD - RED
14 5048681 1 HOSE, OIL DRAIN
15 690970 2 GASKET, EXHAUST
16 690341 4 * SCREW, SEM HEX HEAD
17 5100907 1 MUFFLER, B&S-ELS 22-26HP
18 5100969 1 EXTENSION, TAILPIPE, 3"
19 5021808X8 2 SCREW
20 5022308 2 BODY CLIP, 5/16-18 X 1/2 DEEP
21 792303 1 * PRE CLEANER (SV)
22 792105 1 * AIR CLEANER W/ PRE CLEANER (SV) (INCLUDES REF NO 21)
23 95050 1 * SCREW, CROSS RECESSED THREAD (EXPORT MODELS ONLY)
24 793821 1 COVER, STATIC / LABEL ASSY (EXPORT MODELS ONLY)
25 5021500 1 CLAMP, VINYL INSULATED (NOT SHOWN - FOR OIL DRAIN HOSE)
26 5025010X6 1 BOLT, 1/4-20 X 3/4 GD5 YZ (NOT SHOWN - FOR OIL DRAIN HOSE)
27 5025391 1 NUT, 1/4-20 HEX NYLOCK FLANGE (NOT SHOWN - FOR OIL DRAIN HOSE)
28 5025154 1 WASHER, 1/4 SAE (NOT SHOWN - FOR OIL DRAIN HOSE)
29 5025139 2 NUT, 5/16-18 HEX SERRATED FLANGE (LARGE)
30 5025011X10 2 BOLT, 5/16-18 X 1-1/4 GD5 YZ
31 696854 1 * OIL FILTER (SV) (NOT SHOWN)

Footnotes:

NOTE* Purchase engine parts from engine manufacturer dealer.

13

Manual No.

510122524HP & 26HP HYDRO DRIVE ZTR

Not for

Reproduction

Engine & PTO Group - 26 HP Briggs & Stratton

Manual No.

5101225 24HP & 26HP HYDRO DRIVE ZTR

14

Not for

Reproduction

Engine & PTO Group - 26 HP Briggs & Stratton

Part No DescriptionItem Qty

1 44P777-0124-G1 1 * ENGINE, 26HP ELS BRIGGS, Mod. 44P777-0124-G1
1 44Q777-0146-G1 1 * ENGINE, 27HP B&S, Mod. 44Q777-0146-G1 (* Decal, B&S 27HP, Not shown)
2 7075672 1 CLUTCH, ELECTRIC, OGURA GT2.5, NZM (S/N: 2013063777 & BELOW)
3 5043636 1 CLUTCH ANCHOR PAD
4 5044617 3 WASHER, .34 X 1.25 X 10 GA
5 5102865 1 BOLT, CRANKSHAFT, 7/16X2-3/4, PATCH YZ
6 5025011X8 5 BOLT, 5/16-18 X 1 GD5 YZ
7 5025155 6 WASHER, 5/16 SAE
8 5025392 9 NUT, 5/16-18 HEX NYLOCK FLANGE
9 5050407X24 1 KEY, 1/4" SQ. X 3.00 (S/N: 2013063777 & BELOW)
10 5025011X18 4 BOLT, 5/16-18 X 2-1/4" GD5 YZ (S/N: 2013063777 & BELOW)
11 5025188 4 WASHER, 5/16" INT. TOOTH LOCK
12 5403059D 1 PLATE, HEAT SHIELD - RED
13 5048681 1 HOSE, OIL DRAIN
14 273485 2 * GASKET, EXHAUST
15 690341 4 * SCREW, HEX SEMS LOCK WSHR 5/16-18X0.875
16 5100907 1 MUFFLER, B&S-ELS 22-26HP
17 5100969 1 EXTENSION, TAILPIPE, 3"
18 5021808X8 2 SCREW
19 5022308 2 BODY CLIP, 5/16-18 X 1/2 DEEP
20 5021500 1 CLAMP, VINYL INSULATED
21 5025010X6 1 BOLT, 1/4-20 X 3/4 GD5 YZ
22 5025391 1 NUT, 1/4-20 HEX NYLON FLANGE
23 5025498 2 5/16" PUSH-ON NUT RETAINER, STL, CZ
24 5101529 1 CLUTCH, WARNER ELECTRIC, I-5219-104 (S/N: 2013063778 & ABOVE)
25 5050407X8 1 KEY, 1/4 SQ. X 1.00 (S/N: 2013063778 & ABOVE)
26 5025055X16 1 BOLT, 5/16-18 X 2 GD5 TFL (S/N: 2013063778 & ABOVE)
27 5025139 1 NUT, 5/16-18 HEX SERRATED FLANGE (LARGE) (S/N: 2013063778 & ABOVE)
28 5101641 1 SCREEN, SPARK ARRESTER
29 797420 1 COVER, STATIC/LABEL ASSY (Not Shown)
30 95957 1 SCREW, PAN HEAD THREAD ROLLING (Not Shown)

Footnotes:

NOTE* Purchase engine parts from engine manufacturer dealer.

15

Manual No.

510122524HP & 26HP HYDRO DRIVE ZTR

Not for

Reproduction

Evap Canister Group

Manual No.

5101225 24HP & 26HP HYDRO DRIVE ZTR

16

Not for

Reproduction

Part No DescriptionItem Qty

1 313036 1 CNSTR, CARB, 6 GAL
2 7700552X27 1 HOSE, VAPOR, 5MM ID, 27.00 LG
3 7700552X11P5 1 HOSE, VAPOR, 5MM ID, 11.50 LG
4 5103082 2 FITTING, 90 DEG, 3/16X3/16, SANTOPRENE
5 5103084 2 FITTING, STRAIGHT, 3/16X3/16, PLASTIC
6 5103055 2 CLAMP, 3" ID, CUSHIONED, STAINLESS
7 5025010X6 2 BOLT, 1/4-20 X 3/4 GD5 YZ
8 5025391 2 NUT, 1/4-20 HEX NYLOCK FLANGE
9 5023268 2 CLAMP, HOSE
10 5101932 1 CLAMP, VINYL COATED, 5/8 ID
11 5103092 1 HOSE, FORMED, EVAP CANISTER
12 5025154 2 WASHER, 1/4 SAE
13 - 1 DECAL, EPA CERT, ZTRS (Located on frame near Serial Tag)

Evap Canister Group

Footnotes:

17

Manual No.

510122524HP & 26HP HYDRO DRIVE ZTR

Not for

Reproduction

Motion Control Group

Manual No.

5101225 24HP & 26HP HYDRO DRIVE ZTR

18

Not for

Reproduction

Part No DescriptionItem Qty

1 5022068 2 GRIP, FOAM, 3/4 ID, 16 LONG
2 5025011X8 4 BOLT, 5/16-18 X 1 GD5 YZ
3 5025155 18 WASHER, 5/16 SAE
4 5025170 4 WASHER, 5/16 LOCK YZ
5 5048264 8 SPACER, .39 X .63 X 1.50
6 5025011X20 8 BOLT, 5/16-18 X 2-1/2" GD5 YZ
7 5025392 16 NUT, 5/16-18 HEX NYLOCK FLANGE
8 5025179X4 4 SCREW, #10-24 X 1/2 ROUND PHILLIPS
9 5025029 4 NUT, #10-24 HEX
10 5025055X16 4 BOLT, 5/16-18 X 2 GD5 TFL
11 5021499 2 BEARING, FLANGE
12 5021098 2 BEARING, BRONZE FLANGE, 3/4
13 5047004 2 MOUNT, CONTROL ARM
14 5025327 4 BOLT, 3/8-16 X 1-1/4 SHCS
15 5025096 4 NUT, 3/8-16 HEX NYLON LOCK
16 5025013X8 2 BOLT, 3/8-16 X 1 GD5 YZ
17 5025013X14 4 BOLT, 3/8-16 X 1-3/4 GD5
18 5025394 6 NUT, 3/8-16 HEX NYLOCK FLANGE
19 5025139 4 NUT, 5/16-18 HEX SERRATED FLANGE (LARGE)
20 5025011X10 4 BOLT, 5/16-18 X 1-1/4 GD5 YZ
21 5402852D 2 WELD, PLATE, NEUTRAL - RED
22 5100940 2 DAMPENER, CONTROL, #(P6709/P3610)
23 5402851D 1 WELD, CONTROL SHAFT, LH - RED
24 5402850D 1 WELD, CONTROL SHAFT, RH - RED
25 5100941 4 BALL STUD, 5/16 X .50, # PC-477-2)
26 5402872D 2 PLATE, CONTROL LINK, TRANSAXLE - RED
27 5101057 2 ROD, HYDRO LINKAGE - CONZ - YZ
28 5025015X6 2 BOLT, 7/16-14 X 3/4, GD 5 YZ
29 5025044 2 NUT, 7/16-14 HEX TOP LOCK
30 5025010X6 2 BOLT, 1/4-20 X 3/4 GD5 YZ
31 5025391 2 NUT, 1/4-20 HEX NYLOCK FLANGE
32 5023212 2 NUT, 5/16-24 HEX, LH
33 5023216 2 NUT, 5/16-24 JAM
34 5022628 2 BALL JOINT, 5/16-24, LH FEMALE
35 5021146 2 BALL JOINT, 5/16-24, FEMALE
36 5025127 8 NUT, 5/16-18 HEX SERRATED FLANGE (SMALL)
37 5025055X12 2 BOLT, 5/16-18 X 1-1/2" GD5 TFL
38 5047055D 1 WELD, HANDLE MOTION CONTROL - LH
39 5047056D 1 WELD, HANDLE MOTION CONTROL - RH

Motion Control Group

Footnotes:

19

Manual No.

510122524HP & 26HP HYDRO DRIVE ZTR

Not for

Reproduction

Parking Brake Group

Manual No.

5101225 24HP & 26HP HYDRO DRIVE ZTR

20

Not for

Reproduction

Part No DescriptionItem Qty

1 5101058 2 ROD, BRAKE CTRL, LOWER - CONZ
2 5021102 2 SPRING, COMPRESSION
3 5020047 5 COLLAR, 5/16" SET
4 5402883D 1 WELD, SHAFT, BRAKE HANDLE - RED
5 5402884D 1 WELD, BRAKE SHAFT - RED
6 5044992 2 SPACER, .38 X .50 X 1.56
7 5025013X18 2 BOLT, 3/8-16 X 2-1/4 GD5 YZ
8 5025394 2 NUT, 3/8-16 HEX NYLOCK FLANGE
9 5025158 2 WASHER, 1/2 SAE
10 5025337 2 WASHER, 5/16 USS
11 5025045 2 NUT, 5/16-24 HEX NYLON LOCK
12 5025010X6 4 BOLT, 1/4-20 X 3/4 GD5 YZ
13 5100171 1 GRIP, BLACK FLEXIBLE
14 5101123 2 BEARING, 1/2" FLANGED
15 5025391 4 NUT, 1/4-20 HEX NYLOCK FLANGE
16 5101116 1 ROD, PULLER ROD
17 1608395 1 SPRING, EXTN 1.040ODX 04.000LG .105WIRE D
18 5023323 1 CLEVIS, 5/16-24, STEEL
19 5025213X8 1 PIN, CLEVIS, 5/16 X 1 YZ
20 5025210 1 PIN, HAIR, .0915 X 1-7/8
21 5025013X16 1 BOLT, 3/8-16 X 2 GD5 YZ
22 5025128 2 NUT, 3/8-16 HEX SERRATED FLANGE

Parking Brake Group

Footnotes:

21

Manual No.

510122524HP & 26HP HYDRO DRIVE ZTR

Not for

Reproduction

Pump Drive Group

Manual No.

5101225 24HP & 26HP HYDRO DRIVE ZTR

22

Not for

Reproduction

Part No DescriptionItem Qty

1 5101296 1 PULLEY, CRANKSHAFT
2 5021079 1 IDLER PULLEY
3 5049184 1 SPACER, HYDRO PULLEY
4 5025013X24 1 BOLT, 3/8-16 X 3 GD5 YZ
5 5025013X16 1 BOLT, 3/8-16 X 2 GD5 YZ
6 5025156 2 WASHER, 3/8 SAE
7 5025394 3 NUT, 3/8-16 HEX NYLOCK FLANGE
8 5025165 2 WASHER, 3/8 FENDER
9 5101033 1 BELT, 79.46 EL, HYDRO DRIVE
10 5402847D 1 WELD, IDLER, PUMP DRIVE - RED
11 5022847 1 SPRING, EXTENSION, SWIVEL END
12 5101080 1 PULLEY, IDLER, SINGLE FLANGE, 4" OD
13 5044960 1 SPACER, .39 X 1.00 X .25
14 5042658 1 SPACER, .39 X .75 X 1.06
15 5020876B 1 BUSHING, BRASS, 3/4 X 1 X 1
16 5045943 1 SPACER, SHOULDER
17 5023497 1 EYE BOLT, 3/8-16 X 5", 1 EYE
18 5025034 2 NUT, 3/8-16 HEX
19 5025293 1 WASHER, 3/8 GD. 9 FLAT
20 5025013X28 1 BOLT, 3/8-16 X 3-1/2 GD5 YZ
21 1721133 1 PULLEY, IDLER, FLAT, 2.75 DIA X .376 ID

Pump Drive Group

Footnotes:

23

Manual No.

510122524HP & 26HP HYDRO DRIVE ZTR

Not for

Reproduction

Hydraulic Group

Manual No.

5101225 24HP & 26HP HYDRO DRIVE ZTR

24

Not for

Reproduction

Part No DescriptionItem Qty

1 5101026 1 TRANSMISSION, RH HYDRO-GEAR
2 5101027 1 TRANSMISSION, LH, HYDRO-GEAR
3 5025474 4 CLAMP, HOSE, 1/2
4 5101060 1 ROD, DUMP VALVE, LH - CONZ
5 5101061 1 ROD, DUMP VALVE, RH - CONZ
6 5025010X6 4 BOLT, 1/4-20 X 3/4 GD5 YZ
7 5025154 4 WASHER, 1/4 SAE
8 5025391 4 NUT, 1/4-20 HEX NYLOCK FLANGE
9 5025011X22 4 BOLT, 5/16-18 X 2-3/4, GD 5, YZ
10 5025011X18 4 BOLT, 5/16-18 X 2-1/4" GD5 YZ
11 5025392 8 NUT, 5/16-18 HEX NYLOCK FLANGE
12 5025155 8 WASHER, 5/16 SAE
13 5020047 2 COLLAR, 5/16" SET
14 5100473 2 RESERVOIR, HYDRO OIL, 350 ML
15 5050857X9 2 HOSE, 1/2" PUSH-ON, 9.00"

Hydraulic Group

Footnotes:

25

Manual No.

510122524HP & 26HP HYDRO DRIVE ZTR

Not for

Reproduction

Transmission SERVICE PARTS

Manual No.

5101225 24HP & 26HP HYDRO DRIVE ZTR

26

Not for

Reproduction

Transmission SERVICE PARTS

Part No DescriptionItem Qty

- 5101026 1 * ZK-GMEE-3L7B-1YLX (TRANSAXLE, RH) (Hydrogear)

- 5101027 1 * ZK-KMEE-3L7C-1YLX (TRANSAXLE, LH) (Hydrogear)
23 5101026X1 1 FILTER, OIL
120 5101026X6 1 FAN, 7", 10 BLADE
121 5101026X7 1 PULLEY, 4.5 INCH
200 5101026X8 1 KIT, SEAL
210 5101026X9 1 KIT, INPUT SHAFT

Footnotes:

*NOTE: Purchase additional parts from transmission manufacturer dealer.

27

Manual No.

510122524HP & 26HP HYDRO DRIVE ZTR

Not for

Reproduction

Rear Bumper Group

Manual No.

5101225 24HP & 26HP HYDRO DRIVE ZTR

28

Not for

Reproduction

Part No DescriptionItem Qty

1 5402844D 1 WELD, BUMPER - CONS Z - SNP RED
2 5023484 6 PLUG, PANEL, 1.25 - BLACK
3 5025013X8 6 BOLT, 3/8-16 X 1 GD 5 YZ
4 5025156 6 WASHER, 3/8 SAE
5 5025394 6 NUT, 3/8-16 HEX NYLOCK FLANGE

Rear Bumper Group

Footnotes:

29

Manual No.

510122524HP & 26HP HYDRO DRIVE ZTR

Not for

Reproduction

Deck Lift Group

Manual No.

5101225 24HP & 26HP HYDRO DRIVE ZTR

30

Not for

Reproduction

Part No DescriptionItem Qty

1 5025394 20 NUT, 3/8-16 HEX NYLOCK FLANGE
2 5025013X8 4 BOLT, 3/8-16 X 1 GD5 YZ
3 5025156 6 WASHER, 3/8 SAE
4 5403057D 1 WELD, HANDLE, DECK LIFT - RED
5 5025013X6 4 BOLT, 3/8-16 X 3/4 GD5 YZ
6 5403041D 1 WELD, SHAFT, REAR DECK LIFT - RED
7 5025394 2 NUT, 3/8-16 HEX NYLOCK FLANGE
8 5044960 4 SPACER, .39 X 1.00 X .25
9 5025098 4 NUT, 1/2-20 HEX NYLON LOCK
10 5025018X20 2 BOLT, 1/2-20 X 2-1/2" GD5 YZ
11 5025155 4 WASHER, 5/16 SAE
12 5025170 2 WASHER, 5/16 LOCK YZ
13 5100144 4 SPACER, .53 X 1.00 X 1.00
14 5101008 1 SAFETY WALK, 4.50 X 3.50
15 5025305 4 WASHER, .41 X 1.75 X .14
16 5025013X10 2 BOLT, 3/8-16 X 1-1/4 GD5
17 5023497 2 EYE BOLT, 3/8-16 X 5", 1 EYE
18 5400382D 1 PLATE, DECK HANGER SUPPORT
19 5025011X8 4 BOLT, 5/16-18 X 1 GD5 YZ
20 5100135 1 SHAFT, HANDLE, DECK MOUNT
21 5400392D 1 WELD, DECK HANGER, RH
22 5400391D 1 WELD, DECK HANGER, LH
23 5100177 1 SHAFT, HANGER
24 5021102 4 SPRING, COMPRESSION
25 5400401D 2 WELD, QUICK RELEASE HANDLE - RED
26 5025089 2 NUT, 1/2-20 HEX JAM
27 5047125 2 SPACER, .39 X 1.00 X .88
28 5021812 2 EYE BOLT, 3/8-16 X 4-1/4", 1" EYE
29 5045947 2 ADJUSTER, BRAKE LINKAGE
30 5025013X14 2 BOLT, 3/8-16 X 1-3/4 GD5
31 5025096 2 NUT, 3/8-16 HEX NYLON LOCK
32 5025201X6 4 PIN, COTTER, 3/32 X 3/4
33 5048258 2 BUSHING, DECK SUPPORT
34 5025328X12 2 PIN, CLEVIS, 1/2 X 1 1/2, YZP
35 5023174 2 CLEVIS, 1/2-20, STEEL
36 5100170 2 ROD, DECK LIFT LINKAGE
37 5100351 2 BUSHING, REAR QUICK TACH
38 5400839D 2 WELD, QUICK RELEASE HANDLE, REAR - RED
39 5025013X10 2 BOLT, 3/8-16 X 1-1/4" GD5
40 5048733D 1 LINK, DECK LIFT SHAFT
41 5020639 1 SPRING, EXTENSION
42 5023198 1 COVER, VINYL HANDLE
43 5025203X6 1 PIN, COTTER, 1/8" X 3/4
44 5023202 1 WASHER, WAVE, M10

Deck Lift Group

Footnotes:

31

Manual No.

510122524HP & 26HP HYDRO DRIVE ZTR

Not for

Reproduction

Deck Lift Group

Manual No.

5101225 24HP & 26HP HYDRO DRIVE ZTR

32

Not for

Reproduction

Part No DescriptionItem Qty

45 5048884D 1 WELD, DECK LOCK
46 5100171 1 GRIP, BLACK FLEXIBLE
47 5048335 1 SPACER, .76 X 1.00 X 1.00
48 5025392 4 NUT, 5/16-18 HEX NYLOCK FLANGE
49 5025011X6 4 BOLT, 5/16-18 X 3/4 GD5
50 5100561 2 BEARING, BRONZE FLANGE, 3/4"
51 5021098 2 BEARING, BRONZE FLANGE, 3/4
52 5100179 1 HITCH PIN ASSEMBLY, 1/2" X 2.50"
53 5025013X20 2 BOLT, 3/8-16 X 2-1/2 GD5 YZ
54 5400370D 1 PLATE, DECK HEIGHT- INNER -RED
55 5048264 2 SPACER, .39 X .63 X 1.50
56 5025156 2 WASHER, 3/8 SAE
57 5101448 2 SPACER, .38 X .50 X .38, YZ

Deck Lift Group

Footnotes:

33

Manual No.

510122524HP & 26HP HYDRO DRIVE ZTR

Not for

Reproduction

44" & 50" Mower Deck - Belt & Idler Group

Manual No.

5101225 24HP & 26HP HYDRO DRIVE ZTR

34

Not for

Reproduction

44" & 50" Mower Deck - Belt & Idler Group

Part No DescriptionItem Qty

1 5023256 1 BELT, #7-8060, 151" E.L. (FOR 44" DECK ONLY)
2 5044960 1 SPACER, .39 X 1.00 X .25
3 5044933 1 SPACER, .39 X .75 X .38
4 5023156 1 BOLT, 5/16-18 X 1 1/4 FLANGE
5 5025013X22 1 BOLT, 3/8-16 X 2-3/4" GD5 YZ
6 5025394 3 NUT, 3/8-16 HEX NYLOCK FLANGE
7 5025013X18 1 BOLT, 3/8-16 X 2-1/4 GD5 YZ
8 5025156 5 WASHER, 3/8 SAE
9 5025013X28 1 BOLT, 3/8-16 X 3-1/2 GD5 YZ
10 5020095 1 GREASE FITTING, 1/4-28 STRAIGHT
11 1676148 2 BUSHING, 0.628 ID X 0.751 OD X 0.400 LG PWDR MTL
12 5402228D 1 WELD, DECK IDLER ARM, CONSZ - RED
13 5047125 1 SPACER, .39 X 1.00 X .88
14 5403492D 1 WELD, MOUNT, IDLER, TENSION (FOR 44" DECK ONLY)
15 5021002 3 PULLEY, IDLER
16 1674669 1 SPACER, 0.39 ID X 0.625 OD X 1.15 LG CASE HARD
17 1715435 1 SPRING, EXTENSION, 1.00
18 5025392 1 NUT, 5/16-18 HEX NYLOCK FLANGE
19 5402172D 1 BRACKET, SPRING ANCHOR - RED
20 5025305 1 WASHER, .41 X 1.75 X .14
21 5023255 1 BELT, #7-8055, 155" E.L. (FOR 50" DECK ONLY)
22 5400412D 1 WELD, MT, IDLER, TENSION (FOR 50" DECK ONLY)
23 5049184 3 SPACER, HYDRO PULLEY

Footnotes:

35

Manual No.

510122524HP & 26HP HYDRO DRIVE ZTR

Not for

Reproduction

44" & 50" Mower Deck - Housing, Arbors & Blades Group

Manual No.

5101225 24HP & 26HP HYDRO DRIVE ZTR

36

Not for

Reproduction

44" & 50" Mower Deck - Housing, Arbors & Blades Group

Part No DescriptionItem Qty

1 1714419 3 NUT, HEX FLANGE, 9/16-18
2 1713675 6 WASHER, BELLEVILLED, 9/16
3 1713161 3 PULLEY
4 1713613 3 HUB
5 1655729A 3 COVER, ARBOR HOUSING
6 2108202 3 BEARING, BALL, 3/4 X 1-3/4 X 5/8
7 1715724 3 SPACER, 21/32 X 3/4 X 5/8
8 1732544 3 SPACER, 11/16 X 5/32 X 2-11/16
9 1705897 3 BEARING, BALL, 11/16 X 1-9/16 X 15/32
10 1707335 3 SEAL, FOAM
11 1713338A 3 ARBOR HOUSING ASSEMBLY (INCLUDES REF. NO. 12)
12 1704314 3 FITTING, GREASE
13 1664847 24 SCREW, HEX WSHR HD TAP TT 5/16-18 X 0.750 BLK
14 5400403D 1 GUARD, BELT - LH
15 5022308 2 BODY CLIP, 5/16-18 X 1/2 DEEP
16 1713619 3 WASHER, 9/16, BLACK
17 1713609 3 SHAFT, ARBOR
18 1713196 3 SHIELD, GRASS, LOWER
19 1727774 3 BLADE, MOWER 16.12 .196 THK 44" BM, CONQ (FOR 44" DECK ONLY)
20 1713089 3 WASHER, HEX, 11/16 X 2
21 1656916 3 WASHER, SPRING, 15/32, BLACK
22 2823471 3 BOLT, 7/16-14 X 1-1/4
23 5600124 1 DECK SHELL W/ DECALS, 44 - SNP (2008) (FOR 44" DECK ONLY)
24 1931318 1 BOLT, RD HD SH SQ NK 1/4-20X0. 875 G5 BLK
25 1705115 1 PLUG, BUTTON FOR 0.344 SQ HOLE BLACK POLY
26 5401091D 1 GUARD, BELT - RH, 44", SNAPPER RED
27 1960518 2 NUT, PUSH FOR .250 DIA THREAD .500 OD BLK
28 1960353 1 WASHER, 0.250 (0.26 ID X 0.84 OD X .12 THK) BLK
29 1704873 1 CLAMP, WIRE, .312DIA . (1) .281 HOLE BLK
30 1919326 1 WASHER, 0.312 (0.34 ID X 0.75 OD X .06THK) BLK
31 7101082 1 SPRING, TORSION CHUTE 44/50" BLK
32 1723323 1 CAP, VINYL
33 1916964 2 LOCKWASHER, SPRING .250 BLK
34 1916622 2 NUT, HEX 1/4-20 BLK 588514
35 5049245 1 ROD, DEFLECTOR
36 1705449 1 DEFLECTOR, BLACK
37 1710703 1 SPACER, 0.328 ID X 0.499 OD X 0.625 LG PM
38 5025144X14 1 BOLT, CARRIAGE, 1/4-20 X 1.25, GD5, BLACK
39 5600125 1 DECK SHELL W/ DECALS, 50 - SNP (2008) (FOR 50" DECK ONLY)
40 5048446D 1 GUARD, BELT, RH (FOR 50" DECK ONLY)
41 1726357 3 BLADE, MOWER, 18-1/8 (FOR 50" DECK ONLY)
42 5600127 1 EXPORT DECK SHELL W/DECALS, 50 - SNP (2008) (FOR 50" DECK EXPORT MODELS

ONLY)
43 1734181A 1 BAFFLE, FRONT 44/50 - BLACK
44 5025145X6 4 BOLT, 5/16-18 X 3/4 CARRIAGE

Footnotes:

37

Manual No.

510122524HP & 26HP HYDRO DRIVE ZTR

Not for

Reproduction

44" & 50" Mower Deck - Housing, Arbors & Blades Group

Manual No.

5101225 24HP & 26HP HYDRO DRIVE ZTR

38

Not for

Reproduction

44" & 50" Mower Deck - Housing, Arbors & Blades Group

Part No DescriptionItem Qty

45 5025392 4 NUT, 5/16-18 HEX NYLOCK FLANGE

Footnotes:

39

Manual No.

510122524HP & 26HP HYDRO DRIVE ZTR

Not for

Reproduction

44" & 50" Mower Deck - Rollers Group

Manual No.

5101225 24HP & 26HP HYDRO DRIVE ZTR

40

Not for

Reproduction

44" & 50" Mower Deck - Rollers Group

Part No DescriptionItem Qty

1 1714760 4 WHEEL, 2.00 WIDE 3.92 DIA 0.531 ID POLY
2 5025392 9 NUT, 5/16-18 HEX NYLOCK FLANGE
3 5025145X6 5 BOLT, 5/16-18 X 3/4", CARRIAGE
4 5025394 4 NUT, 3/8-16 HEX NYLOCK FLANGE
5 5025145X8 2 BOLT, 5/16-18 X 1, CARRIAGE
6 1724538A 1 SHORT BLOWOUT BAFFLE BLACK (S/N: 2012651720 & Below)
7 1960027 8 WASHER, 0500 (0.51 ID X 0.87 OD X .06 THK) BLK
8 2108765 4 BOLT, WHEEL 3/8-16 X 2.781 .750 THRD YELLOW
9 5049017D 1 BRACKET, GUAGE WHEEL, LH
10 5049018D 1 BRACKET, GAUGE WHEEL, RH
11 5025011X8 2 BOLT, 5/16-18 X 1 GD5 YZ
12 5025155 2 WASHER, 5/16 SAE
13 5025145X6 6 BOLT, 5/16-18 X 3/4", CARRIAGE (EXPORT MODELS ONLY)
14 5025392 6 NUT, 5/16-18 HEX NYLOCK FLANGE (EXPORT MODELS ONLY)
15 1735184A 1 BAFFLE, BLOWOUT RH 50" MWR - BLACK (EXPORT MODELS ONLY)
16 1716870A 1 BAFFLE, BLOWOUT LH 50" MWR - BLACK (EXPORT MODELS ONLY)
17 5401053D 2 PLATE, DECK STOP (FOR 44" MODELS ONLY)
18 1734181A 1 BAFFLE FRONT 50" MOWER (S/N: 2012651721 & Above)

Footnotes:

41

Manual No.

510122524HP & 26HP HYDRO DRIVE ZTR

Not for

Reproduction

46" Mower Deck Group - Pulleys, Belts & Idler Arm

Manual No.

5101225 24HP & 26HP HYDRO DRIVE ZTR

42

Not for

Reproduction

46" Mower Deck Group - Pulleys, Belts & Idler Arm

Part No DescriptionItem Qty

1 5102145 1 BELT, A-SEC, 145.5 EL, LG ARAMID, WRAP
2 5025401 1 WASHER, 3/8 USS
3 5044933 1 SPACER, .39 X .75 X .38
4 1960373 1 CAPSCREW, Hex Washer Head Taptite, 5/16-18X1.000BLK
5 5025013X22 1 BOLT, 3/8-16 X 2-3/4 GD5 YZ
6 5025394 3 NUT, 3/8-16 HEX NYLOCK FLANGE
7 5025013X16 1 BOLT, 3/8-16 X 2 GD5 YZ
8 5025156 2 WASHER, 3/8 SAE
9 5025013X32 1 BOLT, 3/8-16 X 4 GD5 YZ
10 5020095 1 GREASE FITTING, 1/4-28 STRAIGHT
11 1676148 2 BUSHING, 0.628IDX0.751ODX0.400LG PWDR MTL
12 5402228D 1 WELD, DECK, IDLER ARM - RED
13 5047125 1 SPACER, .39 X 1.00 X .88
14 5403492D 1 WELD, MOUNT, IDLER TENSION - RED
15 5021002 3 PULLEY, IDLER, 4.06OD, .669ID, .75W STL
16 1674669 1 SPACER, 0.39 IDX0.625ODX1.15 LG CASE HARD
17 1715435 1 SPRING, EXTENSION, 1.00
18 1931277 1 NUT, HEX FLANGE 5/16-18, WHIZ LK SM, YZ
19 5405675D 1 BRACKET, SPRING ANCHOR - RED
20 5101465 1 SPACER, .39 X 1.75 X .63, YZ
21 5049184 3 SPACER, HYDRO PULLEY
22 5025165 1 WASHER, 3/8 FENDER

Footnotes:

43

Manual No.

510122524HP & 26HP HYDRO DRIVE ZTR

Not for

Reproduction

46" Mower Deck Group - Housing, Covers, Spindles & Blades

Manual No.

5101225 24HP & 26HP HYDRO DRIVE ZTR

44

Not for

Reproduction

46" Mower Deck Group - Housing, Covers, Spindles & Blades

Part No DescriptionItem Qty

1 5600358 1 DECK SHELL, W/ DECALS, 46, SNP 355Z
2 1737352 3 HOUSING, SPINDLE, CAST STEEL, MACHINED
3 1735399 6 BEARING, BALL, 20MM 46" MWR
4 1735326 3 SHAFT, SPINDLE, 20MM DIA 134.60MM LG
5 1735323 6 SHIELD, ARBOR, 2.050OD 46" MWR
6 1735328 6 SPACER, BEARING PWDR MTL 46" MWR
7 1960766 6 RING, SELF LOCKING 46" MWR
8 1960373 8 CAPSCREW, Hex Washer Head Taptite, 5/16-18X1.000BLK
9 1737228 3 BLADE, MOWER 16.13LG 46" MWR
10 1656916 3 WASHER, SPRING 0.475IDX1.75ODX.156TH BLK
11 1920676 6 CAPSCREW, HEX HD 7/16-14X1.000 G5 BLK
12 1735686 3 PULLEY, 4.6 OD 11GA SPLIT 46" MWR
13 1735579 3 SPACER, LOWER DRIVE 46" MWR
14 1918199 3 LOCKWSHER, SPRING .438 BLK
15 1735447 1 DEFLECTOR, DISCH PLASTIC 46/52 DECKS
16 1736365A 1 PIVOT, HINGE
17 1931333 2 BOLT, RD HD SH SQ NK 5/16-18X0.750 G5 BLK
18 1931277 6 NUT, HEX FLANGE 5/16-18, WHIZ LK SM, YZ
19 1736364 1 SPRING, TORS DEFLECTOR 2.16LG 46" MWR
20 1737359A 1 PLATE, DEFLECTOR CLOSEOFF
21 1736366 1 ROD, DEFLECTOR, YELLOW ZINC
22 7012542 2 NUT, PUSH, 5/16 BZ
23 1664847 6 CAPSCREW, Hex Washer Head Taptite, 5/16-18X0.750BLK
24 1930600 4 CAPSCREW, Hex Washer Head Taptite, 5/16-18X1.500 BLK
25 5405736A 2 BRKT, BELT COVER, SHORT
26 5405734A 2 BRKT, BELT COVER, TALL W/ TAB
27 1735752 2 COVER, BELT BLACK POLY 46 + 52" MWRS
28 1736898 1 CONNECTER, WASHOUT PORT, 46+52" BLK POLY
29 1737279A 1 BAFFLE, PINCHOFF
30 1735716 1 ADAPTER, WASHOUT PORT 46+52" PLASTIC

Footnotes:

45

Manual No.

510122524HP & 26HP HYDRO DRIVE ZTR

Not for

Reproduction

46" Mower Deck Group - Rollers

Manual No.

5101225 24HP & 26HP HYDRO DRIVE ZTR

46

Not for

Reproduction

Part No DescriptionItem Qty

1 1736074A 2 BRKT, GAUGE WHEEL
2 1736075A 2 BRKT, GAUGE WHEEL
3 1736896 4 WHEEL, GAUGE BLACK POLY 5" DIA
4 1736539 4 BOLT, SHLDR 3/8-16X3.41 .750 THRD YELLOW
5 1960170 4 WASHER, 0.500 (0.51IDX1.00ODX.10THK) BLK
6 1931277 8 NUT, HEX FLANGE 5/16-18, WHIZ LK SM, YZ
7 1931334 8 BOLT, RD HD SH SQ NK 5/16-18X0.875 G5 BLK
8 1960687 4 NUT, HEX FLANGE 3/8-16 ESNA BLK
9 5405735D 2 PLATE, DECK STOP, 355Z - RED

46" Mower Deck Group - Rollers

Footnotes:

47

Manual No.

510122524HP & 26HP HYDRO DRIVE ZTR

Not for

Reproduction

52" Mower Deck - Pulleys, Belt & Idler Arm Group

Manual No.

5101225 24HP & 26HP HYDRO DRIVE ZTR

48

Not for

Reproduction

52" Mower Deck - Pulleys, Belt & Idler Arm Group

Part No DescriptionItem Qty

1 5023255 1 BELT, HA-SEC, 158.00 EL, ARAMID, WRPD
2 5025401 1 WASHER, 3/8 USS
3 5044933 1 SPACER, .39 X .75 X .38
4 1960373 1 SCREW, HEX WSHR HD TAPTT5/16-18X1.000BLK
5 5025013X22 1 BOLT, 3/8-16 X 2-3/4 GD5 YZ
6 5025394 3 NUT, 3/8-16 HEX NYLOCK FLANGE
7 5025013X16 1 BOLT, 3/8-16 X 2 GD5 YZ
8 5025156 1 WASHER, 3/8 SAE
9 5025013X32 1 BOLT, 3/8-16 X 4 GD5 YZ
10 5020095 1 GREASE FITTING, 1/4-28 STRAIGHT
11 1676148 2 BUSHING, 0.628IDX0.751ODX0.400LG PWDR MTL
12 5402228D 1 WELD, DECK IDLER ARM, CONSZ - RED
13 5047125 1 SPACER, .39 X 1.00 X .88
14 5403492D 1 WELD, MOUNT, IDLER TENSION - RED
15 5021002 3 PULLEY, IDLER, 4.06OD, .669ID, .75W STL
16 1674669 1 SPACER, 0.39 IDX0.625ODX1.15 LG CASE HARD
17 1715435 1 SPRING, EXTENSION, 1.00
18 1931277 1 NUT, HEX FLANGE 5/16-18, WHIZ LK SM, YZ
19 5405675D 1 BRACKET, SPRING ANCHOR - RED
20 5101465 1 SPACER, .39 X 1.75 X .63, YZ
21 5049184 3 SPACER, HYDRO PULLEY
22 5025337 1 WASHER, 5/16 USS

Footnotes:

49

Manual No.

510122524HP & 26HP HYDRO DRIVE ZTR

Not for

Reproduction

52" Mower Deck - Housing, Spindles & Blades Group

Manual No.

5101225 24HP & 26HP HYDRO DRIVE ZTR

50

Not for

Reproduction

52" Mower Deck - Housing, Spindles & Blades Group

Part No DescriptionItem Qty

1 5406512D 1 DECK SHELL, W/ DECALS, 52
2 1737352 3 HOUSING, SPINDLE, CAST STEEL, MACHINED
3 1735399 6 BEARING, BALL, 20MM 46" MWR
4 1735326 3 SHAFT, SPINDLE, 20MM DIA 134.60MM LG
5 1735323 6 SHIELD-ARBOR, 2.050OD 46" MWR
6 1735328 6 SPACER, BEARING, PWDR MTL 46" MWR
7 1960766 6 RING, SELF LOCKING 46" MWR
8 1960373 10 SCREW, HEX WSHR HD TAPTT5/16-18X1.000BLK
9 1737252 3 BLADE, MOWER 18.50LG 52" MWR
10 1656916 3 WASHER, SPRING 0.475IDX1.75ODX.156TH BLK
11 1920676 6 CAPSCREW, HEX HD 7/16-14X1.000 G5 BLK
12 1735733 3 PULLEY, 5.5 OD 11GA SPLIT 52" MWR
13 1735579 3 SPACER, LOWER DRIVE 46" MWR
14 1918199 3 LOCKWSHER, SPRING .438 BLK
15 1735447 1 DEFLECTOR-DISCH, PLASTIC 46/52 DECKS
16 1737418A 1 HINGE, DEFLECTOR, 52"
17 1931333 2 BOLT, RD HD SH SQ NK 5/16-18X0.750 G5 BLK
18 5025127 4 NUT, 5/16-18 HEX SERRATED FLANGE (SMALL)
19 1736364 1 SPRING, TORS DEFLECTOR 2.16LG 46" MWR
20 1737359A 1 PLATE, DEFLECTOR CLOSEOFF
21 1736366 1 ROD, DEFLECTOR, YELLOW ZINC
22 7012542 2 NUT, PUSH, 5/16 BZ
23 1664847 8 SCREW, HEX WSHR HD TAPTT5/16-18X0.750BLK
24 1930600 2 SCREW, HEX WSHR HD TAPTT5/16-18X1.500 BLK
25 5405736A 1 BRKT, BELT COVER, SHORT
26 5405734A 1 BRKT, BELT COVER, LONG W/ TAB (DOMESTIC MODELS ONLY)
27 1735752 1 COVER, BELT BLACK POLY RH 46 + 52" MWRS (DOMESTIC MODELS ONLY)
28 1736505 1 COVER, BELT LH BLACK POLY 52" MOWER (DOMESTIC MODELS ONLY)
29 1737279A 1 BAFFLE, PINCHOFF
30 1735716 1 ADAPTER, WASHOUT PORT 46+52" PLASTIC
31 1736898 1 WASHOUT PORT-CONNECTOR, 46+52" BLK POLY
32 5407732D 1 GUARD, REAR BELT, CHAMP 52 (CE MODELS)
33 5407454D 1 PLATE, DECK GUARD - RH (CE MODELS)
34 5407455D 1 PLATE, DECK GUARD - LH (CE MODELS)
35 5025011X8 8 BOLT, 5/16-18 X 1 GD5 YZ (CE MODELS)
36 5025155 8 WASHER, 5/16 SAE (CE MODELS)
37 5025392 8 NUT, 5/16-18 HEX NYLOCK FLANGE (CE MODELS)
38 1736518A 4 BRKT, BELT COVER, FRONT (CE MODELS)

Footnotes:

51

Manual No.

510122524HP & 26HP HYDRO DRIVE ZTR

Not for

Reproduction

52" Mower Deck - Rollers & Casters Group

Manual No.

5101225 24HP & 26HP HYDRO DRIVE ZTR

52

Not for

Reproduction

52" Mower Deck - Rollers & Casters Group

Part No DescriptionItem Qty

1 1736074A 1 BRKT, GAUGE WHEEL, RH
2 1736075A 1 BRKT, GAUGE WHEEL, LH
3 1736896 4 WHEEL, GAUGE BLACK POLY 5" DIA
4 1736539 4 BOLT, SHLDR 3/8-16X3.41 .750 THRD YELLOW
5 1960170 4 WASHER, 0.500(0.51IDX1.00ODX.10THK) BLK
6 1931334 4 BOLT, RD HD SH SQ NK 5/16-18X0.875 G5 BLK
7 1960687 4 NUT, HEX FLANGE 3/8-16 ESNA BLK
8 5025394 4 NUT, 3/8-16 HEX NYLOCK FLANGE
9 5405683D 2 PLATE, DECK STOP, 46 & 52 CON Z - RED
10 5025011X6 4 BOLT, 5/16-18 X 3/4 GD5
11 5025155 4 WASHER, 5/16 SAE
12 5025392 4 NUT, 5/16-18 HEX NYLOCK FLANGE

Footnotes:

53

Manual No.

510122524HP & 26HP HYDRO DRIVE ZTR

Not for

Reproduction

Decal Group - Brand & Model

Manual No.

5101225 24HP & 26HP HYDRO DRIVE ZTR

54

Not for

Reproduction

Decal Group - Brand & Mode

l

Part No DescriptionItem Qty

1 1731955 1 DECAL, SNAPPER-SILVER/BLACK 8.5LG
2 5100476 1 DECAL, BADGE, LH, SNAPPER
3 5100477 1 DECAL, BADGE, RH, SNAPPER
4 1720454 1 DECAL, TOUCH UP PAINT SNAPPER (LOCATED UNDER SEAT PLATE)
5 5101327 1 DECAL, 355Z 24HP, SNAPPER (355Z MODELS ONLY)
5 5101556 1 DECAL, 360Z 24HP, SNAPPER (360Z MODELS ONLY)
5 5102652 1 DECAL, 365Z 27HP (365Z MODELS ONLY)

Footnotes:

55

Manual No.

510122524HP & 26HP HYDRO DRIVE ZTR

Not for

Reproduction

Decal Group - Safety & Common

Manual No.

5101225 24HP & 26HP HYDRO DRIVE ZTR

56

Not for

Reproduction

Decal Group - Safety & Common

Part No DescriptionItem Qty

1 5100280 1 DECAL, THROTTLE CONTROL
2 5048970 1 DECAL, IGNITION SWITCH
3 5100710 1 DECAL, MAIN
4 1725703 1 DECAL, HEIGHT OF CUT
5 1704276 1 DECAL, DANGER, MOWER
6 1704277 1 DECAL, DANGER, MOWER DISCHARGE
7 1722789 1 DECAL, 44"- SILVER ON BLACK W/STRIPE (44" Models Only)
7 1722790 1 DECAL, 50"-SILVER ON BLACK W/ STRIPE (50" Models Only)
7 1737540 1 DECAL, 46"-SILVER ON BLACK W/ STRIPE (46" Models Only)
8 -- 1 DECAL, OPEI CERTIFIED ANSI B71.12003 GOLD (NOT A SERVICABLE PART)
9 1722771 1 DECAL, FREE FLOATING MOWER- SILVER
10 5101062 2 DECAL, TRANSAXLE RELEASE
11 5101102 1 DECAL, BELT & BLADE, CONS Z (LOCATED UNDER SEAT PLATE)
12 5020337 1 DECAL, WARNING (LOCATED BEHIND SEAT ON SUPPORT PLATE)
13 5100957 1 DECAL, HYDRAULIC OIL, SAE 20W-50

Footnotes:

57

Manual No.

510122524HP & 26HP HYDRO DRIVE ZTR

Not for

Reproduction

Decal Group - Safety & Common (355Z & 360Z Export Models)

Manual No.

5101225 24HP & 26HP HYDRO DRIVE ZTR

58

Not for

Reproduction

Decal Group - Safety & Common (355Z & 360Z Export Models

)

Part No DescriptionItem Qty

1 5061108 1 DECAL, MAIN, CE
2 5100280 1 DECAL, THROTTLE CONTROL
3 5048970 1 DECAL, IGNITION SWITCH
4 5101062 1 DECAL, TRANSAXLE RELEASE
5 5101102 1 DECAL, BELT & BLADE, CONS Z (LOCATED UNDER SEAT PLATE)
6 1725703 1 DECAL, HEIGHT OF CUT
7 1722789 1 DECAL, 44"- SILVER ON BLACK W/STRIPE
7 1722790 1 DECAL, 50"- SILVER ON BLACK W/STRIPE
8 5061042 3 DECAL, CE DANGER
9 1720389 2 DECAL, DANGER ROTATING BLADE SYMBOLS
10 5061217 1 DECAL, DANGER, CE
11 1722771 1 DECAL, FREE FLOATING MOWER - SILVER
12 -- 1 TAG, PRINTED SERIAL (NOT A SERVICABLE PART)
13 5100957 1 DECAL, HYDRAULIC OIL, SAE 20W-50

Footnotes:

59

Manual No.

510122524HP & 26HP HYDRO DRIVE ZTR

Not for

Reproduction

Decal Group - Safety & Common (365Z Export Models)

Manual No.

5101225 24HP & 26HP HYDRO DRIVE ZTR

60

Not for

Reproduction

Decal Group - Safety & Common (365Z Export Models)

Part No DescriptionItem Qty

1 5100280 1 DECAL, THROTTLE CONTROL
2 5048970 1 DECAL, IGNITION SWITCH
3 1725703 1 DECAL, HEIGHT OF CUT
4 * 1 DECAL, US PATENT, ZTR
5 5100957 1 DECAL, HYDRAULIC OIL, SAE 20W50
6 5102627 1 DECAL, MAIN SAFETY, ANSI CE
7 5102628 1 DECAL, PARKING BRAKE SYMBOLS
8 5102456 1 DECAL, FIRE ANSI EXPORT
9 5102420 2 DECAL, DANGER, MOWER DECK, ANSI EXP
10 5102457 1 DECAL, DANGER DISCHARGE ANSI EXPORT
11 5101991 2 DECAL, TRANSAXLE RELEASE
12 5061042 1 DECAL, CE DANGER
13 7103181 1 DECAL, 52"-SILVER ON BLACK W/STRIPE

Footnotes:

* Not a serviceable part.

61

Manual No.

510122524HP & 26HP HYDRO DRIVE ZTR

Not for

Reproduction

Instrument Control Panel Group

Manual No.

5101225 24HP & 26HP HYDRO DRIVE ZTR

62

Not for

Reproduction

Instrument Control Panel Group

Part No DescriptionItem Qty

1 5047143 1 CABLE, THROTTLE CONTROL
2 5025095 2 NUT, 1/4-20 HEX NYLON LOCK
3 5025010X6 2 BOLT, 1/4-20 X 3/4 GD5 YZ
4 1709188 1 PLUG, .820 X 1.44 HOLE, BLACK PLASTIC
5 5022269 1 O-RING, 7/8 ID X 1/16 W
6 5022222 1 RING, SWITCH RETAINER
7 5025035 1 NUT, 3/8-24 HEX
8 5025270 1 SCREW, #10-24 X 1" RS
9 5025271 1 NUT, #10-24 HEX NYLON LOCK
10 5402842A 1 PLATE, CONTROL PANEL - BLACK
11 1737853 1 SWITCH, ASMY-IGNITION INDAK NO KEYS/HDWR
12 5100996 1 HOUR METER, W/ SUPRESSOR
13 5022180 1 SWITCH, BLADE ENGAGEMENT
14 1725337 1 KNOB, SLOTTED THROTTLE
15 5047779 1 CABLE, CHOKE CONTROL, 51"
16 1737836 1 KEYS, BLISTER PK KIDS+MWRS DON'T MIX, DOM (USA MODELS ONLY)
17 1717550 1 COVER, SWITCH (SV)
18 1717549 1 NUT, HEX FLANGE 5/8-32 IGN SW DIE CAST (SV)
19 1960547 1 LOCKWASHER, INTERNAL TOOTH, .625 THIN BLK
20 1737837 1 KEYS, BLISTER PK KIDS+MWRS DON'T MIX, EXP, CE MODELS ONLY (CE MODELS ONLY)

Footnotes:

63

Manual No.

510122524HP & 26HP HYDRO DRIVE ZTR

Not for

Reproduction

Electrical Group

Manual No.

5101225 24HP & 26HP HYDRO DRIVE ZTR

64

Not for

Reproduction

Part No DescriptionItem Qty

1 1737853 1 SWITCH, IGNITION (Was 5020927)(Includes Ref No. 1, 3 & 4)
2 5022789 1 KEY, IGNITION MOLDED (SV)(Early Versions) (Set of 2)
2 1737836 1 KEYS, BLISTER PK KIDS+MWRS DON'T MIX, DOM
2 1737837 1 KEYS, BLISTER PK KIDS+MWRS DON'T MIX, EXP
3 1717550 1 COVER (SV) (Was 5022790)
4 1717549 1 NUT-HEX FLANGE, 5/8-32 IGN SW DIE CAST (Was 5022791 - Plastic)

-- 1960547 1 LOCKWASHER, INTERNAL TOOTH .625 THIN BLK (Not shown)
5 5102417 1 HOUR METER (Includes Retaining Ring)(Was 5100996 NLA)
6 5022180 1 SWITCH, PTO
7 5402849 1 WIRE HARNESS, MAIN, CONSUMER Z
8 5023488 1 BATTERY CABLE, POSITIVE, 22
9 1716368 1 SWITCH, SEAT, GRAY, NC (BOLT IN)
9 5100541 1 SWITCH, SEAT, GRAY, NC (TWIST IN)
10 1960536 2 BOLT, HEX WASHER HEAD PLASTITE, 1/4 X 1/2
11 5021199 1 CABLE TIE, PUSH MOUNT
12 5023222 1 CIRCUIT BREAKER, 20A
13 5025154 4 WASHER, 1/4 SAE
14 5023216 2 NUT, 5/16-24 JAM
15 5023217 2 WASHER, 5/16 LIGHT LOCK
16 1724815 1 SOLENOID, 4 POLE 12 VOLT DC (TROMBETTA)
17 5025010X6 4 BOLT, 1/4-20 X 3/4 GD5 YZ
18 5025126 4 NUT, 1/4-20 HEX SERR. FLANGE
19 5021379 1 GROMMET, 7/8
20 5047690 1 BATTERY CABLE, NEGATIVE, 14"
21 7060618 1 BATTERY, WET ( BCIU1, 340 CCA)
22 5047136 1 BATTERY CABLE, POSITIVE, 15
23 1722009 1 STRAP, BLACK RUBB
24 5022095 4 SWITCH, PLUNGER, N.O./N.C.
25 5023263 1 CLAMP, VINYL
26 5025013X8 1 BOLT, 3/8-16 X 1 GD5 YZ
27 5025156 1 WASHER, 3/8 SAE
28 5025394 1 NUT, 3/8-16 HEX NYLOCK FLANGE

Electrical Group

Footnotes:

65

Manual No.

510122524HP & 26HP HYDRO DRIVE ZTR

Not for

Reproduction

Wiring Schematic - 24 HP Briggs & Stratton

Manual No.

5101225 24HP & 26HP HYDRO DRIVE ZTR

66

Not for

Reproduction

Wiring Schematic - 24 HP Briggs & Stratton

Part No DescriptionItem Qty

1 -- 1 WIRING SCHEMATIC INCLUDES HARNESS # 5402849
2 -- 1 WIRING SCHEMATIC INCLUDES HARNESS # 5402479 (CE / EXPORT MODELS ONLY)

Footnotes:

67

Manual No.

510122524HP & 26HP HYDRO DRIVE ZTR

Not for

Reproduction

Wiring Schematic - 26 HP Briggs & Stratton

Manual No.

5101225 24HP & 26HP HYDRO DRIVE ZTR

68

Not for

Reproduction

Wiring Schematic - 26 HP Briggs & Stratton

Part No DescriptionItem Qty

1 - 1 WIRING SCHEMATIC INCLUDES HARNESS # 5402849 (S/N: 2013063778 & ABOVE)
2 - 1 WIRING SCHEMATIC INCLUDES HARNESS # 5404074 (S/N: 2013063777 & BELOW)

Footnotes:

69

Manual No.

510122524HP & 26HP HYDRO DRIVE ZTR

Not for

Reproduction

Not for

Reproduction

Not for

Reproduction

Parts Manual fo

r

24HP & 26HP HYDRO DRIVE ZTR
355Z, 360Z & 365Z SERIES

IT IS THE POLICY OF BRIGGS & STRATTON CORP TO IMPROVE ITS

PRODUCTS WHENEVER IT IS POSSIBLE AND PRACTICAL TO DO SO.

WE RESERVE THE RIGHT TO MAKE CHANGES OR ADD

IMPROVEMENTS AT ANY TIME WITHOUT INCURRING ANY

OBLIGATION TO MAKE SUCH CHANGES ON PRODUCTS

Briggs & Stratton Yard Power Products Group

535 Macon Road
McDonough, GA, 30253 U.S.A.
800-935-2967

www.snapper.com

Copyright ©
Milwaukee, WI USA. All Rights Reserved

Briggs & Stratton Corporation

2011

Manual No.

Revision: J 3/30/2011

5101225
