Snapper 3100 User Manual
Specifications and Main Features
- Engine Manufacturer: Briggs and Stratton, single cylinder, 4 cycle, air cooled
- Power Output:
- 3105: 5 HP
- 3108: 8 HP
- 3110: 10 HP
- Engine Size:
- 3105: 206 cc or 12.57 cu. in.
- 3108: 318.5cc or 19.44 cu. in.
- 3110: 361.2 cc or 22.04 cu. in.
- Gears:
- Gears
- 3400rpm 3600 rpm speed
- 5hp – 1st gear @ 1.3mp, 2nd 20mp, 3rd 3.1mp, 4th 3.8m, &
- 5th 4.5m, &, Reverse @1.5mph
- Gears
- 3400 rpm @ 8 & 10 hp

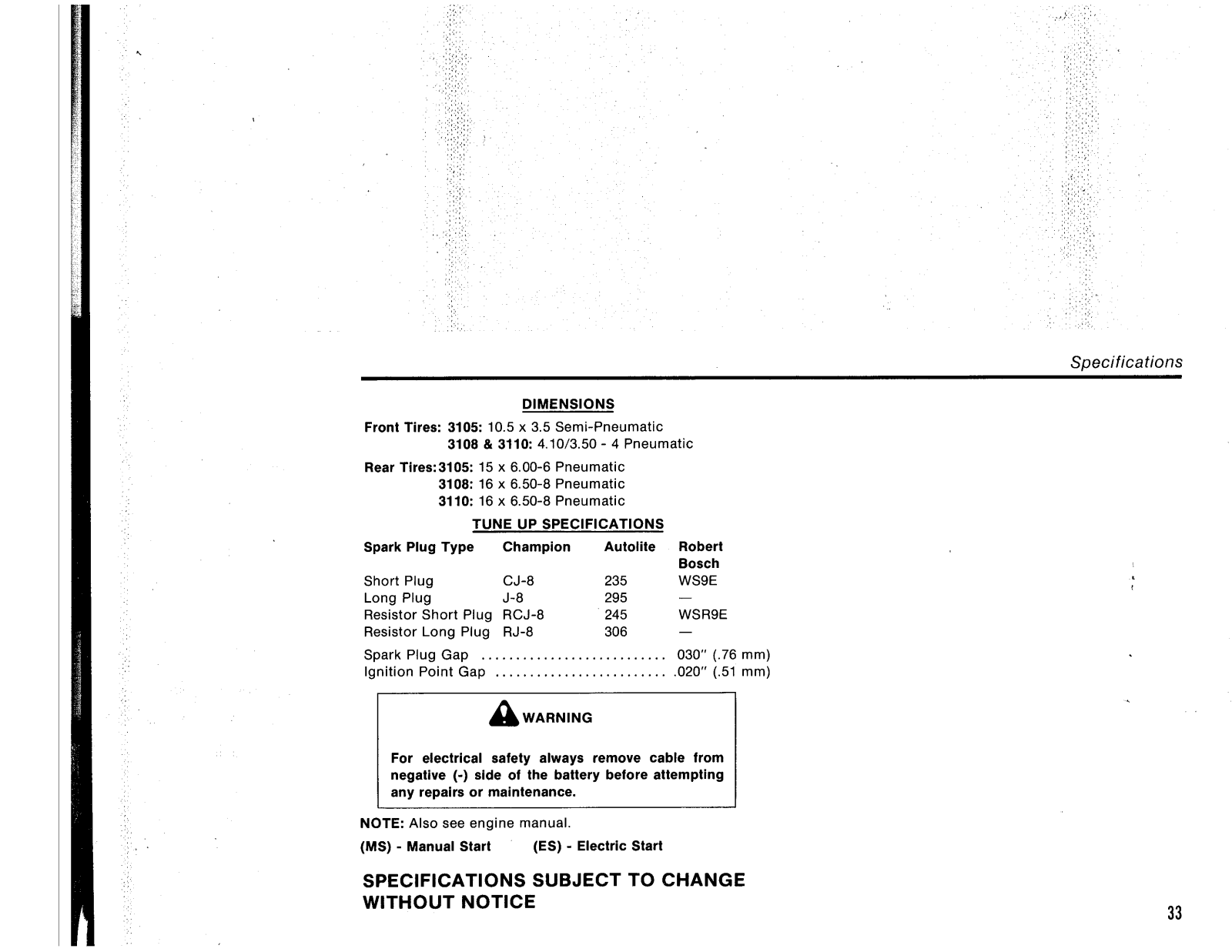

- Tire Type:
- Front Tires:
- 3105 – 10 .5 x 3.5 Semi – Pneumatic
- 3108, 3110 - 4.10/3.50 – 4 Pneumatic
- Rear Tires:
- 3105 – 15 x 6.00-6 Pneumatic
- 3108, 3110 – 16 x 6.50-8 Pneumatic
- Oil Tank:
- 3105: 2 quarts
- 3108: 3 quarts
- 3110: 5 quarts
- Oil Reservoir:
- 3105: 1.75 pints
- 3108: 2.25 pints
- 3110: 3 pints
- Radiator:
- 3105 - None
- 3108 - (MS) None
- 3108 - (ES) 3 Amp d.c unregulated
- 3110 - (ES) 3 Amp d.c unregulated
- Blade specifications:
- Champion Autolite and Bosch Spark Plug Type
- Spark Plug Gap: 0.76 mm (.030 inches)
- Maintenance Schedule: Checks on fluid levels, hardware torque, delivers regular lubrication, provides battery care, etc.
Frequently Asked Questions
- Q: What are the acceptable types of fuel for the device?
A: Use unleaded gasoline but do not add fuel while the engine in running.
- Q: How do I alter the height of the mower?
A: To alter the height of the mower use the Mower Height Control Lever to raise or lower it to the desired height.
- Q: The engine won’t start. What could be the reason?
A: Look to see if the gear shift lever is positioned in neutral and the PTO clutch lever is out. Confirm whether There is fuel within the tank gas.
- Q: The oil needs changing, how often should it be done?
A: Change the oil after the first five hours of use, and after that at the normal periods of maintenance.
- P: Where to get spare parts? P:
A: You may obtain ordinary spare parts from Simplicity Manufacturing Company or from an authorized dealer.
- P: Can I operate the device if children or pets are present? P:
A: It is strongly recommended not to operate the device if children or pets are present. Always clear the entire area before mowing.
- P: How to routinely maintain the mower blades? P:
A: Whenever necessary, the blades must be removed, sharpened, and balanced.
- P: What needs to be considered when using the device on slopes? P:
A: When using the implement on slopes, it is advisable to mow up and down the slope instead of across it and do not operate the device on slopes greater than 30 percent.
