Snapper 2470 User Manual
Rev. 2/2001
TP-400-2470-00-AT-SMA
Attachment
Illustrated
Parts List
© Copyright 2001 Simplicity Manufacturing, Inc.All Rights Reserved.
MANUFACTURING, INC.
500 N Spring Street / PO Box 997
Port Washington, WI 53074-0997 USA
2
TP-400-2470-00-AT-SMA
© Copyright 2001 Simplicity Manufacturing, Inc. All Rights Reserved.

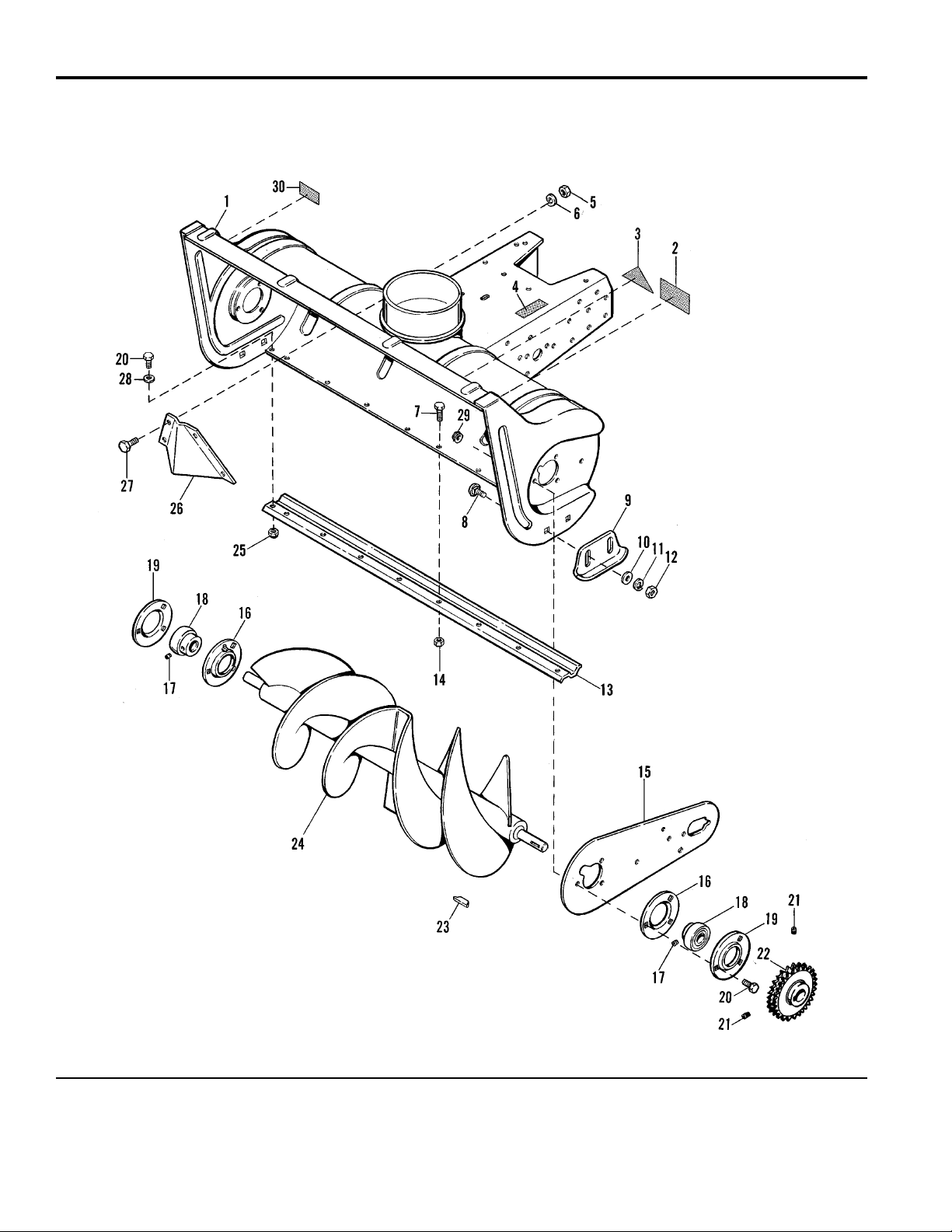

Single-Stage Snowthrower, 46” - Spout Group
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
985782
The above parts group applies to the following Mfg. Nos.:
1693761 Single-Stage Snowthrower, 46”
31
13
12
21
26
35
34
36
3
32
1
5
2
4
6
3
1
2
3
22
11
25
23
24
37
38
39
33
14
16
7
2
8
9
2
10
11
14
2
12
13
2
11
15
19
17
18
20
27
28
29
30
40
41
3
TP-400-2470-00-AT-SMA
Single-Stage Snowthrower, 46” - Spout Group
1 1702219 4 SPACER
2 1921319 9 WASHER,1/4
3 1960126 4 NUT, Push, 1/4
4 1611945 1 ROD
5 1611939 1 SPRING
6 1721601 1 CHUTE & DEFLECTOR ASSEMBLY
7 1925003 3 SCREW, Hex Head, Taptite, 1/4-20 x 1/2
8 1717481 1 COVER, Pinion
9 1923358 1 NUT, Hex, Centerlock, 1/4-20
10 1717480 1 PINION, 15 Teeth
11 1924009 6 CAPSCREW, Hex Head, 1/4-20 x 7/8
12 1916622 3 NUT, Hex, 1/4-20
13 1916964 6 LOCKWASHER, 1/4
14 1923341 4 CAPSCREW, Hex Head, 1/4-20 x 3/4
15 1721751 1 SUPPORT, Motor
16 1931348 2 CARRIAGE BOLT, 3/8-16 x 3/4
17 1916965 2 LOCKWASHER,3/8
18 1916950 2 NUT, Hex 3/8-16
19 1717483 1 HARNESS ASSEMBLY
20 1715885 1 MOTOR, Eletric
21 1960151 2 WASHER, 1/4
22 1668344 1 PIN, Flat Head Drilled
23 1960221 1 CLIP, Hair Pin
24 1705920 1 BRACKET
25 1721590 1 BRACKET
26 1717482 1 CABLE & KNOB ASSEMBLY
27 1917372 1 NUT, Hex, 5/16-18
28 1917356 1 LOCKWASHER, 5/16
29 1921333 1 CAPSCREW, Hex Head, 5/16-18 x 1
30 1717591 1 ROD & BAR ASSEMBLY
31 1701011 1 CABLE TIE
32 1666613 3 HOLD DOWN
33 1717477 1 GEAR
34 1704446 1 GUARD & SUPPORT ASSEMBLY
35 1960001 3 SCREW, Hex Head Taptite 10-14 x 5/8
36 1931333 1 CARRIAGE BOLT, 5/16-18 x 3/4
37 960210 1 WASHER
38 1919326 1 WASHER, 5/16
39 1919438 1 NUT, Hex Lock ESNA 5/16-18
40 1715799 1 HANDLE “T”
41 1930547 1 SCREW, Set Hex #10-24 x 3/8
REF NO. PART NO. QTY. DESCRIPTION
Footnotes:
The above parts group applies to the following Mfg. Nos.:
1693761 Single-Stage Snowthrower, 46”
