2006 Rapid
User Manual
50 pgs933.01 Kb0

Snapper 2006 Rapid User Manual

Download
2006 Rapid
g
Series Riding Mower & Mower Deck
17HP Product
Mf
. No. Description
1694374 2006 Rapid, 17HP Hydro (CE/Export) 2690070 2006 Rapid, 17HP Hydro and 40" Mower Deck (CE/Export)
Mower Decks
Mfg. No. Description
1694345 40" Mower Deck (CE/Export)
Parts Manual
12/2007
Rev.
Table Of Content
s
PRODUCT COMPONENTS PAGES
Frame Group ........................................................................................................................................................
Steering Group .....................................................................................................................................................
Engine & Electric Clutch - 15HP & 17HP Briggs & Stratton ................................................................................
Transmission Group .............................................................................................................................................
Transmission SERVICE PARTS - Tuff Torq K-46Q ............................................................................................
Controls Group .....................................................................................................................................................
Electrical Group ....................................................................................................................................................
Seat Deck & Fuel Tank Group .............................................................................................................................
Lift Group ..............................................................................................................................................................
Wheels & Tires Group ..........................................................................................................................................
Decals - Safety & Common ..................................................................................................................................
1694363 - Weight, Wheel ....................................................................................................................................
Mower Frame Group - with Height Adjustment ...................................................................................................
Mower Frame Group - without Height Adjustment ..............................................................................................
40" Mower Deck - Belt, Idler Arm & Hitch ............................................................................................................
40" Mower Deck - Height Adjustment & Roller Bar .............................................................................................
40" Mower Deck - Height Adjustment & Roller Bar (Later) .................................................................................
40" Mower Deck - Housing, Arbors & Blades ......................................................................................................
10 12 14 18 20 22 24 26 28 30 32 34 36 38 42 44
Torque Specification Chart ..................................................................... Inside Back Cover
4 6
Frame Group
NOTE: Unless noted otherwise, use the standard hardware torque specification chart.
985955
The above parts group applies to the following Mfg. Nos.:
1694374 - 2006 Rapid 2690070 - 2006 Rapid
© Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
2007
4
Frame Group
PART NO. DESCRIPTIONREF NO QTY.
PLATE, Pivot 1 1722359ASM 2 CAPSCREW, Hex Head, 3/8-16 x 1-1/4, Black 2 1920415SM 8 WASHER, 3/8, Black 3 1960071SM 2 NUT, Hex Flange Lock, Black 4 1928352SM 6 SPACER 5 2154177SM 4 CAPSCREW, Hex Head, Flange Lock, 5/16-18 x 1/2, Black 6 1931648SM 6 SHROUD, Wheel, RH 7 1723144SM 1 SKIRT, Side, RH 8 1723290ASM 1 CAPSCREW, Hex Washer Head, Plastite, # 10-14 x 5/8, Black 9 1960001SM 2 CLIP, Shroud 10 1723691SM 2 PLUG, Hole 11 1715015SM 1 FASTENER, Panel 12 1704351SM 14 PAD, Footrest, RH 13 1714418SM 1 PAD, Footrest, LH 14 1714417SM 1 CAPSCREW, Hex Head Whiz Lock, 5/16-18 x 3/4, Black 15 1930591SM 4 WRAPPER, Rear Frame 16 1722453ASM 1 NUT, Speed, Lug, 5/16-18 17 1935255SM 4 FRAME ASSEMBLY, Rear 18 1722514ASM 1 NUT, Hex, Flange, 1/4-20, Black 19 1960294SM 1 SKIRT, Side, LH 20 1723289ASM 1 CAPSCREW, Hex Head, 1/4-20 x 7/8, Black 21 1924009SM 1 SHROUD, Wheel, LH 22 1723145SM 1 FRAME ASEMBLY, Transmission 23 1722494ASM 1 NUT, Hex Lock Aluminum Insert, 3/8-16 24 2860681SM 2 WEIGHT & TAB ASSEMBLY, 75 lbs. 25 1723873ASM 1 CARRIAGE BOLT, 5/16-18 x 1 26 1931335SM 2 NUT, Hex, Flange Whiz Lock, 5/16-18 27 1927557SM 2
Footnotes
The above parts group applies to the following Mfg. Nos.:
1694374 - 2006 Rapid 2690070 - 2006 Rapid
© Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
2007
5
Steering Group
NOTE: Unless noted otherwise, use the standard hardware torque specification chart.
985951
The above parts group applies to the following Mfg. Nos.:
1694374 - 2006 Rapid 2690070 - 2006 Rapid
© Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
2007
6
Steering Group
PART NO. DESCRIPTIONREF NO QTY.
Footnotes
BUSHING, Nylon 1 2176440SM 6 PLATE, Mounting 2 1703508ASM 1 NUT, Hex Flange Whiz Lock, 3/8-16, Black 3 1928352SM 4 SHAFT & PINION ASSEMBLY 4 1722495SM 1 PIN, Cotter, Black 5 1919314SM 1 PIN, Spring, 5/16 x 2-1/2, Black 6 1960540SM 1 WASHER, 3/4 7 2860202SM 1 BUSHING, Metal 8 1666001SM 1 CARRIAGE BOLT, 1/4-20 x 3/4 9 1931317SM 2 SUPPORT ASSEMBLY 10 1722497ASM 1 NUT, Push, 1/4, Black 11 1960518SM 2 PLATE, Mounting 12 1721736ASM 1 NUT, Hex KEPS, 1/4-20, Black 13 2828732 2 COVER, Black Rubber 14 1722749SM 1 STEERING WHEEL 15 1722738SM 1 CAP, Steering Wheel 16 1722319SM 1 DASHBOARD 17 1723111SM 1 CAPSCREW, Hex Head, 1/2-13 x 1-3/4, Black 18 1921525SM 1 SPACER 19 2105386SM 1 SPACER 20 1723129SM 1 CAPSCREW, Hex Head, 1/2-13 x 3, Black 21 1960245SM 1 RING, Klip, External 3/4, Black 22 1611710SM 2 AXLE ASSEMBLY,w/Bushings & Lube Fitting 23 1724616SM 1 NUT, Hex Lock ESNA Heavy, 1/2-13, Black 24 1960355SM 2 WASHER, 1/2, Black 25 1918431SM 2 FITTING, Lube 26 2821133SM 3 CAPSCREW, Hex Head, 3/8-16 x 1, Black 27 1921210SM 2 SPACER, Powder Metal 28 1611705SM 2 ROD, Tie 29 1722387SM 1 SPINDLE & LEVER ASSEMBLY, RH (Lancer LH) 30 1677131ASM 1 CAPSCREW, Hex Head, 3/8-16 1-1/2 31 1921969SM 1 NUT, Hex Flange Lock, 3/8-16, Black 32 1960339SM 2 SPACER 33 1708236SM 1 SPINDLE & LEVER ASSEMBLY, LH (Lancer RH) 34 1677133ASM 1 BALL JOINT 35 1702779SM 2 NUT, Hex Flange Lock, 3/8-16, Black 36 1930645SM 1 NUT, Hex Head, 1/2-20, Black 37 1919262SM 2 DRAG LINK 38 1722504SM 1 NUT, Hex Flange Two Way Lock, 1/2-13, Black 39 1930644SM 1 SHAFT & GEAR ASSEMBLY 40 1724793ASM 1 CAPSCREW, Hex Head, 1/2-13 x 1-1/2, Black 41 1920328SM 1 CAPSCREW, Hex Head, 5/16-18 x 3/4 42 1930591SM 2
The above parts group applies to the following Mfg. Nos.:
1694374 - 2006 Rapid 2690070 - 2006 Rapid
© Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
2007
7
Steering Group
NOTE: Unless noted otherwise, use the standard hardware torque specification chart.
985951
The above parts group applies to the following Mfg. Nos.:
1694374 - 2006 Rapid 2690070 - 2006 Rapid
© Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
2007
8
Steering Group
PART NO. DESCRIPTIONREF NO QTY.
SHROUD, Steering 45 1715998CSM 1 CAPSCREW, Hex Head, 1/4-20 x 5/8, Black 46 1927429SM 3 WASHER, 3/4, Black 47 1960114SM 4 NUT, Hex Flange Lock, 5/16-18, Black 48 1927557SM 2
Footnotes
The above parts group applies to the following Mfg. Nos.:
1694374 - 2006 Rapid 2690070 - 2006 Rapid
© Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
2007
9
Engine & Electric Clutch - 15HP & 17HP Briggs & Stratton
NOTE: Unless noted otherwise, use the standard hardware torque specification chart.
985948
The above parts group applies to the following Mfg. Nos.:
1694374 - 2006 Rapid 2690070 - 2006 Rapid
© Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
2007
10
Engine & Electric Clutch - 15HP & 17HP Briggs & Stratton
PART NO. DESCRIPTIONREF NO QTY.
GASKET, Ehaust 1* 2 ADAPTER, Muffler 2 1723468SM 1 LOCKWASHER, 5/16 3 1917356SM 2 CAPSCREW, Hex Socket Head, 5/16-18 x 3/4 4 1936228SM 2 CAPSCREW, Hex Washer Head, Taptite, 1/4-20 x 5/8 5 1927429SM 1 MUFFLER 6 1723469SM 1 LOCK, Screw 7* 1 CAPSCREW 8* 2 VALVE, Shut Off 9 1708405SM 1 BRACKET, Engine Cover 10 1723298A 1 NUT, Speed, 1/4-20 11 1926018SM 2 CAPSCREW, Hex Head, Whiz Lock, 1/4-20 x 3/4 * Export / Domestic 12 1930594SM 3 / 1 COVER, Engine 13 1723113SM 1 SCOOP, Hood 14 1722111SM 1 KNOB, 3 Sided Soft Plastic 15 1713855SM 1 CAPSCREW, Hex Washer Head, Taptite, 5/16- 1 8 x 5/8 16 1930601SM 1 PUSH NUT, 1/4 17 1960518SM 1 BRACKET 18 1668500A 1 PUSH NUT, 5/16 19 1933988SM 4 CONTROL, Throttle, Dual, W/Knob 20 1724012SM 1 CONTROL, Throttle, Single, W/Knob 20 1722955SM 1 CLAMP, Hose 21 2860112SM 2 HOSE, Fuel 22 1718678SM 1 SPACER 23 1723390SM 1 PULLEY & HUB ASSEMBLY 24 1713187SM 1 KEY, Hi Pro, 1/4 x 2 25 2105337SM 1 CLUTCH, Electric 26 1686883SM 1 WASHER, Hex 27 1708264SM 1 LOCKWASHER, 7/16 28 1918199SM 1 CAPSCREW, Hex Head, 7/16-20 x 3-1/2 29 1960649SM 1 CAPSCREW, Hex Washer Head, Taptite, 3/8-16 x 1-1/2 30 2830598SM 4 HEAT SHIELD, Muffler 31 1723476A 1 CAPSCREW, Hex Washer Head, Taptite, 5/16- 1 8 x 3/4 32 1664847SM 2 ENGINE, 15HP Briggs & Stratton Intek, Model 31F777, Type 0111 33 * 1 ENGINE, 17HP Briggs & Stratton Intek, Model 31F770, Type 0110 33 * 1 TIE, Self Locking, 3-5/8" Long 34 2832747SM 1 SCREW, Flat Head, #6 x 5/8, (Export Only) 35 2860661SM 1 PAD, Rubber, (Export Only) 36 1723949SM 1 STOP, Throttle, (Export Only) 37 1708442SM 1 TIE, Self Locking, 7-5/16" Long 38 1701011SM 1 SCREW, Double Wing 1/4-20 x 5/8 * Export / Domestic 41 1935023SM 0 / 2
Footnotes
Note* See your local Briggs & Stratton distributor for parts and service.
The above parts group applies to the following Mfg. Nos.:
1694374 - 2006 Rapid 2690070 - 2006 Rapid
© Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
2007
11
Transmission Group
NOTE: Unless noted otherwise, use the standard hardware torque specification chart.
985949
The above parts group applies to the following Mfg. Nos.:
1694374 - 2006 Rapid 2690070 - 2006 Rapid
© Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
2007
12
Transmission Group
PART NO. DESCRIPTIONREF NO QTY.
CAPSCREW, Hex Head, 3/8-16 x 2, Black 1 1923701SM 1 SPACER 2 1674669SM 1 WASHER, 3/8, Black 3 1924940SM 7 BUSHING 4 1676148SM 2 SPRING, Extension, 7-3/4" Long 5 1725250SM 1 ARM ASSEMBLY 6 1722969ASM 1 FITTING, Lube 7 2812808SM 1 CAPSCREW, Hex Head, 3/8-16 x 1-1/2, Black 8 1921969SM 1 PULLEY, Idler, 3-1/4 9 1724387SM 1 NUT, Hex Flange Lock, 3/8-16, Black 10 1960339SM 2 NUT, Hex Flange Lock, 5/16-18, Black 11 1927557SM 2 CAPSCREW, Hex Head 5/16-18 x 2 G5 12 1921978SM 1 CAPSCREW, Hex Head, 5/16-18 x 2-1/2, Black 13 1921719SM 6 SNAP RING 14 1724316SM 2 SPLINE COLAR 15 1724312SM 2 LOCKWASHER 16 1723415SM 1 V-BELT 17 1715128SM 1 PULLEY 18 1724313SM 1 FAN 19 1724314SM 1 "E" RING 20 1718076SM 1 ROD, Hydro Bypass 21 1723161SM 1 PIN, Cotter 22 1923360SM 1 TRANSMISSION ASSEMBLY, Foot Control, K46Q 23 1721022SM 1 KEY, Parallel 24 1717749SM 2 WASHER, 3/4 25 2860202SM 4 SPACER 26 1723820SM 2 NUT, Hex Flange Lock, 5/16-18 27 1935048SM 7 SPACER 28 1666294SM 1 CAPSCREW, Hex Head, 5/16-18 x 1-3/4 29 1960585SM 1
Footnotes
The above parts group applies to the following Mfg. Nos.:
1694374 - 2006 Rapid 2690070 - 2006 Rapid
© Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
2007
13
Transmission SERVICE PARTS - Tuff Torq K-46Q
NOTE: Unless noted otherwise, use the standard hardware torque specification chart.
1721022
The above parts group applies to the following Mfg. Nos.:
1694374 - 2006 Rapid 2690070 - 2006 Rapid
© Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
2007
14
Transmission SERVICE PARTS - Tuff Torq K-46Q
PART NO. DESCRIPTIONREF NO QTY.
LOWER HOUSING 3 1724278SM 1 RESERVOIR TANK 4 1731981SM 1 TUBE 5 1724335SM 1 MINIATURE CLAMP 6 1724336SM 2 VENT VALVE 7 1718052SM 1 MAGNET 8 1724279SM 2 HOLDER, MAGNET 9 1724337SM 1 SPRING 11 1725730SM 1 SHAFT, Bypass 12 1724338SM 1 LEVER, Bypass 13 1720418SM 1 RING 14 1718061SM 1 SEALING CAP 15 1724282SM 1 RING, Snap 16 1708650SM 1 "O" RING 19 1708691SM 2 SEAL 20 1708651SM 1 SCREW, Tapping 21 1707789SM 14 TAPPING SCREW 22 1724284SM 2 SUPPORT 23 1724339SM 1 CENTER CASE, Complete 24 1724340SM 1 PIN 25 1718070SM 1 FILTER K55 26 1724341SM 1 BOLT 27 1720805SM 3 IDS VALVE 28 1724286SM 2 IDS SPRING 29 1724287SM 2 BALL, 3/16 30 1724288SM 2 CYLINDER BLOCK 31 1718079SM 1 SPRING, Pump 32 1724290SM 1 PUMP SHAFT 33 1724291SM 1 RING, "E" 34 1718076SM 3 BEARING 35 1718083SM 1 HOUSING 36 1718077SM 1 BEARING 37 1718078SM 1 CYLINDER BLOCK 38 1725831SM 1 WASHER 39 1718084SM 1 SHAFT MOTOR 40 1724293SM 1 RING, Snap 41 1708672SM 1 MOTOR GEAR 42 1724294SM 1 BEARING 43 1718083SM 1 THRUST METAL 44 1724342SM 2 SWASH PLATE COMPLETE 45 1720426SM 1 BEARING 46 1718086SM 1 THRUST PLATE 47 1718087SM 1
Footnotes
The above parts group applies to the following Mfg. Nos.:
1694374 - 2006 Rapid 2690070 - 2006 Rapid
© Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
2007
15
Transmission SERVICE PARTS - Tuff Torq K-46Q
NOTE: Unless noted otherwise, use the standard hardware torque specification chart.
1721022
The above parts group applies to the following Mfg. Nos.:
1694374 - 2006 Rapid 2690070 - 2006 Rapid
© Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
2007
16
Transmission SERVICE PARTS - Tuff Torq K-46Q
PART NO. DESCRIPTIONREF NO QTY.
FULCRUM, Eccentric 50 1724344SM 1 SPRING, Torsion 51 1724345SM 1 CONTROL ARM 52 1724346SM 1 CONTROL LEVER 53 1724347SM 1 JERKY PLATE 54 1724348SM 1 WASHER 55 1708689SM 1 COTTER PIN 56 1724349SM 1 PIN, SPRING 57 1724311SM 2 PIN, Roll 58 1718100SM 1 "O" RING 59 1707879SM 2 NUT 60 1708692SM 1 DIFF PINION, Kit 61 1724297SM 2 FINAL GEAR 62 1724298SM 1 COLLAR, Final 63 1724299SM 1 REDUCTION SHAFT 64 1724300SM 1 WASHER 65 1720439SM 2 REDUCTION GEAR 66 1724301SM 1 FINAL PINION 67 1724302SM 1 AXLE SHAFT, LH 68 1724303SM 1 AXLE SHAFT, RH 69 1724304SM 1 THRUST WASHER 70 1718112SM 2 RING 71 1718113SM 2 SEAL 72 1718111SM 2 BUSHING 73 1718110SM 2 SHOE, BRAKE 75 1724305SM 1 ARM, Brake 76 1724306SM 1 SHAFT, BRAKE 77 1724307SM 1 RETURN SPRING 78 1724308SM 1 ACTUATOR, Brake 79 1724309SM 1 PIN 80 1724310SM 1 "O" RING 81 1708690SM 2 PIN 82 1707839SM 2 SPLINE COLLAR 83 1724312SM 2 PULLEY 84 1724313SM 1 FAN 85 1724314SM 1 LOCK WASHER 86 1724315SM 1 SNAP RING 87 1724316SM 2 UPPER HOUSING, (Includes Ref. No. 89A) 89 1729860SM 1 BUSHING 89A 1720814SM 2 ROLL PIN 90 1707839SM 1 OIL SEAL 91 1724318SM 1 WASHER, Seal 99 1708649SM 2
Footnotes
The above parts group applies to the following Mfg. Nos.:
1694374 - 2006 Rapid 2690070 - 2006 Rapid
© Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
2007
17
Controls Group
NOTE: Unless noted otherwise, use the standard hardware torque specification chart.
985950
The above parts group applies to the following Mfg. Nos.:
1694374 - 2006 Rapid 2690070 - 2006 Rapid
© Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
2007
18
Controls Group
PART NO. DESCRIPTIONREF NO QTY.
NUT, Hex Lock ESNA, 5/16-18, Black 1 1919438SM 4 CLAMP 2 1713784SM 1 FOOT PEDAL & BRAKE ARM ASSEMBLY 3 1722524ASM 1 PEDAL, Foot, Forward 4 1715834SM 1 PAD, Brake Pedal 5 1721577SM 1 PEDAL, Foot, Reverse 6 1715835SM 1 CLIP, Hair Pin, Black 7 1960221SM 5 WASHER, 1/4, Black 8 1921319SM 1 CARRIAGE BOLT, 5/16-18 x 3/4, Black 9 1931333SM 4 KNOB, 1/4-20 Thread 10 1713855SM 1 ROD, Parking Brake, Yellow 11 1714385SM 1 CAPSCREW, Hex Head, Whiz Lock 5/16-18 x 3/4, Black 12 1930591SM 1 BRACKET 13 1723794A 1 NUT, Hex, 5/16, Black 14 1931277SM 1 SPRING, Extension, 6-1/2" Long 15 2165068SM 1 LEVER & ROD ASSEMBLY 16 1722529SM 1 CABLE, Forward/Reverse 17 1722974SM 1 PIN, Yoke, Drilled, 1/4 x 3/4, Black 18 1960261SM 1 PIN, Clevis, 11/32 x 1-1/4 19 1711115 2 WASHER, 5/16, Black 20 1919326SM 1 CABLE, Brake Control 21 1722616SM 1 CABLE, Clutch Control 22 1722617SM 1 NUT, Hex Flange Lock, 5/16-18, Black 23 1935048SM 1 GUIDE BELT & STUD ASSEMBLY 24 1717728SM 1 SPRING, Compression 25 1725508SM 1 NUT, Hex Center Lock, 1/4-20 26 1960608SM 1 CLEVIS 27 1722975SM 2
Footnotes
The above parts group applies to the following Mfg. Nos.:
1694374 - 2006 Rapid 2690070 - 2006 Rapid
© Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
2007
19
Electrical Group
NOTE: Unless noted otherwise, use the standard hardware torque specification chart.
985954
The above parts group applies to the following Mfg. Nos.:
1694374 - 2006 Rapid 2690070 - 2006 Rapid
© Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
2007
20
Electrical Group
PART NO. DESCRIPTIONREF NO QTY.
BEZEL, Headlight 1 1719227SM 1 HEADLIGHT HOUSING 2 1719230SM 1 HEADLIGHT ASSEMBLY (Includes Ref. Nos. 1 & 2) 3 1719230SM 1 SWITCH, Rocker, Headlight 4 1703799SM 1 TIE, Self Locking, 3-5/8, Black 5 2832747SM 1 SWITCH, PTO, Push/Pull, w/Symbols 6 1722887SM 1 PLUG 7 1709188SM 1 KEYS, Ignition 8 1717163SM 2 COVER, Ignition Switch 9 1717550SM 1 NUT, Hex, 5/8-32 10 1717549SM 1 LOCKWASHER, Intrnal Tooth, 5/8, Thin, Black 11 1960547SM 1 WASHER, 5/8, Thin, Black 12 2101025SM 1 SWITCH ASSEMBLY, Ignition (Includes Ref. Nos. 8, 9, 10, 11, & 13) 13 1686734SM 1 SWITCH, Seat, NC 14 1718981SM 1 CAPSCREW, Hex Head Plastite, 1/4-20 x 1/2 15 1960536SM 2 BOOT, Insulator 16 1677296SM 1 CAPSCREW, Hex Head, 1/4-20 x 3/4 17 2823341SM 2 WASHER, 1/4 18 2821319SM 2 BATTERY, 12 Volt 19 1685215SM 1 SWITCH, Push,Grey, Pedal Switch, (Domestic Only) 20 1720401SM 1 LOCKWASHER, 1/4 21 2816964SM 2 NUT, Hex, 1/4-20 22 2816622SM 3 CABLE, # 6 x 42-1/2" Long, 2 Ring Terminals 23 1703484SM 2 CABLE, # 6 x 10" Long, 2 Ring Terminals 24 1716549SM 1 NUT, Hex, 5/16-24 25 2820263SM 2 LOCKWASHER, External Tooth, 5/16 26 2820426SM 2 WIRE, 12GA, 6" Long Red 27 1665237SM 1 BREAKER, Circuit, 12Volt, 20Amps 28 1665238SM 1 SOLENOID, 4 Pole 12Volt 29 1686981SM 1 CAPSCREW, Hex Head Taptite, 14-20 x 5/8 30 1927429SM 2 TIE, Self Locking, 7-5/16 Long, Black 31 1701011SM 2 STRAP, Black Rubber 32 1665872SM 1 BRACE, Battery 33 1667805SM 1 NUT, Hex, 3/8-16 34 2816950SM 1 LOCKWASHER, External Tooth, 3/8 35 2820427SM 1 COVER, Terminal, Red 36 2122023SM 1 SWITCH, Push, Black, Pedal Switch 37 1720411SM 1 HARNESS, Wiring 38 1724903SM 1 SHRINK TUBE 39 1715014SM 1 WIRE ASSEMBLY, 16GA, 16" Long, Black/Tan 40 1715010SM 1
Footnotes
The above parts group applies to the following Mfg. Nos.:
1694374 - 2006 Rapid 2690070 - 2006 Rapid
© Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
2007
21
Seat Deck & Fuel Tank Group
NOTE: Unless noted otherwise, use the standard hardware torque specification chart.
985953
The above parts group applies to the following Mfg. Nos.:
1694374 - 2006 Rapid 2690070 - 2006 Rapid
© Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
2007
22
Seat Deck & Fuel Tank Group
PART NO. DESCRIPTIONREF NO QTY.
POD, Control 1 1714542SM 1 SCREW, Torx Truss Head, 5/16-18 x 7/8, Black 2 1960086SM 3 CLAMP, Wire 3 1708008SM 1 WASHER, Curved, Special 4 1668681SM 3 SPACER 5 1666697SM 3 LEVER, Seat Latch, Black 6 1713597SM 1 CAP, Black 7 1715047SM 1 SPRING, Extension, 4-1/4 Long 8 2159106SM 1 PANEL, Side 9 1714318SM 2 SLIDE, Seat 10 1713595SM 1 CAPSCREW, Hex Head Whiz Lock, 5/16-18 x 1/2, Black 11 1931648SM 11 SEAT SWITCH, NC 12 1718981SM 1 SEAT W/Cushion & Sensitivity 13 1687020SM 1 PLATE, Spring 14 1715768A 1 NUT, Hex Lock ESNA, 5/16-18, Black 15 1919438SM 2 WASHER, Spring 16 1709256SM 2 SPRING 17 1717051SM 2 CARRIAGE BOLT, 5/16-18 x 1, Black 18 1931335SM 2 NUT, Hex Whiz Lock, 5/16-18, Black 19 1931277SM 6 PAN & ROD ASEMBLY 20 1718985SM 1 CAPSCREW, Hex Head, Whiz Lock, 5/16-18 x 3/4, Black 21 1930591SM 12 STOP, Seat 22 1713794SM 2 BAR 23 1713758SM 2 SEAT DECK 24 1722918CSM 1 MOLDING, PCV, 12-3/8" Long 25 1719104SM 6 FUEL TANK 26 1722904SM 1 CAP, Fuel 27 1722905SM 1 NUT, Speed, 5/16-18 28 1935255SM 6 WASHER, 5/16 29 1919326SM 3
Footnotes
The above parts group applies to the following Mfg. Nos.:
1694374 - 2006 Rapid 2690070 - 2006 Rapid
© Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
2007
23
Lift Group
NOTE: Unless noted otherwise, use the standard hardware torque specification chart.
986041
The above parts group applies to the following Mfg. Nos.:
1694374 - 2006 Rapid 2690070 - 2006 Rapid
© Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
2007
24
Lift Group
PART NO. DESCRIPTIONREF NO QTY.
WASHER, 3/8, Black 1 1960071SM 2 LINK, Lift 2 1723194ASM 2 SPACER 3 2154177SM 4 WASHER,3/8, Black 4 1922755SM 4 CAPSCREW, Hex Head, 3/8-16 x 1-3/4, Black 5 1921971SM 2 CAPSCREW, Hex Washer Head, 5/16-18 x 4-1/2, Black 6 1722357SM 1 NUT, Hex, 5/16-18, Black 7 1917372SM 2 ANCHOR, Spring 8 1723202ASM 1 CAPSCREW, Hex Head, 5/16-18 x 2-1/2 9 1921719SM 2 RETAINER, Spring 10 1723499SM 1 NUT, Speed, 5/16-18 11 1935255SM 1 SPRING, Extension, 9" Long 12 1675232SM 1 NUT, Hex Flange Lock, 3/8-16, Black 13 1930645SM 4 BAR & HUB ASSEMBLY 14 1723203ASM 1 PIN, Spring, 5/16 x 1-1/2 15 2815523SM 1 CAPSCREW, Hex Head, 3/8-16 x 1-1/4, Black 16 1920415SM 4 NUT, Hex Flange Whiz Lock, 5/16-18, Black 17 1931277SM 2 GRIP, Lift Lever 18 1722291SM 1 BUTTON, Red 19 1723124SM 1 NUT, Push, 1/4, Black 20 1960674SM 1 SPRING, Compression, 3.85" Long 21 1723321SM 1 HANDLE ASSEMBLY, Lift 22 1723200ASM 1 ROD 23 1723224SM 1 QUADRANT, Lift 24 1723285ASM 1 NUT, Hex Lock ESNA, 1/4-20, Black 25 1920397SM 1 LATCH "U" Wire 26 1720599SM 1 CAPSCREW, Hex Head, Whiz Lock, 5/16-18 x 3/4, Black 27 1930591SM 4 CAPSCREW, Hex Head, 1/4-20 x 2-1/4, Black 28 1921159SM 1 STRAP 29 1665374SM 1 BRACE, Support 30 1723529ASM 1 NUT, Hex Lock Aluminum Insert, 3/8-16 31 2860681SM 2 NUT, Hex Whiz Lock , 3/8-16 32 1928352SM 2
Footnotes
The above parts group applies to the following Mfg. Nos.:
1694374 - 2006 Rapid 2690070 - 2006 Rapid
© Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
2007
25
Wheels & Tires Group
NOTE: Unless noted otherwise, use the standard hardware torque specification chart.
W986265
The above parts group applies to the following Mfg. Nos.:
1694374 - 2006 Rapid 2690070 - 2006 Rapid
© Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
2007
26
Wheels & Tires Group
PART NO. DESCRIPTIONREF NO QTY.
WHEEL & TIRE ASEMBLY, Rear, (Includes Ref. Nos. 2, 3, 4, 5, & 6) 1 1723227SM 2 BEARING, Ball 2 1713167SM 2 WHEEL & BUSHINGS ASSEMBLY, (Includes Ref. No. 2) 3 1726301SM 1 VALVE STEM & CAP ASSEMBLY 4 2172353SM 4 TIRE, 15 X 6.00, 6 SUPER TURF TL 5 1723777SM 1 TUBE, Tire, 4.10/3.50, Rear 6 1664090SM 1 WASHER 7 2860202SM 8 RING, "E", External 8 2827794SM 4 CAP, Hub 9 1722675SM 4 WHEEL & TIRE ASSEMBLY, Front, (Includes Ref. Nos. 4, 11, 12, & 13) 10 1723228SM 2 WHEEL, 7.00 x 8.00 11 1716132SM 1 TUBE, Tire, 16 x 6.50 12 2164247SM 1 TIRE, 18 x 9.50, 8 SUPER TURF TL 13 1723778SM 1 SPACER 14 1723820SM 2 KEY, Parellel 3/16 x 3/16 x 2-3/4 15 1726886SM 2
Footnotes
The above parts group applies to the following Mfg. Nos.:
1694374 - 2006 Rapid 2690070 - 2006 Rapid
© Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
2007
27
Decals - Safety & Common
NOTE: Unless noted otherwise, use the standard hardware torque specification chart.
C986265A
The above parts group applies to the following Mfg. Nos.:
1694374 - 2006 Rapid 2690070 - 2006 Rapid
© Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
2007
28
Decals - Safety & Common
PART NO. DESCRIPTIONREF NO QTY.
DECAL, USA Logo 1 1708927 1 LABEL, CE & Serial Number, Export (Not Serviced) 2* 2 DECAL, Cutting Height Icons 3 1723825SM 1 DECAL, Belt Removal 4 1723786SM 1 DECAL, Warning Shear Point (CE/Export) 5 1723823SM 2 DECAL, Patent (Not Serviced) 6* 1 DECAL, Transmission Release Valve 7 1723160SM 1 DECAL, Lift Lever Symbols 8 1723143SM 1 DECAL, Ignition Switch 9 1723826SM 1 DECAL, Operating Instructions, Icons (CE/Export) 10 1723175SM 1 DECAL, Caution, Read Manual 11 1723824SM 1 DECAL, Danger Rotating Blades 12 1720389SM 2 DECAL, Height of Cut, 40" (CE/Export) 13 1720919SM 1 DECAL, Touch Up Paint, Red 14 1725072SM DECAL, Danger, Do Not Operate W/O Deflector 15 1704277SM 1 DECAL, OPEI, (Not Serviced) 16 * 1 DECAL, Belt & Blade, 56 Tooth 17 1724379SM 1 DECAL, Belt & Blade, 38 Tooth 17 1727574SM 1 DECAL, 17 HP Intek, Briggs & Stratton 18 1723071SM 1
Footnotes
Note* Not a service Part.
The above parts group applies to the following Mfg. Nos.:
1694374 - 2006 Rapid 2690070 - 2006 Rapid
© Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
2007
29
1694363 - Weight, Wheel
NOTE: Unless noted otherwise, use the standard hardware torque specification chart.
1694363
The above parts group applies to the following Mfg. Nos.:
1694374 - 2006 Rapid 2690070 - 2006 Rapid
© Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
2007
30
1694363 - Weight, Wheel
PART NO. DESCRIPTIONREF NO QTY.
NUT, Hex, 3/8-16 1 1916950SM 4 LOCKWASHER, 3/8 2 1916965SM 4 WEIGHT, Wheel (Includes Ref. Nos. 1, 2, 4, 5 & 6) 3 1724450SM 2 CAP, Wheel Weight 4N/A 2 WASHER, 3/8 5 1924940SM 4 CAPSCREW, Hex, 3/8-16 x 8 6 1960513SM 4
Footnotes
The above parts group applies to the following Mfg. Nos.:
1694374 - 2006 Rapid 2690070 - 2006 Rapid
© Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
2007
31
Mower Frame Group - with Height Adjustment
NOTE: Unless noted otherwise, use the standard hardware torque specification chart.
SL985961
The above parts group applies to the following Mfg. Nos.:
1694374 - 2006 Rapid 2690070 - 2006 Rapid
© Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
2007
32
Mower Frame Group - with Height Adjustment
PART NO. DESCRIPTIONREF NO QTY.
SPACER 1 1722952SM 2 CAPSCREW, Hex Head, 1/2-13 x 4-1/2, Black 2 1923161SM 2 BRACKET & SHAFT ASSEMBLY 3 1726385ASM 2 WASHER, 3/4, Black 4 2860202SM *4 BUSHING 5 1666001SM 4 FITTING, Lube 6 1704314SM 2 FRAME ASSEMBLY 7 1724960C 1 FRAME ASSEMBLY 7 1724960D 1 CAPSCREW, Hex Head, 3/8-16 x 1-1/4, Black 8 1920415SM 2 SPACER 9 2154177SM 2 NUT, Hex Flange Lock, 3/8-16, Black 10 1928352SM 2 PIN, Round Head, Drilled, 3/8 x 2, Black 11 2118053SM 2 CLIP, Hair Pin, Black 12 1960074SM 4 WHEEL, Caster 13 1722951SM 2 PIN, Clevis, Black 14 1724107SM 2 PIN, Cotter, 1/4 x 2, Black 15 1918452SM 2 NUT, Hex Lock Light, 1/2-13, Black 16 1960379SM 2 ROD, Height Adjuster 17 1724959SM 2 WASHER 18 1919326SM 2 NUT, Hex Lock, 5/16-18 19 1919438SM 2 SPACER 20 1725762SM 2
Footnotes
Note* For S/N 2100 & Above use P/N 1725760C, 1725760D Note* Only for S/N 2100 & Above Note* S/N 2099 & Below Quantity is 4; S/N 2100 & Above Quatity is 2
The above parts group applies to the following Mfg. Nos.:
1694374 - 2006 Rapid 2690070 - 2006 Rapid
© Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
2007
33
Mower Frame Group - without Height Adjustment
NOTE: Unless noted otherwise, use the standard hardware torque specification chart.
985961
The above parts group applies to the following Mfg. Nos.:
1694374 - 2006 Rapid 2690070 - 2006 Rapid
© Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
2007
34
Mower Frame Group - without Height Adjustment
PART NO. DESCRIPTIONREF NO QTY.
SPACER 1 1722952SM 2 CAPSCREW, Hex Head, 1/2-13 x 4-1/2, Black 2 1923161SM 2 BRACKET & SHAFT ASSEMBLY 3 1721878SM 2 WASHER, 3/4, Black 4 2860202SM 2 BUSHING 5 1666001SM 4 FITTING, Lube 6 1704314SM 2 FRAME ASSEMBLY 7 1686984SM 1 CAPSCREW, Hex Head, 3/8-16 x 1-1/4, Black 8 1920415SM 2 SPACER 9 2154177SM 2 NUT, Hex Flange Lock, 3/8-16, Black 10 1928352SM 2 PIN, Round Head, Drilled, 3/8 x 2, Black 11 2118053SM 2 CLIP, Hair Pin, Black 12 1960074SM 4 WHEEL, Caster 13 1722951SM 2 PIN, Clevis, Black 14 1724107SM 2 PIN, Cotter,1/4 x 2, Black 15 1918452SM 2 NUT, Hex Lock Light, 1/2-13, Black 16 1960379SM 2
Footnotes
The above parts group applies to the following Mfg. Nos.:
1694374 - 2006 Rapid 2690070 - 2006 Rapid
© Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
2007
35
40" Mower Deck - Belt, Idler Arm & Hitch
NOTE: Unless noted otherwise, use the standard hardware torque specification chart.
986260
The above parts group applies to the following Mfg. Nos.:
1694345 - 40" Mower 2690070 - 2006 Rapid
© Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
2007
36
40" Mower Deck - Belt, Idler Arm & Hitch
PART NO. DESCRIPTIONREF NO QTY.
WASHER & LOCK NUT ASSEMBLY 1 1721425SM 1 SPRING, Extension, 3/4 2 1674671SM 1 ARM, Idler 3 1726387 1 WASHER, 3/8, Black 4 1922755SM 7 HUB 5 1719221SM 2 PULLEY, Idler, 38 Tooth 6 1731892SM 2 SCREW, Hex Flange Head, 3/8-16 x 2 7 1960746SM 2 CAPSCREW, Hex Head, 5/16-18 x 5/8, Black 8 1930601SM 1 SPACER 9 1666697SM 1 NUT, Hex Flange Whiz Lock, 3/8-16, Black 10 1928352SM 2 BELT, Timming, 38 Tooth 11 1724625SM 1 CARRIAGE BOLT, 3/8-16 x 2, Black 12 1960315SM 1 WASHER, 3/8, Black 13 1924940SM 6 PULLEY, Idler 14 1725408SM 1 BELT, Arbor Drive 15 1719746SM 1 SPACER 16 1667812SM 1 PLATE & ROD ASSEMBLY 17 1724650A 1 NUT, Hex Lock Aluminum Insert, 3/8-16 18 2860681SM 3 PULLEY, Idler 19 1723952SM 1 CAPSCREW, Hex Head, 3/8-16 x 2-3/4, Black 20 1928957SM 1 BUSHING 21 1663114SM 2 ARM ASSEMBLY, w/Bushungs & Lube Fitting 22 1724646SM 1 SPACER 23 1667811SM 1 SPACER 24 1657242SM 1 CAPSCREW, Hex Head, 3/8-16 x 1-3/4, GR 8, Black 25 1922606SM 1 SPRING, Extension, 6" Long, Black 26 1715435SM 1 CAPSCREW, Hex Head, 3/8-16 x 1-3/8, Black 27 1921968SM 2 SPACER 28 1732443SM 2 HITCH ASSEMBLY, 40" Front Cut 29 1722040ASM 1 NUT, Hex Flange Lock, 3/8-16, Black 30 1919439SM 1
Footnotes
The above parts group applies to the following Mfg. Nos.:
1694345 - 40" Mower 2690070 - 2006 Rapid
© Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
2007
37

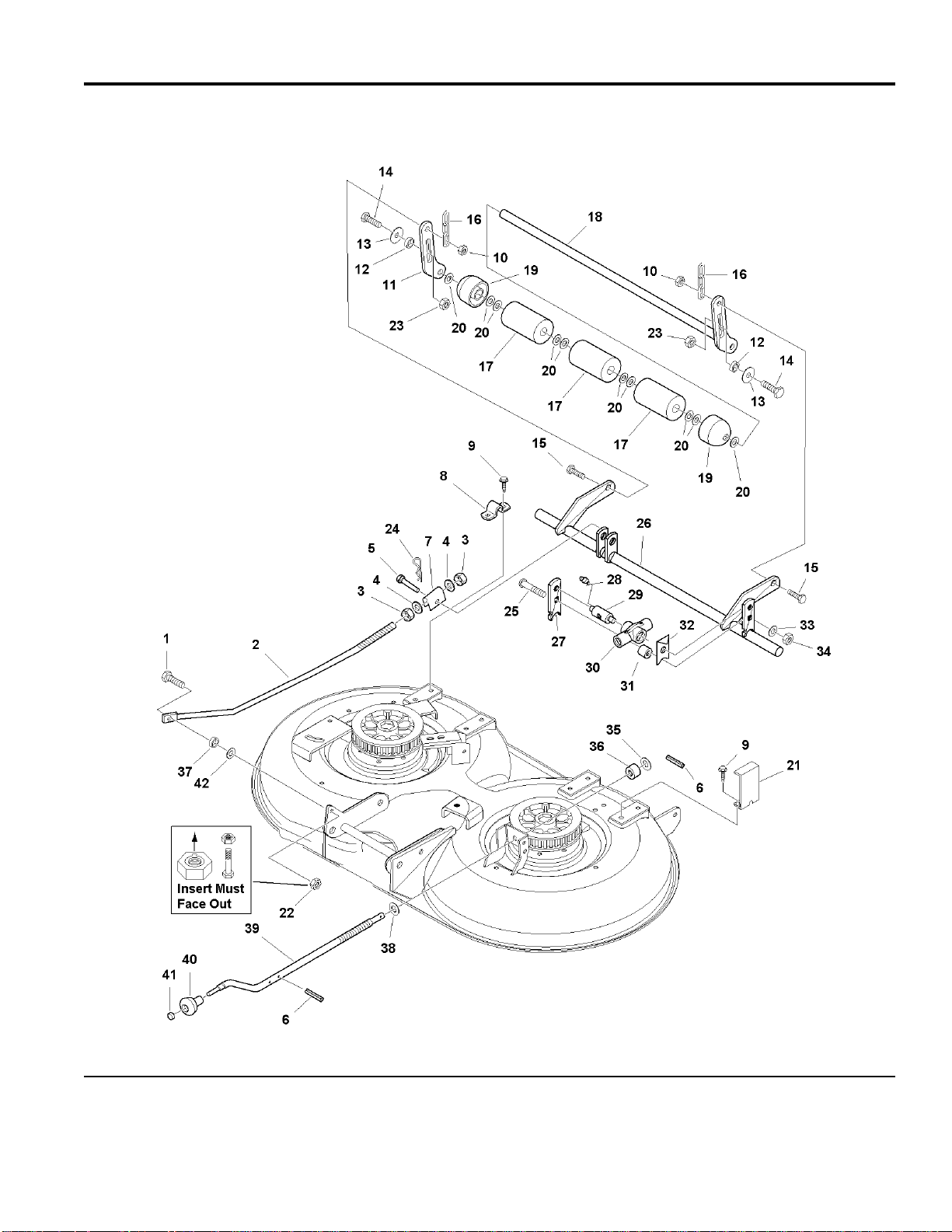

40" Mower Deck - Height Adjustment & Roller Bar
NOTE: Unless noted otherwise, use the standard hardware torque specification chart.
985960
The above parts group applies to the following Mfg. Nos.:
1694345 - 40" Mower 2690070 - 2006 Rapid
© Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
2007
38
40" Mower Deck - Height Adjustment & Roller Bar
PART NO. DESCRIPTIONREF NO QTY.
CAPSCREW, Hex Head, 3/8-16 x 1-3/4, GR 8, Black 1 1922606SM 1 ROD & STRAP ASSEMBLY 2 1723900SM 1 NUT, Hex, 5/8-11, Black 3 1915726SM 2 WASHER 4 1924366SM 2 PIN, Round Head, Drilled, 3/8 x 2, Black 5 2118053SM 1 PIN, Spring 6 2816001SM 3 TRUNNION 7 1706645ASM 1 STRAP 8 1665374SM 3 CAPSCREW, Hex Washer Head, Tap Tite, 5/16-18 x 3/4, Black 9 1664847SM 9 NUT, Hex Flange Lock, 3/8-16, Black 10 1960339SM 5 BAR, Roller 11 1723150ASM 1 SPACER 12 1960236SM 2 WASHER, 5/16, Black 13 1960044SM 2 CAPSCREW, Hex Head, 3/8-16 x 1-1/2, Black 14 1921969SM 4 CAPSCREW, Hex Head, 5/16-18 x 1-1/4, Black 15 1921977SM 2 CHAIN, Link, 5-5/8 Long, 4 Links 16 1669241SM 2 ROLLER, 5/8 ID x 2-1/2 OD x 4 Long 17 1668513SM 3 SHAFT & BAR ASSEMBLY 18 1722078A 1 ROLLER, 5/8 ID x 2-1/2 OD x 2 Long 19 1717675SM 2 WASHER, 5/8, Black 20 1924366SM 12 PLATE, Indicator 21 1723148A 1 WASHER, 5/16, Black 22 1924874SM 1 CAM, Eccentric 23 1714879SM 1 ARM 24 1722056SM 1 CARRIAGE BOLT, 1/2-13 x 2-1/2, Black 25 1960489SM 1 SHAFT ASSEMBLY, Rocker 26 1722077SM 1 ARM 27 1722978ASM 1 FITTING, Lube 28 1704314SM 1 TRUNNION 29 1715892SM 1 COVER, Rod 30 1716424SM 1 SPACER 31 1679166SM 1 POINTER, Height of Cut 32 1723147A 1 LOCKWASHER, 1/2, Black 33 1916966SM 1 NUT, Hex, 1/2-13, Black 34 1916951SM 1 WASHER, Special, Nylon 35 2860171SM 1 BEARING, Thrust 36 1715891SM 1 SPACER 37 1706644SM 1 WASHER, 5/8, Black 38 1960035SM 1 CRANK, Height of Cut 39 1723153SM 1 KNOB, Spinner 40 1714084SM 1 NUT, Push, 3/8 41 1960093SM 1 WASHER, 3/8, Black 42 1924940SM 1
Footnotes
The above parts group applies to the following Mfg. Nos.:
1694345 - 40" Mower 2690070 - 2006 Rapid
© Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
2007
39
40" Mower Deck - Height Adjustment & Roller Bar
NOTE: Unless noted otherwise, use the standard hardware torque specification chart.
985960
The above parts group applies to the following Mfg. Nos.:
1694345 - 40" Mower 2690070 - 2006 Rapid
© Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
2007
40
40" Mower Deck - Height Adjustment & Roller Bar
PART NO. DESCRIPTIONREF NO QTY.
CARRIAGE BOLT, 5/16-18 x 1-1/4 45 1960655SM 1 NUT, Hex Lock, 3/8-16 46 2860643SM 3 NUT, Hex Lock, Aluminum Insert, 3/8-16 47 2860681SM 1
Footnotes
The above parts group applies to the following Mfg. Nos.:
1694345 - 40" Mower 2690070 - 2006 Rapid
© Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
2007
41
40" Mower Deck - Height Adjustment & Roller Bar (Later)
NOTE: Unless noted otherwise, use the standard hardware torque specification chart.
SL985960
The above parts group applies to the following Mfg. Nos.:
1694345 - 40" Mower 2690070 - 2006 Rapid
© Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
2007
42
40" Mower Deck - Height Adjustment & Roller Bar (Later)
PART NO. DESCRIPTIONREF NO QTY.
CAPSCREW, Hex Head, 3/8-16 x 2, GR 8, Black 1 1923701SM 1 ROD & STRAP ASSEMBLY 2 1723900SM 1 NUT, Hex, 5/8-11, Black 3 1915726SM 2 WASHER 4 1924366SM 2 PIN, Round Head, Drilled, 3/8 x 2, Black 5 2118053SM 1 PIN, Spring 6 2816001SM 3 TRUNNION 7 1706645ASM 1 STRAP 8 1665374SM 3 CAPSCREW, Hex Washer Head, Tap Tite, 5/16-18 x 3/4, Black 9 1664847SM 9 NUT, Hex Flange Lock, 3/8-16, Black 10 1960339SM 3 BAR, Roller 11 1723150ASM 1 SPACER 12 1960236SM 2 WASHER, 5/16, Black 13 1960044SM 2 CAPSCREW, Hex Head, 3/8-16 x 1-1/2, Black 14 1921969SM 2 CAPSCREW, Hex Head, 5/16-18 x 1-1/4, Black 15 1921977SM 2 CHAIN, Link, 3 Links 16 1656835A 2 ROLLER, 5/8 ID x 2-1/2 OD x 4 Long 17 1668513SM 3 SHAFT & BAR ASSEMBLY 18 1722078A 1 ROLLER, 5/8 ID x 2-1/2 OD x 2 Long 19 1717675SM 2 WASHER, 5/8, Black 20 1924366SM 12 PLATE, Indicator 21 1723148A 1 NUT, Hex Lock, Aluminum Insert, 3/8-16 22 2860681SM 1 NUT, Hex Lock, 3/8-16 23 2860643SM 3 PIN, Hair 24 1960074SM 1 CARRIAGE BOLT, 1/2-13 x 2-1/2, Black 25 1960489SM 1 SHAFT ASSEMBLY, Rocker 26 1724970A 1 ARM 27 1722978ASM 1 FITTING, Lube 28 1704314SM 1 TRUNNION 29 1715892SM 1 COVER, Rod 30 1716424SM 1 SPACER 31 1679166SM 1 POINTER, Height of Cut 32 1723147A 1 LOCKWASHER, 1/2, Black 33 1916966SM 1 NUT, Hex, 1/2-13, Black 34 1916951SM 1 WASHER, Special, Nylon 35 2860171SM 1 BEARING, Thrust 36 1715891SM 1 SPACER 37 1706644SM 1 WASHER, 5/8, Black 38 1960035SM 1 CRANK, Height of Cut 39 1723153SM 1 KNOB, Spinner 40 1714084SM 1 NUT, Push, 3/8 41 1960093SM 1 WASHER, 3/8, Black 42 1924940SM 1
Footnotes
The above parts group applies to the following Mfg. Nos.:
1694345 - 40" Mower 2690070 - 2006 Rapid
© Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
2007
43
40" Mower Deck - Housing, Arbors & Blades
NOTE: Unless noted otherwise, use the standard hardware torque specification chart.
986259
The above parts group applies to the following Mfg. Nos.:
1694345 - 40" Mower 2690070 - 2006 Rapid
© Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
2007
44
40" Mower Deck - Housing, Arbors & Blades
PART NO. DESCRIPTIONREF NO QTY.
CARRIAGE BOLT,1/4-20 x 7/8, Black 1 1931318SM 1 NUT, Push, 1/4, Black 2 1960518SM 1 WASHER, 1/4, Black 3 1960353SM 2 CLAMP, Wire, Black 4 1704873SM 1 LOCKWASHER, 1/4, Black 5 1916964SM 1 NUT, Hex, 1/4-10, Black 6 1916622SM 1 SPRING, Torsion, Black 7 1723938SM 1 CARRIAGE BOLT, 5/16-18 x 1, Black 8 1931335SM 1 NUT, Push, 5/16, Black 9 1933988SM 1 WASHER, 5/16, Black 10 1919381SM 1 LOCKWASHER, 5/16, Black 11 1917356SM 1 NUT, Hex, 5/16, Black 12 1917372SM 1 ROD 13 1719617SM 1 DOOR, Mulching 14 1719597SM 1 ARBOR SHAFT & BEARING ASSEMBLY 15 1726825SM 1 DEFLECTOR, Discharge 16 1720600SM 1 NUT, Hex Flange, 9/16-18 17 1714419SM 1 WASHER, Spring, 7/16, Black 18 1656916SM 3 PULLEY, 5" OD x 1" ID 19 1713091SM 1 HUB 20 1719870SM 1 SPROCKET & FLANGE ASSEMBLY, 38 Tooth, w/Screws 21 1687229SM 2 HOUSING, Arbor, Top 22 1655729ASM 2 GASKET, Foam 23 1707335SM 2 ARBOR SHAFT & BEARINGS ASSEMBLY 24 1722396SM 1 HOUSING, Arbor, Bottom, w/Lube Fitting 25 1703273ASM 2 CAPSCREW, Hex Head, 7/16-14 x 2-3/4, GR 8, Black 26 1930584SM 1 WASHER, 7/16, Black 27 1933263SM 1 COVER, Arbor, LH, Black 28 1724601SM 1 CAPSCREW, Hex Washer Head, Tap Tite, 5/16-18 x 3/4, Black 29 1664847SM 6 HOUSING ASSEMBLY (Orange) 30 1686977SM 1 HOUSING ASSEMBLY (Red) 30 1687315SM 1 BLADE, Mower, 20-3/8, LH 31 1719624ASM 1 PIN, Blade 32 1722258SM 2 WASHER, Spline 33 1722257SM 2 CAPSCREW, Hex Head, 7/16-14 x 1-1/4, GR 8 34 2827120SM 2 ADAPTER, Blade 35 1655777SM 2 SHIELD, Bearing 36 1700229SM 2 WASHER, Shim, Black 37 1700230SM 2 ADAPTER, Arbor 38 1677274ASM 2 CAPSCREW, Hex Head, 5/16-18 x 1, Black 39 1960373SM 12 BLADE, Mower, 20-3/8, RH 40 1719623ASM 1 SHIELD, Bearing Upper, Arbor 41 1657969SM 2
Footnotes
The above parts group applies to the following Mfg. Nos.:
1694345 - 40" Mower 2690070 - 2006 Rapid
© Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
2007
45
40" Mower Deck - Housing, Arbors & Blades
NOTE: Unless noted otherwise, use the standard hardware torque specification chart.
986259
The above parts group applies to the following Mfg. Nos.:
1694345 - 40" Mower 2690070 - 2006 Rapid
© Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
2007
46
40" Mower Deck - Housing, Arbors & Blades
PART NO. DESCRIPTIONREF NO QTY.
COVER, Arbor RH 44 1724600SM 1 GUARD ASSEMBLY, RH 45 1721259ASM 1 GUARD, Extension 46 1721132ASM 1 RIVIT, Pop 47 1675044SM 1 WASHER, 3/16 x 3/4 x 1/16 48 1960096SM 4 SHIM-Cover LH 7GA 40" Mowers 49 1732964SM 1 SHIM-Cover RH 7GA 2.8 LG 40" Mowers 50 1732963SM 1 SHIM-Cover RH 7GA 6.5 LG 40" Mowers 51 1732961SM 1
Footnotes
The above parts group applies to the following Mfg. Nos.:
1694345 - 40" Mower 2690070 - 2006 Rapid
© Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
2007
47
Hex Head Capscrew
Hex Nut
Lockwasher
Washer
Carriage Bolt
Hardware Identification & Torque Specifications
Screw, 1/2 x 2
Body
Diameter
Body
Length
Inside Diameter
Nut, 1/2”
No
Marks
3/8” Bolt or Nut
Wrench—9/16”
3/8
5/16” Bolt or Nut
Wrench—1/2”
5/16
1/4” Bolt or Nut
Wrench—7/16”
1/4
1/2” Bolt or Nut
Wrench—3/4”
1/2
DIA.
7/16 DIA.
7/16” Bolt or Nut
Wrench (Bolt)—5/8”
Wrench (Nut)—11/16”
Wrench & Fastener Size Guide
0
1/4 3/4
1/2
1
1/4 3/4
1/2
2
1/4 3/4
1/2
3
1/4 3/4
1/2
4
Common Hardware Types
Torque Specification Chart
FOR STANDARD MACHINE HARDWARE (Tolerance ± 20%)
Hardware Grade
Size Of
Standard Hardware Sizing
When a washer or nut is identified as 1/2”, this is the
Nominal size
second number is present it represent the When bolt or capscrew is identified as 1/2 - 16 x 2”, this
means the second number represents the example, and the final number is the bolt or screw (in this example 2 inches long).
, meaning the
Nominal size
inside diameter
, or
body diameter
threads per inch
is 1/2 inch; if a
threads per inch
is 1/2 inch; the
body length
(16 in this
of the
The guides and ruler furnished below are designed to help you select the appropriate hardware and tools.
Hardware ft/lbs Nm. ft/lbs Nm. ft/lbs Nm.
8-32 8-36 10-24 10-32 1/4-20 1/4-28 5/16-18 11 15.0 17 23.1 25 34.0 5/16-24 12 16.3 19 25.8 27 34.0 3/8-16 20 27.2 30 40.8 45 61.2 3/8-24 23 31.3 35 47.6 50 68.0 7/16-14 30 40.8 50 68.0 70 95.2 7/16-20 35 47.6 55 74.8 80 108.8 1/2-13 50 68.0 75 102.0 110 149.6 1/2-20 55 74.8 90 122.4 120 163.2 9/16-12 65 88.4 110 149.6 150 204.0 9/16-18 75 102.0 120 163.2 170 231.2 5/8-11 90 122.4 150 204.0 220 299.2 5/8-18 100 136 180 244.8 240 326.4 3/4-10 160 217.6 260 353.6 386 525.0 3/4-16 180 244.8 300 408.0 420 571.2 7/8-9 140 190.4 400 544.0 600 816.0 7/8-14 155 210.8 440 598.4 660 897.6 1-8 220 299.2 580 788.8 900 1,244.0 1-12 240 326.4 640 870.4 1,000 1,360.0
1. These torque values are to be used for all hardware excluding: locknuts, self-tapping screws, thread forming screws, sheet metal screws and socket head setscrews.
2. Recommended seating torque values for locknuts:
a. for prevailing torque locknuts - use 65% of grade 5 b. for flange whizlock nuts and screws - use 135% of
3. Unless otherwise noted on assembly drawings, all torque values must meet this specification.
SAE Grade 2 SAE Grade 5 SAE Grade 8
in/lbs in/lbs
19
2.1
20
2.3
27
3.1
31
3.5
66
7.6 8 10.9 12 16.3
76
8.6 10 13.6 14 19.0
torques. grade 5 torques.
30 31 43 49
NOTES
in/lbs
3.4
3.5
4.9
5.5
41 43 60 68
4.6
4.9
6.8
7.7
MANUFACTURING, INC.
500 N. Spring Street / PO Box 997 Port Washington, WI 53074-0997 USA
www.simplicitymfg.com
Briggs and Stratton Yard Power Products Group
2007Copyright © by Briggs and Stratton Corporation
Milwaukee, WI, USA. All rights reserved
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
