ATTACHMENT
OPERATOR’S
MANUAL
Snow Plow/Dozer Blade
Mfg. No. Description
1693754 42” Remote Angling Snow Plow/Dozer Blade
Hitch
Mfg. No. Description
1693756 Hitch
(for Baron Series, Broadmoor / 1600 / 2600 Series, & Landlord / 1700 / 2700 Series)
1721302-04
Rev 1/2001
TP 100-2356-04-AT-SMA
Snow/Dozer
Blade & Hitch
1
Table of Contents
Adjustments.........................................................7
Skid Shoe Adjustment .....................................7
Spring Tension.................................................7
Lift Height Adjustment .....................................8
Downward Pressure Adjustment .....................8
Initial Setup & Assembly
Dozer Components..........................................9

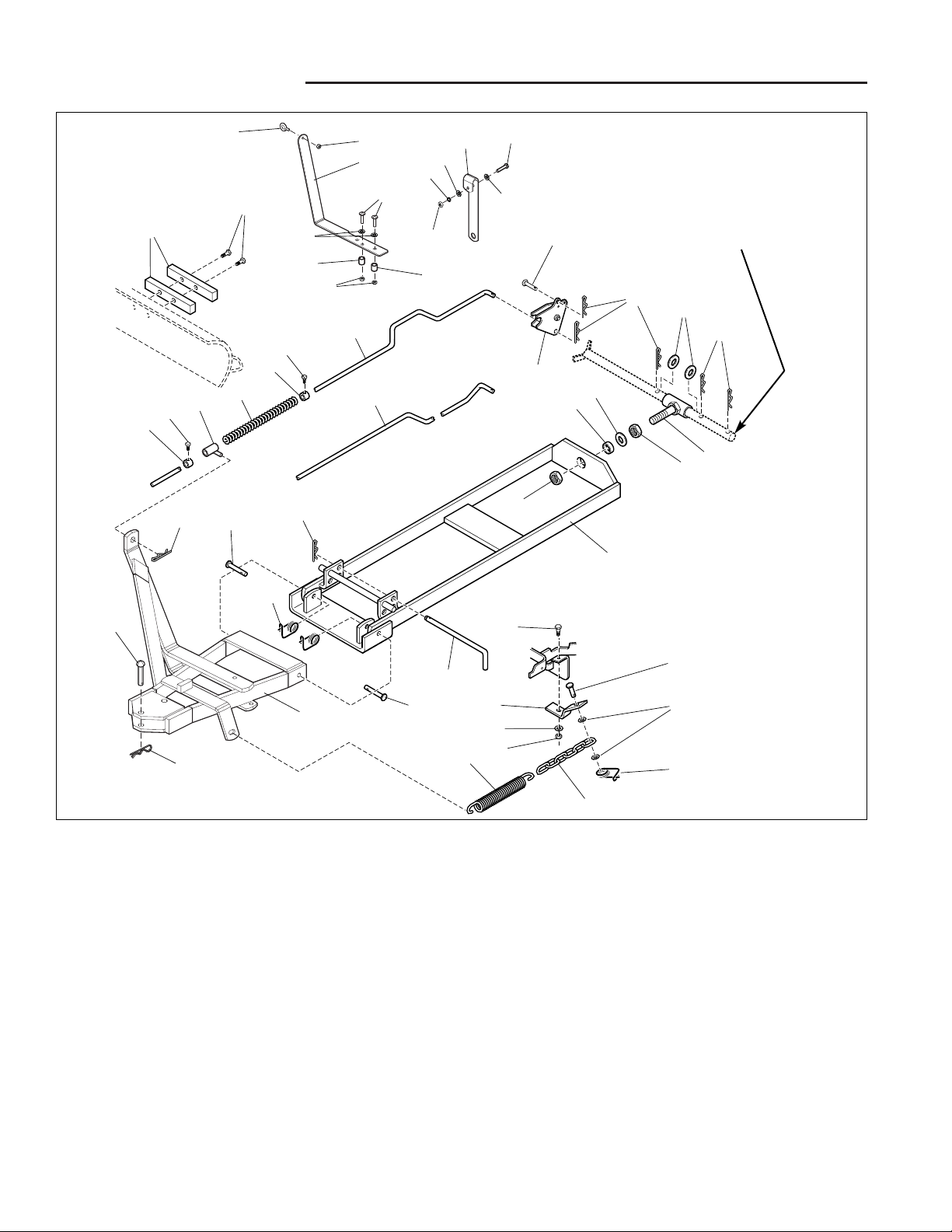

Hitch Components .........................................10
Assemble Blade.............................................11
Install Rear Pushbar Support ........................12
Install Hitch ....................................................12
Install Pivot Hitch ...........................................13
Install Spring Assist Bracket ..........................14
Install Dozer Blade ........................................14
Install Lift Rod................................................15
Install Angling Control Rod ............................16

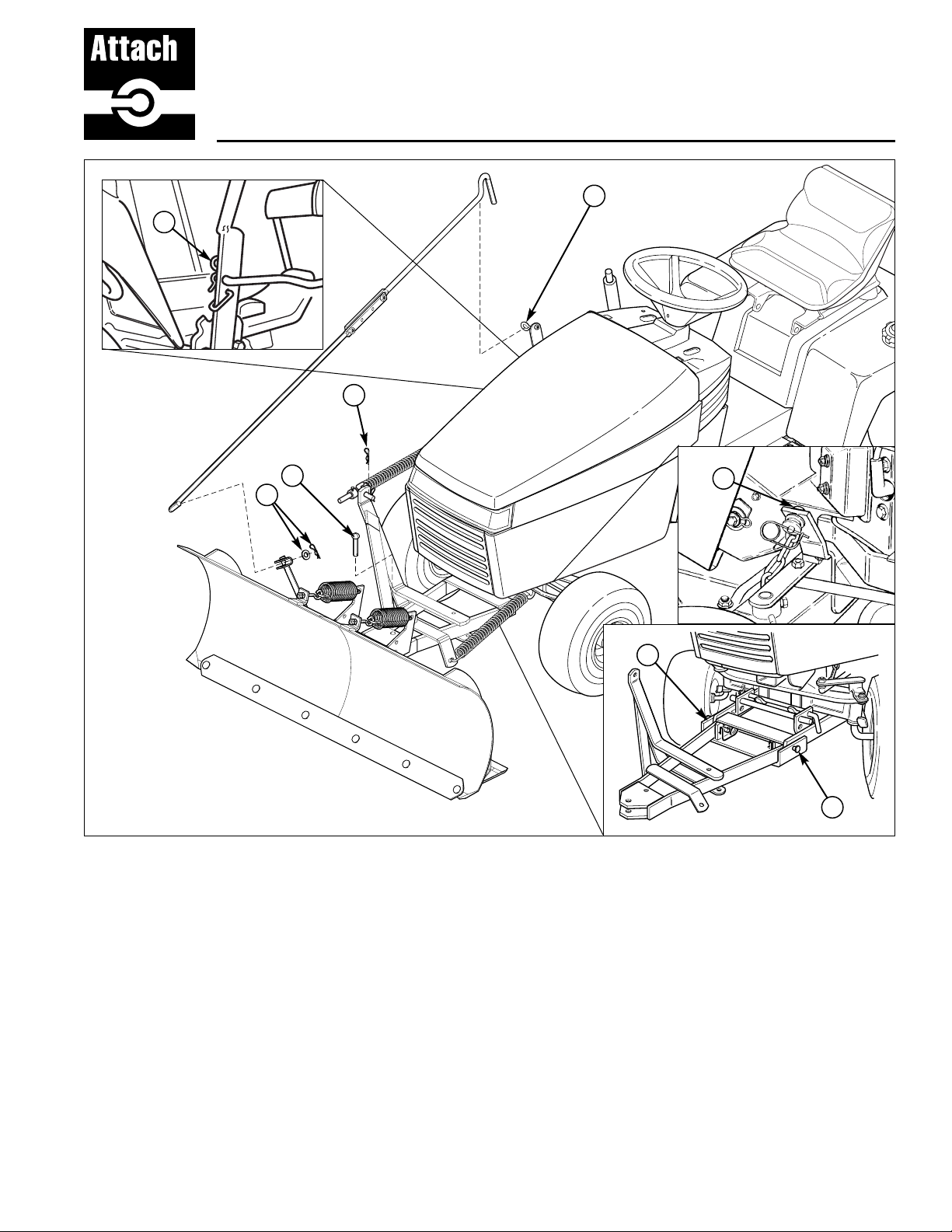

Attaching & Removing the Hitch & Blade
Removing & Attaching Dozer Blade ..............17
Removing & Attaching Hitch..........................18
Reinforcement Bracket Installation .................19

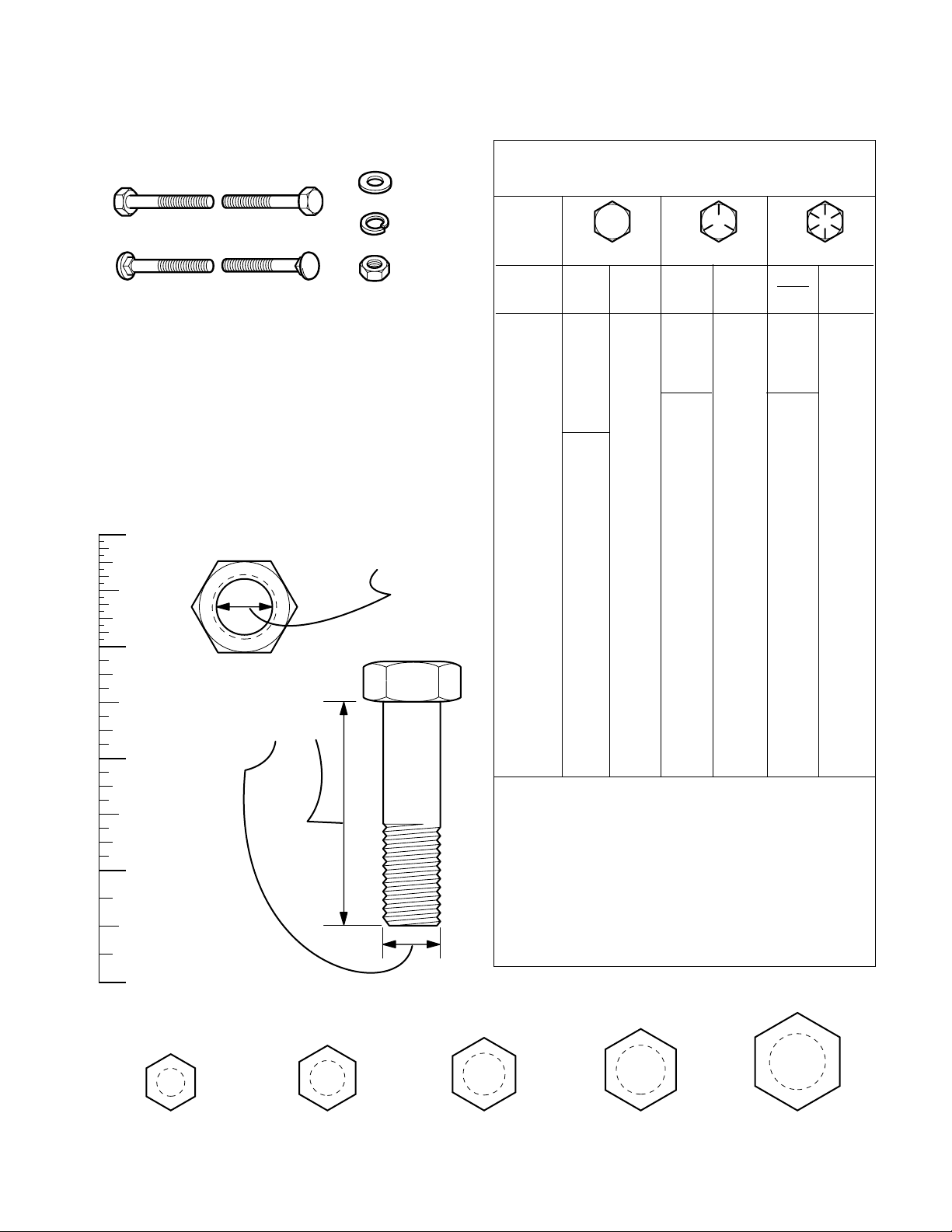

Hardware Identification
& Torque Specifications....................................20
NOTE: In these instructions, “left” and “right” are
referred to as seen from the operating position.
© Copyright 2001 Simplicity Manufacturing, Inc.
All Rights Reserved. Printed in USA.
TP 100-2356-04-AT-SMA
Recommended Accessories ..............................1
Safety Rules & Information
General Warnings............................................2
Operating on Slopes........................................2
Preparation ......................................................2
Operating Safety..............................................2
Features & Controls ............................................3
Blade Angle Control.........................................3
Manual Attachment Lift Lever ..........................3
General Operating Instructions
Checks Before Starting....................................4
Engine & Ground Speed Selection..................4
Transporting.....................................................4
Starting & Stopping .........................................4
Changing Angle of the Blade...........................5
Dozing Tips......................................................5
Snow Plowing Tips ..........................................5
Storage .................................................................5
Maintenance & Normal Care Schedule..............6
Schedule for Normal Care ...............................6
Lubricate the Dozer Blade ...............................6
Recommended Accessories
For best performance, it is recommended to use tire chains and two rear wheel weights. A rear-mounted weight
box can also be added for additional traction. The maximum weight added to the tractor should not exceed 35
lbs. per wheel, plus 100 additional pounds in the rear weight box.
For operation on slopes greater than 15% (8.5°), Quick Tach Weights, tire chains, and wheel weights are recommended. Never operate on slopes greater than 17.6% (10°).
Required Accessories
A Lift Lever Kit is required for some of the models covered by this manual, and must be installed as part of hitch
installation.
OPERATING SAFETY
O Always clear snow up and down the face of slopes,
never across the face. Exercise extreme caution
when changing direction on slopes. Do not attempt to
clear steep slopes.
O Exercise extreme caution when operating on, or
crossing, gravel drives, walks or roads. Stay alert for
hidden hazards or traffic.
O After striking an object or if unit starts to vibrate
abnormally, stop the engine and remove the key.
Check for the cause and any damage before restarting. Before any inspection, make sure all moving
parts have stopped.
O Take all possible precautions before leaving opera-
tor’s position. Lower the attachment, set the parking
brake, stop the engine and remove the key.
O Never operate near glass enclosures, automobiles,
window wells, dropoffs, etc.
O Do not put hands or feet near or under the dozer
blade. Keep clear of the dozer blade at all times.
O Do not overload machine capacity by attempting to
clear too much material at too fast a rate.
O Never operate unit at high transport speeds on slip-
pery surfaces. Use care when travelling in reverse.
O Never operate the dozer blade without good visibility
or light. Always be sure your feet are properly placed
on the footrests and keep a firm hold on the steering
wheel.
O Do not run the engine indoors.
O Never allow anyone in front of the unit.
2
Safety Rules
& Information
Read these safety rules and follow them closely. Failure to obey these rules could result in loss of control
of unit, severe personal injury or death to you, or bystanders, or damage to property or equipment.
The triangle in text signifies important cautions or warnings which must be followed.
GENERAL WARNINGS
O Know the tractor controls and how to stop quickly.
READ THE TRACTOR OPERATOR’S MANUAL.
O Read this manual and the tractor Operator’s Manual
carefully. Be thoroughly familiar with the controls and
the proper use of the equipment.
O Never allow children to operate the machine. Do not
allow adults to operate it without proper instruction.
O Do not carry passengers.
O Use only attachments or accessories designed for
your machine. See your dealer for a complete list of
recommended attachments or accessories.
O Keep the area of operation clear of all persons, par-
ticularly small children, and pets.
O Never direct discharge towards bystanders.
O Make sure all hardware is secure and that dozer
blade is in good operating condition.
O Check to be sure all safety devices and shields are in
place.
O Check that all adjustments are correct before using
this unit.
O Gasoline is highly flammable. Follow all precautions
listed in your tractor’s operator’s manual.
O Always wear eye protection while operating and per-
forming adjustments to protect eyes from debris
thrown by the dozer.
O When cleaning, repairing, or inspecting the unit make
sure all moving parts have stopped. Disconnect and
secure the spark plug wires and remove the key to
prevent accidental starting.
PREPARATION
O Disengage the PTO before making any adjustments.
O Never attempt to make any adjustments while engine
is running.
O Thoroughly inspect the area where the dozer is to be
operated and remove all foreign objects.
O Adjust the skid shoe height to clear gravel or crushed
stone surface. See the Adjustments section for procedure.
DANGER
OPERATING ON SLOPES
CAN BE DANGEROUS
For operation on slopes greater than 15% (8.5°),
weight box, tire chains, and wheel weights are
recommended. NEVER OPERATE ON SLOPES
GREATER THAN 17.6% (10°).
3
TRACTOR CONTROLS
Before you begin operating the tractor with the dozer
blade attachment, make certain you have:
• Read and understood the instructions in the
tractor Operator’s Manual.
• Become thoroughly familiar with all of the
tractor controls and their operation, including
how to safely and properly start and stop the
unit.
• Practice driving in an open area—without dozing—to become accustomed to the unit.
Features
& Controls
A. Blade Angle Control Lever
The blade angle release lever controls a spring-loaded
plate which locks the blade in one of three positions.
Use an abrupt pushing/pulling motion to release the
angling mechanism and move the blade left or right.
Push the angling lever forward fully to lock the blade in
the left position. Pull the lever fully back to lock the
blade in the right position. Move the lever slowly past
center to lock in the centered position.
NOTE: It is easier to change the angle of the blade with
the attachment raised.
B. Manual Attachment Lift Lever
NOTE: Models with hydraulic or electric lift should refer
to the tractor operator’s manual for lift control information.
The attachment lift lever raises and lowers the dozer
blade. To RAISE an attachment, depress the release
button on top of the lever and pull back. To LOWER an
attachment, depress the release button and move the
lever forward.
The back notch suspends the blade for transporting to
and from the work site. The middle notch is the “float”
position. The front notch applies downward pressure on
the blade. See the Adjustments section for proper blade
adjustment.
Please take a moment and
familiarize yourself with the
name, location, and function
of these controls so that you
will better understand the safety and operating instructions
provided in this manual.
Figure 1. Control Locations
A. Blade Angle Control Lever
B. Manual Attachment Lift Lever
CONTROL FUNCTIONS
The information below briefly describes the
function of individual controls. Operating the
tractor and dozer require the combined use of
these controls and additional controls whose
operation is described in the tractor Operator’s
Manual.
A
B
4
Checks Before Starting
1. Refer to the Maintenance & Adjustments sections of
this manual and perform any needed service. Also,
refer to the tractor Operator’s Manual and perform
any required service.
2. Remove any objects from the work area which might
interfere with plowing activity.
3. Adjust the skid shoes to desired height. See Skid
Shoe Adjustment.
4. Make sure all hardware is present and secure.
Engine & Ground Speed Selection
Always run the engine at full throttle.
Set tractor speed to obtain the needed power to move
the material. Operate at a safe speed, depending on
conditions, so that you have complete control of the tractor. Rear wheel weights and chains are recommended
for slippery surfaces.
A weight box is recommended for additional traction.
Transporting
For maximum ground clearance, transport the blade to
and from work areas fully raised and angled straight
ahead.
Starting & Stopping
1. Start the tractor engine. Set engine throttle to full.
2. Raise the attachment lift and travel to the work site.
3. Set the angling control to the desired angle.
4. Lower the attachment lift and begin plowing.
5. Raise the plow before backing up.
6. To stop the tractor, set ground speed to neutral and
set the parking brake. Before leaving the seat, stop
the engine, set the parking brake, remove the key,
and wait for all moving parts to stop.
General
Operating Instructions
WARNING
Perform the Safety System Interlock test found in
your tractor Operator’s Manual. If tractor does not
pass the test, do not operate the tractor. See your
authorized dealer. Under no circumstances
should you attempt to defeat the safety system.
Use caution when plowing a snow covered area.
Snow can cover objects such as curbs, drop-offs,
and other obstacles. Be familiar with the area you
are plowing.
To prevent an explosion or fire, never store the
tractor with fuel in the tank inside a building
where an ignition source is present.
DANGER
OPERATING ON SLOPES CAN BE DANGEROUS
Never operate on slopes greater than 17.6% (10°)
which is a rise of 3-1/2 feet (106cm) vertically in
10 feet (607cm) horizontally.
Operate the unit at a slow ground speed when
driving onto slope. Avoid using brakes to control
ground speed.
When operating on slopes that are greater than
15 % (8.5°) but less than 17.6%, use additional
wheel weights or counterweights.
In addition to counterweights, use extra caution
when operating on slopes. Drive UP and DOWN
the slope, never across the face, use caution
when changing directions and DO NOT START
OR STOP ON SLOPE.
For additional traction, tire chains and a weight
box can be added. Maximum weight added to
tractor should not exceed 35 lbs. per wheel and
100 additional lbs. in weight box.
IMPORTANT NOTE
To prevent damage to the unit, always
raise the dozer blade BEFORE turning or
backing up.
5
General Operating Instructions
Daily Storage
1. Allow tractor engine to cool before storing in any
enclosure.
2. After dozing or plowing jobs are completed, hose or
brush down the blade to remove excess dirt.
3. Lightly oil all pivot points. Coat bare metal surfaces to
prevent corrosion.
IMPORTANT NOTE
Refer to Tractor Operator’s Manual for
important information concerning safely
storing your tractor.
Changing Angle of the Blade:
See Figure 1 for location of Controls.
NOTE: It is easier to change the angle of the blade with
the attachment raised.
1. Raise the attachment lift.
2. Use an abrupt pushing/pulling motion to release the
angling mechanism and move the blade left or right.
Push the angling lever forward fully to lock the blade
in the left position. Pull the lever fully back to lock the
blade in the right position. Move the lever slowly over
center to lock in the centered position.
Dozing Tips
• Determine the best dozing pattern before beginning.
• When land contour permits, it is best to travel in the
longest direction to minimize turning.
• In very deep snow or gravel, it may be necessary to
make the first pass with dozer blade partially raised,
then repeat each pass with the blade lowered to clear
the material left on the surface. Also, it may be necessary to clear less than the full width of the dozer
blade or reduce ground speed.
• When dozing, push the dirt to the desired location,
then drag the blade backwards for final leveling. Pack
down the dirt or gravel by driving the tractor over the
leveled area.
• Use any slight grade to your advantage, doze downhill, and set the blade angle so that the plowed material is moving downhill as it leaves the blade.
Snow Plowing Tips
• Determine the best snow removal pattern before
beginning.
• Plan the pattern so that you avoid pushing snow onto
cleared areas.
• When land contour permits, it is best to travel in the
longest direction to minimize turning.
• In very deep or heavy snow, it may be necessary to
make the first pass with dozer blade partially raised,
then repeat each pass with the blade lowered to clear
the material left on the surface. Also, it may be necessary to clear less than the full width of the dozer
blade or reduce ground speed.
• Snow tends to freeze into solid banks when plowed
off a driveway or other large area. Because of this
you may want to plow snow several feet past the
edge of the drive to allow space for future plowing to
build up.
• If pushing snow past the edges of driveways or sidewalks, be careful not to tear up the grass buried
under snow next to the drive or sidewalk. Lift the
blade several inches off the ground to avoid damaging the grass.
• Spinning tires with tire chains can leave unsightly
marks or permanent damage to asphalt or concrete
driveways or sidewalks. Avoid sudden stops or
starts.
Storage
Off-Season Storage
1. Remove dozer blade and hitch from the tractor.
2. Use water pressure or a brush to thoroughly clean
the dozer blade.
3. Paint, or lightly coat with oil, any area where paint
has been worn or chipped away.
4. Lubricate the dozer blade.
5. Store the dozer blade and hitch in a dry place.
6
Maintenance
Schedule For Normal Care
Care Required Schedule
Clean debris from After each use.
dozer blade.
Lubricate dozer blade. Every 10 hours or at
least once a year.
Lubricate Dozer Blade
Lubricate the dozer blade as shown in Figure 2. Where
an oil can is shown, wipe the area clean, apply a few
drops of oil (SAE 30), then wipe up drips or spills.
In general, linkage connections and other parts that have
partial rotational or sliding movement should be lubricated periodically with SAE 30 weight oil. Avoid applying
excessive amounts of oil since this may cause a build-up
of dirt around the lubricated area, making subsequent
lubrication more difficult to accomplish.
WARNING
To avoid serious injury, perform maintenance on
the tractor or dozer blade only when the engine is
stopped, parking brake is set and all moving parts
have stopped. Always remove the ignition key
before beginning maintenance or adjustments to
prevent accidental starting of the engine.
Figure 2. Lubrication Points
7
Adjustments
Skid Shoe Adjustment
Slotted holes are provided to permit adjustment of the
shoe assemblies for raising and lowering the blade to
various working heights (see Figure 3).
When cleaning snow from gravel or earth drives or
walks, the shoe assemblies should be lowered fully to
prevent blade contact with gravel or ground. When
cleaning smooth hard surfaces like concrete, the shoe
assemblies are normally placed fully up to allow the
blade to scrape the surface.
To adjust the skid, raise the blade off the ground and
block with a piece of wood. Loosen the bolts (B, Figure
3) and move the skid shoes (A) up or down to desired
height. Tighten the bolts securely.
Figure 3.
A. Skid Shoes
B. Bolts
Spring Tension
See Figure 4. This snow plow/dozer blade is spring
loaded so that when the blade strikes a solid object, the
springs will allow the blade to release as shown, rather
than cause damage. The blade will go back to its original
position after object is cleared.
Figure 4. Dozer Blade “Released”
Figure 5. Tension Springs
A. Eyebolt D. Pivot Frame
B. Nut, 5/16 E. Nut, 5/16
C. Spring
See Figure 5. To adjust spring tension hold rear nut (B)
and loosen front nut (E). Tighten rear nut (B) to increase
spring tension, or loosen to decrease tension.
For initial adjustment, tighten nut (B) on each eyebolt
enough to expose about 3/4" (19mm) of thread. Tighten
front nut (E) against rear nut (B) to lock adjustment in
place.
8
Adjustments

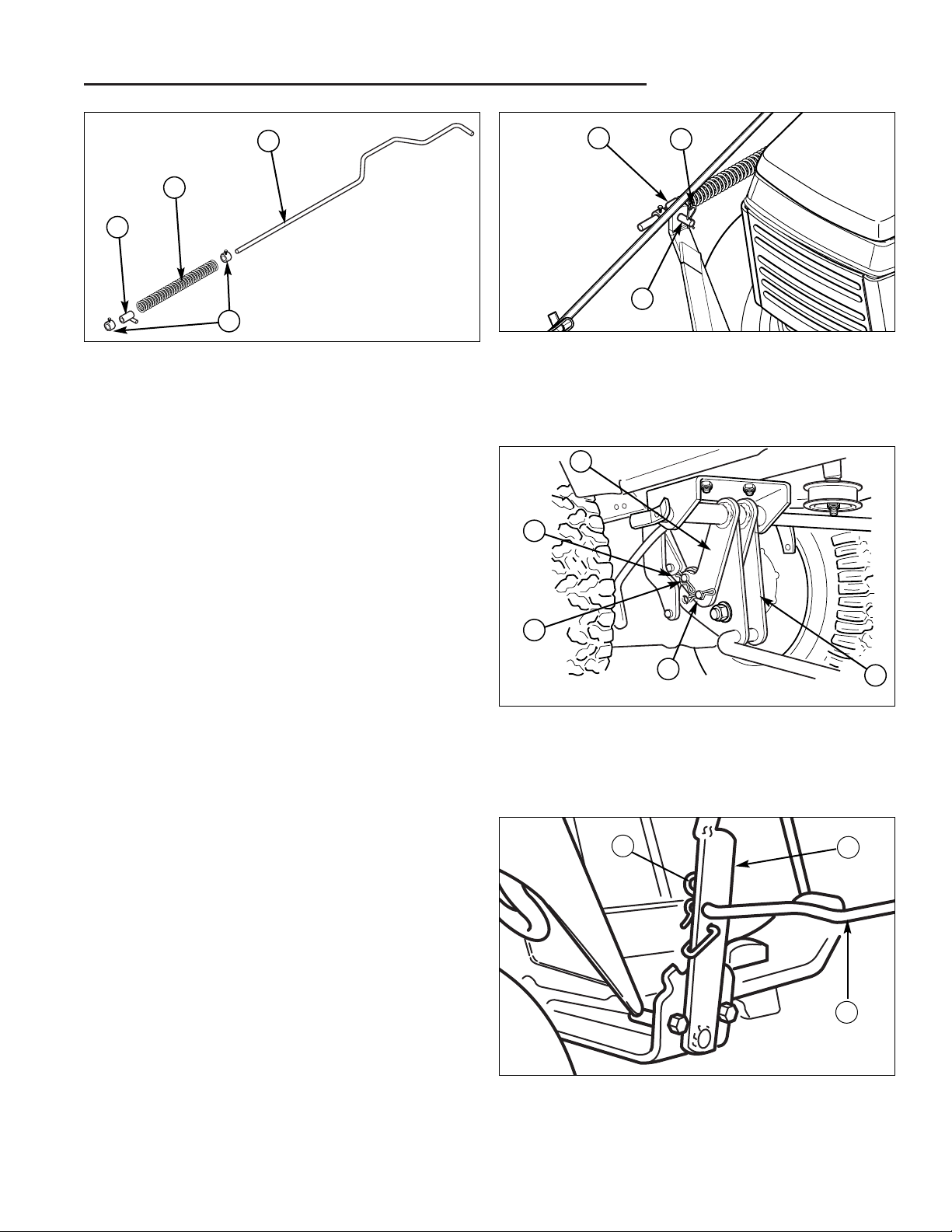

Figure 6. Adjusting Lift Rod
A. Front Set Collar
B. Rod Guide
C. Spring
D. Rear Set Collar
E. Spring Clip
Figure 7. Lift Lever Quadrant - Side View
Notch 1
Notch 2
Notch 3
Lift Rod Adjustment
ELECTRIC/HYDRAULIC LIFT MODELS:
In the fully raised position the blade should be 6” off the
ground. In the fully lowered position, the lift rod should
slightly compress the spring creating downward pressure on the blade.
NOTE: Always adjust the lift height before and after
adjusting the downward pressure.
MANUAL LIFT MODELS
The lift lever can be placed in one of three notches and
is held in position by the lever latch. (see Figure 7).
When the lever latch is placed in notch 1 the lift lever
should be applying downward pressure on the attachment. In position 2, the “float” position, the attachment
should experience negligible upward or downward pressure. Position 3 should raise the attachment approximately 6“ above the ground.
NOTE: Always adjust the lift height before and after
adjusting the downward pressure.
LIFT HEIGHT ADJUSTMENT
1. Place the lever latch in notch 3 (see Figure 7). The
snowthrower should be approximately 6” off the
ground. If not, go to step 2.
2. Lower the snowthrower and adjust the front set collar
(A, Figure 6) to achieve the correct lift height.
DOWNWARD PRESSURE ADJUSTMENT
1. Move the lever latch from notch 2 to notch 1 (See
Figure 7) or place the hydraulic/electric lift in the fully
lowered position.
2. The spring (C, Figure 6) should be slightly compressed applying downward pressure to the attachment. If not, adjust the rear set collar (D, Figure 6) to
achieve the desired amount of downward force. Do
not over-compress the lift rod spring.
IMPORTANT NOTE
DO NOT OVER-COMPRESS THE SPRINGS.
In addition to providing downward pressure,
the springs are an elastic medium that
absorbs shocks caused by bumps and
cracks in ground surfaces. Over-compressing the springs defeats this and may cause
damage to the unit.
A
E
B
C
D
9
Initial Setup
& Assembly
Ref Qty Description
1 1 ROD, Control Handle, Upper
2 6 NUT, Hex, 5/16-18
3 2 LOCKWASHER, 5/16
4 4 WASHER, 5/16
5 2 CAPSCREW, 5/16-18 x 1-1/4
6 1 ROD, Control Handle, Lower
7 1 CLEVIS
8 1 WASHER, 1/2
9 1 CLIP, Hair Pin
10 3 COTTER PIN
11 1 ROD & PLATE ASMY, Pivot
12 1 DOZER BLADE ASMY, 42”
13 1 SCRAPER BAR
14 6 CARRIAGE BOLT, 3/8-16 x 1
15 10 LOCKWASHER, 3/8
Ref Qty Description
16 6 NUT, Hex, 3/8-16
17 2 SKID SHOE
18 4 WASHER, Plain, 3/8
19 4 CAPSCREW, 3/8-16 x 3/4
20 2 CAPSCREW, 1/2-13 x 1-1/2
21 2 SPACER, 1/2 ID x 3/4 OD x 5/16 LG
22 1 ROD, Latch Stop
23 2 LOCKNUT, 1/2-13
24 1 FRAME ASMY, Dozer
25 2 EYEBOLT
26 2 SPRING, Extension
27 1 CLIP, Hair Pin
28 1 PLATE ASMY, Latch
29 2 SPRING, Torsion
4
6
4
1
3
4
4
11
7
25
26
24
23
21
10
22
20
19
15
18
17
16
14
13
12
15
27
8
9
28
3
5
10
2
2
29
Figure 8.
10
Initial Setup & Assembly
2
1
3
5
6
7
8
10
16
17
18
28
30
31
29
28
12
13
14
15
32
9
9
9
11
20
22
23
24
25
26
27
19
21
9
9
4
4
3
34
33
43
43
35
36
37
38
41
37
42
40
37
39
NOTE: The dashed-line rod:
Landlord/1700/2700-This rod
is part of the tractor.
Broadmoor/1600/2600-This
rod is the cross-shaft of the
manual lift lever
Ref Qty Description
1 2 STOP, Bar
2 2 SCREW, Taptite, 5/16-18 x 1
3 2 SETSCREWS, 5/16 x 1/2
4 2 SET COLLAR
5 1 ROD GUIDE ASSY.
6 1 SPRING
7 1 ROD, Lift, Manual
8 1 ROD, Lift, Electric/Hydraulic
9 7 CLIP, Springs
10 1 LIFT EXTENSION LEVER
11 2 WASHER
12 1 SUPPORT, Push Bar
13 1 NUT, Hex, 5/8-11
14 1 WASHER
15 1 SPACER
16 1 NUT, Hex, 5/8-11
Ref Qty Description
17 1 PUSH BAR ASSY, Rear
18 1 ROD, Latch
19 1 CAPSCREW, 5/16-18x1
20 1 PIN, Hitch
21 2 WASHERS, Plain 5/16
22 1 SAFETY CLIP
23 1 CHAIN
24 1 SPRING
25 1 NUT, Hex, 5/16-18
26 1 LOCKWASHER, 5/16
27 1 BRACKET, Anchor
28 2 CLEVIS PIN
29 2 SAFETY CLIP
30 1 PUSH BAR ASSY, Front
31 1 PIVOT PIN
32 1 CLEVIS PIN
Ref Qty Description
33 1 EYEBOLT, 1/4-20 x 1-1/2
34 1 LOCKNUT, Nylock, 1/4-20
35 1 BRACKET, Control Rod
36 2 CAPSCREW,
5/16-18 x 1-1/2
37 2 WASHER, 5/16
38 2 LOCKNUT, Center, 5/16-18
39 1 CAPSCREW,
5/16-18 x 1-1/2
40 1 BRACKET, Control Rod
41 1 NUT, Hex, Full, 5/16
42 1 LOCKWASHER, 5/16
43 2 SPACER
Figure 9. Push Bar, Hitch, & Lift Rod Components
11
Initial Setup & Assembly
INITIAL SETUP & ASSEMBLY
NOTE: Some of the following setup procedures may
already be completed.
Assemble Blade
1. Place the blade on a flat surface.
2. Baron/Broadmoor/LT/1600/2600 Series: See Figure
10. Install one bar stop (A) using the two 5/16-18 x 1
taptite screws (B). Do not install second bar stop.
Landlord/GT/1700/2700 Series: Do not install bar
stops.
NOTE: See Figure 10 Generally, these models do not
require the second bar stop to be used. However, if after
adjusting the skid shoes all the way up, the blade is not
able to make contact with the surface being plowed, bar
stops must be added. Remove the dozer blade and
install the second bar stop flush against the first one and
remount blade assembly.
3. See Figure 11. Insert threaded end of eyebolt (A)
through lug on blade, and screw on 5/16 nut (B) just
far enough so that it is flush with the end of the eyebolt.
4. See Figure 11. Hook the springs (C) into the pivot
frame (D). Using a pliers, stretch the springs to hook
the opposite ends to the eyebolts (A).
5. See Figure 11. Tighten the nut (B) on each eyebolt
enough to expose about 3/4" (19 mm) of thread.
6. See Figure 11. Holding the first nut (B) with a
wrench,add a second nut (E) to each eyebolt, and
tighten securely against the first nut to act as a jam
nut.
Figure 11. Tension Springs
A. Eyebolt D. Pivot Frame
B. Nut, 5/16 E. Nut, 5/16
C. Spring
Figure 10. Bar Stop
A. Bar Stops
B. Taptite Screws, 5/16-18 x 1
12
Initial Setup & Assembly
Install Rear Push Bar Support
NOTE: Manual Lift Models-If your tractor is not already
equipped with a Large Lift Lever kit, install it at this time.
Follow the instructions supplied with the kit.
1. Assemble the push bar support (A, Figure 12) and
hitch (F) using the hardware shown in Figure 12. Do
not tighten the 5/8-11 nuts (B & E).
Install Hitch
CONNECT TO FRONT OF TRACTOR
1. Increase front tire pressure to 20 psi (138 kPa) to
compensate for added weight of the hitch and blade.
Be sure both tires have equal pressure.
2. From the front of tractor, slide the rear push bar
assembly under the tractor so that the hitch bar is
positioned at the front of the unit.
3. Turn the wheels fully left and lift the front hitch bar (B,
Figure 13) up onto the tractor brackets (C). Make
sure it is fully seated into the tractor brackets. Install
the long hitch pin (D) through the bracket. Secure it
with the safety clip (A).
Figure 13. Installing Hitch to Front of Tractor
A Safety Clip C. Tractor Brackets
B. Hitch Bar D. Hitch Pin
Figure 12. Attaching Push Bar Support to Hitch
A. Push Bar Support D. Spacer
B. Rear 5/8-11 Hex Nut E. 5/8-11 Hex Nut
C. Washer F. Hitch
A
B
C
F
D
D
C
E
A
B
13
Initial Setup & Assembly
Figure 15. Install Push Bar Assembly
A. Push Bar Assembly C. Clevis Pins
B. Hitch D. Safety Clips
Figure 14. Installing Hitch to Rear Bracket
A. Push Bar Support C. Lift Rod/Lever
B. Washers
CONNECT HITCH TO REAR PUSH BAR
1. Slide the push bar support (A, Figure 14), and washers (B), onto the lift lever rod/lever (C), and secure to
tractor frame with the spring clips.
2. Hand tighten the rear 5/8-11 nut (B, Figure 12) until it
contacts against the back of the rear push bar.
Tighten the front nut (E) tight against the spacer.
Install Pivot Hitch
1. Position the pivot hitch (A, Figure 15) under the front
of the main hitch (B).
2. Position the front push bar assembly (A, Figure 15)
between the side rail extensions on the front of the
hitch (B). Align the mounting holes in the rear corners
of the push bar with the mounting holes in the hitch.
Secure push bar to the hitch using clevis pin (C) and
safety clip (D).
B
A
C
D
Landlord / 1700 / 2700
Viewed from Right Side
Broadmoor / 1600 / 2600
Viewed from Left Side
Landlord / 1700 / 2700
Viewed from Left Side
A
B
C
A
B
B
C
A
B
B
C
14
Initial Setup & Assembly

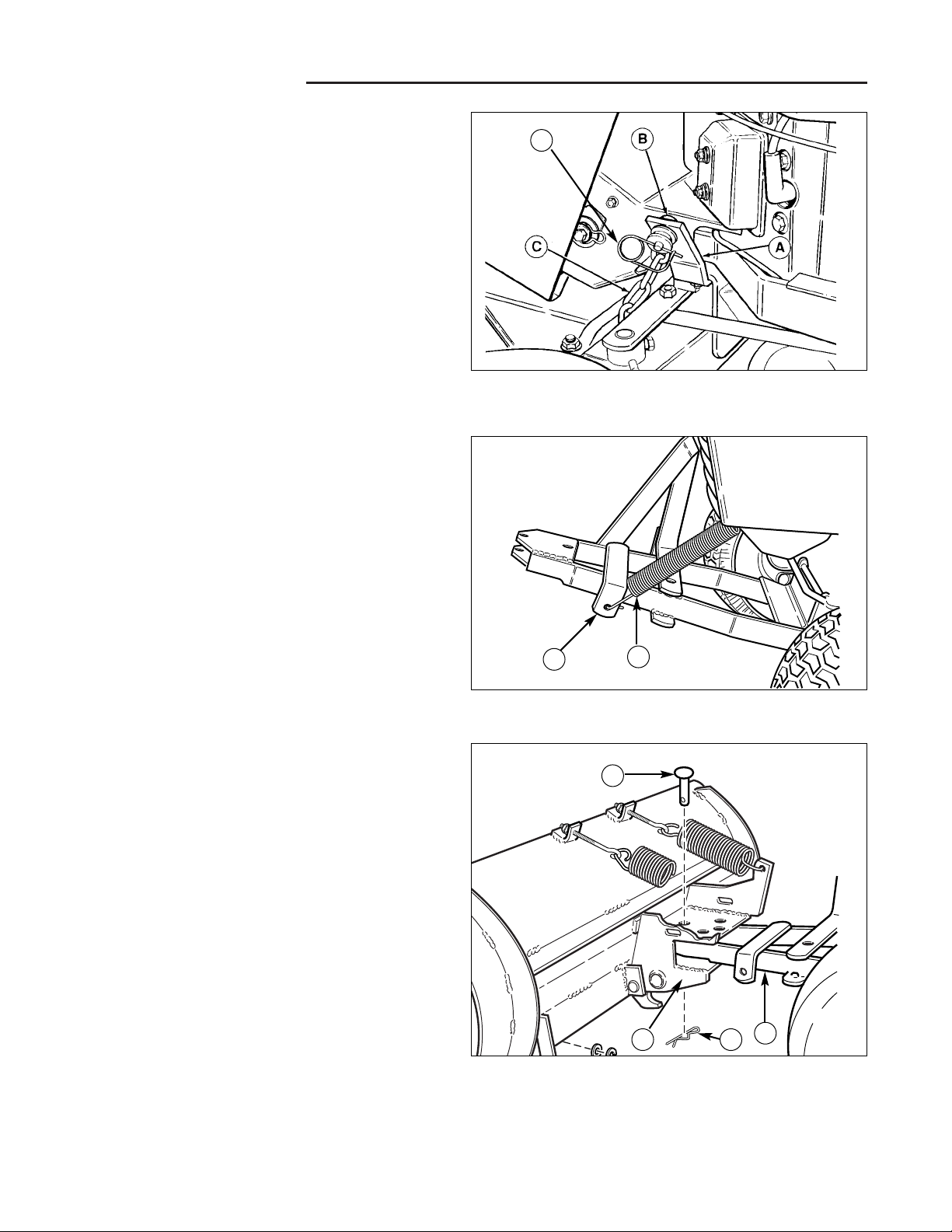

Install Spring Assist Bracket
(Baron/Broadmoor/1600/2600 Models Only)
NOTE: Spring-assist bracket assembly (Figure 16) does
not need to be installed on units with electric/hydraulic lift.
1. Install the spring-assist bracket (A, Figure 16) to tractor frame (bracket is mounted underneath frame).
Secure with capscrew (from top), lockwasher, and
nut. Place clevis pin (B) through bracket and install
flat washer, chain (C), second flat washer, and safety
clip (D).
2. Raise the push bar and attach the lift assist spring (B,
FIgure 17) to the assist spring bracket (A).
3. Connect the other end of the assist spring to the 6link chain (C, FIgure 16).
Figure 17. Lift Assist Spring
A. Assist Spring Bracket B. Assist Spring
Figure 18. Dozer Blade Assembled and Installed
A. Push Bar D. Spring Clip
B. Pivot Frame
C. Pivot Pin
Install Dozer Blade
1. Insert the front of the push bar (A, Figure 18) into
pivot frame (B) on rear of blade. Then install pivot pin
(C) down thru front holes in blade and push bar.
Secure the pivot pin (C) with a spring clip (D).
B
A
B
C
D
D
Figure 16. Spring Assist Bracket Assembly
A. Bracket C. 6-Link Chain
B. Clevis Pin D. Safety Clip
A
15
Initial Setup & Assembly
Install Lift Rod
NOTE: Two lift rods are packaged with the
Broadmoor/LT/1600/2600 & Landlord/GT/1700/2700
hitch assembly. Use the correct lift rod for manual or
hydraulic lift as shown in Figure 9.
1. Assemble lift rod per Figure 19.
2. Insert prong of rod guide (A, Figure 20) through hole
in upright of lift arm (B), and secure with spring clip
(C).
Hydraulic/Electric Lift Units:
3. If your tractor is equipped with hydraulic/electric lift,
install the lift lever extension assembly (A, Figure 21)
to the lift arm (B) as shown. Secure with clevis pin (C)
and spring clip (D) provided.
4. Install the 3/8 pin (E) removed from the mower and
secure with spring clip (D).
Manual Lift Lever Units:
3. Connect rear of lift rod (A, Figure 22) to manual lift
lever (B), and secure with spring clip (C).
Lift Rod Adjustment
Different types of terrain may require an adjustment to
the lift rod assembly. For instructions on how to make
this adjustment refer to the “Lift Rod Adjustment”
procedure in the ADJUSTMENTS section of this manual.
Figure 20. Lift Rod Assembly
A. Rod Guide
B. Push Bar Lift Arm
C. Spring Clip
Figure 21. Hydraulic Lift Bracket
A. Lift Lever Ext. Assy D. Spring Clip
B. Lift Arm E. 3/8 Mower Pin
C. Clevis Pin
Viewed from Right Side of Tractor
Figure 22. Installing Lift Rod to Manual Lift Lever
A. Lift Rod C. Spring Clip
B. Manual Lift Lever
B
A
C
A
B
C
D
E
Figure 19. Lift Rod Assembly
A. Set Collars C. Spring
B. Rod Guide D. Lift Rod
A
B
A
B
C
C
D
16
Initial Setup & Assembly

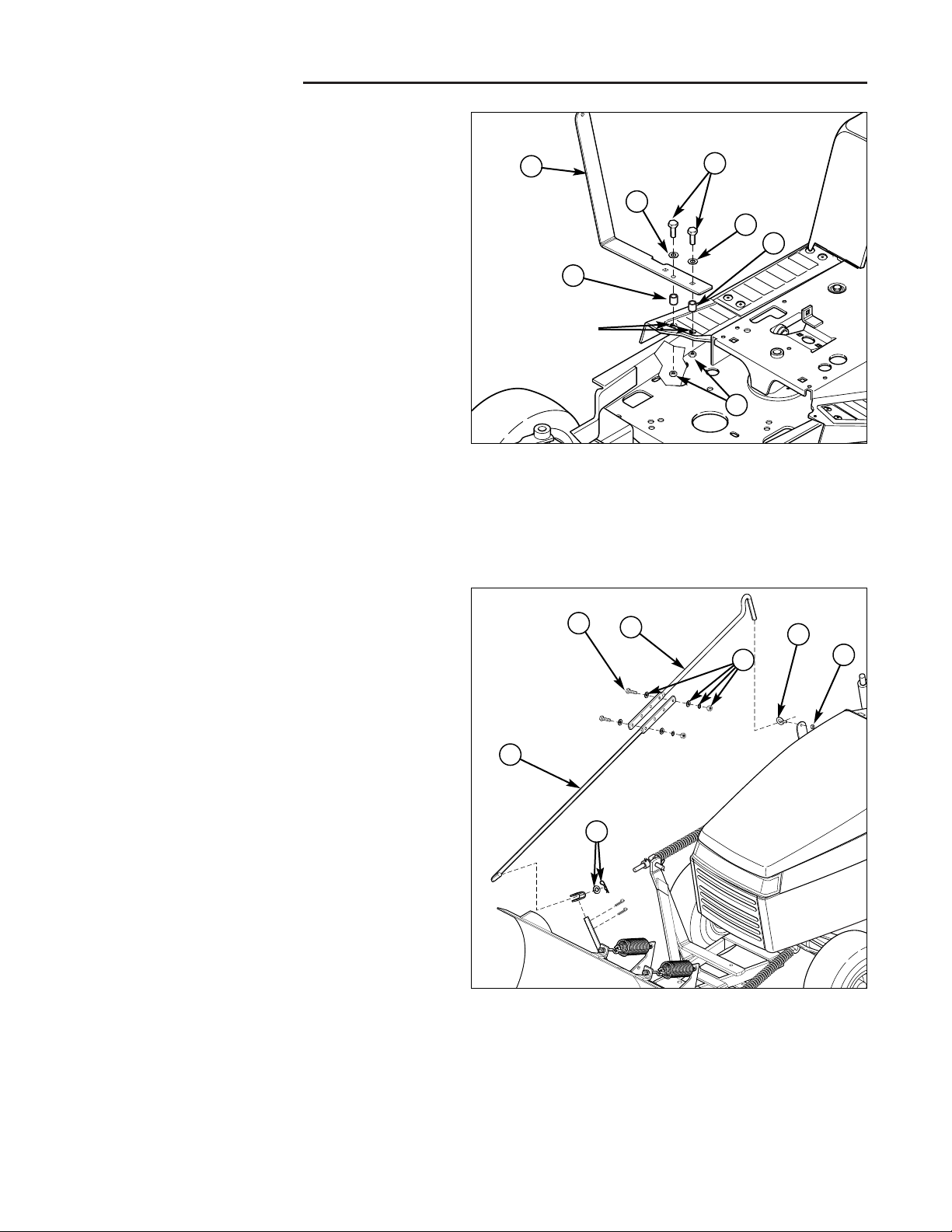

Figure 23. Control Rod Support
A. Support
B. 5/16-18 x 1-1/2 Capscrews
C. 5/16 Centerlock Nuts
D. 5/16 Plain Washers
E. Spacers
Install Angling Control Rod
NOTE: If installing the dozer attachment on a unit
equipped with a snowcab, replace the control rod support (A, Figure 23) with the hanging support (Ref. No. 40,
Figure 9). Mount the hanging support to the front cab
cross-bar.
1. Remove and discard the front two ratchet fasteners
from the right foot rest pad. Drill out the holes using
a 3/8” drill (Figure 23).
2. Set the angling control support (A, Figure 23) and
spacers (E) on the foot rest pad. Insert two 5/16-18 x
1-1/2 capscrews (B) through the support spacers,
footrest pad, and footrest. Secure using washers and
nuts (C).
A
E
E
D
D
B
C
Figure 24. Assemble Control Rods
A. 1/4-20 Nylock Nut
B. Eyelet
C. Upper Control Rod
D. 5/16-18 x 1-1/4 Capscrew
E. 5/16 Washers, Lockwashers, & Nuts
F. Lower Control Rod
G. Hair Pin Clip & Washer
A
B
C
D
F
G
E
Drill out to 3/8”
3. Connect the lower angling rod (F, Figure 24) to the
dozer release lever using a hair pin clip and washer
(G).
4. Insert the upper control rod (C) through the eyelet
(B), and secure the eyelet to the support using a 1/420 nylock nut (A).
NOTE: It may be necessary to leave the eyelet nut (A,
Figure 24) loose to prevent binding.
5 Secure the upper rod (C) to the lower rod (F) using
two 5/16-18 x 1-1/4 capscrews (D), washers (qty. 4),
lockwashers, and nuts (E). NOTE: Match offset to
offset so the rods form a straight line.
17
Removing &
Attaching the Hitch & Blade
REMOVAL & INSTALLATION
Removing & Attaching Dozer Blade
1. Lower the blade. Put the lift lever in the middle notch
(float position).
2. Remove the hair pin clip and washer (D, Figure 25)
securing the angling control rod to the clevis.
Disconnect the angling control rod.
3. Remove the angling control rod from the
support arm (A).
4. Remove the pivot pin (C) connecting the blade and
pushbar. Remove the blade.
5. Raise the push bar and remove pin (E) securing the
chain to the chain bracket.
6. Lower the lift and remove the clip (B) securing the lift
rod to the push bar and lift rod.
7. Remove the pins (F) securing the push bar to the
tractor hitch.
8. Reinstall all pins for storage.
Install in reverse order of removal.
Figure 25. Dozer Removal
A. Support Arm C. Pivot Pin E. Clevis Pin
B. Hair Pin Clip D. Hair Pin Clip & Washer F. Clevis Pins
D
C
B
A
B
F
F
E
18
Removing & Attaching
Removing & Attaching Hitch
1. Remove the safety clip (A, Figure 26) and remove the
hitch pin (D).
2. Lift the hitch bar (B) off the tractor brackets (C).
3. Remove the spring clips (A, Figures 28 & 29) securing the rear hitch bracket (C) to the lift pivot rod (B).
4. Hydraulic/Electric Lift Models: Slide the lift pivot
rod (B, Figure 28) out and remove the rear hitch
bracket (C). Remove the lift lever extension.
5. Manual Lift Models: See Figure 30. Remove the
capscrew from location (A). Depress the lift lever
release button and rotate the lever forward until the
lever latch clears the mounting bracket. Slide the
lever and rod assembly out of the hitch bracket and
mounting bracket.
Install in reverse order of removal.
2
3
1
Figure 30. Lift Lever Removal
A. Capscrew Location (Remove)
A
A
A
A
B
A
C
Figure 28. Hitch Removal - Landlord/1700/2700
A. Hair Pin Clips C. Rear Hitch Bracket
B. Lift Pivot Rod
Figure 29. Hitch Removal Baron/Broadmoor/1600/2600 Series
A. Hair Pin Clips
Figure 26. Installing Hitch to Front of Tractor
A Safety Clip C. Tractor Brackets
B. Hitch Bar D. Hitch Pin
D
A
B
Figure 27. Hydraulic Lift Bracket
A. Lift Lever Ext. Assy D. Spring Clip
B. Lift Arm E. 3/8 Mower Pin
C. Clevis Pin
Viewed from Right Side of Tractor
A
B
C
D
E
C
19

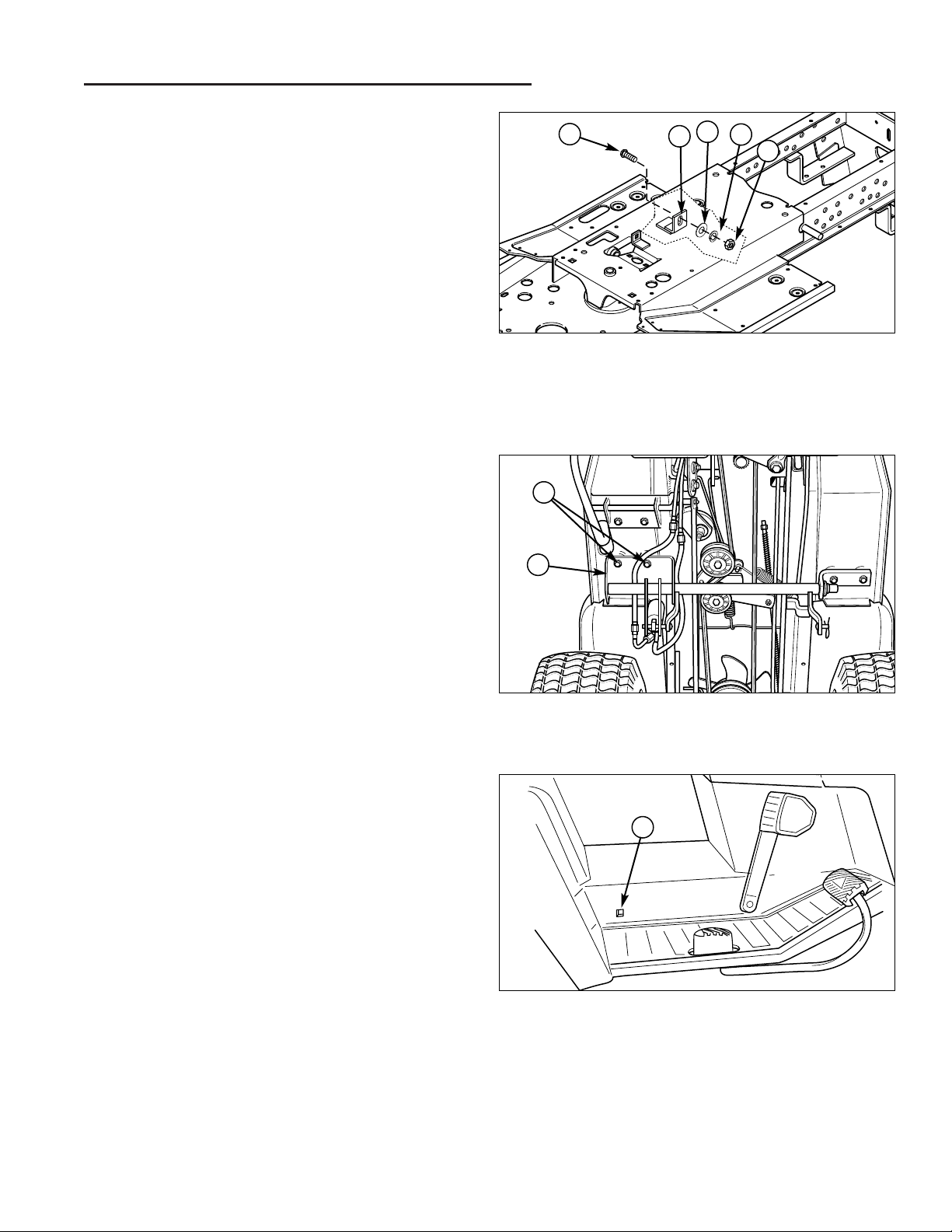

Reinforcement Bracket Installation
INSTALL REINFORCEMENT
BRACKET
NOTE: This kit applies to the Landlord / 1700 / 2700
Series hydraulic lift models only.
1. Loosen the four capscrews (A, Figure 32) securing
the quadrant (B) to the footrest.
2. Insert the reinforcement bracket (B, Figure 31)
between the quadrant (B, Figure 32) and foot rest.
Align the hole in the bracket with the square hole (A,
Figure 33) in the frame.
3. Secure the bracket (B, Figure 31) to the frame using
a 5/16-18 x 3/4 carriage bolt (A), washer (C), lockwasher (D), and nut (E).
4. Tighten the quadrant hardware (A, Figure 32).
Figure 31. Support Bracket
A. Carriage Bolt, 5/16-18 x 3/4 D. 5/16 Locknut
B. Support Bracket E. 5.16-18 Nut
C. 5/16 Washer
Figure 33. Right Side Foot Rest
A. Support Bracket Hole
Figure 32. Lift Quadrant
A. Capscrews B. Quadrant
B
A
C
D
E
A
A
B
Torque Specification Chart
FOR STANDARD MACHINE HARDWARE (Tolerance ± 20%)
Hardware
Grade
SAE Grade 2 SAE Grade 5 SAE Grade 8
Size Of in/lbs in/lbs in/lbs
Hardware ft/lbs Nm. ft/lbs Nm. ft/lbs Nm.
8-32 19 2.1 30 3.4 41 4.6
8-36 20 2.3 31 3.5 43 4.9
10-24 27 3.1 43 4.9 60 6.8
10-32 31 3.5 49 5.5 68 7.7
1/4-20 66 7.6 8 10.9 12 16.3
1/4-28 76 8.6 10 13.6 14 19.0
5/16-18 11 15.0 17 23.1 25 34.0
5/16-24 12 16.3 19 25.8 27 34.0
3/8-16 20 27.2 30 40.8 45 61.2
3/8-24 23 31.3 35 47.6 50 68.0
7/16-14 30 40.8 50 68.0 70 95.2
7/16-20 35 47.6 55 74.8 80 108.8
1/2-13 50 68.0 75 102.0 110 149.6
1/2-20 55 74.8 90 122.4 120 163.2
9/16-12 65 88.4 110 149.6 150 204.0
9/16-18 75 102.0 120 163.2 170 231.2
5/8-11 90 122.4 150 204.0 220 299.2
5/8-18 100 136 180 244.8 240 326.4
3/4-10 160 217.6 260 353.6 386 525.0
3/4-16 180 244.8 300 408.0 420 571.2
7/8-9 140 190.4 400 544.0 600 816.0
7/8-14 155 210.8 440 598.4 660 897.6
1-8 220 299.2 580 788.8 900 1,244.0
1-12 240 326.4 640 870.4 1,000 1,360.0
NOTES
1. These torque values are to be used for all hardware
excluding: locknuts, self-tapping screws, thread forming
screws, sheet metal screws and socket head setscrews.
2. Recommended seating torque values for locknuts:
a. for prevailing torque locknuts - use 65% of grade 5
torques.
b. for flange whizlock nuts and screws - use 135% of
grade 5 torques.
3. Unless otherwise noted on assembly drawings, all torque
values must meet this specification.
Hardware Identification & Torque Specifications
Common Hardware Types
Standard Hardware Sizing
When a washer or nut is identified as 1/2”, this is the
Nominal size, meaning the inside diameter is 1/2 inch; if a
second number is present it represent the threads per inch
When bolt or capscrew is identified as 1/2 - 16 x 2”, this
means the Nominal size, or body diameter is 1/2 inch; the
second number represents the threads per inch (16 in this
example, and the final number is the body length of the
bolt or screw (in this example 2 inches long).
The guides and ruler furnished below are designed to
help you select the appropriate hardware and tools.
Hex Head Capscrew
Carriage Bolt
1/4 3/4
1/4 3/4
0
Nut, 1/2”
1/2
1
1/2
Screw, 1/2 x 2
2
1/4 3/4
1/2
3
1/4 3/4
1/2
4
Body
Diameter
Body
Length
Washer
Lockwasher
Hex Nut
Inside
Diameter
No
Marks
Wrench & Fastener Size Guide
1/4
1/4” Bolt or Nut
Wrench—7/16”
5/16
5/16” Bolt or Nut
Wrench—1/2”
3/8
3/8” Bolt or Nut
Wrench—9/16”
7/16
DIA.
7/16” Bolt or Nut
Wrench (Bolt)—5/8”
Wrench (Nut)—11/16”
1/2
DIA.
1/2” Bolt or Nut
Wrench—3/4”
Simplicity Mfg. Inc.
500 N Spring Street / PO Box 997
Port Washington, WI 53074-0997 USA
© Copyright 2001 Simplicity Manufacturing, Inc.
All Rights Reserved. Printed in USA.
Loading...
