Snapper 1721301-02, 1693755 User Manual

ATTACHMENT
OPERATOR’S MANUAL
Snow Plow/Dozer Blade
Mfg. No. Description
1693754 42” Remote Angling Snow Plow/Dozer Blade
Hitch
Mfg. No. Description
1693755 Hitch (for Express Series & Regent / 500 / 2500 Series)
TP 100-2353-02-AT-SMA
Snow/Dozer
Blade & Hitch
1
Table of Contents
Adjustments.........................................................7
Skid Shoe Adjustment .....................................7
Spring Tension.................................................7
Lift Height Adjustment .....................................7
Downward Pressure Adjustment .....................7
Initial Setup & Assembly

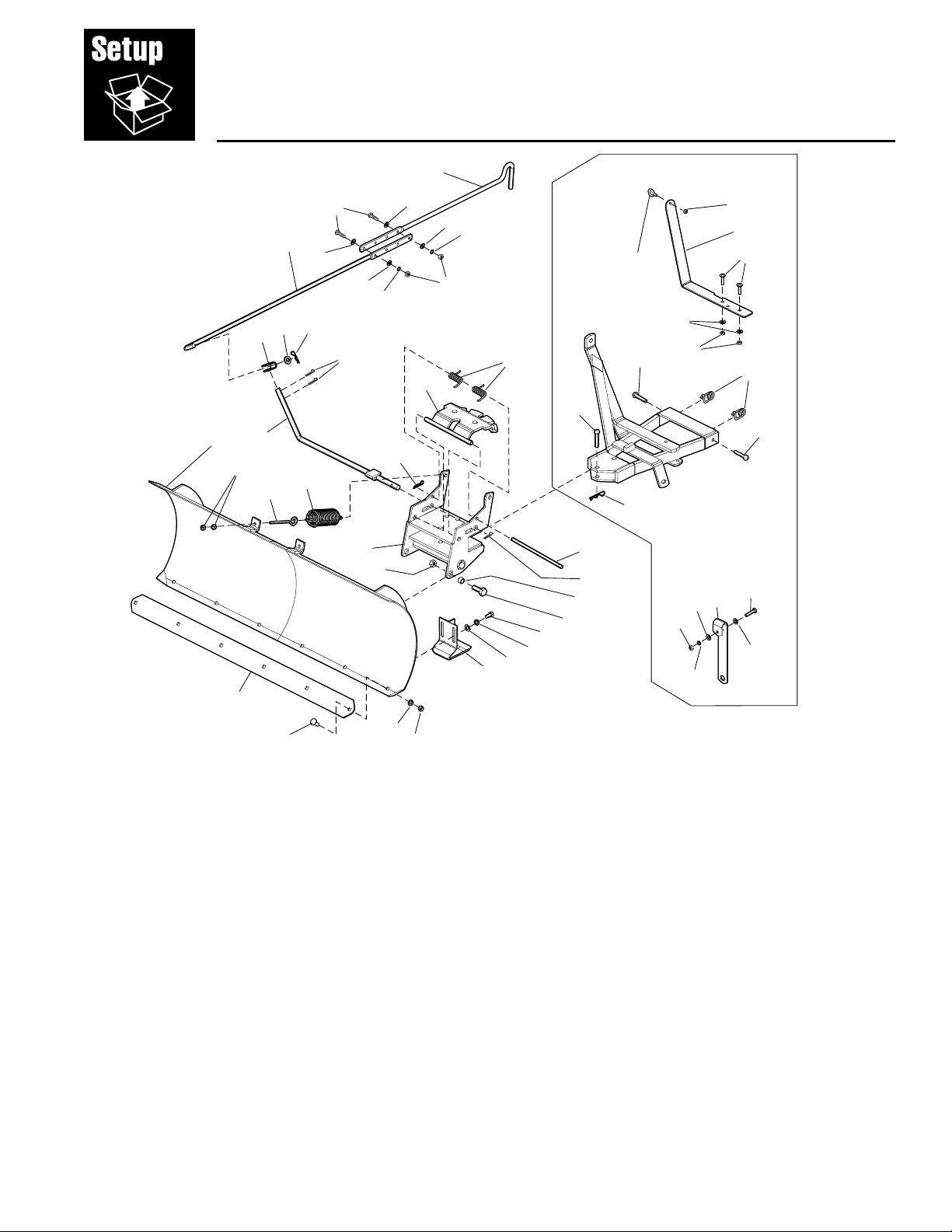

Dozer Components..........................................9

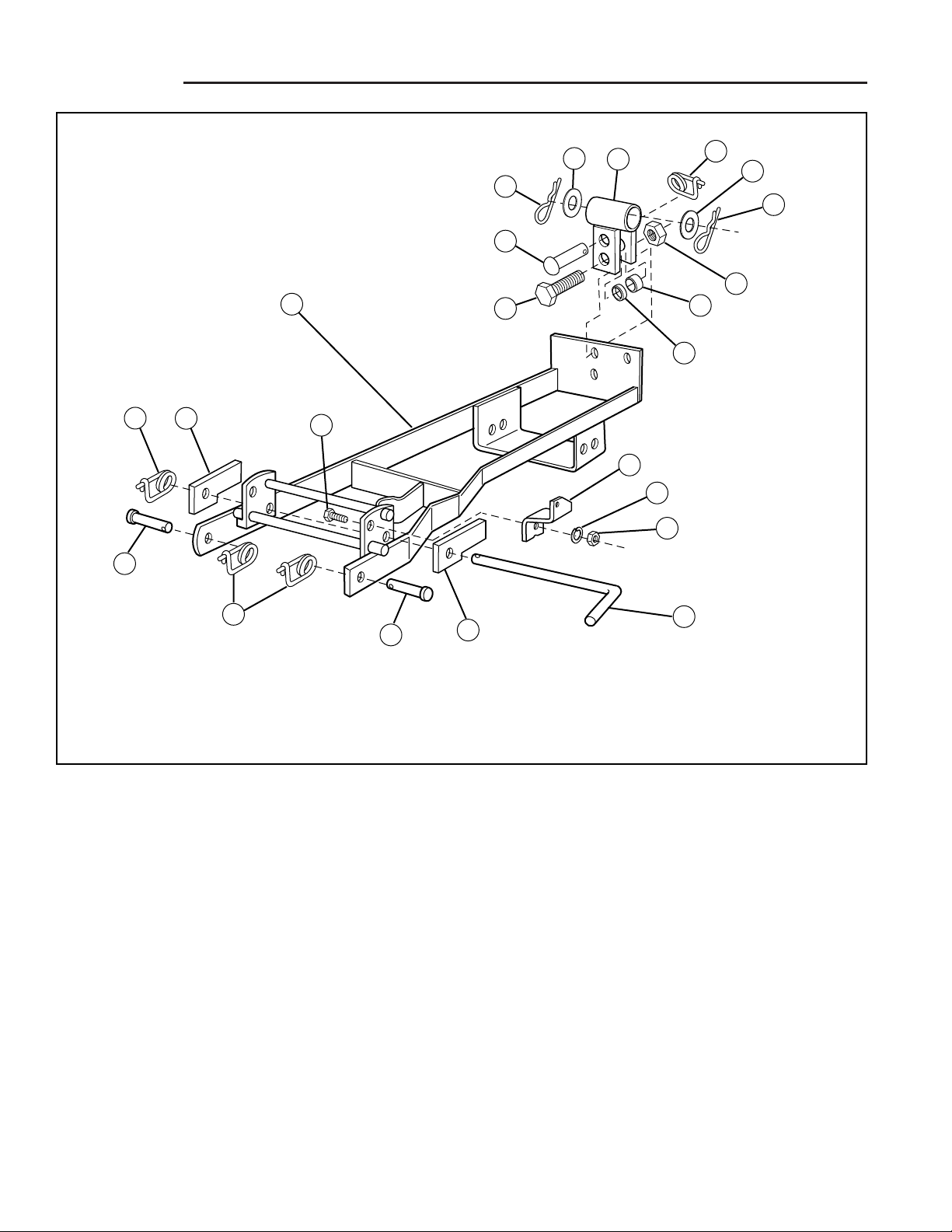

Hitch Components .........................................10
Assemble Blade.............................................11
Assemble & Install Hitch................................11
Install Pushbar...............................................13
Install Lift Rod................................................14
Install Angling Control Rod ............................15
Attaching & Removing the Hitch & Blade
Removing & Attaching Dozer Blade ..............16
Removing & Attaching Hitch..........................17
Hardware Identification
& Torque Specifications....................................18
NOTE: In these instructions, “left” and “right” are referred to as seen from the operating position.
© Copyright 2000 Simplicity Manufacturing, Inc. All Rights Reserved. Printed in USA.
TP 100-2353-02-AT-SMA
Recommended Accessories ..............................1
Safety Rules & Information
General Warnings............................................2
Operating on Slopes........................................2
Preparation ......................................................2
Operating Safety..............................................2
Features & Controls ............................................3
General Operating Instructions
Checks Before Starting....................................4
Engine & Ground Speed Selection..................4
Transporting.....................................................4
Starting & Stopping .........................................4
Changing Angle of the Blade...........................5
Dozing Tips......................................................5
Snow Plowing Tips ..........................................5
Storage .................................................................5
Maintenance & Normal Care Schedule..............6
Schedule for Normal Care ...............................6
Lubricate the Dozer Blade ...............................6
Recommended Accessories
For best performance, it is recommended to use tire chains and two rear wheel weights. A rear-mounted weight carrier can also be added for additional traction. The maximum weight added to the tractor should not exceed 35 lbs. per wheel, plus 100 additional pounds in the rear weight box.
For operation on slopes greater than 15% (8.5°), Quick Tach Weights, tire chains, and wheel weights are recom­mended. Never operate on slopes greater than 17.6% (10°).
Required Accessories
A Lift Lever Kit is required for the models covered by this manual, and must be installed as part of hitch installa­tion.
OPERATING SAFETY
O Always clear snow up and down the face of slopes,
never across the face. Exercise extreme caution when changing direction on slopes. Do not attempt to clear steep slopes.
O Exercise extreme caution when operating on, or
crossing, gravel drives, walks or roads. Stay alert for hidden hazards or traffic.
O After striking an object or if unit starts to vibrate
abnormally, stop the engine and remove the key. Check for the cause and any damage before restart­ing. Before any inspection, make sure all moving parts have stopped.
O Take all possible precautions before leaving opera-
tor’s position. Lower the attachment, set the parking brake, stop the engine and remove the key.
O Never operate near glass enclosures, automobiles,
window wells, dropoffs, etc.
O Do not put hands or feet near or under the dozer
blade. Keep clear of the dozer blade at all times.
O Do not overload machine capacity by attempting to
clear too much material at too fast a rate.
O Never operate unit at high transport speeds on slip-
pery surfaces. Use care when travelling in reverse.
O Never operate the dozer blade without good visibility
or light. Always be sure your feet are properly placed on the footrests and keep a firm hold on the steering wheel.
O Do not run the engine indoors. O Never allow anyone in front of the unit.
2
Safety Rules & Information
Read these safety rules and follow them closely. Failure to obey these rules could result in loss of control of unit, severe personal injury or death to you, or bystanders, or damage to property or equipment.
The triangle in text signifies important cautions or warnings which must be followed.
GENERAL WARNINGS
O Know the tractor controls and how to stop quickly.
READ THE TRACTOR OPERATOR’S MANUAL.
O Read this manual and the tractor Operator’s Manual
carefully. Be thoroughly familiar with the controls and the proper use of the equipment.
O Never allow children to operate the machine. Do not
allow adults to operate it without proper instruction.
O Do not carry passengers. O Use only attachments or accessories designed for
your machine. See your dealer for a complete list of recommended attachments or accessories.
O Keep the area of operation clear of all persons, par-
ticularly small children, and pets.
O Never direct discharge towards bystanders. O Make sure all hardware is secure and that dozer
blade is in good operating condition.
O Check to be sure all safety devices and shields are in
place.
O Check that all adjustments are correct before using
this unit.
O Gasoline is highly flammable. Follow all precautions
listed in your tractor’s operator’s manual.
O Always wear eye protection while operating and per-
forming adjustments to protect eyes from debris thrown by the dozer.
O When cleaning, repairing, or inspecting the unit make
sure all moving parts have stopped. Disconnect and secure the spark plug wires and remove the key to prevent accidental starting.
PREPARATION
O Disengage the PTO before making any adjustments. O Never attempt to make any adjustments while engine
is running.
O Thoroughly inspect the area where the dozer is to be
operated and remove all foreign objects.
O Adjust the skid shoe height to clear gravel or crushed
stone surface. See the Adjustments section for pro­cedure.
DANGER
OPERATING ON SLOPES
CAN BE DANGEROUS
For operation on slopes greater than 15% (8.5°), weight box, tire chains, and wheel weights are recommended. NEVER OPERATE ON SLOPES GREATER THAN 17.6% (10°).
3
TRACTOR CONTROLS
Before you begin operating the tractor with the dozer blade attachment, make certain you have:
• Read and understood the instructions in the tractor Operator’s Manual.
• Become thoroughly familiar with all of the tractor controls and their operation, including how to safely and properly start and stop the unit.
• Practice driving in an open area—without doz­ing—to become accustomed to the unit.
Features
& Controls
A. Blade Angle Control Lever
The blade angle release lever controls a spring-loaded plate which locks the blade in one of three positions.
Use an abrupt pushing/pulling motion to release the angling mechanism and move the blade left or right. Push the angling lever forward fully to lock the blade in the left position. Pull the lever fully back to lock the blade in the right position. Move the lever slowly past center to lock in the centered position.
NOTE: It is easier to change the angle of the blade with the attachment raised.
B. Attachment Lift
The attachment lift lever raises and lowers the dozer blade. To RAISE an attachment, depress the release button on top of the lever and pull back. To LOWER an attachment, depress the release button and move the lever forward.
The back notch suspends the blade for transporting to and from the worksite. The middle notch is the “float” position. The front notch applies downward pressure on the blade. See the Adjustments section for proper blade adjustment.
Please Take a moment and familiarize yourself with the name, location, and function of these controls so that you
will better understand the safe­ty and operating instructions provided in this manual.
Figure 1. Control Locations A. Blade Angle Control Lever B. Attachment Lift
CONTROL FUNCTIONS
The information below briefly describes the function of individual controls. Operating the tractor and dozer require the combined use of these controls and additional controls whose operation is described in the tractor Operator’s Manual.
A
B
4
Checks Before Starting
1. Refer to the Maintenance & Adjustments sections of this manual and perform any needed service. Also, refer to the tractor Operator’s Manual and perform any required service.
2. Remove any objects from the work area which might interfere with plowing activity.
3. Adjust the skid shoes to desired height. See Skid Shoe Adjustment.
4. Make sure all hardware is present and secure.
Engine & Ground Speed Selection
Always run the engine at full throttle.
Set tractor speed to obtain the needed power to move the material. Operate at a safe speed, depending on conditions, so that you have complete control of the trac­tor. Rear wheel weights and chains are recommended for slippery surfaces.
A rear weight carrier is recommended for additional trac­tion.
Transporting
For maximum ground clearance, transport the blade to and from work areas fully raised and angled straight ahead.
Starting & Stopping
1. Start the tractor engine. Set engine throttle to full.
2. Raise the attachment lift and travel to the work site.
3. Set the angling control to the desired angle.
4. Lower the attachment lift and begin plowing.
5. Raise the plow before backing up.
6. To stop the tractor, set ground speed to neutral and set the parking brake. Before leaving the seat, stop the engine, set the parking brake, remove the key, and wait for all moving parts to stop.
General Operating Instructions
WARNING
Perform the Safety System Interlock test found in your tractor Operator’s Manual. If tractor does not pass the test, do not operate the tractor. See your authorized dealer. Under no circumstances should you attempt to defeat the safety system.
Use caution when plowing a snow covered area. Snow can cover objects such as curbs, drop-offs, and other obstacles. Be familiar with the area you are plowing.
To prevent an explosion or fire, never store the tractor with fuel in the tank inside a building where an ignition source is present.
DANGER
OPERATING ON SLOPES CAN BE DANGEROUS
Never operate on slopes greater than 17.6% (10°) which is a rise of 3-1/2 feet (106cm) vertically in 10 feet (607cm) horizontally.
Operate the unit at a slow ground speed when driving onto slope. Avoid using brakes to control ground speed.
When operating on slopes that are greater than 15 % (8.5°) but less than 17.6%, use additional wheel weights or counterweights.
In addition to counterweights, use extra caution when operating on slopes. Drive UP and DOWN the slope, never across the face, use caution when changing directions and DO NOT START OR STOP ON SLOPE.
For additional traction, tire chains and a weight box can be added. Maximum weight added to tractor should not exceed 35 lbs. per wheel and 100 additional lbs. in weight box.
IMPORTANT NOTE
To prevent damage to the unit, always raise the dozer blade BEFORE turning or backing up.
5
General Operating Instructions
Daily Storage
1. Allow tractor engine to cool before storing in any enclosure.
2. After dozing or plowing jobs are completed, hose or brush down the blade to remove excess dirt.
3. Lightly oil all pivot points. Coat bare metal surfaces to prevent corrosion.
IMPORTANT NOTE
Refer to Tractor Operator’s Manual for important information concerning safely storing your tractor.
Changing Angle of the Blade:
See Figure 1 for location of Controls.
NOTE: It is easier to change the angle of the blade with the attachment raised.
1. Raise the attachment lift.
2. Use an abrupt pushing/pulling motion to release the angling mechanism and move the blade left or right. Push the angling lever forward fully to lock the blade in the left position. Pull the lever fully back to lock the blade in the right position. Move the lever slowly over center to lock in the centered position.
Dozing Tips
• Determine the best dozing pattern before beginning.
• When land contour permits, it is best to travel in the longest direction to minimize turning.
• In very deep snow or gravel, it may be necessary to make the first pass with dozer blade partially raised, then repeat each pass with the blade lowered to clear the material left on the surface. Also, it may be nec­essary to clear less than the full width of the dozer blade or reduce ground speed.
• When dozing, push the dirt to the desired location, then drag the blade backwards for final leveling. Pack down the dirt or gravel by driving the tractor over the leveled area.
• Use any slight grade to your advantage, doze down­hill, and set the blade angle so that the plowed mater­ial is moving downhill as it leaves the blade.
Snow Plowing Tips
• Determine the best snow removal pattern before beginning.
• Plan the pattern so that you avoid pushing snow onto cleared areas.
• When land contour permits, it is best to travel in the longest direction to minimize turning.
• In very deep or heavy snow, it may be necessary to make the first pass with dozer blade partially raised, then repeat each pass with the blade lowered to clear the material left on the surface. Also, it may be nec­essary to clear less than the full width of the dozer blade or reduce ground speed.
• Snow tends to freeze into solid banks when plowed off a driveway or other large area. Because of this you may want to plow snow several feet past the edge of the drive to allow space for future plowing to build up.
• If pushing snow past the edges of driveways or side­walks, be careful not to tear up the grass buried under snow next to the drive or sidewalk. Lift the blade several inches off the ground to avoid damag­ing the grass.
• Spinning tires with tire chains can leave unsightly marks or permanent damage to asphalt or concrete driveways or sidewalks. Avoid sudden stops or starts.
Storage
Off-Season Storage
1. Remove dozer blade and hitch from the tractor.
2. Use water pressure or a brush to thoroughly clean the dozer blade.
3. Paint, or lightly coat with oil, any area where paint has been worn or chipped away.
4. Lubricate the dozer blade.
5. Store the dozer blade and hitch in a dry place.
6
Maintenance
Schedule For Normal Care
Care Required Schedule
Clean debris from After each use. dozer blade.
Lubricate dozer blade. Every 10 hours or at
least once a year.

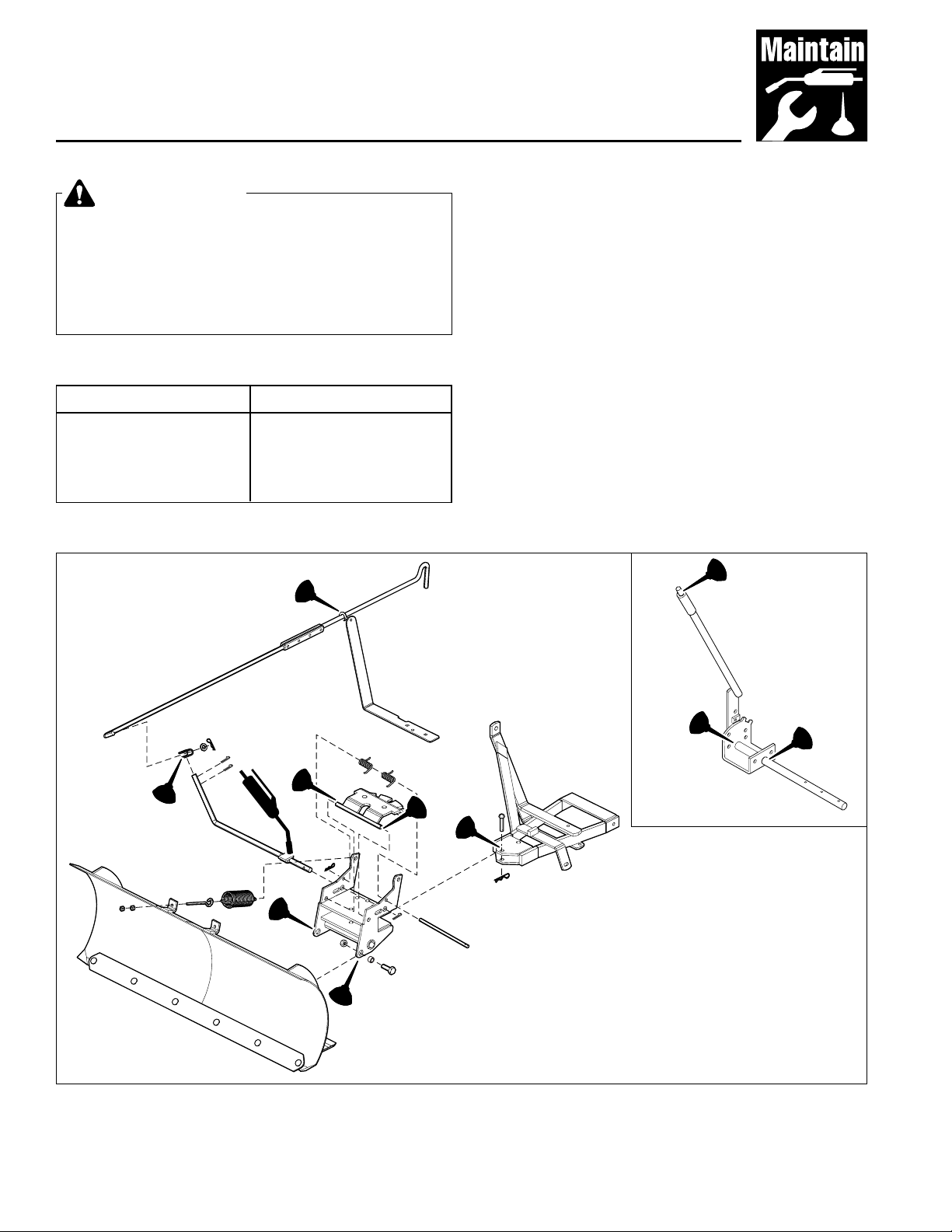

Lubricate Dozer Blade
Lubricate the dozer blade as shown in Figure 2. Where an oil can is shown, wipe the area clean, apply a few drops of oil (SAE 30), then wipe up drips or spills.
In general, linkage connections and other parts that have partial rotational or sliding movement should be lubricat­ed periodically with SAE 30 weight oil. Avoid applying excessive amounts of oil since this may cause a build-up of dirt around the lubricated area, making subsequent lubrication more difficult to accomplish.
WARNING
To avoid serious injury, perform maintenance on the tractor or dozer blade only when the engine is stopped, parking brake is set and all moving parts have stopped. Always remove the ignition key before beginning maintenance or adjustments to prevent accidental starting of the engine.
Figure 2. Lubrication Points
7

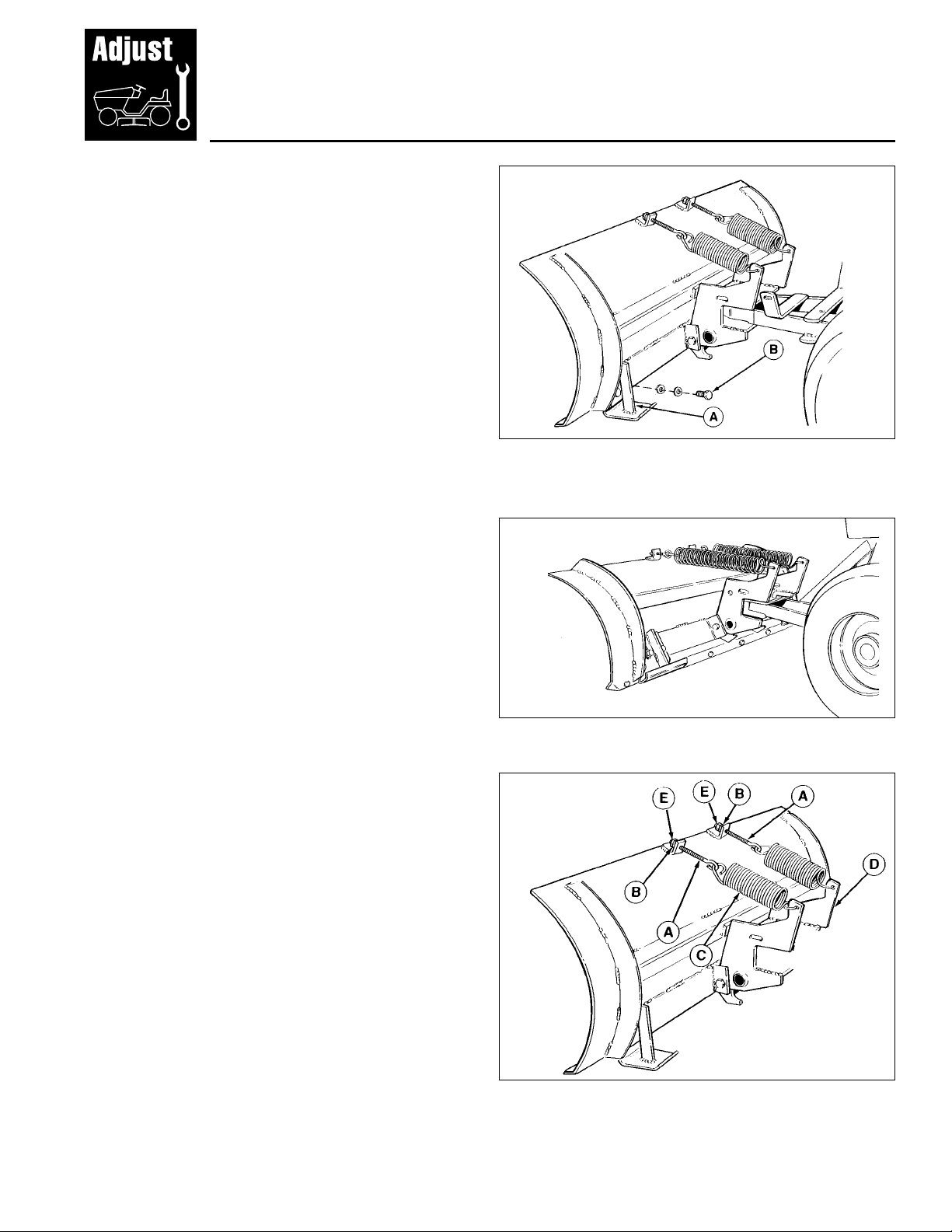

Adjustments
Skid Shoe Adjustment
Slotted holes are provided to permit adjustment of the shoe assemblies for raising and lowering the blade to various working heights (see Figure 3).
When cleaning snow from gravel or earth drives or walks, the shoe assemblies should be lowered fully to prevent blade contact with gravel or ground. When cleaning smooth hard surfaces like concrete, the shoe assemblies are normally placed fully up to allow the blade to scrape the surface.
To adjust the skid, raise the blade off the ground and block with a piece of wood. Loosen the bolts (B, Figure
3) and move the skid shoes (A) up or down to desired height. Tighten the bolts securely.
Figure 3. A. Skid Shoes B. Bolts
Spring Tension
See Figure 4. This snow plow/dozer blade is spring loaded so that when the blade strikes a solid object, the springs will allow the blade to release as shown, rather than cause damage. The blade will go back to its original position after object is cleared.
Figure 4. Dozer Blade “Released”

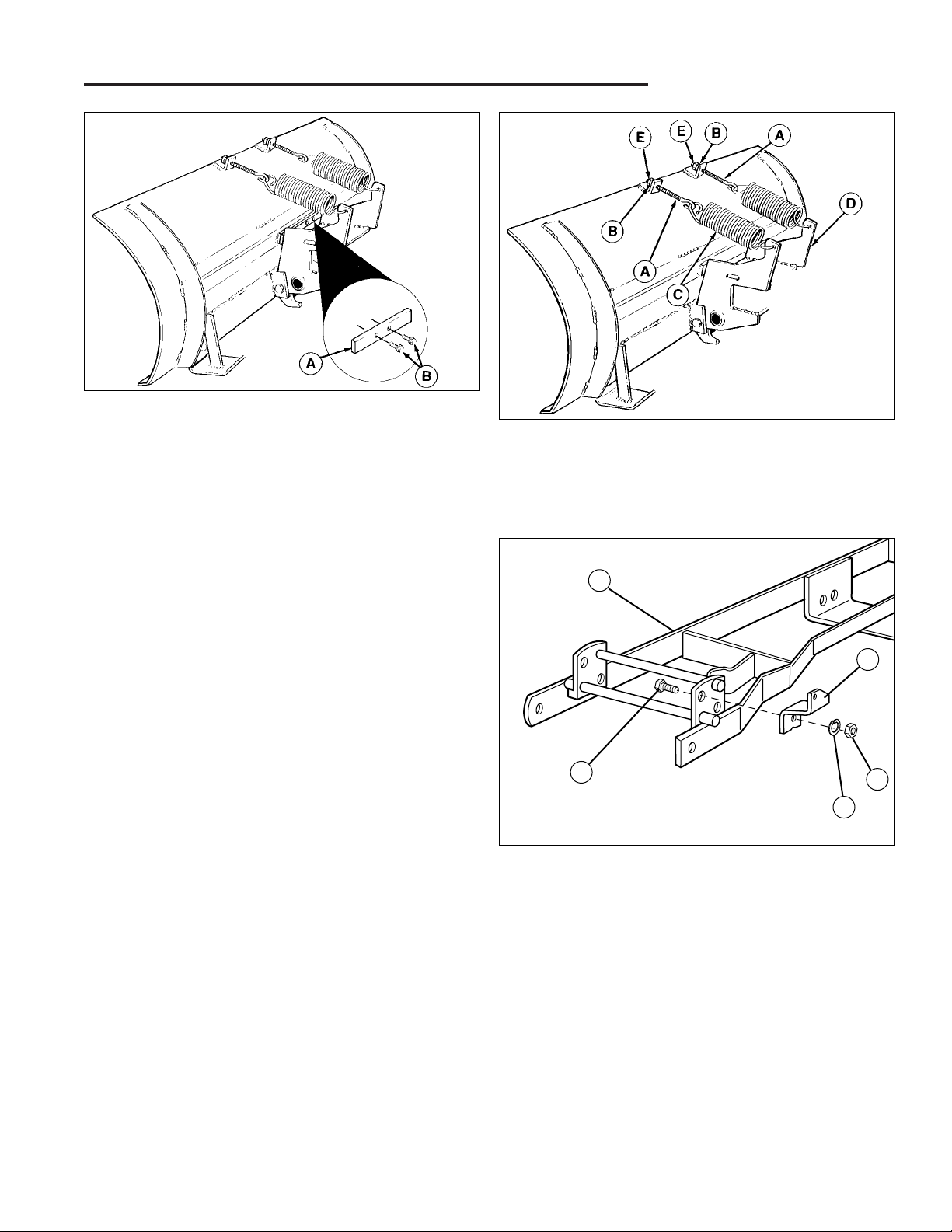

Figure 5. Tension Springs A. Eyebolt D. Pivot Frame B. Nut, 5/16 E. Nut, 5/16 C. Spring
See Figure 5. To adjust spring tension hold rear nut (B) and loosen front nut (E). Tighten rear nut (B) to increase spring tension, or loosen to decrease tension.
For initial adjustment, tighten nut (B) on each eyebolt enough to expose about 3/4" (19mm) of thread. Tighten front nut (E) against rear nut (B) to lock adjustment in place.
8
Adjustments
Figure 6. Adjusting Lift Rod A. Front Set Collar B. Rod Guide C. Spring D. Rear Set Collar E. Spring Clip
Figure 7. Lift Lever Quadrant - Side View
Notch 1
Notch 2
Notch 3
Lift Rod Adjustment
The lift lever can be placed in one of three notches and is held in position by the lever latch. (see Figure 7). When the lever latch is placed in notch 1 the lift lever should be applying downward pressure on the attach­ment. In position 2, the float position, the attachment should experience negligible upward or downward pres­sure. Position 3 should raise the attachment approxi­mately 6 above the ground.
NOTE: Always adjust the lift height before and after adjusting the downward pressure.
LIFT HEIGHT ADJUSTMENT
1. Place the lever latch in notch 3 (see Figure 7). The snowthrower should be approximately 6 off the ground. If not, go to step 2.
2. Lower the attachment and adjust the front set collar (A, Figure 7) to achieve the correct lift height.
DOWNWARD PRESSURE ADJUSTMENT
1. Move the lever latch from notch 2 to notch 1 (See Figure 7).
2. The spring (C, Figure 6) should be slightly com­pressed applying downward pressure to the snowthrower. If not, adjust the rear set collar (D, Figure 6) to achieve the desired amount of downward force. Do not over-compress the lift rod spring.
IMPORTANT NOTE
DO NOT OVER-COMPRESS THE SPRINGS. In addition to providing downward pressure, the springs are an elastic medium that absorbs shocks caused by bumps and cracks in ground surfaces. Over-compress­ing the springs defeats this and may cause damage to the unit.
B
C
D
A
E
9
Initial Setup & Assembly
Ref Qty Description
1 1 ROD, Control Handle, Upper 2 6 NUT, Hex, 5/16-18 3 2 LOCKWASHER, 5/16 4 4 WASHER, 5/16 5 2 CAPSCREW, 5/16-18 x 1-1/4 6 1 ROD, Control Handle, Lower 7 1 CLEVIS 8 1 WASHER, 1/2
9 1 CLIP, Hair Pin 10 3 COTTER PIN 11 1 ROD & PLATE ASMY, Pivot 12 1 DOZER BLADE ASMY, 42 13 1 SCRAPER BAR 14 6 CARRIAGE BOLT, 3/8-16 x 1 15 10 LOCKWASHER, 3/8 16 6 NUT, Hex, 3/8-16 17 2 SKID SHOE 18 4 WASHER, Plain, 3/8 19 4 CAPSCREW, 3/8-16 x 3/4 20 2 CAPSCREW, 1/2-13 x 1-1/2 21 2 SPACER, 1/2 ID x 3/4 OD x 5/16 LG 22 1 ROD, Latch Stop
Ref Qty Description
23 2 LOCKNUT, 1/2-13 24 1 FRAME ASMY, Dozer 25 2 EYEBOLT 26 2 SPRING, Extension 27 1 CLIP, Hair Pin 28 1 PLATE ASMY, Latch 29 2 SPRING, Torsion 30 1 EYEBOLT, 1/4-20 x 1-1/2 31 1 LOCKNUT, Nylock, 1/4-20 32 1 BRACKET, Control Rod 33 2 CARRIAGE BOLT, 5/16-18 x 1-1/4 34 4 WASHER, 5/16 35 2 LOCKNUT, Center, 5/16-18 36 2 PIN, Clevis 37 1 PIN, Clevis 38 1 CLIP, Hair Pin 39 2 CLIP, Safety 40 1 CAPSCREW, 5/16-18 x 1-1/2 41 1 BRACKET, Control Rod 42 1 NUT, Hex, Full, 5/16 43 1 LOCKWASHER, 5/16
Control Rod Guide Used with Snowcabs
Packaged with Hitch
42
4
6
30
31
32
4
1
3
4
4
11
7
25
26
24
23
21
10
22
38
37
36
36
20
19
16
18
17
16
14
13
12
15
27
8
9
28
3
33
5
34
10
2
2
39
29
35
34
43
41
34
40
Figure 8.
10
Components
Figure 9. Hitch Assembly
A. Hitch Assy. B. Rear Support Assy. C. Washers (Qty. 2) D. Hairpin Clip (Qty. 2) E. Pin F. Safety Clip (Qty. 4) G. Clevis Pin, 3/8 (Qty. 2) H. Rod I. Spring Assist Bracket
J. Capscrew, 3/8-16 x 2 K. Spacer, 25/64 x 5/8 x 17/64 L. Spacer, 13/32 x 1 x 13/16 M. Nut, Whizlock, 3/8-16 N. Lockwasher, 1/2 O. Hex Nut, 1/2-13 P. Capscrew, 1/2-13 x 1-1/4 Q. Upstop (Qty. 2)
A
B
C
C
D
D
E
F
F
G
G
H
I
J
K
L
M
N
O
P
Q
Q
F
11
Initial Setup & Assembly
INITIAL SETUP & ASSEMBLY
NOTE: Some of the following setup procedures may already be completed.
Assemble Blade
1. Place the blade on a flat surface.
2. See Figure 10. Install one bar stop (A) using the two 5/16-18 x 1 taptite screws (B). Do not install second bar stop.
3. See Figure 11. Insert threaded end of eyebolt (A) through lug on blade, and screw on 5/16 nut (B) just far enough so that it is flush with the end of the eye­bolt.
4. See Figure 11. Hook the springs (C) into the pivot frame (D). Using a pliers, stretch the springs to hook the opposite ends to the eyebolts (A).
5. See Figure 11. Tighten the nut (B) on each eyebolt enough to expose about 3/4" (19 mm) of thread.
6. See Figure 11. Holding the first nut (B) with a wrench,add a second nut (E) to each eyebolt, and tighten securely against the first nut to act as a jam nut.
Assemble & Install Hitch
1. See Figure 12. Assemble the spring-assist bracket (A) to the hitch assembly (E). Secure with capscrew, lockwasher, and nut.
Figure 10. Bar Stop A. Bar Stop B. Taptite Screw, 5/16-18 x 1
Figure 11. Tension Springs A. Eyebolt D. Pivot Frame B. Nut, 5/16 E. Nut, 5/16 C. Spring
Figure 12. Spring Assist Bracket A. Spring Assist Bracket B. Capscrew, 1/2-13 x 1-1/4 C. Lockwasher, 1/2 D. Hex Nut, 1/2-13 E. Hitch
B
D
C
A
E
12
Initial Setup & Assembly
2. Increase front tire pressure to 20 psi (138 kPa) to compensate for added weight of the hitch, plus bar and blade. Be sure both tires have equal pressure.
3. From the front of tractor, slide the hitch under the tractor so that the hitch bar is positioned at the front of the unit.
4. See Figure 13. Turn the wheels fully left and lift the front hitch bar (A) up onto the tractor brackets (D). Make sure it is fully seated into the tractor brackets. Install the long hitch pin (B) through the bracket (bot­tom rear holes) and up-stop brackets (E). Secure it with the safety clip (C).
NOTE: If your tractor is not equipped with the Large Lift Lever, install it at this time. Follow the instructions sup­plied with the kit.
Note that the rear bracket (A, Figure 14) is mounted using the lift lever rod (B). After installation, the lift lever rod assy. can be removed by pivoting the lift lever fully forward until it is parallel to the ground, and sliding it out of the quadrant
5. See Figure 14. Slide the rear bracket (A), and wash­ers (D), onto the lift lever shaft, and secure with the hairpin clips (C).
6. See Figure 14. Position the rear plate of the hitch assembly between the hanger tabs on the rear brack­et, and secure at the top mounting hole using the cle­vis pin (F), and hairpin clip (K).
7. See Figure 14. Install the capscrew (G), spacers (H & I), and whizlock nut (J) in the lower mounting hole as shown, and tighten securely.
8. The hitch assembly is now assembled to the unit, and you may proceed to installation of the push bar and blade.
J
I
H
D
C
A
F
E
G
B

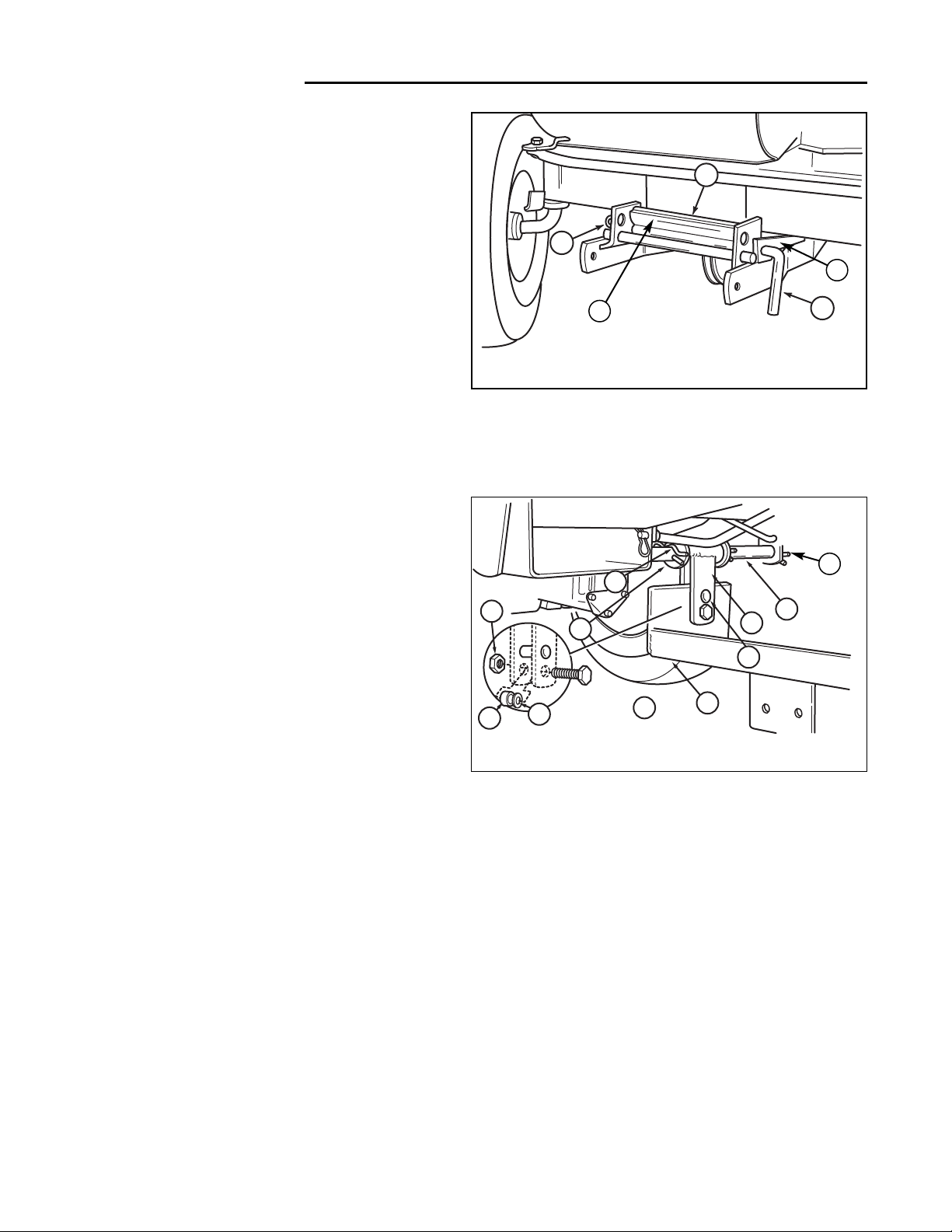

Figure 14. Installing Hitch to Rear Bracket A. Rear Bracket G. Capscrew, 3/8-16 x 2 B. Lift Lever Rod H. Spacer, 25/64 x 5/8 x 17/64 C. Hairpin Clip I. Spacer, 13/32 x 1 x 13/16 D. Washer J. Nut, Whizlock, 3/8-16 E. Hitch K. Hairpin Clip F. Clevis Pin
Figure 13. Installing Hitch to Front of Tractor A. Hitch Bar D. Tractor Brackets B. Hitch Pin E. Up-Stop Brackets C. Safety Clip
D
K
E
A
C
B
13
Initial Setup & Assembly
Install Push Bar
1. Drive the tractor over the push bar until the rear of the push bar is positioned between the side rail exten­sions on the front of the hitch.
2. Stop engine, remove key and set parking brake.
3. See Figure 15. Align the mounting holes in the rear corners of the push bar (A) with the mounting holes in the hitch (B), and secure the push bar to the hitch with a clevis pin (C), and safety clip (D) at each cor­ner.
Figure 15. A. Push Bar C. Clevis Pin B. Hitch D. Safety Clip
(Not shown)
D
A
C
B
Figure 16. Dozer Blade Assembled and Installed A. Push Bar C. Pivot Pin B. Pivot Frame D. Spring Clip
4. See Figure 16. Insert front of push bar (A) into pivot frame (B) on rear of blade. Then install the pivot pin (C) down thru front holes in hitch and pivot frame. Secure with spring clip (D).
14
Initial Setup & Assembly
Install Lift Rod
1. Assemble lift rod as shown in Figure17.
2. See Figure 18. Insert the rod guide (A) through the hole in the push bar (B), and secure with spring clip (C).
3. See Figure 19. Connect rear of lift rod (A) to manual lift lever (B), and secure with spring clip (C).
Figure 18. Lift Rod Installation A. Rod Guide C. Spring Clip B. Push Bar
Figure 19. Installing Lift Rod to Manual Lift Lever A. Lift Rod C. Spring Clip B. Manual Lift Lever
B
A
C

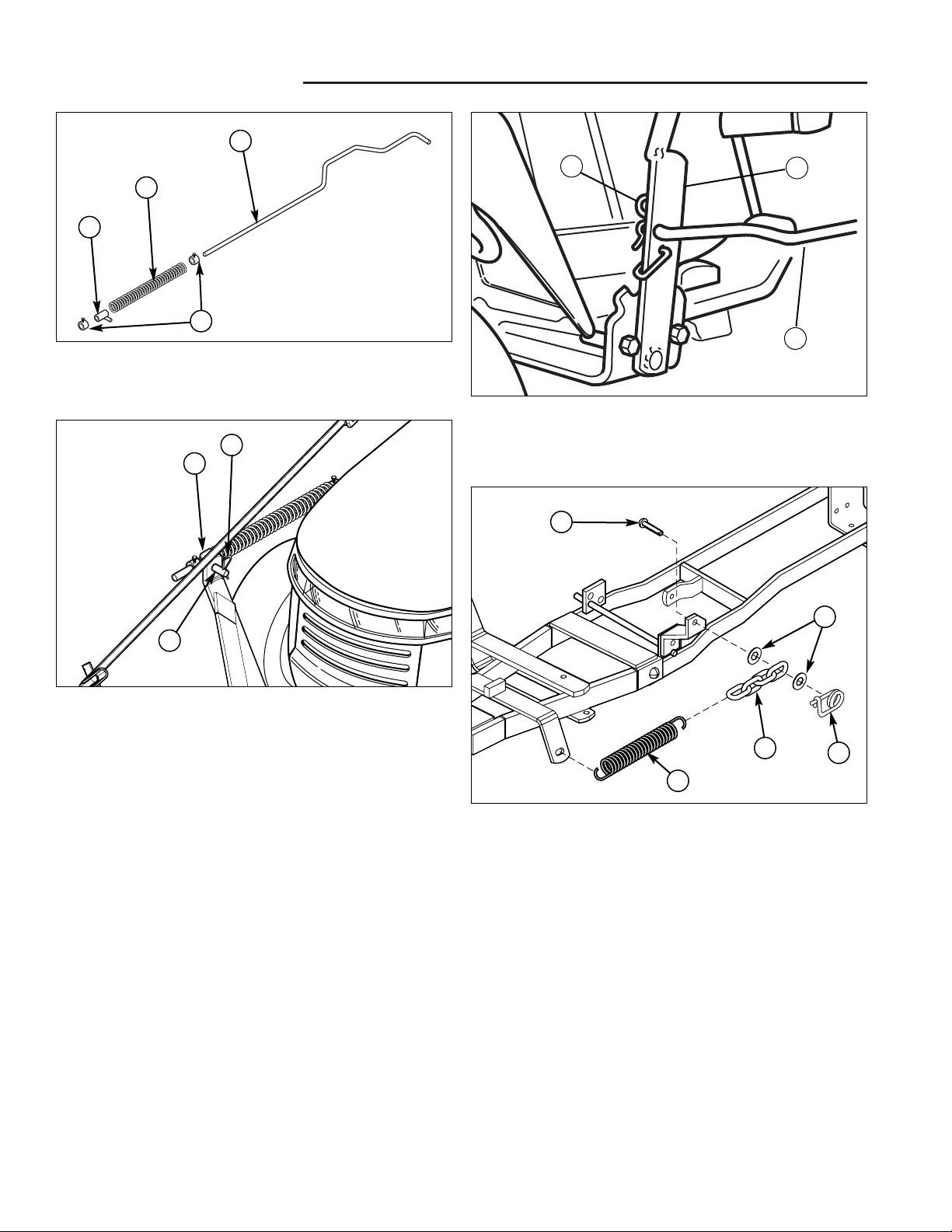

Figure 17. Lift Rod Assembly A. Set Collars C. Spring B. Rod Guide D. Lift Rod
A
B
B
C
A
C
D
4. Raise the dozer using the lift lever. Support the weight of the blade using wood blocks. Install the lift assist spring as shown in Figure 20.
5. Perform lift rod adjustment (see Adjustments sec­tion).
Figure 20. Install Lift Assist Chain A. Clevis Pin D. Safety Clip B. Spring E. 5/16 Washers C. Chain
A
B
C
D
E
15
Initial Setup & Assembly
Figure 21. Underside of Left Footrest. A. Carriage Bolt, Lockwasher, & Nut B. Pedal Plate
Figure 22. Control Rod Support A. Support B. 5/16-18 x 1-1/4 Carriage Bolts C. 5/16 Lockwashers & Nuts
A
B
Install Angling Control Rod
NOTE: If installing the dozer attachment on a unit equipped with a snowcab, replace the control rod sup­port (A, Figure 22) with the hanging support (Ref. No. 41, Figure 8). Mount the hanging support to the front cab cross-bar.
1. Remove and discard the two rear nuts, lockwashers, and carriage bolts (A, Figure 21) securing the back of the foot pedal plate (B).
2. Using the foot pedal plate (B) as a guide, drill two 5/16 holes up through the foot pedal pad.
3. Set the angling control support (A, Figure 22) on the foot rest pad. Insert two 5/16-18 x 1-1/4 carriage bolts (B) through the support, footrest pad, footrest, and foot pedal plate. Secure using new lockwashers and nuts (C).
4. Connect the lower angling rod (F, Figure 23) to the dozer release lever using a hair pin clip and washer (G).
5. Insert the upper control rod (C) through the eyelet (B), and secure the eyelet to the support using a 1/4­20 nylock nut (A).
NOTE: It may be necessary to leave the eyelet nut (A, Figure 23) loose to prevent binding.
6 Secure the upper rod (C) to the lower rod (F) using
two 5/16-18 x 1-1/4 capscrews (D), washers (qty. 4), lockwashers, and nuts (E). NOTE: Match offset to offset so the rods form a straight line.
A
B
C
Figure 23. Assemble Control Rods A. 1/4-20 Nylock Nut B. Eyelet C. Upper Control Rod D. 5/16-18 x 1-1/4 Capscrew E. 5/16 Washers, Lockwashers, & Nuts F. Lower Control Rod G. Hair Pin Clip & Washer
A
B
C
D
F
G
E
16
Removing & Attaching the Hitch & Blade
REMOVAL & INSTALLATION
Removing & Attaching Dozer Blade
1. Lower the blade. Put the lift lever in the middle notch (float position).
2. Remove the hair pin clip and washer (D, Figure 24) securing the angling control rod to the clevis. Disconnect the angling control rod.
3. Remove the angling control rod from the support arm (A).
4. Remove the pivot pin (C) connecting the blade and pushbar. Remove the blade.
5. Raise the push bar and remove pin (E) securing the chain to the hitch bracket.
6. Lower the lift and remove the pins (B) securing the lift rod to the push bar and lift rod.
7. Remove the pins (F) securing the push bar to the tractor hitch.
8. Reinstall all pins for storage.
Install in reverse order of removal.
Figure 24. Dozer Removal A. Support Arm C. Pivot Pin E. Clevis Pin B. Hair Pin Clip D. Hair Pin Clip & Washer F. Clevis Pins
D
C
B
A
E
F
F
B
17
Removing & Attaching
Removing & Attaching Hitch
1. Remove the safety clip (K, Figure 25).
2. Remove the spring clips (C) securing the rear hitch bracket (A) to the lift lever rod (B).
3. See Figure 26. Remove the caspcrew from location (A). Depress the lift lever release button and rotate the lever forward until the lever latch clears the mounting bracket. Slide the lever and rod assembly out of the hitch bracket and mounting bracket.
4. See Figure 27. Remove the safety clip (C) and long hitch pin (B) from the front of the hitch. Remove the hitch from the front tractor brackets.
Install in reverse order of removal.
2
3
1
Figure 26. Lift Lever Removal A. Capscrew Location (Remove)
A
J
I
H
D
C
A
F
E
G
B

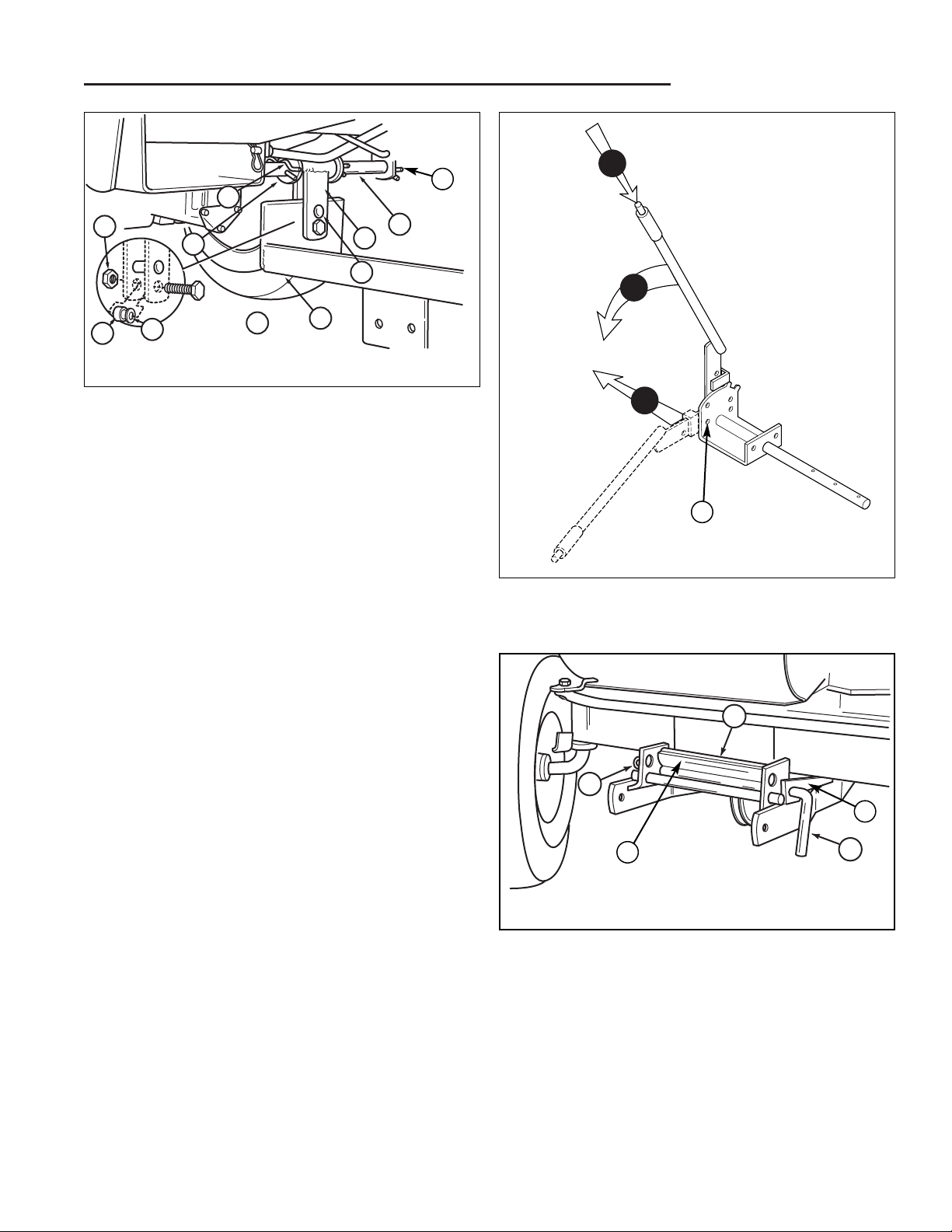

Figure 25. Installing Hitch to Rear Bracket A. Rear Bracket G. Capscrew, 3/8-16 x 2 B. Lift Lever Rod H. Spacer, 25/64 x 5/8 x 17/64 C. Hairpin Clip I. Spacer, 13/32 x 1 x 13/16 D. Washer J. Nut, Whizlock, 3/8-16 E. Hitch K. Hairpin Clip F. Clevis Pin
K
Figure 27. Installing Hitch to Front of Tractor A. Hitch Bar D. Tractor Brackets B. Hitch Pin E. Up-Stop Brackets C. Safety Clip
D
E
C
A
B
Torque Specification Chart
FOR STANDARD MACHINE HARDWARE (Tolerance ± 20%)
Hardware Grade
SAE Grade 2 SAE Grade 5 SAE Grade 8
Size Of in/lbs in/lbs in/lbs Hardware ft/lbs Nm. ft/lbs Nm. ft/lbs Nm.
8-32 19 2.1 30 3.4 41 4.6 8-36 20 2.3 31 3.5 43 4.9 10-24 27 3.1 43 4.9 60 6.8 10-32 31 3.5 49 5.5 68 7.7 1/4-20 66 7.6 8 10.9 12 16.3 1/4-28 76 8.6 10 13.6 14 19.0 5/16-18 11 15.0 17 23.1 25 34.0 5/16-24 12 16.3 19 25.8 27 34.0 3/8-16 20 27.2 30 40.8 45 61.2 3/8-24 23 31.3 35 47.6 50 68.0 7/16-14 30 40.8 50 68.0 70 95.2 7/16-20 35 47.6 55 74.8 80 108.8 1/2-13 50 68.0 75 102.0 110 149.6 1/2-20 55 74.8 90 122.4 120 163.2 9/16-12 65 88.4 110 149.6 150 204.0 9/16-18 75 102.0 120 163.2 170 231.2 5/8-11 90 122.4 150 204.0 220 299.2 5/8-18 100 136 180 244.8 240 326.4 3/4-10 160 217.6 260 353.6 386 525.0 3/4-16 180 244.8 300 408.0 420 571.2 7/8-9 140 190.4 400 544.0 600 816.0 7/8-14 155 210.8 440 598.4 660 897.6 1-8 220 299.2 580 788.8 900 1,244.0 1-12 240 326.4 640 870.4 1,000 1,360.0
NOTES
1. These torque values are to be used for all hardware excluding: locknuts, self-tapping screws, thread forming screws, sheet metal screws and socket head setscrews.
2. Recommended seating torque values for locknuts:
a. for prevailing torque locknuts - use 65% of grade 5
torques.
b. for flange whizlock nuts and screws - use 135% of
grade 5 torques.
3. Unless otherwise noted on assembly drawings, all torque values must meet this specification.
Hardware Identification & Torque Specifications
Common Hardware Types
Standard Hardware Sizing
When a washer or nut is identified as 1/2, this is the
Nominal size, meaning the inside diameter is 1/2 inch; if a second number is present it represent the threads per inch
When bolt or capscrew is identified as 1/2 - 16 x 2, this means the Nominal size, or body diameter is 1/2 inch; the second number represents the threads per inch (16 in this example, and the final number is the body length of the bolt or screw (in this example 2 inches long).
The guides and ruler furnished below are designed to help you select the appropriate hardware and tools.
Hex Head Capscrew
Carriage Bolt
1/4 3/4
1/4 3/4
0
Nut, 1/2
1/2
1
1/2
Screw, 1/2 x 2
2
1/4 3/4
1/2
3
1/4 3/4
1/2
4
Body
Diameter
Body
Length
Washer
Lockwasher
Hex Nut
Inside Diameter
No
Marks
Wrench & Fastener Size Guide
1/4
1/4” Bolt or Nut
Wrench7/16
5/16
5/16” Bolt or Nut
Wrench1/2
3/8
3/8” Bolt or Nut
Wrench9/16
7/16 DIA.
7/16” Bolt or Nut
Wrench (Bolt)5/8
Wrench (Nut)11/16
1/2
DIA.
1/2” Bolt or Nut
Wrench3/4
Simplicity Mfg. Inc.
500 N Spring Street / PO Box 997 Port Washington, WI 53074-0997 USA
© Copyright 2000 Simplicity Manufacturing, Inc. All Rights Reserved. Printed in USA.
Loading...
