Snapper 1690033, 1690032 User Manual
Specifications and Main Features
- Model: Snow thrower 36” (MFG. NO. 1690033)
- Model: Mid Snowthrower of 42” (MFG. NO. 1690032)
- Functional Width:
- 36 Inches which equals 914 mm
- 42 Inches which equals 1067 mm
- Entire Width:
- 37 ½ Inches or 953 mm
- 43 ½ Inches or 1105 mm
- General Length: Both models have a length of 27 Inches or 686 mm
- Height of the Opening: Both models have an opening height of 19 Inches or 483 mm
- Diameter of Auger: It is 12 Inches or 305 mm for every model manufactured
- Weight in Net Terms:
- For the model measuring 36 Inches its 135 Pounds or 61.2 kg
- For the model measuring 42 Inches its 145 Pounds or 65.8 kg
- Propulsion of the Auger: It is done through Hooks Tow which are located on the Right Hand Side of the tractor.

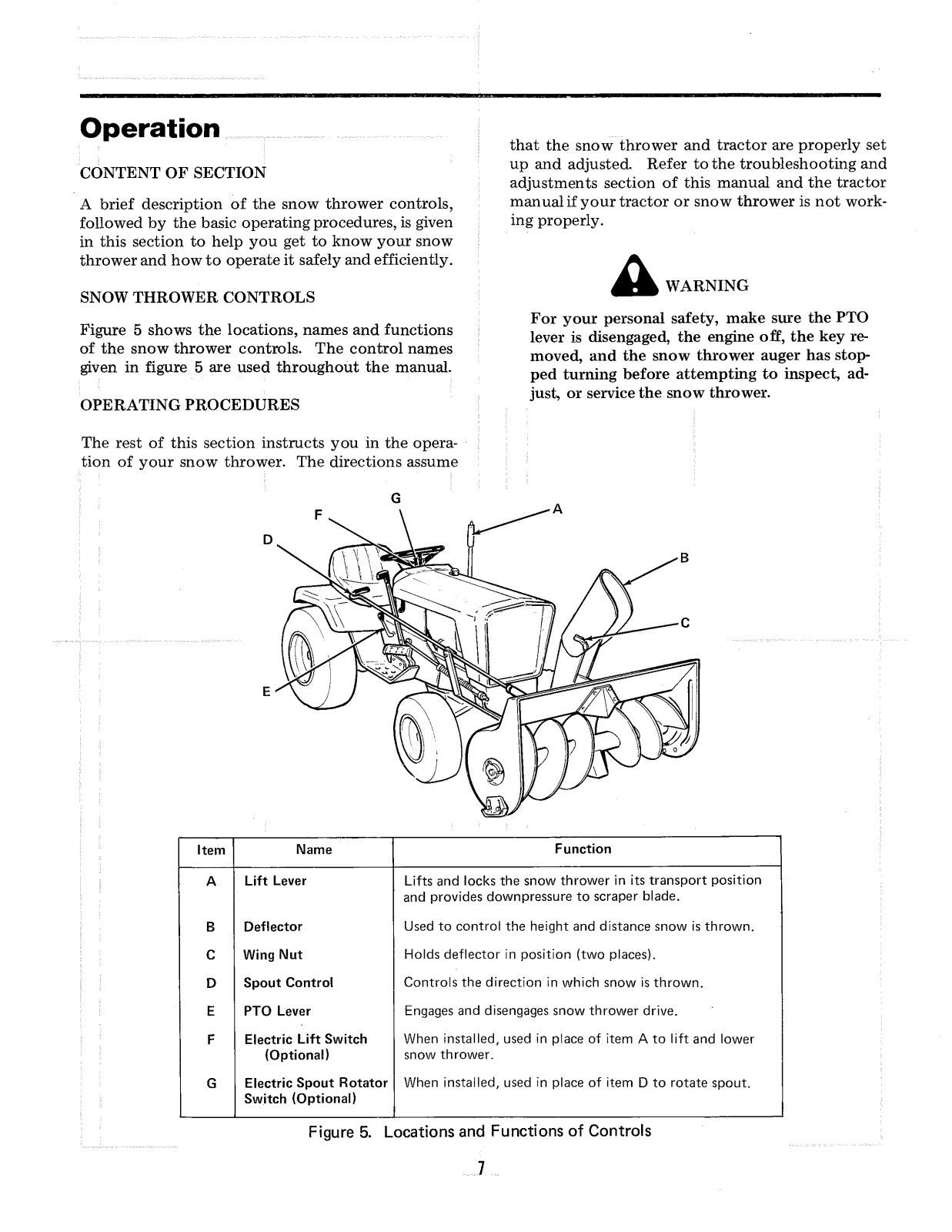

- Controls which operate the devices:
- Raise and Lower: Lift Lever of tractor or Electric Lift which is Optional
- Spout Rotation: Tee handle can be adjusted anywhere right of the operator or use Electrostatic purpose alternative Spout Rotator.
- Maintenance and Drive Cover:
- Input Maintenance: Utilizes a cushioning V belt
- Final Maintenance: Tubular Chains that are enclosed and pre lubricated.
- Attachment: Equipment with cone clutch.
- Bearing Units:
- Auger Bearings: Self Lifting Rollers that are contact type and lubricant
- Other Bearings: Equipment that are disposable and sealed rolling contact type bearings with lubricants
- Chassis:
- Housing: Assembled C Channels and Steel Press Parts
- Scraper Bar: Supplied with High Carbon Steel which is high and full width and replaceable.
Frequently Asked Questions
Q: What is the thrower snow’s size?
A: The thrower snow comes in two categories the 36” and the 42” and its size comprises of effective width of 36-1/2 inches. The length is also pulled back to approximately 37- 1/2 inches with the pull back edges comprising of being near the edges of the overall width to 37 inches. Moreover, The thrower also contains an opening which is 19 inches wide. The two inch edge of the model is designed to be 42 inches while maintaining an 18 inches wide edge.
Q: What do you consider the weight of each model?
A: The weight of the throwers comes in two categories as well , with the first being the 36 inches thrower with the weight of 135 (61.2) pounds while the latter being the 42 inch thrower which weighs approximately around145 pounds (65.8 kg)
Q: What is the power source behind the snow throwers?
A: The snow throwers use the power try lever which has been installed on the right edge of the tractor.
Q: What kind of models do you recommend for enhancing the lift and lowering of the snow thrower?
A: We recommend using a tractor lift lever as it would make its easy lift the snow thrower and the electric lift is also a recommended alternate.
Q: In what manner are you able to alter the discharge of snow?
A: There are several electric spout rotators which rotators which enhance the edges for snow displacement as well 易کھنمناہک اری.<|disc_score|>
Q: What type of drive mechanisms does the snow thrower use?
A: The driving belt used in input drives consists of parts that allow for comfort as well as ease of use, whereas, the final drive makes use of roller chains that are enclosed and pre lubricated.
