Snapper 1687879 User Manual

82V CORDLESS BLOWER
1696775 (SXDBL82)
Owner’s Manual
TOLL-FREE HELPLINE: 1-800-317-7833
www.snapper.com
Read all safety rules and instructions carefully before operating this tool.
CONTENTS
Contents .............................................................................................................................. 2
......................................................................................................... 2
General Safety Rules ........................................................................................................... 3
Symbols ............................................................................................................................... 6
Know Your Blower ................................................................................................................ 8
Assembly ............................................................................................................................9
Operation ...........................................................................................................................11
Battery & Charger Maintenance................................................ .......................................... 14
Maintenance ...........................................................................................................................16
Environmentally Safe Battery Disposal...................................................................................17
Troubleshooting..................................................................................................................18

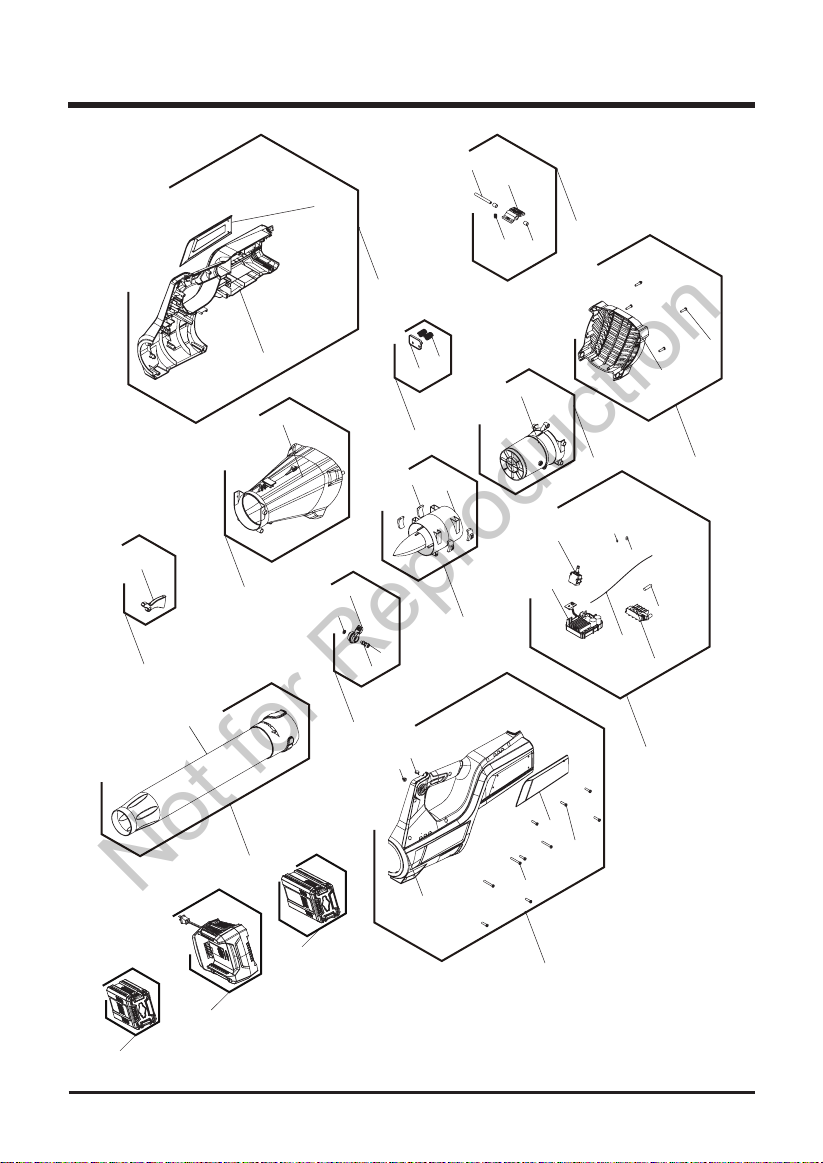

Exploded View ........................................................ ............................................................21
Parts List............................................................................................................................... 22
PRODUCT SPECIFICATIONS
82V CORDLESS BLOWER
Type ............................................................................................ Cordless, battery-operated
Motor.................................................................................................................. 82V Brushless
Air volume.........................................................................................................500 CFM ± 10%
Air speed (Max).................................................................................................125 MPH ± 10%
Weight (without battery) ....................................................................................5.1 lbs (2.3 kg)
91...................................................................................................................ytnarraW
Disclaimer: *Maximum initial battery voltage (measured without a workload) is 82 volts. Nominal voltage is 72.
2
GENERAL SAFETY RULES
READ ALL INSTRUCTIONS BEFORE USING (THIS POWER TOOL)
WARNING
Read and understand all instructions before using this product. Failure to follow all instructions
listed below may result in electric shock, re, and/or serious personal injury. When using an electrical appliance, basic precautions should always be followed, including the following:
• Do not allow to be use as a toy. Close attention is necessary when used by or near children.
• Use only as described in this manual. Use only manufacturer’s recommended attachments.
• Do not put any object into openings. Do not use if any openings are blocked. Keep openings
free of dust, lint, hair, and anything that may reduce air ow.
• Keep hair, loose clothing, ngers and all body parts away from openings and moving parts.
• Use extra care when cleaning on stairs.
• Do not use to pick up ammable or combustible liquids, such as gasoline, or use in areas where they may be present.
• Do not operate power tools in an explosive atmosphere, such as in the presence of ammable
liquids, gases, or dust. Power tools create sparks that may ignite the dust or fumes.
• Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
• Do not use on wet surfaces. Do not expose to rain. Store indoors.
• Do not handle appliance with wet hands.
• Never allow children to operate the equipment. Never allow adults to operate the equipment without proper instruction.
• Always wear safety glasses with side shields that comply with ANSI Z87.1. Everyday glasses only have impact resistant lenses. They are NOT safety glasses. Following this rule will
reduce the risk of eye injury. If working in a dusty area, use a dusk mask.
• Wear heavy long pants, boots, and gloves. Avoid loose garments or jewellery that could get caught in moving parts of the machine or its motor.
• Do not force tool. Use the correct tool for your application. The correct tool will do the job better and safer at the rate for which it is designed.
• Do not operate the equipment while barefoot or when wearing sandals or similar lightweight footwear. Wear protective footwear that will protect your feet and improve your footing on slippery surfaces.
• Secure long hair so it is above shoulder level to prevent entanglement in any moving parts.
• Keep rm footing and balance. Do not overreach. Overreaching can result in loss of balance.
• Do not use the tool if the switch does not turn it on or off. Any tool that cannot be controlled with the switch is dangerous, and must be repaired.
• Keep all bystanders, children, and pets at least 50’ (15 m) away.
• Do not point the blower nozzle in the direction of people or pets.
• Never run the unit without the proper equipment attached. Always ensure the blower tube is installed.
• Use only Briggs & Stratton batteries: BSB2AH82 (2 amp-hour) or BSB4AH82 (4 am-phour).
• Use only Briggs & Stratton charger: BSRC82.
• Do not operate this unit when you are tired, ill, or under the inuence of alcohol, drugs, or medication.
• Do not operate in poor lighting.
• When not in use, product should be stored indoors in a dry, locked place out of the reach of children.
3
GENERAL SAFETY RULES
• Maintain tool with care. Keep fan area clean for best and safest performance. Follow instructions for proper maintenance.
• Keep all parts of your body away from any moving parts and all hot surfaces of the unit.
• Check the work area before each use. Remove all objects such as rocks, broken glass, nails, wire, or string which can be thrown or become entangled in the machine.
• This appliance is provided with double insulation. Use only identical replacement parts. See instructions for Servicing of Double-Insulated Appliances.
• Use only identical manufacturer’s replacement parts and accessories. Use of any other parts may create a hazard or cause product damage.
• Remove the battery pack before connecting tool.
FOR BATTERY-OPERATED POWER TOOLS:
• Do not charge battery in rain, or in wet locations.
• Do not use battery-operated appliance in rain.
• Remove or disconnect battery before servicing, cleaning, or removing material from the appliance.
• Do not dispose of the battery in a re. The cell may explode. Check with local codes for possible special disposal instructions.
• Do not open or mutilate the battery. Released electrolyte is corrosive and may cause damage to the eyes or skin. It may be toxic if swallowed.
• Use appliances only with specically designated battery packs. Use of any other battery
packs may create a risk of injury and re.
• Exercise care in handling batteries in order not to short the battery with conducting materials such as rings, bracelets, and keys. The battery or conductor may overheat and cause burns.
• Prevent unintentional starting. Ensure the switch is in the off-position before connecting to
battery pack, picking up or carrying the appliance. Carrying the power tool with your nger on
the switch or energizing power tool that have the switch on invites accidents.
• Disconnect the battery pack from the power tool before making any adjustments, changing accessories, or storing the power tool. Such preventive safety measures reduce the risk of starting the power tool accidentally.
• Battery tools do not have to be plugged into an electrical outlet; therefore, they are always in operating condition. Be aware of possible hazards when not using your battery tool or when
changing accessories. Following this rule will reduce the risk of electric shock, re, or serious personal injury.
• Batteries can explode in the presence of a source of ignition, such as a pilot light. To reduce the
risk of serious personal injury, never use any cordless product in the presence of open ame. An exploded battery can propel debris and chemicals. If exposed, ush with water immediately.
• Do not crush, drop or damage battery pack. Do not use a battery pack or charger that has
been dropped or received a sharp blow. A damaged battery is subject to explosion. Properly
dispose of a dropped or damaged battery immediately.
• Do not attempt to clear clogs from tool without rst removing the battery.
• Do not handle the charger, including the charger plug and terminals, with wet hands.
• Use only the charger supplied by the manufacturer to recharge the battery.
• Recharge only with the charger specied by the manufacturer. A charger that is suitable for
one type of battery pack may create a risk of re when used with another battery pack.
• Do not charge the battery outdoors.
• Do not incinerate the appliance even if it is severely damaged. The batteries can explode in a re.
• When battery pack is not in use, keep it away from other metal objects, like paper clips,
coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a re.
4
GENERAL SAFETY RULES
• Under extreme usage or temperature conditions, battery leakage may occur. If liquid comes in contact with your skin, wash immediately with soap and water, then neutralize with lemon juice or vinegar. If liquid gets into your eyes, ush them with clean water for at least 10 minutes, then seek immediate medical attention. Following this rule will reduce the risk of serious personal injury.
• Do not use a battery pack or appliance that is damaged or modied. Damaged or modied batteries may exhibit unpredictable behavior resulting in re, explosion or risk of injury.
• Do not expose a battery pack or appliance to re or excessive temperature. Exposure to re or temperature above 265°F may cause explosion.
• For best results, your battery tool should be charged in a location where the temperature is
more than 43°F but less than 104°F. To reduce the risk of serious personal injury, do not store
outside or in vehicles.
• Have servicing performed by a qualied repair person using only identical replacement parts. This will ensure that the safety of the product is maintained.
• Do not modify or attempt to repair the appliance or the battery pack (as applicable) except as indicated in the instructions for use and care.
• Save these instructions. Refer to them frequently and use them to instruct others who may use this power tool. If you loan someone this power tool, loan them these instructions also.
• Follow all charging instructions and do not charge the battery pack or appliance outside of
the temperature range specied in the instructions. Charging improperly or at temperatures outside of the specied range may damage the battery and increase the risk of re.
WARNING
This product contains a chemical known to the state of California to cause cancer, birth defects or other reproductive harm.
Some dust created by power sanding, sawing, grinding, drilling, and other construction activities contains chemicals known to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are:
• Lead from lead-based paints
• Crystalline silica from bricks and cement and other masonry products, and
• Arsenic and chromium from chemically treated lumber.
Your risk of exposure to these chemicals varies depending on how often you do this type of work. To reduce your exposure to these chemicals, work in a well-ventilated area, and work
with approved safety equipment, such as dust masks that are specially designed to filter out
microscopic particles.
CHILD SAFETY
Tragic accidents can occur if the operator is not aware of the presence of children.
• Keep children out of the working area and under the watchful care of a responsible adult.
• Do not allow children under the age of 14 to operate this blower. Children who are 14 years of age and older must read and understand the operating instructions and safety rules in this manual and must be trained and supervised by a parent.
• Stay alert, and turn the blower off if a child or any other person enters the working area.
• Use extreme care when approaching blind corners, doorways, shrubs, trees, or other
objects that may obscure your view of a child who may run into the path of the blower.
(PROPOSITION 65)
SAVE THESE INSTRUCTIONS
5
SYMBOLS
Some of the following symbols may be used on this product. Please study them and learn their meaning. Proper interpretation of these symbols will allow you to operate the product better and safer.
SYMBOL NAME DESIGNATION/EXPLANATION
V Volts Voltage
A Amperes Current
Hz Hertz Frequency (cycles per second)
W Watts Power
min Minutes Time
Alternating Current Type of current
Direcrt Current Type or a characteristic of current
Class II Construction Double-insulated construction.
/min Per Minute
Safety Alert Precautions that involve your safety.
Read The Operator’s Manual
Eye Protection
Wear ear protection
Long Hair
Loose Clothing
Keep Bystanders Away Keep all bystanders at least 50 ft. (15m)away.
Revolutions, strokes, surface speed, orbits etc., per minute
To reduce the risk of injury user must read and
understand operator’s manual before using this product.
Always wear eye protection with side shields marked to comply with ANSI Z87.1 when
operating this equipment.
Wear ear protection when operating this
equipment.
Failure to keep long hair away from the air inlet
could result in personal injury.
Failure to keep loose clothing from being drawn
into air intake could result in personal injury.
Blower Tubes Do not operate without tubes in place.
6
SYMBOLS
The following signal words and meanings are intended to explain the levels of risk associated with this product.
SYMBOL SIGNAL MEANING
DANGER
Indicates an imminently hazardous situation, which, if not
avoided, will result in death or serious injury.
WARNING
CAUTION
CAUTION
SERVICE
Servicing requires extreme care and knowledge and should be performed only by a qualied
service technician. For service we suggest you return the product to your nearest AUTHORIZED SERVICE CENTER for repair. When servicing, use only identical replacement parts.
Indicates a potentially hazardous situation, which, if not
avoided, could result in death or serious injury.
Indicates a potentially hazardous situation, which, if not
avoided, may result in minor or moderate injury.
(Without Safety Alert Symbol) Indicates a situation that may result in property damage.
W A R N I N G
To avoid serious personal injury, do not attempt to use this product until you have read this Owner's
Manual thoroughly and understand it completely. If you do not understand the warnings and
instructions in this Owner's Manual, do not use this product. Call the Toll-free Helpline (1-800-317-
7833) for assistance.
W A R N I N G
The operation of any power tool can result in foreign objects being thrown into your eyes,
which can result in severe eye damage. Before beginning power tool operation, always wear safety goggles or safety glasses with side shields and, when needed, a full face shield. We recommend Wide Vision Safety Mask for use over eyeglasses or standard safety glasses with side shields. Always use eye protection which is marked to comply with ANSI Z87.1.
SAVE THESE INSTRUCTIONS
7
KNOW YOUR BLOWER
On/Off Button
Cruise Control Lever
Blower Tube
Battery Release Button
Trigger
82V Lithium­Ion Battery
Fig. 1
KNOW YOUR BLOWER (
The safe use of this product requires an understanding of the information on the product and in this operator’s manual as well as a knowledge of the project you are attempting. Before use of
this product, familiarize yourself with all operating features and safety rules.
ON/OFF BUTTON
Turns power on/off. Will hear and audible beep when power is turned on.
TRIGGER
Starts/stops the ow of air through the blower.
CRUISE CONTROL LEVER
Increases or reduces the air velocity of the blower. Three speed settings of low, medium, and high.
Speed 1 (Low): 68 MPH/ 275 CFM Speed 2 (Medium): 99 MPH / 397 CFM Speed 3 (High): 125 MPH / 500 CFM
BATTERY RELEASE BUTTON
Releases the battery pack from the blower
BLOWER TUBE
The blower tube can be easily installed on the blower without any additional tools.
See Figure 1.
)
8
AS S E M B LY
W A R N I N G
If any parts are damaged or missing, do not operate this product until the parts are replaced. Use
of this product with damaged or missing parts could result in serious personal injury.
W A R N I N G
Do not attempt to modify this product or create accessories not recommended for use with this
blower. Any such alteration or modication could result in a hazardous condition leading to possible serious personal injury.
UNPACKING
• Carefully remove the product and any accessories from the box. Make sure that all items listed in the packing list are included.
W A R N I N G
Do not use this product if any parts on the packing list are already assembled to your product when
you unpack it. Parts on this list are not assembled to the product by the manufacturer and require
customer installation. Use of a product that may have been improperly assembled could result in
serious personal injury.
• Inspect the tool carefully to make sure no breakage or damage occurred during shipping.
• Do not discard the packing material until you have carefully inspected and satisfactorily operated the tool.
• If any parts are damaged or missing, please return the product to the place of purchase.
PART NAME FIGURE PART NO.
Blower
1
1
Blow er Tub e
82V CORDLESS BLOWER
Owner’s Manual
1696775 (SXDBL82)
Owner’s Manual
TOLL-FREE HELPLINE: 1-800-317-7833
www.snapper.com
Read all safety rules and instructions carefully before operating this tool.
1
9
AS S E M B LY
ASSEMBLING THE BLOWER TUBE(
See Figure 2.
)
W A R N I N G
To prevent accidental starting that could cause serious personal injury, always remove the battery
pack from the tool when assembling parts.
1. Align either of the grooves on the tube with the tabs on the blower housing. Push the tube onto
the blower housing until the tab engages the grooves
Tube
Groove
2. Turn the tube in the direction of the arrow until both of the tabs slide into the lock positions.
Figure 2.2.
)
See Figure 2.1.
(
Tab
)
Fig. 2.1
See
(
LockUnlock
Lock position
10
Fig. 2.2
OPERATION
W A R N I N G
Do not allow familiarity with this product to make you careless. Remember that a careless fraction
of a second is sufcient to inict serious injury.
W A R N I N G
Always wear eye protection with side shields marked to comply with ANSI Z87.1, along with
hearing protection. Failure to do so could result in objects being thrown into your eyes and other possible serious injuries.
W A R N I N G
Use only as described in this manual. Use only manufacturer’s recommended attachments. The
use of attachments or accessories not recommended can result in serious personal injury.
Before each use, inspect the entire product for damaged, missing, or loose parts, such as screws, nuts, bolts, caps,etc. Tighten securely all fasteners and caps and do not operate this product until all missing or damaged parts are replaced.
APPLICATION
You may use this product for the purposes listed below:
• Clearing hard surfaces such as driveways and walkways.
• Keeping decks and driveways free from leaves and pine needles.
11
OPERATION

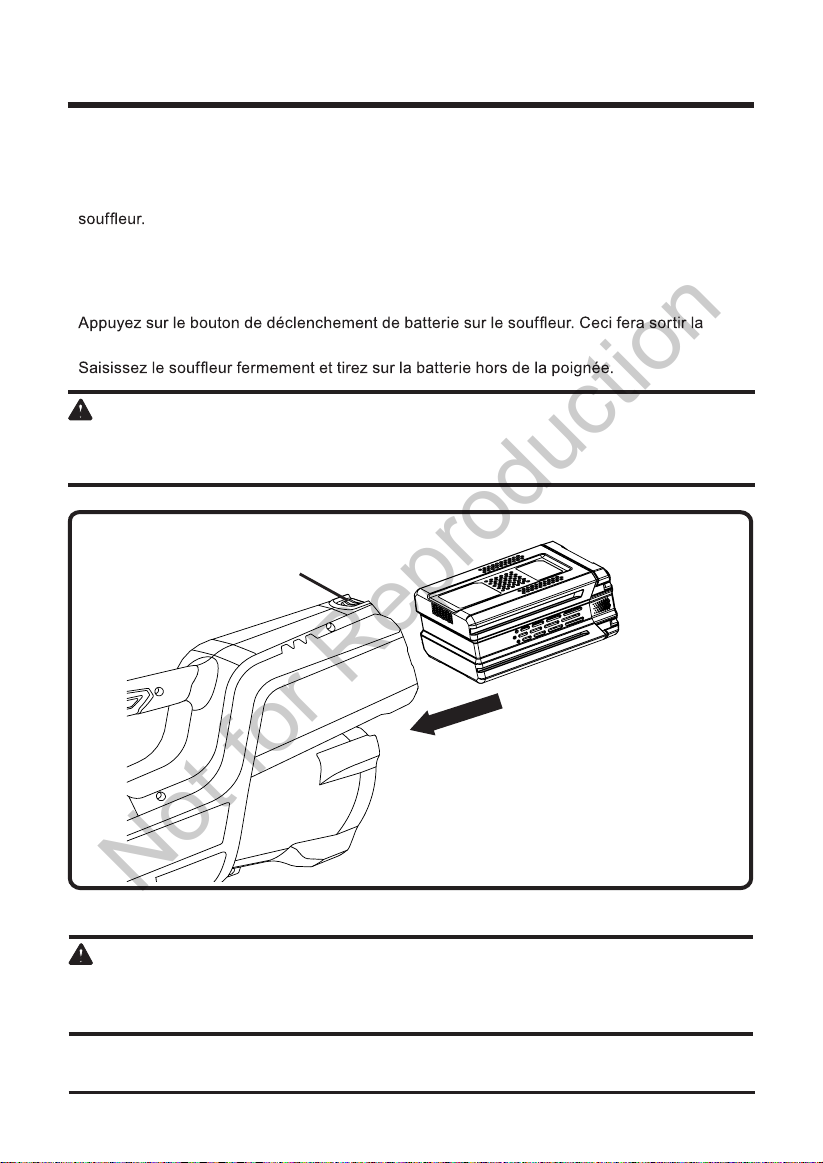

TO INSTALL/REMOVE BATTERY PACK ( TO INSTALL
• Align the ribs of the battery pack with the mounting slots in the blower’s battery port.
• Insert the battery into the battery opening until the battery release button locks into place.
TO REMOVE
• Press the battery release button on the blower. This will cause the battery to slightly protrude out of the tool.
• Grasp the blower rmly and pull the battery out of the handle.
See Figure 3.
)
W A R N I N G
Always take care of your feet, children, or pets around you when pressing the battery release
button. Serious injury could result if the battery pack falls. NEVER remove the battery pack when in
a high location.
Battery release button
Fig. 3
CHARGE BEFORE FIRST USE
W A R N I N G
Always remove battery pack from the product when you are assembling parts, making adjustments,
cleaning, or when not in use. Removing battery pack will prevent accidental starting that could
cause serious personal injury.
12
OPERATION
STARTING/STOPPING THE BLOWER (
• Ensure that the battery is installed in the blower.
• To start the blower, press the On/Off Button located on the blower. You will hear two audible beeps signaling the blower is active.
• Squeeze the trigger to start the blower.
• Release the trigger to stop.
ADJUSTING THE AIR VELOCITY (
• Ensure that blower is blower is on. The LED above the On/Off Button will illuminate.
• Squeeze the trigger to start the blower.
• Once the blower is on, pull back the lever clockwise to increase the speed. This will lock the speed at the desired setting.
• To decrease the speed, push the lever counter clockwise to decrease the speed to the desired setting.
NOTE: If you decrease the speed all the way, the unit will shut off and step one will need to be repeated.
Trigger
See Figure 4.
See Figure 5.
Cruise Control Lever
)
)
On/Off
Button
Fig. 4
OPERATING THE BLOWER
• To keep from scattering debris, blow around the outer edges of a debris pile. Never blow directly into the center of a pile.
• To reduce sound levels, limit the number of pieces of equipment used at any one time.
• Use rakes and brooms to loosen debris before blowing. In dusty conditions, slightly dampen surfaces when water is available.
• Conserve water by using power blowers instead of hoses for many lawn and garden applications, including areas such as gutters, screens, patios, grills, porches, and gardens.
• Watch out for children, pets, open windows, or freshly washed cars, and blow debris safely away.
• After using blowers or other equipment, clean up. Dispose of debris properly.
13
Fig. 5
BATTERY & CHARGER MAINTENANCE
CHARGING PROCEDURE
NOTE: The batter y is not shipped fully charged. It is recommended to fully charge before rst
use to ensure that maximum run time can be achieved. This lithium- ion battery will not develop a memory and may be charged at any time.
Low voltage charging:
If the battery has been stored with little to no charge for a long period of time, the charger will go into recovery mode, which will take 20 hrs to fully charge the battery. This will enhance the life of the battery. Once it is fully charged, the next charge will return to standard charging.
• Plug the charger into an AC power outlet.
• Insert the battery into the charger.
This is a diagnostic charger. The Charger LED Lights will illuminate in specic order to
communicate the current battery status. They are as follows:
Charging Fully
LED STATUS DESCRIPTION
Blinking Green Charging Solid Green Fully Charged Solid Red Over Temperature
Blinking Red
False defect note:
When the battery is inserted into the charger and the status LED blinks RED, remove the battery from the charger for 1 minute, then reinsert. If the status LED blinks GREEN, then the battery is properly charging. If the status LED is still blinking RED, remove the battery and unplug the charger for 1 minute.
After 1 minute, plug in the charger and reinsert the battery. If the status LED blinks GREEN, then the battery is properly charging. If the status LED is still blinking RED, the battery is defective and needs to be replaced.
Charged
Over
Temperature
Charging Fault
Charging
Fault
14
BATTERY & CHARGER MAINTENANCE
CHARGER MOUNTING
1. This charger can be installed hanging on a wall using two #8 screws (not included).
2. Locate the placement for the charger to be wall mounted.
3. If fastening to wood studs use 2 wood screws (not included).
4. Drill two holes 4.5 in. apart ensuring that they are vertically aligned.
5. If fastening to drywall use wall anchors (not included) and screws to secure the charger to the wall.
NOTE: If the battery and the charger won’t be used for a long time, please remove the battery from the charger and pull out the AC power plug.
15
MAINTENANCE
W A R N I N G
In order to avoid personal injury and the risk of re and electric shock, remove the battery pack before adjusting, inspecting, or cleaning the blower.
Cleaning
Remove the battery pack.
1. Brush or blow dust and debris out of the air vents using compressed air or a vacuum. Keep the air vents free of obstructions, sawdust, and wood chips. Do not spray, wash, or immerse the air vents in water.
2. Wipe off the housing and the plastic components using a moist, soft cloth. Do not use strong solvents or detergents on the plastic housing or plastic components. Certain household cleaners may cause damage, and may cause a shock hazard.
Battery Pack
• Store the battery pack fully charged.
• Once the light on the charger turns solid green, remove the battery from the charger and disconnect the charger from the outlet.
• Do not store the battery pack on the tool.
• After charging, the battery pack may be stored in the charger, as long as the charger is not plugged in.
Charger Maintenance
• Keep the charger clean and clear of debris. Do not allow foreign material to get into the recessed cavity or onto the contacts. Wipe the charger clean with a dry cloth. Do not use solvents or water, and do not place the charger in wet conditions.
• Unplug the charger when there is no battery pack in it.
• Fully charge the batteries before placing them in storage.
• Store the charger at normal room temperature. Do not store it in excessive heat. Do not use the charger in direct sunlight. Recharge at room temperature between 43˚F and 104˚F (6˚C and
40˚C). If the battery pack is hot, allow it to cool down inside of the charger.
16

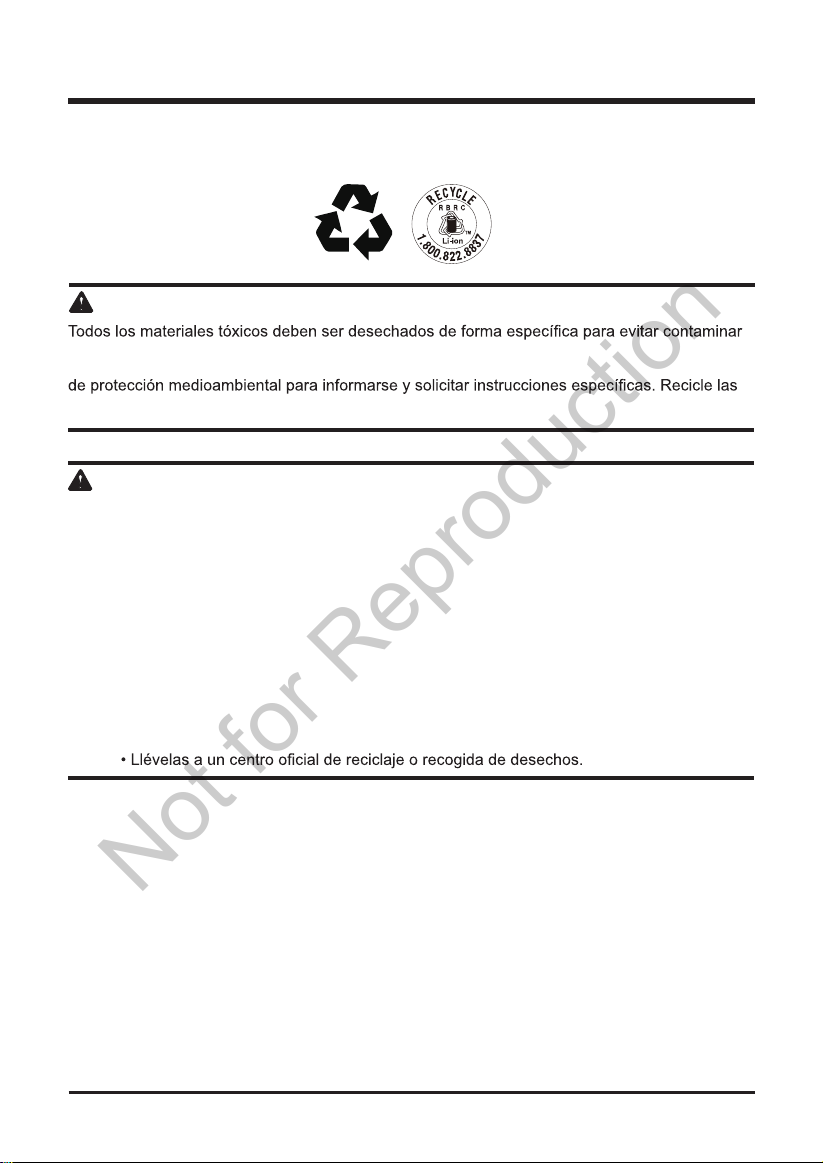

ENVIRONMENTALLY SAFE BATTERY DISPOSAL
The following toxic and corrosive materials are in the batteries used in this blower battery pack:
Lithium-Ion, a toxic material.
W A R N I N G
All toxic materials must be disposed of in a specied manner to prevent contamination of the
environment. Before disposing of damaged or worn out Lithium-Ion battery packs, contact your local waste disposal agency, or the local Environmental Protection Agency for information and
specic instructions. Take the batteries to a local recycling and/or disposal centre, certied for
lithium-ion disposal.
W A R N I N G
If the battery pack cracks or breaks, with or without leaks, do not recharge it and do not use. Dispose of it and replace with a new battery pack. DO NOT ATTEMPT TO REPAIR IT!
To avoid injury and risk of fire, explosion, or electric shock, and to avoid damage to the
environment:
• Cover the battery's terminals with heavy-duty adhesive tape.
• DO NOT attempt to remove or destroy any of the battery pack components.
• DO NOT attempt to open the battery pack.
• If a leak develops, the released electrolytes are corrosive and toxic. DO NOT get the solution in the eyes or on skin, and do not swallow it.
• DO NOT place these batteries in your regular household trash.
• Do not incinerate.
• DO NOT place them where they will become part of any waste landll or municipal solid waste stream.
• Take them to a certied recycling or disposal centre.
17
TROUBLESHOOTING
PROBLEM
Motor fails to start when switch trigger is depressed.
Unit will not start. Defective power switch. Have the power switch replaced by an
The unit will start,
but air will not ow
through the tube.
Cruise Control Lever
doesn't work.
POSSIBLE CAUSE SOLUTION
Battery is not secure.
Battery is not charged.
Blocked tube. Clear the blockage.
The screw is loose. Tighten the screw with a
Ensure that the battery is fully secured in the blower. Refer to Installing the Battery section in this manual.
Charge the battery pack according to the instructions included with your model.
authorized service center.
phillips head screwdriver.
18
LIMITED WARRANTY
Briggs & Stratton warrants that, during the warranty period specied below, it will repair or replace,
free of charge, any part that is defective in material or workmanship or both. Transportation charges on product submitted for repair or replacement under this warranty must be borne by purchaser.
This warranty is effective for and is subject to the time periods and conditions stated below. For warranty service, nd the nearest Authorized Service Dealer in our dealer locator map at www.
SNAPPER.com. The purchaser must contact the Authorized Service Dealer, and then make the product available to the Authorized Service Dealer for inspection and testing.
There is no other express warranty. Implied warranties, including those of merchantability and
tness for a particular purpose, are limited to the warranty period listed below, or to the extent permitted by law. Liability for incidental or consequential damages are excluded to the extent
exclusion is permitted by law. Some states or countries do not allow limitations on how long an implied warranty lasts, and some states or countries do not allow the exclusion or limitation of
incidental or consequential damages, so the above limitation and exclusion may not apply to you. This warranty gives you specic legal rights and you may also have other rights which vary from
state to state or country to country.**
WARRANTY PERIOD
Consumer Use Commercial Use
Equipment 60 months 90 days
Battery and Battery Charger 24 months none
** In Australia - Our goods come with guarantees that cannot be excluded under the Australian
Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation
for any other reasonably foreseeable loss or damage. You are also entitled to have the goods
repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure. For warranty service, nd the nearest Authorized Service Dealer in our dealer
locator map at BRIGGSandSTRATTON.COM, or by calling 1300 274 447, or by emailing or writing
to salesenquires@briggsandstratton.com.au, Briggs & Stratton Australia Pty Ltd, 1 Moorebank
Avenue, NSW, Australia, 2170.
The warranty period begins on the date of purchase by the rst retail or commercial consumer.
“Consumer use” means personal residential household use by a retail consumer. “Commercial use” means all other uses, including use for commercial, income producing or rental purposes. Once a product has experienced commercial use, it shall thereafter be considered as a commercial use product for purposes of this warranty.
To ensure prompt and complete warranty coverage, register your product at the website shown above or at www.onlineproductregistration.com.
Save your proof of purchase receipt. If you do not provide proof of the initial purchase date at the
time warranty service is requested, the manufacturing date of the product will be used to determine the warranty period. Product registration is not required to obtain warranty service on Briggs &
Stratton products.
19
LIMITED WARRANTY
ABOUT YOUR WARRANTY
Warranty service is available only through Snapper Authorized Service Dealers. This warranty covers only defects in materials or workmanship. It does not cover damage caused by improper use or abuse, improper maintenance or repair, normal wear and tear, or stale or unapproved fuel.
Improper Use and Abuse - The proper, intended use of this product is described in the Operator’s Manual. Using the product in a way not described in the Operator’s Manual or using the product after it has been damaged will not be covered under this warranty. Warranty coverage will also not be provided if the serial number on the product has been removed or the product has been altered
or modied in any way, or if the product has evidence of abuse such as impact damage or water/
chemical corrosion damage.
Improper Maintenance or Repair - This product must be maintained according to the procedures and schedules provided in the Operator’s Manual, and serviced or repaired using genuine Briggs &
Stratton parts or equivalent. Damage caused by lack of maintenance or use of non-original parts is
not covered by warranty.
Normal Wear and Tear - Like most mechanical devices, your unit is subject to wear even when
properly maintained. This warranty does not cover repairs when normal use has exhausted the life
of a part or the equipment. Maintenance and wear items such as lters, belts, cutting blades, and
brake pads (except engine brake pads) are not covered by warranty due to wear characteristics alone, unless the cause is due to defects in material or workmanship.
Other Exclusions - This warranty excludes damage due to accident, abuse, modications,
alterations, improper servicing, freezing or chemical deterioration. Attachments or accessories that were not originally packaged with the product are also excluded. There is no warranty coverage
on equipment used for primary power in place of utility power or on equipment used in life support
applications. This warranty does not include used, reconditioned, second-hand, or demonstration
equipment or engines. This warranty also excludes failures due to acts of God and other force majeure events beyond the manufacturer’s control.
20
EXPLODED VIEW
38A
12A
34
33
36
11
35
23A
8A
37A
20
6
1
1A
3A
6
5
2A
32
31
10
19
18
4
9A
10
7A
17
4
26
30
27
29
5
24
9
8A
12
11
22
21A
7A
25
28
41A
40A
39A
3A
21
PARTS LIST
ITEM NO. PART NO. DESCRIPTION QTY
1A 770439 TUBE, ASSEMBLY, NA & EU 1
1 ----- TUBE 1
2A 770440 SWITCH, ASSEMBLY, NA & EU 1 3A ----- SWITCH 1
4 ----- SCREW 1 5 ----- WASHER, SPRING 1 6 ----- MAT, FLAT 2
3A 770443 KIT, LEFT HANDLE, NA 1 7A ----- HANDLE, LEFT 1 8A ----- COVER, LEFT DECORATIVE 1 9A ----- BUTTON, PCB 1 10 ----- NUT 1
11 ----- SCREW 3
12 ----- SCREW 7
4 770446 TUBE, CONNECTING 1
17 ----- TUBE, CONNECTING 1
5 770447 MOTOR 1 18 ----- MOTOR 1 19 ----- CUSHIONING 4
6 770448 TUBE, AIR INLET 1 20 ----- TUBE, AIR INLET 1 7A 770449 KIT, INLET GUARD 1
21A ----- GUARD, INLET 1
22 ----- SCREW 4 8A 770450 SWITCH, TRIGGER 1
23A ----- SWITCH, TRIGGER 1
9 770453 KIT, PCB 1 24 ----- WIRE, 25CM 1 25 ----- TUBE, 24CM, HEAT SHRINKABLE 1 26 ----- TERMINAL 1 27 ----- TERMINAL 1 28 ----- INSERT 1 29 -----
30 ----- SWITCH, SPEED 1 10 770454 KIT, BASE SPRING 1 31 ----- BASE, SPRING 1 32 ----- SPRING, BATTERY BOUNCE 2
PCB 1
22
PARTS LIST
ITEM NO. PART NO. DESCRIPTION QTY
11 770455
33 ----- BUTTON, RELEASE 1 34 ----- AXIS, FIXED 1 35 ----- SLEEVE, AXIAL 2 36 ----- SPRING, RESET 1
12A 770456 37A ----­38A ----­39A 1760266 40A 1760263 41A 1760265
KIT, BATTERY RELEASE BUTTON ASSEMBLY
KIT, RIGHT HANDLE, NA & EU 1 HANDLE, RIGHT 1 COVER, RIGHT, DECORATIVE 1 BATTERY, 2AH, NA (OPTION) 1 CHARGER, RAPID, NA (OPTION) 1 BATTERY, 4AH, NA (OPTION) 1
1
23
Loading...
+ 51 hidden pages
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
