Snapper 1613H, 1616H User Manual
Specifications and Main Features
- Model – 1616H.
- Hydro Engine Power – 16 HP.
- Mower Deck Options – 44” (Model 1691816).
- Model – 1613H.
- Hydro Engine power – 12.5 HP.
- Mower Deck Options: 38” (Model 1691815).
- Fuel tank – 4 gallons. (15.1 L).
- Transmission – Hydrostatic.
- Tire Pressure – Front tires: 12-15 psi (82-100 kPa); Rear tires: 6-8 psi (41-55 kPa).
- Battery: 12 volt, 340 amp.
- Culting height: 1-inch to 3-5/8 adjust so.
- Safety features: seat switch, PTO interlock, brake systems.
- Maintenance features: Spin on oil filters, batteries.engine access is easy.
- Points of lubrication: Numerous points for easy maintaining.
- Measurements: Measurements are not given, see tables or charts in the manual for more details.
Frequently Asked Questions

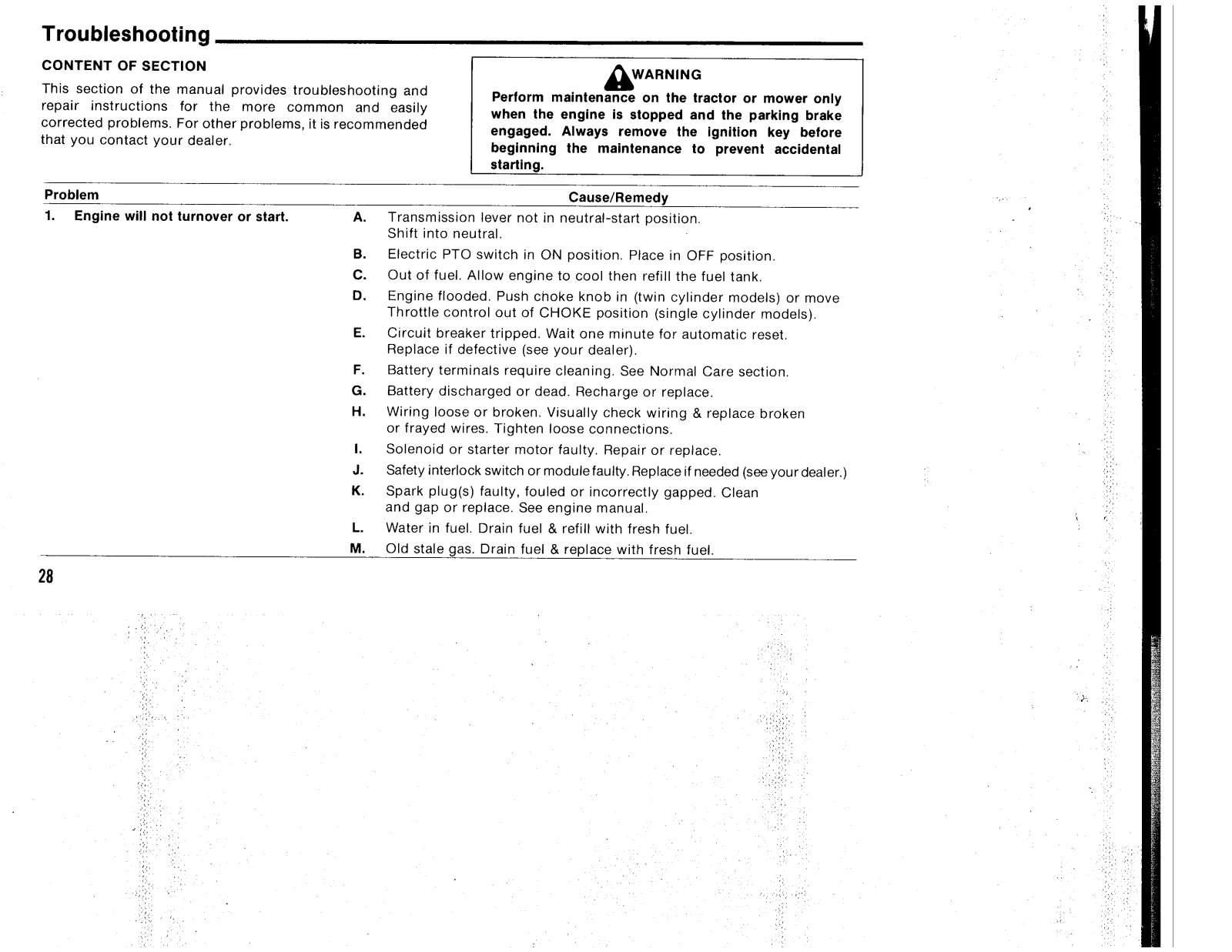

- Q: In case the engine does not start what do I do?
A: Confirm that the transmission lever and the electric PTO switch is in the OFF position and that there is fuel in the fuel tank.
- Q: How frequent should I check the oil level?
A: In my opinion it is best to monitor the oil level prior to every single use and substitute every 100 hours of usage.
- Q: What is the steepest slope I can mow?
A: Avoid any incline which exceeds 30 degrees- which is 16.7% of maximum slope angle.

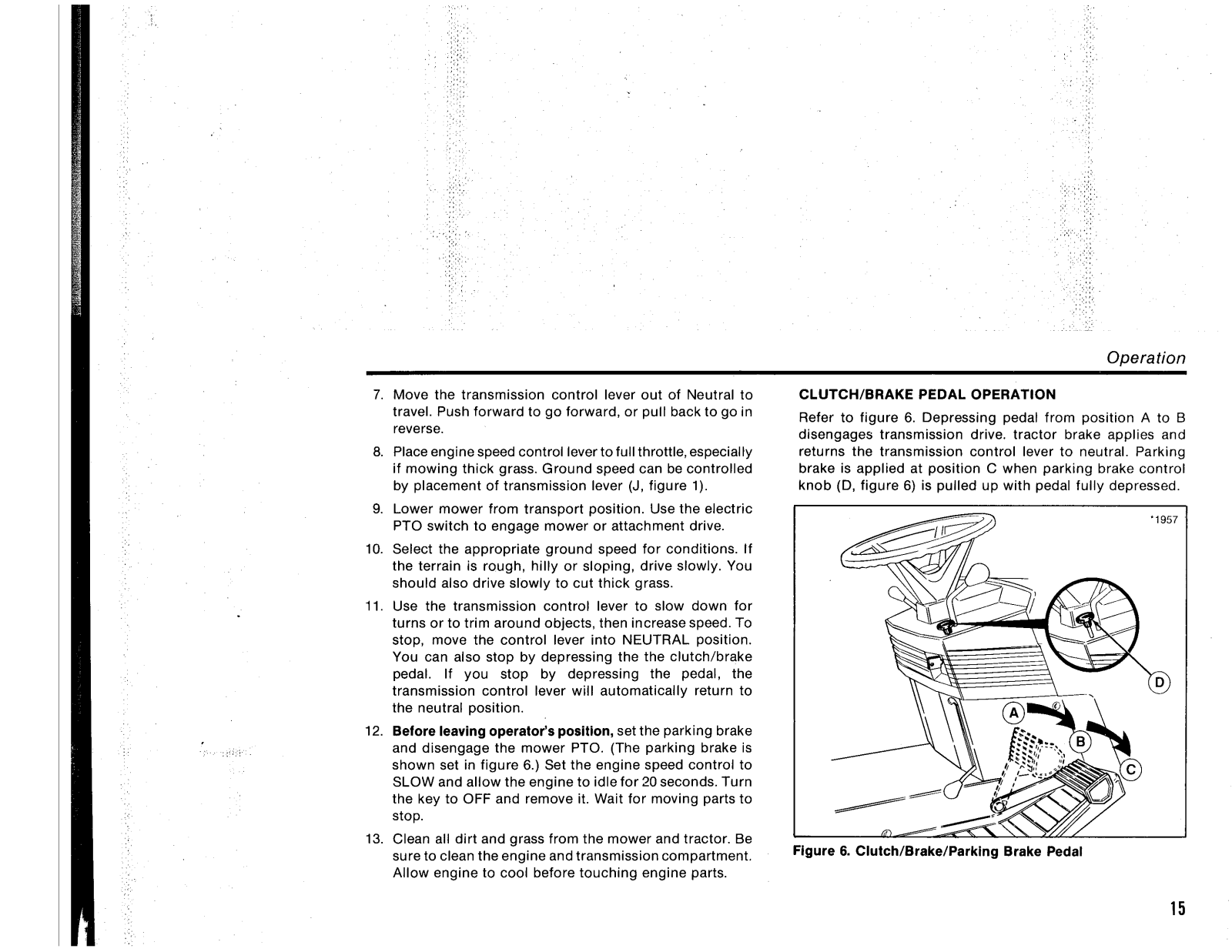

- Q: How do I turn on the mower/blades?
A: To activate the mower/attachments drive, you will have to press the electric PTO switch.
- Q: When to change mower blades?
A: Dull blades, a damaged blade or if the movement of the mower is not smooth then the blades need substitution.
- Q: What fuel should I use?
A: Clean gas from a reliable source, that has not been stored for too long, is recommended.
- Q: How do I change the height of the mower?
A: The expected height can be changed anywhere from 1’’ to 3-5/8’’ by adjusting the mower’s height.
