Snapper 13 User Manual

Download

Specifications and Main Features

Model: Snapper Rear Engine Rider – Standard Models: series 13

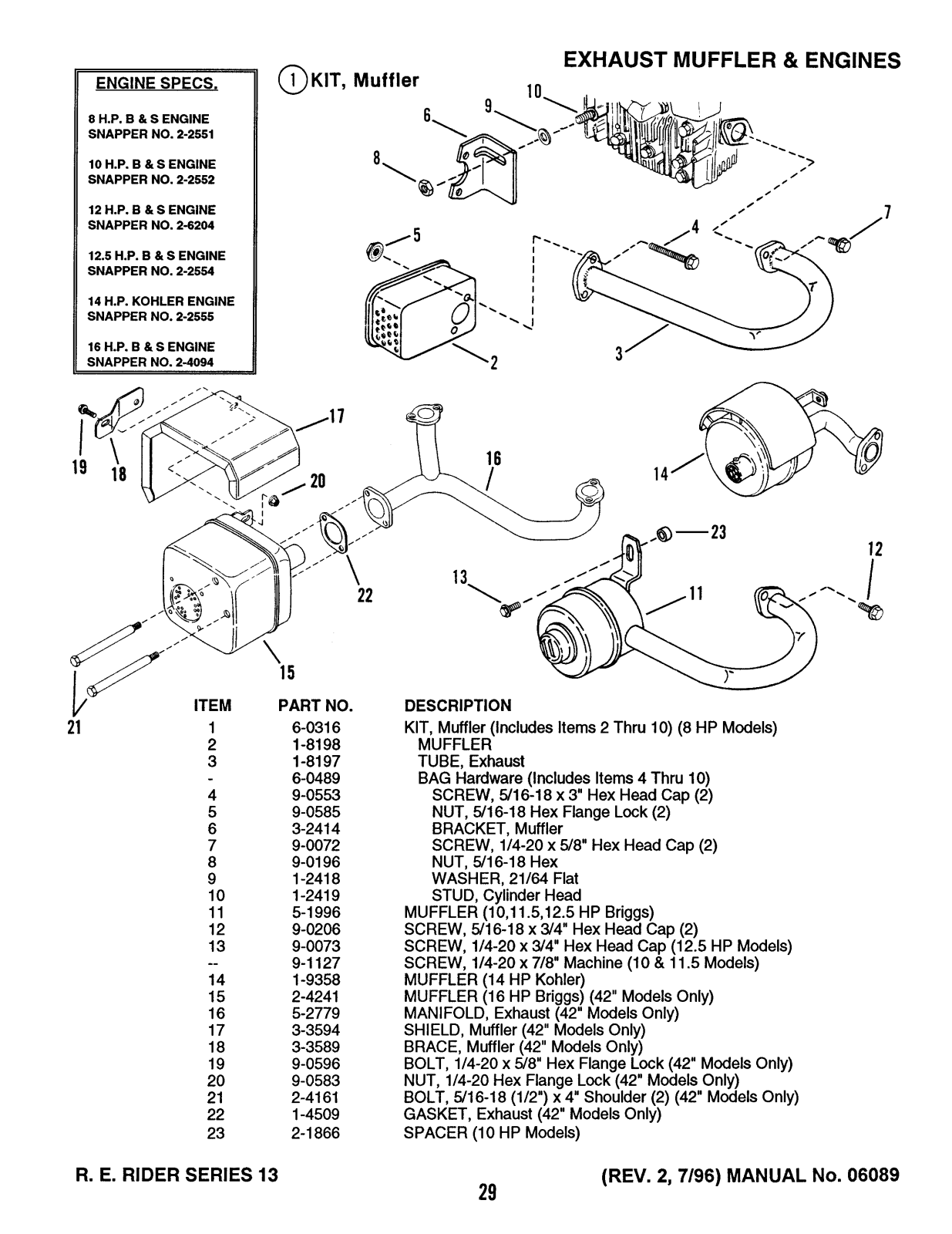

Engine Options:
8 H.P. B&&S Engine
10 H.P. B&S Engine
12 H.P. B&S Engine
12.5 H.P. B&S Engine
14 H.P. Kohler Engine
16 H.P. B&S Engine
Cutting Deck Options:
25 inch deck kit
28 inch deck kit
30 inch deck kit
33 inch deck kit

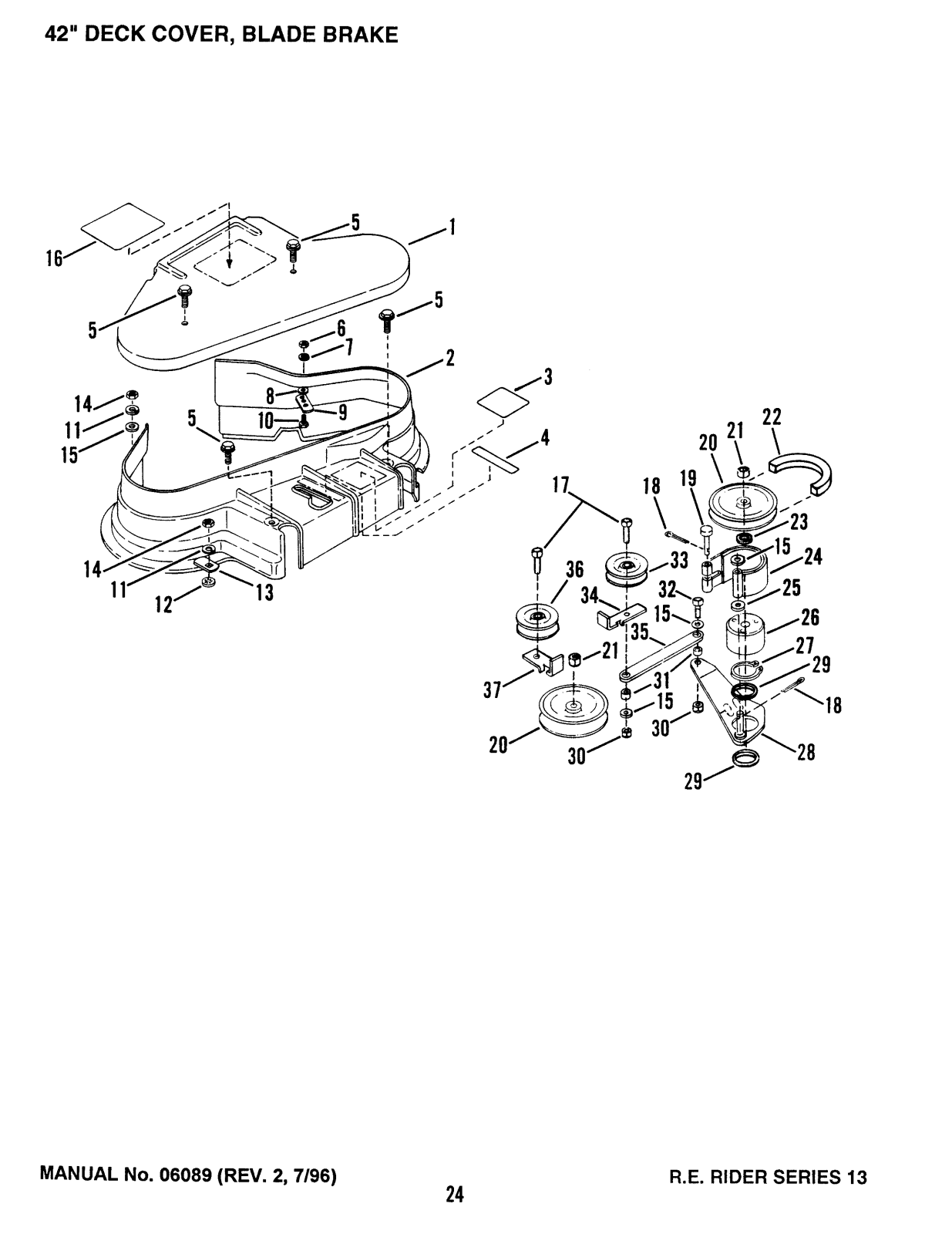

42 inch deck kit
Tire options available:
Front Tire: Pneumatic 4.10/3.50 x 4
Rear Tire Standard: 16/4.80 x 8
Rear Tire Wide: 16/6.50 x 8
Rear Tire Extra Wide: 16/7.50 x 8
Sea Types:
Operator Seat(SD and other models)
Other:
12 volts dry charge battery

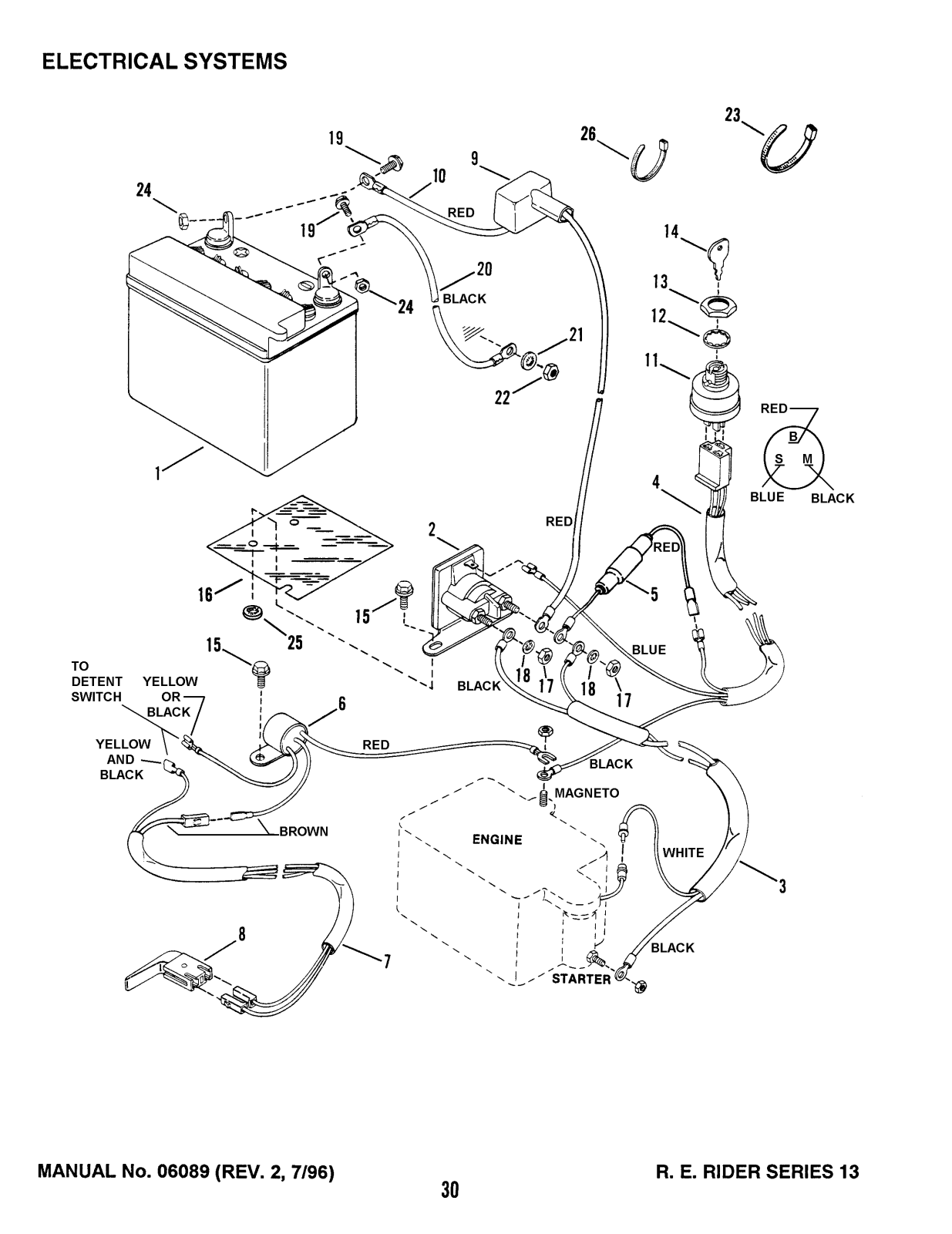

Starter wiring harness (different models)
Deck interlock switch
『Warranty: Manufacturer’s policy for changes to enhance products without any liability』.

Frequently Asked Questions

Q: What engine alternatives can be installed in the Snapper Rear Engine Rider?

A: It may take 8 H. P., 10H. P., 12 H. P., 12.5 H. P., 14 H.P and 16 H.P engines.

Q: What are the options on the cutting deck for this model?

A: The deck kits come in varying sizes of 25”, 28”, 30”, 33”, and 42” respectively.

Q: Are the tires on the Snapper Rear Engine Rider replaceable?

A: Indeed, it is possible to replace the front tire; it is a pneumatic 4.10/3.50 x 4 as well as the standard, wide, or extra wide tires.

Q: Is there an electric starter for the Snapper Rear Engine Rider?

A: This particular model does have an electric feature however it comes with an ignition switch.

Q: What is the policy of the manufacturer concerning the improvement of their products?

A: Snapper Power Equipment does not have any obligation to incorporate any changes made to its products in the future to their previously made products which means they would do the changes at any time without prior notice.
