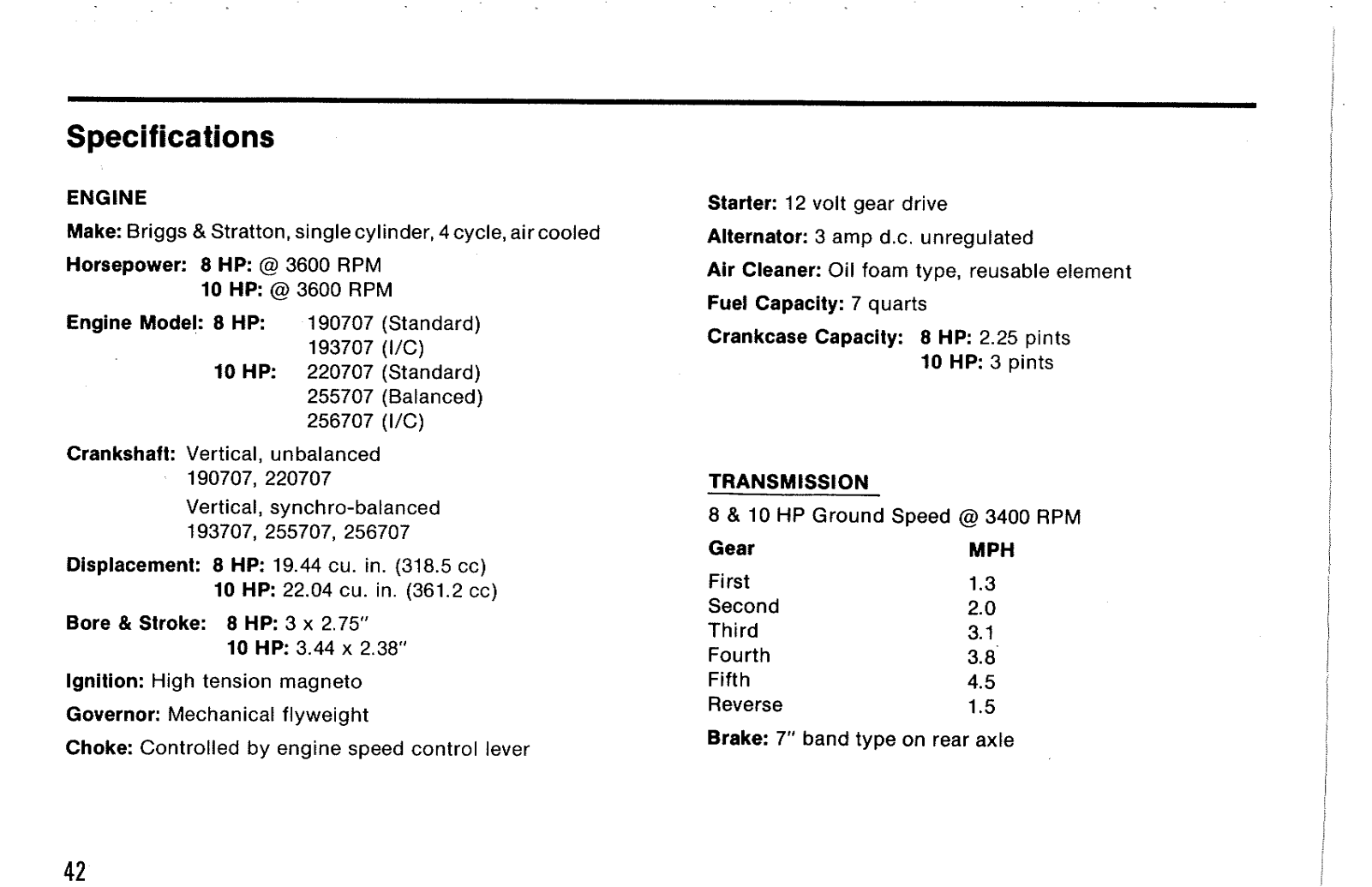

Specifications and Main Features
- Starter: 12 volt geared motor
- Engine Manufacturer: Briggs & Stratton, single cylinder, 4 cycle unit and air cooled
- Engine Model:
- 8 HP: 190707 (Standard) 193707 (I/C)
- 10 HP: 220707 (Standard) 10 HP: 255707 (Balanced) 256707 (I/C)
- Horse Power:
- 8 HP @ 3600 RPM
- 10 HP @ 3600 RPM
- Fuel Capacity: 7 Quarts
- Crankcase Volume:
- 8 HP: 2.25 Pints
- 10 HP: 3 pints
- Displacement:
- 8 HP: 19.44 cubic inches (318.5 cc)
- 10 HP: 22.04 cubic inches (361.2 cc)
- Bore and Stroke:
- 8 HP: 3” x 2.75”
- 10 HP: 3.44” x 2.38”
- Ignition: High tension magneto
- Governor: Mechanical flyweight governor
- Choke: Engine speed control lever
- Transmissions Gear Speed:
- 1: 1 st gear, 1.3 miles per hour
- 2: 2nd gear, 2.0 miles per hour
- 3: 3rd gear, 3.4 miles per hour
- 4: 4th gear, 3.8 miles per hour
- 5: 5th gear, 4.5 miles per hour
- Reverse: 1.5 MPH

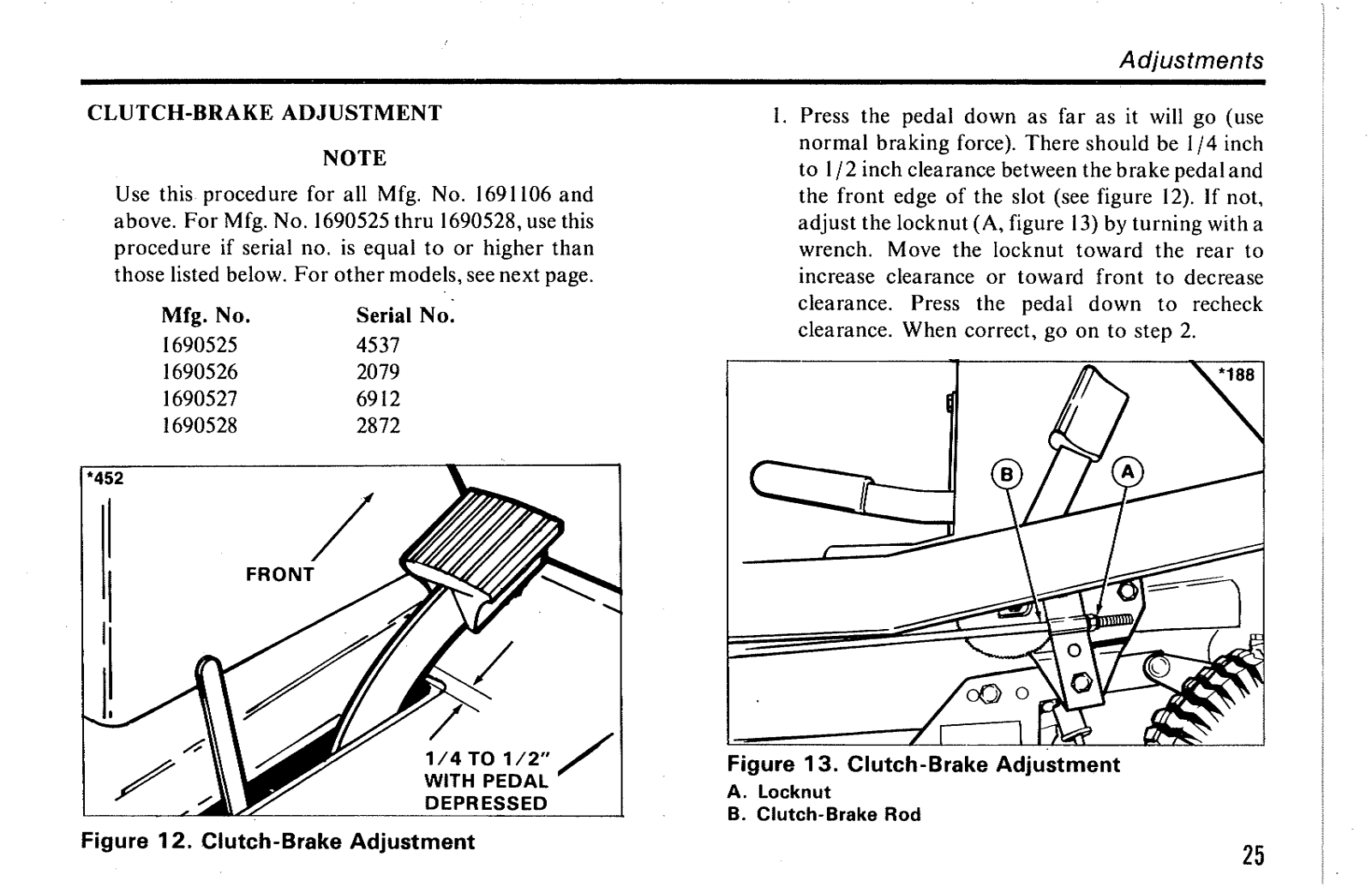

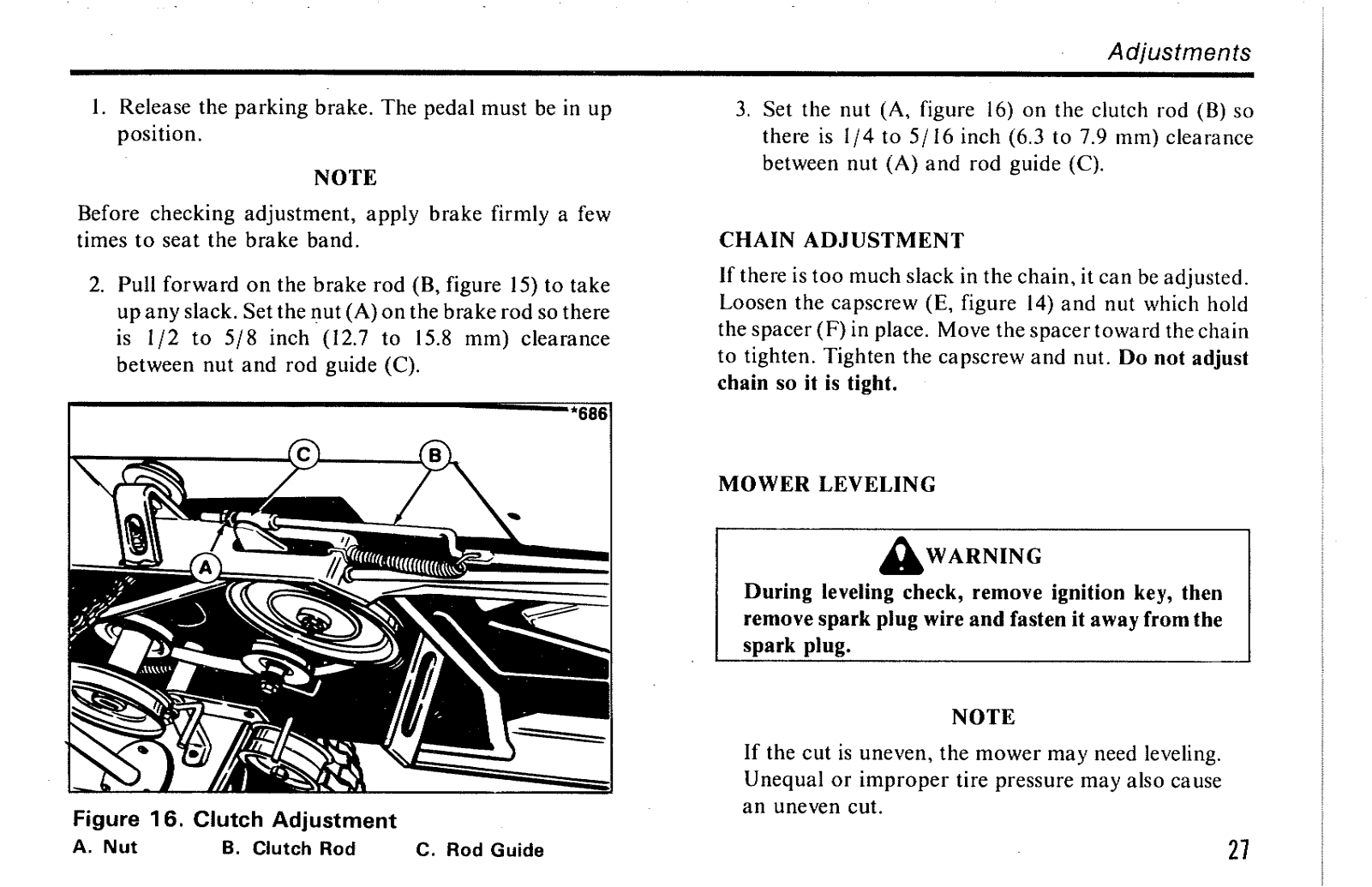

- Brake: 7 inch band on the rear axle
- Tires:
– Front: Pneumatic, 4.10/3.50 – 4
– Rear: 8 Pneumatic, 16 x 6.50 – 8
- Tune Up Stats:
- Spark Plug Type: Champion Autolite Robert Bosch
- Short Plug:cj-8 235 ws9e
- Long Plug: j-8 295
- Spark Plug Gap: .030” (.76 mm)
- Ignition Point Gap: Ignition Gap: .020” (.51 mm)
Frequently Asked Questions
- Q: What type of fuel should I use?
&$A: As per the engine Manual, only gasoline fuel should be used.
- Q: How do I check the oil level?
&$A: There are step by step guidelines in the engine manual to check and add oil.
- Q: Is it safe to operate when it rains?
&$A: The mower machine should not be operated in rainy conditions as there is risk of slipping and loss of control.
- Q: What do I do if the engine won't start?
&$A: You need to make sure that the gear shift lever is neutral, PTO clutch lever is disengaged and there is enough fuel in the fuel tank.
- Q: What will be the servicing schedule of the mower?
A: There’s a maintenance schedule to be followed under normal care section which includes checking fluids and lubrication, servicing or changing plugs.
- Q: Is it necessary to mow when grass is wet?
A: Under most circumstances it is best not too mow grass when it is wet as this can result in a poor cutting performance, but it can sometimes also harm the mower.

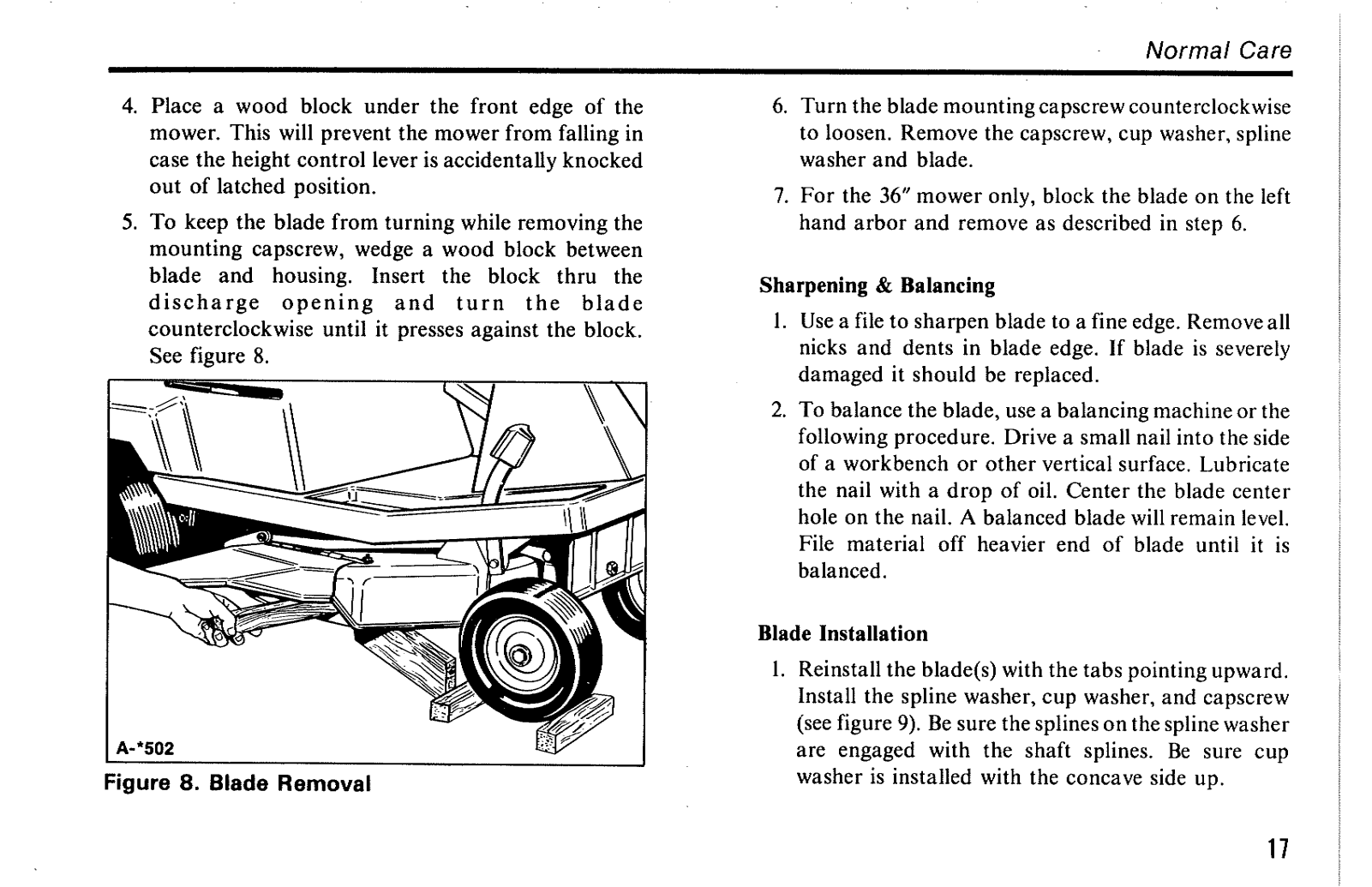

- Q: Can I use Dremel to sharpen the mower blades?
A: For details concerning sharpening the blades, please refer to the Blade Maintenance section in the normal care part of the manual. Remember: Using sharp blades requires caution.

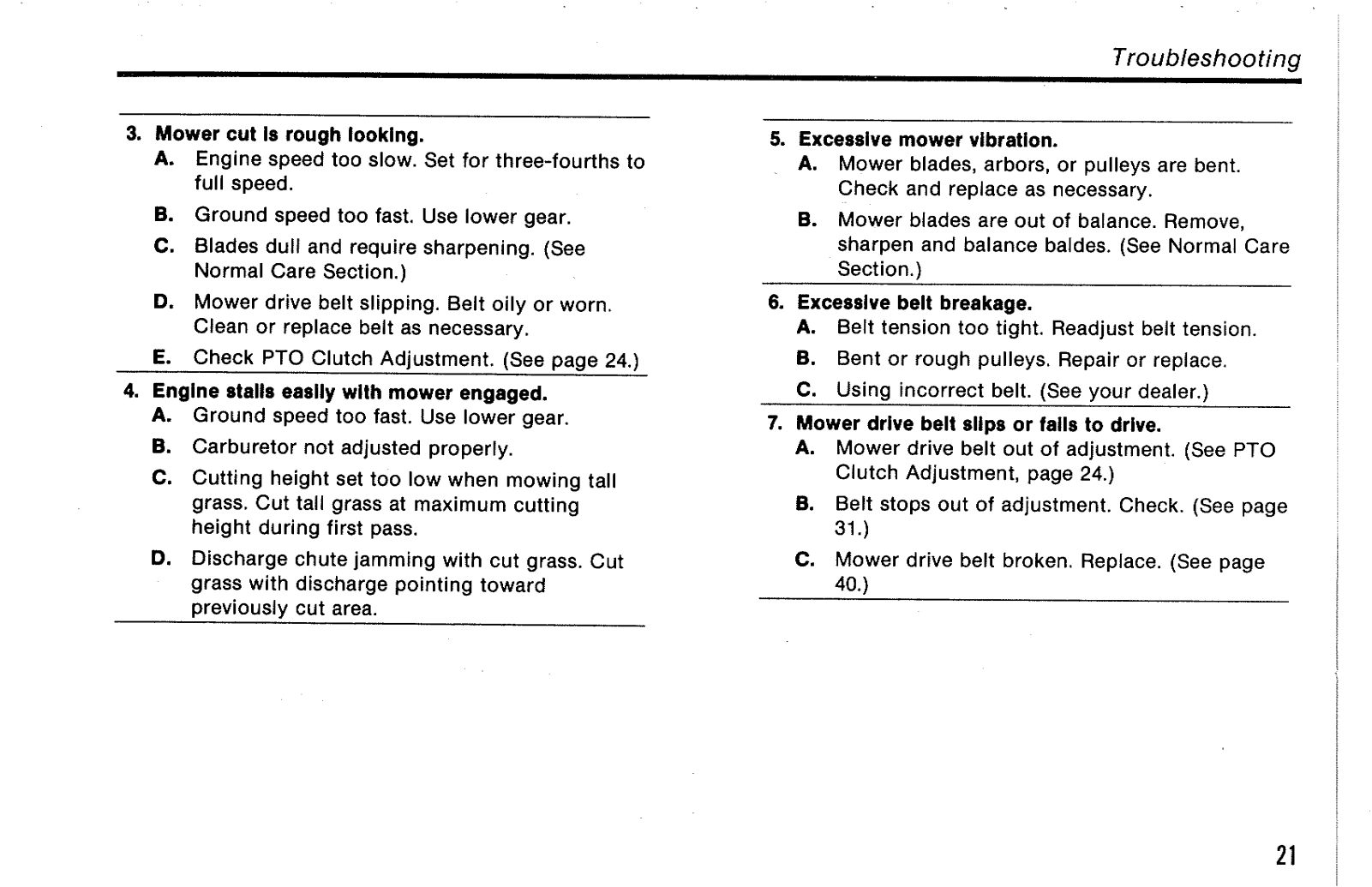

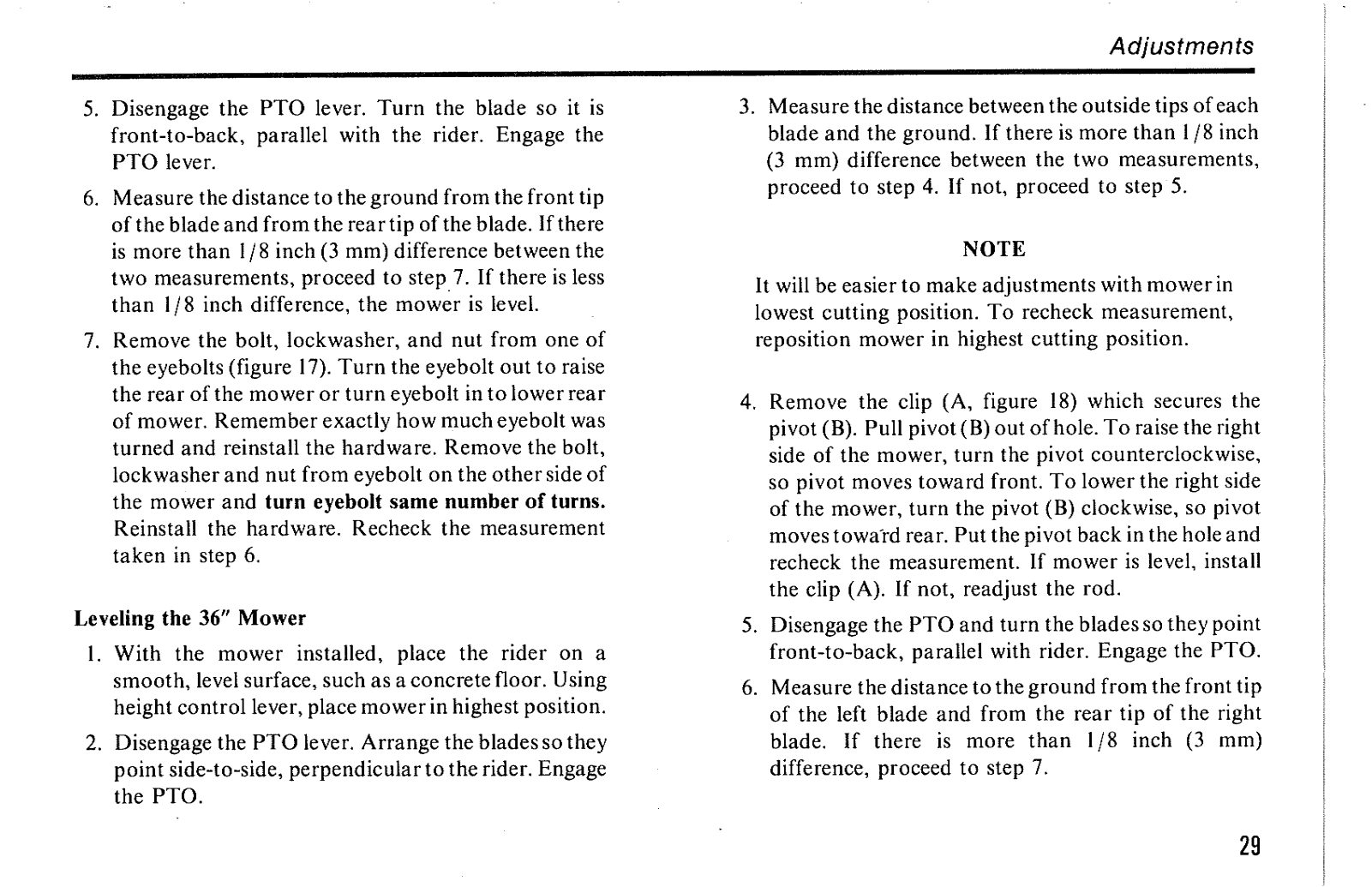

- Q: Are there any suggestions for fixing an uneven mower cut?
A: Inspect to ensure that the mower has been leveled accordingly and that the pressure in the tires is balanced. Adjust if needed.
