Illustrated Parts List
3500 Watt
Generator
Model No. 030214 (3500 Watt AC Generator) Manual No. 195605A Revision D (09/05/2007)
BRIGGS & STRATTON POWER PRODUCTS GROUP, LLC
JEFFERSON, WISCONSIN, U.S.A.
Snapper™ is a licensed trademark of Briggs & Stratton Power Products.
Snapper Model 030214 Portable Generator
2
EXPLODED VIEW - MAIN UNIT
Copyright © 2007 Briggs & Stratton Power Products Group, LLC. All rights reserved. No part of this material may be
reproduced or transmitted in any form by any means without the express written permission of Briggs & Stratton Power
Products Group, LLC.
Snapper Model 030214 Portable Generator
3
EXPLODED VIEW - PARTS LIST
Item Part # Description
1 M194779GS CRADLE (Includes #’s 20, 31 & 55)
2 194150GS KIT, Vibration Mount
3 67989GS NUT, M8 Flange Serrated
4 186058AGS HOUSING, Engine Adapter
5 NSP ASSY, Alternator (see page 4)
6 * NUT, Hex, M8 - 1.25
7 * TPHMS, M8 - 1.25 x 35
8 96796GS WASHER, 8.4 x 22.2 x 3
9 * WASHER, 5/16 - M8 Lock
10 86307GS HHCS, 5/16-24 x 3/4, SEMS
11 24823GS HHCS, 5/16-24 x 7-7/8"
12 * HHCS, M8 - 1.25 x 25
14 191785GS BRACKET, Muffler
15 697815 GASKET, Exhaust
16 * HHCS, M6 - 1.0 x 12
17 188301GS MUFFLER
18 * SHCS, M6 - 1.0 x 20
19 83083GS SCREEN, Spark Arrest
20 B4986GS DECAL, Ground
21 194153GS KIT, Vibration Mount
22 86494GS SCREW, Wing M6 - 1.0 x 16
24 191790GS SHIELD, Heat
25 191190GS CAP
26 74908GS TAPTITE, M5-0.8 x 10 Lg.
31 196830GS DECAL, Warning Exhaust
34 195422GS COVER, RBC, Plastic w/Cap
35 195207GS KIT, Hose Formed
37 B2153GS HHCS, 12 - 14 x 7/8" Self-Driller
Item Part # Description
40 194398GS KIT, Fuel Tank Hardware (Includes
Qty 4)
41 192980GS KIT, Valve, Tank
44 193645GS ASSY., Tank, Fuel Service (Includes
#41, 50, 51, 52 & 53)
45 200095GS CAP, Fuel
48 195373GS WIRE, Ground
50 188333GS DECAL, Fuel Level
51 194799GS DECAL, Danger
52 189235GS DECAL, Operating Instructions
53 202997GS DECAL, Warning, CO
55 197798GS DECAL, Fuel Shut Off
58 191743AGS ASSY, Control Panel
59 * NUT, Palnut, 3/16"
900 § ENGINE
Parts Not Illustrated
195605GS MANUAL, Operator’s
MS3430 MANUAL, Engine
BB3061BGS BOTTLE, Oil
195639GS KIT, Decals, Service
* - Items without part numbers are common fasteners and
are available at your local hardware store.
§ - Contact Engine Manufacturer
Snapper Model 030214 Portable Generator
4
EXPLODED VIEW AND PARTS LIST - ALTERNATOR
Item Part # Description
1 186059GS ADAPTER, Mounting, Alternator
2 191685GS ROTOR
3 191686AGS STATOR
4 186060GS RBC, with O-Ring (p/n 189197GS)
5 86308GS HHCS, M6 - 1.0 x 115 SEMS
6 91825GS ASSEMBLY, Holder, Rectifier/Brush
7 66849GS TAPTITE, M5 - 0.8 x 16
8 22694GS RECEPTACLE, 6 pin
9 81917GS PIN, Roll, 4mm x 10
10 193428AGS WIRE-A, Ground
13 194274GS HARNESS, Wire, Power
14 65791GS BEARING
Snapper Model 030214 Portable Generator
5

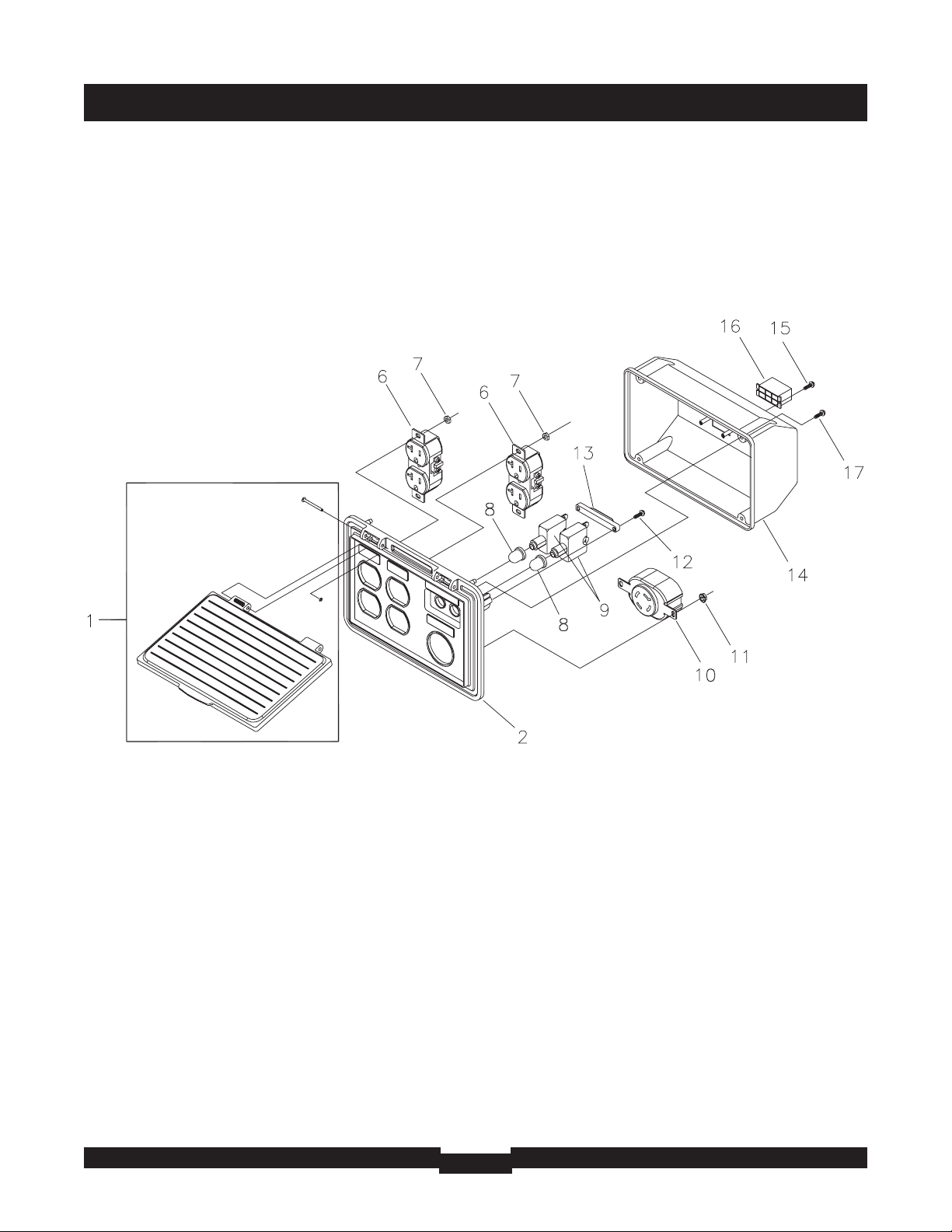

EXPLODED VIEW AND PARTS LIST - CONTROL PANEL
Item Part # Description
1 195112GS KIT, Cover Control Panel
2 188889AGS CONTROL PANEL, Compact
6 68759GS OUTLET, 120V, 20Amp, Duplex
7 * NUT, Palnut, Pushnut, 5/32
8 84198GS CAP, Circuit Breaker
9 75207DGS CIRCUIT BREAKER
10 68867GS OUTLET, 120/240 Locking, 20A
11 * NUT, Palnut, Pushnut, 3/16
12 * PPPHS, M3 - 0.5 x 18
13 93857GS BAR, Retaining
14 188890GS COVER, Back, Control Panel
15 * SCREW, 3 x 18, Tapping
16 22694GS HOUSING, Receptacle
17 * SCREW, 3.5 x 14, Tapping
* - Items without part numbers are common fasteners and are
available at your local hardware store.
Snapper Model 030214 Portable Generator
6
EXPLODED VIEW AND PARTS LIST - WHEEL KIT
Item Part # Description
1 189715GS ASSY, Handle w/Grip
2 94034GS LEG, Mounting
3 67989GS NUT, M8 Flange Serrated
4 * HHCS, M8 - 1.25 x 45
5 93728GS AXLE
6 197061GS WHEEL
7 87005AGS PIN
8 * WASHER, Flat M12
9 94222QGS NUT, 5/8 - 18 Jam Lock
10 * HHCS, M8 - 1.25 x 20
11 189718GS GRIP, Handle
Part Not Illustrated
191932GS SUBKIT, Hardware
* - Items without part numbers are common fasteners and are
available at your local hardware store.
