PV Mounting System 2703

SERIES 100 UL

ROOF MOUNT SYSTEM

SnapNrack Solar Mounting Solutions

Code Compliant Installation Manual

Series 100 UL Introduction

SnapNrack Series 100 UL PV Mounting System oers a low proﬁle, visually appealing, photovoltaic (PV) module installation system. This innovative system simpliﬁes the process of installing solar PV modules, shortens installation times, and lowers installation costs.

SnapNrack systems, when installed in accordance with this manual, will be structurally adequate for the speciﬁc installation site and will meet the local and International Building Code. Systems will also be bonded to ground, under SnapNrack's UL 2703 Certiﬁcation.

The SnapNrack installation system is a set of engineered components that can be assembled into a wide variety of PV mounting structures. It is designed to be installed by qualiﬁed solar installation technicians. With SnapNrack you will be able to solve virtually any PV module mounting challenge.

Intro/Conﬁguration

Series 100 UL

Table of Contents

Step 1: Project Plans

Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Surveying and Layout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Step 2: Roof Attachment

Flashed L-Foot- For Composition Shingle . . . . . . . . . . . . . . . . . . . . . . . . 6

Standoff Post- For All Roofing Types . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Standoff Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Universal Tile Roof Hook . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Flat Tile Roof Hook . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

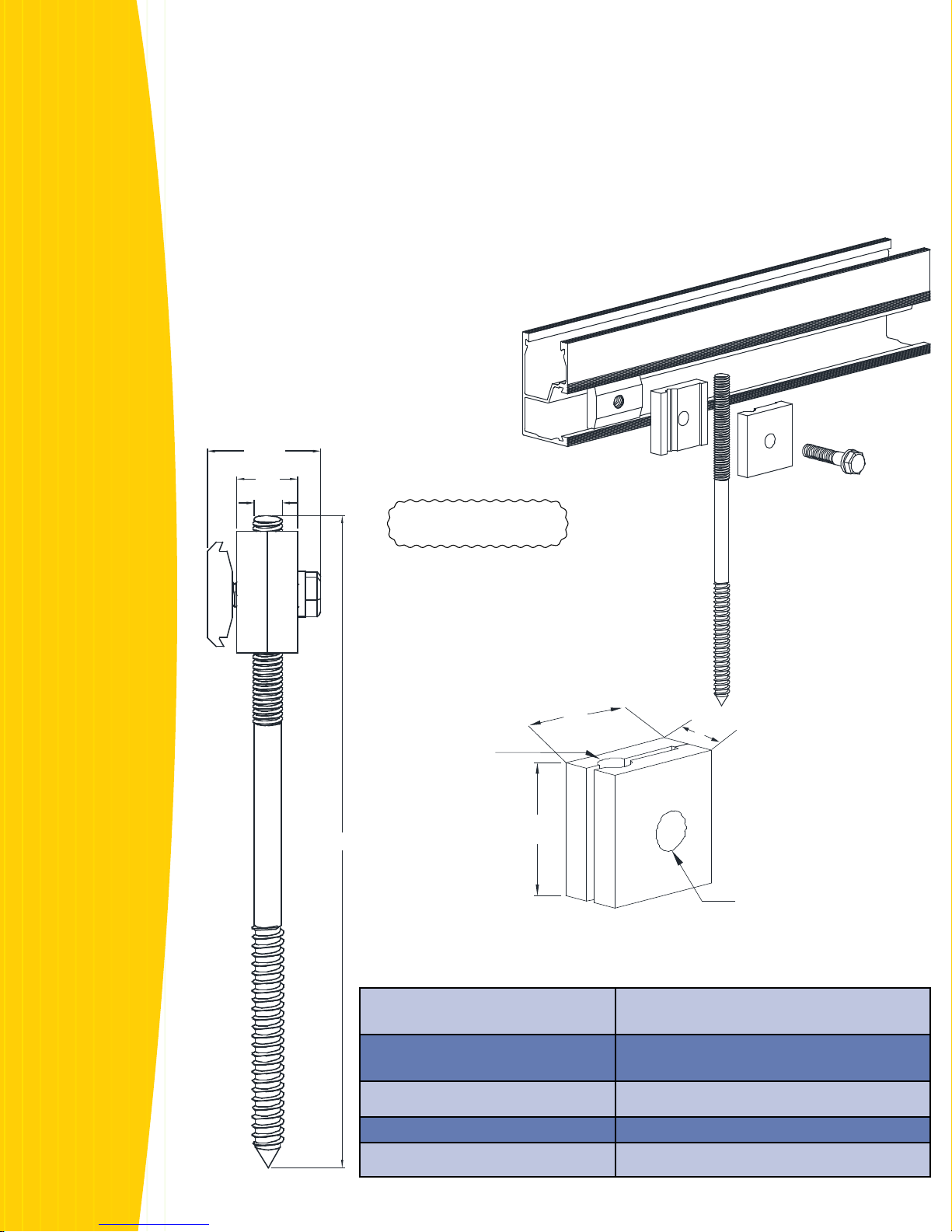

Hanger Bolt- For All Roofing Types . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Metal Roof Base . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Corrugated Roof Block- For Corrugated Metal . . . . . . . . . . . . . . . . . . . 21

Tilt Mount 5°-15° . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Tilt Mount 10°-45°. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Seam Clamp- For Standing Metal Seam . . . . . . . . . . . . . . . . . . . . . . . . . 27

Step 3: Leveling Rails

Installing and Leveling Rails . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Step 4: Attaching Modules

Attaching Modules . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Step 5: Select Any Racking Accessories

Edge Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

Wire Management . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

Micro inverter Attachment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

System Ground

System Ground . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

Rail Cutting Tool and End Cap . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

High Tilt Tool

High Tilt Tool . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

System Conﬁguration

Appendix . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

Step 1: Project Design and

MODULE OVERHANG (NOT TO EXCEED 25% OF MODULE LENGTH)

RAIL SPAN

RAIL END OVERHANG

(NOT TO EXCEED 34% OF

ACCEPTABLE RAIL SPAN)

How to Conﬁgure Your System

First calculate the spans and penetration count. See span tables in structured engineering letters under the resources tab of the SnapNrack website. Determine site conditions: general building height, array pitch, the wind speed, and snow load or topographical condition. Find appropriate railspan from table.

Span Table Example

Building Height 0 - 30 ft Array Pitch 16° 2012 IBC Wind Speed 120 mph Snow Load 8 lbs/ft Topo. Cond. None Rail Span 104" Rail Span on 24" spacing roof 96" (8 ft) Do edge/corner reductions apply Yes, shaded cell Edge Zone Span 72" (6 ft) Corner Zone Span 24" (2 ft)

Series 100 UL Roof Mounted System

Safety Guidance

- Always wear the proper OSHA approved safety equipment when working on a roof .

- Safety equipment should be checked annually for wear and quality.

- Always wear proper eye protection.

- When walking on the roof avoid walking on installed rails. If this is unavoidable check L-feet for fatigue before ﬁnal installation.

- Appropriate fall protection gear should be used. Extreme caution should be used when near the edge of the roof.

*CS-Consult Structural Engineer

Notes

- The UL Listing covers bonding for a load rating up to 45 psf.

- See Appendix A for the list of modules that have been tested with the Series 100 UL system.

- These systems have been evaluated for module to system bonding, only to the requirements of UL Subject 270.

- This system has also been evaluated for a Class A System Fire Classiﬁcation for a steep-sloped roof with Type 1 and Type 2 modules.

- Installing Contractor is responsible for veriﬁcation that attachments to roof framing are fully engaged into appropriate structural member and that structural member is adequate for support of roof mounting component and associated loads.

Survey the Site

PORTRAIT MODE

LANDSCAPE MODE

MODULE LENGTH

MODULE WIDTH

 Measure the roof surfaces and develop an accurate drawing, including any obstacles such as chimneys and roof vents.  If plans are available, check to make sure that the plans match the ﬁnal structure.  Review the shading pattern across the roof surface from the residence itself, from adjacent structures, and from other nearby features such as trees.  Identify any roof access areas or keep-out areas as required by the local jurisdiction.

 Conﬁrm roof construction, type, and condition.  Assess roof rafter size, material, and spacing to conﬁrm that the structure is

sound and can support the additional load of the array.  Identify any construction anomalies that may complicate the process of locating rafters from the roof surface.  If you ﬁnd structural problems such as termite damage or cracked rafters

Series 100 UL

that may compromise the structure’s integrity, consult a structural engineer.

Surveying and Layout

Develop a Layout

Using the information collected in the site survey and from the span tables, complete a system layout showing array location and distances from key roof features. Include any information necessary for the permitting process.

Typically, PV modules are installed in portrait mode, with the long side of the module running up the roof slope and the rails running horizontally across the roof perpendicular to the roof rafters, which commonly run down slope.

Arrays can also be installed in landscape mode, with the modules oriented so that their long edge runs horizontally across the roof and the rails run up the roof slope. Landscape mode is typically used in cases where the roof has been constructed with structural elements running horizontally across the roof, but can also be used on standard residential buildings for a variety of reasons including to facilitate a convenient layout. When laying out the array, be sure to leave space for the module clamps on the rails. Module mid clamps are installed between modules in a row and require 0.5" of space between the modules.

Adjustable end clamps require 1.5" of extra rail to extend past the end of the module frame. If using the Universal End Clamp, the rail is ﬁrst cut ﬂush to the module using the rail

cutting tool.

When installing multiple rows of modules, a minimum spacing gap of 1/8" should be used between rows.

Submit array plans to local permitting jurisdiction and proceed with the roof layout only when all permits for the project have been granted by the authority having jurisdiction.

Series 100 UL Surveying and Layout

Tips and Tricks

- Layout the entire array on the roof by drawing all of the corners of the modules on the roof with a roof marking crayon.

- Use a chalk line to help identify the rest of the roof penetrations

- When leveling rails, hand tighten the hardware to easily level and position the rails. Once rails are level, fully tighten hardware to speciﬁed torque.

Transfer the array layout to the roof using a roof marking crayon to mark the inside and outside corners of the array. Locate the estimated rafter positions and mark them in the array area with a roof marking crayon.

Transfer rail and estimated attachment locations to the roof, noting that attachments will be located at intersections of rails and rafters. Layout rails such that module frame ends do not overhang mounting rails by more than 25% of total module length.

Project Information Sections

Building Height

Roof Pitch

Wind Speed

Snow Load

Topo. Cond. Max Rail Span

Roof Structure Type

Roof Structure Size

Roof Structure Span

Roof Type & Condition

Stories from the Ground

Roof Orientation

Notes

- SnapNrack engineered systems should only be used with SnapNrack components and hardware. Any alternate application may void the warranty and structural calculations could become invalid.

Flashed L-Foot

Required Tools:

Hammer Or Stud Finder Roof Marking Crayon Drill with 1/8" Pilot Drill Bit Roof Sealant Torque Driver with Bit Adapter 1/2" Socket Wrench or Impact

Driver

Materials Included in Series 100 L-Foot Kit:

(1) SnapNrack Flashed Base



(1) SnapNrack Composition Flashing



(1) SnapNrack L Foot, Composition 92°



(1) 5/16" - 18 SS Flange Hex Nut



(1) 5/16" Flange Bolt



(1) SnapNrack Bonding Channel Nut, 5/16" - 18



Dimensioned L-Foot

1-1/2"

92°

Series 100 UL

Other Materials Required:

(1) 5/16" Lag Screw



(1) 5/16" Washer



Technical L-Foot Data:

Material 6000 Series Heat Treated Aluminum

Finish Class 2 Anodized Finish

Weight 0.16 LBS Design Uplift Load 200 LBS Uplift Design Ultimate Load 1000 LBS Uplift













Clear and Black Finish Available

1-3/4"



When To Use:

Composite Shingle Roofs

Dimensioned Assembly

Attachment

Step 2: Install Roof

12"

1) Locate the rafter 2) Drill the pilot hole

3) Prep the base 4) Attach base

Series 100 UL Flashed L-Foot

Step-by-Step Instructions

1) Locate the rafter underneath the decking of the roof by looking underneath the eaves or in the attic.

2) Drill a pilot hole through the rooﬁng material into the rafter to ensure that the lag bolt will be located into a solid portion of the rafter. If the rafter is not found then seal the pilot hole immediately with rooﬁng sealant.

) Apply rooﬁng sealant to the bottom of the base and directly onto the lag bolt to ensure a water tight seal.

4) Attach the L-foot base with a 5/16” lag bolt and a minimum embedment of 2 ½” lag shank into the rafter. Tighten Lag bolt to seat with a hand wrench.

5) Set the ﬂashing 6) Attach L-Foot

5) Slide the ﬂashing underneath the row of shingles, directly above the installed standard base, and then line up the hole in the ﬂashing with the threads on the base. It may be necessary to pry up shingles with a breaker bar.

6) Attach the L-foot to the threaded portion of the base that is protruding from the ﬂashing. Then tighten the ﬂange bolt over the threads to 10 – 16 ft-lbs. The L-foot can be attached in any orientation.

Notes

- Alternative 90° L Foot included in UL 270 Listing

- SnapNrack engineered systems should only be used with SnapNrack components and hardware. Any alternate application may void the warranty and structural calculations could become invalid.

Warning

- If a pilot hole is drilled and a rafter is not found, immediately seal pilot hole with rooﬁng sealant to avoid water damage.

- Do not over tighten hardware.

- Always wear fall protection and safety gear.

Design Tools

- SnapNrack has a suite of design tools to help conﬁgure your PV installation to be an accurate and fast install. Please visit us at: www.SnapNrack.com.

Stando Post

Required Tools:

Hammer or Stud Finder Roof Marking Crayon Drill with 1/8" Pilot Drill Bit Roof Sealant Torque Driver with Bit Adapter Channel Locks 1/2" Socket Wrench

Concrete or Clay Tile Roofs

Materials Included In Series 100 Stando Kit:

(1) SnapNrack Stando Base



(1) SnapNrack Stando Shaft



(1) SnapNrack Rubber Rain Collar



(1) SnapNrack Stando Clamp



(1) 5/16" SS Split Lock Washer



(1) 5/16" - 18 X 2in SS HCS Bolt



(1) SnapNrack Bonding Channel Nut, 5/16" - 18



When To Use:















Series 100 UL

Other Materials Required:

(1) 5/16" Lag Screw



(1) 5/16" Washer



(1) Roof Cone Flashing

Technical Stando Shaft Data:

Material 6000 Series Heat

Finish Mill Weight 5.5” Shaft = 0.4 LBS

Design Uplift Load 200 LBS Uplift Design Ultimate Load 1600 LBS Uplift

Dimensioned Assembly Dimensioned Shaft

1-1/2"

Treated Aluminum

7” Shaft = 0.5 LBS

8.5” Shaft = 0.6 LBS





All Stando shafts

are mill ﬁnished

7-1/2"

3-1/2"

1-1/2"

5/16"-18

10"

8-1/2"

5-1/2"

1/2"

1) Remove tile and locate the rafter

3) Prep the base and attach base

2) Drill pilot hole

4) Set ﬂashing

Series 100 UL Stando Post

Step-by-Step Instructions

1) Remove roof tile where the penetration will be installed. Locate the rafter underneath the decking of the roof by locating under the eave, in the attic, or by tapping the roof surface with a hammer.

) Apply rooﬁng sealant to the bottom of the base and directly onto the lag bolt to ensure a water tight seal. Attach the Stando base with a 5/16” lag bolt and a minimum embedment of 2 ½” lag shank into the rafter. Tighten lag bolt to seat using a hand wrench.

5) Attach post 6) Replace tile and attach stando clamp

4) Set the ﬂashing by sliding the ﬂashing underneath the row of tiles directly above the installed base, with the hole in the ﬂashing directly above the threaded portion of the base.

5) Attach the stando shaft by sliding it through the hole in the ﬂashing and tightening it onto the threads protruding from the base snug with channel locks.

6) Cut the tile to ﬁt around the ﬂashing, replace the tile, then attach the stando clamp by ﬁrst sliding the rubber rain collar over the stando shaft then the stando clamp with bolt, washer and channel nut.

Notes

- SnapNrack engineered systems should only be used with SnapNrack components and hardware. Any alternate application may void the warranty and structural calculations could become invalid.

Warning

- If a pilot hole is drilled and a rafter is not found, immediately seal pilot hole with rooﬁng sealant to avoid water damage.

- Do not over tighten hardware.

- Always wear fall protection and safety gear.

Design Tools

- SnapNrack has a suite of design tools to help conﬁgure your PV installation to be an accurate and fast install. Please visit us at: www.SnapNrack.com.

Materials Included In Series 100 Stando Kit (Steel Structural Member):

(1) SnapNrack Stando Base



(1) SnapNrack Stando Shaft



(1) SnapNrack Rubber Rain Collar



(1) SnapNrack Stando Clamp



(1) 5/16" SS Split Lock Washer



(1) 5/16" - 18 X 2" SS HCS Bolt



(1) SnapNrack Bonding Channel Nut, 5/16" - 18



Other Materials Required:

(1) 1/4" Tek Screw



(1) Roof Cone Flashing



Stando Options

Series 100 UL



When To Use:

Steel Structural

Member Conﬁgurations

Standard Stando Base













Materials Included In Series 100 Four Hole Stando Kit:

(1) SnapNrack Four Hole Stando Base



(1) SnapNrack Stando Shaft



(1) SnapNrack Rubber Rain Collar



(1) SnapNrack Stando Clamp



(1) 5/16" SS Split Lock Washer



(1) 5/16" 18 X 2" SS HCS Bolt



(1) SnapNrack Bonding Channel Nut, 5/16" - 18



Other Materials Required:

(4) Wood Screws 1/4"



(1) Roof Cone Flashing



Four Hole Stando Base



When To Use:

Composite

Wood I-Joists





















Materials Included In Series 100 Heavy Duty Stando Kit:

(1) SnapNrack HD Stando Base



(1) SnapNrack HD Stando Shaft



(1) SnapNrack Rubber Rain Collar



(1) SnapNrack Stando Clamp



(1) 5/16in SS Split Lock Washer



(1) 5/16" - 18 X 2" SS HCS Bolt



(1) SnapNrack Bonding Channel Nut,



5/16" - 18

Other Materials Required:

(2) 5/16" Lag Screw



(1) Roof Cone Flashing



When To Use:

Foam Roofs



HD Base













Series 100 UL Stando Options

Step-by-Step Instructions For Zee Purlin Installation

1) Follow the instruction exactly as the SnapNrack Stando penetration. Substituting the tek Screw for the 5/16” lag bolt.

Step-by-Step Instructions For Four Hole Installation

1) Follow the instruction exactly as the SnapNrack regular Stando penetration. Substituting the base for the four hole base and 1/4" wood screws for the 5/16” lag bolt.

Step-by-Step Instructions For Heavy Duty Installation

1) Remove the foam rooﬁng above the rafter to be installed on.

2) Attach the SnapNrack heavy duty stando base directly to the exposed rafter using (2) 5/16” lag bolts.





) Screw in the SnapNrack HD Stando to the base snug with channel locks.

4) Replace the foam rooﬁng that was removed.

5) Flash the stando by sliding the cone ﬂashing over the exposed stando and heat weld the rubber membrane around the ﬂashing for a water tight seat.

6) Attach remaining hardware as in the standard SnapNrack stando.

Notes

- SnapNrack engineered systems should only be used with SnapNrack components and hardware. Any alternate application may void the warranty and structural calculations could become invalid.

Warning

- If a pilot hole is drilled and a rafter is not found, immediately seal pilot hole with rooﬁng sealant to avoid water damage.

- Do not over tighten hardware.

- Always wear fall protection and safety gear.

Design Tools

- SnapNrack has a suite of design tools to help conﬁgure your PV installation to be an accurate and fast install. Please visit us at: www.SnapNrack.com.

Required Tools:

Hammer or Stud Finder Roof Marking Crayon Drill with 1/8" Pilot Drill Bit Roof Sealant Torque Driver with Bit Adapter 1/2" Socket Wrench or impact driver Flat Pry Bar

Materials Included In Universal Tile Roof Hook:

(1) SnapNrack Universal Tile Roof Hook Base



(1) SnapNrack Universal Tile Roof Hook Arm



(2) 5/16" Flange Bolt



(2) SnapNrack Bonding Channel Nut, 5/16" - 18



Tile Roof Options

Other Materials Required:

(2) 5/16" Lag Screw

Series 100 UL



(2) 5/16" Washer

 

Roof Felt of Flexible Flashing (when required for deck-level ﬂashing)

When To Use:

Flat, Wave and S Style

Concrete Tile Roofs













Technical Universal Tile Roof Hook Data:

Material 6000 Series Heat Treated Aluminum Base

304 Stainless Steel Arm

Finish Mill Finish Base

Bare Metal Arm Weight 2 lbs Design Uplift Load 175 lbs Design Ultimate Load 650 lbs

Dimensioned Assembly:

1) Locate the rafter

3) Install Tile Hook base

2) Drill pilot holes

4) Position Tile Hook arm

Series 100 UL Universal Tile Roof Hook

Step-by-Step Instructions

1) Use pry bar to remove roof tile where the base will be installed. Locate the rafter underneath the decking of the roof by locating under the eave, in the attic, or by tapping the roof surface with a hammer.

2) Align the base over the rafter so the hook can enter at the valley of a tile and not extend beyond the edge of the base. Drill two pilot holes in the center of the rafter. If the rafter is not found then seal the pilot hole immediately with sealant.

) Apply rooﬁng sealant to the bottom of the base and directly onto each lag screw. Attach the base with two 5/16” lag screws with washers at a minimum 2 ½” lag shank embedment into the rafter. Tighten the lag screw to seat using a hand wrench.

5) Work channel nut into groove

7) Optional deck-level ﬂashing

6) Attach Tile Hook arm to base

8) Replace tile and install rail

4) Insert the top end of the arm into the groove at the top of the base. The arm will move freely in the base until the channel nut is tightened. Position the arm over the valley of the tile below, then lower the arm down.

5) As you lower the arm you can work the channel nut into the lower groove of the base without removing the channel nut.

6) Ensure the hook is aligned with the valley of the tile. Tighten the bolt in the channel nut and be sure the arm fully seats to the base. The arm will work in any position on the base independent of the lag screw location.

7) If deck-level ﬂashing is required, integrate roof felt or a ﬂexible ﬂashing with the existing underlayment and over the Tile Hook.

8) Replace the roof tiles and install SnapNrack Standard Rail directly to the available channel nut on the Tile Hook arm.

Notes

- SnapNrack engineered systems should only be installed with SnapNrack components and hardware. Any alternate application may void the warranty, the UL 270 Listing, and the structural calculations may no longer be valid.

Required Tools:

Hammer or Stud Finder Roof Marking Crayon Drill with 1/8" Pilot Drill Bit Roof Sealant Torque Driver with Bit Adapter 1/2" Socket Wrench or impact driver Flat Pry Bar

Materials Included In Flat Tile Roof Hook:

(1) SnapNrack Flat Tile Hook



(1) 5/16" Flange Bolt



(1) SnapNrack Bonding Channel Nut, 5/16" - 18



Tile Roof Options

Other Materials Required:

(2) 5/16" Lag Screw

Series 100 UL



(2) 5/16" Washer



Roof Felt of Flexible Flashing (when



required for deck-level ﬂashing)

Technical Flat Tile Roof Hook Data:

When To Use: Flat Concrete

Tile Roofs







Material 304 Stainless Steel

Finish Bare Metal Weight 1.2 lbs Design Uplift Load 175 lbs Design Ultimate Load 650 lbs

Dimensioned Flat Tile Roof Hook:

1) Locate the rafter

3) Install Tile Hook

2) Drill pilot holes

4) Optional deck-level ﬂashing

Series 100 UL Flat Tile Roof Hook

Step-by-Step Instructions

1) Use pry bar to remove roof tile where the Tile Hook will be installed. Locate the rafter underneath the decking of the roof by locating under the eave, in the attic, or by tapping the roof surface with a hammer.

2) Align the Tile Hook over the rafter and drill two pilot holes in the center of the rafter. If the rafter is not found then seal the pilot hole immediately with sealant.

) Apply rooﬁng sealant to the bottom of the Tile Hook and directly onto each lag screw. Attach the base with two 5/16” lag screws with washers with a minimum 2 ½” lag shank embedment into the rafter. Tighten the lag screw to seat using a hand wrench.

4) If deck-level ﬂashing is required, install a ﬂexible ﬂashing over the Tile Hook. See Flat Tile Roof Hook – DeckLevel Flashing section for more details.

5) Replace tile and install rail

5) Replace the roof tiles and install SnapNrack Standard Rail directly to the available channel nut on the Tile Hook arm.

Notes

Warning

- If a pilot hole is drilled and a rafter is not found, immediately seal pilot hole with rooﬁng sealant to avoid water damage.

- Do not over tighten hardware.

- Always wear fall protection and safety gear.

Design Tools

- SnapNrack has a suite of design tools to help conﬁgure your PV system to be an accurate and fast installation. Please visit us at: www.SnapNrack.com.

1) Prepare underlayment

3) Apply ﬂashing

2) Peel o backing

4) Roll ﬂashing

Series 100 UL Flat Tile Roof Hook Optional Deck-Level Flashing

Step-by-Step Instructions

1) Prepare the underlayment surface for adhesion. The surface should be dry, clean and free of any dirt, dust or foreign matter that may prevent adhesion. Clean the surface around the Tile Hook with a brush of medium-sti bristles. If necessary, prime the surface with compatible spray or paint primer.

2) Peel o the backing from a 9-in. square of ﬂexible ﬂashing.

) Apply ﬂexible ﬂashing centered laterally over tile hook and abutted to the tile hook arm. Ensure tape adheres to the corners between the edges of the Tile Hook and the underlayment as well as over the lag screw heads and tile hook surface.

4) Press and smooth out any creases or air bubbles with a roller to maximize contact of the ﬂashing adhesive to 100% of the surface and Tile Hook.

5) Peel o backing 6) Roll strip

5) Peel o the backing from a 4-in. by 1" strip of ﬂexible ﬂashing.

6) Apply the strip with 2" laps at the top and side edges of the square ﬂashing. Roll out any creases or air bubbles between the strip, the ﬂashing and the underlayment surface.

Notes

- SnapNrack recommends testing underlayment surfaces for adhesion. If adhesion is found to be marginal, then a primer is recommended to ensure optimal adhesion. Refer to ﬂexible ﬂashing manufacturer’s technical data for primer recommendations.

- SnapNrack recommends using Protecto Wrap Protecto Seal 45 waterprooﬁng membrane, or equivalent, as the ﬂexible ﬂashing and lap material.

Required Tools:

Hammer or Stud Finder Roof Marking Crayon Drill with 1/8" Pilot Drill Bit Roof Sealant Threaded Bit Adapter 1/2" Socket Wrench or impact driver Torque Wrench

Hanger Bolt

Series 100 UL

Materials Included In Series 100 Hanger Bolt Kit:

(1) SnapNrack Hanger Bolt Clamp Front



(1) SnapNrack Hanger Bolt Clamp Back



(1) 5/16" SS Split Lock Washer



(1) 5/16" - 18 X 1in SS HCS Bolt



(1) SnapNrack Bonding Channel Nut,



5/16" - 18

Other Materials Required:

(1) 3/8” Stainless Steel Hanger Bolt



Dimensioned Assembly

1-1/2"

3/4"

3/8"

When To Use:

Any Roof Style











Dimensioned Hanger Bolt Clamp

8" TYP

R 0.188"

1-1/2"

3/4"

R 0.17"

Technical Hanger Bolt Clamp Data:

Material 6000 Series Heat

Treated Aluminum

Color Class 2 Anodized Finish

Clear Finish Available

Weight 0.7 LBS

Design Uplift Load 200 LBS Uplift Design Ultimate Load 1600 LBS Uplift

1) Locate the rafter

3) Prep the bolt and hole

2) Drill the pilot hole

4) Install hanger bolt

Series 100 UL Hanger Bolt

Step-by-Step Instructions

1) Locate the rafter underneath the decking of the roof.

) Apply rooﬁng sealant directly onto the pilot hole and the hanger bolt lag to ensure a water tight seal.

4) Attach the hanger bolt using the threaded bit adapter with a minimum embedment of 2 ½” lag shank into the rafter. Tighten Lag bolt to seat.

5) Attach the channel nut of the hanger bolt assembly into rail.

5) Set hanger bolt clamp in rail

6) Then attach the hanger bolt clamp by setting it around the threaded portion of the hanger bolt to the desired height and tighten silver hardware to 10-16 ftlbs and black hardware to 8-10 ft-lbs.

6) Attach hanger bolt clamp to hanger bolt

Notes

- SnapNrack engineered systems should only be used with SnapNrack components and hardware. Any alternate application may void the warranty and structural calculations could become invalid.

Warning

- If a pilot hole is drilled and a rafter is not found, immediately seal pilot hole with rooﬁng sealant to avoid water damage.

- Do not over tighten hardware.

- Always wear fall protection and safety gear.

Design Tools

- SnapNrack has a suite of design tools to help conﬁgure your PV installation to be an accurate and fast install. Please visit us at: www.SnapNrack.com.

Required Tools:

Hammer Or Stud Finder Roof Marking Crayon Drill with 3/16" Pilot Drill Bit Torque Driver with Bit Adapter 1/2" Socket Wrench or impact driver

When To Use:

Metal Roof

Proﬁles





Materials Included In Metal Roof Base:

(1) SnapNrack Metal Roof Base



(1) SnapNrack L Foot 90 degree



(1) 5/16" - 18 SS Flange Nut

Metal Roof Base



(1) SnapNrack Bonding Channel Nut, 5/16" - 18



(1) 5/16" - Flange Bolt



Series 100 UL

Other Materials Required:

(1) 5/16” Lag Screw or 1/4” Tek Screw



Technical Metal Roof Base Data:

Material 6000 Series Aluminum

Color Clear Anodized Aluminum Weight 0.4 LBS

Design Uplift Load 1,008 LBS Uplift Design Ultimate Load 4,033 LBS Uplift







Use With: Anodized

Aluminum L-Foot

and Flange Bolt

Dimensioned Assembly

Cap

Base

1) Locate the rafter & drill pilot hole

3) Thread on cap

2) Attach base with screw

4) Attach L Foot

Series 100 UL Metal Roof Base

Step-by-Step Instructions

1) Drill /16" pilot hole in rafter. Ensure area is free from metal shavings and debris.

2.) Attach metal roof base to rafter with 5/16" lag bolt (or Tek screw). Torque to appropriate fastener speciﬁcation.

) Thread metal roof base cap onto metal roof base bottom. Take care to ensure the base does not twist when cap is tightened. Ensure cap is fully seated to base.

4) Attach L Foot to stud in metal roof base cap.

5/16-18 STAINLESS FLANGE NUT

1/4-20 TEK OR EQUIVALENT

SELF DRILLING FASTENER.

TORQUE TO MANUFACTURER

SPECIFICATIONS

SNAPNRACK STANDARD RAIL

TORQUE 10-16 FT-LBS

SNAPNRACK METAL

ROOF BASE BOTTOM

METAL ROOF DECK

SNAPNRACK L-FOOT

SNAPNRACK METAL ROOF BASE CAP

STRUCTURAL MEMBER, TYPICAL

Notes

- Metal roofs with excessive debris, corrosion, or non factory coating should be evaluated for adequate sealing surface.

- Additional roof sealant not required but can be applied after tightening the Metal Roof Base to roof, if desired.

Warning

- If a pilot hole is drilled and a rafter is not found, immediately seal pilot hole with rooﬁng sealant to avoid water damage.

- Do not over tighten hardware.

- Always wear fall protection and safety gear.

Design Tools

- SnapNrack has a suite of design tools to help conﬁgure your PV installation to be an accurate and fast install. Please visit us at: www.SnapNrack.com.

Required Tools:

Hammer or Stud Finder Drill with 1/8" Pilot Drill Bit Roof Sealant Torque Driver with Bit Adapter 1/2" Socket Wrench or impact

driver

Materials included in Series 100 Straddle Block Kit:

(1) SnapNrack Corrugated Straddle Block



(1) SnapNrack L-Foot



(1) 5/16" Flange Bolt



(1) SnapNrack Bonding Channel Nut, 5/16" - 18



Dimensioned Assembly

4-1/2"

Corrugated Block

Series 100 UL

Other Materials Required:

(1) 5/6" Lag Screw



(1) 5/16" Washer



*Up To 1" Leveling







Tek Screw For Steel Rooﬁng Members,

Lag Screw For Wooden Rafters

Dimensioned Corrugated Block

D 3/8"



Technical Corrugated Block Data:

Material 6000 Series Heat

Color Mill Finish Weight 0.3 LBS

Design Uplift Load 200 LBS Uplift Design Ultimate Load 1000 LBS Uplift

1-3/8"

7/8"

Treated Aluminum

1-1/4"

2-3/8"

Only use

Mill Finish L-foot

with

Split lock washer

1) Locate the rafter

2) Drill the pilot hole

Series 100 UL Corrugated Block

Step-by-Step Instructions

1) Locate the rafter underneath the decking of the roof by locating the screws. The rafter lies directly underneath the screws.

3) Apply rooﬁng sealant

5) Tighten hardware

4) Attach corrugated block with L-Foot

) Apply rooﬁng sealant if needed directly onto the pilot hole and lag to ensure a water tight seal.

4) Attach the Corrugated Block with L-foot using a 5/16” lag bolt (TYP) or appropriate lag with a minimum embedment of 2 ½” lag shank into the rafter. Tighten lag bolt to seat.

5) Tighten L-foot assembly silver hardware to 10–16 ft-lbs and tighten black hardware to 8-10 ft-lbs.

Notes

- SnapNrack engineered systems should only be used with SnapNrack components and hardware. Any alternate application may void the warranty and structural calculations could become invalid.

Warning

- If a pilot hole is drilled and a rafter is not found, immediately seal pilot hole with rooﬁng sealant to avoid water damage.

- Do not over tighten hardware.

- Always wear fall protection and safety gear.

Design Tools

- SnapNrack has a suite of design tools to help conﬁgure your PV installation to be an accurate and fast install. Please visit us at: www.SnapNrack.com.

Required Tools:

Hammer or Stud Finder Roof Marking Crayon Drill with 1/8" Pilot Roof Sealant Torque Driver with Bit Adapter 1/2" Socket Wrench or impact

driver

Note: Drawing is showing only

1 assembly of 2 required for Tilt Kit











Materials Included In Series 100 5°-15° Tilt Kit:

(2) 5/16"- 18 X 1" SS HCS Bolt



(2) SnapNrack Stando Base



(2) SnapNrack Stando Shaft



(2) SnapNrack Stando Clamp



(4) 5/16" SS Split Lock Washer



(2) 5/16" - 18 X 2" SS HCS Bolt



(2) 5/16" - 18 Flanged Hex Nut

5° - 15° Tilt Mount

Series 100 UL



(2) 5/16" - 18 1-1/4" SS HCS Flanged



Bolt (2) SnapNrack L Foot



(2) SnapNrack Bonding Channel Nut



(2) Rubber Rain Collar

Other Materials Required:

(2) 5/16" Lag Screw



(2) 5/16" Washer



(2) Roof Cone Flashings

Technical Stando Data:

Material 6000 Series Heat

Finish Mill Weight 5.5” Shaft = 0.4 LBS

Design Uplift Load 200 LBS Uplift Design Ultimate Load 1000 LBS Uplift

When To Use:

Flat Roof Applications

Treated Aluminum

7” Shaft = 0.5 LBS

8.5” Shaft = 0.6 LBS













All parts

are mill ﬁnish

Dimensioned Assembly

1/2"

3-1/2"

1-1/2"

VARIES

Dimensioned Stando Clamp

R 0.6"

R 0.375"

1-1/5"

R 0.5"

1) Locate the rafter

2) Drill the pilot hole

Series 100 UL 5°-15° TIlt Mount

Step-by-Step instructions

1) Locate the rafter underneath the decking of the roof by tapping the roof surface with a hammer.

3) Prep the base

5) Set stando and ﬂashing

4) Attach base

6) Attach stando clamp

) Apply rooﬁng sealant to the bottom of the base and directly onto the pilot hole to ensure a water tight seal.

4) Attach the L-foot base with a 5/16” lag bolt and a minimum embedment of 2 ½” lag shank into the rafter. Tighten Lag bolt to seat.

5) Next attach the stando to the base and set the cone ﬂashing by sliding it over the stando and directly applying it to the roof surface. Use all necessary sealants and attachment methods for ﬂashing.

6) Attach the stando clamp by sliding it over the stando shaft. Adjust it to the desired height and tighten silver hardware to 10-16 ft-lbs and black hardware to 8-10 ft-lbs.

Notes

- SnapNrack engineered systems should only be used with SnapNrack components and hardware. Any alternate application may void the warranty and structural calculations could become invalid.

Warning

- If a pilot hole is drilled and a rafter is not found, immediately seal pilot hole with rooﬁng sealant to avoid water damage.

- Do not over tighten hardware.

- Always wear fall protection and safety gear.

Design Tools

- SnapNrack has a suite of design tools to help conﬁgure your PV installation to be an accurate and fast install. Please visit us at: www.SnapNrack.com.

Required Tools:

Hammer Roof Marking Crayon Drill with 1/8" Pilot Roof Sealant Torque Driver with Bit Adapter 1/2" Socket Wrench or impact driver

SnapNrack Tool

Materials Included In Series 100 10°-45° Tilt Kit:

(2) 5/16"- 18 X 1" SS HCS Bolt



(2) SnapNrack Stando Base



(2) SnapNrack Stando Shaft



(2) SnapNrack Stando Clamp



(4) 5/16" SS Split Lock Washer



(3) 5/16" X1-1/4" SS HCS Flange Bolt



(1) 5/16" - 18 SS Flat Hex Nut



(2) 5/16" - 18x2" SS HCS Bolt

10° - 45° Tilt Mount

Series 100 UL



(2) SnapNrack L Foot



(4) SnapNrack Bonding



Channel Nut

(2) Rubber Rain Collar

Other Materials Required:

(1) Spare Standard Rail



(2) 5/16" Lag Screw (2) 5/16" Washer (2) Roof Cone Flashing















































Technical Stando Data:

Material 6000 Series Heat

Treated Aluminum Finish Mill Design Uplift Load 200 LBS Uplift Design Ultimate Load 1000 LBS Uplift

All parts are

mill ﬁnish.

L-foot can be

anodized or mill ﬁnish

Dimensioned Assembly Dimensioned Stando Clamp

1-1/2"

VARIES

R 0.6"

R 0.5"

1/2"

3-1/2"

R 0.375"

1-1/5"

1) Locate the rafter

3) Prep the base

5) Set post and ﬂashing

2) Drill the pilot hole

4) Attach base

6) Attach stando clamp

Series 100 UL 10°-45° TIlt Mount

Step-by-Step Instructions

1) Locate the rafter underneath the decking of the roof by tapping the roof surface with a hammer.

) Apply rooﬁng sealant to the bottom of the base and directly onto the pilot hole to ensure a water tight seal.

4) Attach the stando base with a 5/16” lag bolt and a minimum embedment of 2 ½” lag shank into the rafter. Tighten Lag bolt to seat.

7) Attach rail and

8) Set SnapNrack tilt tool

tighten

6) Attach the stando clamp by sliding it over the stando shaft. Adjust it to the desired height and tighten Silver hardware to 10-16 ft-lbs and black hardware to 8-10 ft-lbs.

7) Attach the scrap rail and modules then tighten Silver hardware to 1016 ft-lbs and black hardware to 8-10 ft-lbs. Remove tilt tool.

8) Use the SnapNrack tilt tool to support the top rail in place (see page 4 for instructions.)

Notes

- SnapNrack engineered systems should only be used with SnapNrack components and hardware. Any alternate application may void the warranty and structural calculations could become invalid.

Warning

- If a pilot hole is drilled and a rafter is not found, immediately seal pilot hole with rooﬁng sealant to avoid water damage.

- Do not over tighten hardware.

- Always wear fall protection and safety gear.

Design Tools

- SnapNrack has a suite of design tools to help conﬁgure your PV installation to be an accurate and fast install. Please visit us at: www.SnapNrack.com.

4-1/2"

1-3/8"

1-3/4"

Required Tools

Torque Driver with Bit Adapter 1/2" Socket Wrench or impact driver

Materials Included In Series 100 Seam Clamp Kit:

(1) 5/16" - 18 X 1" SS HCS Bolt



(1) 5/16" SS Split Lock Washer



(1) SnapNrack Seam Clamp Insert



(1) SnapNrack Seam Clamp Cam



(1) SnapNrack Seam Clamp Base



Seam Clamp

Dimensioned Assembly with L-Foot:

When To Use:

Standing Metal Seam

That The Seam Clamp

Fits Over, Not Limted

To The Table on the

following page







Series 100 UL

Materials Included In Series 100 Wide Seam Clamp Kit:

(1) 5/16" - 18 X 1" SS HCS Bolt



(1) 5/16" SS Split Lock Washer



(1) SnapNrack Seam Clamp Insert



(1) SnapNrack Seam Clamp Cam



(1) SnapNrack Seam Clamp Wide Base



Dimensioned Wide Seam Clamp





Dimensioned Standard Seam Clamp

1-3/4"



11/16"



3/4"







1-3/8"

Technical Seam Clamp Data:

Material 6000 Series Heat

Finish Mill Design Uplift Load 200 LBS Uplift

Design Ultimate Load Varies by Roof Seam

2-5/8"

Anodized L-foot

and Flange Bolt

Treated Aluminum

Use with:

Dimensioned Assembly with L-Foot

1-3/8"

2-5/8"

Example Standing Seam

METAL OR STEEL ROOF MANUFACTURER PANEL NAME CLAMP

AEP Design Span HP Standard Base

AEP Span-Lok Wide Base

American Buildings Standing Seam II Standard Base

Behlen ZL-24 Triple Lock Wide Base

Berridge Zee-Lock Wide Base

Borga Tioga Standard Base

Butler MR-24 Standard Base

Custom Bilt Metals SL-1750 Standard Base

Custom Bilt Metals CB-2000 Single Lock Wide Base

Custom Bilt Metals CB-2000 Double Lock Standard Base

Everlast Everseam Standard Base

Fabral Thin Seam Standard Base

Fabral Stand ‘N Seam Standard Base

Mastercraft Metals Seam-Loc 1000 Wide Base

Mastercraft Metals Seam-Loc 1500 Wide Base

Mastercraft Metals Seam-Loc 2000 Wide Base

MBCI Double-Lok Standard Base

MBCI SuperLok Standard Base

MBCI LokSeam Wide Base

MBCI Ultra-Dek Standard Base

MBCI BattenLok Wide Base

McElroy MasterLok FS Standard Base

McElroy Maxima Wide Base

Merchant & Evans Zip-Lok Single Lock Standard Base

Merchant & Evans Zip-Lok Double Lock Standard Base

Metal Sales MagnaLoc Wide Base

Metal Sales Vertical Seam Standard Base

Nucor CFR Vise Lock Wide Base

Nucor VR-16 II Vise Lock Wide Base

VP Buildings SSR Standard Base

Whirlwind Super Seam II Standard Base

1) Assemble seam clamp

2) Attach seam clamp

Series 100 UL Seam Clamp

Step-by-Step Instructions

1) Assemble the seam clamp components to be ready to attach to standing metal seam.

2) Attach the seam clamp to the standing metal seam by loosening the seam clamp bolt then opening the seam clamp cam and placing the clamp over the top of the standing metal seam.

) Tighten remaining hardware in the L-Foot assembly. Tighten both silver and black hardware to 10-16 ft-lbs.

SnapNrack Seam Clamps have been designed to work with a variety of standing seam metal roofs, the most common seam types are:

Snap Lock Single Lock Double Lock

If a speciﬁc roof seam is not found on list, contact SnapNrack prior to installation.

Notes

- SnapNrack engineered systems should only be used with SnapNrack components and hardware. Any alternate application may void the warranty and structural calculations could become invalid.

3) Tighten hardware

Warning

- Do not over tighten hardware.

- Always wear fall protection and safety gear.

Design Tools

- SnapNrack has a suite of design tools to help conﬁgure your PV installation to be an accurate and fast install. Please visit us at: www.SnapNrack.com.

Required Tools:

Level String Line or Spare Rail Pitch Meter 1/2" Socket Wrench 5/32" Allen Key Torque Wrench

Materials Needed to Install and Level Rails:

SnapNrack Standard Rail



SnapNrack Bonding Splices



1” SnapNrack Stando Spacers



5/16” - 18 X 1” Fully Threaded Set Screw



Pre installed SnapNrack Roof Attachments (L-Foot Or Stando)



Use with:

Mill Finish

Stando Parts

Series 100 UL

Installing and Leveling Rails

Technical Rail Data:

Material 6000 Series Heat

Treated Aluminum

Finish Class 2 Anodized Finish

Clear and Black Finish Available Mill Finish Available

Weight 0.75 LBS/FT











Standard Rail Proﬁle

2-1/2"

Max Span See Span Charts in

Technical Rail Splice Data:

Material 6000 Series Heat

Finish Class 2 Anodized Finish

Weight 0.64 LBS

Recomm. 1/8” Gap Between Rails

Step 3: Leveling Rails

Structural Engineering Letters

Treated Aluminum

Clear and Black Finish Available

1-1/2"

Rail Splice Proﬁle

1-1/2"

1-3/4"

1) Set rails into all attachments

3) Run string line and set pitch

2) Level bottom rail

4) Level top rail

Series 100 UL Installing and Leveling Rails

Step-by-Step instructions

1) Set all of the rails into the attachments by snapping the channel nuts into the side channel of the standard rail. Connect multiple lengths of rail end to end with the SnapNrack splice.

2) Find the highest attachment point of the roof, and set that attachment point to the lowest adjustability. Level the bottom rail of the array to the roof by tightening attachment points. Torque silver hardware to 10-16 ft-lbs and black hardware to 8-10 ft-lbs.

) Using a string line or spare rails run from the bottom rail to the top rail and raise the top rail, then set the desired pitch of the array by adjusting the top rail. Add leveling spacers if needed.

5) Level remaining rails to pitch

6) Tighten hardware

4) Level the top rail by moving the string line down the length of the rail, matching pitch over the entire length of the array.

5) Level the remaining rails to the string line, working out from the middle rail. Add leveling spacers if needed.

6) Tighten all racking hardware, torque silver hardware to 10-16 ft-lbs and all black hardware to 8-10 ft-lbs.

Notes

- SnapNrack engineered systems should only be used with SnapNrack components and hardware. Any alternate application may void the warranty and structural calculations could become invalid.

- The minimum stando height between the modules and roof is as follows:

- REC Solar, Yingli, and Suniva modules: 4.00"

- ReneSola modules: .9"

- Trina Solar modules: 4.5"

Class A Fire Classifcation

The system has been evaluated for a Class A System Fire Classiﬁcation for a SteepSloped Roof using Type 1 and Type 2 modules. In order to maintain the System Classiﬁcation, modules must be mounted in the portrait orientation, and clamped to the mounting rails beween 0 and 12" from the top and bottom edges of the module.

ON TOP OF STANDOFF

SnapNrack Rail Splice

1) Butt 2 rail sections together

3) Set splice insert into position

2) Place rail splice in channel

4) Tighten splice bolts

Leveling with Spacers

Use a single level spacer on no more than 30% of attachment points. Use a double level spacer on no more than 10% of attachment points.

L-Foot

*Up To 3"

Leveling

Series 100 UL Installing and Leveling Rails

Step-by-Step instructions

SnapNrack Rail Splice

1) Align sections of rail so that ends butt up to each other.

2) Place rail splice assembly in to the side channel of rail making sure the base is seated all the way to the back of the channel and front of splice is up against upper lip of side channel with lower lip of channel in groove on lower edge of splice. Splice should be centered on gap where rails come together.

) Lift up on splice insert, either by lifting up on bolts or with ﬁngers on both sides of insert to make sure insert is as high in channel as it can go. While lifting up on insert, tighten bolts by hand to secure insert in channel. Note: loosening bolts prior to lifting up insert to engage it into channel will provide play between insert and channel for proper positioning.

4) Using a socket wrench, tighten up bolts on splice to secure splice to rails. Torque silver hardware to 10–16 ft-lbs and black hardware to 8–10 ft-lbs.

MIN

RAIL HEIGHT =3.4"

ABOVE ROOF SURFACE ONE L FOOT

Stando

*Up To 3"

Leveling

MIN

RAIL HEIGHT =7.5" ABOVE ROOF SURFACE 7" STANDOFF

MAX

RAIL HEIGHT =6.4" ABOVE ROOF SURFAC ONE L FOOT PLUS TWO SPACERS UNDER L FOOT

MAX

RAIL HEIGHT =10.5" ABOVE ROOF SURFACE 7" STANDOFF PLUS TWO SPACERS

Required Tools:

1/2" Socket Wrench or impact driver Torque Wrench

Materials Needed to Install Mid and End Clamps:

Pre Installed SnapNrack Roof Attachments



Pre Installed SnapNrack Rails



SnapNrack Mid Clamp Assemblies



SnapNrack End Clamp Assemblies



PV Modules



Attaching Modules

Series 100 UL

Mid Clamp Assembly

(1) 5/16" - 18 X 2-1/2" SS HCS Bolt



(1) 5/16" SS Split Lock Washer



(1) SnapNrack Bonding Mid Clamp



(1) 5/16" - 18 SnapNrack Bonding Channel Nut























Adjustable X-End Clamp Assembly

(1) 5/16" - 18 2x3/4" SS HCS Bolt



(1) 5/16" SS Split Lock Washer



(1) SnapNrack Self Adjusting Top



(1) SnapNrack Self Adjusting Bottom









Universal End Clamp Assembly:

(1) 5/16" - 18 X 1-1/2" SS HCS Bolt



(1) 5/16" X 3/4" SS Flat Washer



(1) SnapNrack Universal Wedge



(1) SnapNrack Universal Wave



(1) Pull Tab















Step 4: Attaching Modules

SnapNrack Mid Clamp

1) Snap into channel

3) Set modules

2) Set mid clamp

4) Tighten

Series 100 UL Attaching Modules

Step-by-Step Instructions

SnapNrack Mid Clamp

1) Snap the preassembled SnapNrack mid clamp’s channel nut into the top channel of the rail.

2) Slide the mid clamp ﬂush to the module with the top lip of the mid clamp over the top edge of the module. ) Place the next module ﬂush to the other side of the mid clamp.

4) Tighten hardware, torque silver hardware to 10-16 ft-lbs and black hardware to 8-10 ft-lbs.

SnapNrack X-End Clamp

1) Snap into channel

3) Tighten

2) Set on module

4) Install rubber end cap

SnapNrack Universal End Clamp (UEC)

1) Set in rail

2) Place module over UEC

Torque: Silver 10-16 ft-lbs. Black 8-10 ft-lbs.

1) Snap the preassembled SnapNrack X clamp’s channel nut into the top channel of the rail.

2) Slide the X clamp ﬂush to the edge of the module with the lip of the top of the end clamp over the top of the module and lip of the bottom of the end clamp under the module. ) Tighten hardware, torque silver hardware to 10-16 ft-lbs and black hardware to 8-10 ft-lbs.

4) Install rubber end cap to ﬁnish.

SnapNrack Universal End CLamp

1) Slide the preassembled universal end clamp into the end of the rail.

2) Lift the module and slide the universal end clamp under the module far enough to pass the lip of the bottom edge of the module frame. ) Use the pull tab to pull the universal end clamp tight to the end of the rail. Hold and tighten the universal end clamp to 12 – 16 ft-lbs.

4) Install rubber end cap to ﬁnish.

3) Pull tab foward

4) Set end cap

Notes

- SnapNrack engineered systems should only be used with SnapNrack components and hardware. Any alternate application may void the warranty and structural calculations could become invalid.

Warning

- Do not over tighten hardware

- Always wear fall protection and safety gear

Design Tools

- SnapNrack has a suite of design tools to help conﬁgure your PV installation to be an accurate and fast install. Please visit us at: www.SnapNrack.com.

Required Tools:

Wire Cutters Pliers

Series 100 Edge Screen

Materials Included With Series 100 Edge Screen:

NOTE:

is NOT UL Listed

Edge Screen

Series 100 UL

(1) SnapNrack Edge Screen Clip



(1) SnapNrack Edge Screen



When To Use:

To Prevent Animals From Getting Under

The Array and Causing Problems Such

As Chewing On Wires

Technical Edge Screen Data:

Screen Material Galvanized Steel 1/2” Mesh

Color Black PVC Coating Weight 0.18 LBS/ Ft. X 8” Wide

Technical Edge Screen Clip Data:

Material Galvanized Spring Steel

Color Black Paint Weight 0.16 LBS





MODULE

FRAME TYP.

4"-8" TYP

1-1/2"

1-3/4"

1/2"

Dimensioned Edge Screen Clip:Dimensioned Assembly

Step 5: Finish the System

Series 100 UL Edge Screen

1) Determine edge clip height

3) Attach clip to the module

2) Snap the clip to the correct height

4) Attach screen to clip

Step-by-Step Instructions

1) Hold the SnapNrack edge screen clip upside down up to the edge of the array to visually see which notch the clip will need to be broken o at.

2) Using pliers break the Edge screen clip at the appropriate length.

) Clip the edge screen clip to the lip on the underside of the modules around the area that the edge screen will be installed. Recommended spacing of clips is ' - 0" on center.

4) Attach the screen to the clips on the installed clips and repeat these steps continuing around the entire array.

Notes

- SnapNrack engineered systems should only be used with SnapNrack components and hardware. Any alternate application may void the warranty and structural calculations could become invalid.

Warning

- Always wear fall protection and safety gear.

Design Tools

- SnapNrack has a suite of design tools to help conﬁgure your PV installation to be an accurate and fast install. Please visit us at: www.SnapNrack.com.

When To Use:

For any conductors exposed to sunlight

that are not approved for us in UV light

Required Tools

Chop Saw or Reciprocating Saw

Materials Included In Series 100 Rail Cover:

(1) SnapNrack Rail Cover



Dimensioned Rail Cover



Wire Management

1/4"

Series 100 UL

Technical Rail Cover Data:

Material 6000 Series Heat

Color Class 2 Anodized Finish

Weight 0.155 LBS/FT

Materials Included In Series 100 Wire Clips:

(1) SnapNrack Wire Clip



When To Use:

Wire management for safely retaining

conductors within SnapNrack rails

Treated Aluminum

Clear Finish Available

48" TYP



Dimensioned Wire Clip

Technical Wire Clip Data:

Material Luran Plastic

Color Black Weight 0.01 LBS

SnapNrack Rail Cover

1) Measure length of cover needed

3) Secure all conductors in rail channel

SnapNrack Wire Clip

2) Cut cover to length

4) Snap on cover

Series 100 UL Wire Management

Step-by-Step Instructions

SnapNrack Rail Cover

1) Measure the length of the SnapNrack rail cover that is needed. SnapNrack standard lengths of rail covers are 48".

2) Cut the rail cover to length.

) Place all electrical conductors in the bottom of the rail to clear the rail cover.

4) Snap rail cover into place, enclosing all conductors inside of rail channel.

SnapNrack Rail Cover is designed to stay in place once installed. If it needs to be relocated or removed use a ﬂat blade screw driver to remove.

SnapNrack Wire Clip

1) Place all electrical conductors in the bottom of the rail channel.

1) Place all conductors

SnapNrack Wire Clamp

1) TBD

3) TBD

2) Snap on clip

2) TBD

4) TBD

2) Install the wire clip by snapping it into place on the rail. All electrical conductors are now securely enclosed in the rail.

When To Use

- For any exposed conductors to sunlight that are not approved in UV light.

Notes

- SnapNrack engineered systems should only be used with SnapNrack components and hardware. Any alternate application may void the warranty and structural calculations could become invalid.

Warning

- Do not over tighten hardware.

- Always wear fall protection and safety gear.

Design Tools

- SnapNrack has a suite of design tools to help conﬁgure your PV installation to be an accurate and fast install. Please visit us at: www.SnapNrack.com.

Required Tools

1/2" Socket Wrench or impact driver

Materials Included In Series 100 Micro Inverter Attachment Kit:

(1) 5/16" X 1.5" X 0.187" SS Fender Washer



(1) SnapNrack Bonding Channel Nut 5/16"-18



(1) 5/16" - 18 X 1" SS Hcs Bolt



(1) 5/16" SS Split Lock Washer



NOTE:

Series 100 Micro

Inverter Attachment Kit

is NOT UL Listed

Series 100 UL

When To Use:

If Micro Inverter or

Optimizer Has An

Micro Inverter Attachment

Dimensioned Assembly

Attachment Tab

Micro Inverters May Have

Separate Grounding Which

Will Not

Microinverters should always

be installed per speciﬁc

manufacturer's instructions

require a WEEB

Note:







MICRO INVERTER MOUNTING TAB



Optimizers &

SNAPNRACK RAIL

1-1/2"

1) Snap in the channel nut

3) Tighten hardware

Series 100 UL Micro Inverter Attachment

2) Place the bolt and washers

Step-by-Step Instructions

1) Snap the SnapNrack micro inverter attachment kit channel nut into the desired location on the rail where the micro inverter will be installed.

2) Attach the micro inverter to the bolt on the micro inverter attachment kit. Bolt and washers may need to be removed and then replaced.

) Tighten hardware, torque silver hardware to 10-16 ft-lbs.

Notes

- SnapNrack engineered systems should only be used with SnapNrack components and hardware. Any alternate application may void the warranty and structural calculations could become invalid.

Warning

- Do not over tighten hardware.

- Always wear fall protection and safety gear.

Design Tools

- SnapNrack has a suite of design tools to help conﬁgure your PV installation to be an accurate and fast install. Please visit us at: www.SnapNrack.com.

System Ground Methods Include:

SnapNrack Mid Clamp



SnapNrack Universal End Clamp



SnapNrack X-End Clamp



SnapNrack Ground Lug



Ilsco Lay-in Lug



All SnapNrack

Module Clamps contain

a SnapNrack Bonding Channel Nut with integral bonding pins in assembly

to properly ground the

system (except Universal

End Clamps).



System Grounding

Series 100 UL

SnapNrack Ground Lug Assembly







SnapNrack Bonding Splice

Ilsco Lay-in Lug Assembly

System Grounding



SnapNrack Bonding Lug

1) Snap in Bonding Lug

3) Tighten hardware

2) Place grounding conductor in slot

Series 100 UL System Ground

Step-by-Step Instructions

SnapNrack Bonding Lug

1) Snap in the SnapNrack Bonding Lug into the rail channel on one rail per module row.

2) Place grounding conductor into slot underneath split ring washer.

) Tighten all hardware to a min of 16 ft-lbs.

Ilsco Lay-In Lug

1)Using a /8" drill bit, drill a hole in the back side of the rail for the Ilsco lug to attach to and place the bolt through the hole and attach the lug assembly on one rail per module row.

2) Place grounding conductor into slot.

) Tighten set screw per Ilsco's recommendation (see below)

Ilsco Bonding Lug

1) Drill & attach Ilsco Lug

3) Tighten hardware

2) Place grounding conductor in slot

Notes

- System has been evaluated to a

maximum overcurrent device (OCD) protection level of 20 Amps.

- Universal End Clamp (UEC) does not bond module to rail, the UEC is bonded to the module frame. Be sure to separately ground any modules that are only secured by UECs, especially during servicing.

- SnapNrack Bonding Lug Assembly: torque bolt to 16 ft-lbs. The bonding lug may be used in side or top slot. It may be rotated 90 degrees relative to slot to facilitate running copper across top of rails.

- Grounding with a standard Ilsco GBL-4DBT Lug is a listed alternate and requires drilling of a hole in the rail.

- Hardware connection to rail: 5 ft-lbs. Torque for lug set screw: #10-#14 Copper20"-lb, #8-#14 Copper- 25"-lb, #4-#6

Copper- 35"-lb

- SnapNrack engineered systems should only be used with SnapNrack components and hardware. Any alternate application may void the warranty, UL 270 Listing, and structural calculations could become invalid.

Required Tools:

Reciprocating Saw or portable band saw

Materials Included In Series 100 Rail Cutting Tool and End Cap:

(1) SnapNrack Rail Cutting Tool



(1) SnapNrack Rubber End Cap





Series 100 UL

Rail Cutting Tool and End Cap

Dimensioned Rail Cutting Tool Dimensioned End Cap

When To Use:

Flush Rail Cut for

Universal End Clamp (UEC)



4-1/2"

1-1/2"

3-1/2"

1-1/2"

2-1/2"

1/2"

1) Slide Cutting Tool over rail

3) Remove the Cutting Tool

2) Cut o end of rail

4) Insert End Cap into rail

Series 100 UL Rail Cutting Tool, and End Cap

Rail Cutting Tool and End Clamp

1) Slide the Cutting tool over the end of the rail and place it so that the upper lip is safely covering the edge of the module.

2) Use the reciprocating saw or band saw to cut o the end of the rail.

) Remove the cutting tool from the rail.

4) Insert SnapNrack rubber end cap to have a ﬂush ﬁnish to the array.

Edge of array with end caps in rails

Notes

- SnapNrack engineered systems should only be used with SnapNrack components and hardware. Any alternate application may void the warranty and structural calculations could become invalid.

Warning

- Always wear fall protection and safety gear.

Design Tools

- SnapNrack has a suite of design tools to help conﬁgure your PV installation to be an accurate and fast install. Please visit us at: www.SnapNrack.com.

Required Tools:

Drill Measuring Tape Reciprocating Saw 1/2" Socket Wrench

Materials Included in Series 100 10°-45° Tilt Tool Kit

(1) 48" Scrap Piece Of Rail





(2) 5/16" Split Lock Washer



(2) 4" Rail Covers With 3/8" Holes Drilled In Center



(2) 5/16" X 3/4" Flange Bolts



(2) SnapNrack Channel Nut 5/16"









Series 100 UL

High Tilt Tool

Dimensioned Tilt Tool

3" TYP

Assembled Tilt Tool







When To Use:

When Installing The

High Tilt Conﬁguration





Manual

High Tilt Tool Instruction

Installing the Tilt Tool

Series 100 UL High Tilt Tool

1) Construct pieces

3) Set rail to proper length

Assembled tilt tool

2) Assemble hardware

4) Tighten hardware

Step-by-Step Instructions

1) Construct either a standard, shallow, or ground scrap piece of rail to the dimensions of the panels being installed. Drill /8" holes in each rail cover. Cut two 5/16" channel nuts to length. Drill holes into channel nuts. Obtain all of the parts: rail, two rail covers, two channel nuts, two bolts, and two split lock washers.

2) Once /8" holes are drilled in each rail, cover the channel nuts so they can be bolted to the rail covers and slid in to the rail.

) The rail covers can then be slid to the correct positions and tightened down.

4) Tighten hardware.

Notes

- SnapNrack engineered systems should only be used with SnapNrack components and hardware. Any alternate application may void the warranty and structural calculations could become invalid.

Warning

- Do not over tighten hardware.

- Always wear fall protection and safety gear.

Design Tools

- SnapNrack has a suite of design tools to help conﬁgure your PV installation to be an accurate and fast install. Please visit us at: www.SnapNrack.com.

Appendix A

Notes

Series 100 UL

Series 100 UL has been tested with the following UL Listed modules:

REC Solar AS: REC214, REC215, REC220, REC225, REC230, REC235, REC240, REC245, REC250, REC255, REC260, REC265, REC270; all followed by PE, PE(BLK), PE-US, PE-US(BLK), PE Q2 or PEQ3.

Hyundai Heavy Industries Co Ltd:

HiS-MxxxMG Series - HiS-M210MG, HiS-M213MG, HiS-M215MG, HiSM218MG, HiS-M220MG, HiS-M223MG, HiS-M225MG, HiS-M228MG, HiSM230MG, HiS-M233MG, HiS-M235MG, HiS-M238MG, HiS-M240MG, HiS-M243MG, HiS-M245MG, HiS-M248MG, HiS-M250MG, HiS-M253MG, HiS-M255MG, HiS-M258MG, HiS-M260MG, HiS-M263MG, HiS-M265MG, HiS-M268MG, HiS-M270MG; HiS-SxxxMG Series - HiS-S220MG, HiS-S223MG, HiS-S225MG, HiSS228MG, HiS-S230MG, HiS-S233MG, HiS-S235MG, HiS-S238MG, HiS-S240MG, HiS-S243MG, HiS-S245MG, HiS-S248MG, HiS-S250MG, HiS-S253MG, HiS-S255MG, HiS-S258MG, HiS-S260MG, HiS-S263MG, HiS-S265MG, HiS-S268MG, HiS-S270MG, HiS-S273MG, HiS-S275MG; all may be followed by the sux BK or blank.

Renesola Jiangsu Ltd: JCxxxM-24/BB Series - JC200M-24/Bb, JC205M-24/Bb, JC210M-24/Bb, JC215M-24/Bb, JC220M-24/Bb, JC225M-24/Bb, JC230M-24/Bb, JC235M-24/Bb, JC240M-24/Bb, JC245M-24/Bb, JC250M-24/Bb, JC255M-24/Bb, JC260M-24/Bb, JC265M-24/Bb, JC270M-24/Bb.

Suniva Inc - MVX-235-60-5-701, MVX-240-60-5-701, MVX-245-60-5-701, MVX-250-60-5-701, MVX-255-60-5-701, MVX-260-60-5-701, MVX-26560-5-701; MVX-235-60-5-7B1, MVX-240-60-5-7B1, MVX-245-60-5-7B1, MVX-25060-5-7B1, MVX-255-60-5-7B1, MVX-260-60-5-7B1, MVX-265-60-5-7B1; OPT-250-60-4-800, OPT-255-60-4-800, OPT-260-60-4-800, OPT-26560-4-800, OPT-270-60-4-800, OPT-275-60-4-800; OPT-250-60-4-8B0, OPT-255-60-4-8B0, OPT-260-60-4-8B0, OPT-26560-4-8B0, OPT-270-60-4-8B0, OPT-275-60-4-8B0.

Yingli Energy (China) Co Ltd - YLXXXP-29b Series - YL215P-29b, YL220P-29b, YL225P-29b, YL230P-29b, YL235P-29b, YL240P-29b,

Appendix

YL245P-29b, YL250P-29b, YL255P-29b, YL260P-29b; YLXXXA-29b Series - YL220A-29b, YL225A-29b, YL230A-29b, YL235A29b, YL240A-29b, YL245A-29b, YL250A-29b, YL255A-29b.

Trina Solar Ltd - TSM-215PA05, TSM-220PA05, TSM-225PA05, TSM-230PA05, TSM-235PA05, TSM-240PA05, TSM-245PA05, TSM-250PA05, TSM-255PA05, TSM260PA05; TSM-215PA05.05, TSM-220PA05.05, TSM-225PA05.05, TSM-230PA05.05, TSM235PA05.05, TSM-240PA05.05, TSM-245PA05.05, TSM-250PA05.05, TSM255PA05.05, TSM-260PA05.05; TSM-215PA05.08, TSM-220PA05.08, TSM-225PA05.08, TSM-230PA05.08, TSM235PA05.08, TSM-240PA05.08, TSM-245PA05.08, TSM-250PA05.08, TSM255PA05.08, TSM-260PA05.08; TSM-215PD05, TSM-220PD05, TSM-225PD05, TSM-230PD05, TSM-235PD05, TSM240PD05, TSM-245PD05, TSM-250PD05, TSM-255PD05, TSM-260PD05; TSM-215PD05.08, TSM-220PD05.08, TSM-225PD05.08, TSM-230PD05.08, TSM235PD05.08, TSM-240PD05.08, TSM-245PD05.08, TSM-250PD05.08, TSM255PD05.08, TSM-260PD05.08.

NRTL Listed PV Modules:

Hanwha SolarOne: Models HSL60P6-PB-2-230Q, HSL60P6-PB-2-235Q, HSL60P6PB-2-240Q, HSL60P6-PB-2-245Q, HSL60P6-PB-2-250Q, HSL60P6-PB-2-255Q, HSL60P6-PB-2-260Q, HSL60P6-PB-2-265Q, HSL60P6-PB-2-270Q; HSL60P6-PB-4-230Q, HSL60P6-PB-4-235Q, HSL60P6-PB-4-240Q, HSL60P6-PB-4245Q, HSL60P6-PB-4-250Q, HSL60P6-PB-4-255Q, HSL60P6-PB-4-260Q, HSL60P6PB-4-265Q, HSL60P6-PB-4-270Q; may be followed by additional suxes.

Suniva Inc - OPTXXX-60-4-YYY; where XXX may be numbers 240 to 270 in increments of 5; where YYY may be 100; OPTXXX-60-4-YYY; where XXX may be numbers 235 to 265 in increments of 5; where YYY may be 1B0.

REC Solar AS: REC260, REC265, REC270, REC275, REC280 all followed by TP or TP BLK.

Hanwha Q-Cells: Q.PRO-G4 255, Q.PRO-G4 260, Q.PRO-G4 265, Q.PLUS-G4 270, Q.PLUS-G4 275, Q.PLUS-G4 280.

Notes

SnapNrack Series 100 UL Installation Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
