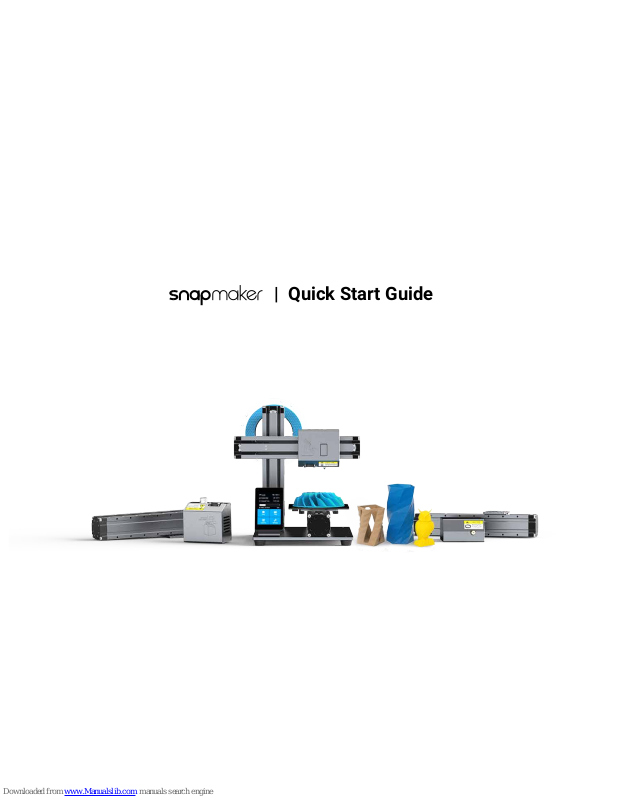

| Quick Start Guide
Page 3
3-in-1 3D Printer Quick Start Guide
Assemble the 3D Printer
Before You Start
Use the 3D Printer
Load Filament
Level the Heated Bed
Start Printing
Support
B
A
C
Content
Page 4
3-in-1 3D Printer Quick Start Guide
Before You Start
Get the Screwdriver Ready
Used Symbols
The screwdriver is dual-purpose. Change
the blade as you need.
Caution
Tips
Notice
Ignoring this type of message might
result in malfunction or damage to the
machine.
Make sure that the highlighted part is facing the right way.
Details you should be aware of throughout the process.
Tips offer you convenient operations and
additional options.
!
Assemble the 3D Printer
Page 5
3-in-1 3D Printer Quick Start Guide
Attach the Feet to the Base Plate
Foot
x 4
M4 x 8 Screw
x 4
Base Plate
x 1
1
Place the Base Plate so that you can read
the sentence on the label.
Assemble the 3D Printer
Page 6
3-in-1 3D Printer Quick Start Guide
Screw for Platform
x 4
Heated Bed
x 1
Linear Module
x 1
Attach the Heated Bed to One of the Linear
Modules (Y Axis)
Don’t screw too tight; otherwise, the leveling
will be inuenced.
The screws’ installing position must be the
same as illustrated.
2
Notice
Assemble the 3D Printer
Page 7
3-in-1 3D Printer Quick Start Guide
Attach the Y Axis to the Base Plate
M4 x 8 Screw
x 4
3
Assemble the 3D Printer
Page 8
3-in-1 3D Printer Quick Start Guide
M4 x 8 Screw
x 4
Linear Module
x 1
Attach the Z Axis to the Base Plate
4
Please place the Linear Module as illustrated.
Assemble the 3D Printer
Page 9
3-in-1 3D Printer Quick Start Guide
Attach the X Axis to the Base Plate
5a
The screws’ installing position must
be the same as illustrated.
M4 x 8 Screw
x 4
Linear Module
x 1
Notice
Assemble the 3D Printer
Page 10
3-in-1 3D Printer Quick Start Guide
Use the Bubble Level Vials to Level
5b
2
Put one of the vials (A) to
the top of the Z axis and
the other (B) to the X axis.
Do NOT rotate the vials
during this process.
A
B
3
Adjust the X axis until
the bubble in Vial B is in
the same position as the
bubble in Vial A. Tighten
the screws between X axis
and Z axis.
1
Find a level surface and
put the Bubble Level Vials
next to each other. Rotate
one of the vials until the
bubbles stay in the same
position inside the vials.
This step ensures that the
vials are relatively level.
!
Bubble Level Vial
x 2
Assemble the 3D Printer
Page 11
3-in-1 3D Printer Quick Start Guide
3D Printing Module
x 1
Attach the 3D Printing Module to the X Axis
6
The screws’ installing position
must be the same as illustrated.
Notice
M4 x 8 Screw
x 4
Assemble the 3D Printer
Page 12
3-in-1 3D Printer Quick Start Guide
Assemble the Screen Holder and then
Slide the Touch Screen into the Screen Holder
M4 x 8 Screw
x 2
7
Screen Holder
x 1
Touch Screen
x 1
Assemble the 3D Printer
Page 13
3-in-1 3D Printer Quick Start Guide
Attach the Controller to the Z Axis
Controller
x 1
8
M4 x 28 Screw
x 4
Caution
Make sure the On/Off button is
switched to Off (away from the
Power Jack).
!
Assemble the 3D Printer
Page 14
3-in-1 3D Printer Quick Start Guide
Filament Holder
x 1
Attach Filament Holder to the Z Axis
9
M4 x 28 Screw
x 2
Assemble the 3D Printer
Page 15
3-in-1 3D Printer Quick Start Guide
RJ25 Cable
x 1
1
2
3
5
6
Screen
1(RJ 45)
2
3
6
(RJ 25)
5
Power
RJ45 Cable
x 1
Power Adapter
x 1
The RJ25 Cable (Heated
Bed Cable) is comparatively
smaller than the RJ45 Cable
(Module Cable).
Connect the Modules to the Controller and Power On
10
Caution
Do NOT connect or disconnect the
cables or microSD card when the
machine is powered on.
!
Make sure all the cables are
correctly and properly connected
before you power on the machine.
Page 16
3-in-1 3D Printer Quick Start Guide
Use the 3D Printer
Load Filament>> >>
Level the Heated Bed Start Printing
1
2
Level the Heated Bed
Page 17
3-in-1 3D Printer Quick Start Guide
To ensure the best quality of your print, it’s recommended to go through
this section every 10 to 20 prints.
1
Go Through this Section Every 10 to 20 Prints
Level the Heated Bed
Page 18
3-in-1 3D Printer Quick Start Guide
To level the heated bed, please level the four corners in order. These corners correspond
to the numbers on the Touch Screen as shown in the next step.
12
34
Level the Four Corners in Order
2
Notice
The sequence must be strictly followed, or
the leveling will fail. If there is maloperation
during this process, please level the heated
bed again starting from the rst corner.
Level the Heated Bed
Page 19
3-in-1 3D Printer Quick Start Guide
On the Touch Screen, go to Settings > Z Offset.
It may take a few seconds after you tap Z Offset.
Tap 1 and the 3D Printing Module will move to the rst corner.
Level the First Corner
3
Level the Heated Bed
Page 20
3-in-1 3D Printer Quick Start Guide
Put one half of an A4 paper between
the Heated Bed and the nozzle.
Get an A4 Paper
4
Level the Heated Bed
Page 21
3-in-1 3D Printer Quick Start Guide
Adjust the distance between the Heated Bed and the nozzle
using the Up and Down button. Keep adjusting until there is slight
resistance on the paper from the nozzle. The nozzle moves 0.1
mm every time you tap the Up or Down button.
0.1mm
Adjust the Distance Between the Heated Bed
and the Nozzle
5
Level the Heated Bed
Page 22
3-in-1 3D Printer Quick Start Guide
Pull the paper and feel the
resistance while you adjust
the distance.
Use the Paper to Adjust the Distance
6
Level the Heated Bed
Page 23
3-in-1 3D Printer Quick Start Guide
Tap 2 and follow Step 5-7 to level the second corner.
Use the same method to level the third and fourth corners.
2
3
4
Level the Second to Fourth Corner
7
Level the Heated Bed
Page 24
3-in-1 3D Printer Quick Start Guide
When all the corners are leveled, tap Save.
Remember to pull out the paper when you nish leveling.
Tips
If you have any question, nd
your answers at
www.snapmaker.com/support
Done
8
Load Filament
Page 25
3-in-1 3D Printer Quick Start Guide
On the Touch Screen, go to Controls > Change Filament > Conrm.
1
Get the Heated Bed Ready
Load Filament
Page 26
3-in-1 3D Printer Quick Start Guide
Next is not clickable
before the nozzle is
heated to 200°C.
Wait until the nozzle is heated
to 200°C and tap Next.
Hang the lament over the Filament Holder.
For smoother printing, the end of the
lament should be placed as shown above.
2
Hang the Filament
Load Filament
Page 27
3-in-1 3D Printer Quick Start Guide
Press the button on the front of the 3D Printing Module and at the same
time insert the lament into the hole on the top.
Try to straighten the lament as much as you can.
Press down the button to the illustrated level.
Tips
Use a pair of scissors or diagonal cutter to cut the
end of the lament at a 45° angle.
1
2
3
Insert the Filament
Load Filament
Page 28
3-in-1 3D Printer Quick Start Guide
Keep inserting the lament until you see some lament coming out of the nozzle.
4
Keep Inserting the Filament
Load Filament
Page 29
3-in-1 3D Printer Quick Start Guide
When you nish loading the lament, tap Loaded/Unloaded
on the Touch Screen.
5
Filament Loaded
Load Filament
Page 30
3-in-1 3D Printer Quick Start Guide
Use the provided Tweezer to clean the lament on the nozzle.
Clean the Filament
6
Start Printing
Page 31
3-in-1 3D Printer Quick Start Guide
Download Snapmaker3D from our ofcial
website: snapmaker.com/download
1
Download the Software
Start Printing
Page 32
3-in-1 3D Printer Quick Start Guide
Generate the G-code of the le you want to
print using the software.
Tips
Tips
Other compatible software includes: Cura, Simplify 3D, Slic3r.
For the detailed instructions, please see the software guides or
tutorials on our ofcial website: snapmaker.com/support
2
Generate G-code
Start Printing
Page 33
3-in-1 3D Printer Quick Start Guide
Option 2
Using the microSD Card
(No need to connect your computer to
the machine.)
Option 1
Using the Computer
(The computer must be connected to the
machine throughout the process.)
3
Choose a Way to Print
Start Printing
Page 34
3-in-1 3D Printer Quick Start Guide
Connect the computer to the machine using the provided USB Cable.
Using the Computer
4a
Start Printing
Page 35
3-in-1 3D Printer Quick Start Guide
After the settings are congured on
the software, click
Connect > Preview > Print.
The printer will nish the printing
automatically.
Using the Computer
4a
Tips
If you cannot nd any port to connect to,
please download and install the driver at
snapmaker.com/download
Start Printing
Page 36
3-in-1 3D Printer Quick Start Guide
On Snapmaker3D, click Preview >
Export to save the G-code le.
1
2
3
Put the G-code into the provided
microSD Card.
Insert the microSD Card into the
card slot on the Controller.
G-code
Tips
For the detailed instructions,
please see the software
guides or tutorials on our
ofcial website:
snapmaker.com/support
Using the microSD Card
4b
Start Printing
Page 37
3-in-1 3D Printer Quick Start Guide
On the Touch Screen, go to Files, nd and select the G-code le.
Then tap Start to start printing.
Using the microSD Card
4b
Page 38
3-in-1 3D Printer Quick Start Guide
If the print cannot stick to the heated bed or there is warping at the
bottom of the print, level the heated bed again or select Brim or Raft as
the Adhesion type in the software.
Page 39
3-in-1 3D Printer Quick Start Guide
Support
Besides this guide, there is also a User Manual available on our website: snapmaker.com/support
Find the answers in our FAQ page if you run into any problem during assembly: faq.snapmaker.com
Share anything you want with other Snapmaker users at our forum: forum.snapmaker.com
Any news from you is good news for us. If you have any question, don’t hesitate to contact us. We are here
for you whenever you need general information, technical support or sales inquiries.
General Info@snapmaker.com
Support support@snapmaker.com
Marketing sales@snapmaker.com
See more fun stuff at:
Thomas Edison once said, “A minor invention every ten days, and a big one every
six months or so.” What is your rst invention with the Snapmaker?
To use the laser engraver and CNC carver, please read the corresponding guide.
