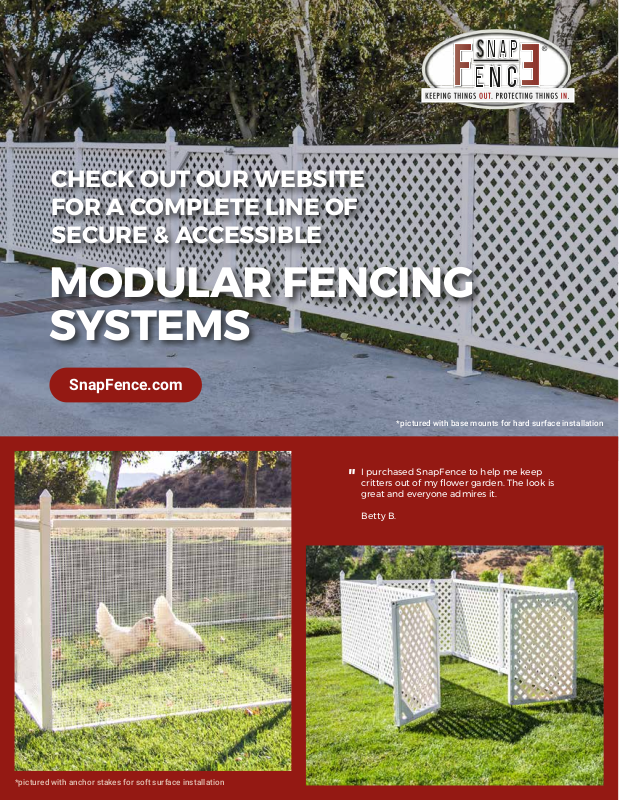

Page 1
CHECK OUT OUR WEBSITE
FOR A COMPLETE LINE OF
SECURE & ACCESSIBLE
MODULAR FENCING
SYSTEMS
SnapFence.com
*pictured with base mounts for hard surface installation
I purchased SnapFence to help me keep
critters out of my ower garden. The look is
great and everyone admires it.
*pictured with anchor stakes for soft surface installation
Betty B.
Page 2
ADD EXTRA PRIVACY & HEIGHT TO ANY EXISTING WALL
WITH OUR STYLISH LATTICE FENCE TOPPER
LATTICE FENCE TOPPER INSTALLATION
1
First lay out all your rails and attach the rail connectors
to all your rails, except two.
Leave the 2 rails, in case you need to make cuts to your
rails to adjust for space. Make sure rail connectors are
all facing the same directionally when attaching.
4
Place and anchor
rst base mount
with concrete
crews and anchors
(not provided)
FT24BM 16” x 24’
Part # Description QTY
5
Then snap in rails
and line up next base
mount and secure,
continuing on until
nished (sawing the
last rails if necessary).
2
Attach posts to
base mounts.
6
Screw lattice to
rail and verticals
(8 screws per 4ft.
recommended)
FT48BM 16” x 48’
Part # Description QTY
3
Attach vertical
caps to posts and
secure by rmly
tapping with a
rubber mallet.
7
Screw rail
connectors to
verticals.
FT72BM 16” x 72’
Part # Description QTY
VFR-16 Vertical 15.33" 7
VFP-1 Vertical Caps 7
VFB-1 Base Mounts 7
VFR-46 Rails 46" 12
VFE-1 Corner Rail Connectors 8
VFC-1 Rail Connectors 24
VFM-1 Screws (50) CT. 3
VFLP-2 Lattice (12" X 48") 6
* Eight corner rail connectors included with every 24 feet (to create four corners/turns - if necessar y) Extra parts may be included with order!
VFR-16 Vertical 15.33" 14
VFP-1 Vertical Caps 14
VFB-1 Base Mounts 14
VFR-46 Rails 46" 24
VFE-1 Corner Rail Connectors 16
VFC-1 Rail Connectors 48
VFM-1 Screws (50) CT. 6
VFLP-2 Lattice (12" X 48") 12
VFR-16 Vertical 15.33" 21
VFP-1 Vertical Caps 21
VFB-1 Base Mounts 21
VFR-46 Rails 46" 36
VFE-1 Corner Rail Connectors 24
VFC-1 Rail Connectors 72
VFM-1 Screws (50) CT. 9
VFLP-2 Lattice (12" X 48") 18
