User Manual
TABLE OF CONTENT
Important Safety Instructions
Important Health Information
Introduction
- Thank you very much!
Specications
Installation
Operating Instructions
Contact and Support
Terms of Guarantee
Disposal of this product at the end of its life

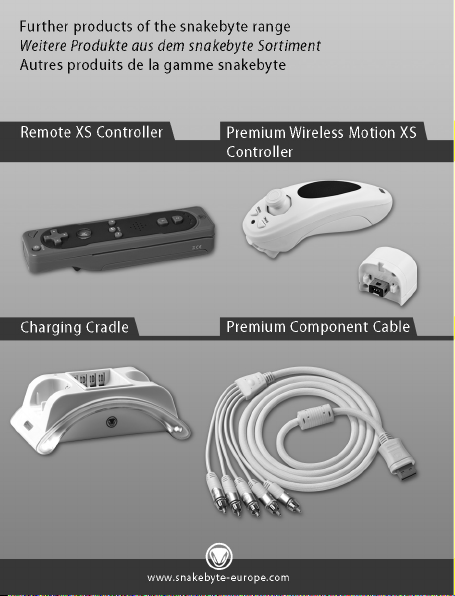

Further products of the snakebyte range
IMPORTANT SAFETY INSTRUCTIONS
Before using your snakebyte Fitness Starter Pack please read this manual
thoroughly. If you comply with all instructions and tips, using the Fitness
Starter Pack is easy and comfortable. Please retain this manual for future
reference.
If you don’t want to lose your warranty, please refrain from disassembling
components of the Fitness Starter Pack – there are no user serviceable parts
inside anyway. Inappropriate handling does invalidate the warranty and
leads to malfunctions of the devices.
Keep the electric and electronic parts of the Fitness Starter Pack away from
liquids and liquid containers such as vases, bottles, hot baths, jacuzzi tubs,
etc. Any damage occurring from liquids invalidates the warranty.
This is especially valid for the heart rate watch, please keep it away from
liquids.
GB
IMPORTANT HEALTH INFORMATION
The following people should refrain from using the Wii Balance Board (and thus
the Fitness Starter Pack) and consult a doctor prior to exercising:
People who have consumed alcohol or other substances or medicines that
potentially aect their sense of balance
Pregnant women or women who may possibly be pregnant
People who suer from heart or orthopaedic problems, high blood pressure
and/or problems with their circulatory systems
People with medical conditions in any general way
People who are unaccostumed to physical exercise
INTRODUCTION
Thank you very much!
Congratulations for purchasing the snakebyte Fitness Starter Pack. We really
appreciate your trust in our ne products. These products were thoroughly
produced under constant quality inspec tion and according to international
quality and safety standards. Have fun with them.
If you follow this manual, set up, operation, and basic maintenance of the Fitness
Starter Packs’ components is cakewalk . In case you encounter any problems
exceeding this manual please contact your dealer or our friendly customer
support under support@snakebyte-europe.com.
Specications
Starter Pack for use with the Wii Fit Balance Board Pack of six products:
Li-Ion Play&Charge Kit (1000 mAh) with 20h of playing time
USB Charging Cable (3 metres length) allows continuous playing while
charging
Heart Rate Monitor Watch
Carry Bag with soft lining for safe transportation
Yoga Mat for comfortable Yoga exercises
„One size ts all“ anti-skid socks
Technical data is subject to change without notice.
GB
GB
INSTALLATION
Included in delivery
Within the package of the snakebyte Fitness Starter Pack you should nd the
following items:
1x Li-Ion reachargeable battery pack (* 1)
1x USB charging cable (* 1)
1x Heart Rate Watch (* 2)
1x Carry Bag (* 3)
1x Yoga mat (* 4)
1x Anti-skid-socks (* 5)
1x this manual
If any part is missing or obviously broken please contact your dealer immediately.
If there are more than the mentioned items included – congratulations!
* 1
* 2
* 4
* 5
* 3
OPERATING INSTRUCTIONS
LI-ION BATTERY PACK:
Remove the battery cover and inser t the battery pack into the Balance Board’s
battery compartment according to the image below.
In case the Balance Board has not yet been synchronised with the Wii console,
please do that in Standard Mode as described below:
How to sync in Standard Mode:
Press the “POWER” button on the front of your Balance Board until the Power
LED lights up.
Press the “SYNC” button of the Balance Board through the battery pack’s
outer button once. Now press and release the “SYNC” button on the console.
Your Balance Board’s front LED will light constantly, indicating a successful
hardware-handshake of Board and console.
Only one Balance Board can be synchronised with your console at a time.
It will be connected to P4, a Wii Remote that might have been registered as
P4 before will be disconnected.
For further information regarding synchronisation please refer to your Wii
console manual or the manual of your Wii Balance Board compatible software.
The USB charging cable oers a comfortable length of three metres and allows
for simultaneous charging and playing. You may connect the cable to the Wii
console’s or any other USB port. Make sure the port in use oers sucient
current to charge the battery pack, though.
GB
GB
YOGA MAT:
Roll out the yoga mat and curl it on the opposite side in order to be able to roll
it out evenly.
HEART RATE WATCH:
The Heart Rate Watch o ers ve basic functions:
Time / Date display
Daily Alarm
Stop Watch
Exercise mode (calory consumption during workout)
Heart Rate Monitor
Browse the basic functions by pressing the MODE button.
1. Time / Date display
Switch over to Time / Date display using the MODE button.
Press and hold the SET button for two seconds in order to be able to enter basic
settings. After entering each setting with the ST/SP button switch over to the
next one using the SET button.
Year (2000 – 2020)
SENSOR
RESET Button
MODE Button
ST/SP Button
SET Button
Month
Day
Hour (12 hour mode)
Minute
Year of birth (1920 – 2010)
Month of birth
Day of birth
Gender
Weight
Standard measuring unit of your weight is “pounds”, in case you prefer to enter
your weight in “KG”, please change the measuring unit by pressing the RESET
button.
In Exercise mode the watch calculates your calory consumption based on the
personal data entered. Therefore please enter correct data in order to get accurate
results.
2. Daily Alarm
Switch over to Daily Alarm mode display using the MODE button.
Press and hold the SET button for two seconds in order to be able to enter basic
alarm settings. Enter settings with the ST/SP button and switch over to the next
setting with the SET button.
Use the RESET button in order to (de)activate an hourly alarm. Pressing the ST/SP
button (de)activates the daily alarm.
3. Stop Watch
Switch over to Stop Watch mode using the MODE button.
Use the ST/SP button in order to (de)activate the stop watch. Pressing the RESET
button during time measurement displays an interim time. By pressing RESET
once more you will return to the time measurement.
It is impossible to switch over to another function during an active time
measurement. Doing so will cause the watch to stop the measurement
automatically.
4. Exercise Mode (calory consumption)
Switch over to Exercise Mode using the MODE button.
When you begin your exercise press the ST/SP button in order to start measuring
its duration. Once you nished your exercise press the ST/SP button again in
order to stop the measurement. Now press the RESET button in order to switch
over to the hear t rate monitor mode (depicted by a heart on the display). Press
and hold the SET button for two seconds.
Once “ TOUCH SENSR” is displayed, place the tip of your index nger on the
GB
without applying too much pressure in order to allow for a correct measurement
of your heart rate. In case a correct measurement couldn’t be carried out, you will
be asked to “RETRY”.
After a successful measurement, indicated by a pulsating heart symbol, the watch
will display the amount of calories burnt during your exercise. This calculation
will be based on the personal data you entered (see #1, basic settings), therefore
it is recommended to enter your correct weight, gender and age.
A bar diagram displays the computed intensity of your exercise, with ve bars
being the maximum. Press the RESET button once in order to return to the
Exercise Mode and a second time in order to reset the measurement.
During the time measurement you can check the time or your current heart rate
using the MODE button without resetting the measurement.
5. Heart Rate Monitor
Switch over to the Heart Rate Monitor using the MODE button.
Press and hold the SET button for two seconds. Once “TOUCH SENSR” is displayed,
place the tip of your index nger on the sensor without applying too much
pressure in order to allow for a correct measurement of your heart rate. In case a
correct measurement couldn’t be carried out, you will be asked to “RETRY”. After
a successful measurement, indicated by a pulsating heart symbol, the watch will
display your current heart rate.
Diculties measuring your heart rate are mostly a result of too much pressure
applied to the sensor or incorrect placement of your nger tip. Please try not to push
too hard placing your ngerprint on the sensor.
The heart rate watch is powered by a CR2032 batter y. In case this battery needs
to be replaced, please visit a specialist store and ask qualied sta to handle the
replacement.
CONTACT AND SUPPORT
If you still encounter problems please contact us:
Sunex Europe GmbH
Obere Oese 2–4
58675 Hemer
Germany
support@snakebyte-europe.com
GB
TERMS OF GUARANTEE
We issue a guarantee of two years after purchase of the snakebyte Fitness Starter
Pack. Therefore, please preserve your invoice, e.g. together with this manual.
In order not to invalidate the warranty and to protect your health never try to
repair and/or disassemble any of the devices. There are no user serviceable
parts inside anyway. On top, the danger of elec tric shock or even re is reduced
considerably.
The guarantee is limited to defective parts or faulty assembly of the Pack’s
components exclusively, i.e. it only covers manufacturing defects.
Amongst others the following defects can not be asserted:
basically all defects resulting from violation of this manual
defects resulting from improper use or cleaning
mechanical and optical aws (e.g. scratches, broken casing caused by brute
force or carelessness)
defects caused by force majeure
DISPOSAL OF THESE PRODUCTS AT THE END OF THEIR
LIFE
Do not dispose of these products in your household waste. Please return them
to a licensed recycling plant to ensure that the components will be recovered in
compliance with the requirements of the WEEE directive (2002/96/EC).
GB
