Q-Series
Q-ADAT
Operating Manual
english
SAFETY INSTRUCTIONS
CAUTION: To reduce the risk of electrical shock, do not remove the cover or rear panel of
this unit. No user serviceable parts inside. Please refer servicing to qualified personnel only .
WARNING: To reduce the risk of fire or electrical shock do not expose this appliance to
rain or moisture.
DETAILED SAFETY INSTRUCTIONS
All safety and operation instructions of this manual should be read and adhered to before
operation.
Retain Instructions:
Please retain all safety and operating instructions for future reference.
Follow instructions:
All operation and user instructions should be followed.
Water, liquid and Moisture:
The appliance should not be used near water, rain or other liquids. Make sure that no liquid can leak, spill or otherwise seep into the appliance.
Ventilation:
Please place the appliance so no obstacles interfere or impede the flow of air through the
ventilation openings.
Heat:
The appliance should be situated away from other heat sources such as heaters, radiators, ovens, or other appliances that produce heat.
Power Source:
Make sure your appliance is set to the correct voltage for the country in which it will be
use before switching the device ON.
Grounding and Polarization:
Precautions should be taken so that the grounding or polarization means of an appliance
is not defeated.
Power-Cord Protection:
Power supply cords should be routed so that they are not likely to be walked on, pinched,
damaged, worn, or rubbed by any other device or obstacle.
Cleaning:
The appliance should be cleaned only with a light soft cloth. Do not use any damaging or
corrosive products on the unit.
Periods of inactivity:
The power cord of the appliance should be unplugged from the outlet when left unused
for a long period of time or in case a lightning storm occurs.
Damage Requiring Service:
The appliance should be serviced by qualified service personnel when:
- The power supply cord or the plug has been damaged; or
- Objects have fallen, or liquid has been spilled into the appliance; or
- The appliance has been exposed to rain; or
- The appliance does not appear to operate normally or exhibits a marked change in performance; or
- The appliance has been dropped, or the enclosure damaged.
Servicing:
The user should not attempt to service the appliance beyond that is described in the Operating Instructions.
All other servicing should be referred to qualified service personnel.
FOREWORD
Dear Customer,
Thank you very much for expressing your confidence in SM Pro Audio products by purchasing this unit. The Q-Series have been designed to be used as standard tools for
home/pro studios, P.A. rental companies, Schools and in many other situations where
audio products would be used. With much experience in the audio industry over a long
period of time, and along with valuable suggestions from our customers, our engineers
have developed a product series we know you will be satisfied with. We guarantee you
uncompromising quality as well as excellent technical and audio properties at an extremely affordable price.
Regards,
SM ProAudio
INSTALLATION
Your SM ProAudio Q-Series unit was carefully packed in the factory and the packaging
was designed to protect the unit from rough handling. Nevertheless, we recommend that
you carefully examine the packaging and its contents for any signs of physical damage,
which may have occurred in transit.
If the unit is damaged, please do not return it to us, but notify your dealer and the shipping company immediately, otherwise claims for damage or replacement may not be
granted. Shipping claims must be made by the consignee.
Rack Mounting
The SM ProAudio Q-Series unit fits into HALF a standard 19" rack unit of space. Be sure
that there is enough air space around the unit for cooling. As to avoid overheating, please
do not place the units on high temperature devices such as power amplifiers.
Mains voltage
The units come with a 17V AC power supply adaptor . Before you connect your unit to the
mains, please make sure that your local voltage matches the voltage required by the unit!
1. THE DESIGN CONCEPT
High quality components and design
The philosophy behind SM Pro Audio products guarantees a no-compromise circuit design and employs the best choice of components.
2. Q-AMP Main Features
Professional, multi-purpose headphone amplifier system for stage and studio applications.
· Four totally independent stereo high-power amplifiers in Half 1 RU package
· High quality audio even at extremely high volume levels
· Two independent stereo input sections
· 1/4” (6.5mm) and 1/8” (3.5mm) stereo headphone outputs per channel
· Output level control for each channel
· Independent selection of input for each output
· High-quality components and rugged constructionˇ
3. INTRODUCTION
In purchasing the Q-ADAT, you have acquired an ADAT® format multi-channel digital to
analog converter of high class that meets many of the demands of the home/pro studio.
The mar- ket size for digital audio interfaces and computer based digital recording/editing
has increased in a massive way. With systems available at very low prices, more and
more users are utilizing this technology . Many current digital systems also feature ADAT®
compatible connectivity to facilitate the simple connection between digital devices from
different manufacturers.
About the ADAT® format...The ADAT® protocol is a digital audio transfer protocol format
developed by ALESIS Corporation. It allows 8 channels of digital audio data to be transferred through a single optical cable (light pipe). Since the development of ADAT® many
professional companies have adopted this format as the defacto standard for the reliable
transfer of high quality multi-channel digital audio between devices. You can now find
ADAT® I/O (input and output) connections provided on a wide range of digital audio
equipment from digital mixers, recorders, multi-channel microphone pre-amps and the
like.
The Q-ADAT is an extremely portable multi-channel analog to digital audio converter. It
reliably converts 8 channels of analog audio to pristine 24-bit digital audio while providing
the out- put via the popular ADAT® format. This single rack unit can now solve many of
the connectivity issues which are raised in a large range of situations. The A08 is the perfect addition to your ADAT® compatible mixer, recorder, computer based audio interface,
etc.
Add more connectivity and analog inputs to your ADAT® compatible devices!
4. Q-ADAT FRONT panel
Analog inputs
Eight (8) unbalanced inputs are provided on the front panel of the Q-ADAT. Use standard 1/4” audio cables to connect your analog source signal to the Q-ADA T. The Q-ADAT
is designed to function accepting -10dB line level signals.
LED indicator
Switch and indicator led are located on the right hand side of the front panel. The unit will
be powered on when the switch is configured in the down position. The led will illuminate
to indicate that the power is switched on.

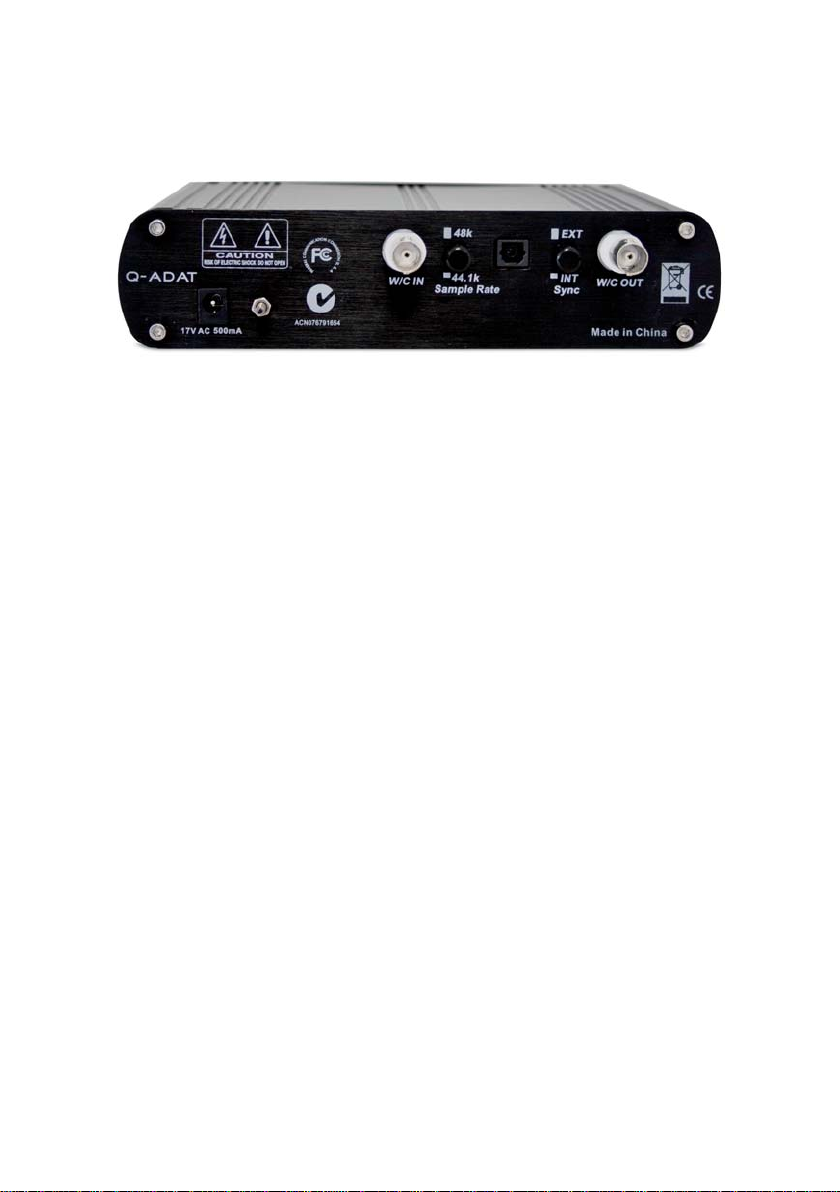

5. Q-ADAT Back panel
ADAT optical output
On the rear of the Q-ADA T there is 1 x ADAT® optical light-pipe output connector. It is covered with a small black plastic protector plug. Please remove the plastic connector plug
before connecting your optical cable. Simply connect a standard optical cable from this
output to your des- tination devices ADAT® input.
Word clock input and output
Two BNC connectors are provided on the rear panel for input and output of word clock
signal. Word clock sync allows multiple digital devices to keep the audio in sync. Each device's internal clock operates at a sample frequency slightly different from its neighbor,
even if all devices are set to the same nominal rate. As a result, audible pops and clicks
may result when un-synchro- nized digital sources are mixed. We recommend using 75
Ohm coaxial cable for your connections.
Sync selector switch
The sync selector switch determines which word clock generator the Q-ADA T receives its
sync from. If it is set to INT(internal/master), the Q-ADAT generates its own clock internally . It will also pass it’s generated clock out the W/C output connector for connection to
other devices. When set in the EXT(external/slave) position the Q-ADA T is set to operate
using another devices generated word clock signal. The word clock signal is also passed
through the W/C output for daisy chaining other devices. Daisy chaining word clock signal will also have it’s own sync problems when using many devices or long cables. Termination at the end of your word clock chain is also necessary using a 75 Ohm resister.
It is recommended if you have many devices that you use a dedicated master clock generator that individually supplies word clock to each device.
Sample rate selector switch
The Q-ADAT can operate at either 44.1kHz or 48kHz sample rate. This is the sample
rates allowed by the ADAT® format. Please select the desired sample rate for your current project. Your selection should match the sample rates of all other digital equipment.
6. APPLICATION
Using the SM Pro Audio Q-ADAT
It could not be simpler to use and operate the Q-ADAT. Please check through the following oper- ational checklist for a brief introduction to using the Q-ADAT.
Operational checklist:
1. Firstly consider your audio project basics:
A) Clock/sync considerations! Do you need to clock/sync the Q-ADAT device to other
digital devices? If so which device should be the master clock generator? How should
I connect the word clock cable? If you have more that one digital device functioning together that offer word clock sync connectors it is advisable to sync them via coaxial
cable. There can be only one master clock generator device in a multi device configuration. All other devices becomes slave receivers. Your word clock coaxial cable
should be connected from the word clock output of your chosen master clock generator device to the word clock input of the Q-ADAT. If you need to to daisy chain additional connections simply connect the word clock output of the Q-ADAT to any further
devices word clock inputs. The last device on your chain should be terminated with a
75 Ohm BNC terminator plug connector.
Ensure that your chosen master clock generator device is configured as the to use
INTSync (Master). All other devices should be selected to EXTsync (Slave). Your QADA T has INT& EXTsync available via switches on the rear panel in addition to providing word clock input and output BNC connectors. Make your cable connections and
INT/EXTsync selection based on your projects design.
B) What sample rate is your audio project going to be using? The Q-ADA T sample rate
selector switch on the rear panel allows for either 44.1kHz or 48kHz operation. Check
the sample rate setting of your project and other digital devices you plan connecting
together. Ensure the Q-ADAT is using the same chosen rate!
2. Make your physical analog and digital connections. Connect your analog signals
you wish to convert to ADAT® multi-channel (8ch) digital format to the inputs on the
front of the Q-ADA T. Connect your ADA T optical cable from the Q-ADAT’s ADA T® output connector to your destination devices ADATinput connector. Your Q-ADAT should
now be fully configured for use. All incoming analog signals can now be converted to
24-bit digital audio at your selected sample rate and output via the ADAT® optical connector on the rear panel. The Q-ADAT is the perfect addition to your ADAT® compatible mixer, recorder, computer based audio interface, etc.
Add more connectivity and analog inputs to your ADAT® compatible devices!
7. SPECIFICATIONS
Analog Stage Connectors: 1/4” TS
Type: unbalanced
A/D
Signal to Noise ratio: 107 dB RMS unweighted
THD: < -110 dB, < 0.0012 %
THD+N: < -104 dB, < 0.0021 %
Cross talk: > 102 dB
Frequency response AD, -0.1 dB: 20 Hz – 20 kHz
Input impedance Line: 10 kOhm
Input level: -10 dBV
Digital Stage
Connector: Optical
Type: ADAT(24 bit)
Internal resolution: 24 bit
Internal sample rates: 44.1 kHz, 48 kHz
Power Supply
Mains connection: External power supply
Input: AC220V 50Hz / AC110V 60Hz
Output: AC17V 1000mA
Physical Dimension: 229 mm * 140 mm * 40 mm
Net weight approx. 1.5 kg
7. WARRANTY Card
To be protected by this warranty, the buyer must complete and return the enclosed warranty card (signed/stamped by retail dealer) within 14 days of the date of purchase to SM
Pro Audio (see address below 3). Failure to return the card in due time (date as per postmark) will void any extended warranty claims.
7.1 WARRANTY
1. SM Pro Audio warrants the mechanical and electronic components of this product to
be free of defects in material and workmanship for a period of one (3) years from the original date of purchase, in accordance with the warranty regulations described below. If
any defects occur within the specified warranty period that are not caused by normal wear
or inappropriate use, SM Pro Audio shall, at its sole discretion, either repair or replace the
product.
2. If the warranty claim proves to be justified, the product will be returned freight prepaid
by SM Pro Audio within Australia. Outside of Australia, the product will be returned at the
buyer's expense.
3. Warranty claims other than those indicated above are expressly excluded.
7.2 RETURN AUTHORIZATION NUMBER
1. To obtain warranty service, the buyer must call SM Pro Audio during normal business
hours BEFORE returning the product. Please use the following telephone numbers:
Australia and Asia: Tel.: +61 3 9555 8081
North America: Tel.: 877-784-7383
Europe: Tel.: +49 2504 888 878 0
All inquiries must be accompanied by a description of the problem. SM Pro Audio will
then issue a return authorization number or by email to service@smproaudio.com
2. The product must be returned in its original shipping carton, together with the return authorization number, to the following addresses:
Australia and Asia:
SM Pro Audio
Service Department
W25, 26-28 Roberna St
Moorabbin
Australia
North America:
SM Pro Audio USA
managed by MV Pro Audio, LLC
P.O. Box 3312
Santa Barbara, CA 93130
Europe:
SM Pro Audio Europe / tt audio GmbH
Alfred-Krupp-Str. 5
48291 Telgte
Germany
7.3 WARRANTY REGULATIONS
1. Warranty services will be furnished only if the product is accompanied by an original retail dealer's invoice. Any product deemed eligible for repair or replacement by SM Pro Audio
under the terms of this warranty will be repaired or replaced in the best possible manner.
2. If the product needs to be modified or adapted in order to comply with applicable technical or safety standards on a national or local level, in any country which is not the country for which the product was originally developed and manufactured, this
modification/adaptation shall not be considered a defect in materials or workmanship.
The warranty does not cover any such modification/adaptation, irrespective of whether it
was carried out properly or not. Under the terms of this warranty , SM Pro Audio shall not
be held responsible for any cost resulting from such a modification/adaptation.
3. Free inspections, maintenance/repair work and replacement of parts are expressly excluded from this warranty , in particular if caused by inappropriate use. Likewise, the warranty does not cover defects of expendable parts caused by normal wear of the product.
Expendable parts are typically pots, potentiometers, switches and similar components.
4. Damages/defects caused by the following conditions are not covered by this warranty:Misuse, neglect or failure to operate the unit in compliance with the instructions given in
the user or service manuals.
- Connection or operation of the unit in any way that does not comply with the technical
or safety regulations applicable in the country where the product is used.
- Damages/defects that are caused by any other condition beyond the control of SM
Pro Audio.
5. Any repair carried out by unauthorized personnel will void the warranty.
6. Products which do not meet the terms of this warranty will be repaired exclusively at
the buyer's expense. SM Pro Audio will inform the buyer of any such circumstance. If the
buyer fails to submit a written repair order within 4 weeks after notification, SM Pro Audio
will return the unit C.O.D. with a separate invoice for freight and packing. Such cost will
also be invoiced separately when the buyer has sent in a written repair order.
7.4 CLAIM FOR DAMAGES
Failure of SM Pro Audio to provide proper warranty service shall not entitle the buyer to
claim (consequential) damages. In no event shall the liability of SM Pro Audio exceed
the invoiced value of the product.
7.5 OTHER WARRANTY RIGHTS
This warranty does not exclude or limit the buyer's statutory rights provided by national
law, in particular, any such rights against the seller that arise from a legally effective purchase contract.
The information contained in this manual is subject to change without notice. No part of
this manual may be reproduced or transmitted in any form or by any means, electronic
or mechanical, including photocopying and recording of any kind, for any purpose, without
the express written permission of SM Pro Audio.
ALL RIGHTS RESERVED © 2010 SM Pro Audio
SM Pro Audio Service Department
W25, 26-28 Roberna St Moorabbin Melbourne, Victoria Australia 3189
Loading...
