Installation Instructions
SRC Bumper (Part # SB76612)
2007 Jeep JK SRC Rear Bumper
NOTE: Carefully read entire instructions thoroughly before
attempting to install this part.
Parts Included Qty
93-3913 Rear Bumper 1
90-3925 Nut Plate 2
1/2”-13 X 4 1/2” Gr. 8 Hex Bolt 4
1/2”-13 X 1 1/4” Gr. 8 Hex Bolt 4
1/2” USS Flat Washer 8
1/2” SAE Washer 4
1/2” Hex Nut 4
STEP 1: Remove the factory rear bumper and hardware from the vehicle.
Step 2: Drill out the (4) holes in the center of the frame to ½”. (Fig A)
(Fig A)
Step 3: Insert nut plate (90-3926) into the inside of the rear frame rails. (Fig B)
Existing rear
frame center holes
For Technical Support/Warranty Information please call 310-762-9944
Smittybilt, 400 W. Artesia, Compton, CA 90220
Revised 12.9.09
Installation Instructions
SRC Bumper (Part # SB76612)
2007 Jeep JK SRC Rear Bumper
(Fig B)
Step 4: NOTE: This step might require 2 people. Raise the new SRC rear bumper (93-
3913) up into place and align the (4) holes on the frame with the holes on the hitch plate on the
bumper. (Fig C)
Rear frame
(4) 1/2” X
4 1/2”
bolts
Rear bumper
93-3913
(Fig C) (Fig D)
Step 5: Install the 1/2” X 4 ½” hex bolts to secure the hitch plate to the rear frame. Do not
tighten bolts at this time. (Fig D)
For Technical Support/Warranty Information please call 310-762-9944
Smittybilt, 400 W. Artesia, Compton, CA 90220
Bumper hitch
plate
Revised 12.9.09
Installation Instructions
SRC Bumper (Part # SB76612)
2007 Jeep JK SRC Rear Bumper
Step 6: Install the (4) ½” X 1 ¼” into the previously installed nut plates (90-3925), (2) on
the driver’s side, (2) on the pass side. Level the bumper and torque the bolts to 90 ft./lbs. (Fig
E)
(Fig E)
Step 7: Torque the (4) hitch plate bolts to 90 ft./lbs. (Fig D)
Step 8: Installation is now complete.
Product cleaning and maintenance instructions
Stainless Steel Finish – Aluminum polish may be used to polish small scratches and scuffs on the finish. Mild
soap, window or glass cleaner may be used to clean the finish. Dual state powder coat finish – Mild soap, win-
dow or glass cleaner may be used to clean the finish. In order to protect the finish, you may wax your product on a
regular basis with pure carnauba automotive wax. Do not use any types of soap, polish or was that contains abrasive that could damage the finish. Textured coated finishes should be cleaned with a mild soap on a damp
sponge. Do not apply polish or was that requires to be removed by means of buffing. This type of wax is commonly used at car wash facilities. Chrome Finish – Mild soap, window or glass cleaner may be used to clean the
finish. In order to protect the finish you should wax your product on a regular basis with pure carnauba automotive
wax. Do not use any types of soap, polish or was that contains abrasive that could damage the finish.

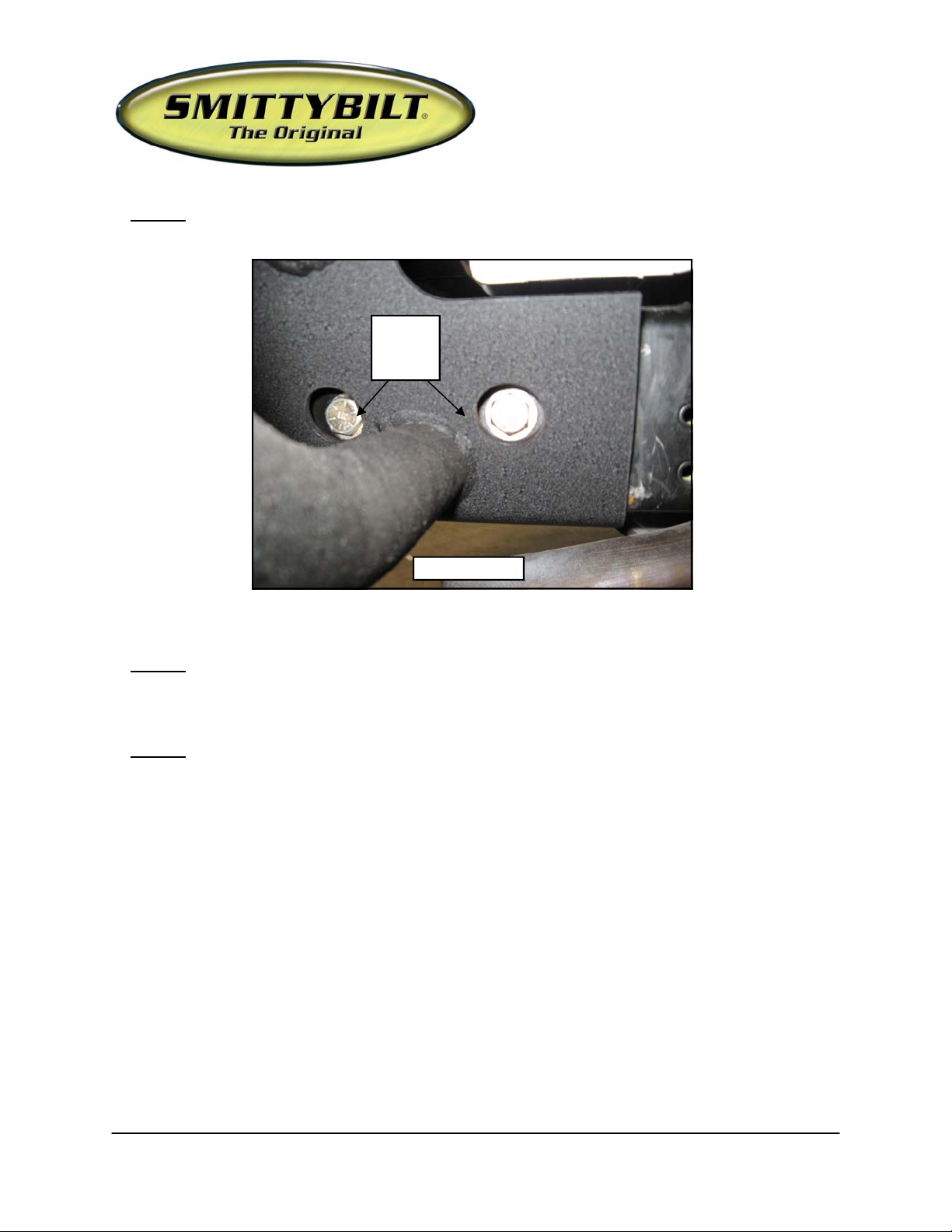

(2) 1/2”
X 1 1/4”
Bolts
Pass side view
For Technical Support/Warranty Information please call 310-762-9944
Smittybilt, 400 W. Artesia, Compton, CA 90220
Revised 12.9.09
Installation Instructions
SRC Bumper (Part # SB76612)
2007 Jeep JK SRC Rear Bumper
