Smittybilt 98702xx User Manual
Installation Instructions
the top relaxes they will go away. You must have the factory bow assembly in order to install this product.
Replacement Top (Part # 98702xx)
1987-1995 Jeep Wrangler
WWW.SMITTYBILT.COM
NOTE: Read entire instructions thoroughly before installing this product. It is recommended to install this Top
when temperatures are above 70 degrees. If the Top has any wrinkles this is caused from packaging but once
Step 1: In order to install this top you must have the complete factory bow assembly and hardware on your
vehicle. If there is a top on your vehicle remove it at this time leaving all hardware on vehicle.
Step 2: With the rear spreader bar pulled down (Fig A) carefully lay your new top over the bow assembly.
Slide the front plastic channel on the top into the windshield header on top of your windshield frame. (Fig B)
Insert channel on front of top into your factory
windshield header.
To make installation easier pull down your
rear spreader bars and slide the rear bow
slightly forward.
(Fig A) (Fig B)
Step 3: Attach the snaps on the top to the center and rear bow assembly. (Fig C)
(Fig C) (Fig D)
For Technical Support/Warranty Information please call 310-762-9944
Smittybilt, 400 West Artesia Blvd, Compton, CA 90220
Installation Instructions
Replacement Top (Part # 98702xx)
1987-1995 Jeep Wrangler
WWW.SMITTYBILT.COM
Step 4: Install the rear corners onto the vehicle by sliding the channel on the top into the factory channel
on the vehicle. (Fig D)
Step 5: If windows are detached, attach them now to the top with the zippers. Starting at the top of either
back side of the door, insert the channel on the side of the window into the vertical rail on the bow
assembly. (Fig E)
Insert side channel of window in vertical rail of
bow assembly. (TJ version shown)
(Fig E) (Fig F)
Step 6: Insert the channel on the bottom of the windows into the factory rail along the side of the
vehicle (Fig F)
Insert channel on bottom of window into the
factory channel along the side of the vehicle.

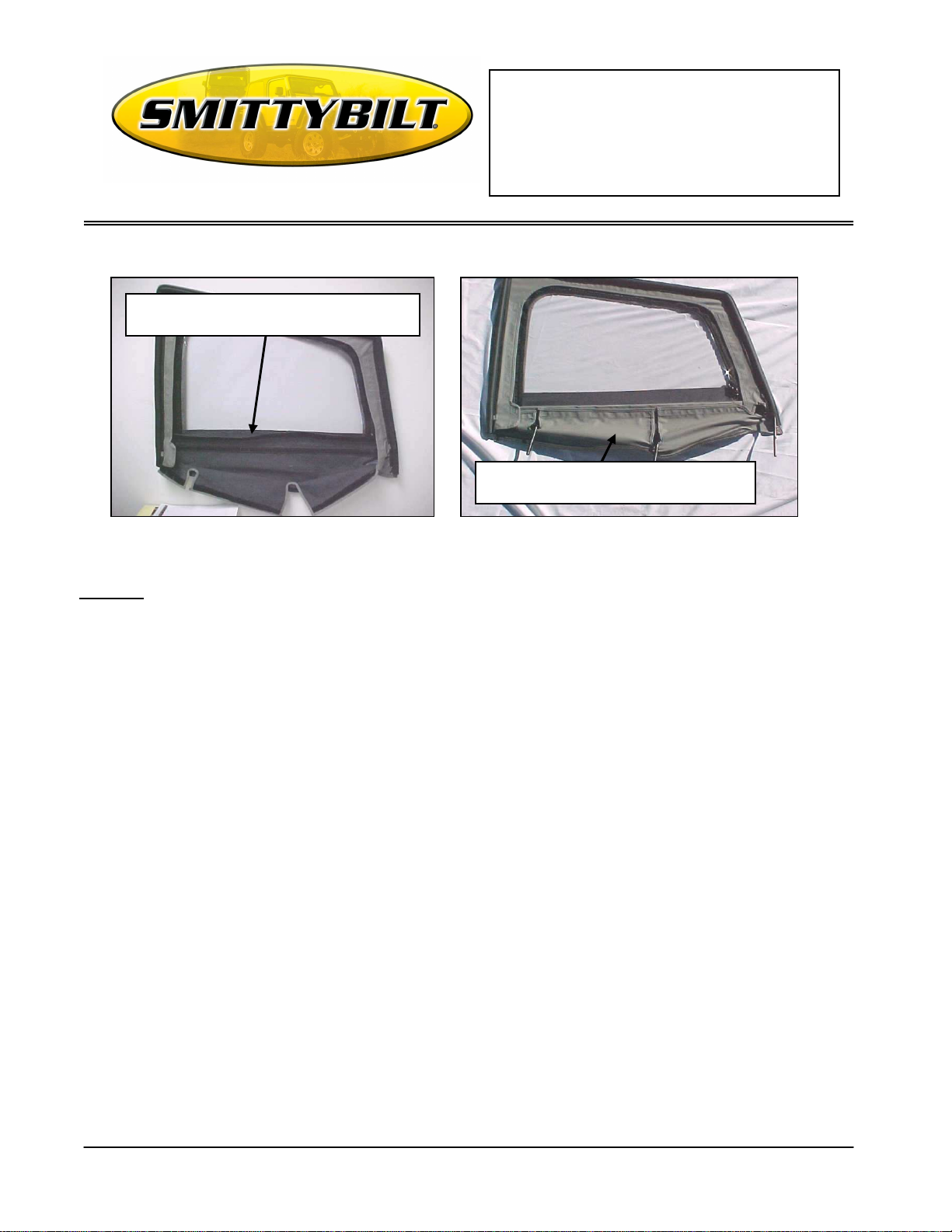

(Fig G) (Fig H)
For Technical Support/Warranty Information please call 310-762-9944
Smittybilt, 400 West Artesia Blvd, Compton, CA 90220
