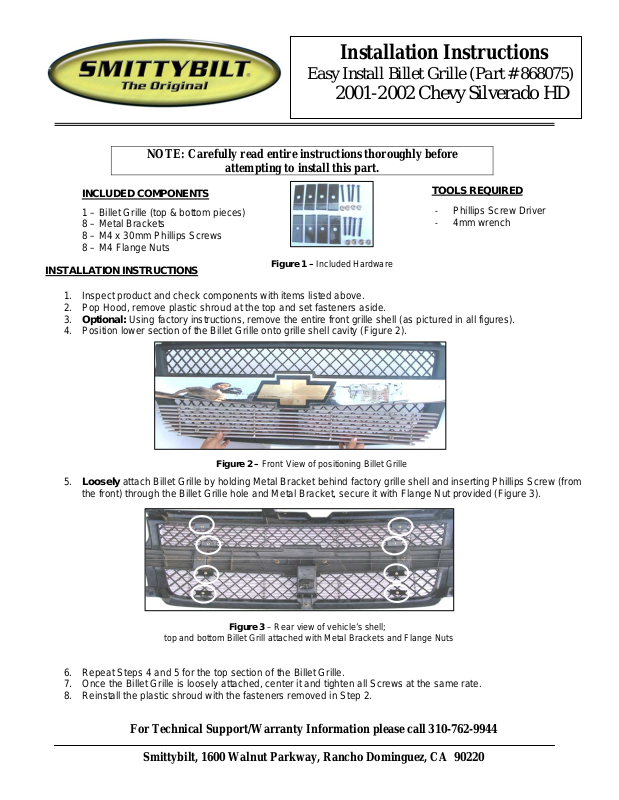

Installation Instructions

Easy Install Billet Grille (Part # 868075)

2001-2002 Chevy Silverado HD

NOTE: Carefully read entire instructions thoroughly before

attempting to install this part.

INSTALLATION INSTRUCTIONS

INCLUDED COMPONENTS

1 – Billet Grille (top & bottom pieces)
8 – Metal Brackets
8 – M4 x 30mm Phillips Screws
8 – M4 Flange Nuts

Figure 1 – Included Hardware

1. Inspect product and check components with items listed above.

2. Pop Hood, remove plastic shroud at the top and set fasteners aside.

3. Optional: Using factory instructions, remove the entire front grille shell (as pictured in all figures).

4. Position lower section of the Billet Grille onto grille shell cavity (Figure 2).

5. Loosely attach Billet Grille by holding Metal Bracket behind factory grille shell and inserting Phillips Screw (from
the front) through the Billet Grille hole and Metal Bracket, secure it with Flange Nut provided (Figure 3).

Figure 2 – Front View of positioning Billet Grille

top and bottom Billet Grill attached with Metal Brackets and Flange Nuts

Figure 3 – Rear view of vehicle’s shell;

6. Repeat Steps 4 and 5 for the top section of the Billet Grille.

7. Once the Billet Grille is loosely attached, center it and tighten all Screws at the same rate.

8. Reinstall the plastic shroud with the fasteners removed in Step 2.

TOOLS REQUIRED

- Phillips Screw Driver

- 4mm wrench

For Technical Support/Warranty Information please call 310-762-9944

Smittybilt, 1600 Walnut Parkway, Rancho Dominguez, CA 90220

Installation Instructions

Easy Install Billet Grille (Part # 868075)

2001-2002 Chevy Silverado HD

CARE AND MAINTANCE INFORMATION

We recommend normal cleaning by using mild soap and water also applying a non-abrasive aluminum polish on a regular schedule.
(Taking into consideration your climate and driving time and conditions.)

LIMITED WARRANTY

Smittybilt (The Company) warrants to the original purchaser of this product that should the product or any part thereof, under
normal use and conditions, be proven defective in material or workmanship within the warranty period of 1 year from the date of
purchase, such defect(s) will be repaired or replaced (At the Company’s option) without charge for parts or labor. To obtain repair
or replacement within the terms of the warranty, the product is to be delivered with proof of warranty coverage ( e.g. dated bill of
sale, receipt), specification of defect, freight pre-paid with Returns Good Authorization Number from Smittybilt to place of
purchase. Items returned to Smittybilt Automotive without an Returns Authorization Number will be refused and returned to sender
at the senders expense.

This warranty does not apply to any product or part thereof which, in the opinion of the Company, has suffered or been damaged
through altercation, improper installation, mishandling, misuse, neglect accident or acts of nature. THE EXTENT OF THE

COMPANY’S LIABILITY UNDER THIS WARRANTY IS LIMITED TO THE REPAIR OR REPLACEMENT
PROVIDED ABOVE AND, IN NO EVENT, SHALL THE COMPANY’S LIABILITY EXCEED THE PURCHASE PRICE
PAID BY THE PURCHASER FOR THIS PRODUCT.

This warranty is in lieu of all expressed warranties and liabilities. ANY IMPLIED WARRANTIES, INCLUDING ANY

IMPLIED WARRANTY OF MERCHANTABILITY SHALL BE LIMITED TO THE DURATION OF THIS WRITTEN
WARRANTY. ANY ACTION FOR BREACH OF ANY WARRANTY HEREUNDER INCLUDING ANY IMPLIED
WARRANTY OF MERCHANTABILITY MUST BE BROUGHTH WITHIN A PERIOD OF 90 DA YS FROM D A TE OF
ORIGINAL PURCHASE.IN NO CASE SHALL THE COMPANY BE LIABLE FOR ANY CONSEQUENTIAL OR
INCIDENTAL DAMAGES FOR BREACH OF THIS OR ANY OTHER WARR AN TY, EXPR ESSE D OR
IMPLIED,WHATSOEVER. No person or representative is authorized to assume for the company any liability other than expressed
herein in connection with the sale of this product. Some states do not allow limitations on how long an implied warranty lasts or the
exclusion or limitation of incidental or consequential damage, therefore above limitations may not apply to you. This warranty gives
the purchaser specific legal rights. The purchaser may have additional rights, which vary from state to state.

Some states do not allow limitations on how long an implied warranty lasts or the exclusion or limitation of incidental or
consequential damage, therefore above limitations may not apply to you. This warranty gives the purchaser specific legal rights. The
purchaser may have additional rights, which vary from state to state.

For Technical Support/Warranty Information please call 310-762-9944

Smittybilt, 1600 Walnut Parkway, Rancho Dominguez, CA 90220
