Installation Instructions
Rock Crawler Rear Bumper W/Tire Carrier
1987-2006 Jeep Wrangler
Part # 76621-01 (Bumper)
NOTE: Carefully read entire instructions thoroughly before attempting
to assemble and/or install this product.
Parts Included Qty
Rear Bumper 1
12 mm Nut 8
12 mm Flat Washer 14
12 x 30mm Hex Head Bolt 8
Section One
(Figure 1)
Section Two
This bumper
is rated with a
Class IV
receiver.
(9,000lbs
1. Remove factory rear bumper or bumperettes.
2. On all models the inner two holes will not line up with the factory holes and will need to be
3. Mount bumper on your vehicle and fasten with included bolts using only the outside holes. Make sure
bumper is positioned correctly and tighten bolts snug. Use the inner bracket holes as a template; mark
the holes on the frame. Now remove bumper and set to the side.
4. Caution: Use Extreme care and caution before drilling. Make sure to check backside of frame
for hazards and obstructions. Using a 7/16” bit, drill the marked holes. (Figure 1)
5. Position bumper against rear vehicle frame. Attach driver and passenger side rear brackets using (1)
12 x 30mm bolt, (2) 12mm flat washers, (1) 12mm lock washer, (1) 12mm nut, at each of the eight
mounting holes. Note: Do not tighten completely at this time.
6. Using (1) 12 x 30mm bolt, (1) 12 mm flat washer, (1) 12mm lock washer for each hole, mount the
bottom brackets of the bumper to the bottom hole in the vehicle frame.(Tighten all hardware now)
7.
For Technical Support/Warranty Information please call 310-762-9944
Smittybilt, 400 West Artesia Blvd, Compton, CA 90220
Note: Check with OEM towing specifications and operation
before towing anything with your vehicle.
Drilling Locations
Installation Instructions
Rock Crawler Rear Bumper W/Tire Carrier
1987-2006 Jeep Wrangler
Part # 76621-01 (Bumper)
Section Three
8. Place nylon washer over rear bumper post, then place tire carrier on top. Once the tire carrier has been
place over post, swing it to the closed position and latch it into place. Secure it with the already
installed bolts. (Figure 2 and 3)
9. Carefully place the Circle Clip on top of the post over the tire carrier portion.
(Figure 2)
(Figure 3)
10. Locate the tire carrier top post, along with (1) 7/8” x 2 ½” Hex Head Bolt, (2) 7/8” Flat Washer, and
(1) 7/8” Lock Nut. Insert the top post into the top of the tire carrier and secure with the 7/8” hardware.
(Figure 4).
For Technical Support/Warranty Information please call 310-762-9944
Smittybilt, 400 West Artesia Blvd, Compton, CA 90220

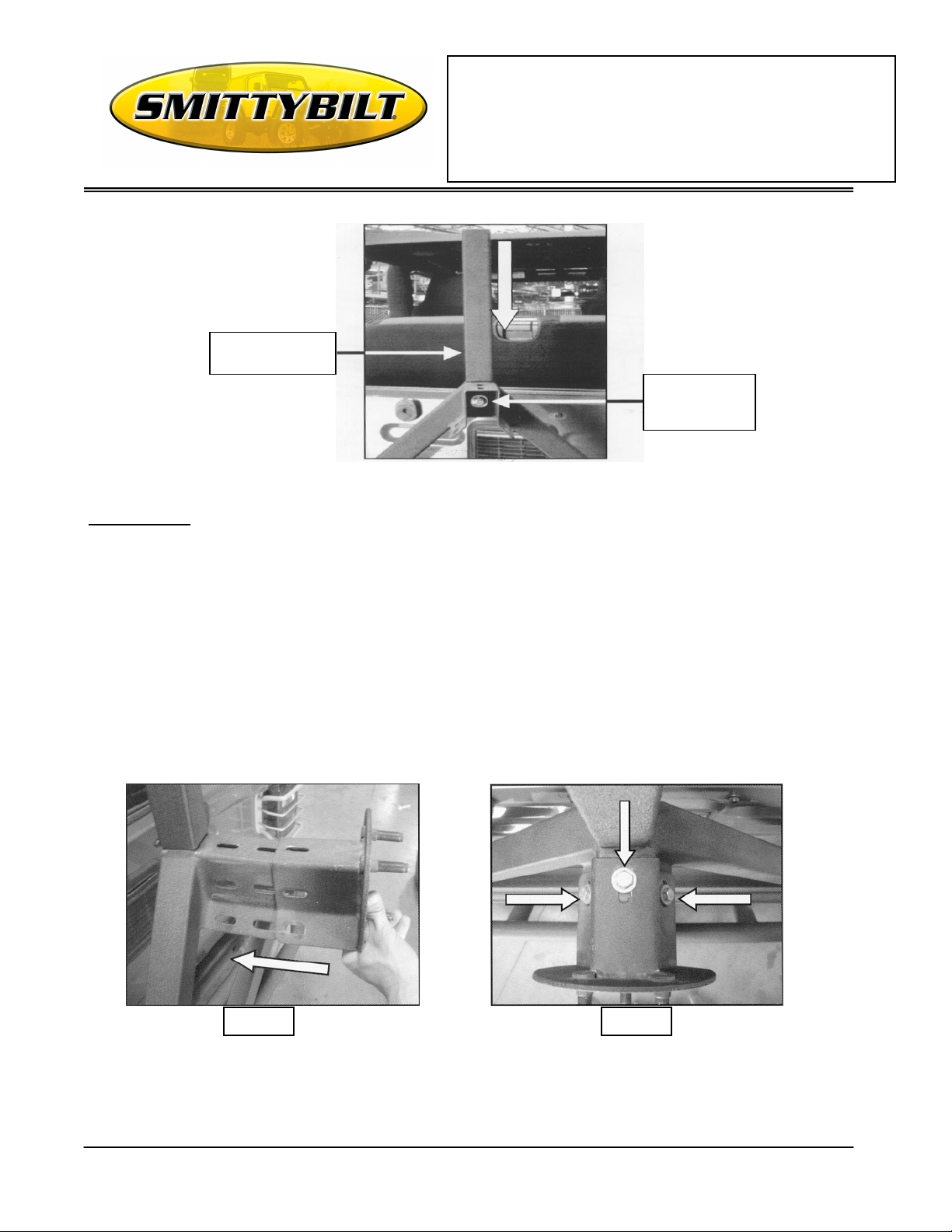

Fig 5 Fig 6
Installation Instructions
Rock Crawler Rear Bumper W/Tire Carrier
1987-2006 Jeep Wrangler
Part # 76621-01 (Bumper)
Top Post
7/8”
Hardware
(Figure 4)
Section Four
11. Locate tire mounting bracket, (3) 3/8 x 1” Hex Head Bolts, (6) 3/8” Flat Washers, (3) Lock Nuts.
Slide the tire mounting bracket over support bracket on carrier. Lineup the 3 slotted holes and install
with the 3/8” hardware. (Figure 5,6) Note: There are two sets of slotted holes. This is to accommodate
oversize tires. Determine the best position for your tire size and then tighten all hardware on mounting
bracket. For best results the back side of the tire should rest against the (Triangle) tire carrier.
For Technical Support/Warranty Information please call 310-762-9944
Smittybilt, 400 West Artesia Blvd, Compton, CA 90220
Installation Instructions
Rock Crawler Rear Bumper W/Tire Carrier
1987-2006 Jeep Wrangler
Part # 76621-01 (Bumper)
12. It may be necessary to install the supplied rubber bushing/spacer on the backside of the (Triangle) tire
carrier. This will help reduce any rattling that may occur. Determine the best mounting spot on the
backside of the carrier where it will rest flush on the back of the vehicle and not interfere with
anything. Mount by drilling a 1/8” hole and the supplied #10 x 1” sheet metal screw.
NOTE: To protect your investment, wax this product after installing. Regular waxing
is recommended. Do not use any type of polish/wax that contains abrasives that could damage the finish.
