Installation Instructions
07-11 Jeep Unlimited (4
-
Door)
Open roll bar flaps and wrap
the
Tonneau Cover
(Part # 761335, 761336)
WWW.SMITTYBILT.COM
Step 1: Depending on what your vehicle is equipped with; remove your hardtop and or soft top including
entire bow assembly. It is also recommended to remove the softop pivot brackets that are installed
on the sport bar using a # 30 Torx. (Keep the tailgate bar to the side, it will be reused later)
Step 2: Lay the tonneau over the rear of the vehicle. (Fig A)
Step 3: Open roll bar flaps and wrap the tonneau around the sports bar. Do not fasten flaps together yet.
(Fig B)
Note: Read instructions entirely before attempting to install this product.
tonneau around the sports bar
(Fig A) (Fig B)
Step 4: Install the OEM tailgate bar onto the tonneau by sliding the “C” channel on the bar over the sewn
in channel (tube) on the tonneau. (Fig C) Once that is done, insert the bar into the mounting
brackets on each side of the tailgate opening.
Step 6: Secure the sides of the tonneau by sliding the sewn in plastic strip on the cover into the
channel on the vehicle. (Fig D)
Step 7: Secure the corners also by sliding the plastic strips on the cover into the channels on the vehicle.
(Fig E)
Step 8: Now secure the roll bar flap covers by fastening the Velcro strips together. (Fig F)
Smittybilt, 400 West Artesia Blvd, Compton, CA 90220
Installation Instructions
07-11 Jeep Unlimited (4
-
Door)
Tonneau Cover
(Part # 761335, 761336)
WWW.SMITTYBILT.COM
(Fig C) (Fig D)
(Fig E) (Fig F)
Step 9: Installation is now complete. (Fig G) Note: the zipper located in front of the tonneau is used for
attachment of Smittybilts tonneau extension. (Part# 7614xx)
1. It is recommended to install this part when temperatures are above 72 degrees F. The material can
contract an inch or more making it difficult to install, especially the first time. It is designed to be tight
to eliminate flapping.
2. Any wrinkles will eventually go away once the material is “relaxed”
INSTALLATION TIPS
Smittybilt, 400 West Artesia Blvd, Compton, CA 90220
Installation Instructions
07-11 Jeep Unlimited (4
-
Door)
C
Tonneau Cover
(Part # 761335, 761336)
WWW.SMITTYBILT.COM

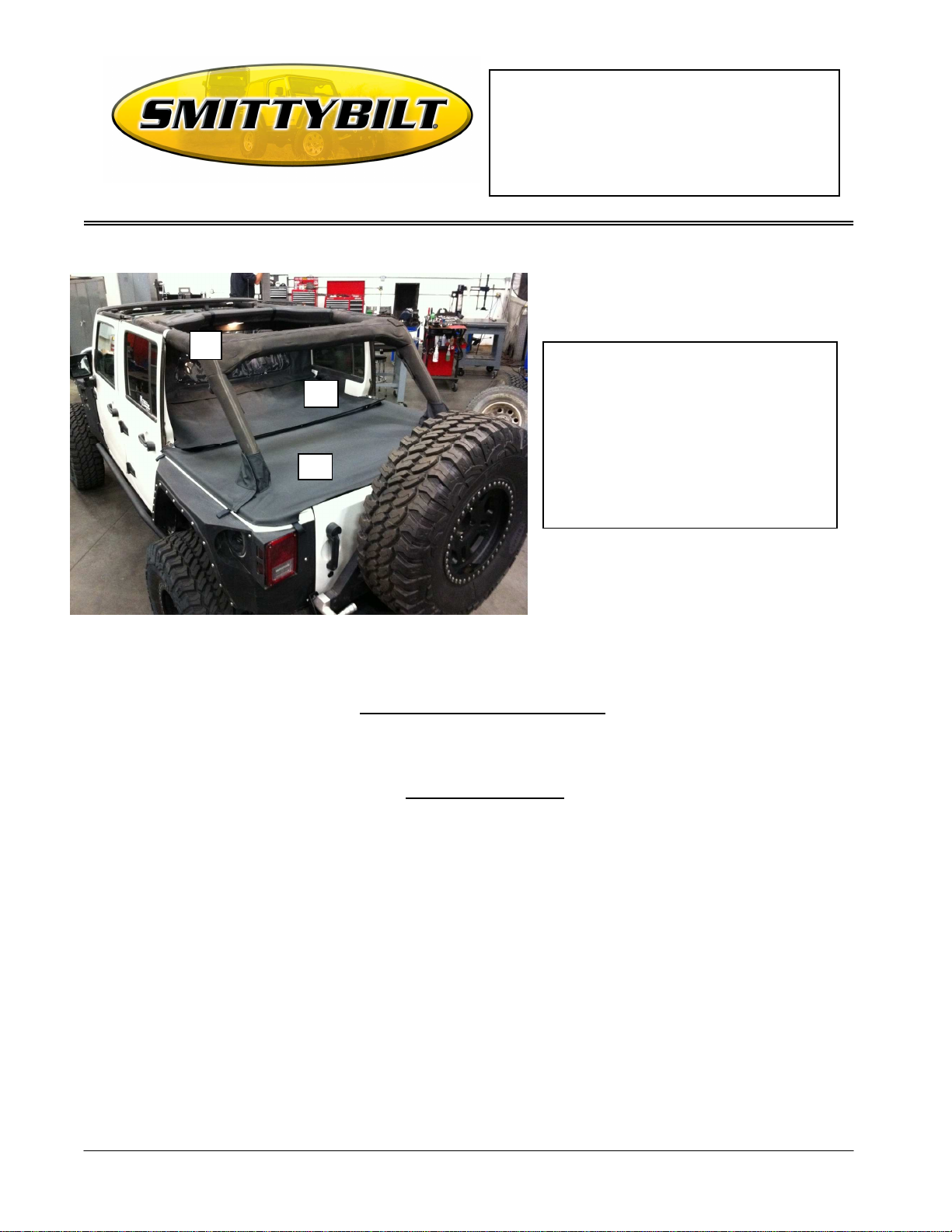

Compliment your new Tonneau
cover (A) with Smittybilts Tonneau
Cover Extension (B) Part # 7614xx
and Winbreaker (C) Part # 903xx
(Fig G)
CARE AND MAINTENANCE
Wash cover with warm water and non abrasive soap. The zippers should be lubricated regularly to keep them
running smoothly
