Installation Instructions
Rugged Rack
Part # 17185
NOTE: Carefully read entire instructions thoroughly before
attempting to install this part.
Rugged Rack Assembling Components
Rugged Rack Assembling Components
Description Qty.
Description Qty.
Floor slat attachment screws 25 ea.
Floor slat attachment screws 25 ea.
Assembly screws 8 ea.
Assembly screws 8 ea.
Side uprights 2 ea.
Side uprights 2 ea.
Front and rear uprights 2 ea.
Front and rear uprights 2 ea.
Floor slats 5 ea.
Floor slats 5 ea.
Cross Members 5 ea.
Cross Members 5 ea.
Step 1: On a clean smooth surface lay out the parts. (Figure 1)
Step 2: Begin the assembly process by sliding the cross member tube into the holes on the side of the
uprights. (Figure 2) Be sure to turn the cross members so that the threaded holes are facing
up. (Figure 3)
ASSEMBLING THE RACK
Mounting Foot Hardware
Description Qty.
#1. Upper Cross Bar Bracket 4 ea.
#2. Center Cross Bar Bracket 4 ea.
#3. Lower Cross Bar Bracket 4 ea.
#4. Wing Nuts 8 ea.
For Technical Support/Warranty Information please call 310-762-9944
Smittybilt, 1600 Walnut Parkway, Rancho Dominguez, CA 90220
Installation Instructions
Rugged Rack
Part # 17185
(Figure 1) (Figure 2)
Step 3:
Note: It may be necessary to use a rubber mallet to carefully tap parts together.
(Figure 3) (Figure 4)

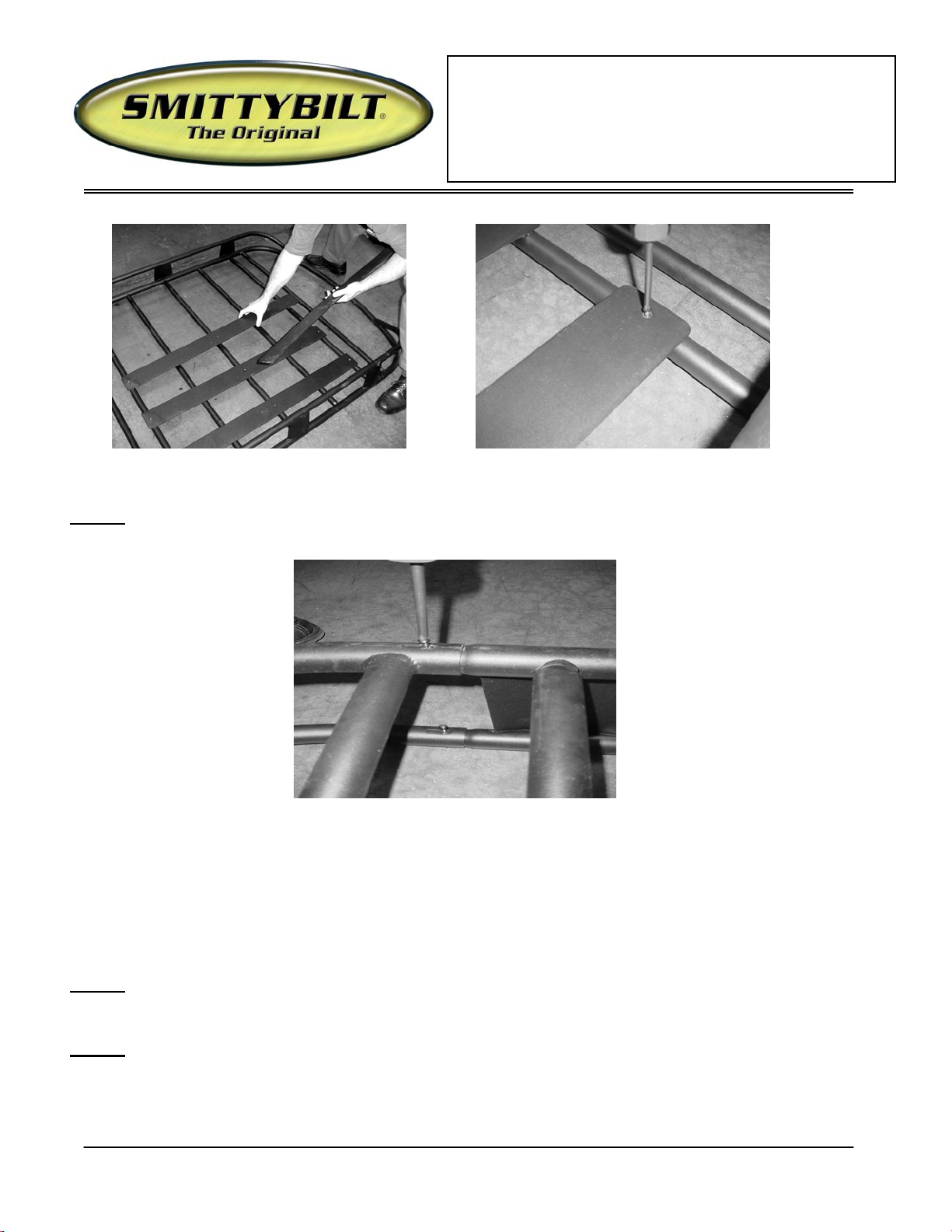

Step 4: Lay the floor flat slats out over the cross members. Align the holes in the floor slats with the
holes on the cross members. (Figure 5)
Step 5:
Push the front upright into the side upright. (Figure 4) Do this step at all four corners.
Attach the floor slats to the cross members using the screws provided. (Figure 6)
For Technical Support/Warranty Information please call 310-762-9944
Smittybilt, 1600 Walnut Parkway, Rancho Dominguez, CA 90220
Installation Instructions
Rugged Rack
Part # 17185
(Figure 5) (Figure 6)
Step 6:
side upright. Attach the parts using the screws provided. (Figure 7 )
(Figure 7)
Note: The Rugged Rack comes complete with installation hardware. To attach the Rack
Step 1:
Place the assembled Rack onto the vehicles cross members (Figure 1)
Step 2: Align the vehicles roof rack cross rails with the outside cross member of the Rack.
With care, turn the rack upside down. Align the slots in the front upright with the holes in the
ATTACHING THE RUGGED RACK TO VEHICLE ROOF RACK
your vehicle must be equipped with a roof rack and cross rails.
Loosen the vehicles factory cross rails and move them to the furthest outside position.
(Figure 2)
For Technical Support/Warranty Information please call 310-762-9944
Smittybilt, 1600 Walnut Parkway, Rancho Dominguez, CA 90220
Installation Instructions
Rugged Rack
Part # 17185
(Figure 1) (Figure 2)
Step 3:

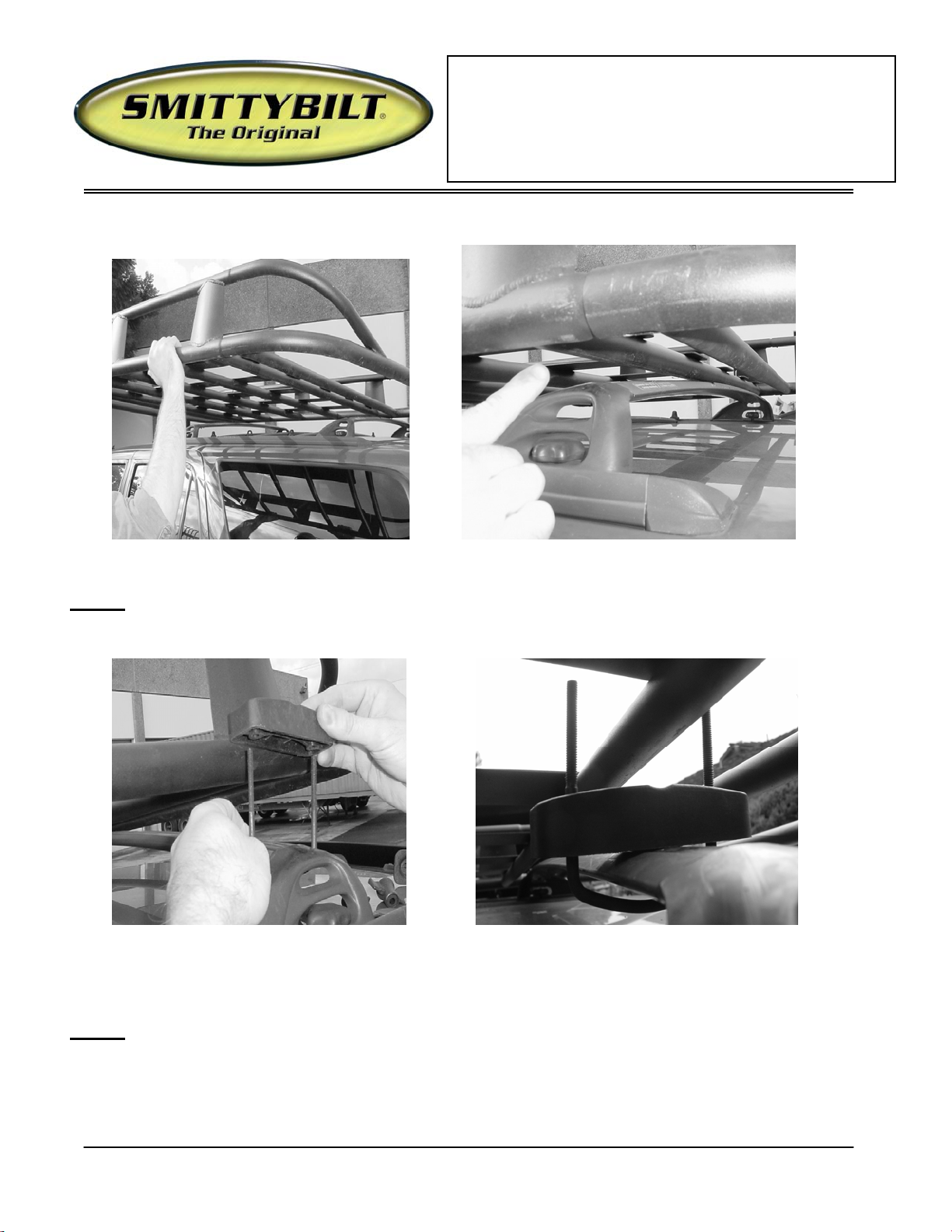

bracket through the holes in the center cross bar bracket. (Figure 3, 4)
(Figure 3) (Figure 4)
Step 4: Place the upper cross bar bracket over the Racks cross member and push down onto the
lower cross bar bracket. (Figure 5)
Place the lower cross bar bracket under the vehicle roof rack cross rail. Push the lower
For Technical Support/Warranty Information please call 310-762-9944
Smittybilt, 1600 Walnut Parkway, Rancho Dominguez, CA 90220
Installation Instructions
Rugged Rack
Part # 17185
(Figure 5)

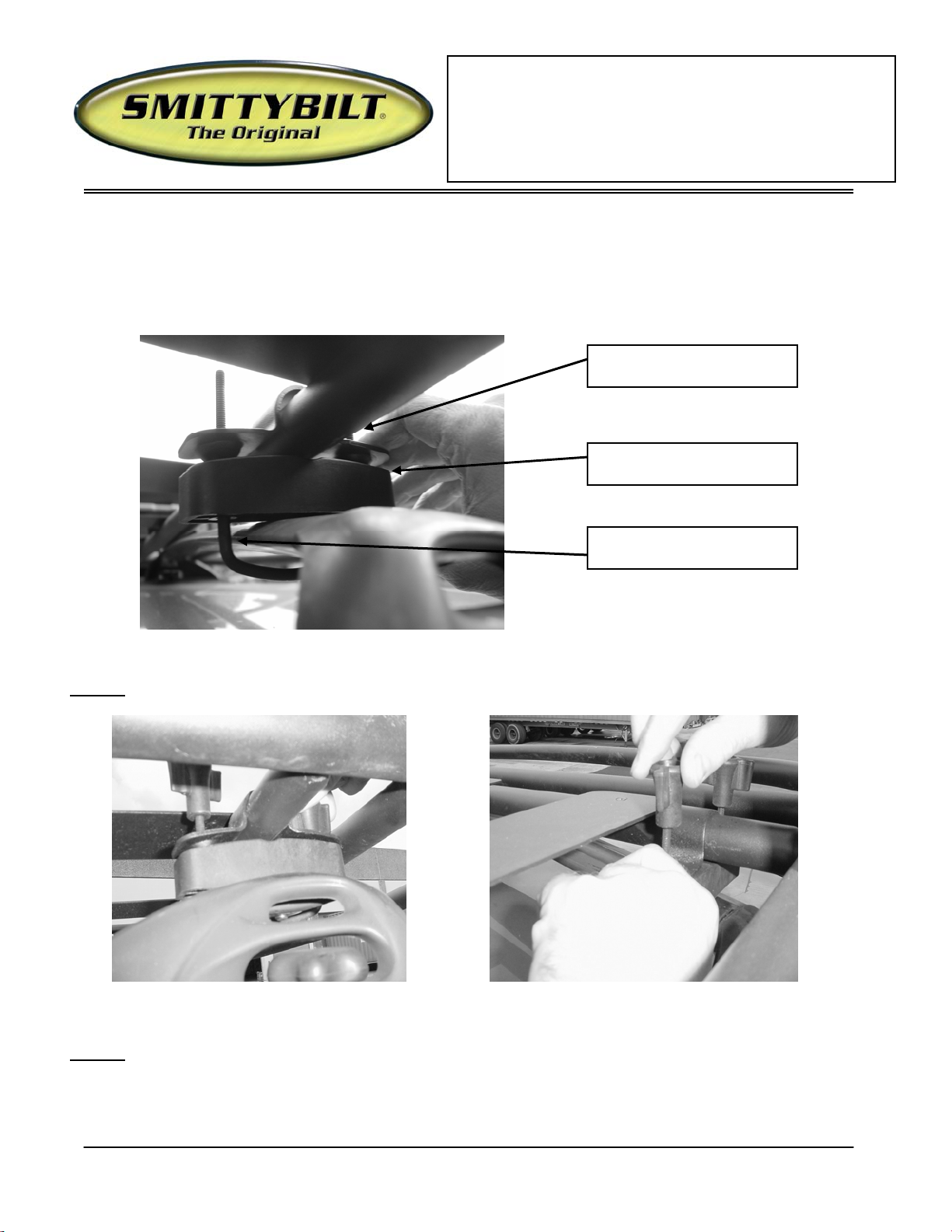

Step 5: Secure the Rack to the vehicle with the supplied wing nuts. (Figure 6,7)
(Figure 6) (Figure 7)
Step 6:
Make sure all hardware is tight. Installation is now complete.
Upper cross bar bracket
Center cross bar bracket
Lower cross bar bracket
For Technical Support/Warranty Information please call 310-762-9944
Smittybilt, 1600 Walnut Parkway, Rancho Dominguez, CA 90220
Installation Instructions
Rugged Rack
Part # 17185
NOTE: To protect your investment, wax this product after installing. Regular waxing is recommended. Do
not use any type of polish/wax that contains abrasives that could damage the finish.
