Washing Machine
Thank you for your trust and for buying this appliance.
We hope it will successfully serve its purpose for many years.
This washing machine was designed for home
use.
It meets all the requirements of modern washing:
it is economical, it uses less water, less energy
and washing agent.
Before Use...................................................... 52
Tips for Energy Savings
Important....................................................... 53
Removing the Transport Brackets .............. 54
Placing and Installation................................ 55
Connection to the Water Supply
Water Outlet
Connection to Power Supply
The Door........................................................ 56
Direction of Opening the Door
Preparing the Laundry................................. 57
Type of Fabrics
Colour Fastness
Degree of Soil
Loading
Washing Agents and How Much to Use...... 58
Dispenser
Fabric Conditioner and Starching Agent
Liquid W ashing Agents
Washing..........................................................60
Control Light
Programme Selection Knob
Temperature Selection Knob
Spinning-OFF Knob
Pump Stop Pushbutton
Extra Rinsing Switch
Higher water level pushbutton
Half Programm e Switch
Cold Wash - Switch
ON/OFF switch
Prepare your machine for washing
After W ashing
Table of Washing Programmes - Cold Water
Table of Washing Programmes - Hot/cold
Water
Cleaning and Maintenance...........................64
Housing
Interior of the drum
Dispenser
Wire Net in the Inlet Hose
Door Gasket
Filter
Trouble Shooting Guide................................66
Instructions for Use
51
Before Use
This instruction manual was prepared for the
user of the washing machin e. Read the manual
carefully and get to know your washing
machine so that you will know how to use it
safely and correctly.
This instruction manual was prepar ed for various
models of washing machine, and they vary in
function and design. Make sure to cons ider only
those switches and knobs your machine is
equipped with.
• When you find your appliance is out of use and
no longer needed, try not to burden the
environment with it. Call your nearest
authorized "collecting service for used
appliances".
Tips for Energy Savings
Through correct use and considering our
recommendations, you can make substantial
energy savings.
For economical washing, always refer to the
table of programmes with recom mended wash
loads.
• Skip the pre-wash whenever possible (if laundr y
is lightly soiled).
• Laundry which was usually washed at 95°C may
be washed at 60°C when using either the TAED
washing agent (bleaching agent activator) or
concentrated washing agents (any of the
...SUPER or ...ULTRA).
• Use an adequate washing agent, and always
consider the recommended amount, and pay
attention to water hardness and degree of
soiling.
• In the course of time (depending on water
hardness) lime deposits on the heater and inside
the appliance. This increases the consumption of
energy for heating water. Occasionally remove
the lime deposit with a special agent.
52
Instructions for Use
Important
Before putting the machine into use, don't
forget to remove the transport brackets.
Switching on a blocked machine may damag e
the machine. Our guarantee does not cover
such damage.
• Before switching the machine on, check that the
transport brackets has been removed.
• Don't place the appliance in a room where the
temperature may fall bellow 0°C, causing
individual parts of the machine to freeze and
become damaged (hose may crack).
• The appliance should stand firmly and
horizontally on a solid base (a machine standing
on an uneven floor is very likely to vibrate during
the spinning cycle).
• Always consider the instructions for correct
placing and installation of the machine to the
mains and water supply. This will help you avoid
accidents and protect your machine against
damage.
• The appliance is to be connected to the water
mains using new hose-sets and that old
sets should not be reused.
• The appliance my not be built-in under the
kitchen worktop in a row of cabinets,
because the use of the appliance without
the top cover is not allowed for safety
reasons. Likewise, the removal of the rear
panel and the bottom of the appliance are
also not allowed.
• The appliance should be positioned in such way
to provide normal ventilation.
• The end of the outlet hose should not be
immersed in the discharge water (the machine
may pump the discharge water back).
• During the washing cycle, the door of the
machine cannot be opened. It can only be
opened 2 minutes after washing is finished.
• The glass door gets very hot during washing, so
take care of children.
• Use only washing powder and other agents
specially designed for machine washing.
We do not take any responsibility for damage
caused by the improper use of bleaching or
colouring agents (coloured gasket and other
plastic parts).
• Lime dissolving agents contain acid, so only use
those containing rust-protection agents. Always
consider the manufacturer's instructions. When
you have finished removing lime deposit, run a
few rinse cycles to make sure that the acid is
thoroughly rinsed. Even traces of acid can cause
substantial damage to component parts.
• Never use washing agents containing solvents individual component parts m ay be damaged or
toxic gases may be produced. There is also a
risk of ignition or explosion.
hose-
• When washing is finished, remember to close
the tap.
• Your washing machine can only be transported
with transport brackets. It is usually enough to
use only one of the rods, that is the upper one. It
is much easier to insert the rod if you remove the
top cover. Before doing anything, however, don't
forget to disconnect the mac hine from the power
supply.
• Data plate with essential information on the
appliance is fitted above the opening for laundry
insertion under the door frame.
Instructions for Use
53
Removing the Transport Brackets
The washing assembly is blocked with two metal
rods which protect the machine during transport
(fig.1).
• Undo the screws on the rear wall (fig. 2).
• Remove the squares, rotate them 180° and
use them to pull out the rods (fig. 3).
• Disengaged parts may remain at the bottom
since they do not obstruct the operation of the
machine (4 rubber hoses and 4 paper spools).
• Use the enclosed plastic caps to plug the holes
(fig. 4).
Save the brackets: you may need them later.
54
Instructions for Use
Placing and Installation
785
5.1
6
6.1
If the floor is uneven, use the adjustable feet to
level the machine.
• Undo the nuts. Rotate the feet to level the
machine (fig. 5).
• Fix the nuts (fig. 5.1).
Maximum height of the washing machine is
850 mm.
IMPORTANT
The floor on which the mac hine stands should be
dry, otherwise the machine may slide during the
spinning cycle.
Connection to the Water Supply
The elbow connection of the inlet hose is fixed to
the coupling on the rear wall of the appliance.
Insert a rubber washer with a net (filter) into a nut
on the other end of the hose, and fix the hose to a
tap. To ensure efficient operation, the water
pressure of the water supply should be between
0.5 and 8.0 bars.
If the pressure exceeds the maximum allowed
limit, fit a pressure regulator. (O pen the tap fully in 15 seconds, 3 litres of water should pour out;
and this is the minimum pressure of the water
supply).
hot cold
IMPORTANT
The highest allowed temperature of hot water is
60°C.
Water Outlet
Hook the outlet hose securely over the edge of the
washbasin or bath tub. The outlet hose can also be
connected directly to the plumbing outlet, the
diameter of which should be not less than 4 cm
(fig. 7).
Wall s iphon drain must be correctly fitted in such
manner to enable cleaning.
If water is drained through a washbasin, always
check it is drained quick ly enough, otherwise an
overflow may occur or the machine may pump
the water back. Pull a string through the hole on
the plastic knee, and secure the outlet hose to
prevent it from falling off (fig. 8).
Connection to cold water
Insert the enclosed washer with filter into the loose
end of the hose and connect the hose to water tap
(fig. 6).
Connection to hot/cold water
Washing m achines designed f or the connection to
hot/cold water are equipped with two inlet hoses.
The attachment and the inlet hose for hot water are
marked with red colour.
Insert the enclosed washers with filter into the
loose ends of the hoses and connect the red
marked hose to hot water tap and the other hose
to cold water tap (fig. 6.1).
Instructions for Use
The end of the outlet hose should be raised fr om
the floor by not more than 100 cm and not less
than 60 cm. If the hose is pos itioned higher than
recommended, the m ac hine will not pum p out the
water.
55
Connection to Power Supply
9
10
Connect the appliance to the power supply with a
cable cord. The wall socket should be equipped
with an earth contact (safety socket).
Fixed connection should be carried out by an
expert.
Rated voltage, frequency and other data are
listed on the rating plate of the machine.
Your washing machine should be grounded
and connected to the power supply according
to local electricity board regulations and
standards.
The Door
WARNING!
In the supply cord is damaged, it must be
replaced by the manufacturer or his s ervic e agent
or a qualified person in order to avoid hazard.
• The appliance should be placed in the position,
where the plug is within reach.
The door can only be opened two minutes after
the washing programme has finished.

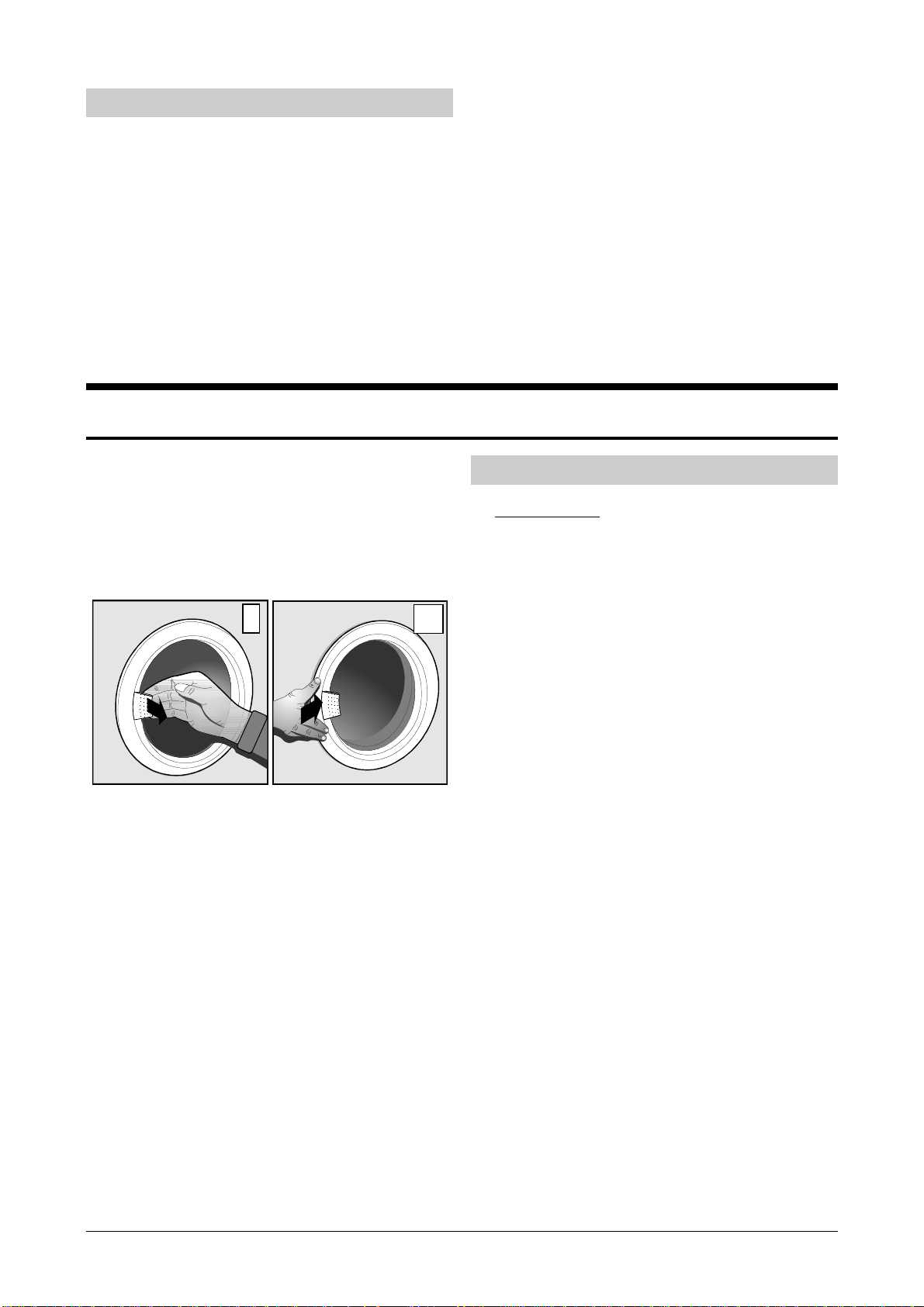

Open the door by pulling the door handle (fig. 9).
When closing the door, push it towards the
machine until it locks (fig. 10).
If the door is not correctly closed, the machine will
not operate.
IMPORTANT
• When closing the door, be careful not to trap
fabric between the door glass and the rubber
gasket.
• If you need to open the door after the machine
has been switched on, first switch it off and wait
for about two minutes.
When opening the door, be careful, as the
water level may be high and water may pour out
when you open the door.
• Don't even try to open the door while the
machine is operating.
• If the machine won't start after switching on,
push the door once again towards the m achine
(at handle).
• An inadequately closed door is the most
common cause of malfunctions.
Direction of Opening the Door
Certain models of appliances allow the possibility
of changing the direction of door opening. This is
an option that has to be ordered separately and
paid for by the customer.
56
Instructions for Use
Preparing the Laundry
11
Sort the laundry before washing according to the
type, quality, colour and soil degree of the laundry.
Type of Fabrics
Most clothes nowadays have labels describing the
type of fabric they are made of, the kind of
recommended wash, and the recommended
washing temperature.
These labels will help you choose the most
suitable washing programme for your clothes.
Put delicate laundry (stockings, fine underwear...)
into a sack or into a pillow case if washed
together with other laundry.
WASHING
White laundry - resi stant.
Coloured laundry - resistant
Fine and delicate laundry
Hand wash.
No washing.
DRY CLEANING
Dry cleaning.
Dry cleaning not allowed.
DRYING
Drying in tumble drier allowed.
Higher temperature (resistant laundry)
Lower temperature (delicate laundry)
Drying in tumble drier not all owed.
IRONING
Ironing: up to 200°C - up to 150°C - up to 110°C
No ironing
Loading
The maxim um load of dry laundry is stated in the
table.
Excessive loads cause cr eases and dec rease the
washing effect.
Always check the pockets before loading the
laundry. Remove keys, coins, hair-pins and
similar objects that may clog the water outlet
hose.
Zip the zippers and remove metal pins that may
damage the laundry or even the drum (fig. 11).
Folded clothes should be loosened before
loading.
The best washing ef fect is ob tained by mixing
larger and smaller items of laundry in one
load.
Colour Fastness
Pay special attention to colour fastness, and
always choose the correct washing temperature.
When washing new clothes, always check colour
fastness first - wash separately the first time.
Degree of Soil
Stained and heavily soiled laundry should be
washed in small loads or with a larger amount of
washing powder.
Heavily stained or soiled areas on the fabric can
be treated before washing using special agents.
Use the energy-saving programme for lightly
soiled laundry (no pre-wash, economic
programme, lower washing temperature).
Instructions for Use
57
Washing Agents and How Much to Use
12
13
Use only washing powder for machine washing.
Use special washing agents for delicate and
woollen fabrics.
This washing machine was designed for washing
powder as well as for liquid detergent. As to the
quantity of the washing agent, refer to the
manufacturer's recommendation. The quantity of
washing agent recommended on the packaging is
usually sufficient for 4.5 to 5 kg of norm ally soiled
laundry, depending on the hardness degree.
Hardness degrees Degrees of hardness
(Water hardness) °dH(°N) m mol/l °fH(°F) p.p.m.
(soft)
(medium)
(hard)
(wery hard)
If your water is hard, we recomm end using water
softener. This means that you can then use the
same quantity of washing powder as if the water
was soft (hardness degree 1). Follow
manufacturer's instruction.
0-7 0-1,3 0-12 0-120
7-14 1,3-2,5 12-25 120-250
14-21 2,5-3,8 25-37 250-370
>21 >3,8 >37 >370
Dispenser
Too much washing powder causes
− bubbling,
− reduced agitation and washing effect,
− inadequate rinsing.
We recommend that you gradually decrease or
increase the quantity of washing agent and at the
same time pay attention to the linen.
Fabric Conditioner and Starching
Agent
When using fabric conditioner or starching
agent, always follow the manufacturer's
instructions, but never fill higher than the level
marked on the dispenser. The excess is
immediately poured out before washing and is
therefore pure waste.
When using the high density liquid agent we
recommend m ixing it with water before filling, as
otherwise the dispenser outlet may clog.
In case the dispenser is clogged and the liquid is
not flushed, the dispenser should be washed.
Remove level indicator and wash with brush and
lukewarm water or rinse under the tap (fig. 13).
The detergent dispenser is divided into three
sections (fig. 12). The table of the programme
shows which section to use.
These sections are used for washing powder
This section is used for fabric conditioner and
starching agent.
Always add washing agents before switching on
and keep the dispenser clean and dry, so that the
washing agent can be efficiently rinsed from the
ispenser.
With programmes without a pre-wash cycle,
the washing powder can be put directly in the
drum. This is especially convenient if:
− you use larger amounts of washing powder (very
hard water),
− you use washing powder which is hard to rinse
from the dispenser,
− water pressure is low,
− you use a concentrated washing powder special
dosing sack which should be ins erted directly in
the drum.
Not enough washing powder causes
− the laundry to turn grey,
− greasy clots,
− lime deposit in the machine and on the laundry.
Never use both fabric conditioner and starching
agent together, as clots may clog the dispenser
opening.
58
Instructions for Use
Liquid Washing Agents
(for some models only)
If the washing machine is equipped with partition
plate, the middle section may also be used for
liquid washing agents.

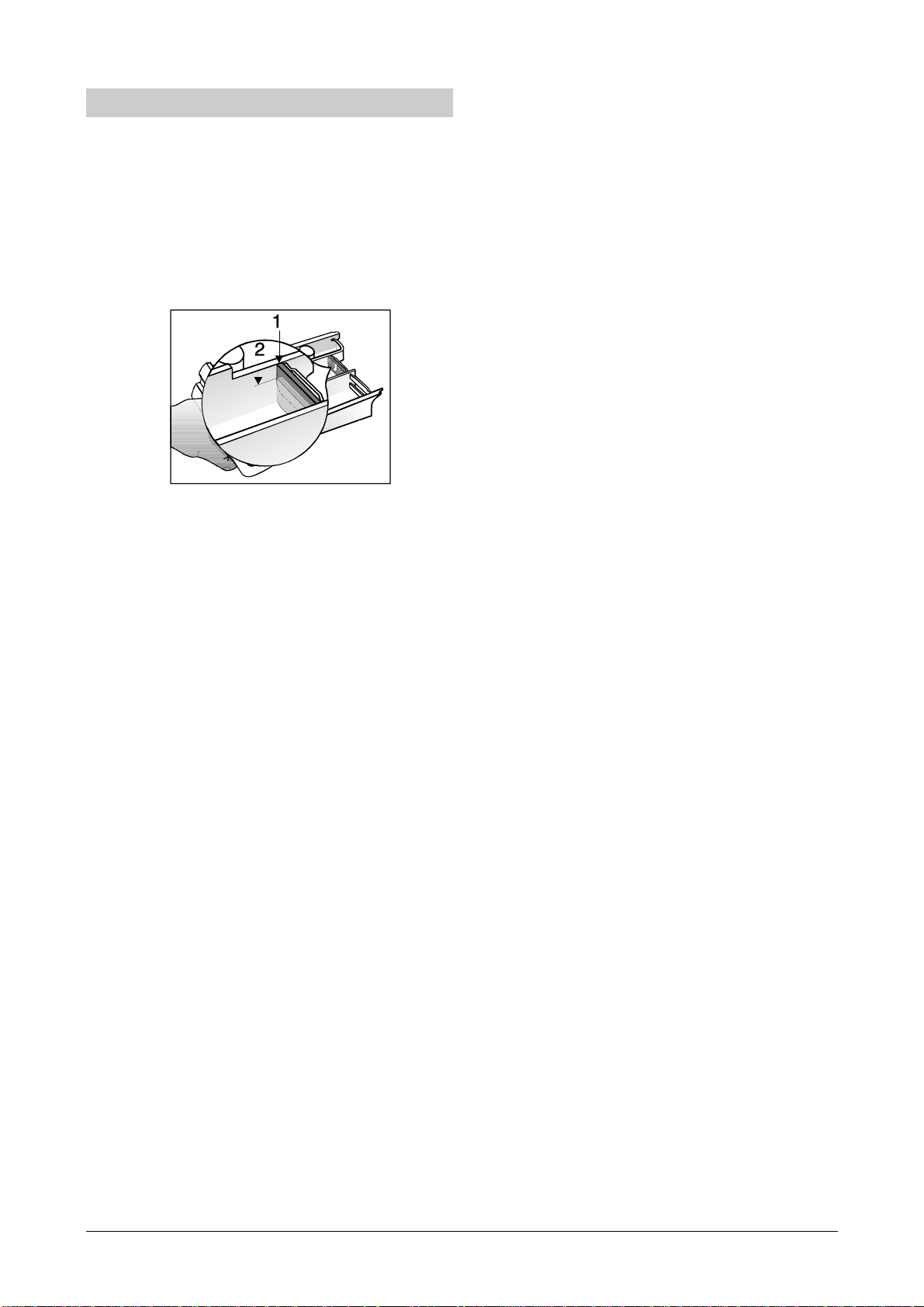

Lift the partition plate when using washing
powders and push it in when using liquid
detergent.
We recommend using liquid detergent with
washing programme without prewash.
1. Washing powder
2. Liquid detergent
Instructions for Use
59
Washing
Before washing, select the washing programme
and prepare the machine for washing.
The control panel incorporates various switches
and pushbuttons for selecting washing
programmes, a control light, and a dispenser.
This instruction manual was prepar ed for various
models of washing machine. You may therefore
find in it descriptions of some functions that your
appliance doesn't have.
Control Light
Control light is lit when the machine is switched on.
Programme Selection Knob
When the m achine is switched off, turn the knob
clockwise.
Washing programmes are divided into three
groups and are marked with letters (A knob).
A
Temperature Selection Knob
Turn the knob clockwise (B knob).
Was hing temperature may be optionally selected
up to 95°.
Programmes from A to B may be used as
economic programme, if the selected
temperature is lower than 95°C. This f eature will
help you save energy up to 40%.
B
B
A
Programmes for non-delicates (A-F)
Programmes are intensive and concluded with
6-minutes spin cycle.
Programmes for delicates (G-L)
Programmes with gentle tumbling and are
concluded with short spin cycle (2 minutes).
Programme for Woolens (M)
Programme for woolens may as well be used for
washing delicates and specials. Laundry is
washed with higher water level and gentle
tumbling. The programme is concluded with 2
minutes spin cycle.
Spinning with interruptions
(only for models with 800 rpm. or more)
On programmes for resistant laundr y the first two
spinning cycles are three times interrupted at the
beginning. This prevents excessive foaming of
the washing powder and improves spinning
results.
On the position marked with a snow flake, the
heaters are switched off and you can select cold
wash on all programmes. The duration of the
programme is the same as if the heaters are on.
60
Instructions for Use
Spinning-OFF Knob
Switch the spinning-OFF knob, if you want
either:
− to switch off the spin cycle on all the
programmes for delicates and woolens;
or
− the programmes for delicates to rinse
without spinning and with short end spin
cycle (2 minutes).
Pump Stop Pushbutton
Use this switch for all programmes, except
for programmes for woolens, if you want
your laundry to remain in the last rinsing
water.
When this pushbutton is off, the washing
programme end with spin cycle.
Extra Rinsing Switch
All washing programmes are designed for
the optimum use of water, during the
washing as well as during the rinsing cycle.
Use the extra rinsing cycle if you are allergic to
washing agents. The switch may be pressed
either before washing or before rinsing.
Half programme switch may be used with all
programmes for non-delicates. On programmes
for delicates and woolens, this switch won't work.
Cold Wash - Switch
If you switch the cold wash switch, the
heaters are off and all programmes are
washing with cold water. The duration of the
programme is the same as if the heaters
were on.
ON/OFF switch
Select suitable washing programme,
prepare the laundry for washing and press
the ON/OFF switch to switch the machine
on.
Higher water level pushbutton
Washing under programmes for resistant
laundry (programmes A and B) is carried
out with a low water level, the quantity of water is
automatically adjusted to the amount of laundry.
This guarantees successful and economic
washing, regardless of the amount of laundry.
When you are washing laundry that is heavily
soiled or stained, press this pushbutton for a
higher water level for the pre-wash and the m ain
wash.
It is impossible to change the water level in
programmes for delicate linens and woolens.
Half Programme Switch
If the amount of laundry you intend to wash
is smaller, use the half programme (up to
2.5 kg).
This will help you save energy and water. Don't
forget to use less washing powder as well.
Washing machine without temperature
selection knob
Half programme switch may be used only with
programmes for non-delicates (95°C).
If you use the half programme switch for other
programmes, the washing temperature will be
higher than marked for individual programme.
Washing machine with temperature selection
knob
Instructions for Use
61
Prepare your machine for
14
After Washing
washing
− Select laundry and load a suitable amount.
− Close the door (push it towards the machine).
− Fill the dispenser (in the correct sections).
− Check water inlet and outlet.
− Choose the right programme.
− If your machine is equipped with switches, use
them, as appropriate.
− Select the washing tem perature, if your washing
machine is equipped with this option.
− Switch the machine on.
− Switch off the machine (the control lamp turns
off).
− Check that the washing is finished and that water
is pumped out of the machine to avoid
unnecessary flooding. If there is still water in the
machine, select one of the programmes for
pumping or spinning.
− Som e two minutes af ter the washing is finished
you can open the door.
− Take the laundry out of the machine and turn the
drum once or twice with hand to make sur e it is
really empty.
− Check the rubber gasket on the door and
remove objects that might have deposited
(buttons, pins..) (fig. 14).
− Leave the door open and allow the interior to dry.
− Disengage any pushbuttons you used.
− Close the water tap.
− Check the dispenser and clean it if necessary
and dry it well.
− Every now and then, check and clean the lint
filter.
62
Instructions for Use
Table of Washing Programme s - Cold Wate r
Table of Washing Programme s - H ot/cold Wate r
Washing Dispenser- Dry
temperature (°C) washing laundry
agents (kg)
Programme
Type of fabric,
laundry
NON-DELICATES (cotton, linen)
Whites/Coloureds
Coloureds
Rinse
Conditioner, spin dry
DELICATES (surface finished cotton, mixture of cotton
with synthetics)
Delicates
(surface finished),
Fine delicates
5,0
2,5
1,5
Rinse
2,5
Conditioner, short spin
WOOLEN (non-shrinkable, mixtures of wool with
synthetics, silk)
Woolen
Legend:
No temperature selecti on knob (washing temperature is
determined with programme selection).
Models with temperature select i on knob (recommended washing tem perature).
2
Washing Dispenser- Dry
temperature washing laundry
Programme
(°C) agents (kg)
Type of fabric,
laundry
NON-DELICATES (cotton, linen)
Whites/Coloureds
Coloureds
Rinse
Conditioner, spin dry
DELICATES (surface finished cotton, mixture of cotton
with synthetics)
Delicates
(surface finished),
Fine delicates
5,0
2,5
1,5
Rinse
Conditioner, short spin
WOOLEN (non-shrinkable, mixtures of wool with
synthetics, silk)
Woolen
Water: Cold Hot Hot/Cold
2,5
Programmes for testing according to EN 60456.
Instructions for Use
63
Cleaning and Maintenance
15
16
Warning:
- Before cleaning disconnect the machine
from mains supply.
- There is a danger of burning when hot
water is in the machine.
Wait until it cools.
Housing
Clean the housing of your washing machine with a
soft cloth and mild detergent. Do not use coarse
cleaning agents which could damage the surface.
Interior of the drum
Lumps of grease can occur in the inside of the
drum, on the door seal as well as on clothes
washed, which is due to incorrect washing
procedure. Prior to next washing, clean the
machine by setting the appliance to the
programme whites/coloureds 60
washing without laundry using only half quantity
of detergent or better a liquid washing agent.
°
C and do the
Wire Net in the Inlet Hose
The wire net in the inlet hose should be f requently
cleaned.
Shut off the water supply and remove the inlet
hose. Clean the net under a tap, replace it and fix
the inlet hose (fig. 16).
Door Gasket
Dispenser
Check the dispenser after each washing. If ther e is
a residue of washing powder, clean it. Pull it out of
the machine, clean it with a brush and warm water,
and dry it (fig. 15).
If necessary clean the interior of the detergent
dispenser casing, in case you detect the
remainings of washing powder inside.
Wipe the gasket after each washing; the gasket
will last longer.
64
Instructions for Use
Filter
17
18
Filter is located under the cap at the bottom of the
machine.
If you use the machine correctly, there is no need
to clean the filter.
You have to open and clean the filter when solid
objects trap in it and obstruct the outlet. (The
laundry is not rinsed enough, still wet, water is not
pumped out of the machine).
Before cleaning the filter, mind to pum p the water
out of the machine. The bes t m ethod to do that is
to place the outlet hose as low as possible (near
the floor).
− Remove the cover (with coin inserted into the
notch (fig. 17).
− Insert the funnel attached to the machine into
the bottom cut-outs between the filter cover and
cabinet and fix it by turning clockwise.
− Place a shallow pan underneath to allow the
excess water to pour out. Remove the filter, by
turning it counter-clockwise (35-40°) (fig. 18).
− Replace the filter in the reverse order and
screw it down firmly. Check it for sealing prior to
washing.
Instructions for Use
65
Trouble Shooting Guide
The user can come across troubles appearing
during the operation of the appliance. We are
listing some of troubles, which in most cases
result from improper handling of the appliance
and can be eliminated by yourself.
Problem: Check the following:
The machine doesn't operate (the co ntrol lamp
is off).
Water is not pumped into the machine.
The machine jumps during operation.
The machine is leaking.
− Check the power supply and fuses.
− Is the plug correctly plugged in the socket?
− Is the machine switched on?
− Is the water tap open?
− Is the wire-net filter on the inlet hose clean?
− Is the door well closed?
− Are the transport brackets removed?
− Is the m achine correctly levelled? (if not, use
the adjustable legs)
− Check the load (perhaps you are washing
only one large item).
− Is the lint filter properly fixed?
The laundry is too wet.
Too much bubbling during washing.
Washing was not efficient (stains, greasy clots).
Laundry is not well rinsed (wash powder
residues).
After you have considered all the above stated
instructions and the malfunction still cannot be
eliminated, call the nearest authorised service.
Any claim or malfunction caused by improper
installation or misuse is not covered by the
guarantee. All repair costs shall be covered by
the user.
− Is the inlet hose pr operly secured to the tap
and to the machine?
− Is the lint filter clean (free of solid particles)?
− Check whether the wall siphon drain is
clogged (clean it).
− Check the water hardness and/reduc the
quantity of washing powder you are using.
− Have you chosen the correct wash
programme? Use larger quantities of
washing powder for heavily soiled laundry, or
wash smaller loads.
− Is the lint filter clean (free of solid particles)?
− Perhaps you overloaded the machine
(especially delicate fabrics) and used too
much washing powder.
− Check whether the wall siphon drain is
clogged (clean it).
WE RESERVE THE RIGHT TO ALTER THE
SPECIFICATIONS WITH NO INFLUENCE ON THE
OPERATION OF THE APPLIANCE.
THIS INSTRUCTION MANUAL CAN NOT BE A
REASON FOR CLAIM.
66
Instructions for Use
Loading...
