CONTENTS
Safety information 15
Safety instructions 16
Operation 18
Daily use 19
Care and cleaning 21
Troubleshooting 22
Installation 24
Technical data 26
Subject to change without notice.
SAFETY INFORMATION
Before the installation and use of the appliance, carefully read
the supplied instructions. The manufacturer is not responsible
for any injuries or damages that are the result of incorrect
installation or usage. Always keep the instructions in a safe
and accessible location for future reference.
Children and vulnerable people safety
• This appliance can be used by children aged 8 years and
above and by persons with reduced capabilities provided
that they have been given instruction and/or supervision
regarding the safe use of the appliance and understand the
potential hazards involved.
• Do not let children play with the appliance.
• Children shall not carry out cleaning and user maintenance
of the appliance without supervision.
Keep all packaging away from children and dispose of it
•
appropriately.
15
General Safety
This appliance is intended to be used in household and
•
similar applications such as:
Farm houses; staff kitchen areas in shops, offices and
–
other working environments
By clients in hotels, motels, bed and breakfast and other
–
residential type environments
Use this appliance for storage of wine only.
•
Keep ventilation openings, in the appliance enclosure or in
•
the built-in structure, clear of obstruction.
16
• Do not use mechanical devices or other means to accelerate
the defrosting process, other than those recommended by
the manufacturer.
• Do not damage the refrigerant circuit.
• Do not use electrical appliances inside the food storage
compartments of the appliance, unless they are of the type
recommended by the manufacturer.
• Do not use water spray and steam to clean the appliance.
• Clean the appliance with a moist soft cloth. Only use neutral
detergents. Do not use abrasive products, abrasive cleaning
pads, solvents or metal objects.
• Do not store explosive substances such as aerosol cans
with a flammable propellant in this appliance.
• If the supply cord is damaged, it must be replaced by the
manufacturer, its Authorised Service Centre or similarly
qualified persons in order to avoid a hazard.
SAFETY INSTRUCTIONS
Installation
WARNING! Only a qualified
person must install this
appliance.
• Remove all the packaging and the transit
bolts.
• Do not install or use a damaged
appliance.
• Follow the installation instruction
supplied with the appliance.
• Always take care when moving the
appliance as it is heavy. Always use
safety gloves and enclosed footwear.
• Make sure the air can circulate around
the appliance.
• Wait at least 4 hours before connecting
the appliance to the power supply. This
is to allow the oil to flow back in the
compressor.
• Do not install the appliance close to
radiators or cookers, oven or hobs.
• The rear of the appliance must stand
against the wall.
• Do not install the appliance where there
is direct sunlight.
• Do not install this appliance in areas that
are too humid or too colds, such as the
construction appendices, garages or
wine cellars.
• When you move the appliance, lift it by
the front edge to avoid scratching the
floor.
Electrical connection
WARNING! Risk of fire and
electrical shock.
• The appliance must be earthed.
• Make sure that the electrical information
on the rating plate agrees with the
power supply. If not, contact an
electrician.
• Always use a correctly installed
shockproof socket.
• Do not use multi-plug adapters and
extension cables.
• Make sure not to cause damage to the
electrical components (e.g. mains plug,
mains cable, compressor). Contact the
Authorised Service Centre or an
17
electrician to change the electrical
components.
• The mains cable must stay below the
level of the mains plug.
• Connect the mains plug to the mains
socket only at the end of the installation.
Make sure that there is access to the
mains plug after the installation.
• Do not pull the mains cable to
disconnect the appliance. Always pull
the mains plug.
Use
WARNING! Risk of injury,
burns, electrical shock or fire.
• Do not change the specification of this
appliance.
• Do not put electrical appliances (e.g. ice
cream makers) in the appliance unless
they are stated applicable by the
manufacturer.
• Be careful not to cause damage to the
refrigerant circuit. It contains isobutane
(R600a), a natural gas with a high level of
environmental compatibility. This gas is
flammable.
• If damage occurs to the refrigerant
circuit, make sure that there are no
flames and sources of ignition in the
room. Ventilate the room.
• Do not let hot items to touch the plastic
parts of the appliance.
• Do not store flammable gas and liquid in
the appliance.
• Do not put flammable products or items
that are wet with flammable products in,
near or on the appliance.
• Do not touch the compressor or the
condenser. They are hot.
Care and cleaning
WARNING! Risk of injury or
damage to the appliance.
• Before maintenance, deactivate the
appliance and disconnect the mains
plug from the mains socket.
• This appliance contains hydrocarbons in
the cooling unit. Only a qualified person
must do the maintenance and the
recharging of the unit.
• Regularly examine the drain of the
appliance and if necessary, clean it. If
the drain is blocked, defrosted water
collects in the bottom of the appliance.
Disposal
WARNING! Risk of injury or
suffocation.
• Disconnect the appliance from the mains
supply.
• Cut off the mains cable and discard it.
• Remove the door to prevent children
and pets to be closed inside of the
appliance.
• The refrigerant circuit and the insulation
materials of this appliance are ozonefriendly.
• The insulation foam contains flammable
gas. Contact your municipal authority for
information on how to discard the
appliance correctly.
• Do not cause damage to the part of the
cooling unit that is near the heat
exchanger.
Internal light
• The type of lamp used for this appliance
is not suitable for household room
illumination
1
2345678
min
A B C
DE
18
OPERATION
Control panel
Display
1
Bottom Compartment Temperature
2
warmer button
Bottom Compartment Temperature
3
colder button
Alarm button
4
Light button
5
It is possible to change predefined sound of
buttons to a loudly one by pressing
together Light button and Temperature
Display
Switching on
1. Connect the mains plug to the power
socket.
2. Press the appliance ON/OFF if the
display is off. The temperature
indicators show the set default
temperature.
To select a different set temperature refer to
"Temperature regulation".
If "dEMo" appears on the display, refer to
"Troubleshooting" .
Top Compartment Temperature warmer
6
button
Top Compartment Temperature colder
7
button
Appliance ON/OFF button
8
colder button for some seconds. Change is
reversible.
A. Top compartment indicator
B. Top compartment temperature indicator
and timer indicator
C. Bottom compartment temperature
indicator
D. Bottom compartment indicator
E. Alarm indicator
Switching off
1. Press the appliance ON/OFF for 5
seconds.
The display switches off.
2. Disconnect the mains plug from the
power socket.
Temperature regulation
To set temperature of the wine cellar press
the temperature regulators.
19
The temperature indicators show the set
temperature.
The set temperature will be
reached within 24 hours.
CAUTION! After a power failure
the set temperature remains
stored.
Refer to "Daily use - Wine Arrangement".
Light button
The light turns on automatically for 10
minutes, each time the door is opened and
closed. The light has no negative effect on
DAILY USE
Cleaning the interior
Before using the appliance for the first time,
the interior and all internal accessories
should be washed with lukewarm water
and some neutral soap to remove the
typical smell of a brand-new product, then
dried thoroughly.
CAUTION! Do not use
detergents, abrasive powders,
chlorine or oil-based cleaners as
they will damage the finish.
Wine arrangement
the quality on the wine. However, it is also
possible to turn off the light before the
automatic turn off time.
Open the door and press the light button.
Door open alarm
An acoustic alarm will sound if the door is
left open for approximately 5 minutes. The
door open alarm conditions are indicated
by:
• flashing alarm indicator;
• acoustic buzzer.
When normal conditions are restored (door
closed), the alarm will stop. During the
alarm, the buzzer can be switched off by
pressing any button.
Top Compartment: The temperature can
be adjusted between +6°C and +11°C. This
compartment is ideal for wines, especially
new reds and whites, to be consumed
immediately. Operation compartments with
differentiated temperatures.
Bottom Compartment: The temperature
can be adjusted between +11°C and
+18°C. This compartment is ideal for
storing and refining red or white wines for
long periods.
• The temperatures of this compartment
are suitable for storing aged and fullbodied wines.
• The bottles should be placed down in
such a way that the corks do not dry.
• The wine should be kept in the dark. The
door is in anti-UV darkened double glass
to protect the wine from the light in case
the refrigerator is located in a well-lit
place.
• The appliance light should not be
switched on too often or for too long.
Wine keeps better in the dark.
• The bottles should be handled with care,
to avoid agitating the wine.
20
Follow the recommendations
and advice received at the time
of purchase or given in the
technical documentation
regarding the quality, duration
and optimum storage
temperature of the wine.
Storage advice
The storage time for wine depends on
ageing, the type of grapes, alcoholic
content and level of fructose and tannin
contained in it. At the time of purchase,
check if the wine is already aged or if it will
improve over time.
Recommended storage temperatures:
• For champagne and sparkling wines,
between +6°C and +8°C
• For white wines, between +10°C and
+12°C
• For rose and light red wines, between
+12°C and +16°C
• Aged red wines, between +14°C and
+16°C
When placing various bottles on
top of each other, make sure
they do not touch the
refrigerator cooling plate.

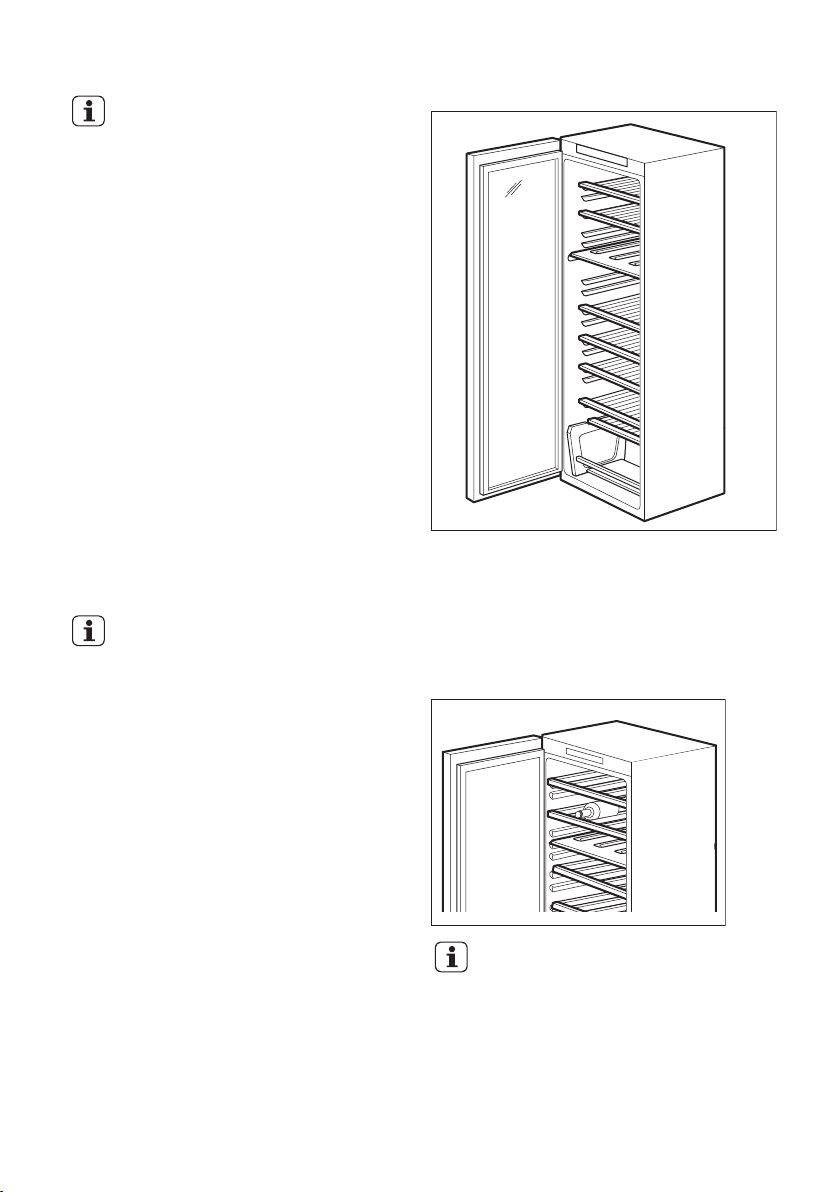

Wine Cellar Bottle Holder
The maximum possible weight on the bottle
shelves is 30 kg.
Remove the shelf and insert it between the
two guides.
Wine Cellar shelves
Remove the shelves for cleaning.
The bottom compartment is
fitted with a basket useful for
placing upright and sloping
bottles.
Air circulation
The refrigerator compartment has a special
AIRLIGHT fan which is automatically
CARE AND CLEANING
21
activated in function of the appliance
thermostat setting and ambient conditions.
WARNING! Refer to Safety
chapters.
General warnings
CAUTION! Unplug the
appliance before carrying out
any maintenance operation.
This appliance contains
hydrocarbons in its cooling unit;
maintenance and recharging
must therefore only be carried
out by authorized technicians.
The accessories and parts of
the appliance are not suitable for
washing in a dishwasher.
Periodic cleaning
CAUTION! Do not pull, move or
damage any pipes and/or
cables inside the cabinet.
CAUTION! Take care of not to
damage the cooling system.
CAUTION! When moving the
cabinet, lift it by the front edge
to avoid scratching the floor.
The equipment has to be cleaned regularly:
1. Clean the inside and accessories with
lukewarm water and some neutral soap.
2. Regularly check the door seals and
wipe clean to ensure they are clean and
free from debris.
3. Rinse and dry thoroughly.
4. If accessible, clean the condenser and
the compressor at the back of the
appliance with a brush.
This operation will improve the
performance of the appliance and save
electricity consumption.
Defrosting of the refrigerator
Frost is automatically eliminated from the
evaporator of the refrigerator compartment
every time the motor compressor stops,
during normal use. The defrost water drains
out through a trough into a special
container at the back of the appliance, over
the motor compressor, where it evaporates.
It is important to periodically clean the
defrost water drain hole in the middle of the
refrigerator compartment channel to
prevent the water overflowing and dripping
onto the food inside.
22
1. Disconnect the appliance from
electricity supply.
2. Clean the appliance and all accessories.
3. Leave the door/doors open to prevent
unpleasant smells.
WARNING! If you want to keep
the appliance switched on, ask
somebody to check it once in a
while to prevent the food inside
from spoiling in case of a power
failure.
Periods of non-operation
When the appliance is not in use for long
periods, take the following precautions:
TROUBLESHOOTING
WARNING! Refer to Safety
chapters.
What to do if...
Problem Possible cause Solution
The appliance does not operate.
The mains plug is not con-
There is no voltage in the
The appliance is noisy. The appliance is not sup-
Audible or visual alarm is on. The cabinet has been re-
The lamp does not work. The lamp is in stand-by. Close and open the door.
The appliance is switched
off.
nected to the mains socket
correctly.
mains socket.
ported properly.
cently switched on or the
temperature is still too high.
The temperature in the appliance is too high.
The door is left open. Close the door.
The temperature in the appliance is too high.
Switch on the appliance.
Connect the mains plug to the
mains socket correctly.
Connect a different electrical
appliance to the mains socket.
Contact a qualified electrician.
Check if the appliance stands
stable.
Refer to "Door Open Alarm"or
"High Temperature Alarm".
Refer to "Door Open Alarm"or
"High Temperature Alarm".
Contact a qualified electrician
or contact the nearest Authorised Service Centre.
Problem Possible cause Solution
The lamp is defective. Refer to "Replacing the lamp".
The compressor operates
continually.
Many food products were
The room temperature is
Food products placed in
The door is not closed cor-
Water flows on the rear plate
of the refrigerator.
Water flows inside the wine
cooler.
dEMo appears on the display.
The temperature in the wine
compartment too low/too
high.
Temperature is set incorrectly.
put in at the same time.
too high.
the appliance were too
warm.
rectly.
During the automatic defrosting process, frost
melts on the rear plate.
The water outlet is clogged.
Food products prevent that
water flows into the water
collector.
The appliance is in demonstration mode.
The temperature regulator
is not set correctly.
Refer to "Operation" chapter.
Wait some hours and then
check the temperature again.
Refer to climate class chart on
the rating plate.
Allow food products to cool to
room temperature before storing.
Refer to "Closing the door".
This is correct.
Clean the water outlet.
Make sure that food products
do not touch the rear plate.
Keep the Light button pressed
for approximately 10 seconds
until a long sound is heard and
display shuts off for a short
time.
Set a higher/lower temperature.
23
If the advice does not lead to
the desired result, contact the
nearest Authorised Service
Centre.

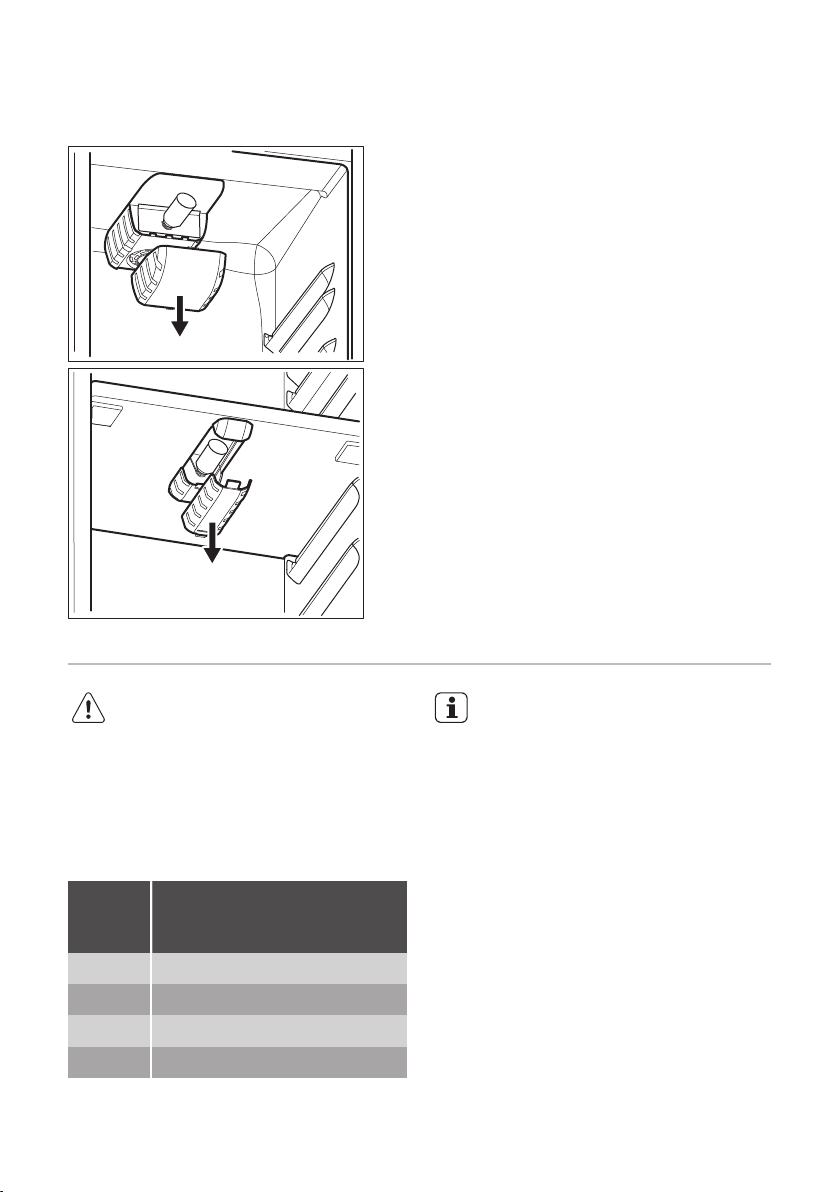

Replacing the lamp Wine Cellar
1. Disconnect the mains plug from the
mains socket.
2. Remove the lamp cover by pressing it
inwards with a tool (e.g. screwdriver) to
free the rear side hookings.
24
3. At the same time, free the middle hook
and slide off the cover in the direction of
the arrows.
INSTALLATION
4. Replace the used lamp with a new lamp
of the same type and specifically
designed for household appliances and
having the same characteristics.
5. Connect the mains plug to the mains
socket.
6. Open the door. Make sure that the lamp
comes on.
Closing the door
1. Clean the door gaskets.
2. If necessary, adjust the door. Refer to
assembly instructions.
3.
If necessary, replace the defective door
gaskets. Contact the Authorised
Service Centre.
WARNING! Refer to Safety
chapters.
Positioning
Install the appliance in a dry, well ventilated
indoors where the ambient temperature
corresponds to the climate class indicated
on the rating plate of the appliance.
Climate
class
SN +10°C to + 32°C
N +16°C to + 32°C
ST +16°C to + 38°C
T +16°C to + 43°C
Ambient temperature
Some functional problems might
occur for some types of models
when operating outside of that
range. The correct operation
can only be guaranteed within
the specified temperature range.
If you have any doubts
regarding where to install the
appliance, please turn to the
vendor, to our customer service
or to the nearest Authorised
Service Centre.
Electrical connection
• Before plugging in, ensure that the
voltage and frequency shown on the
rating plate correspond to your domestic
power supply.
• The appliance must be earthed. The
power supply cable plug is provided with
a contact for this purpose. If the
5 cm
min.
200 cm
2
min.
200 cm
2
domestic power supply socket is not
earthed, connect the appliance to a
separate earth in compliance with
current regulations, consulting a qualified
electrician.
• The manufacturer declines all
responsibility if the above safety
precautions are not observed.
• This appliance complies with the E.E.C.
Directives.
Ventilation requirements
The airflow behind the appliance must be
sufficient.
2.
Install the appliance in the niche.
25
Installing the appliance
CAUTION! Make sure that the
mains cable can move freely.
1. Apply the adhesive sealing strip to the
appliance as shown in figure.
3. Attach the appliance to the niche with 4
screws.
4. Fix the covers on the screws.
26
Do a final check to make sure that:
• All screws are tightened.
• The sealing strip is attached tightly to the
cabinet.
• The door opens and closes correctly.
Assembly instructions for the compensator lower part of the door
1. With the door open, loosen the two
screws situated in the lower part
without unscrewing them completely.
2. Position the steel compensator as
indicated in the figure and insert the
upper part under the head of the
screws.
3.
Align the compensator with the steel
door panel and tighten the screws.
4. Insert the steel carter inside the
compensator as indicated in the figure.
TECHNICAL DATA
Technical data
Dimensions of the recess
Height mm 1780
Width mm 560
Depth mm 550
Voltage Volts 230-240
Frequency Hz 50
The technical information is situated in the
rating plate, on the external or internal side
of the appliance and in the energy label.
ENVIRONMENT CONCERNS
27
Please recycle all materials marked with the
symbol . Dispose of all packaging
materials appropriately and help to protect
the environment, and future generations.
Do not dispose of electrical equipment
marked with the
symbol along with the
general house hold waste. Dispose all
electrical goods via applicable local
authority collections, or at local authority or,
commercial recycling centres.
EN
Product fi che - Regulation (EU) No 1060/2010 of 28 September 2010
923 802 036 / WI360LX
Supplier’s name or trademark SMEG
Supplier’s model identifi er WI360LX
Category of the household refrigerating appliance model Wine cellar
Energy effi ciency class of the model A
Energy consumption in kWh per year, based in standard test results for 24 hours. Actual energy consumption will depend on how the appliance is used and where it is located
Storage volume of each compartment and applicable star rating Wine cellar - 325
The design temperature of ‘other compartments’. For wine storage compartments, the coldest storage
temperature, either pre-set in the compartment or capable of being maintained continuously according
to the manufacturer’s instructions, shall be given
The mention ‘frost-free’ for the relevant compartment (s) Wine cellar
Power cut safe “X” h’ defi ned as’ temperature rise time’ x
Freezing capacity’ in kg/24 h x
Climate class SN-N-ST
Airborne acoustical noise emissions 34
170
12
The model is intended to be a build-in appliance yes
This appliance is intended to be used exclusively for the storage of wine yes
222372825-A-092016
Loading...
