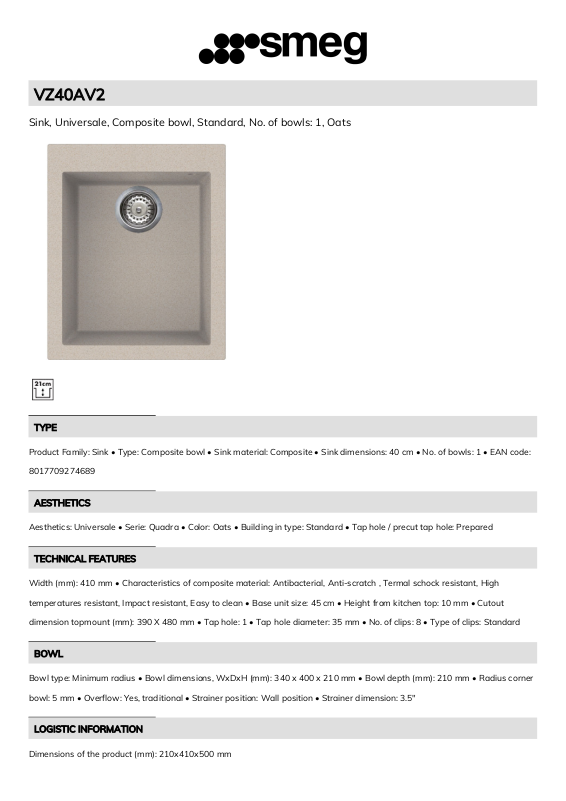

Smeg VZ40AV2 Technical sheet

VZ40AV2

Sink, Universale, Composite bowl, Standard, No. of bowls: 1, Oats

TYPE

Product Family: Sink • Type: Composite bowl • Sink material: Composite • Sink dimensions: 40 cm • No. of bowls: 1 • EAN code:

8017709274689

AESTHETICS

Aesthetics: Universale • Serie: Quadra • Color: Oats • Building in type: Standard • Tap hole / precut tap hole: Prepared

TECHNICAL FEATURES

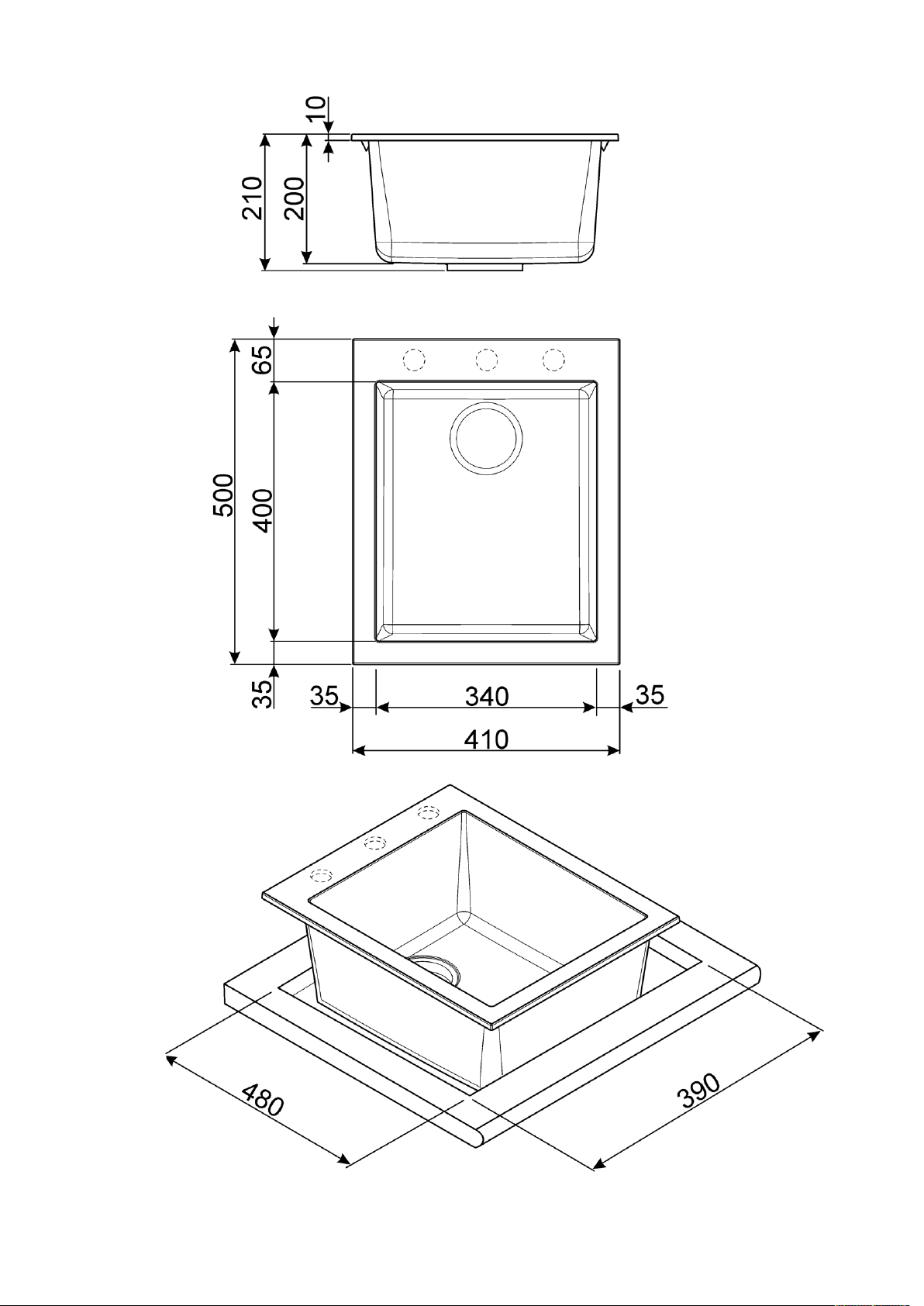

Width (mm): 410 mm • Characteristics of composite material: Antibacterial, Anti-scratch , Termal schock resistant, High

temperatures resistant, Impact resistant, Easy to clean • Base unit size: 45 cm • Height from kitchen top: 10 mm • Cutout

dimension topmount (mm): 390 X 480 mm • Tap hole: 1 • Tap hole diameter: 35 mm • No. of clips: 8 • Type of clips: Standard

BOWL

Bowl type: Minimum radius • Bowl dimensions, WxDxH (mm): 340 x 400 x 210 mm • Bowl depth (mm): 210 mm • Radius corner

bowl: 5 mm • Overflow: Yes, traditional • Strainer position: Wall position • Strainer dimension: 3.5"

LOGISTIC INFORMATION

Dimensions of the product (mm): 210x410x500 mm

ACCESSORIES INCLUDED

Accessories for installation: Strainer, Savespace siphon with dishwasher outlet connection, Fixing clips

OPTIONAL

KITFD100: Waste disposal, SinksKITFD075: Waste disposal, SinksKITFD050: Waste disposal, SinksCOLPTX: Drainer,

SinksKITPOPUP: Automatic pop-up, SinksKITDSQ: Soap Dispenser, SinksKITDS: Soap Dispenser, SinksDBSINT34: Basket, Sinks
