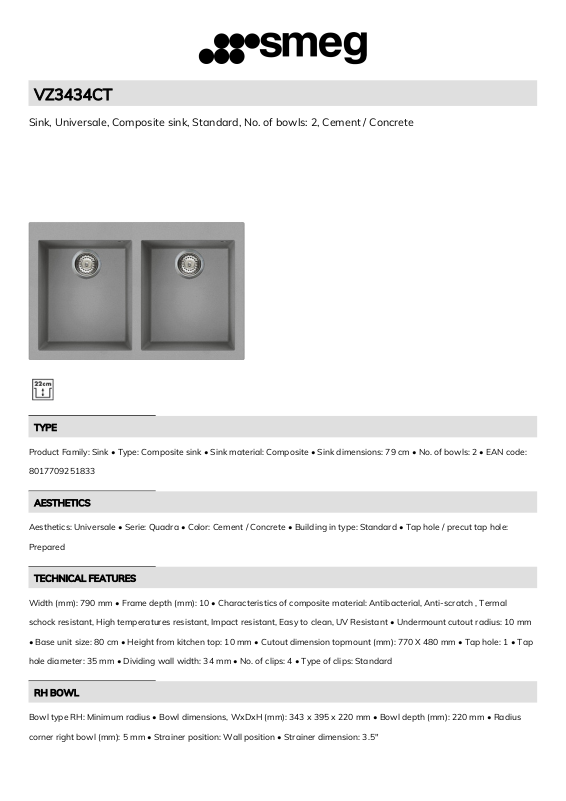

Smeg VZ3434CT Technical sheet
VZ3434CT
Sink, Universale, Composite sink, Standard, No. of bowls: 2, Cement / Concrete
TYPE
Product Family: Sink • Type: Composite sink • Sink material: Composite • Sink dimensions: 79 cm • No. of bowls: 2 • EAN code:
8017709251833
AESTHETICS
Aesthetics: Universale • Serie: Quadra • Color: Cement / Concrete • Building in type: Standard • Tap hole / precut tap hole:
Prepared
TECHNICAL FEATURES
Width (mm): 790 mm • Frame depth (mm): 10 • Characteristics of composite material: Antibacterial, Anti-scratch , Termal
schock resistant, High temperatures resistant, Impact resistant, Easy to clean, UV Resistant • Undermount cutout radius: 10 mm
• Base unit size: 80 cm • Height from kitchen top: 10 mm • Cutout dimension topmount (mm): 770 X 480 mm • Tap hole: 1 • Tap
hole diameter: 35 mm • Dividing wall width: 34 mm • No. of clips: 4 • Type of clips: Standard
RH BOWL
Bowl type RH: Minimum radius • Bowl dimensions, WxDxH (mm): 343 x 395 x 220 mm • Bowl depth (mm): 220 mm • Radius
corner right bowl (mm): 5 mm • Strainer position: Wall position • Strainer dimension: 3.5"
LH BOWL
Bowl type LH: Minimum radius • Bowl dimensions LH, WxDxA (mm): 343 x 395 x 220 mm • LH Bowl depth (mm): 220 mm •
Radius corner left bowl: 5 mm • Overflow LH bowl: Yes, traditional • Strainer position LH bowl: Side bowl • Strainer dimension
LH bowl: 3.5"
LOGISTIC INFORMATION
Dimensions of the product (mm): 235x790x500 mm
ACCESSORIES INCLUDED
Accessories for installation: Strainer, Savespace siphon with dishwasher outlet connection, Fixing clips
OPTIONAL
KITFD100: Waste disposal, SinksKITFD075: Waste disposal, SinksKITFD050: Waste disposal, SinksCOLPTX: Drainer,
SinksKITDSQ: Soap Dispenser, SinksDBSINT34: Basket, Sinks
