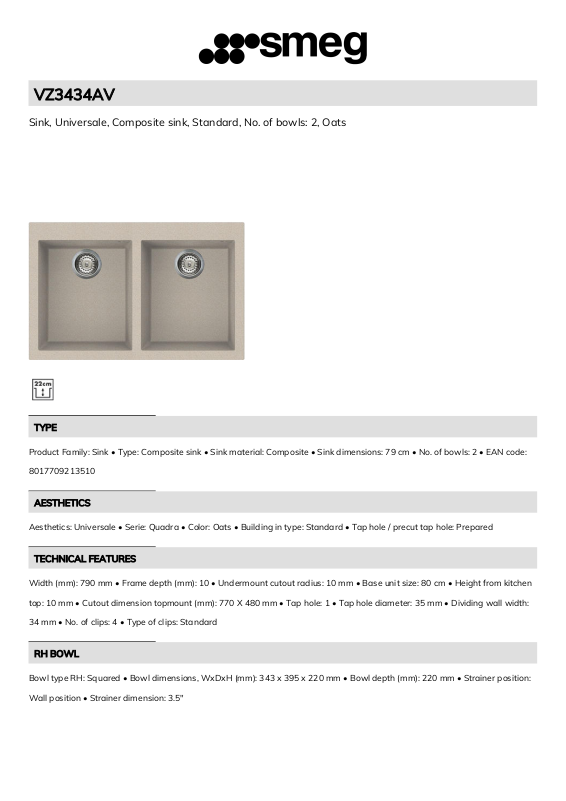

Smeg VZ3434AV Technical sheet

VZ3434AV

Sink, Universale, Composite sink, Standard, No. of bowls: 2, Oats

TYPE

Product Family: Sink • Type: Composite sink • Sink material: Composite • Sink dimensions: 79 cm • No. of bowls: 2 • EAN code:

8017709213510

AESTHETICS

Aesthetics: Universale • Serie: Quadra • Color: Oats • Building in type: Standard • Tap hole / precut tap hole: Prepared

TECHNICAL FEATURES

Width (mm): 790 mm • Frame depth (mm): 10 • Undermount cutout radius: 10 mm • Base unit size: 80 cm • Height from kitchen

top: 10 mm • Cutout dimension topmount (mm): 770 X 480 mm • Tap hole: 1 • Tap hole diameter: 35 mm • Dividing wall width:

34 mm • No. of clips: 4 • Type of clips: Standard

RH BOWL

Bowl type RH: Squared • Bowl dimensions, WxDxH (mm): 343 x 395 x 220 mm • Bowl depth (mm): 220 mm • Strainer position:

Wall position • Strainer dimension: 3.5"

LH BOWL

Bowl type LH: Squared • Bowl dimensions LH, WxDxA (mm): 343 x 395 x 220 mm • LH Bowl depth (mm): 220 mm • Overflow

LH bowl: Yes, traditional • Strainer position LH bowl: Side bowl • Strainer dimension LH bowl: 3.5"

LOGISTIC INFORMATION

Dimensions of the product (mm): 235x790x500 mm

ACCESSORIES INCLUDED

Accessories for installation: Strainer, Savespace siphon with dishwasher outlet connection, Fixing clips

OPTIONAL

KITFD100: Waste disposal, SinksKITFD075: Waste disposal, SinksKITFD050: Waste disposal, SinksCOLPTX: Drainer,

SinksKITPOPUP: Automatic pop-up, SinksKITDSQ: Soap Dispenser, SinksKITDS: Soap Dispenser, SinksDBSINT34: Basket, Sinks
