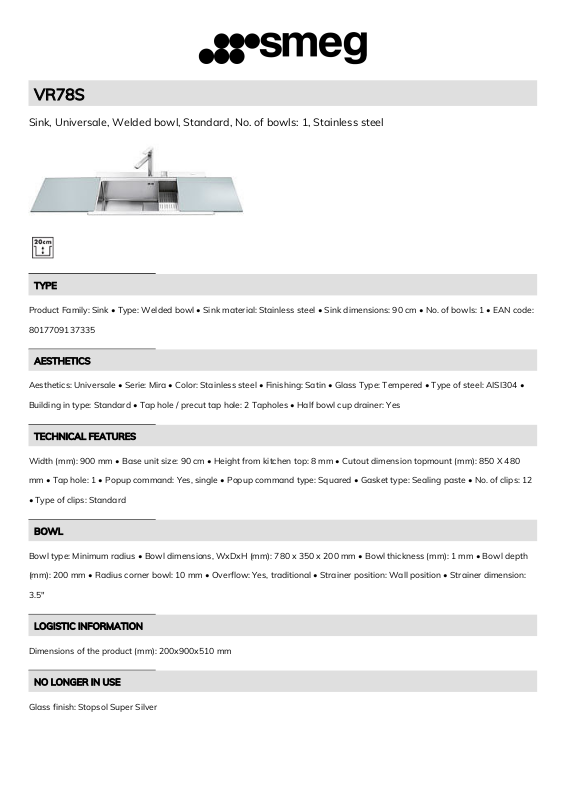

Smeg VR78S Technical sheet

VR78S

Sink, Universale, Welded bowl, Standard, No. of bowls: 1, Stainless steel

TYPE

Product Family: Sink • Type: Welded bowl • Sink material: Stainless steel • Sink dimensions: 90 cm • No. of bowls: 1 • EAN code:

8017709137335

AESTHETICS

Aesthetics: Universale • Serie: Mira • Color: Stainless steel • Finishing: Satin • Glass Type: Tempered • Type of steel: AISI304 •

Building in type: Standard • Tap hole / precut tap hole: 2 Tapholes • Half bowl cup drainer: Yes

TECHNICAL FEATURES

Width (mm): 900 mm • Base unit size: 90 cm • Height from kitchen top: 8 mm • Cutout dimension topmount (mm): 850 X 480

mm • Tap hole: 1 • Popup command: Yes, single • Popup command type: Squared • Gasket type: Sealing paste • No. of clips: 12

• Type of clips: Standard

BOWL

Bowl type: Minimum radius • Bowl dimensions, WxDxH (mm): 780 x 350 x 200 mm • Bowl thickness (mm): 1 mm • Bowl depth

(mm): 200 mm • Radius corner bowl: 10 mm • Overflow: Yes, traditional • Strainer position: Wall position • Strainer dimension:

3.5"

LOGISTIC INFORMATION

Dimensions of the product (mm): 200x900x510 mm

NO LONGER IN USE

Glass finish: Stopsol Super Silver

ACCESSORIES INCLUDED

Colander: YesGlass board: 2Accessories for installation: Strainer, Savespace siphon with dishwasher outlet connection, Fixing

clips, Gasket, Automatic pop - up with roudn rotary control

OPTIONAL

KITFD100: Waste disposal, SinksKITFD075: Waste disposal, SinksKITFD050: Waste disposal, SinksCVB40S2: Chopping board,

SinksCVB40N2: Chopping board, SinksCVB40B2: Chopping board, SinksSTABMIX: Stabiliser, Sinks
