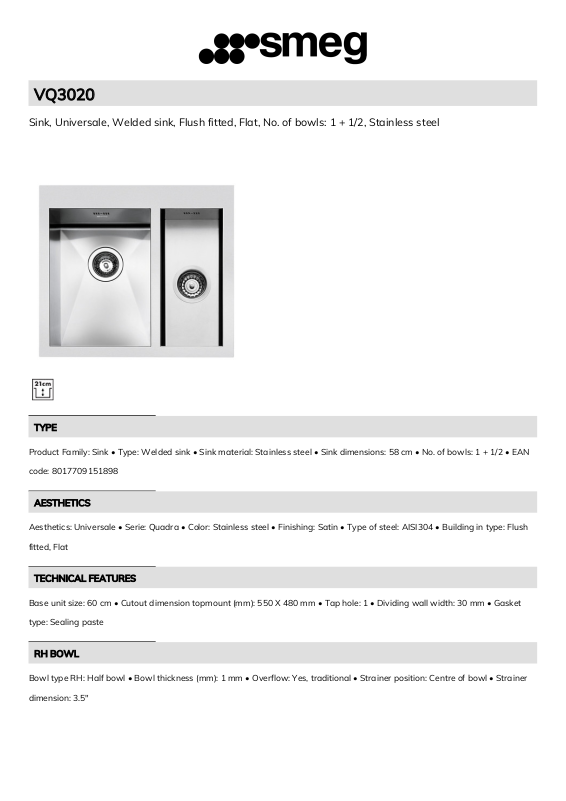

Smeg VQ3020 Technical sheet

VQ3020

Sink, Universale, Welded sink, Flush fitted, Flat, No. of bowls: 1 + 1/2, Stainless steel

TYPE

Product Family: Sink • Type: Welded sink • Sink material: Stainless steel • Sink dimensions: 58 cm • No. of bowls: 1 + 1/2 • EAN

code: 8017709151898

AESTHETICS

Aesthetics: Universale • Serie: Quadra • Color: Stainless steel • Finishing: Satin • Type of steel: AISI304 • Building in type: Flush

fitted, Flat

TECHNICAL FEATURES

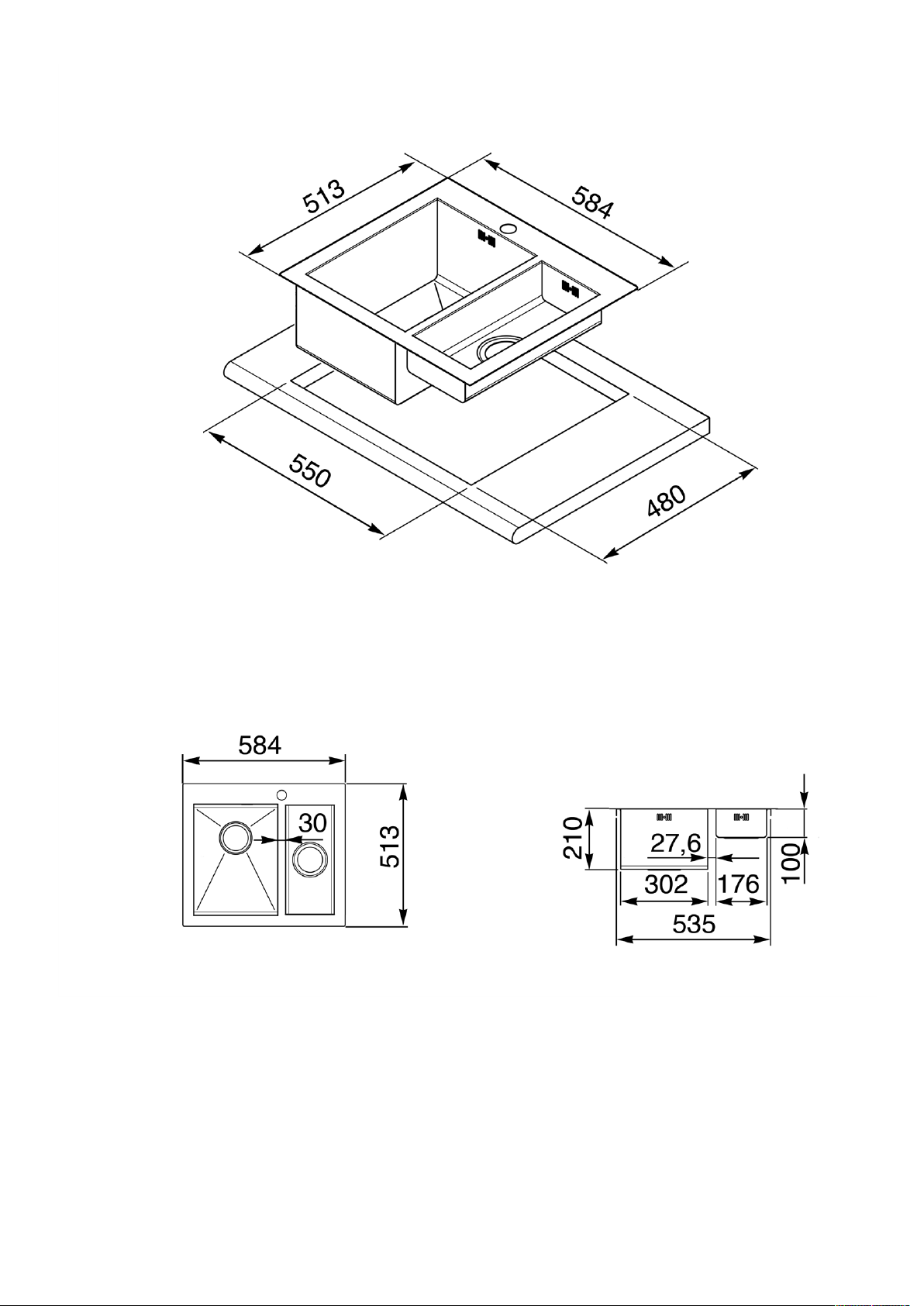

Base unit size: 60 cm • Cutout dimension topmount (mm): 550 X 480 mm • Tap hole: 1 • Dividing wall width: 30 mm • Gasket

type: Sealing paste

RH BOWL

Bowl type RH: Half bowl • Bowl thickness (mm): 1 mm • Overflow: Yes, traditional • Strainer position: Centre of bowl • Strainer

dimension: 3.5"

LH BOWL

Bowl type LH: Squared • Bowl dimensions LH, WxDxA (mm): 300 x 400 x 210 mm • Bowl thickness LH (mm): 1 mm • LH Bowl

depth (mm): 210 mm • Overflow LH bowl: Yes, traditional • Strainer position LH bowl: Wall position • Strainer dimension LH

bowl: 3.5"

ACCESSORIES INCLUDED

Accessories for installation: Strainer, Savespace siphon with dishwasher outlet connection, Fixing clips, Gasket

OPTIONAL

KITFD100: Waste disposal, SinksKITFD075: Waste disposal, SinksKITFD050: Waste disposal, SinksSTABMIX: Stabiliser, Sinks
