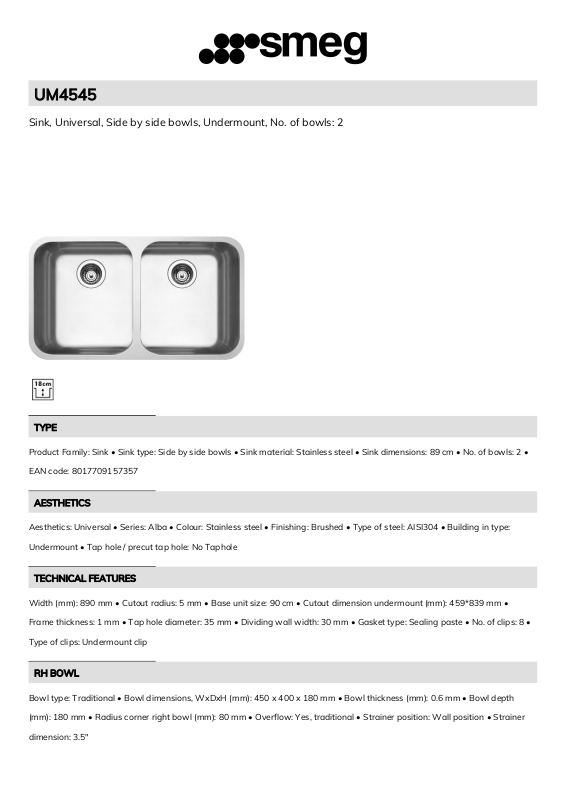

Smeg UM4545 Technical sheet

UM4545

Sink, Universal, Side by side bowls, Undermount, No. of bowls: 2

TYPE

Product Family: Sink • Sink type: Side by side bowls • Sink material: Stainless steel • Sink dimensions: 89 cm • No. of bowls: 2 •

EAN code: 8017709157357

AESTHETICS

Aesthetics: Universal • Series: Alba • Colour: Stainless steel • Finishing: Brushed • Type of steel: AISI304 • Building in type:

Undermount • Tap hole / precut tap hole: No Taphole

TECHNICAL FEATURES

Width (mm): 890 mm • Cutout radius: 5 mm • Base unit size: 90 cm • Cutout dimension undermount (mm): 459*839 mm •

Frame thickness: 1 mm • Tap hole diameter: 35 mm • Dividing wall width: 30 mm • Gasket type: Sealing paste • No. of clips: 8 •

Type of clips: Undermount clip

RH BOWL

Bowl type: Traditional • Bowl dimensions, WxDxH (mm): 450 x 400 x 180 mm • Bowl thickness (mm): 0.6 mm • Bowl depth

(mm): 180 mm • Radius corner right bowl (mm): 80 mm • Overflow: Yes, traditional • Strainer position: Wall position • Strainer

dimension: 3.5"

LH BOWL

Bowl type LH: Traditional • Bowl dimensions LH, WxDxA (mm): 450 x 400 x 180 mm • Bowl thickness LH (mm): 0.6 mm • LH

Bowl depth (mm): 180 mm • Radius corner left bowl: 80 mm • Overflow LH bowl: Yes, traditional • Strainer position LH bowl:

Wall position • Strainer dimension LH bowl: 3.5"

LOGISTIC INFORMATION

Dimensions of the product (mm): 180x890x510 mm

ACCESSORIES INCLUDED

Accessories for installation: Strainer, Siphon with dishwasher outlet connection, Fixing clips

OPTIONAL

KITFD050UK: Waste disposal, SinksKITFD075UK: Waste disposal, SinksKITFD100UK: Waste disposal, Sinks
