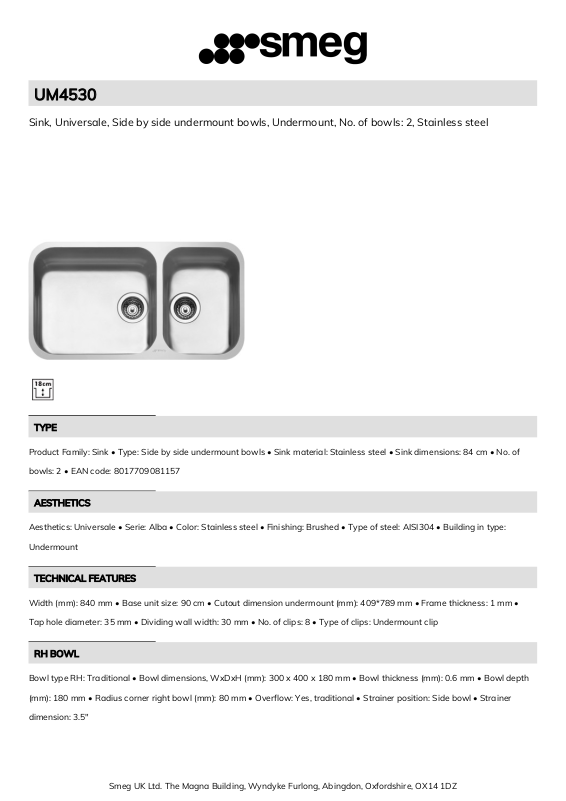

UM4530
Sink, Universale, Side by side undermount bowls, Undermount, No. of bowls: 2, Stainless steel
TYPE
Product Family: Sink • Type: Side by side undermount bowls • Sink material: Stainless steel • Sink dimensions: 84 cm • No. of
bowls: 2 • EAN code: 8017709081157
AESTHETICS
Aesthetics: Universale • Serie: Alba • Color: Stainless steel • Finishing: Brushed • Type of steel: AISI304 • Building in type:
Undermount
TECHNICAL FEATURES

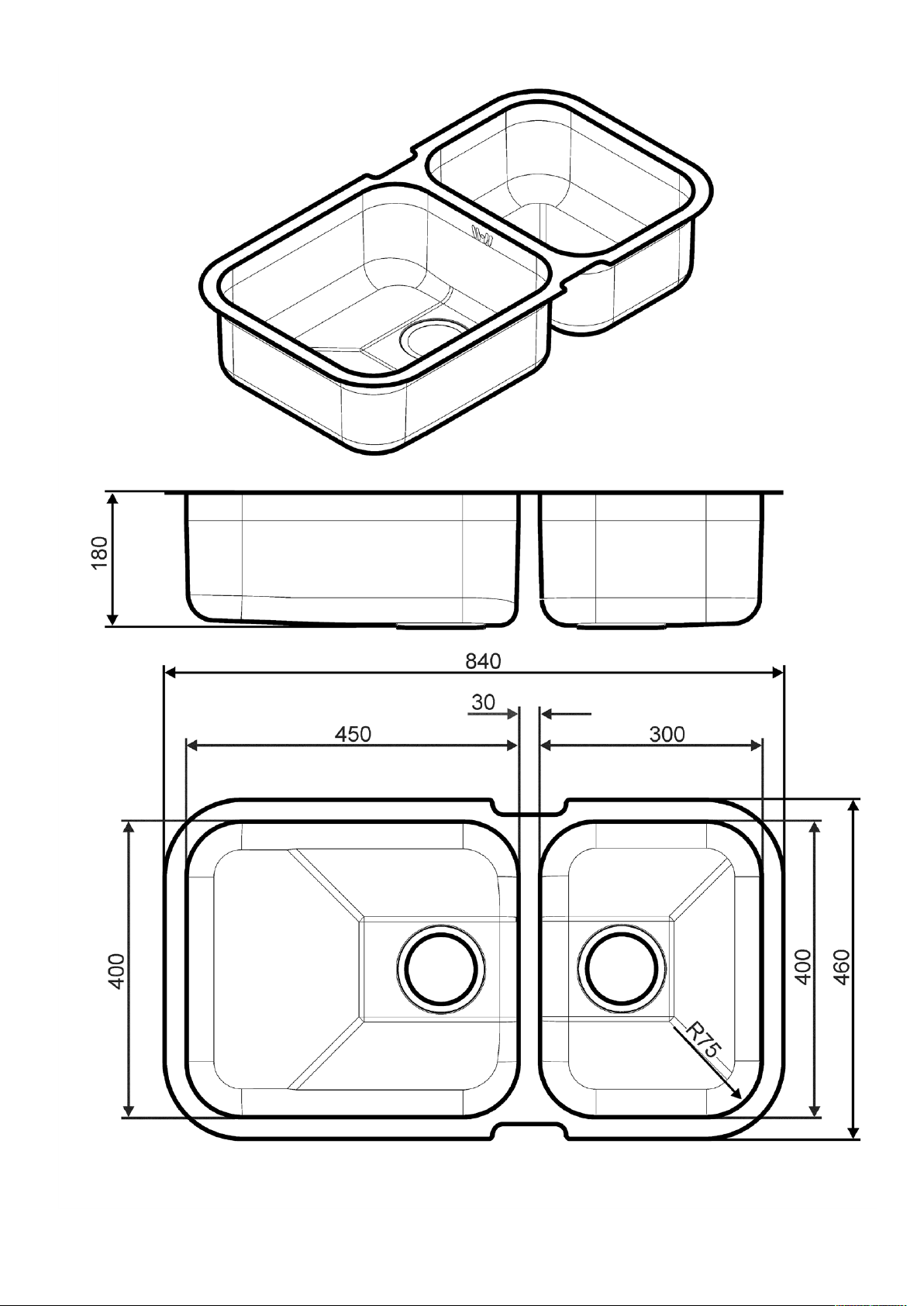

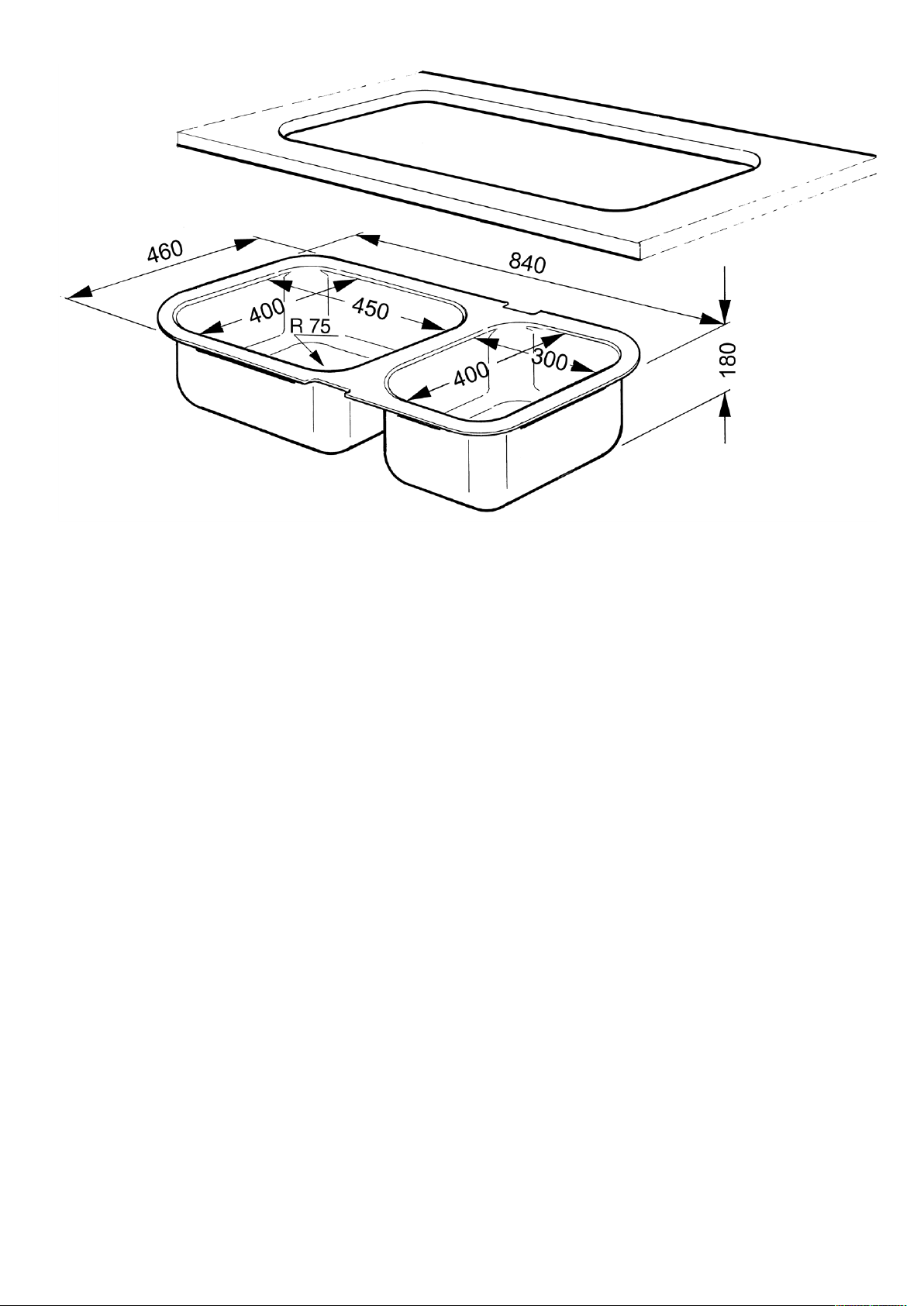

Width (mm): 840 mm • Base unit size: 90 cm • Cutout dimension undermount (mm): 409*789 mm • Frame thickness: 1 mm •
Tap hole diameter: 35 mm • Dividing wall width: 30 mm • No. of clips: 8 • Type of clips: Undermount clip
RH BOWL
Bowl type RH: Traditional • Bowl dimensions, WxDxH (mm): 300 x 400 x 180 mm • Bowl thickness (mm): 0.6 mm • Bowl depth
(mm): 180 mm • Radius corner right bowl (mm): 80 mm • Overflow: Yes, traditional • Strainer position: Side bowl • Strainer
dimension: 3.5"
Smeg UK Ltd. The Magna Building, Wyndyke Furlong, Abingdon, Oxfordshire, OX14 1DZ
Page 2
LH BOWL
Bowl type LH: Traditional • Bowl dimensions LH, WxDxA (mm): 450 x 400 x 180 mm • Bowl thickness LH (mm): 0.6 mm • LH
Bowl depth (mm): 180 mm • Radius corner left bowl: 80 mm • Strainer position LH bowl: Side bowl • Strainer dimension LH
bowl: 3.5"
LOGISTIC INFORMATION
Dimensions of the product (mm): 180x840x460 mm
ACCESSORIES INCLUDED
Accessories for installation: Strainer, Savespace siphon with dishwasher outlet connection, Fixing clips
OPTIONAL
KITFD075: Waste disposal, SinksKITFD050: Waste disposal, Sinks
