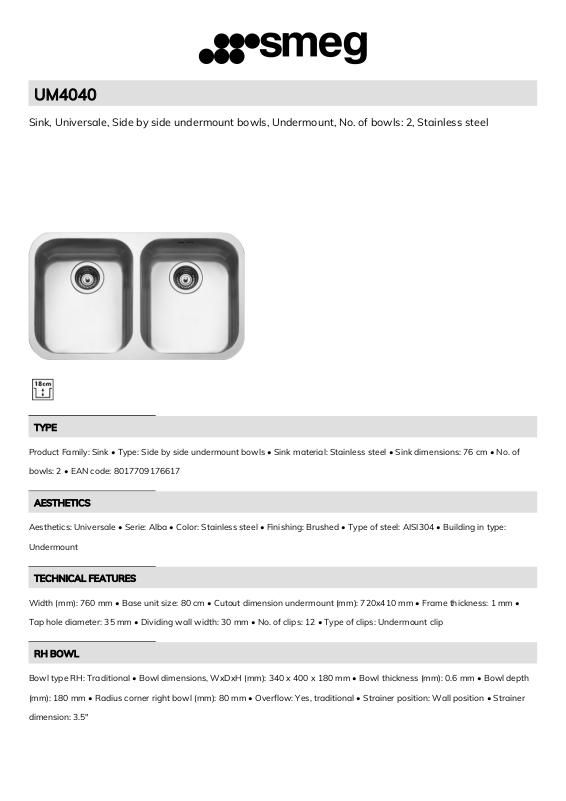

Smeg UM4040 Technical sheet

UM4040

Sink, Universale, Side by side undermount bowls, Undermount, No. of bowls: 2, Stainless steel

TYPE

Product Family: Sink • Type: Side by side undermount bowls • Sink material: Stainless steel • Sink dimensions: 76 cm • No. of

bowls: 2 • EAN code: 8017709176617

AESTHETICS

Aesthetics: Universale • Serie: Alba • Color: Stainless steel • Finishing: Brushed • Type of steel: AISI304 • Building in type:

Undermount

TECHNICAL FEATURES

Width (mm): 760 mm • Base unit size: 80 cm • Cutout dimension undermount (mm): 720x410 mm • Frame thickness: 1 mm •

Tap hole diameter: 35 mm • Dividing wall width: 30 mm • No. of clips: 12 • Type of clips: Undermount clip

RH BOWL

Bowl type RH: Traditional • Bowl dimensions, WxDxH (mm): 340 x 400 x 180 mm • Bowl thickness (mm): 0.6 mm • Bowl depth

(mm): 180 mm • Radius corner right bowl (mm): 80 mm • Overflow: Yes, traditional • Strainer position: Wall position • Strainer

dimension: 3.5"

LH BOWL

Bowl type LH: Traditional • Bowl dimensions LH, WxDxA (mm): 340 x 400 x 180 mm • Bowl thickness LH (mm): 0.6 mm • LH

Bowl depth (mm): 180 mm • Radius corner left bowl: 80 mm • Overflow LH bowl: Yes, traditional • Strainer position LH bowl:

Wall position • Strainer dimension LH bowl: 3.5"

LOGISTIC INFORMATION

Dimensions of the product (mm): 180x760x450 mm

ACCESSORIES INCLUDED

Accessories for installation: Strainer, Savespace siphon with dishwasher outlet connection, Fixing clips

OPTIONAL

KITFD100: Waste disposal, SinksKITFD075: Waste disposal, SinksKITFD050: Waste disposal, SinksCOLPTX: Drainer, Sinks3713:

Siphon, SinksRND1V: Rondò waste kit, SinksDB34: Basket, Sinks
